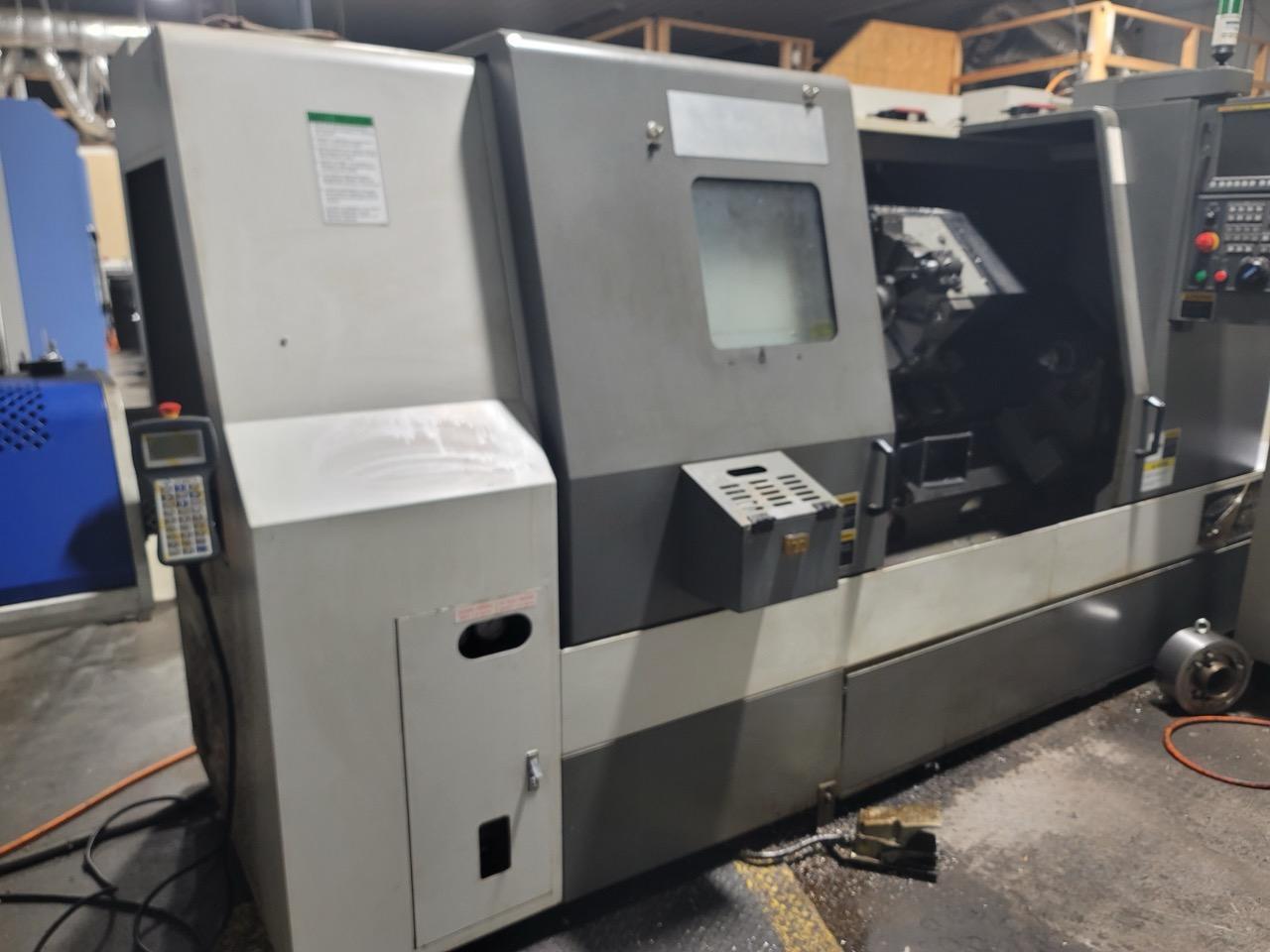

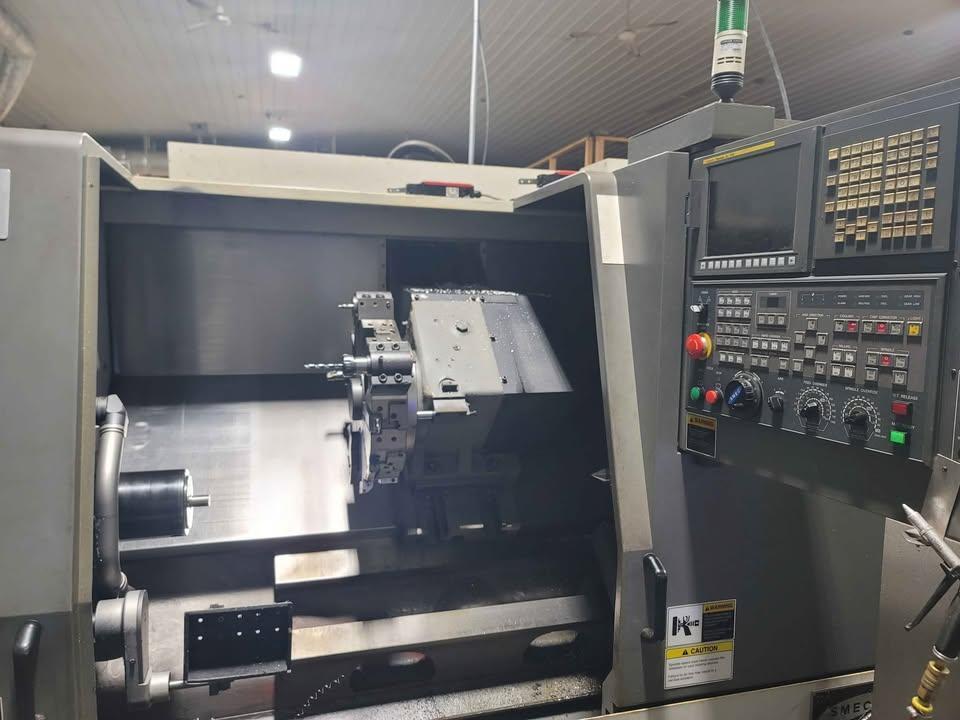

Samsung SL30/1000 CNC Lathe, 2011 – Iemca Barfeed, Tool Presetter, 3″ Thru Spindle
Brand
Category
Type
Model
SL30/1000
Stock #
129136
Year
2011
Condition
Not specified
Location
Not specified
|
Chuck Size: 12″
Bar Capacity: 3.5″
X-Axis Travel: 9.06″
Z-Axis Travel: 43.30″
Rapid Traverse (X/Z): 709 ipm / 945 ipm
Max Turning Diameter: 15.75″
Swing Over Bed: 25.59″
Swing Over Cross Slide: 18.90″
Maximum Turning Length: 41.34″
Spindle Speed: 2,500 RPM
Spindle Motor: 30 HP / 25 HP (cont./peak)
Spindle Nose: A2-8
Spindle Bore: 4.13″
Draw Tube ID: 3.58″
Guideways: Box way
Bed Type: 45° slant bed
Repeatability (X/Z): ±0.00012″ / ±0.00039″

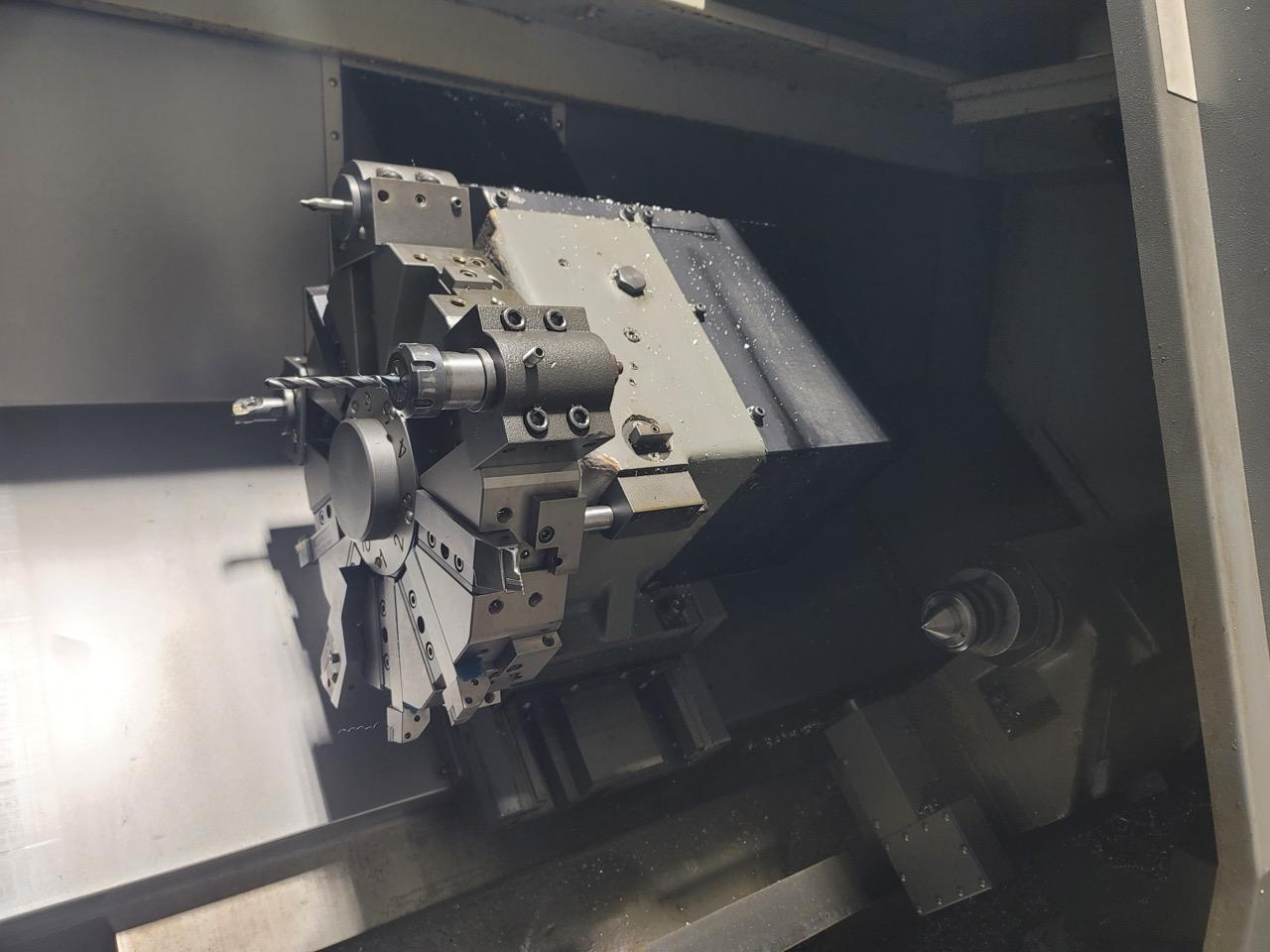

Tool Stations: 12 (OD & ID capable)

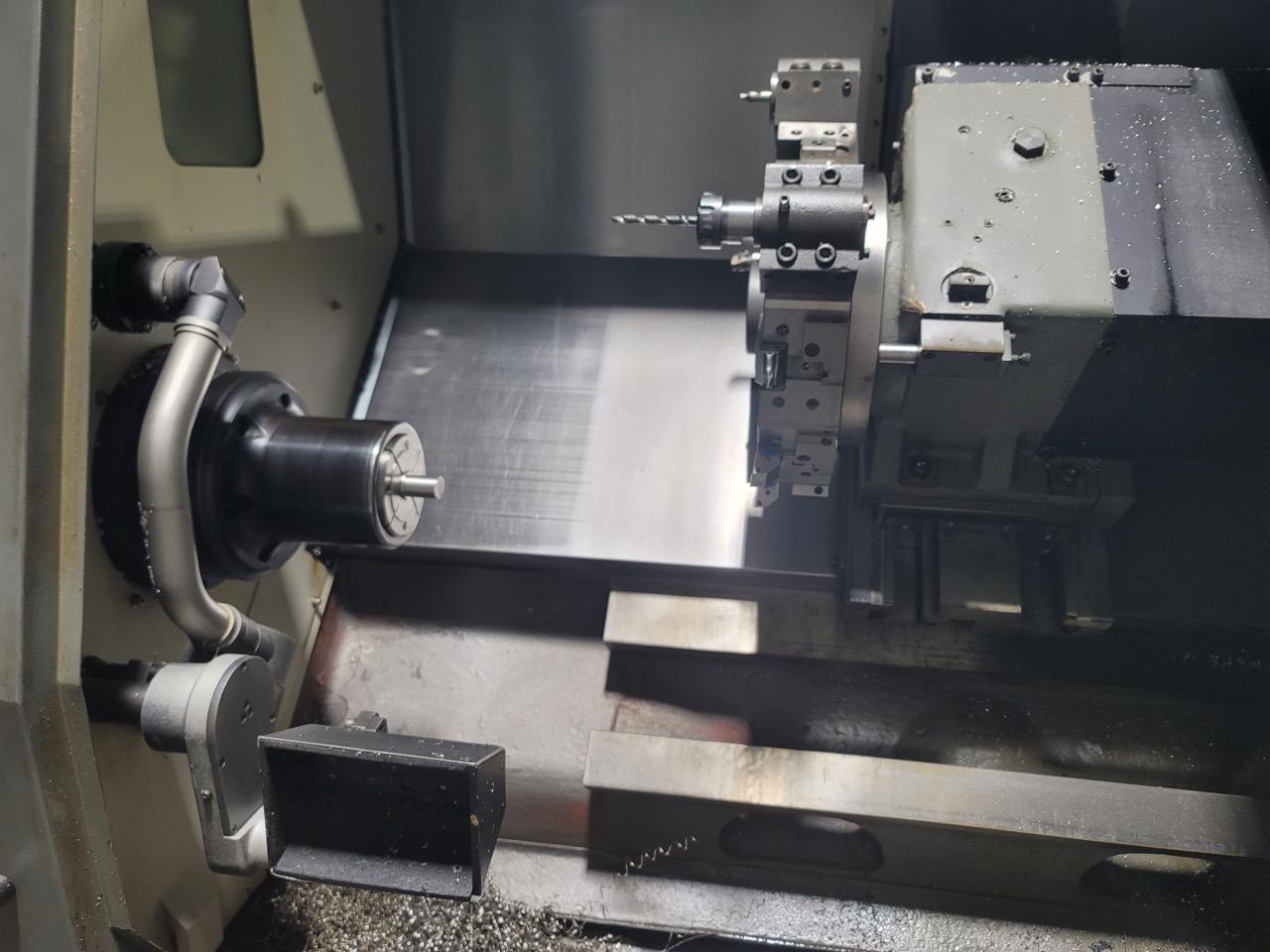

Tailstock: Yes

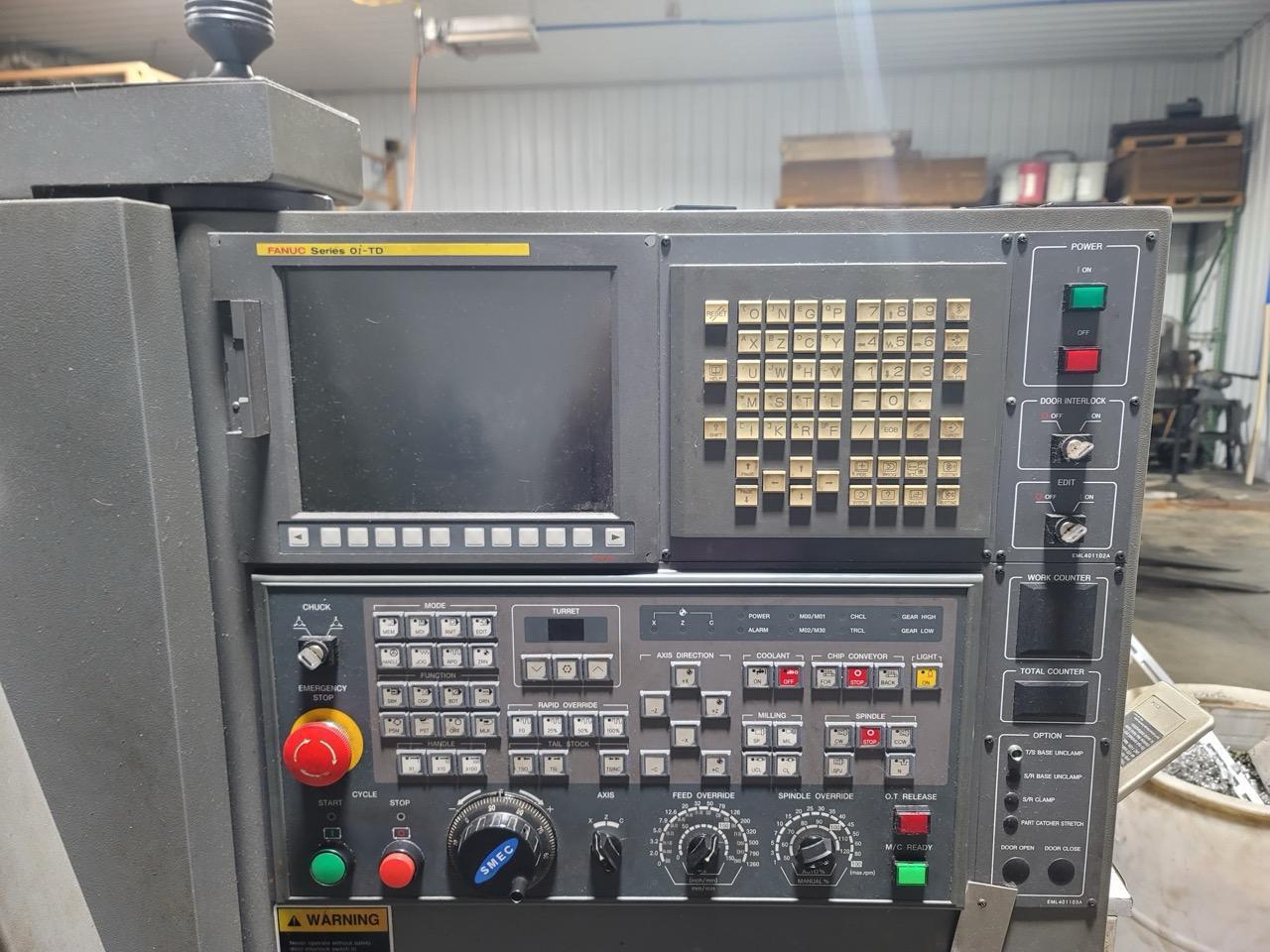

Control: Fanuc Oi-TD CNC

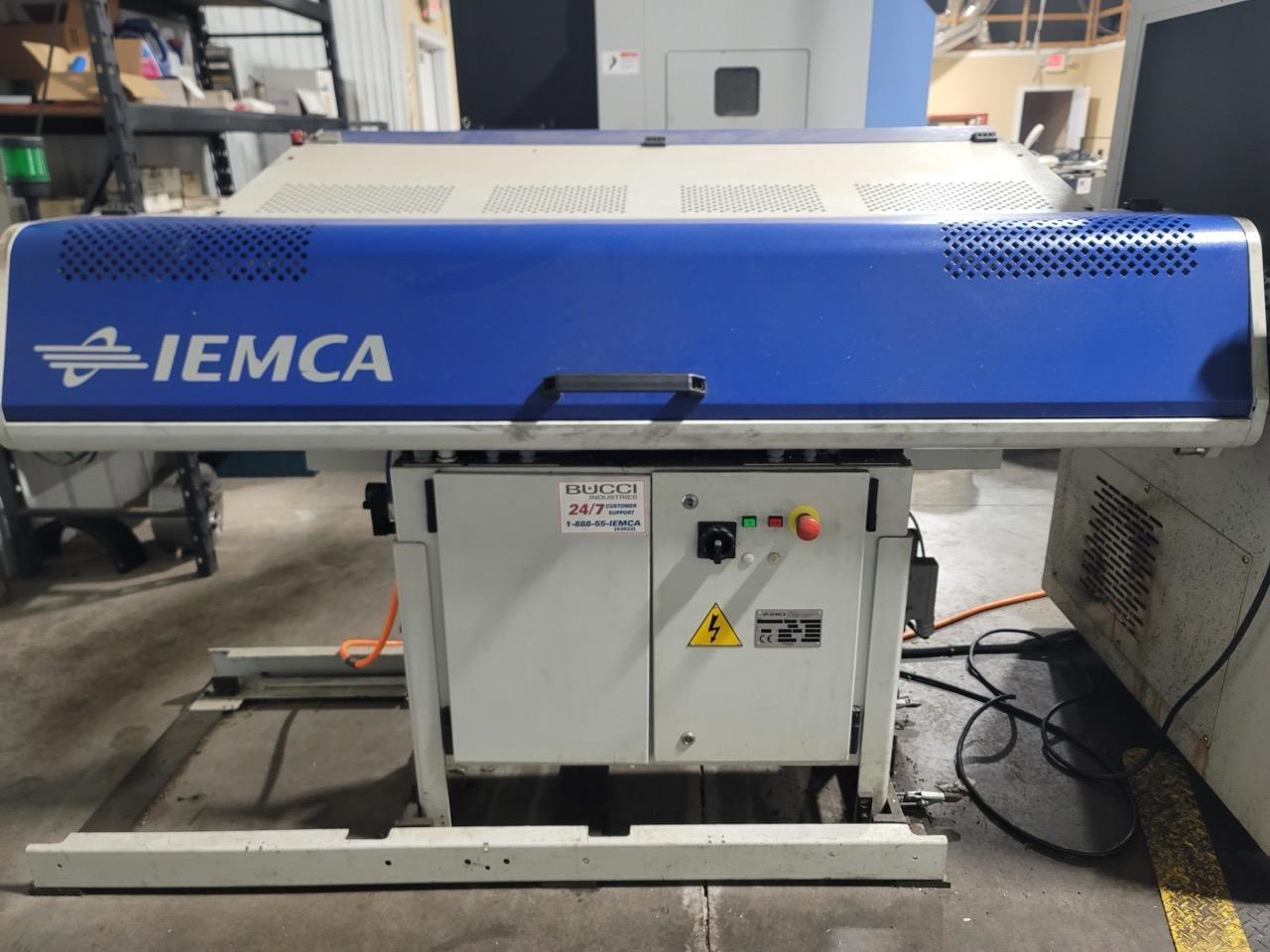

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3″ thru spindle, tailstock, 10″ & 12″ Samschully chucks, S30 collet closer & pads, hard & soft jaws, spindle liners, parts catcher, chip conveyor, tool presetter, various tools and an Iemca barfeeder All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
