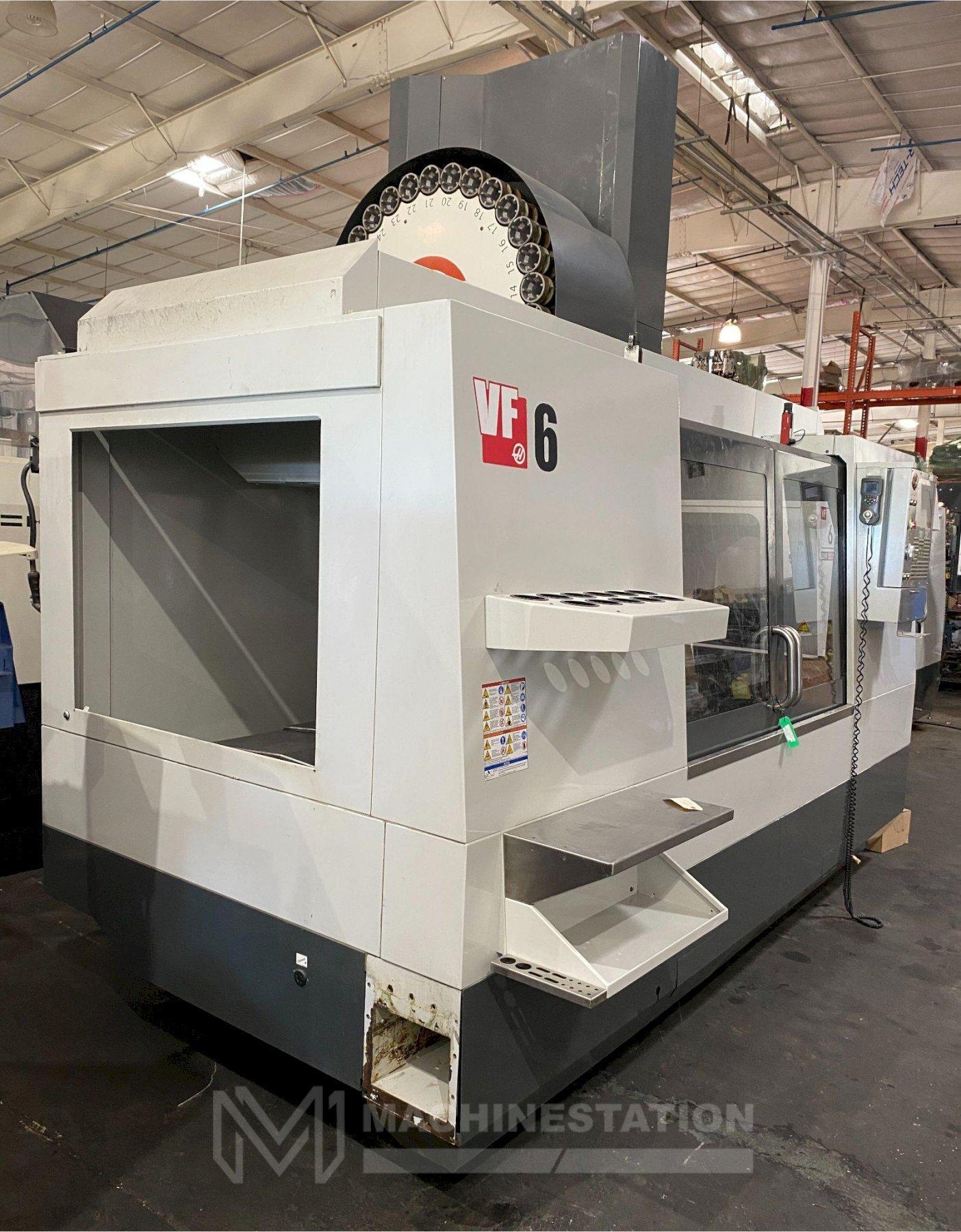

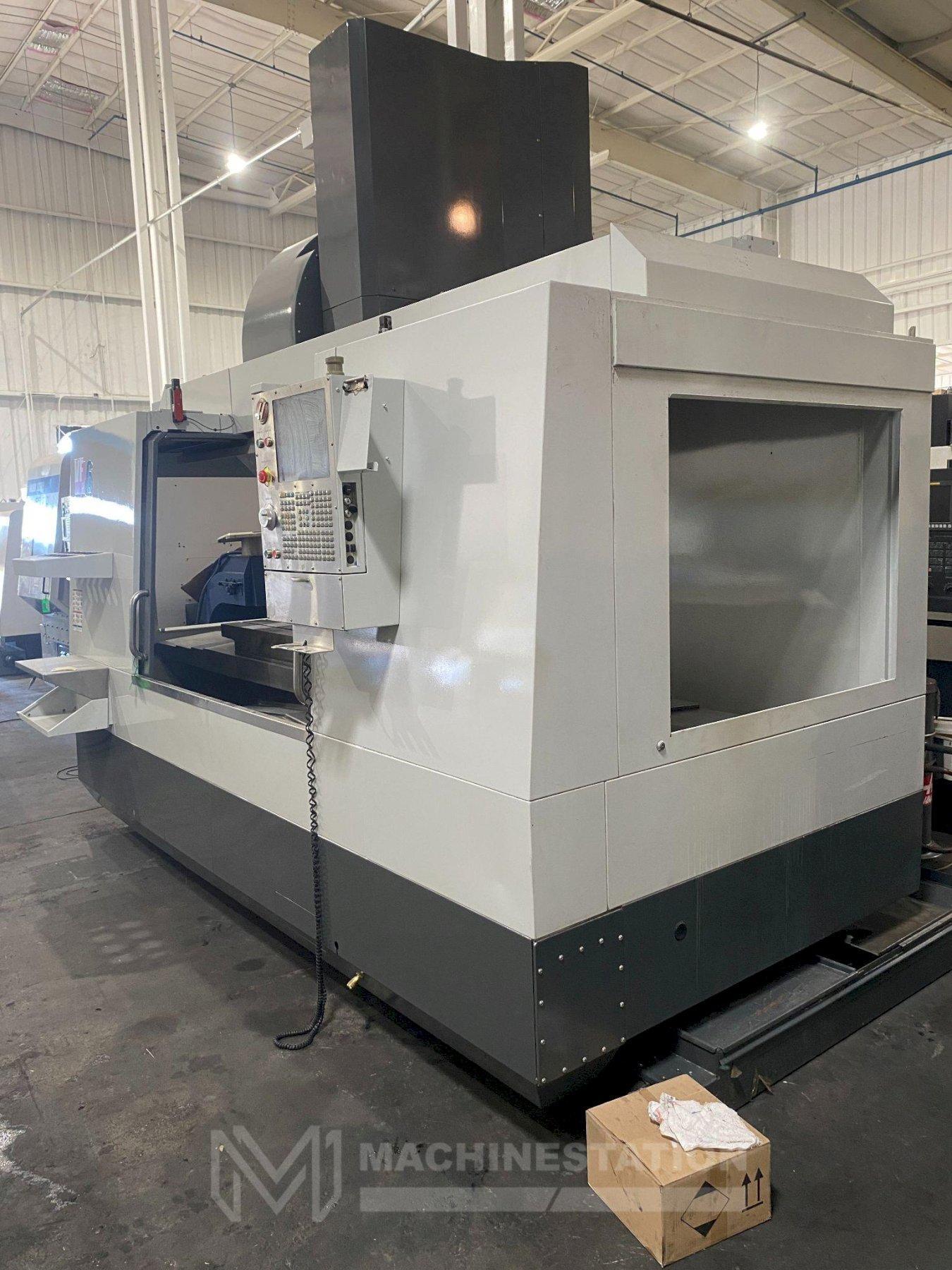

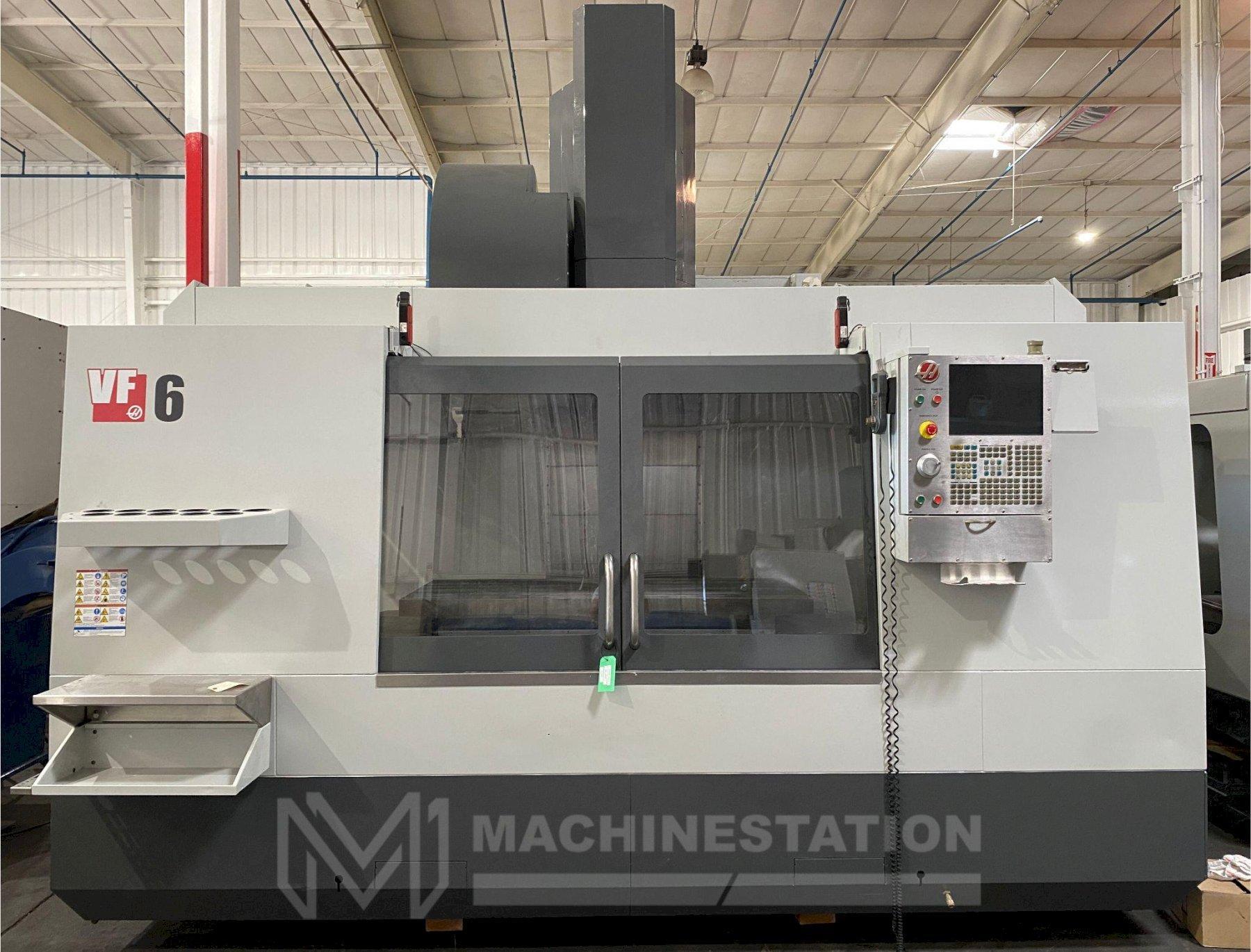

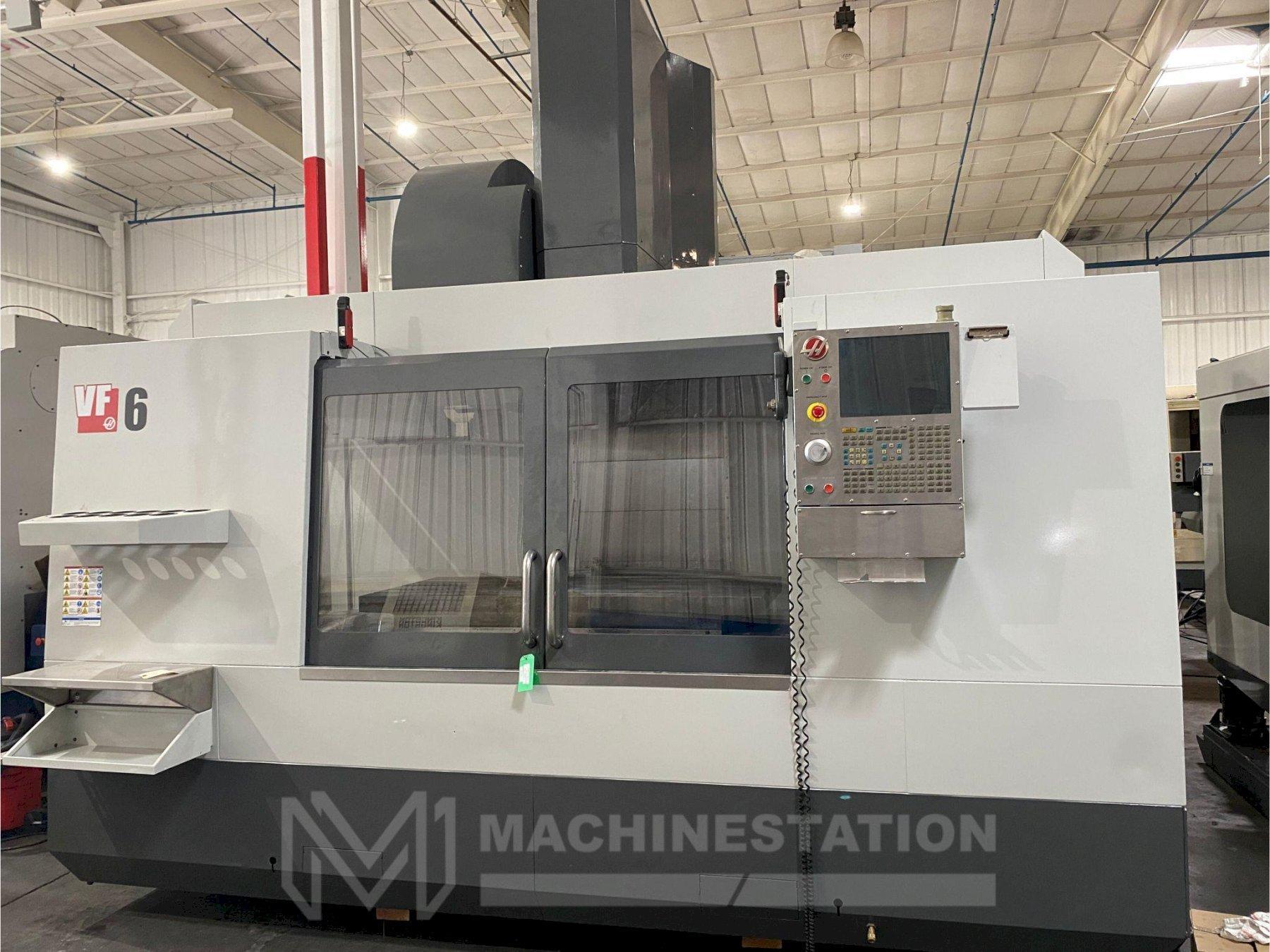

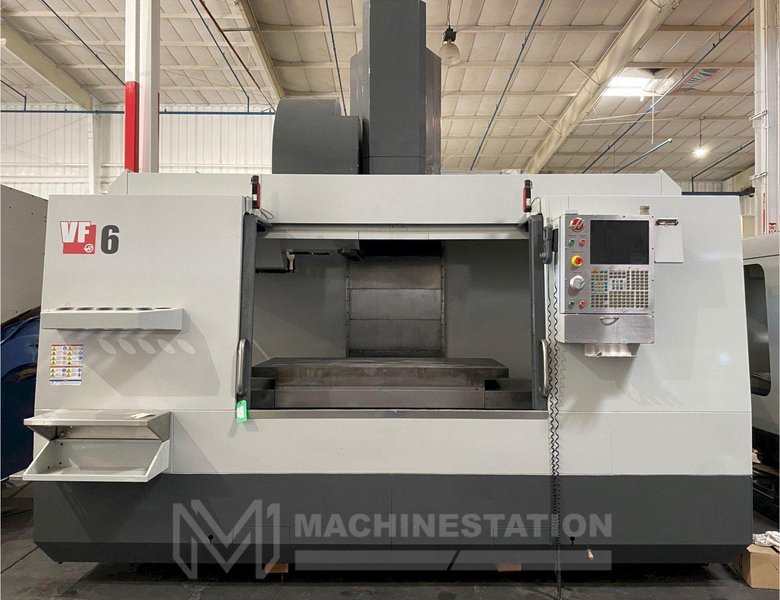

Haas VF-6/50 CNC Vertical Machining Center – 4th Axis Ready 50 Taper Mill

Haas VF-6/50 CNC Vertical Machining Center – 4th Axis Ready 50 Taper Mill

Name: Haas VF-6/50 CNC Vertical Machining Center – 4th Axis Ready 50 Taper Mill
Brand: HAAS
SKU: 112430
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	HAAS
Model:	VF-6/50
Year:	2012
Condition:	Used – Good

Features:

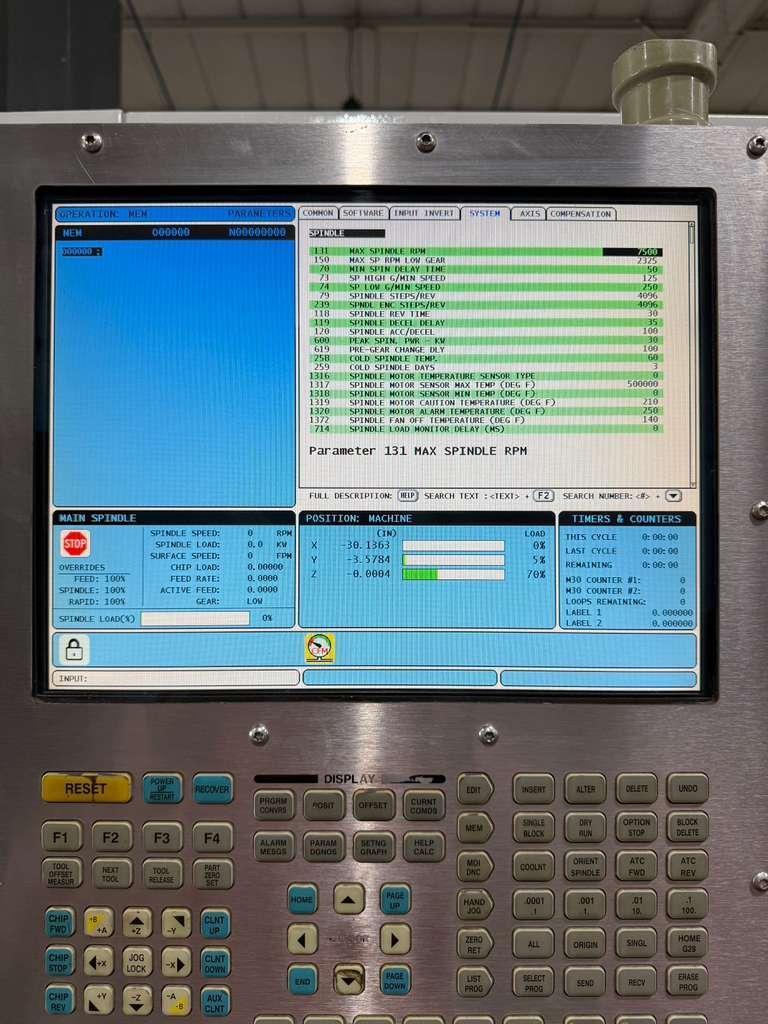

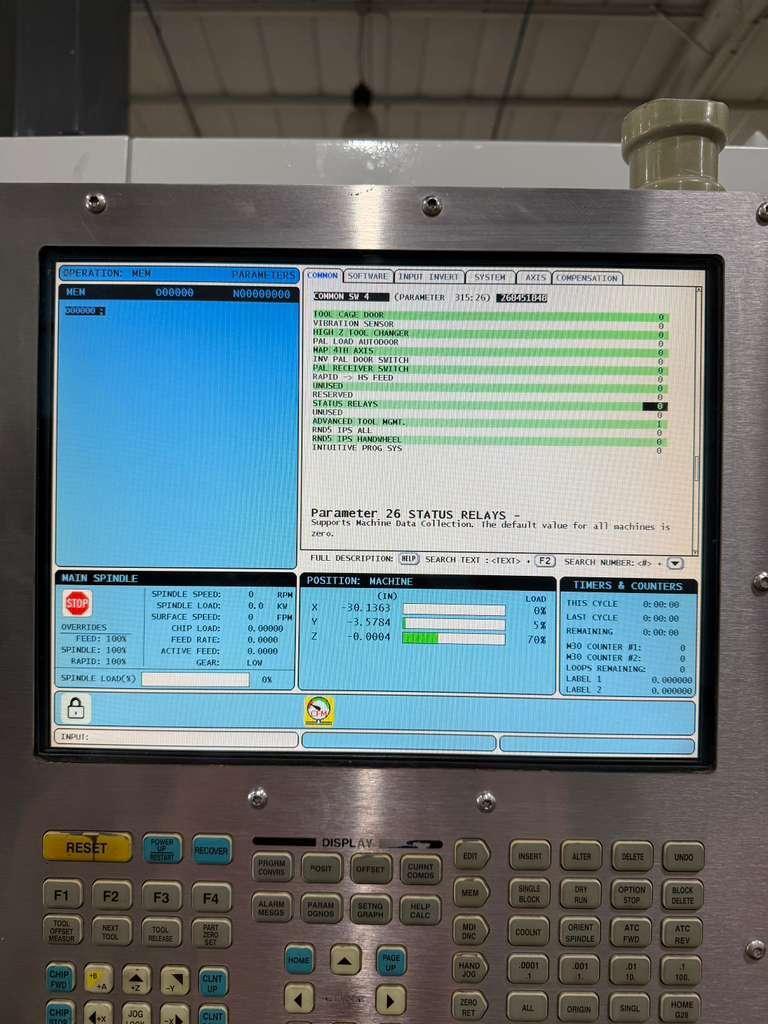

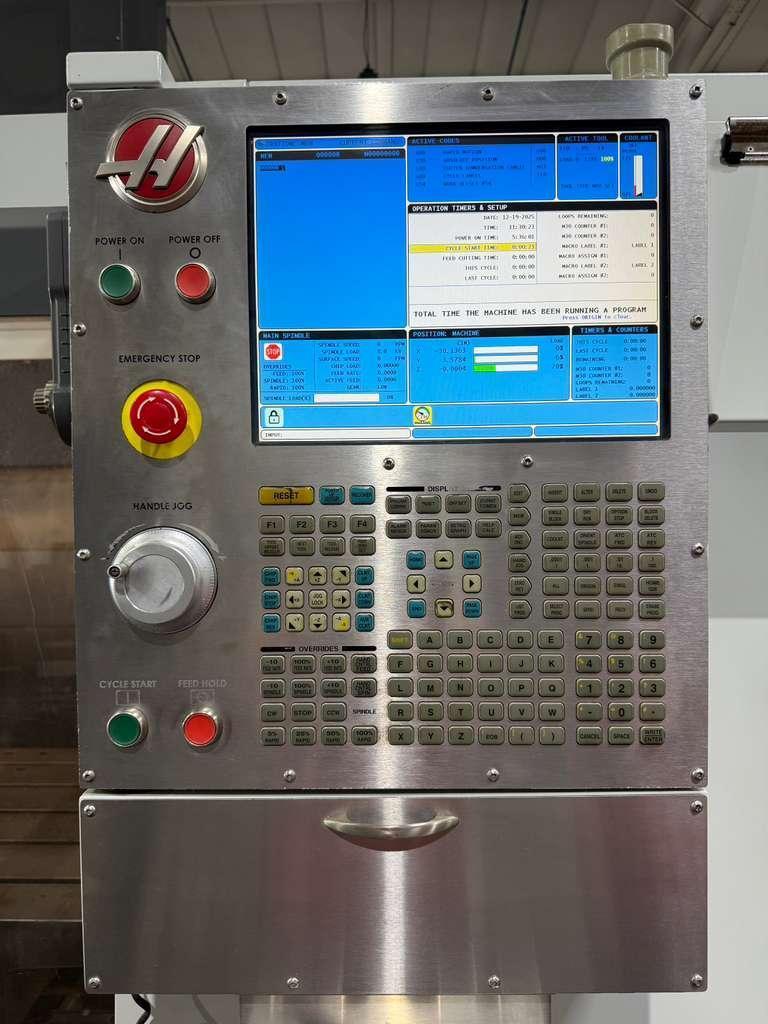

Haas CNC Control
4th Axis Drive and Wiring (Upgraded $3,595 value Included)
7500 RPM High Torque Spindle
30 HP 2 Speed Gear Drive
Through Spindle Coolant (Upgraded $7,095 value Included)
30 Station Automatic Tool Changer
MPG Handwheel Control
Rigid Tapping
Programmable Coolant Nozzle

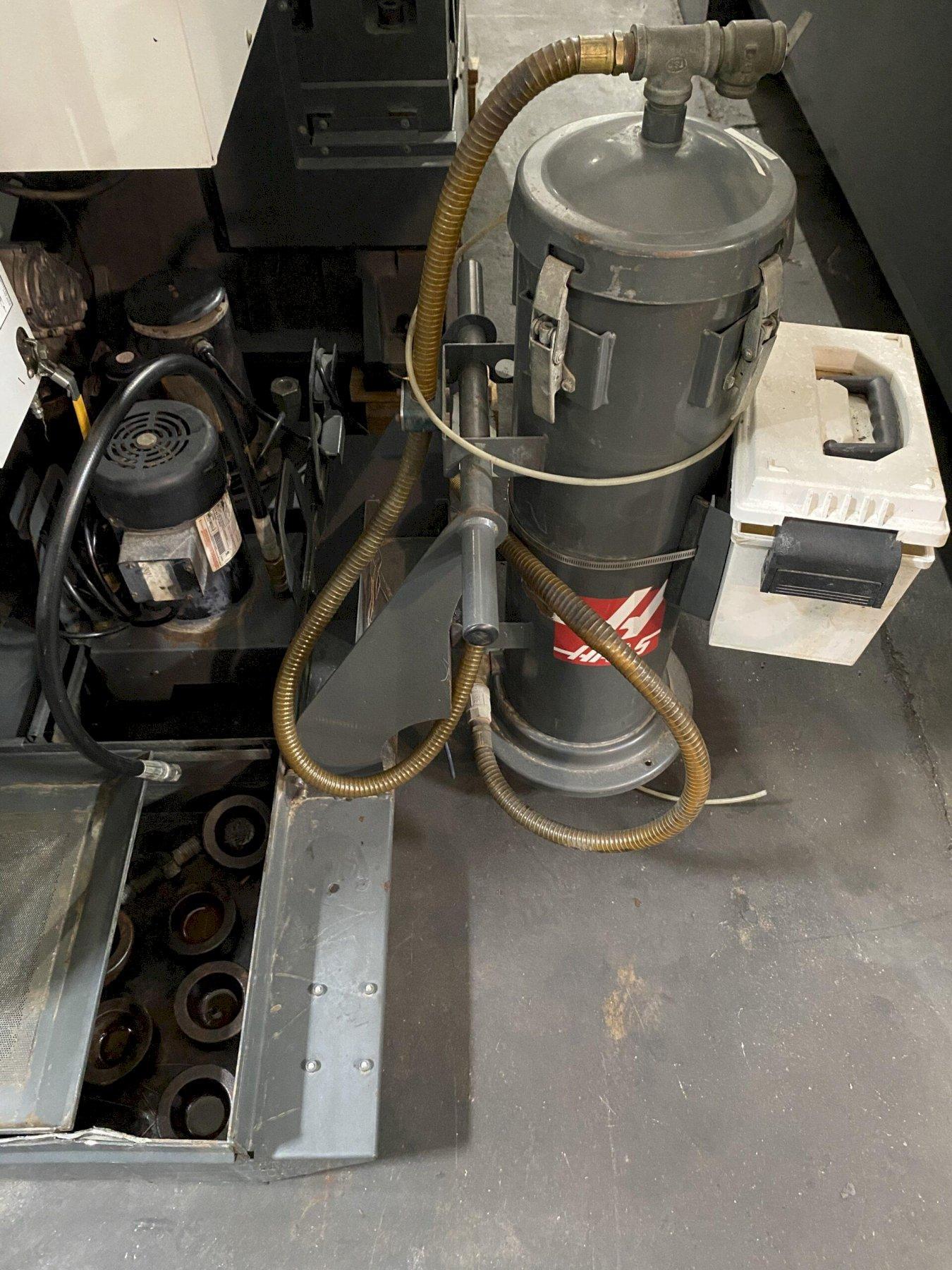

Auxiliary Coolant Filter System (Upgraded $3,195 value Included)
Advance Tool Management
Enable Extended Memory
Floopy Enable

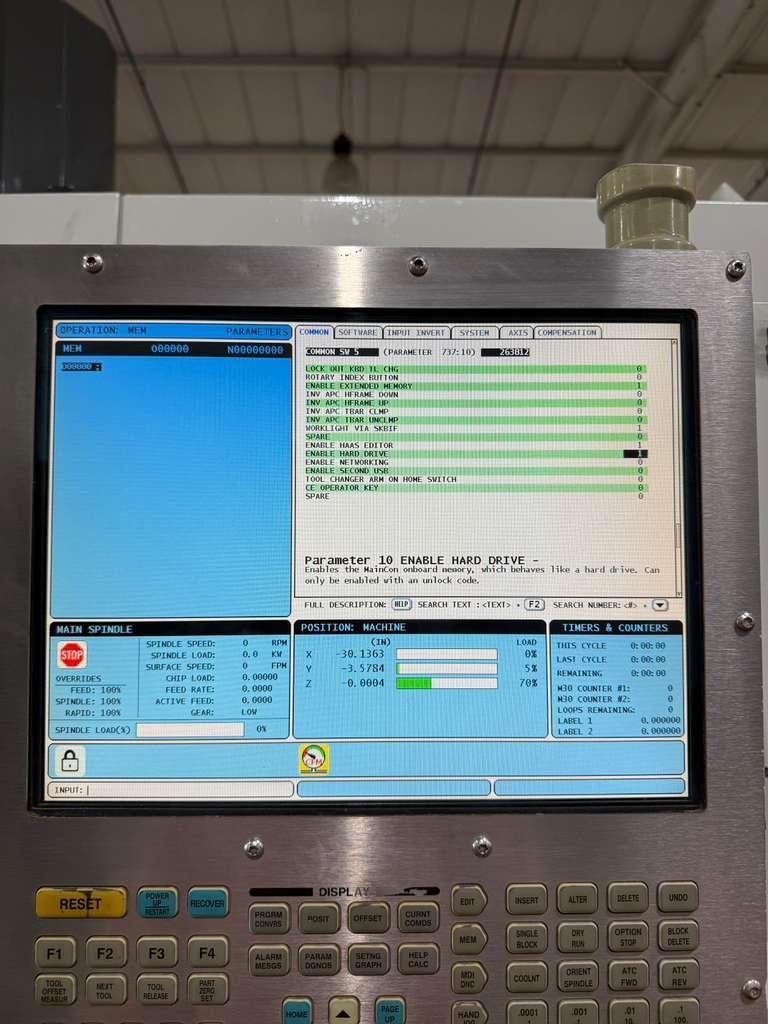

Hard Drive Enable
Coolant System
Levelling Pads
(4) Chip Augers

Travels:
X-Axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5″ – 35″

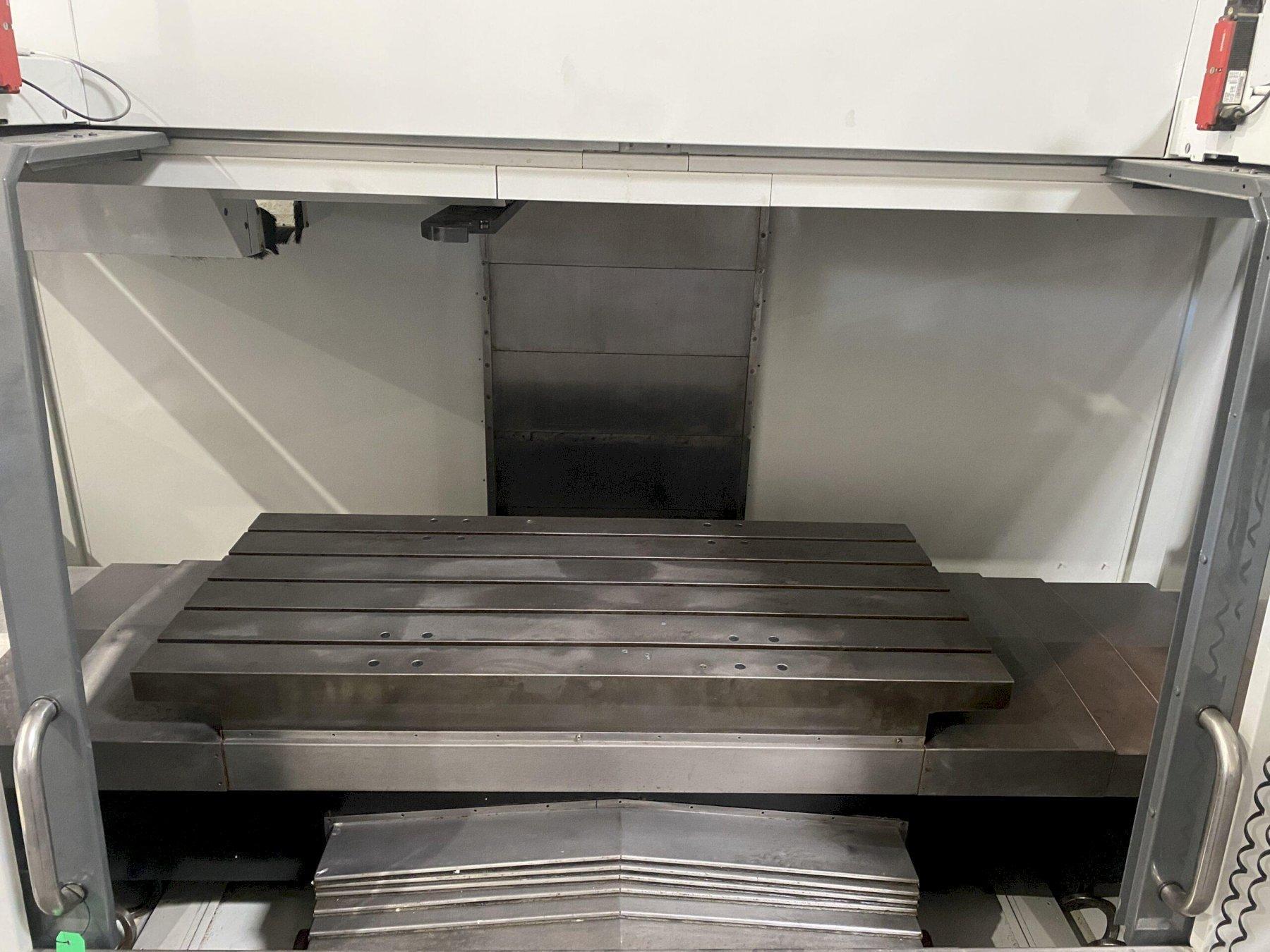

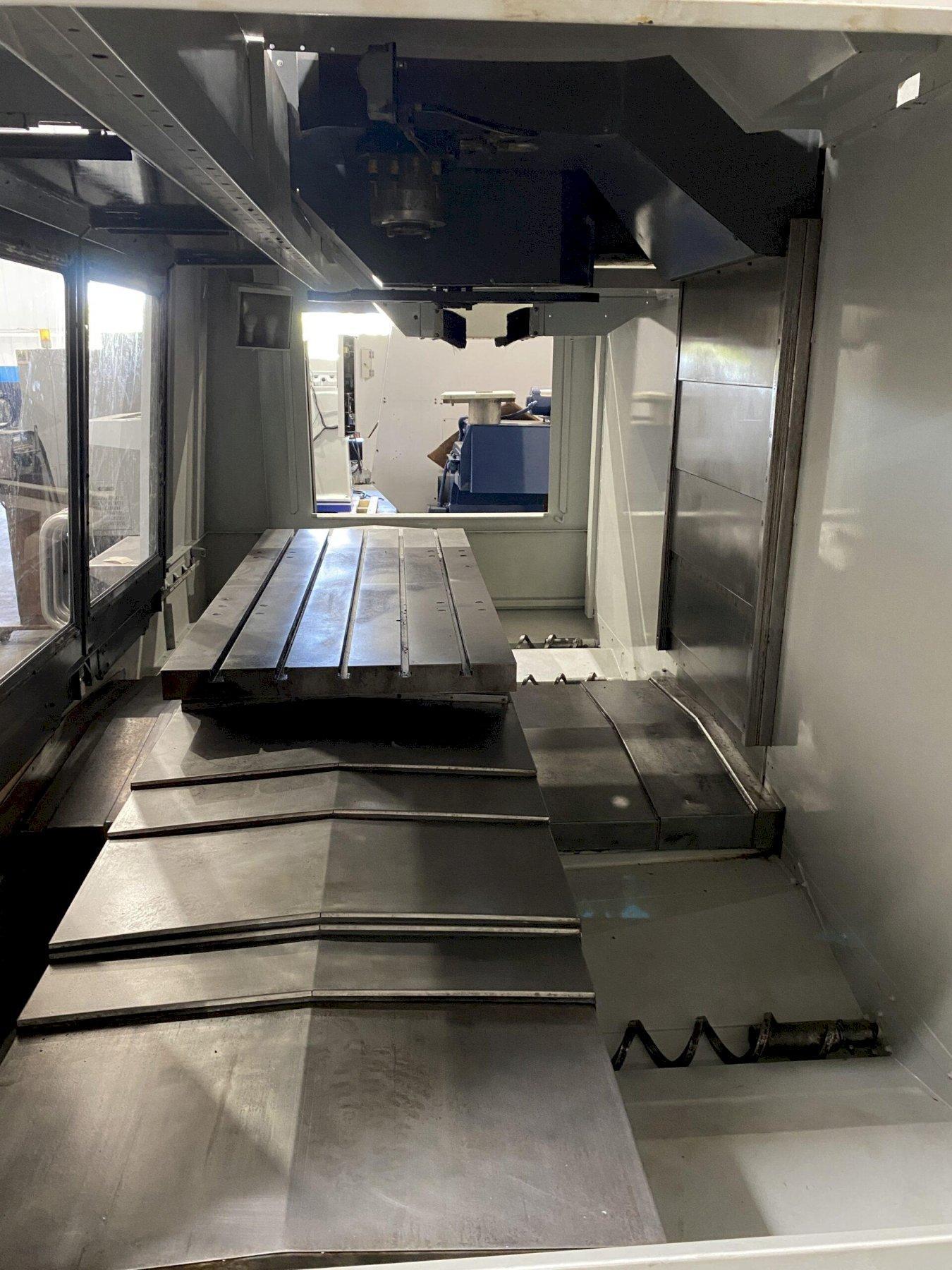

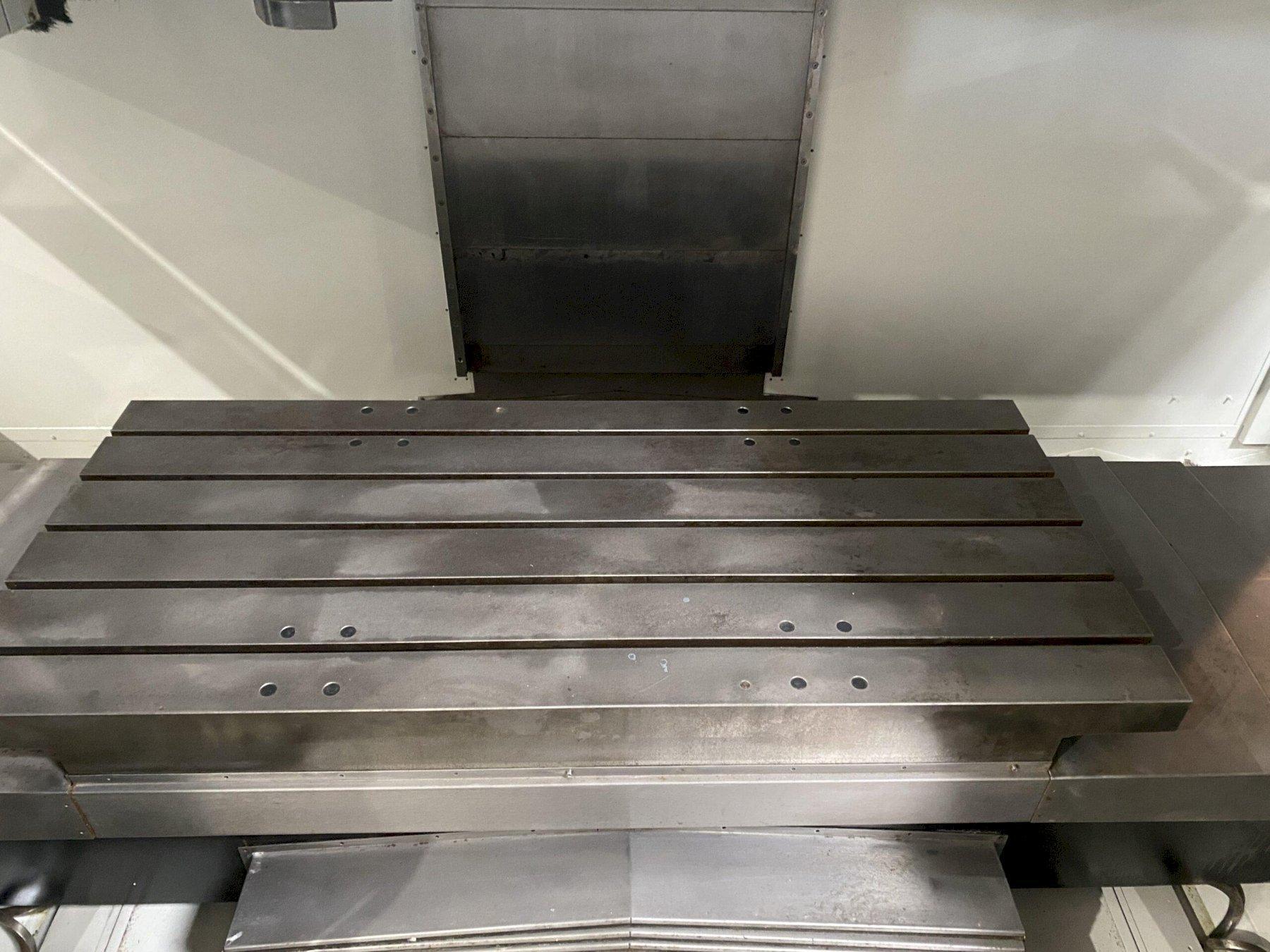

Table:
Length: 64″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

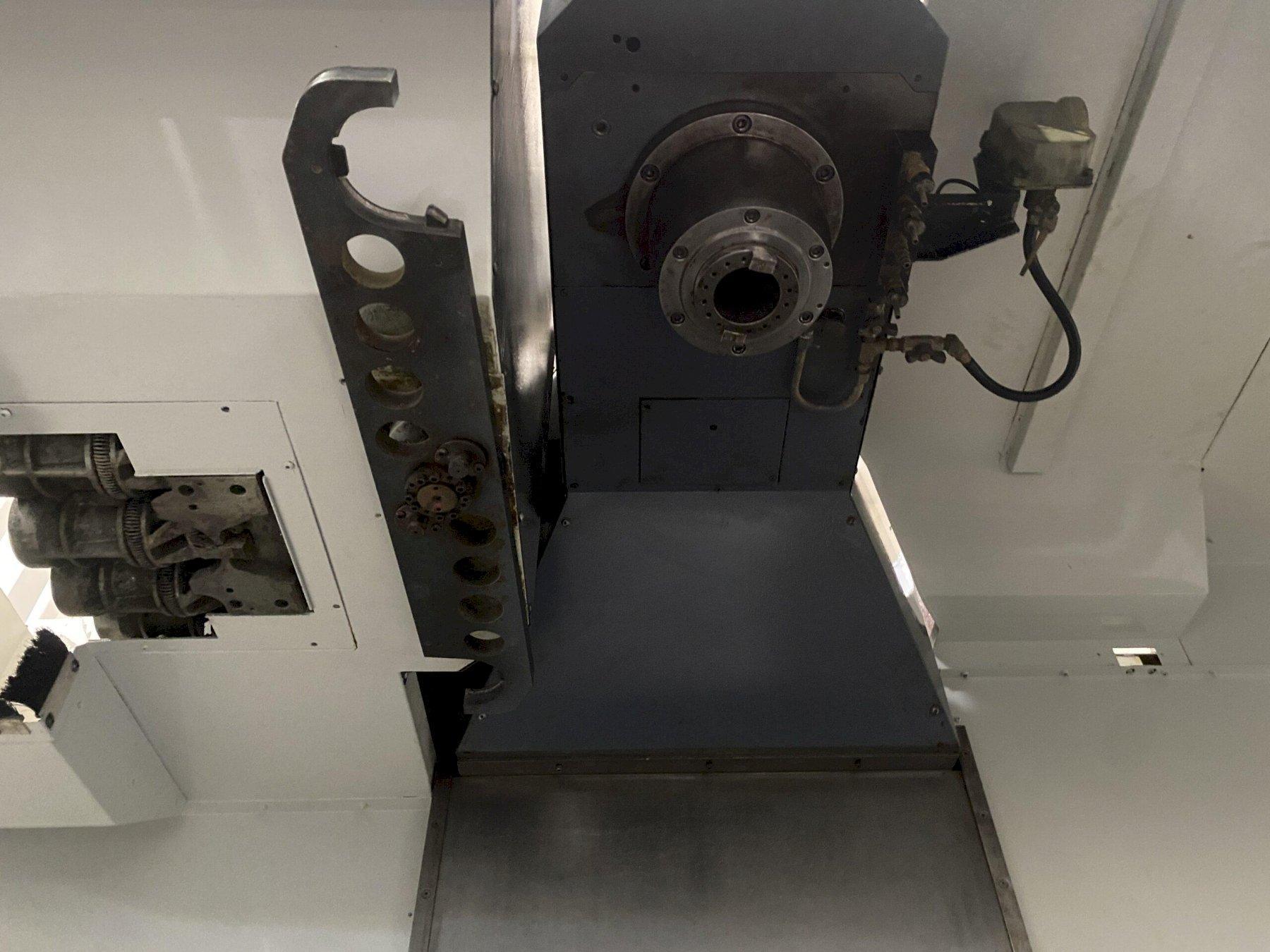

Spindle:
Taper Size: CAT-50
Speed Range: 7500 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 340 ft-lb @ 700 RPM

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 30 lbs
Max Tool Diameter (Full): 4″
Max Tool Diameter (adjacent empty): 10″
Max Tool Length: 16″
Tool Changing Time: 4.2 Seconds
