10,000 LB. x 10" W x 1/4" CAUFFIEL EDGING LINE. STOCK # 1219725

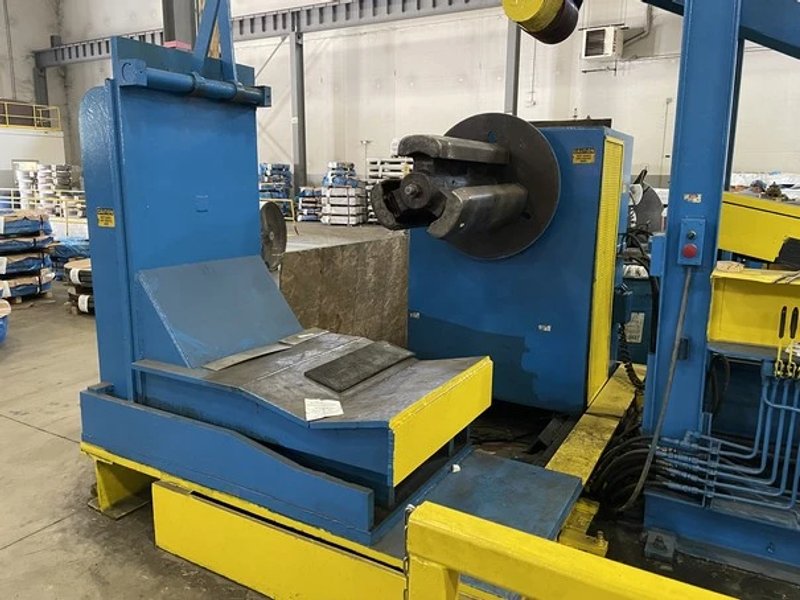

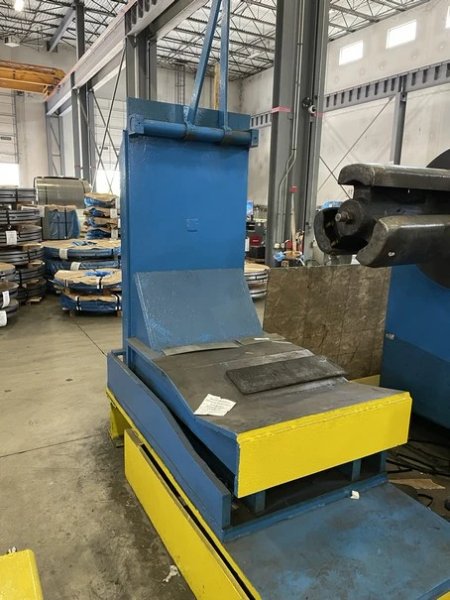

-Coil Lift:
Lift only, no travel
30" Wide Deck
5" Dia. x 18" Stroke Hydraulic Lift Cylinder
2 Coil Keepers

-Uncoiler:
16" - 20" Expansion Range
Hydraulic Expansion
Air Brake
Hydraulic Threading Drive
Hydraulic Slide Base
Self-contained Hyd unit

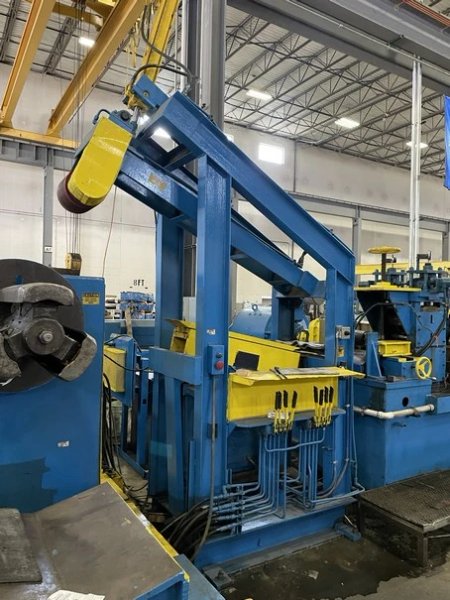

-Peeler / Holddown Unit:
14" W Peeler Blade
Hydraulic Cylinders for up/down, in/out movement
14" Face x 6" Dia. Rubber Coated Holddown Roll
Hydraulic Cylinder Raise/Lower

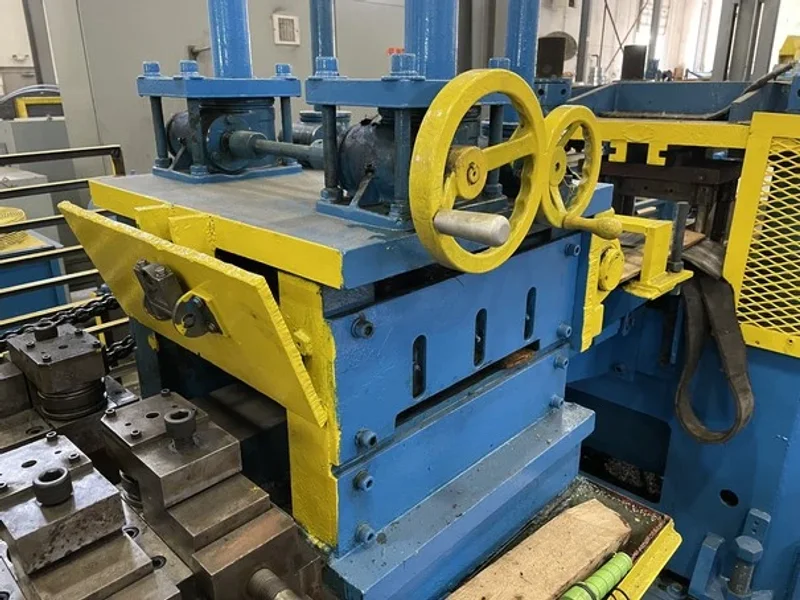

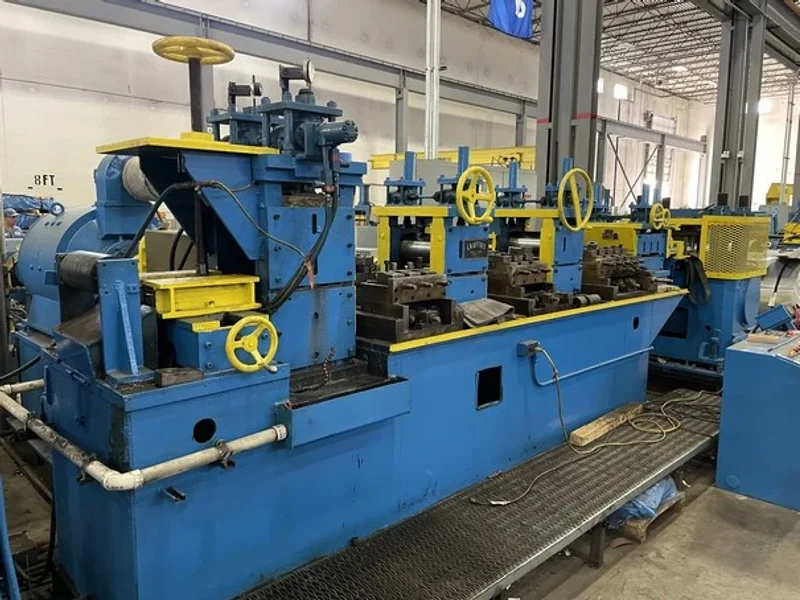

-Edging Unit:
Entry Passline Roll
Entry Edge Guides,
Manual Handwheel Adjustment
3 Roll set per bank
Manually positioned strip holddown screw

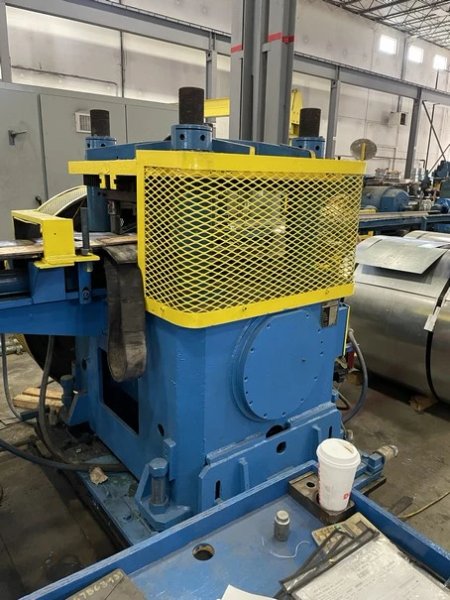

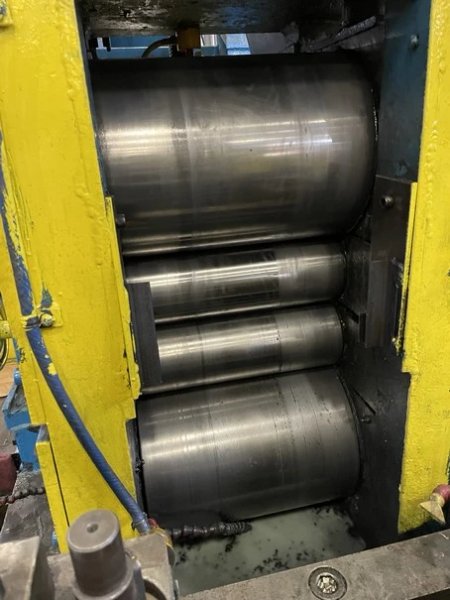

4 HI Rolling Mill:
4.5" Dia. Work Roll, 13" Face
10" Dia. Backup Roll, 13" Face
Hydraulic Motor Adjusted Screwdowns
200 HP DC Motor Driven, W/Blower
Coolant pump and tank in the base
Free standing cooling unit

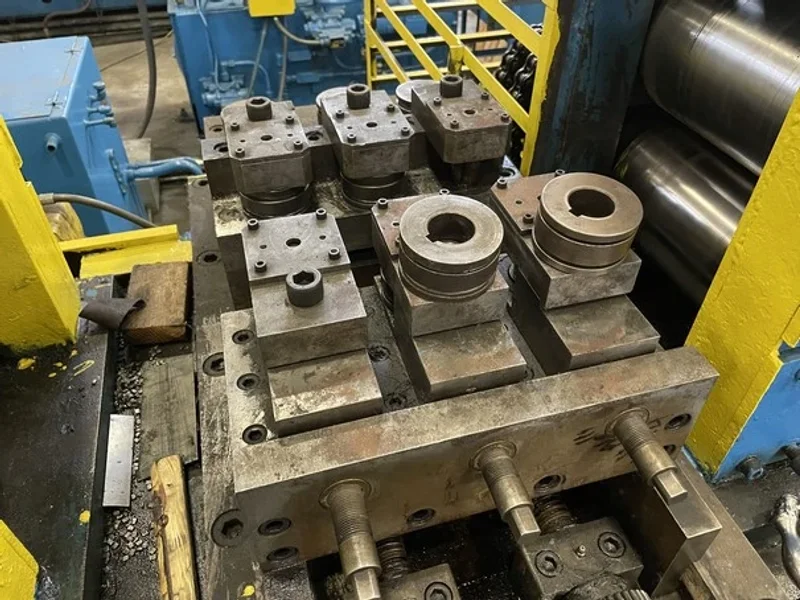

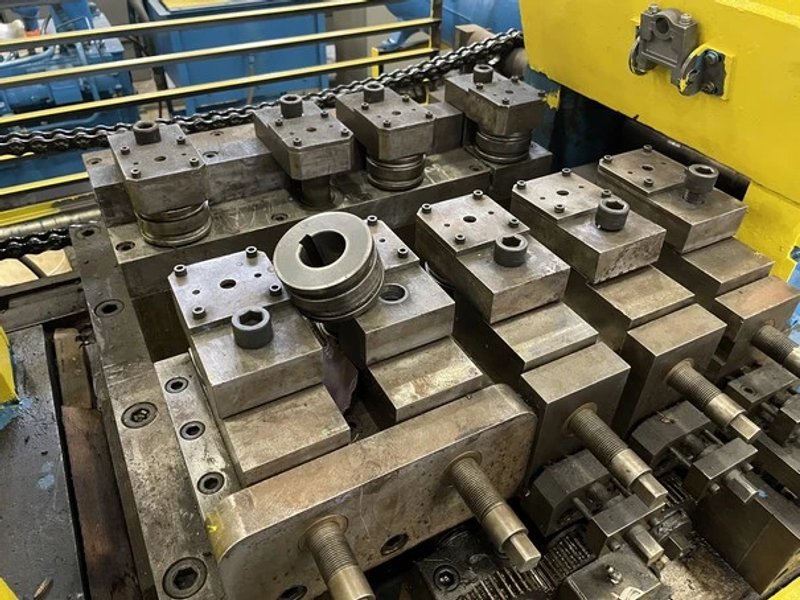

Edging Die Set #1
3 Roll set per bank
"Missing the top die retainer block on 3 units"
Single point adjustment for both banks of dies
Operators side each die is independently adjustable

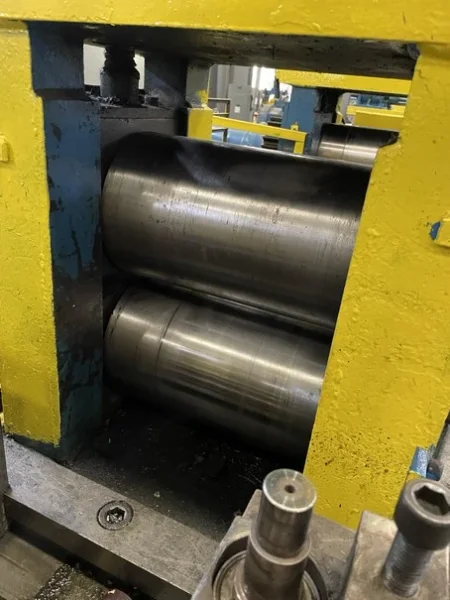

2 HI Mill #1
8" Dia. Work Roll,
Manual screw down Adjustment
Hydraulic Motor Driven, bottom roll

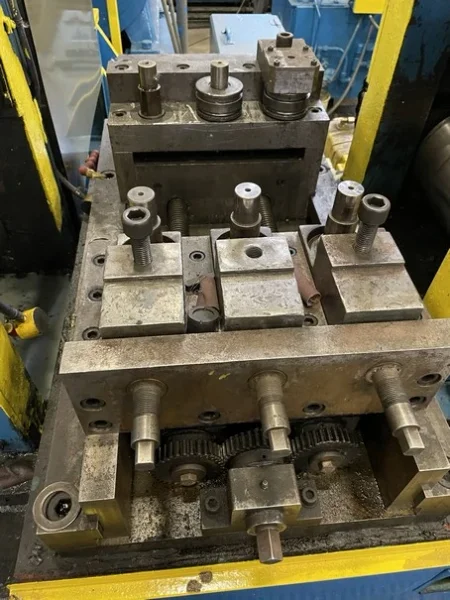

Edging Die Set #2
3 Roll set per bank
Single point adjustment for both banks of dies
Operators side each die is independently adjustable
2 HI Mill #2
8" Dia. Work Roll,
Manual screw down Adjustment
Hydraulic Motor Driven, bottom roll
Decambering Section
Operators side bank; 5 sets of dies
Drive side bank; 4 sets of dies
7 total dies make up the decambering section
Dies #8 and #9 are set up as an edging section and are
independently adjustable
Single point adjustment for the entire bank in and out
Straightener Unit
4" Dia. Rolls, 3 over 2
Bottom Rolls chain driven from 2 HI Mill Stand
Exit Passline Roll
Overall Size: 16' L x 5' Wide

-4 Post Cutoff - Proma:
60 Ton Capacity
Model 60 CP-2
13" Shut Height
4" Stroke
25 Cuts/Min.
11" Die Space
Shear Blade w/Hydraulic Cylinder Die return
15 HP AC Motor, 1200 RPM
Exit Passline Roll

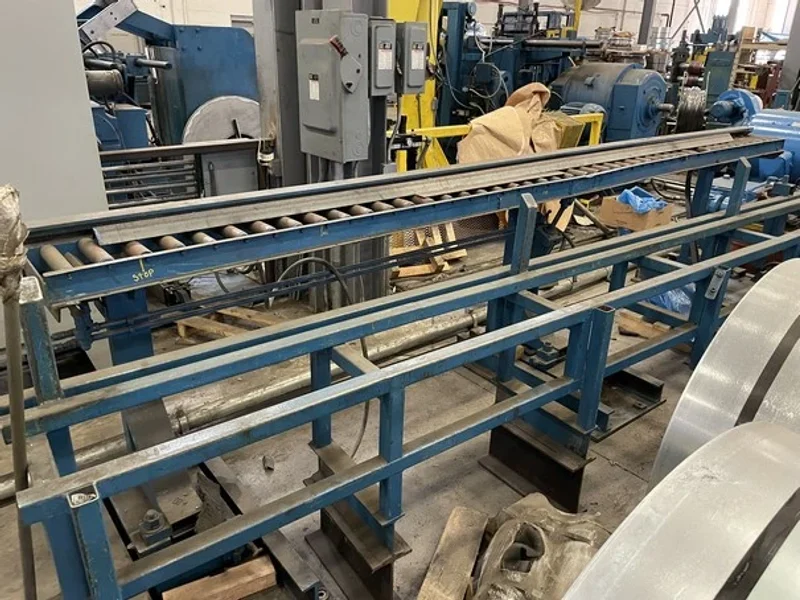

-Runout Conveyor Section: 15' long
Hydraulic Cylinder dump

-Stacker Table: 15' Long

-Drag Tension Stand:
Air Cylinder for Pad Tension

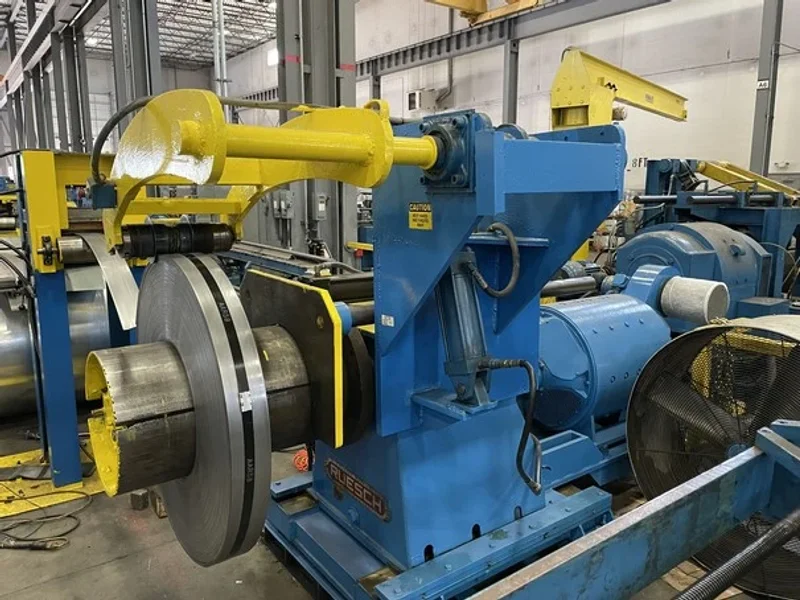

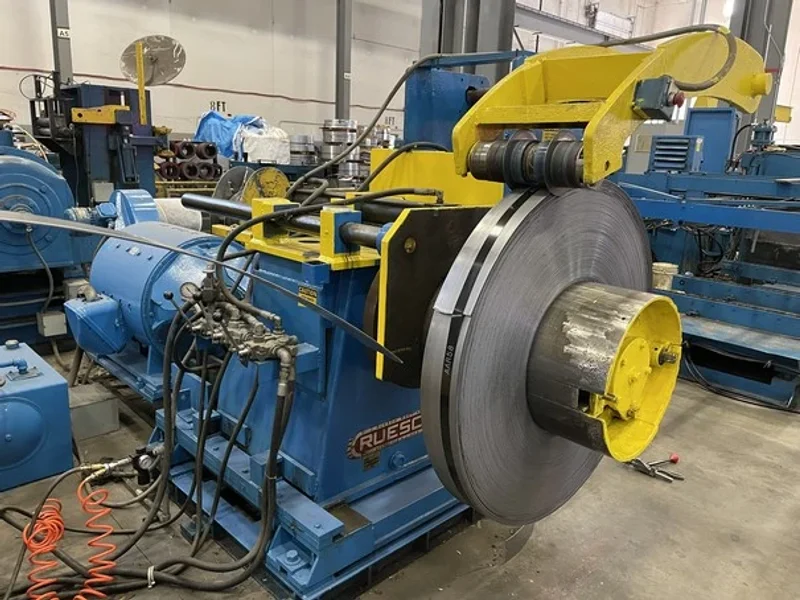

-Recoiler - Ruesch:
Model: N2915
Serial: 6229
20" Dia. x 32 Face Mandrel
Manual Grip & Expansion
Hydraulic Slide Base
Hydraulic Pushoff
Overarm Separator
125 HP DC Motor, 650 / 1500 RPM, 400V, W/Blower
Internal Reducer w/24.77:1 ratio

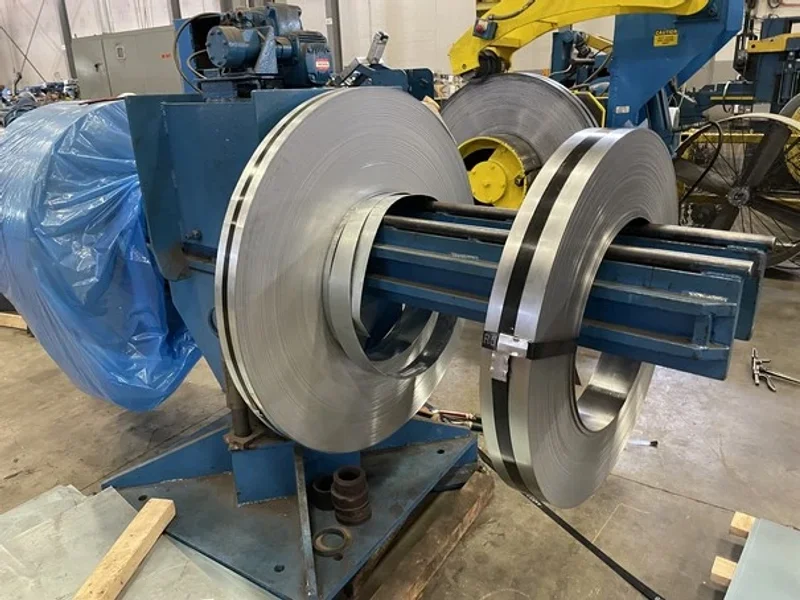

-2 Arm Turnstile:
C-Hook Type Arm
40" Arm Length
Manual Rotation
Powered Pushoff

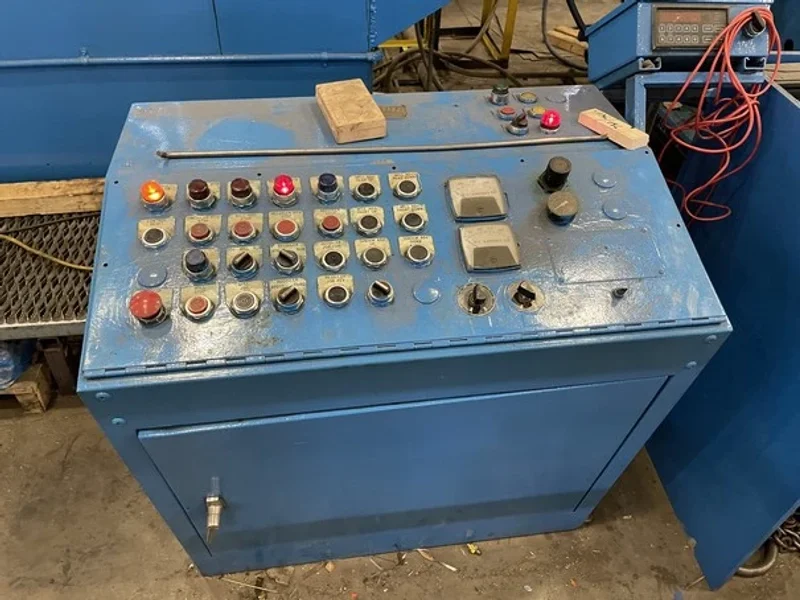

-Main Operators Control Panel:

-Hydraulic Power Units: (3) total

-Spare Mill rolls:

-Edging Dies:
