Title: 10" x 0.250" CAUFFIEL EDGING LINE STOCK # 2787
Type: Edgers
Brand: Cauffiel
Model: N2915
Year: Not listed
Message
Information

10" x 0.250" CAUFFIEL EDGING LINE STOCK # 2787

Model
N2915
Stock #
2787
Year
Not specified
Condition
Good
Location
Ohio
Coil Width: 2" - 10"
Gauge Range: 0.064" - 0.250"
Coil Weight: 8,000 lbs.
Line Direction: Left to Right
Operation: Coil to Coil or Coil to Strip

Consisting of the following:

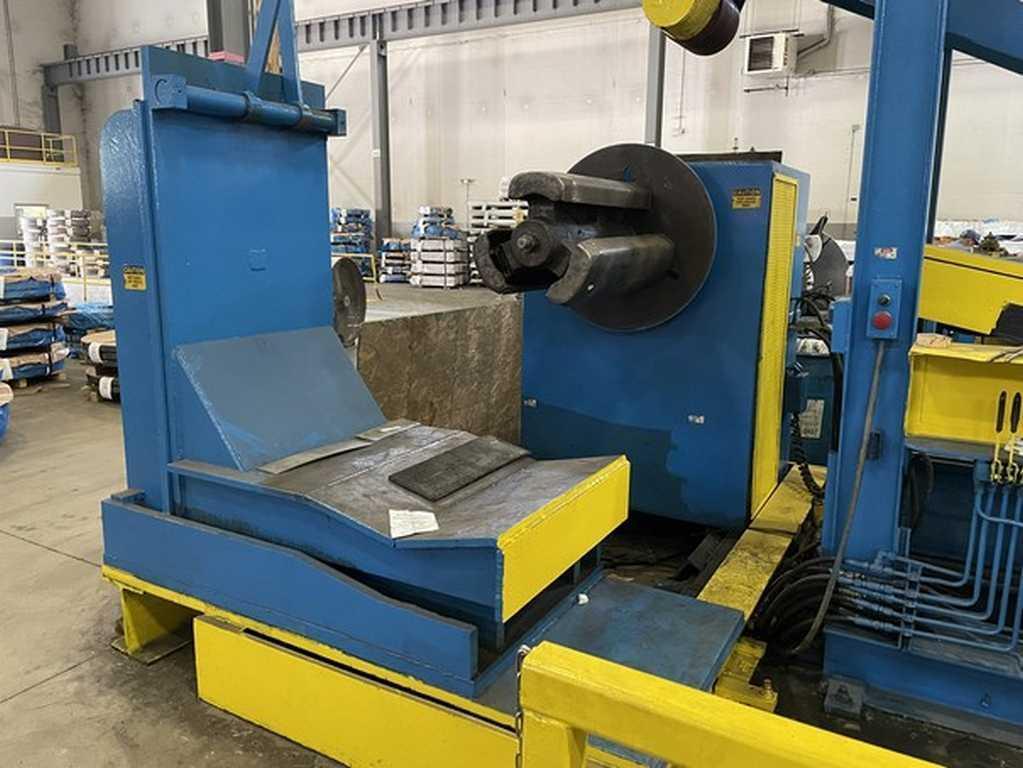

Coil Lift:
Lift only, no travel
30" Wide Deck
5" Dia. x 18" Stroke Hydraulic Lift Cylinder

Uncoiler:
16" - 20" Expansion Range
Hydraulic Expansion
Brake
Threading Drive
Slide Base

Peeler / Holddown Unit:
14" W Peeler Blade
Hydraulic Cylinders for up/down, in/out movement
14" Face x 6" Dia. Rubber Coated Holddown Roll
Hydraulic Cylinder Raise/Lower

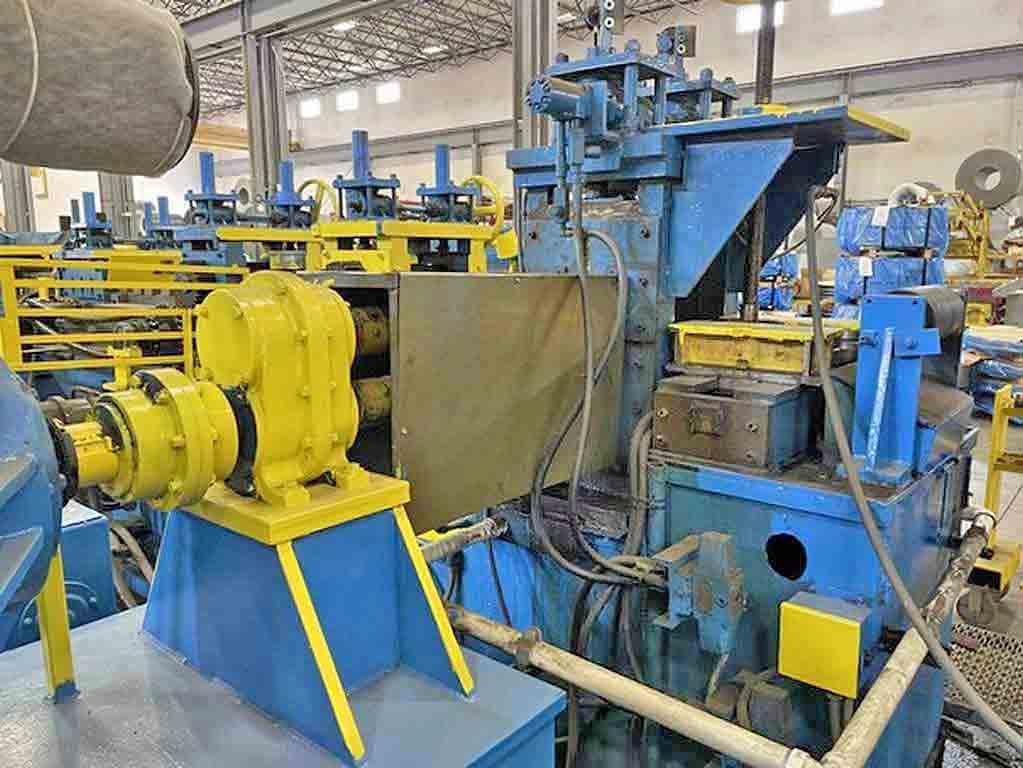

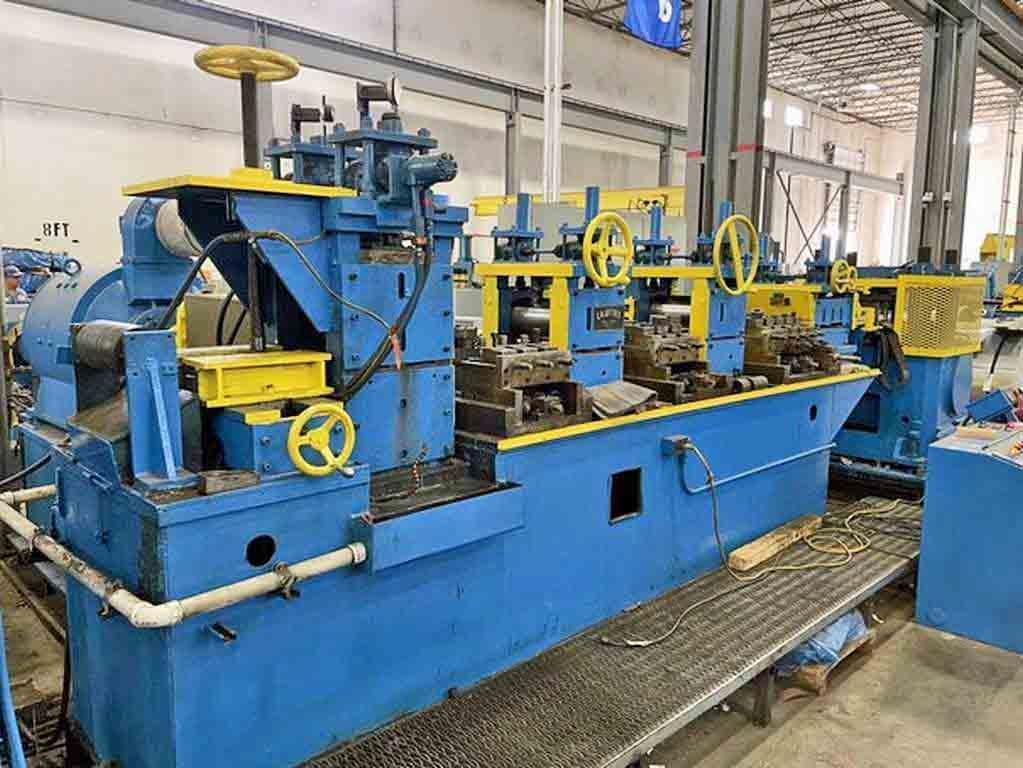

Edging Unit:
Entry Passline Roll
Entry Edge Guides, Manual Handwheel Adjustment

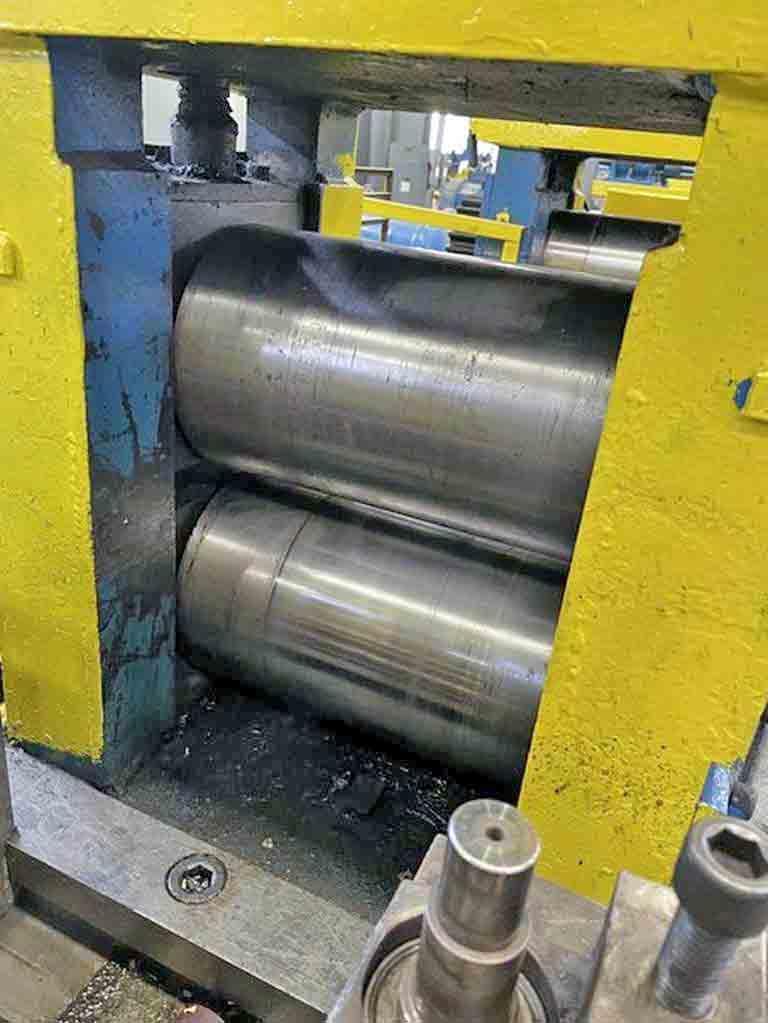

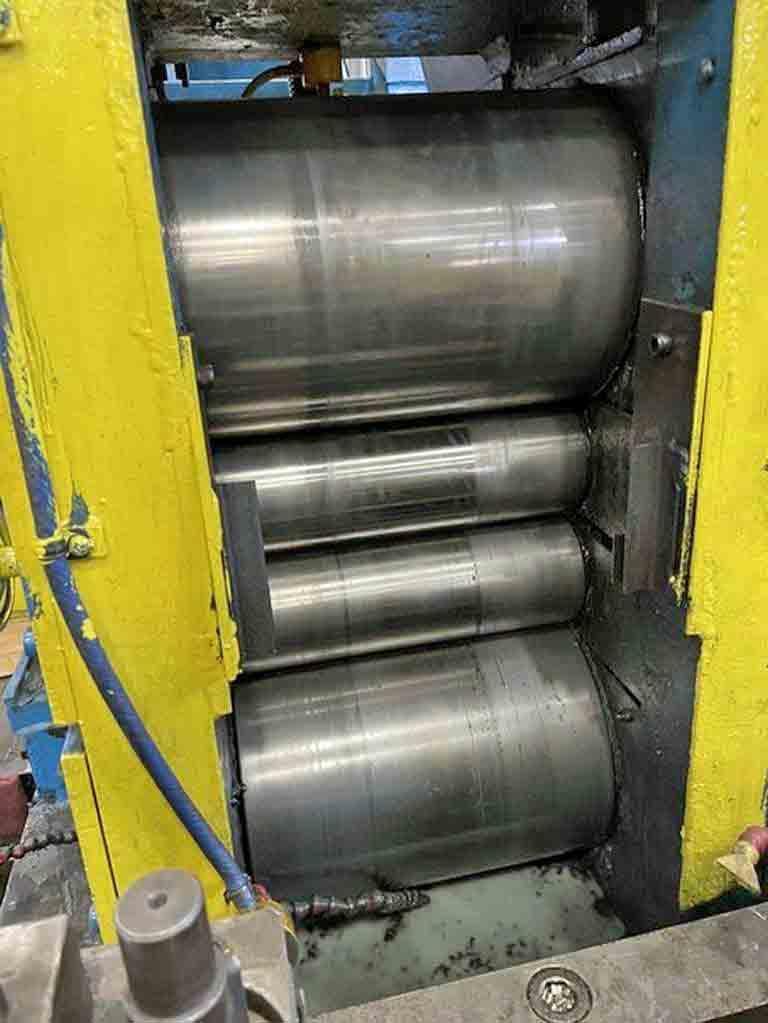

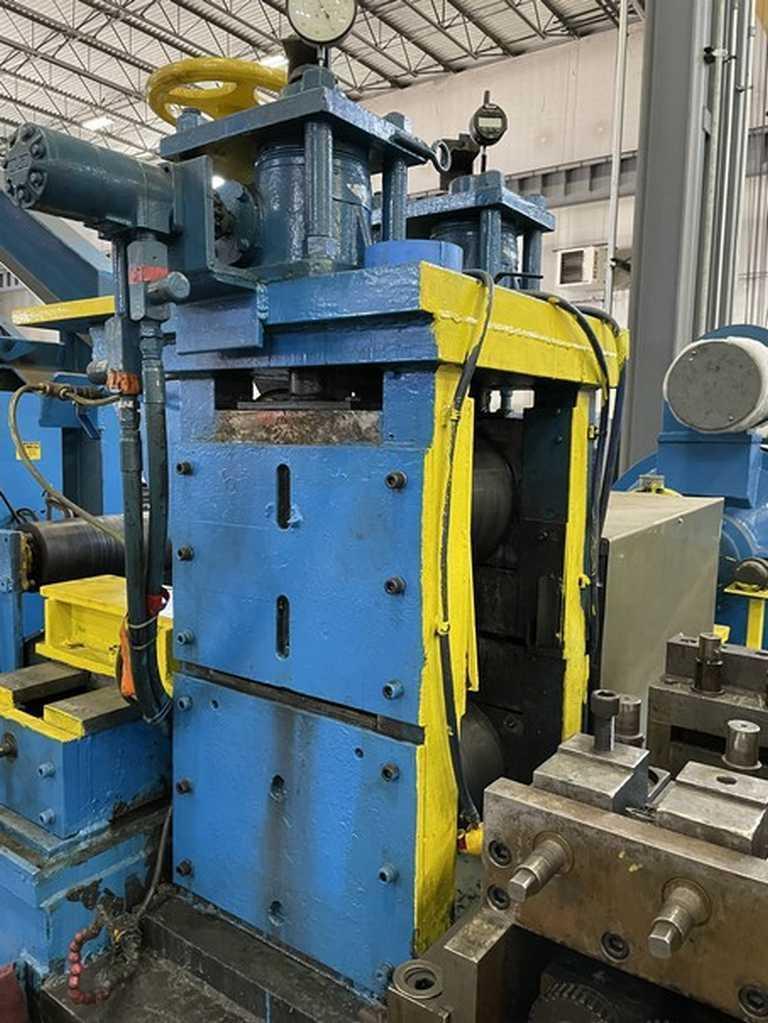

4 HI Rolling Mill: 4" Dia. Work Roll, 10" Dia. Backup Roll
Hydraulic Motor Adjusted Screwdowns
DC Motor Driven, W/Blower

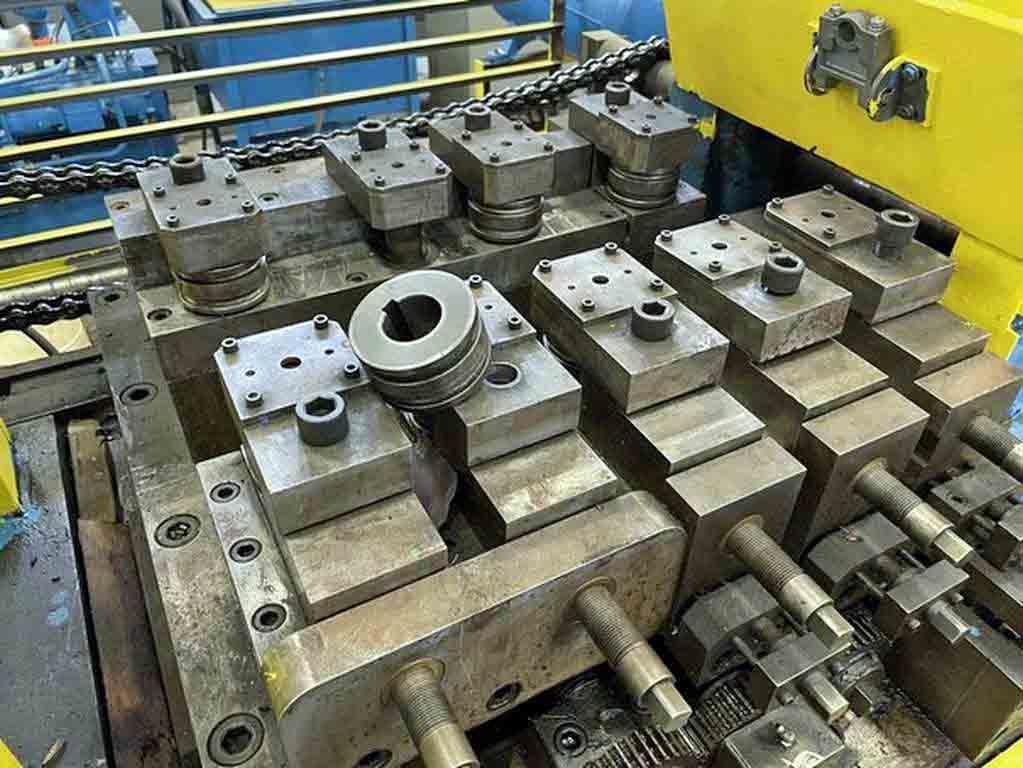

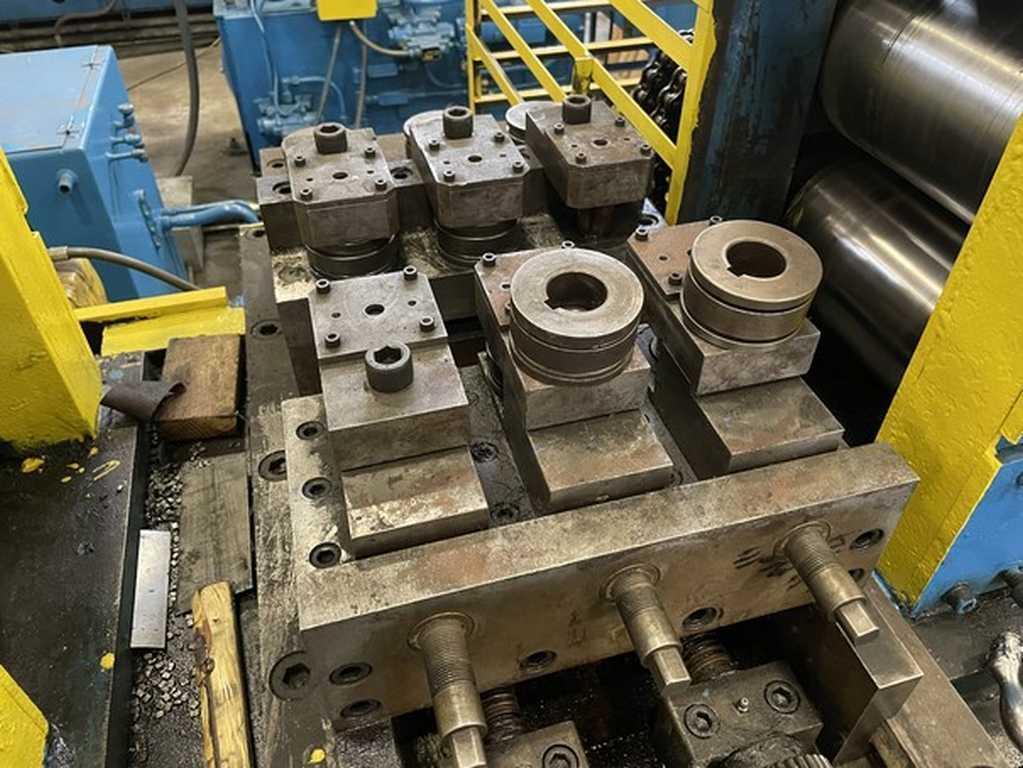

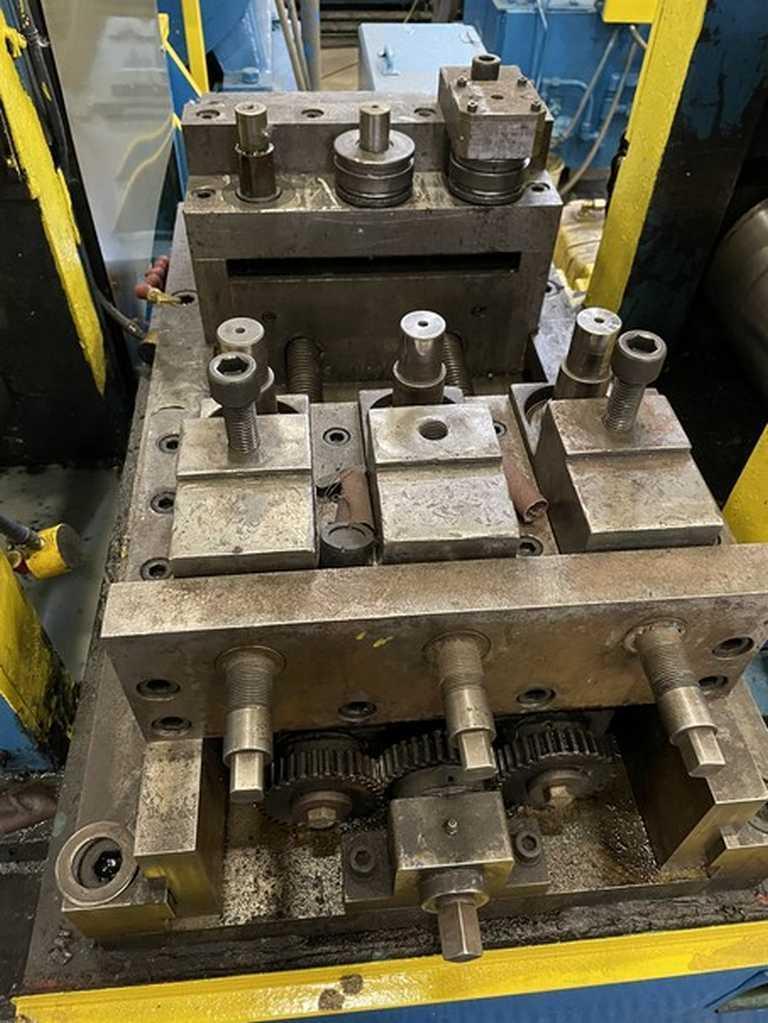

Edging Die Set #1 - 3 Roll Set

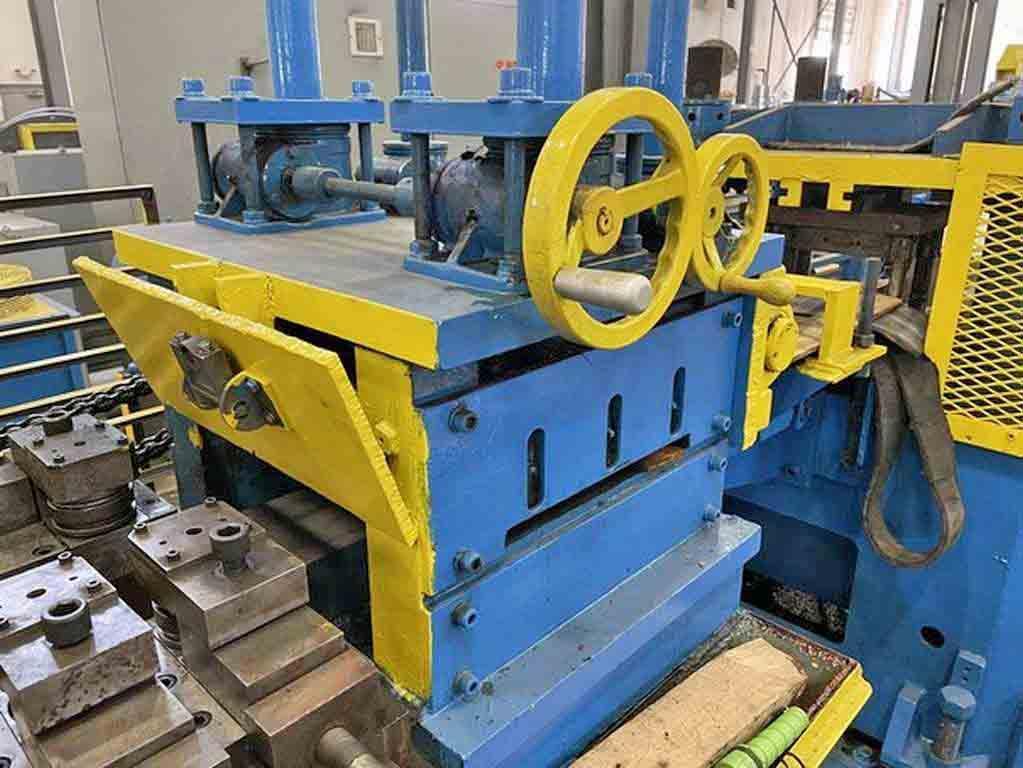

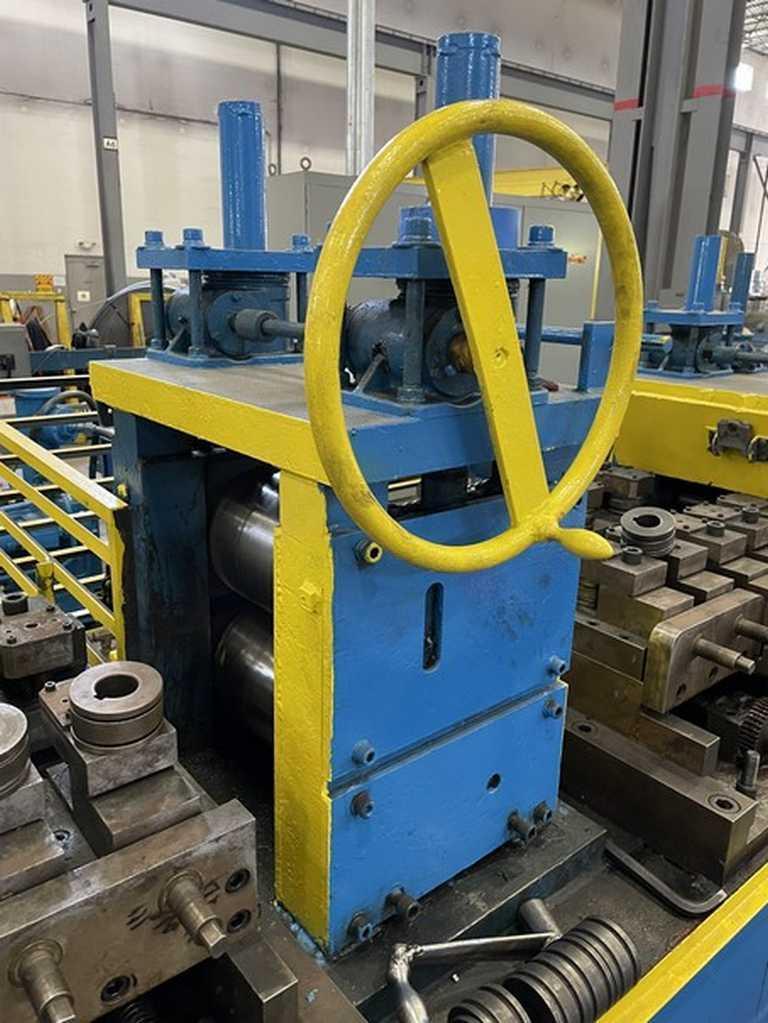

2 HI Mill #1 - 8" Dia. Work Roll, Manual Adjustment
Hydraulic Motor Driven
Edging Die Set #2 - 3 Roll Set
2 HI Mill #2 - 8" Dia. Work Roll, Manual Adjustment
Hydraulic Motor Driven
Edging Die Set #3 - Decambering Section
Straightener Unit

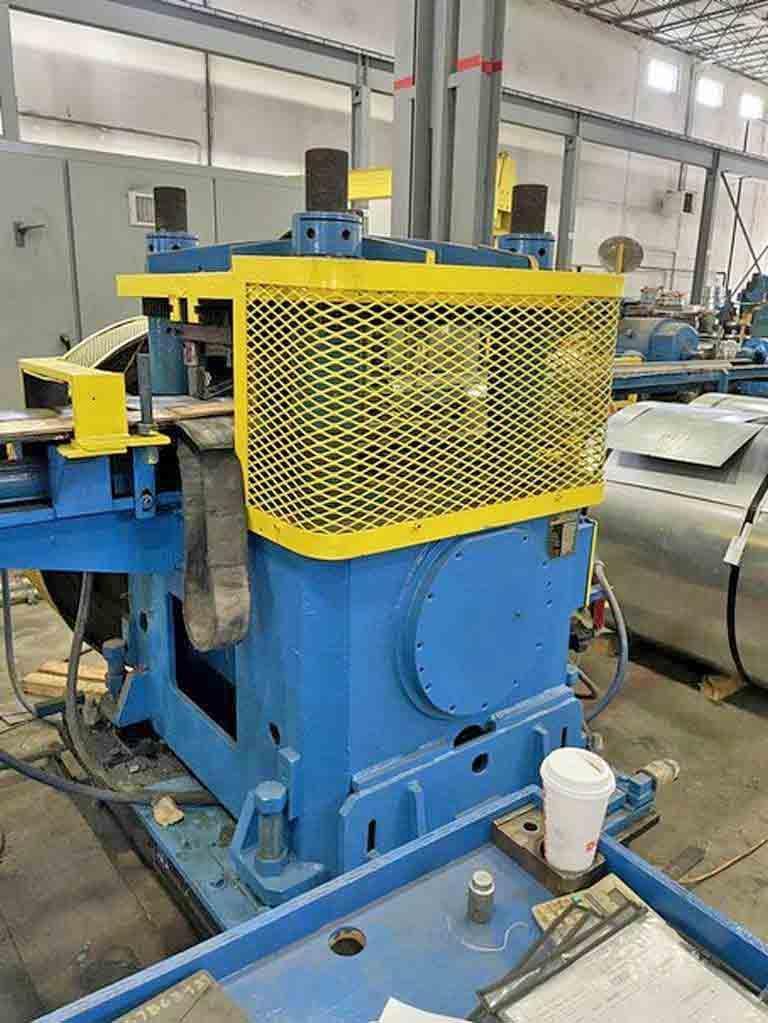

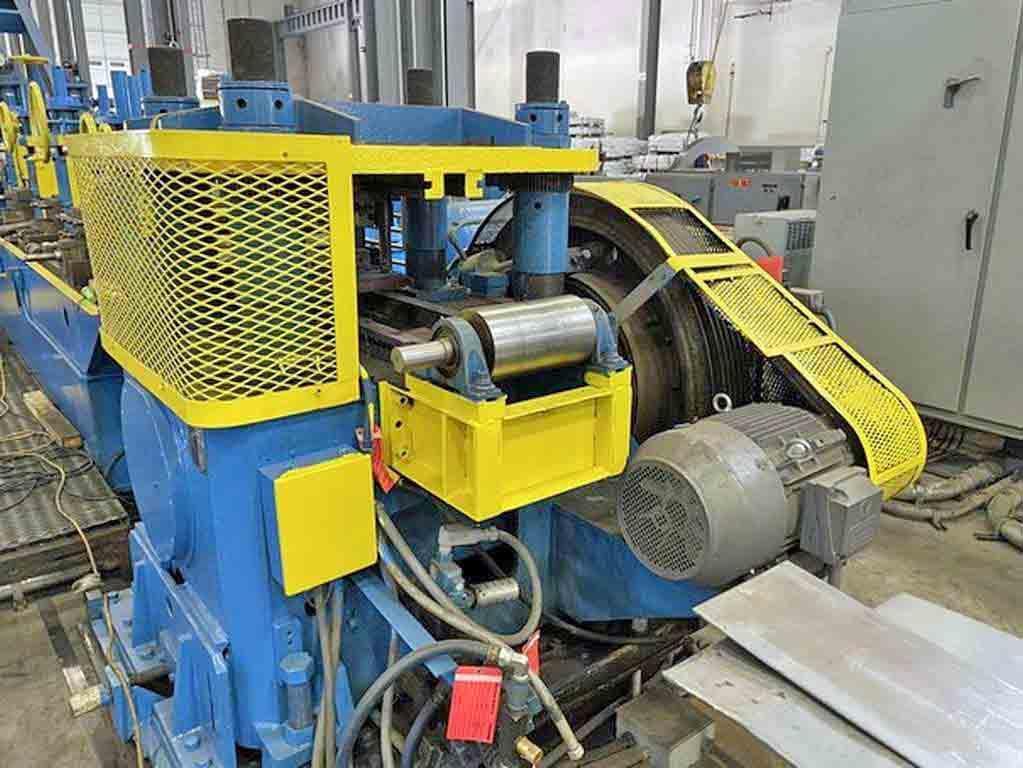

4 Post Cutoff - Proma:
60 Ton Capacity
Model 60 CP-2
15 HP AC Motor, 1200 RPM
25 Cuts/Min.
Exit Passline Roll

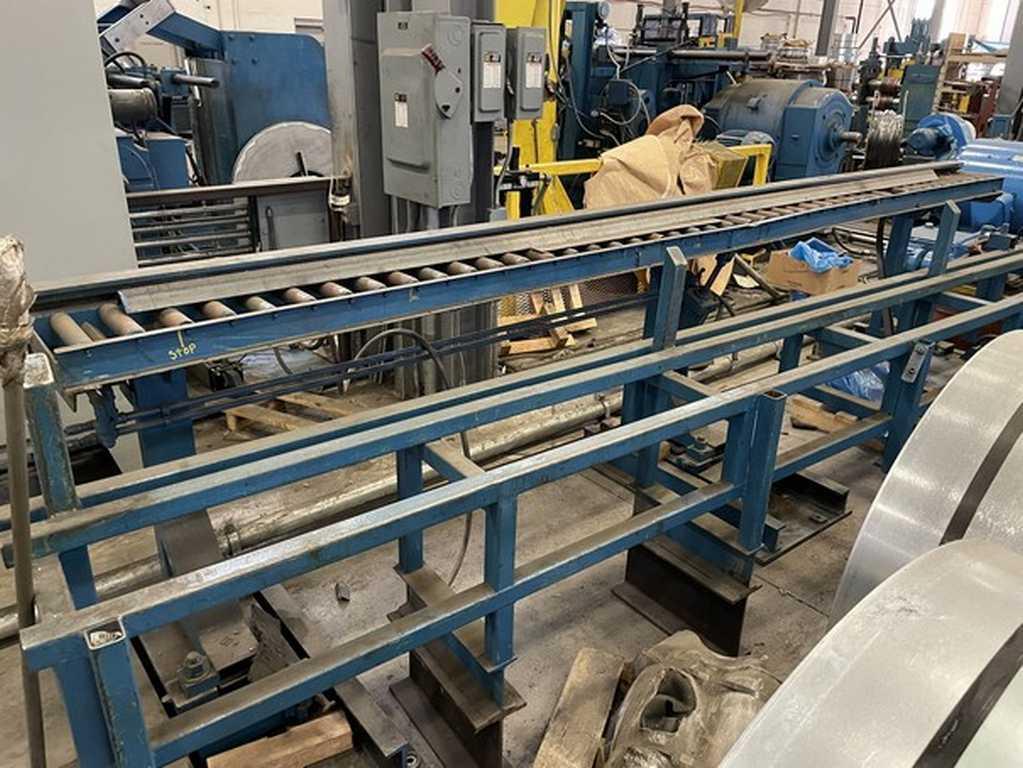

Runout Conveyor & Kickout Table Section:

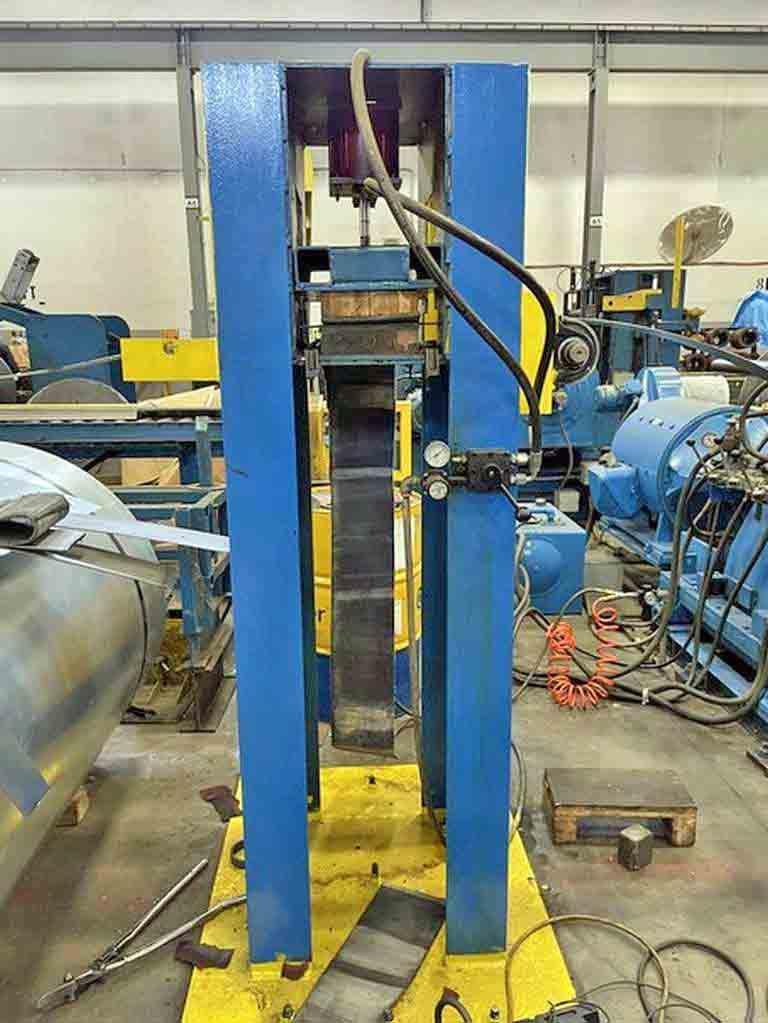

Drag Tension Stand:
Air Cylinder for Pad Tension

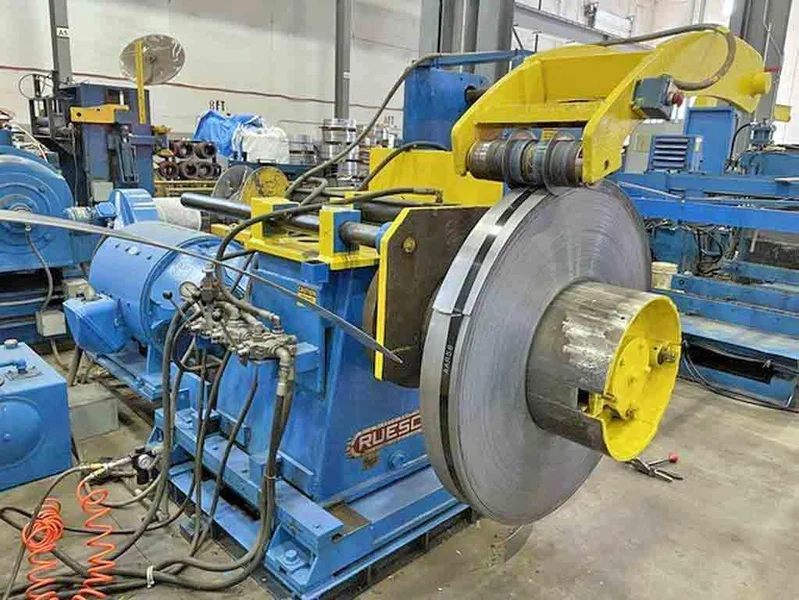

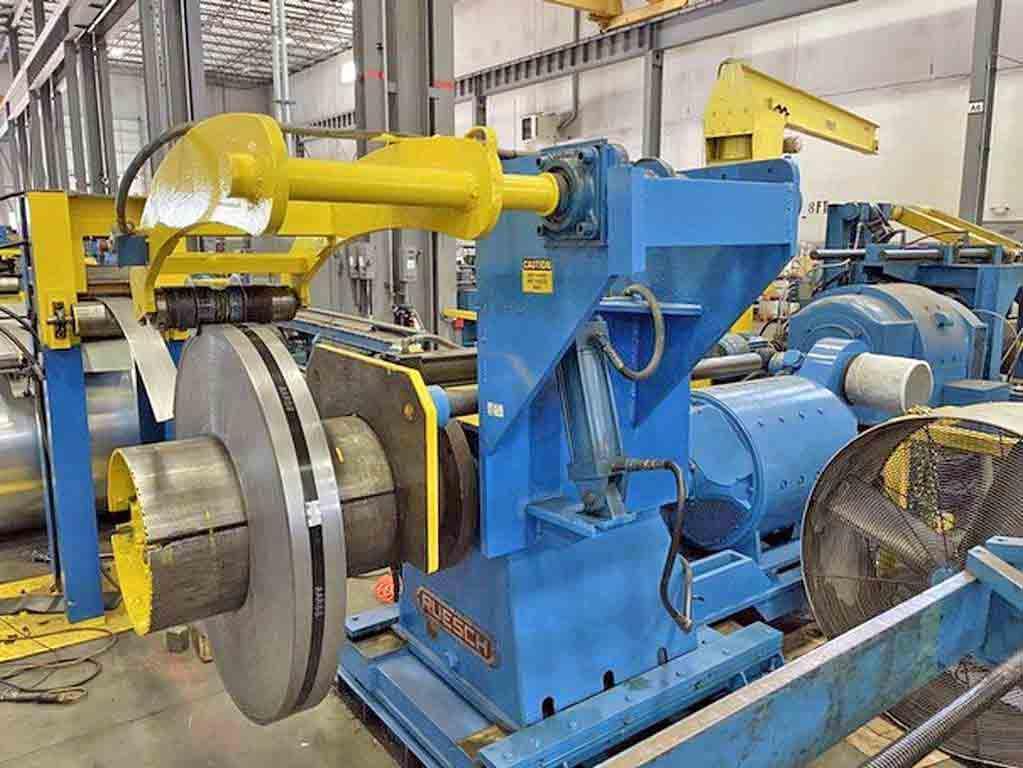

Recoiler - Ruesch:
Model: N2915
Serial: 6229
20" Dia. x 34" Face Mandrel
Manual Grip & Expansion
Hydraulic Slide Base
Hydraulic Pushoff
Overarm Separator
125 HP DC Motor, 650 / 1500 RPM, 400V, W/Blower

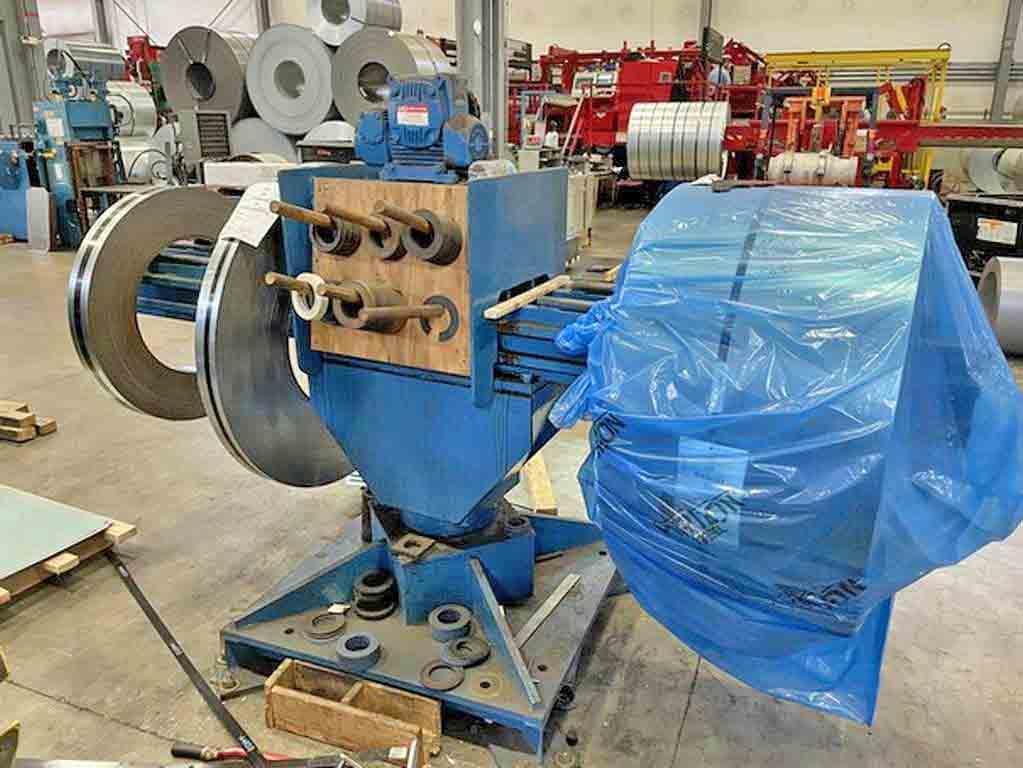

2 Arm Turnstile:
C-Hook Type Arm
Manual Rotation
Powered Pushoff

Main Operators Control Panel

Hydraulic Power Unit

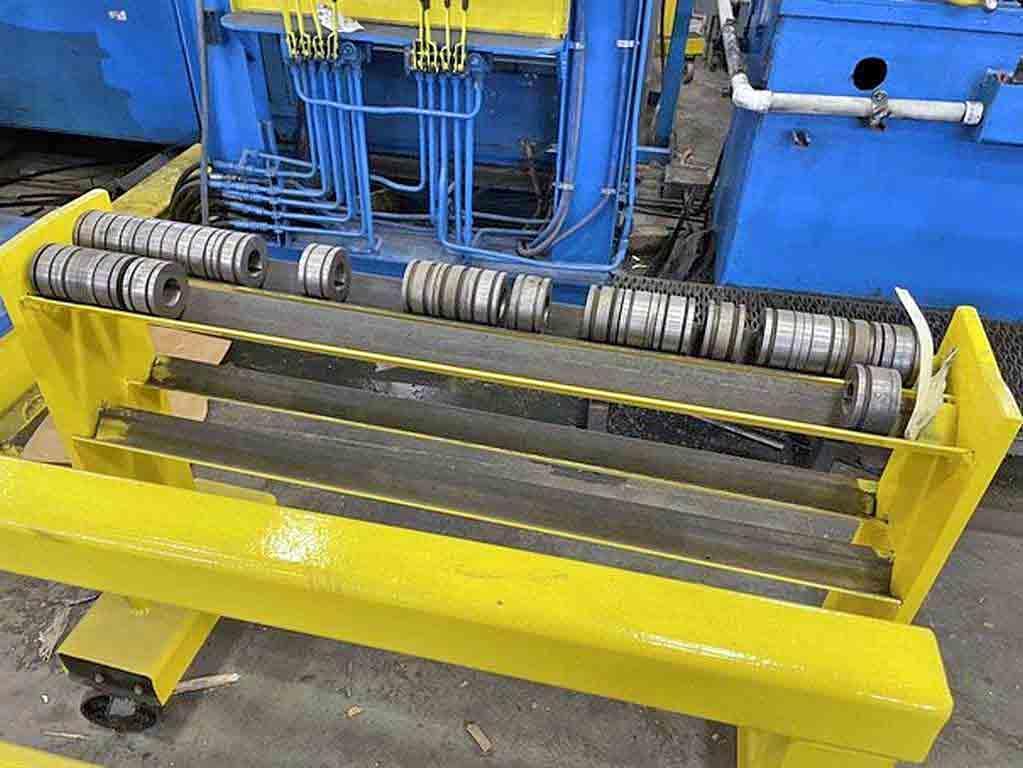

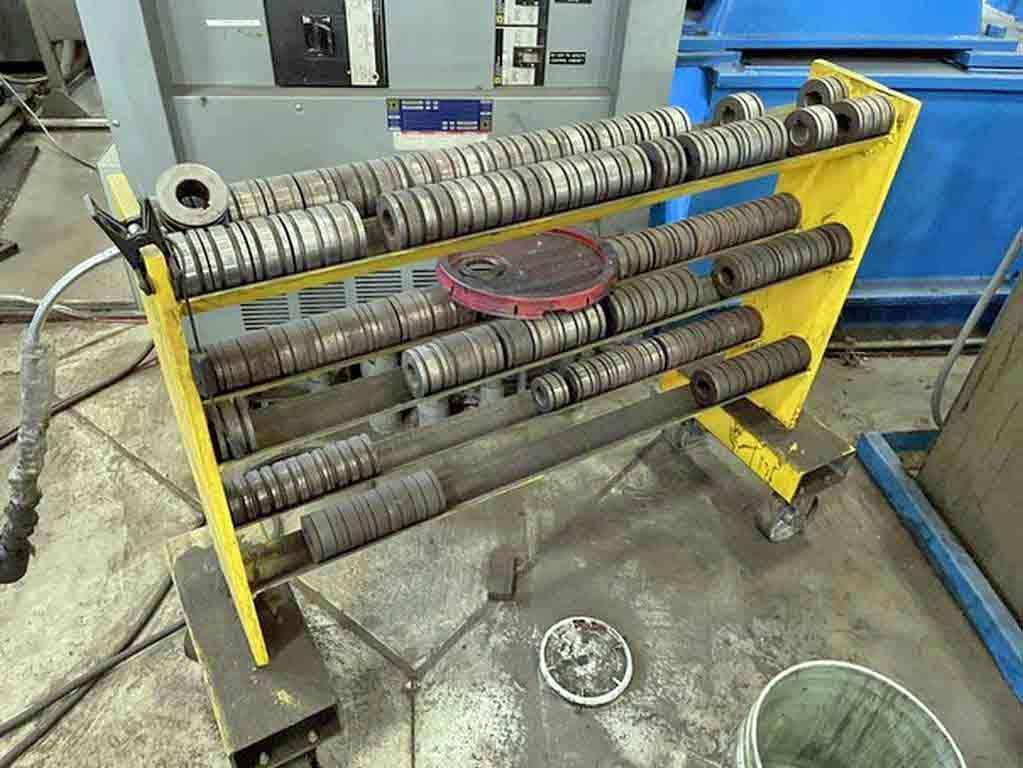

Electric, Hydraulics, Tooling

Line is installed and running
