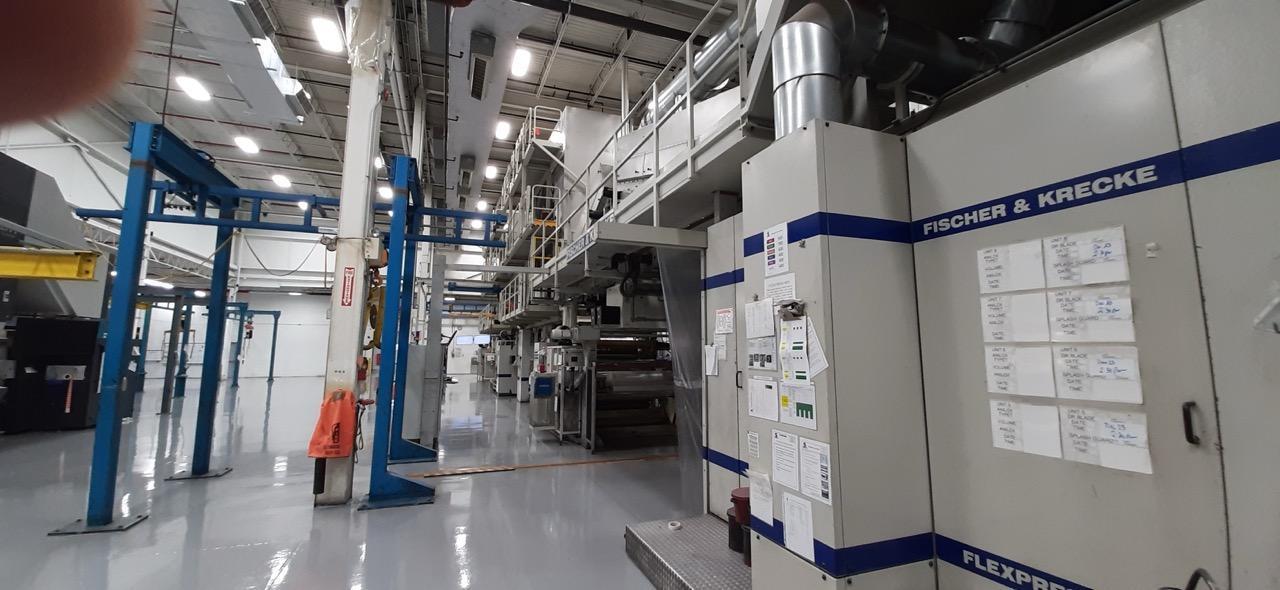

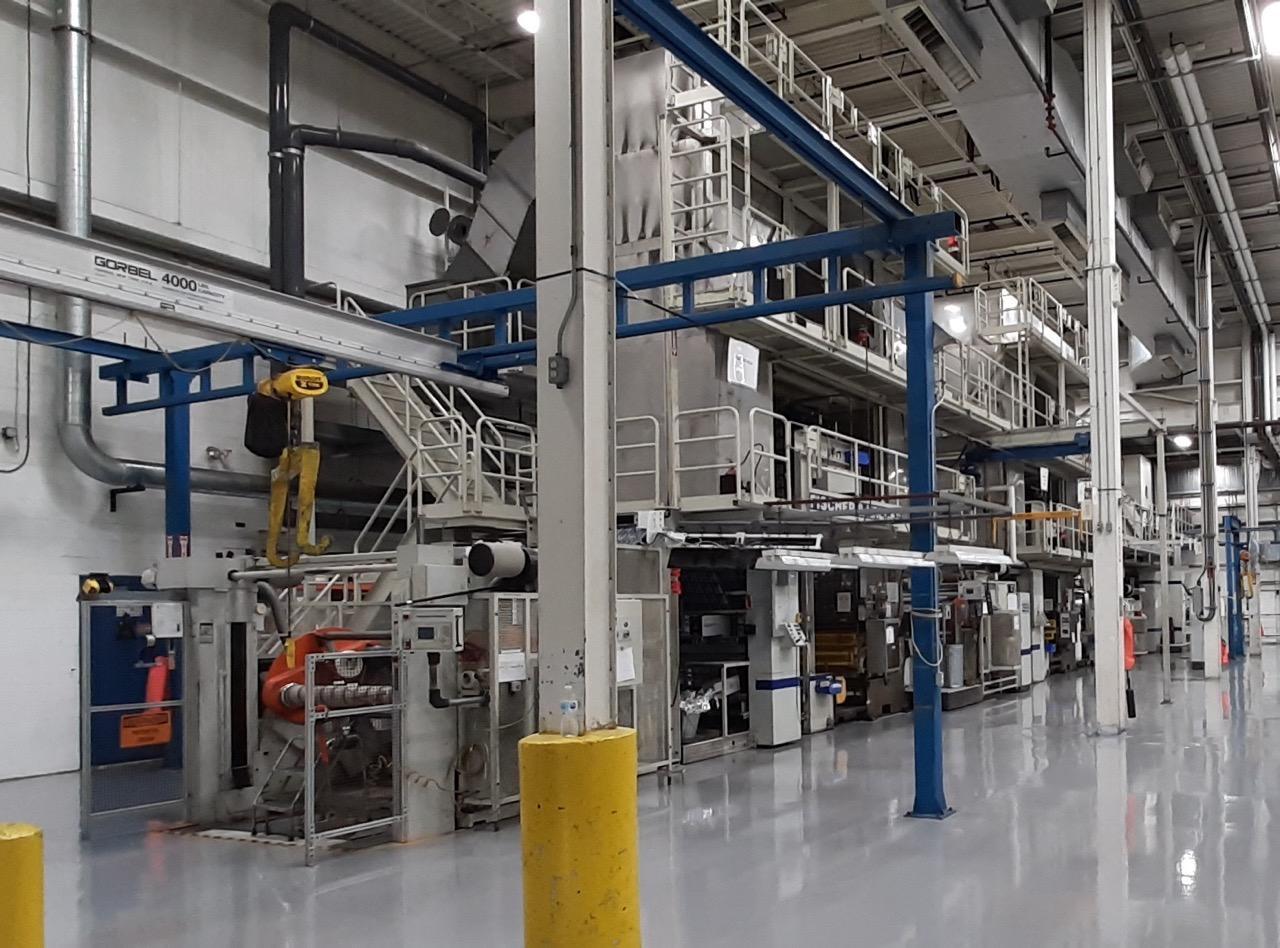

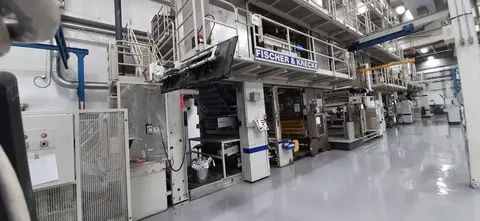

55″ Fischer & Krecke Flexpress 16S – 8-Color CI Flexographic Printing Press w/ Laminator, Gravure, Flying Splice Unwinds/Rewind

General: • Fischer & Krecke Flexpress 16S • 8-Color Central Impression Flexographic Press • 55″ (1400 mm) Web Width • 53.1″ (1350 mm) Max Print Width • Designed for solvent-based inks (can run water-based) • Includes Laminating System, Gravure Coating Units, Cold-Seal Coater, Corona Treaters, Automatic Splicing Unwinds & Rewind

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Print & Repeat: • Flexo Repeat: 12.6″ – 31.5″ (320–800 mm) • Gravure Repeat: 15″ – 32″ (381–813 mm) • Circumferential Register: Infinite variable • Impression Adjustment: 1 micron increments • Side Register: ±5 mm (Flexo), ±12.7 mm (Gravure) • CI Cylinder: 74.8″ dia., chrome-plated, water-cooled

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speeds: • Max Mechanical Speed: 1500 FPM (460 m/min) • Running speed dependent on substrates/graphics • Automatic flying splice at full speed

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Substrates: • PE: 0.8–6 mil • OPP: 0.48–6 mil • PET: 0.35–2.5 mil • Nylon: 0.35–2.5 mil • Paper: up to 50 lb • Laminates up to 4 mil

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Unwinds / Rewind: • Primary & Secondary Turret Unwinds (40″ OD capacity) • Automatic flying splice, bi-directional • Rewind: Automatic 40″ Turret Rewind w/ programmable taper tension • Core range: 3″ – 10″ • Digital tension control across line

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drying Systems: • High-capacity between-color dryers • Bridge dryers w/ 10,000 FPM impingement • Gas-fired heat sources • LFL monitoring & safety systems • Sound-insulated enclosures

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Laminator & Coaters: • Dry-bond laminator with gravure adhesive station • Registered gravure printing capability • Additional downstream gravure unit for cold seal • 42’ two-zone adhesive dryer • Cold-seal coating section w/ 42’ two-zone dryer • Hot-oil heated nip roll (300°F max) • Cooling rolls and chill system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Web Handling & Treatment: • Multiple Enercon Corona Treaters • Fife Edge Guides (pre-press & post-press) • Turnbars, dancer systems, adaptive tension control • Threading device & catwalks

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Inspection / Controls: • Eltromat Web Video 2001 System • Eltromat Meshcon Register Control • Digital print unit control w/ auto register pre-adjust • Bloss Viscolor 2200 Viscosity Control System • OCS Operator Control, MIS data reporting • Modem link for remote service

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ink / Washup: • Autoclean automated washup system • Chamber doctor blade system • Stainless ink tanks + 5 gal & 55 gal pneumatic lids • Pumps, valves, automatic wash cycles

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
