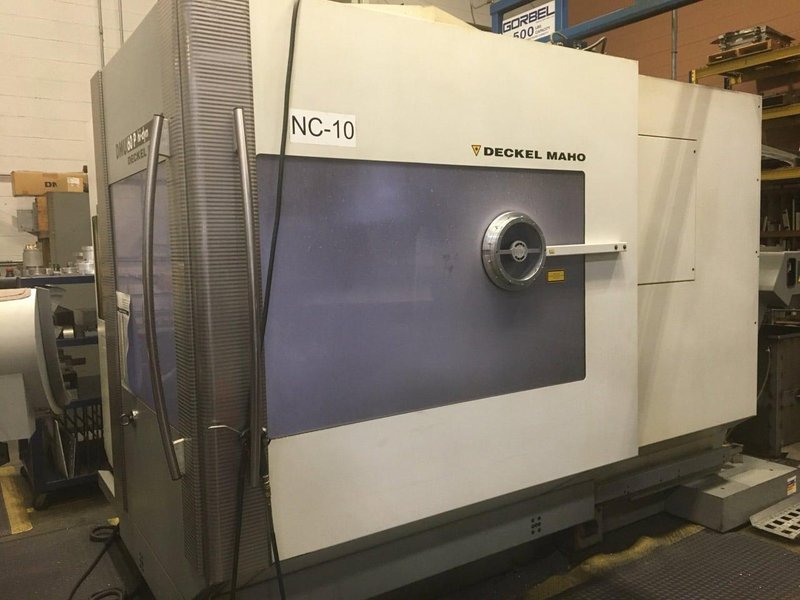

Deckel Maho DMU 60P Hi-Dyn CNC, 2001 – 5th Axis, VMC

Measurements:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Width: 248.03″ Depth: 255.91″ Height: 106.30″ Machine Weight: 23,589.4 lbs

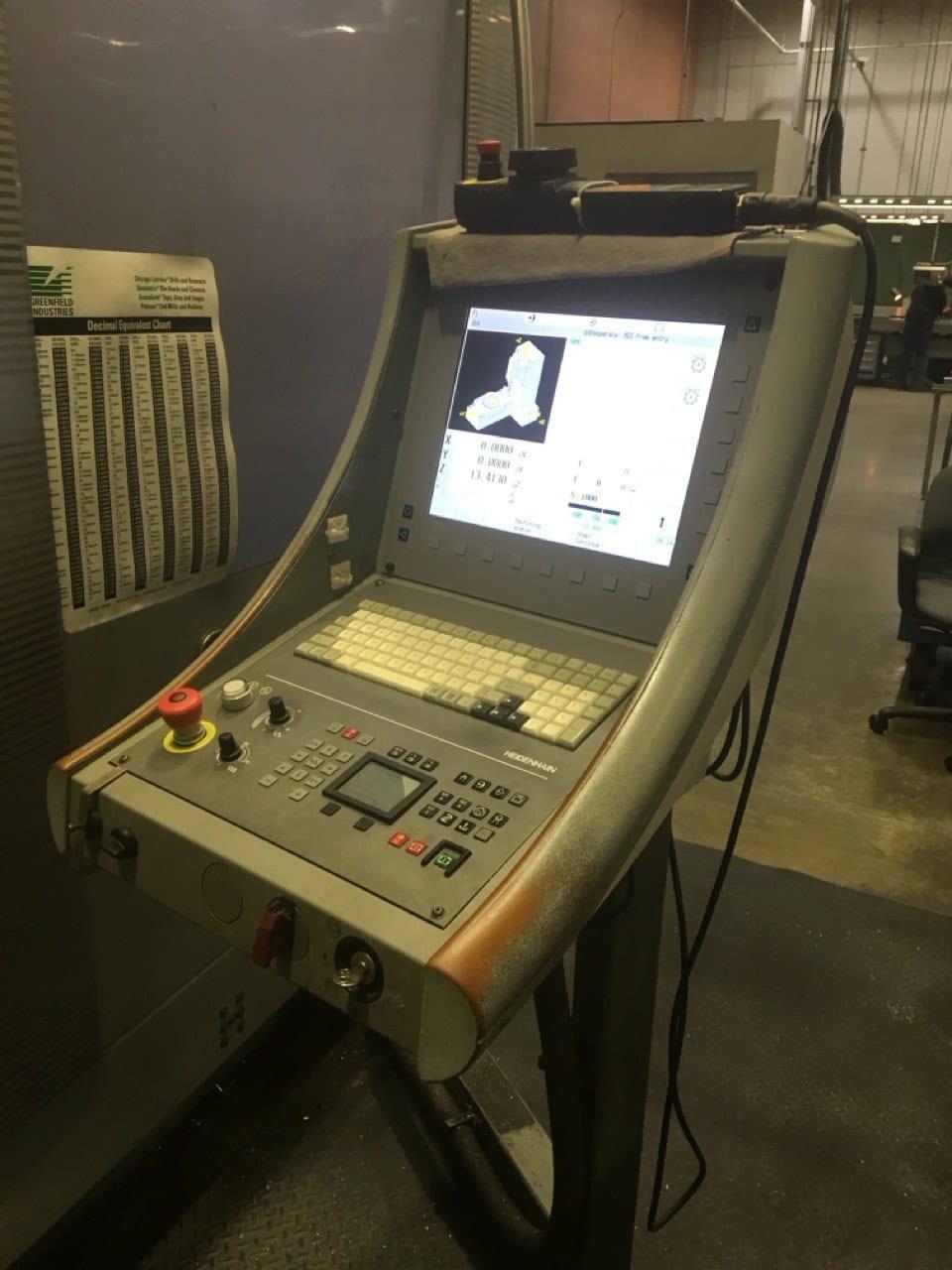

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Unit:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: TNC 426 Brand: HEIDENHAIN

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Drive:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed Range: 12,000 RPM Tool Taper: SK 40 Number of Axis: 5

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Movement:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X-Axis: 23.62″ Y-Axis: 27.56″ Z-Axis: 23.62″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Technical Machine Benefits:

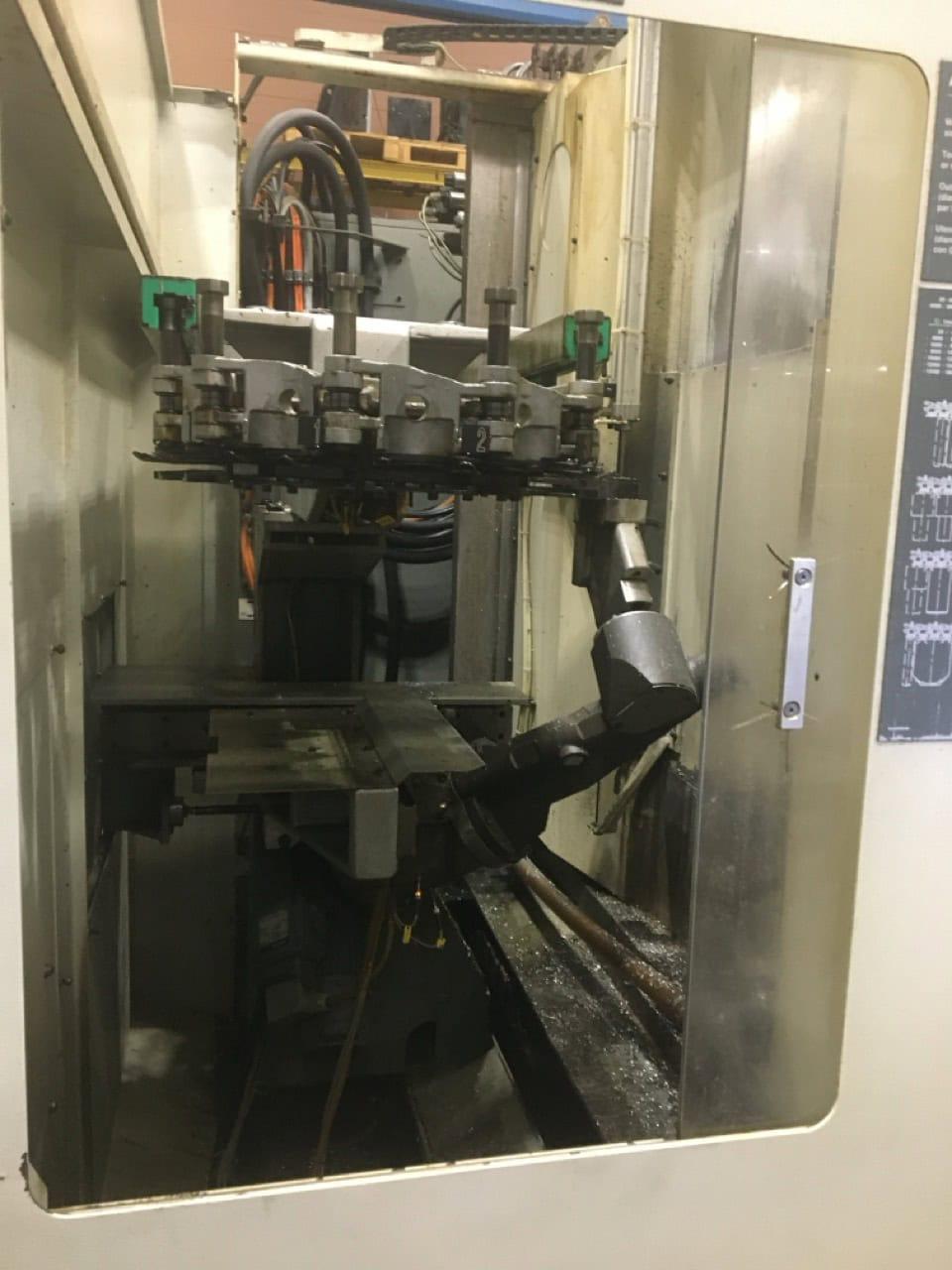

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed Rate: 5905.51″/min Rapid Traverse: 1968.50″/min Clamping System: DIN 69872 Tool Changer: 30 Places Type: Horizontal Magazine

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic Swivelling Milling Head Automatic Change from Vertical to Horizontal Machining Main Drive Type: AC Drive Power (100% ED): 19 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Qualitative Machine Benefits:

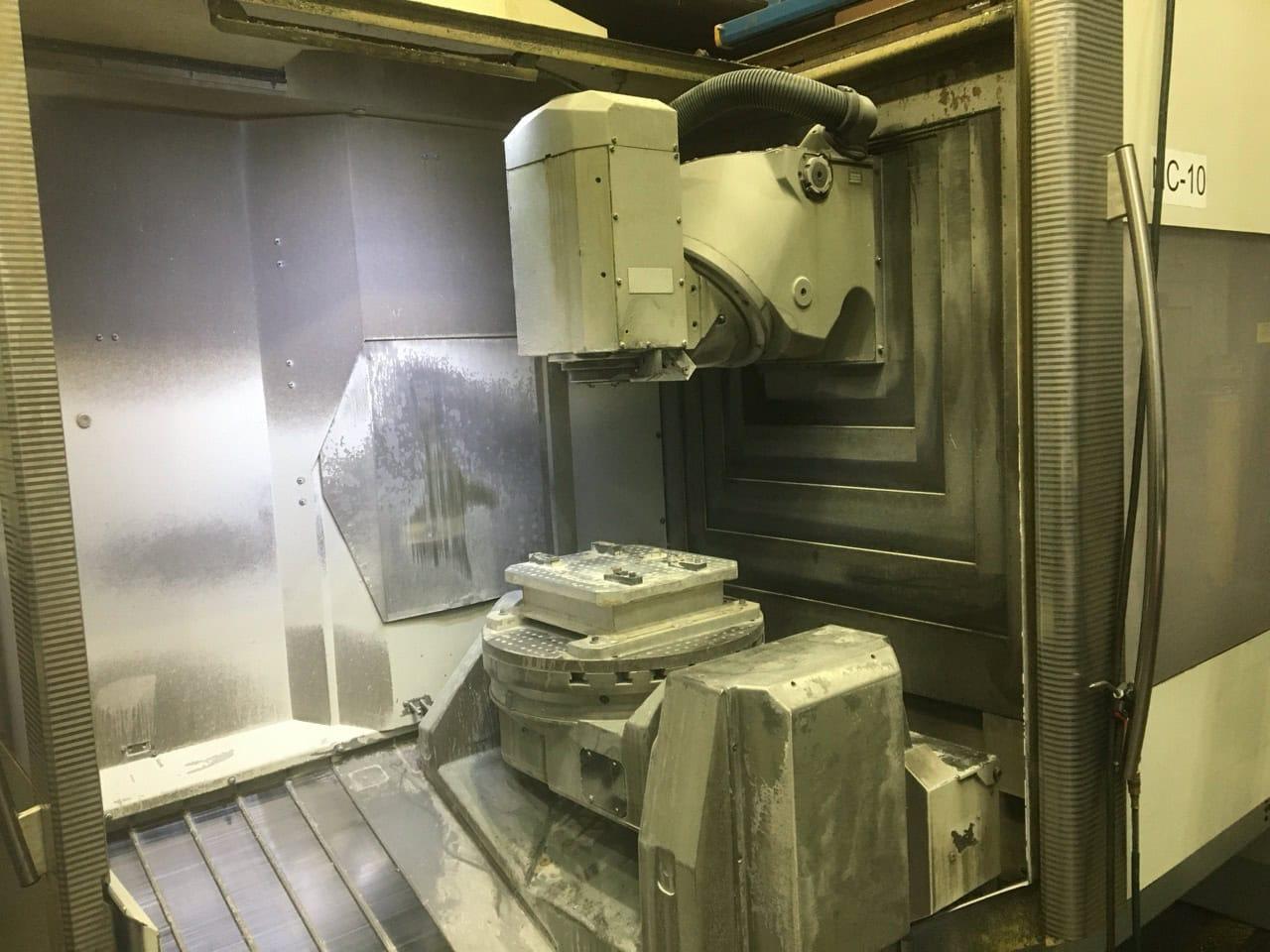

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Theoretical Pump Output: 158 gallons Scraper Flight Conveyor, Coolant Through Spindle Form Center Dead Form Tilting NC Rotary Table: 24.80″ Type of Measurement System: Direct Measurement System Table Surface: 24.80″ Center Diameter: 1.97″ Maximum Load (Table Center): 1102.31 lbs Slot Width: 0.55″ Distance Between T-Slots: 2.48″ Max. Rotational Speed 4. Axis: 7 RPM 4 Axes (Turning Radius): 360 x 0.001 degrees 5 Axes (Turning Radius): -45 / +30 x 0.001 degrees Rotational Speed of Axis 5: 7.3 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
