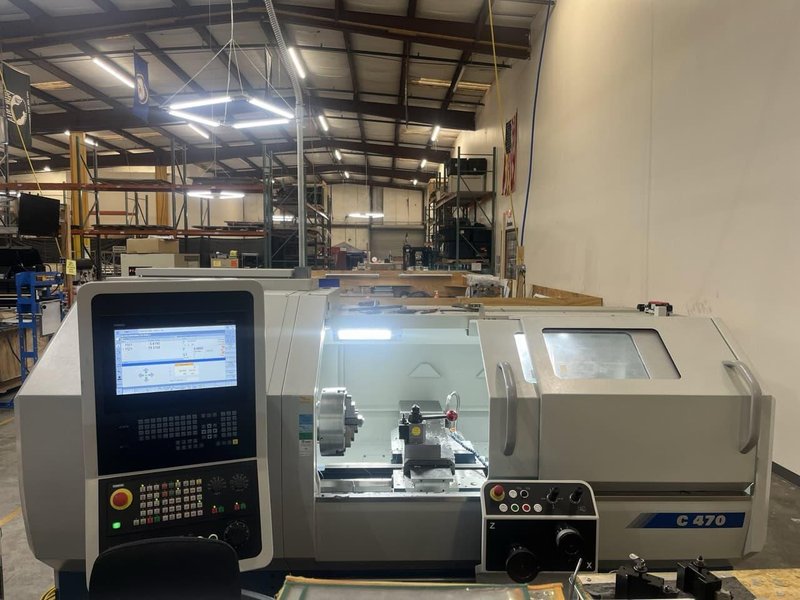

Romi C-470 CNC Lathe, 2024 – Tailstock, 2.56″ Spindle Bore

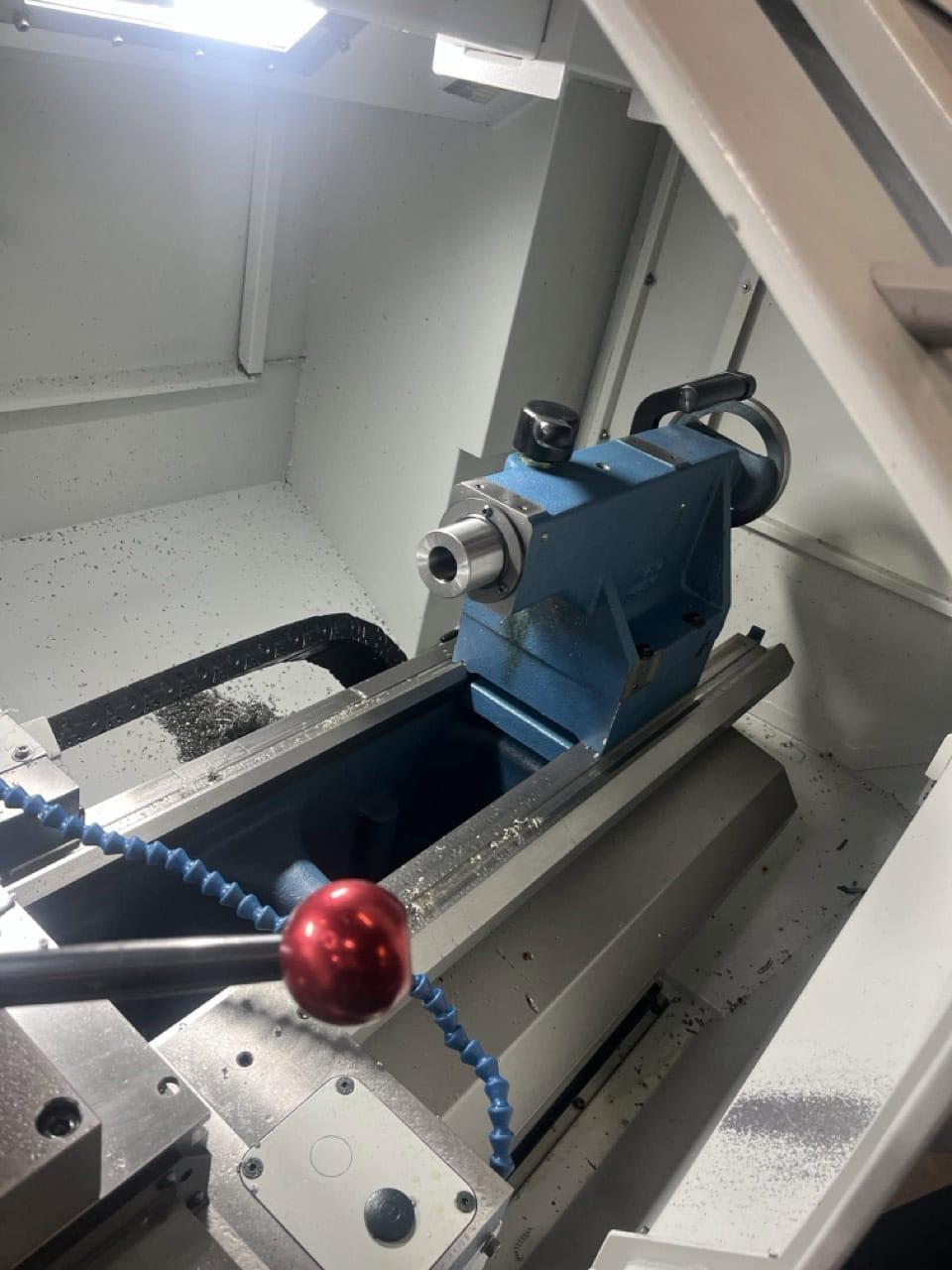

Swing over bed: 18.50″ Swing over cross slide: 7.87″ Distance between centers: 39.37″ Cross slide (X-axis) travel: 8.66″ Longitudinal (Z-axis) travel: 41.93″ Center height: 9.45″ Spindle nose: A2-6 Spindle bore (through hole): 2.56″ Maximum spindle speed: 3,000 rpm Main motor power (S6, 40%): 12.5 hp Rapid traverse (X and Z axes): 394″/min Turret: 8-station electric turret, 1″ × 1″ tool capacity Tailstock: Manual (standard), optional hydraulic quill Tailstock quill stroke: 4.72″ Tailstock quill diameter: 2.36″ Tailstock taper: Morse Taper #4 Machine footprint (L × W): 114.6″ × 48.8″ Machine weight: 5,732 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

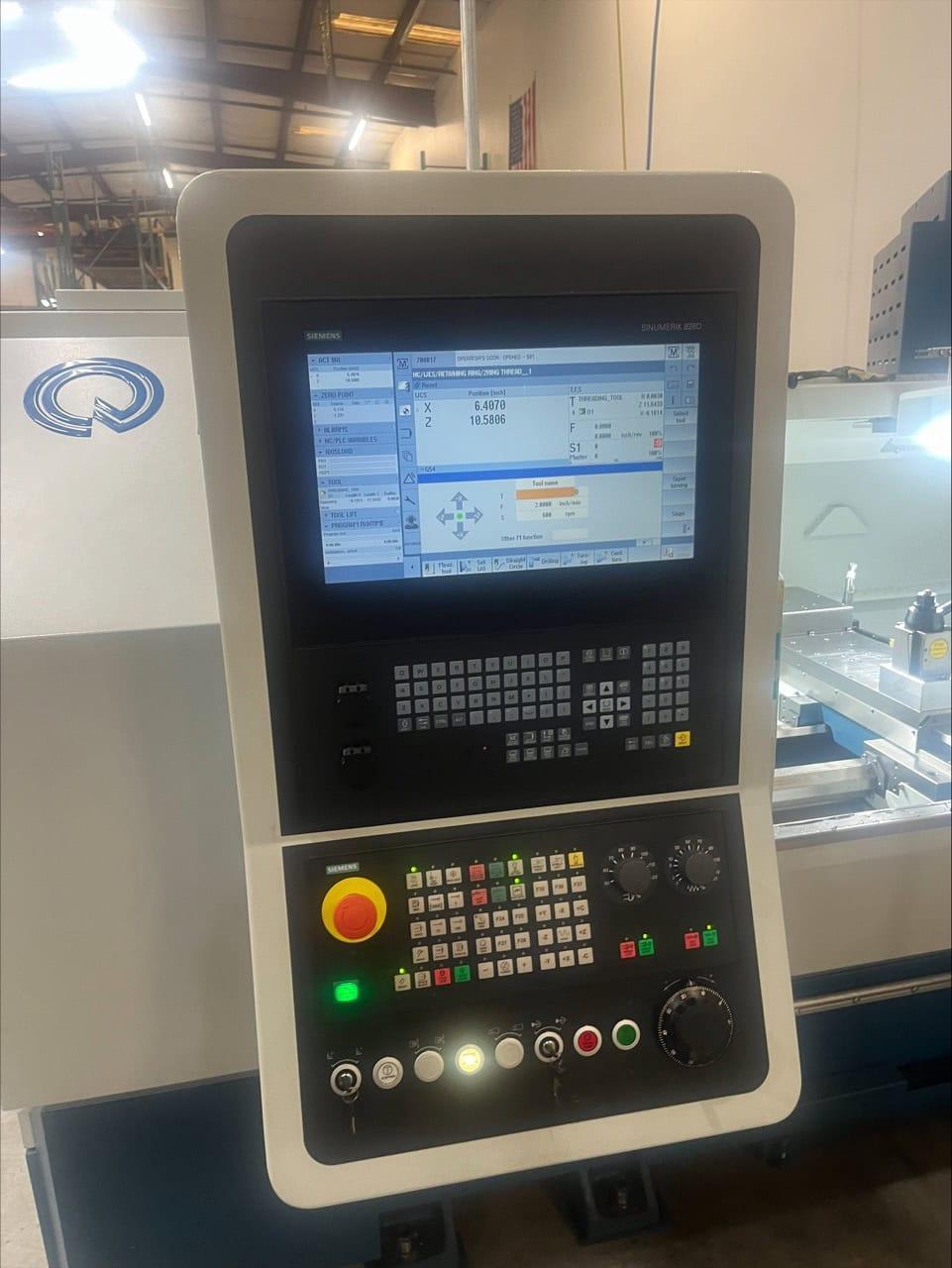

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Siemens Sinumerik 828D Control (10) Od holders (7) ID holders with a bore of 1″ Tailstock

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
