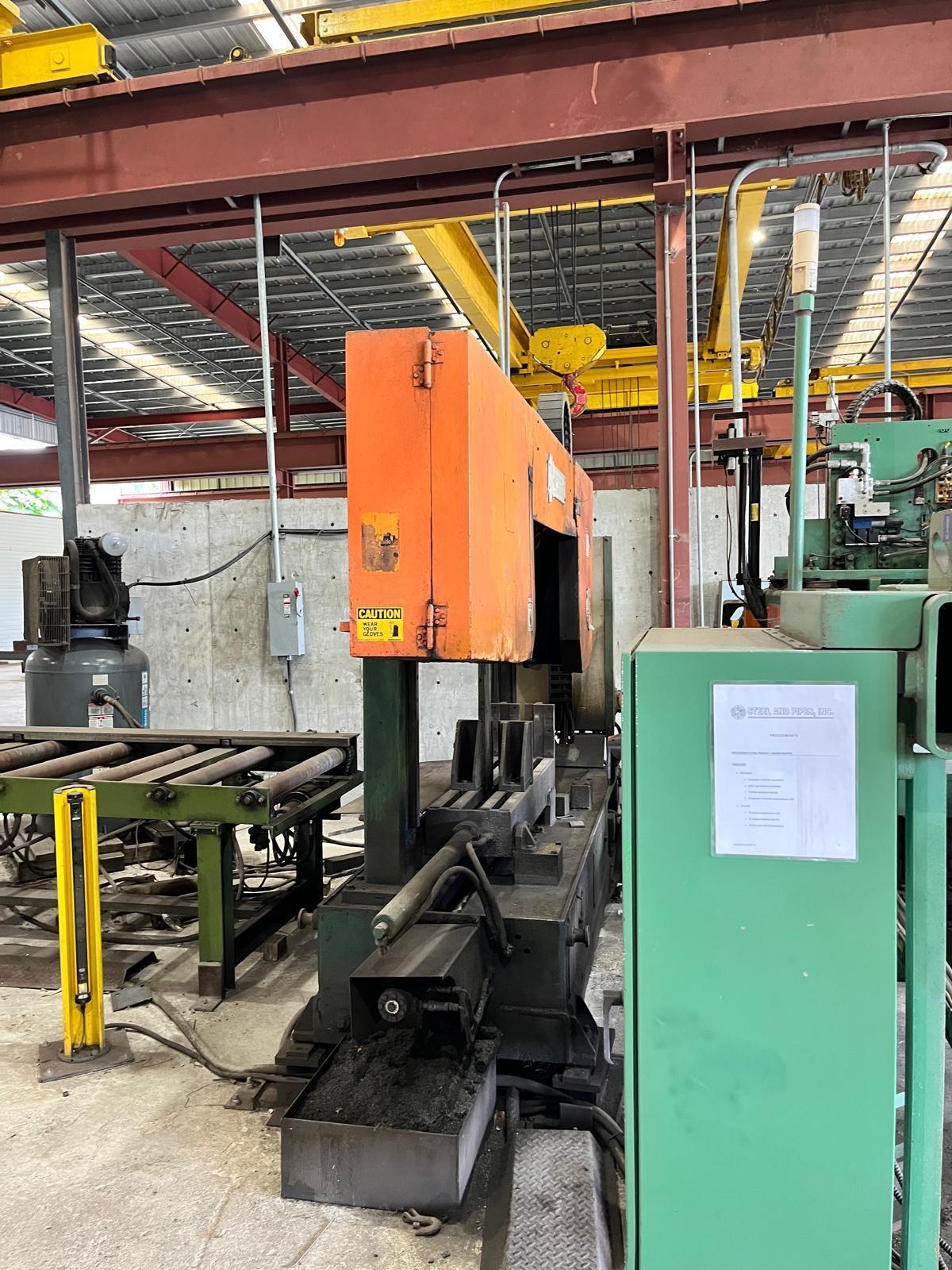

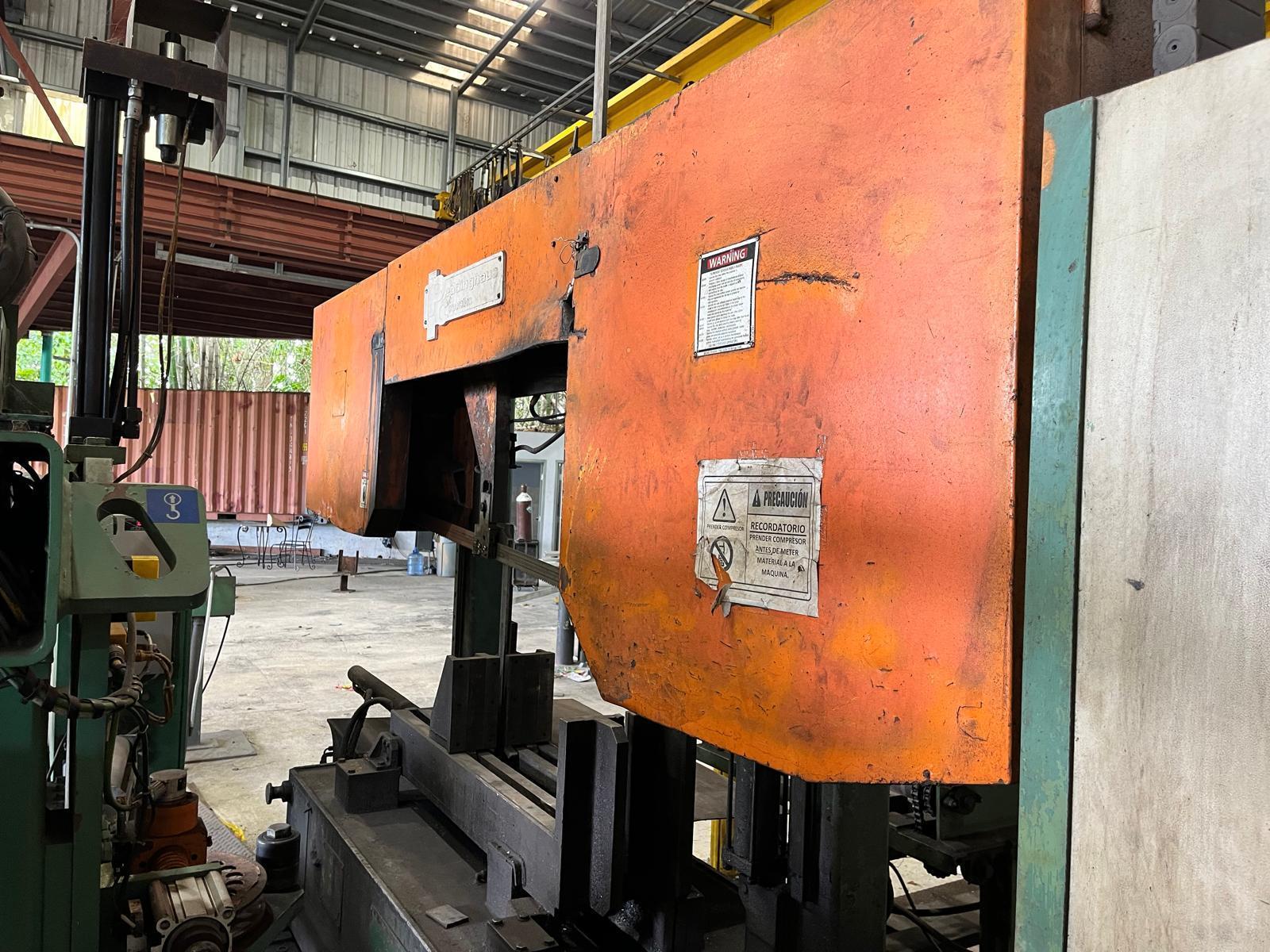

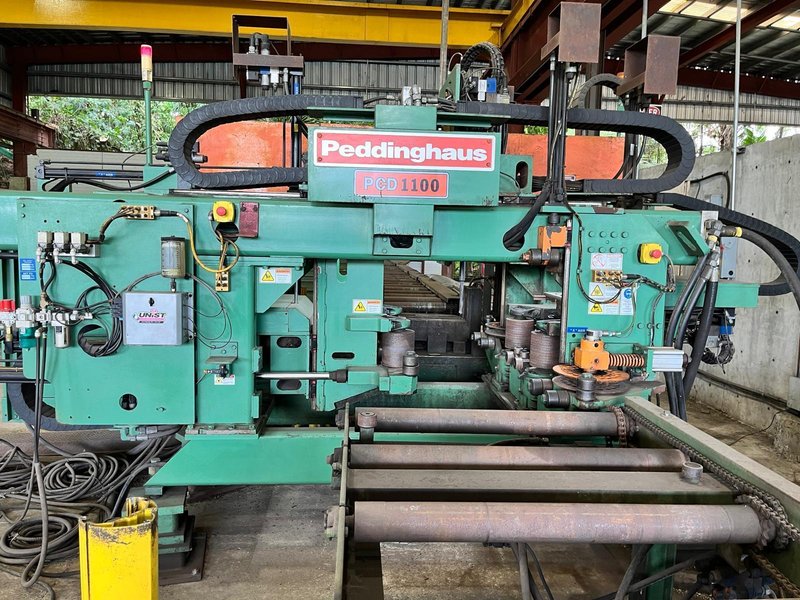

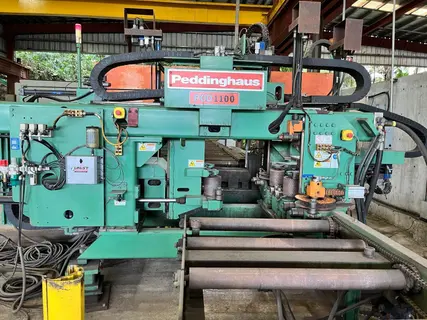

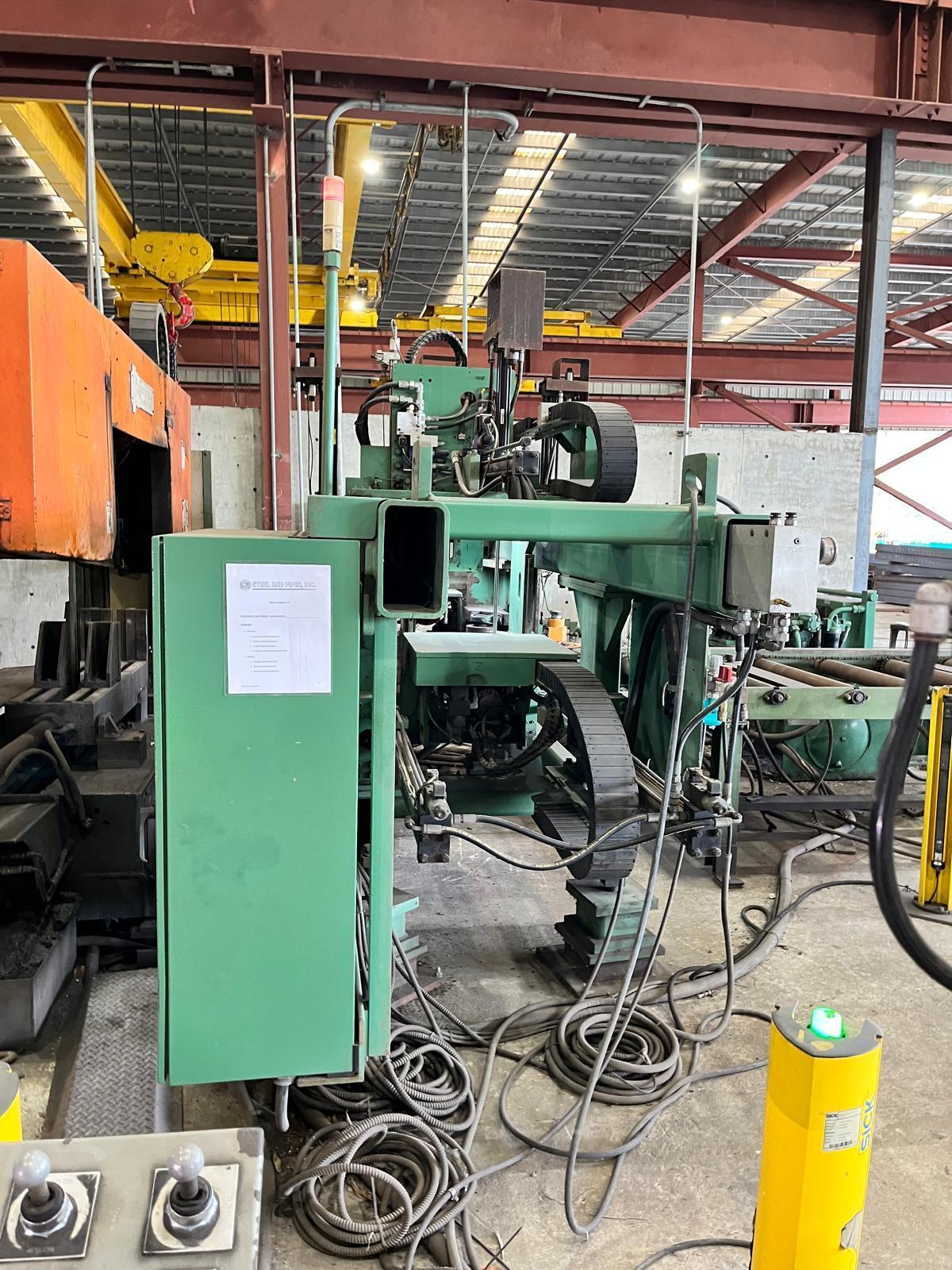

Peddinghaus PCD-1100/3B 3-Head Automated Beam Drill Line, 2018 – Power Conveyor, Transfer Table, Horizontal Band Saw

Drill Speed: Minimum 200 RPM – Maximum 850 RPM Maximum Drill Diameter: 1-9/16″ Drill Power (Per Spindle): 13.5 HP Minimum Material Thickness: 1/8″ Maximum Material Thickness: 18″ Minimum Material Width: 3″ Maximum Material Width: 43.31″ (or 44″) Minimum Material Length: 62″ Maximum Workpiece Weight: 18,000 Lbs. Maximum Length / Weight: 300 Lbs. / Ft. Maximum Length Of Miter: 31″ X-Axis Feed Rate: 130 Ft. / Min. Number Of Spindles: 3 Drill Tooling Type: #4 Morse Taper Machine Weight: 10,500 Lbs.

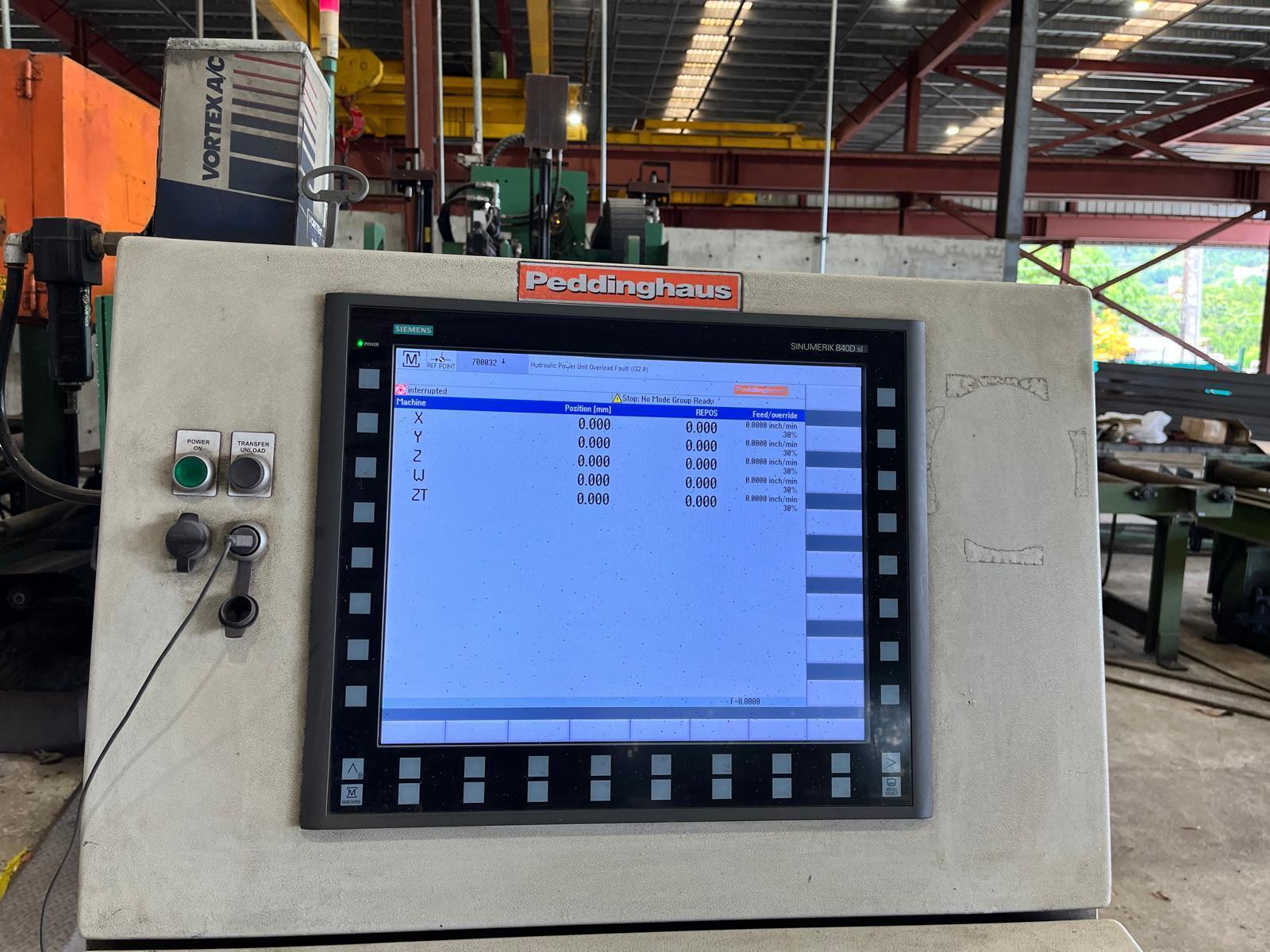

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Siemens 840DI CNC Control Raptor Software/PC Integration Fully Operational Horizontal Band Saw 60′ Motorized Infeed/Outfeed Conveyor 17′ Motorized Transfer Table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
