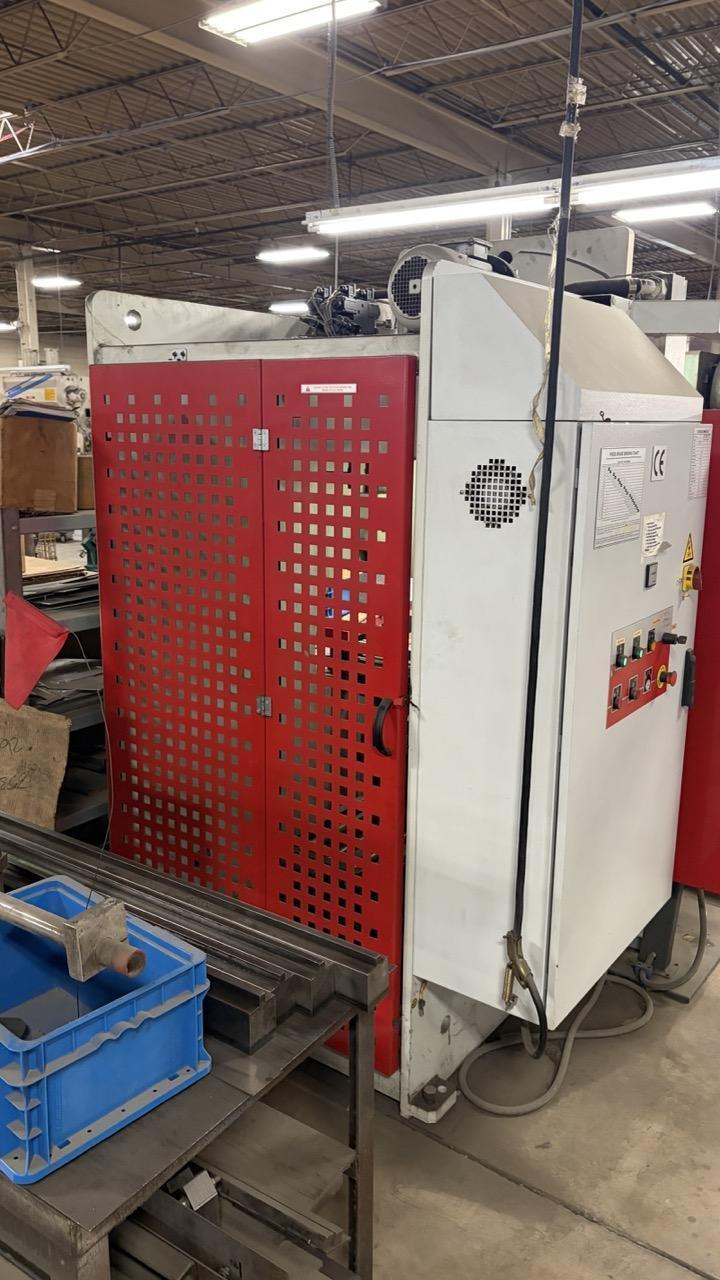

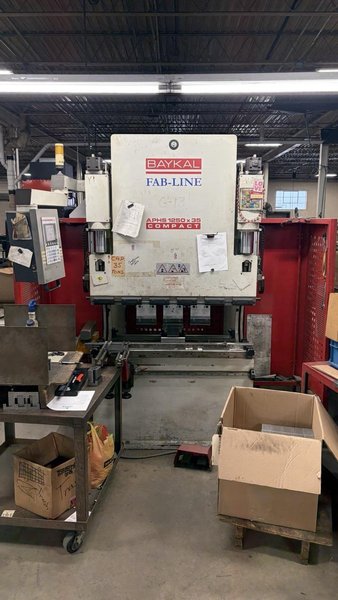

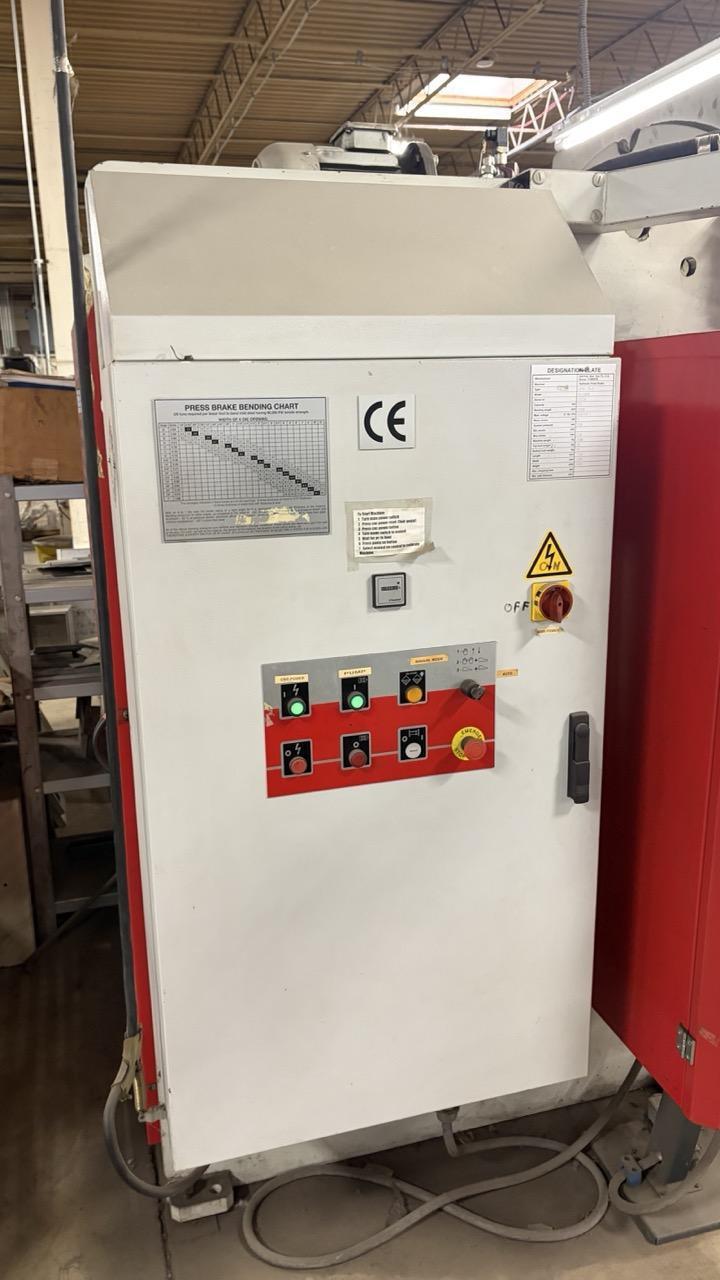

39 Ton x 4′ Baykal APHS Hydraulic CNC Press Brake, 2008 – Programmable Backgauge
Brand
Category
Type
Model
APHA 39x4
Stock #
913050
Year
2008
Condition
Not specified
Location
Not specified
|
Capacity: 38.58 Us Tons
Bending Length: 49.21″
Main Voltage: 460 V / 60 Hz / 3 Ph
Motor Power: 5.36 Hp
System Pressure: 3625.94 Psi
Max. Stroke: 8.27″
Machine Weight: 5511.56 Lbs
Top Tool Weight: 44.09 Lbs
Bottom Tool Weight: 66.14 Lbs
Length: 74.80″
Width: 66.93″
Height: 94.49″

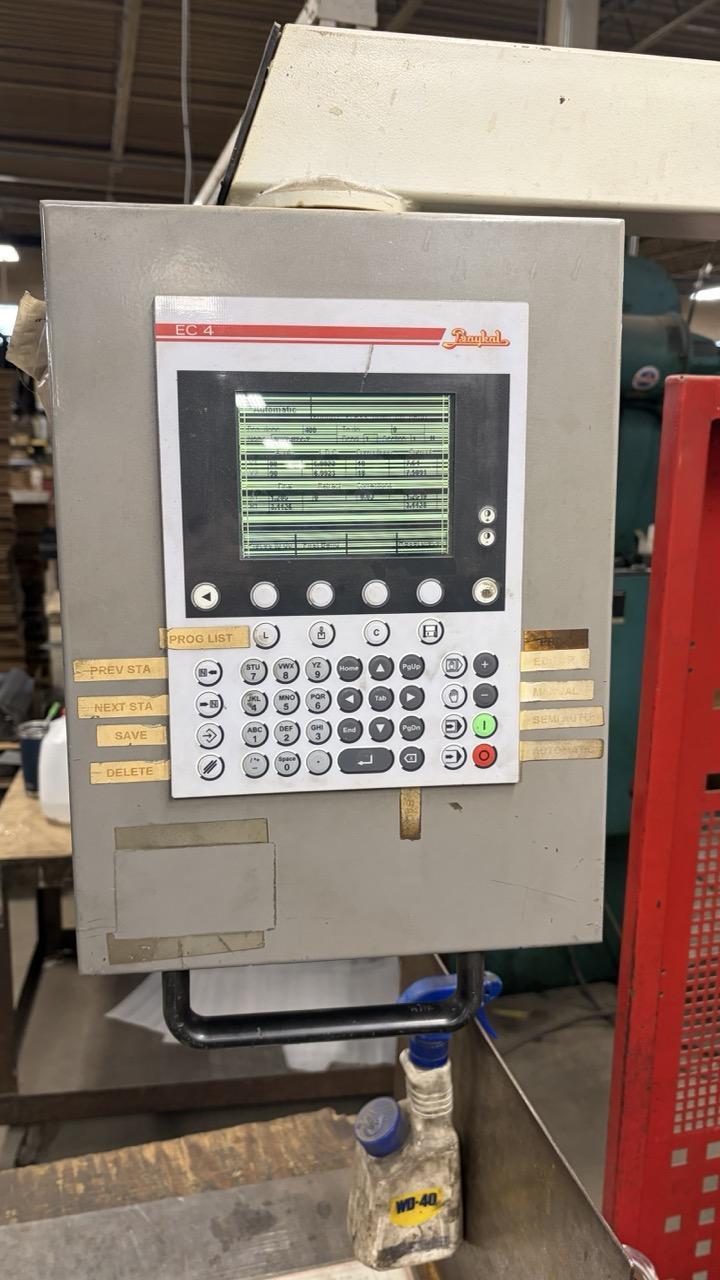

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Programmable Backgauge Baykal EC4 CNC Control All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
