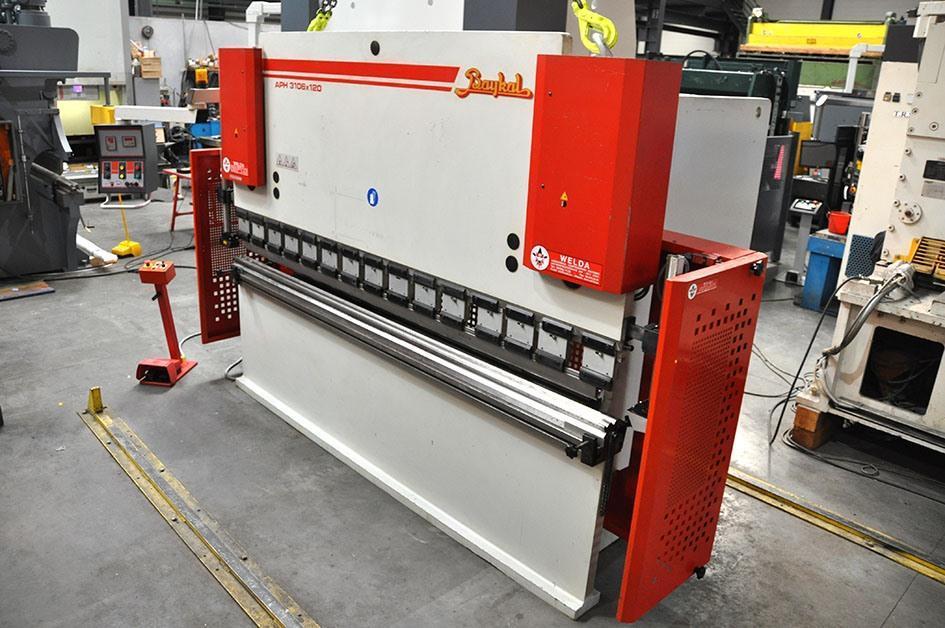

Baykal APH 120 ton x 3100 mm NC

Brand
BAYKAL
Category
Bending & Forming Equipment
Type
Brakes, Hydraulic
Model
APH 120 ton x 3100 mm NC
Stock #
O.01 10818
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Capacity 120 ton x 3100 mm

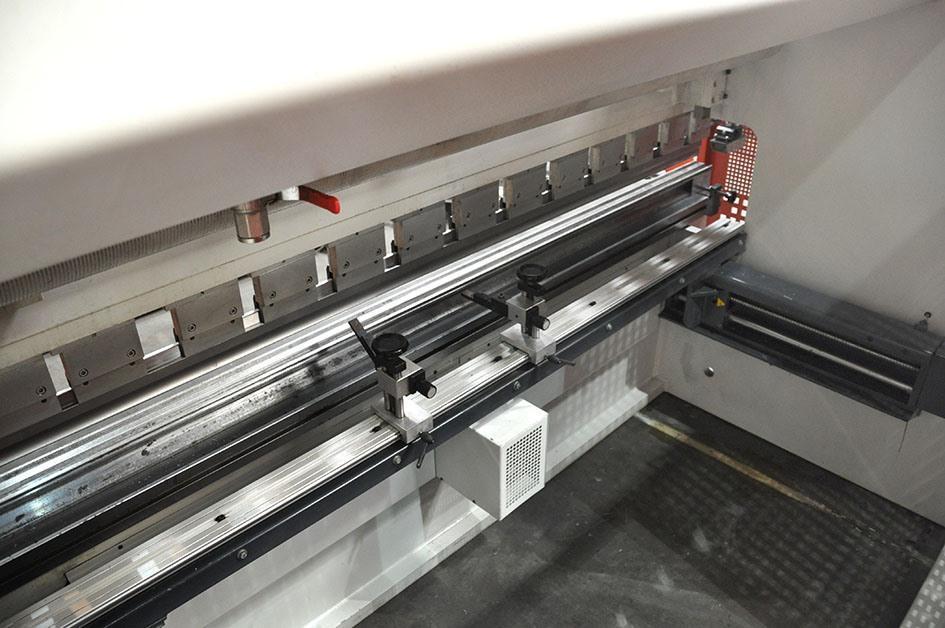

  • Backgauge CNC

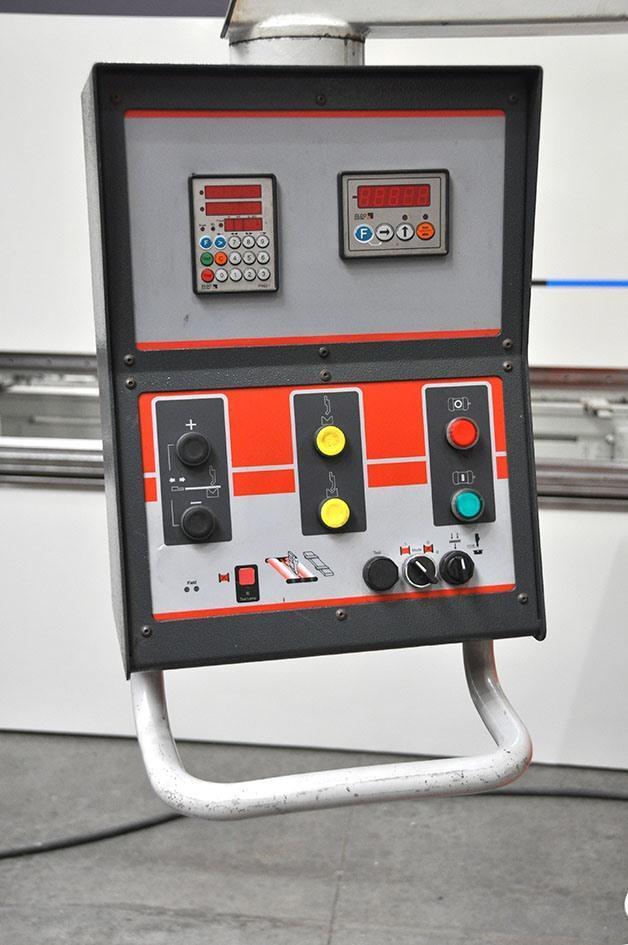

  • Control Elgo 1 axis + Elgo digital readout
  • Passage between uprights 2550 mm
  • Max stroke 130 > 180 mm
  • Max distance between table -- ram 465 mm
  • Depth of throat 410 mm
  • Table width 170 mm
  • Locking speed 100 mm/sec
  • Working speed 10 mm/sec
  • Returning speed 90 mm/sec
  • Electric motor (power) 11 kW
  • Length 3700 mm
  • Depth 1800 mm
  • Height 2750 mm
  • Weight 8 ton

Additional info

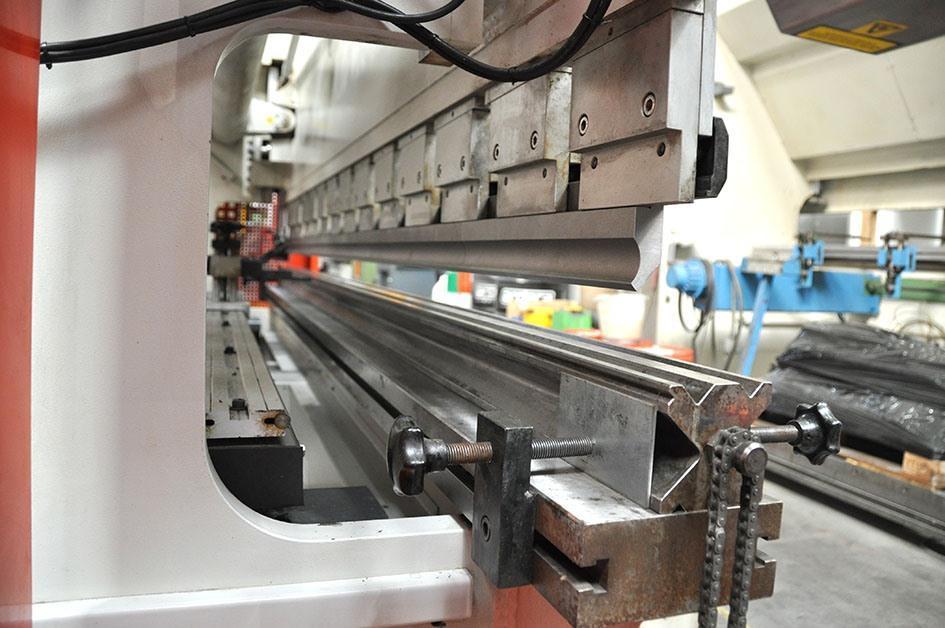

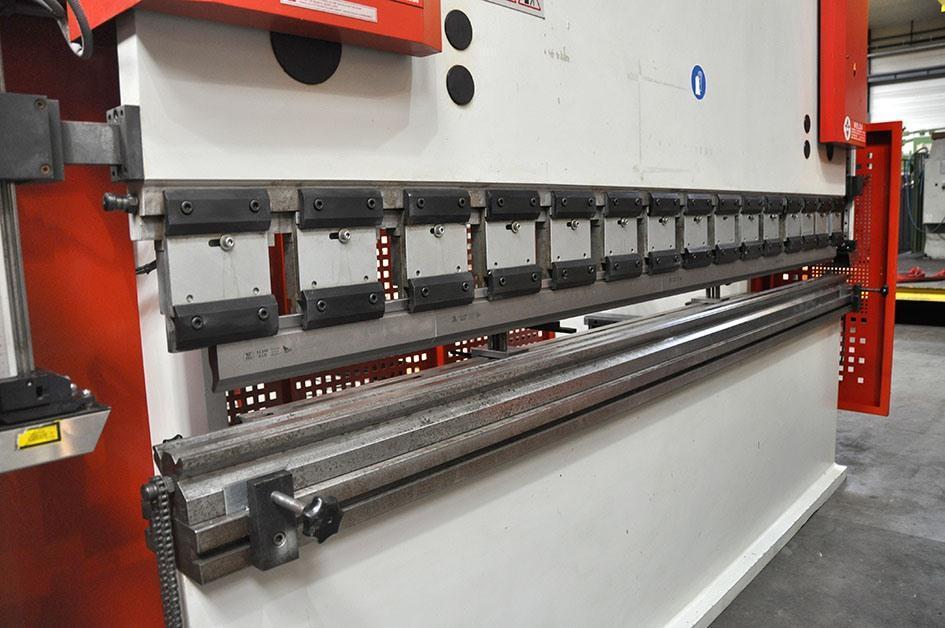

  • with system tooling (Amada)

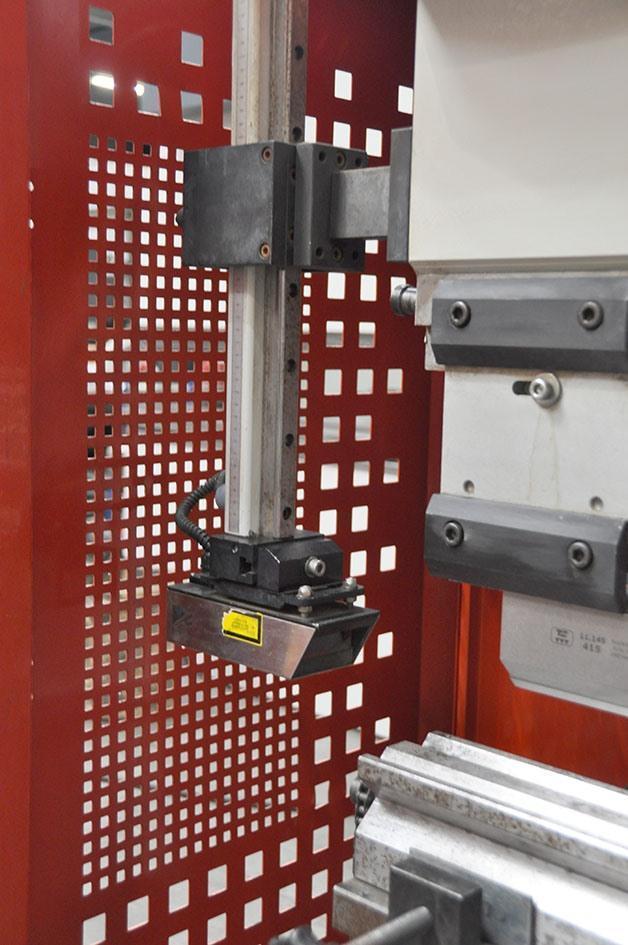

    BendGuard lasersafe security
    Elgo NC control for backgauge
    Elgo digital readout for depth
