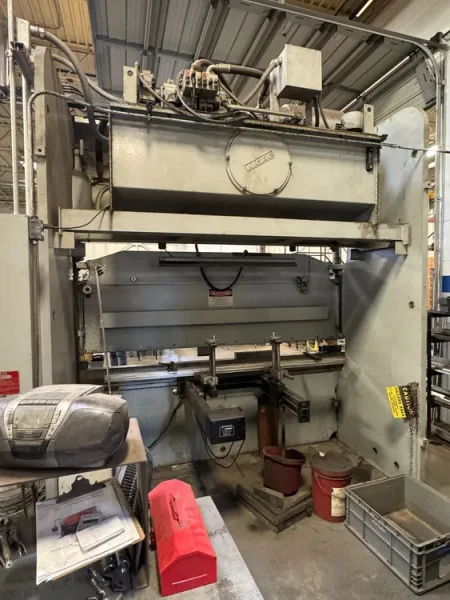

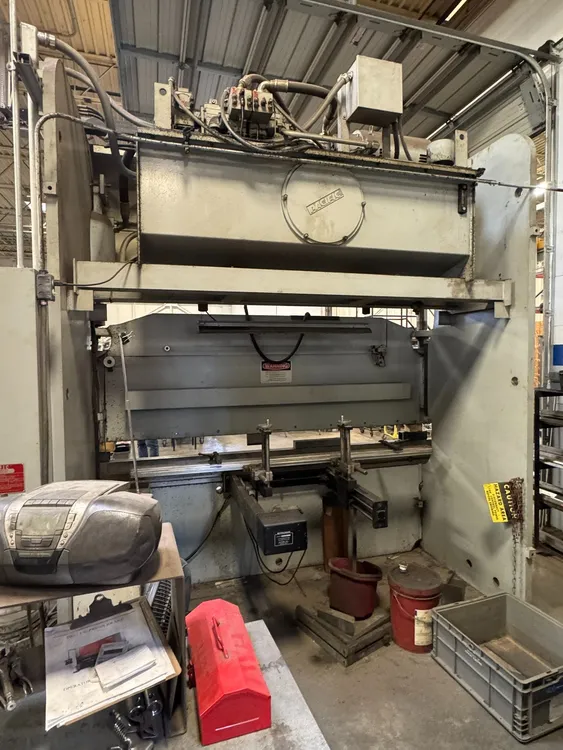

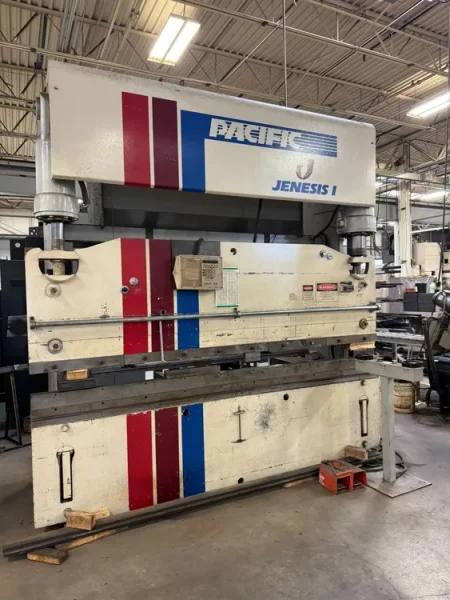

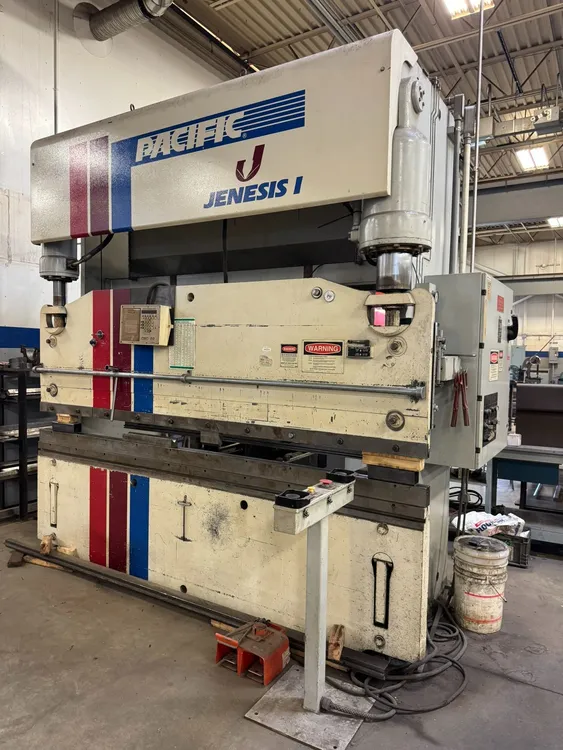

USED PACIFIC JENESIS SERIES I J-100-10 10' X 100 TON SINGLE AXIS CNC HYDRAULIC PRESS BRAKE

USED PACIFIC JENESIS SERIES I J-100-10 10' X 100 TON SINGLE AXIS CNC HYDRAULIC PRESS BRAKE

Name: Used PACIFIC Jenesis Series 1 J-100-10 For Sale 11231
Brand: PACIFIC
SKU: 11231
Availability: PreOrder

Brand

PACIFIC

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Brakes, Press

Manufacturer:

PACIFIC

Model:

Jenesis Series 1 J-100-10

Year:

2000

Stock #:

11231

Status:

For Sale

Description

Used Pacific Jenesis series J-100-10 CNC hydraulic press brake. Features 100-ton capacity, 10' bed, 8" stroke, and 1 axis CNC control. Equipped with Automec CNC 99 backgauge, servo amplifier, and high-speed hydraulic system.

Specifications

Tonnage	100 T	90.719 t
Type	HYD	HYD
Overall Length	10'	3 m
Between Housings	102"	2.6 m
Stroke	8"	203.2 mm
# Axis	1	1
Control	CNC (Automec)	CNC (Automec)
Dimensions	138" x 62" x 127"	138" x 62" x 127"
Weight	18000	18000

Brand: Pacific
Model: Jenesis J-100-10

Tonnage: 100 tons
Bed length: 10'
Distance between housings: 102"
Ram speeds:
Rapid advance: 330 IPM
High press: 50 IPM
Medium press: 18 IPM
Low press: 10 IPM
Return: 390 IPM
Bed cap width: 3-1/2"
Bed height: 34"
Throat depth: 7"
Throat height: 12-1/2"
Stroke length: 8"
Open height: 15"
Closed height: 7"
Main motor: 30 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 138" x 62" x 127"
Weight: 18,000 Lbs.

Equipped With

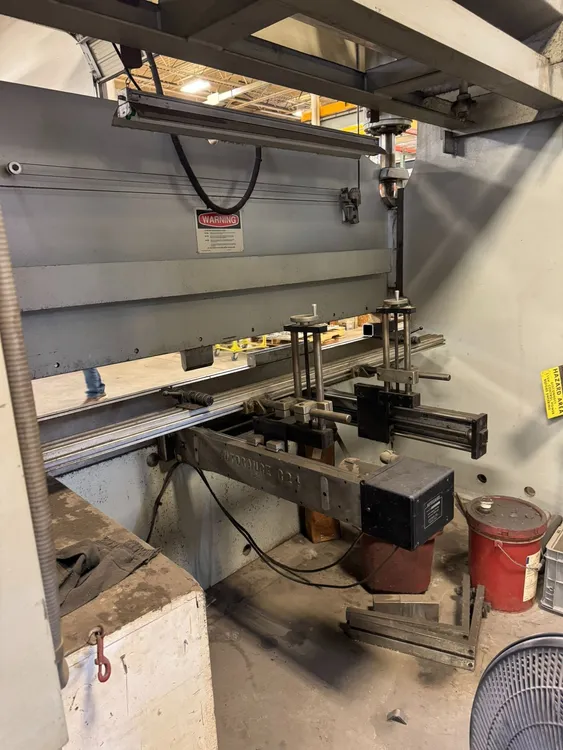

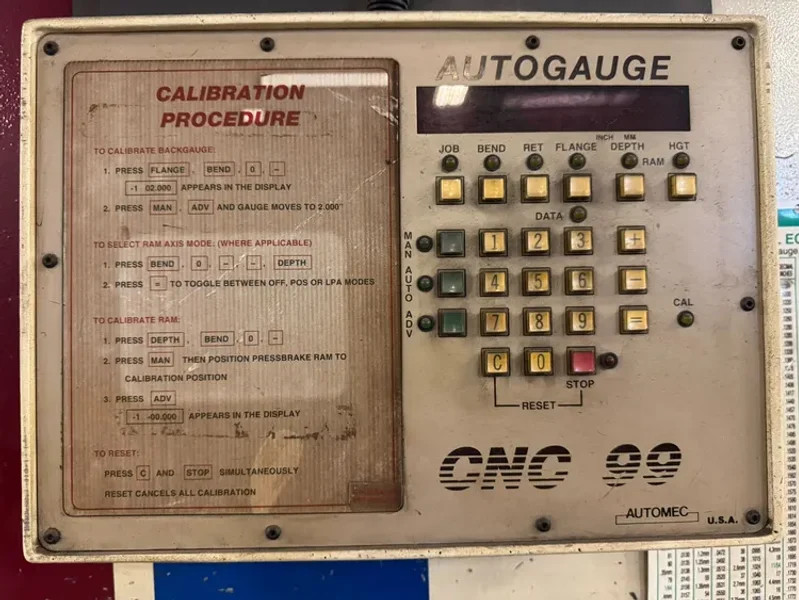

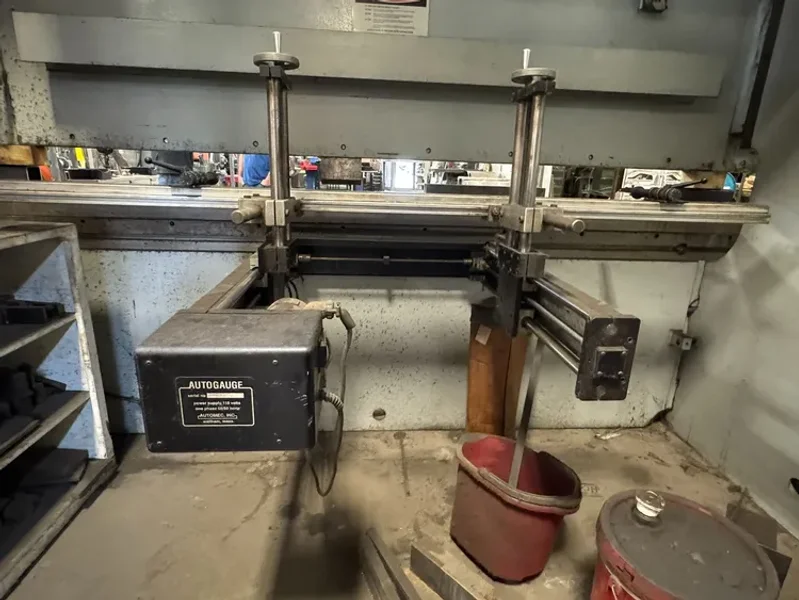

Automec CNC 99 single axis CNC backgauge control
Servo amplifier level control

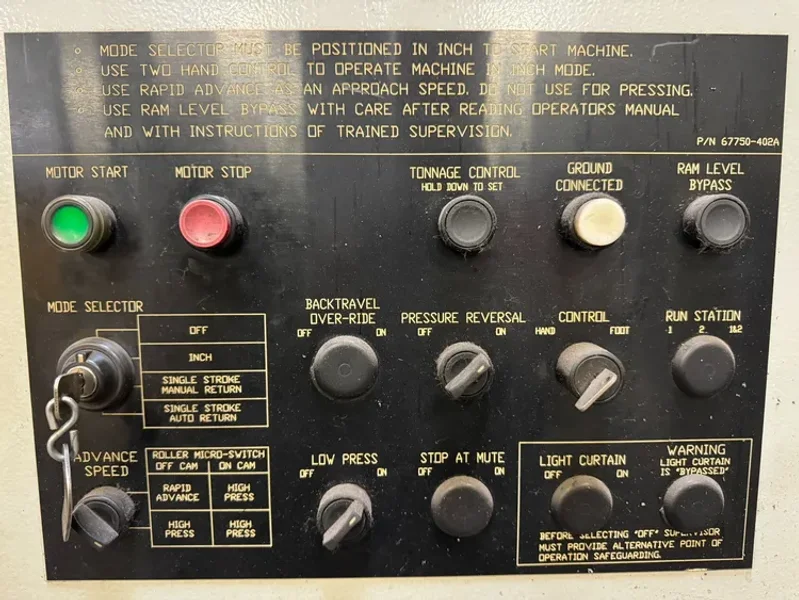

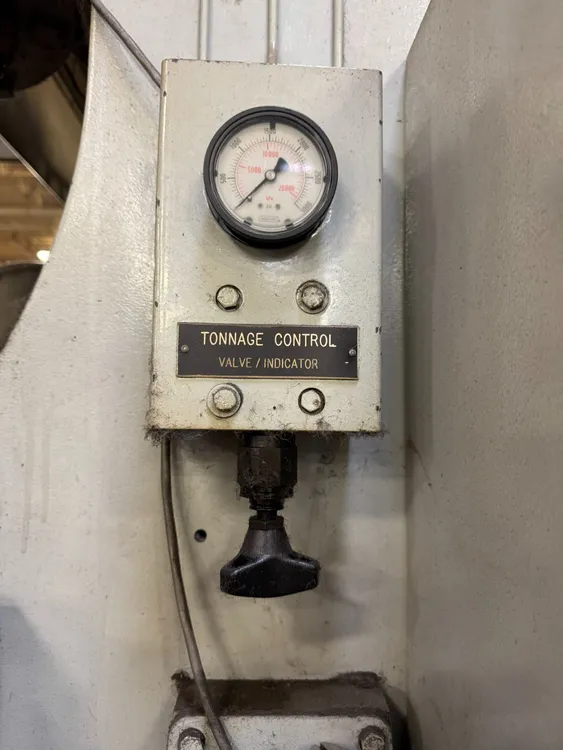

Tonnage control and indicator
3 advance speeds

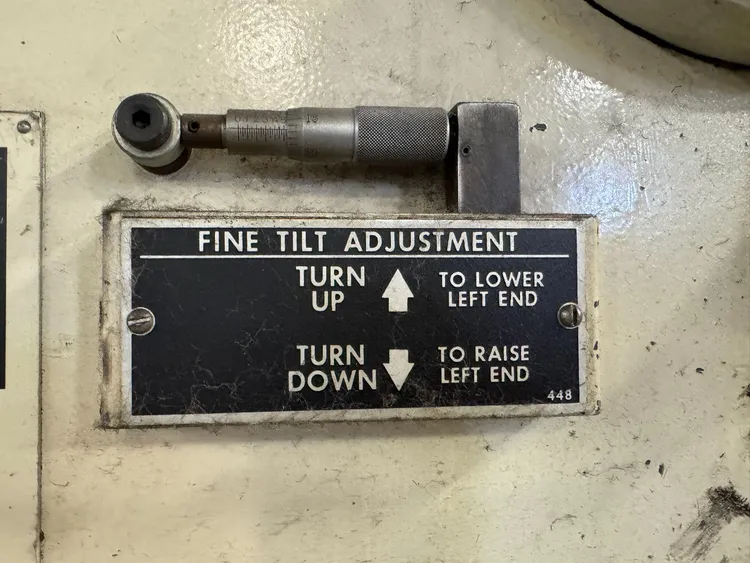

Front operated tilt control

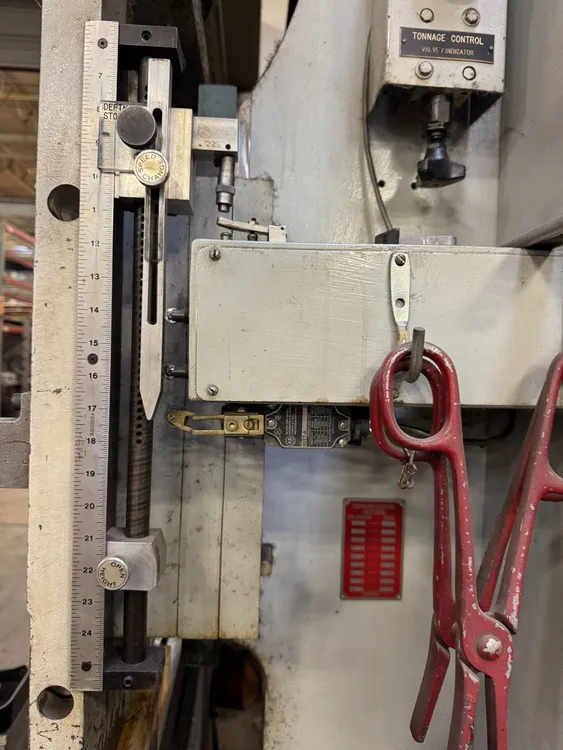

Manual stroke length and ram depth position controls
High speed hydraulic system

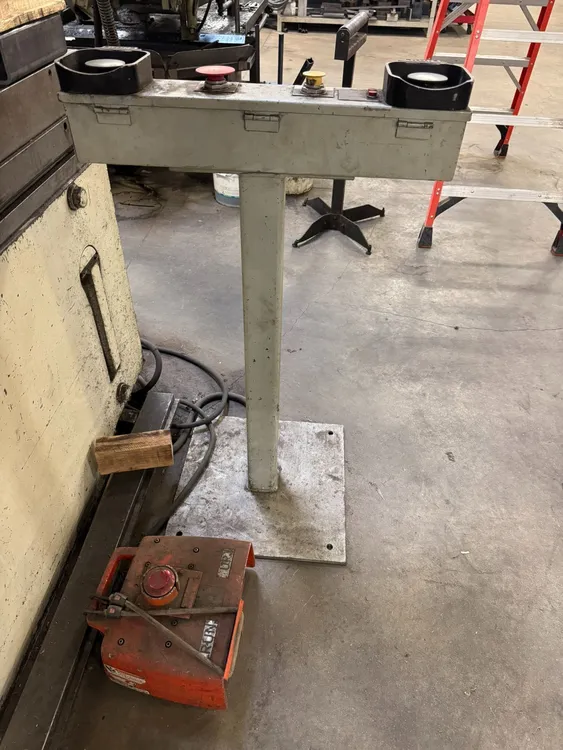

Portable foot pedal
Flush floor design

Machine sold As-Is Where-Is
