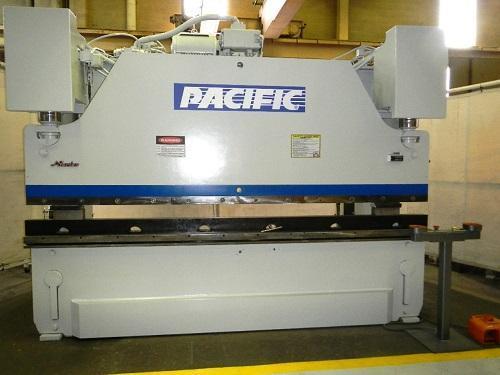

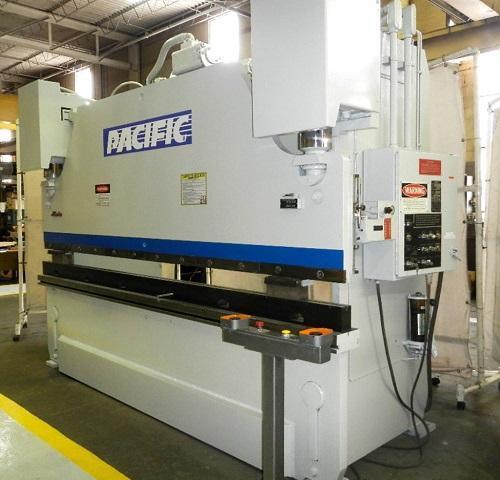

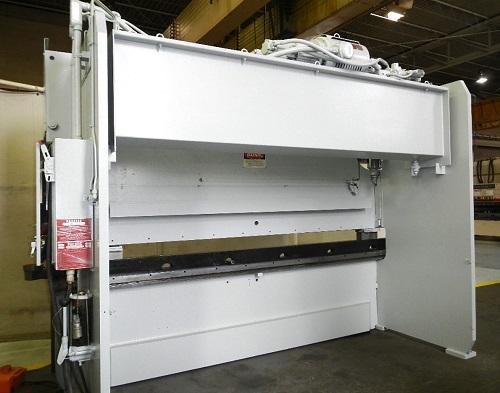

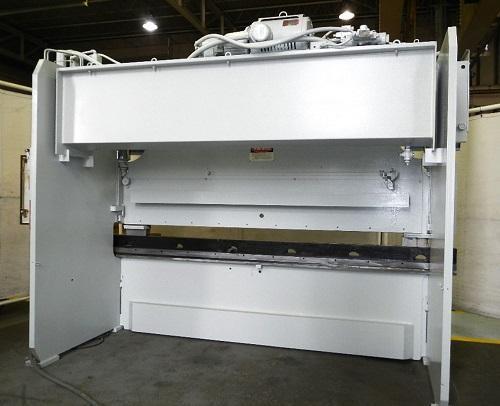

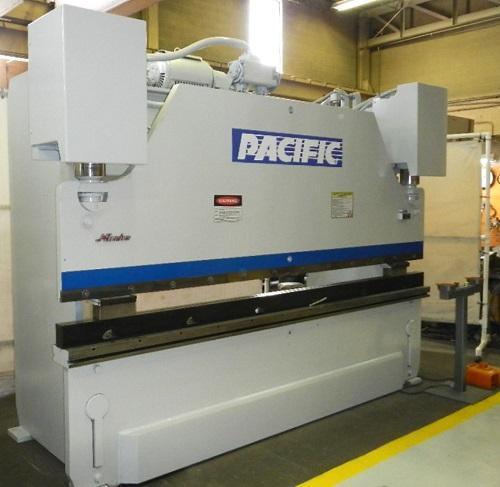

PACIFIC MODEL J175-12 HYD. PRESS BRAKE
Brand
Category
Type
Model
J175-12
Stock #
116455
Year
Not specified
Condition
Used
Location
Not specified
|
PACIFIC MODEL J175-12 HYD. PRESS BRAKE
Capacity ..................... 175 ton
Bending ...................... 1/4" x 10'
Overall length bed and ram ... 12'
Distance between housings .... 10'6"
Maximum stroke (adjustable) .. 10"
Open height .................. 15"
Closed height ................ 5"
Distance top of bed to floor . 36"
Throat depth ................. 7"
Rapid advance................. 230 ipm
Normal press ................. 56 ipm
Anti-whip .................... 15 ipm
Fast return .................. 182 ipm
Electrics ......... 30 HP / 1800 / 220-440 / 3 / 60
Approximate overall dimensions 150 L x 60 D x 114 H
Approximate weight ........... 25,000 lbs.
Machine is equipped with:

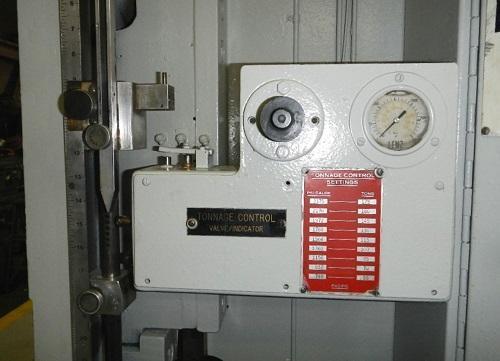

- Adjustable tonnage control
- Single stroke with manual or auto return modes
- Pressure reversal mode option
- Micro adjustable stroke start
- Stop & speed change points
- Flush floor design
- Lube system
- Upper sectional ram clamps
- Lower die rail

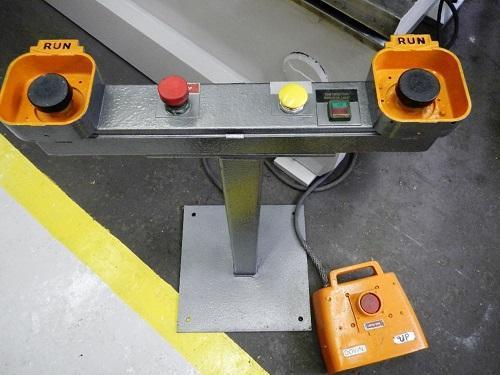

- Remote palm button stand w/ E-stop
|
