USED LINCOLN 9" X 42" KNEE MILL WITH 2-AXIS READOUT, Year: 1994

USED LINCOLN 9" X 42" KNEE MILL WITH 2-AXIS READOUT, Year: 1994

Name: USED LINCOLN 9" X 42" KNEE MILL WITH 2-AXIS READOUT, Year: 1994
Brand: LINCOLN
SKU: 11040
Availability: PreOrder

Brand

LINCOLN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Knee Mills

Manufacturer:

LINCOLN

Model:

2SHG

Year:

1994

Stock #:

11040

Status:

For Sale

Description

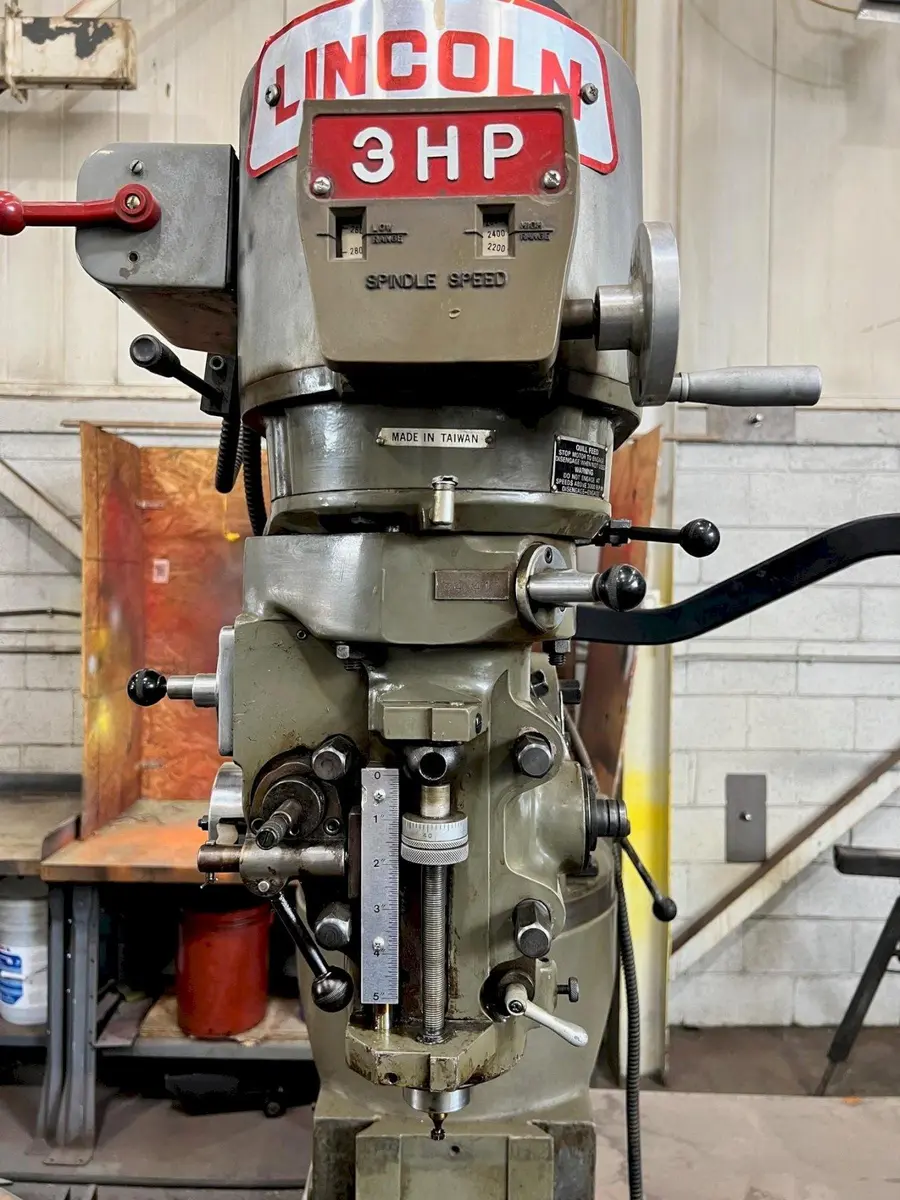

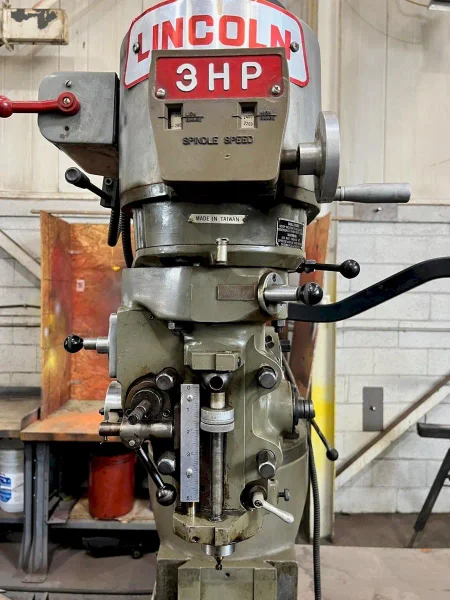

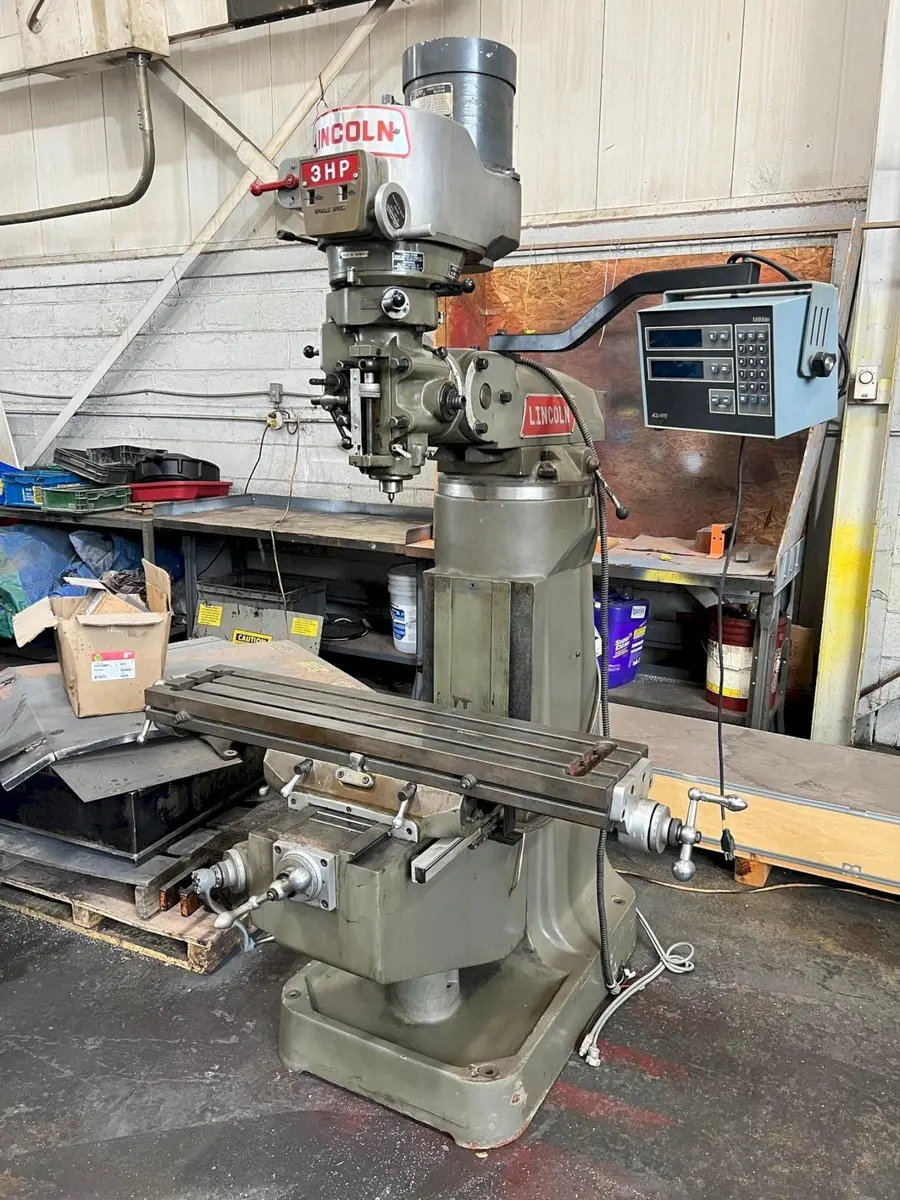

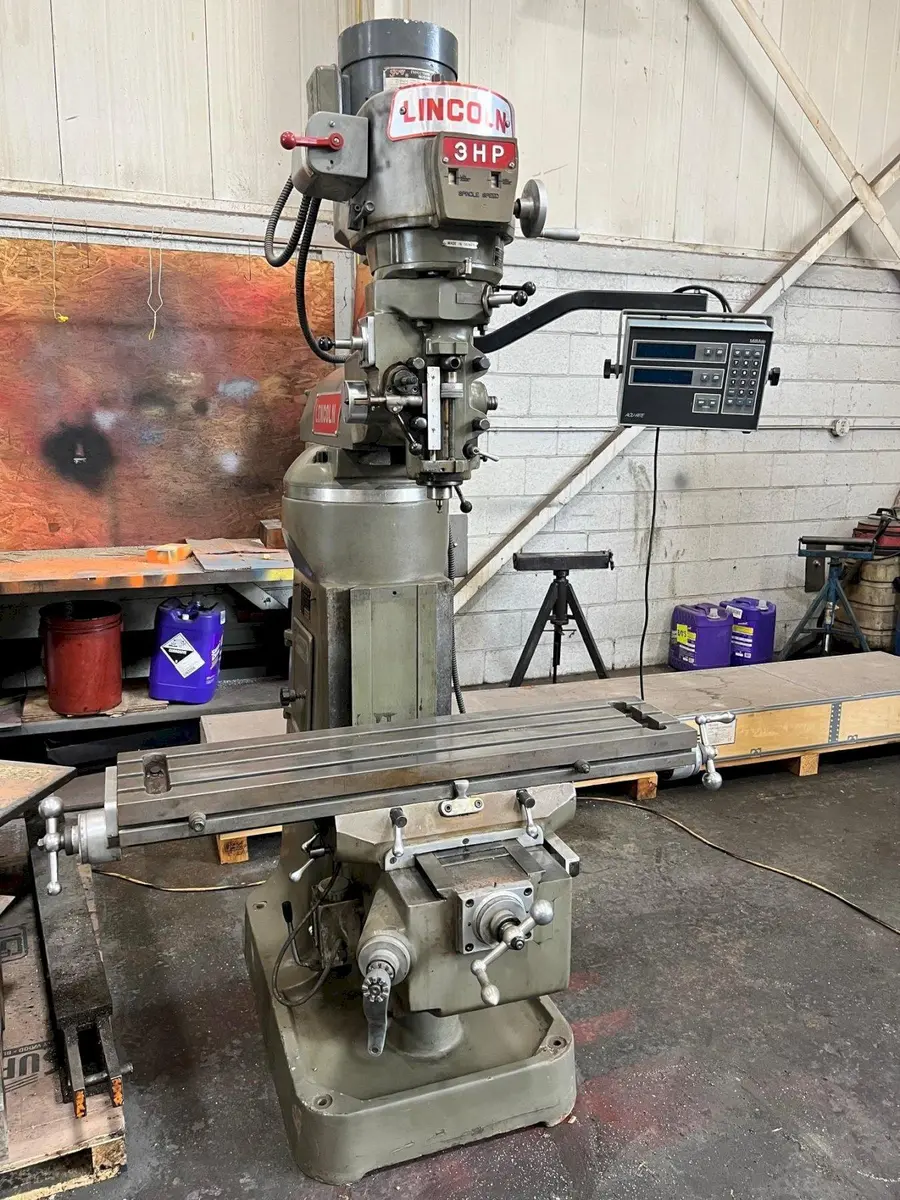

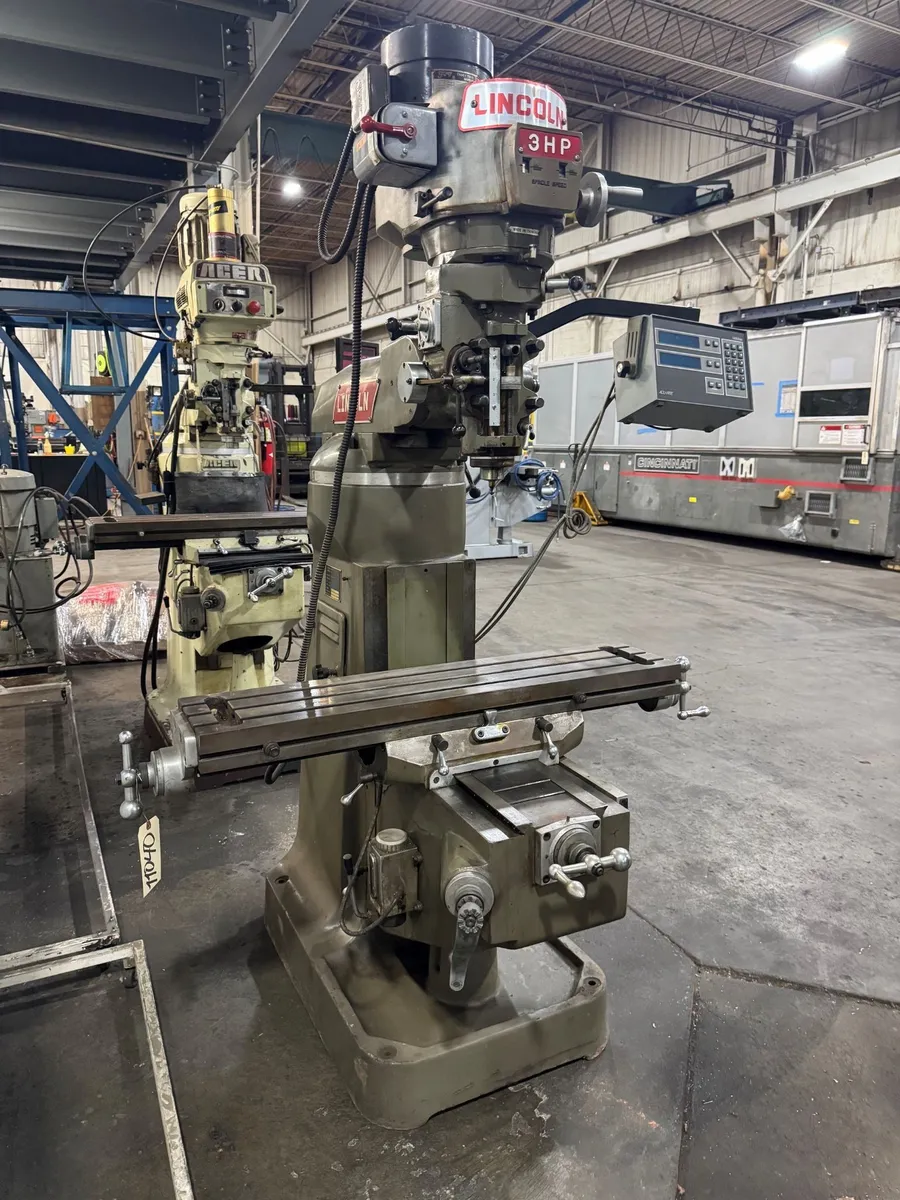

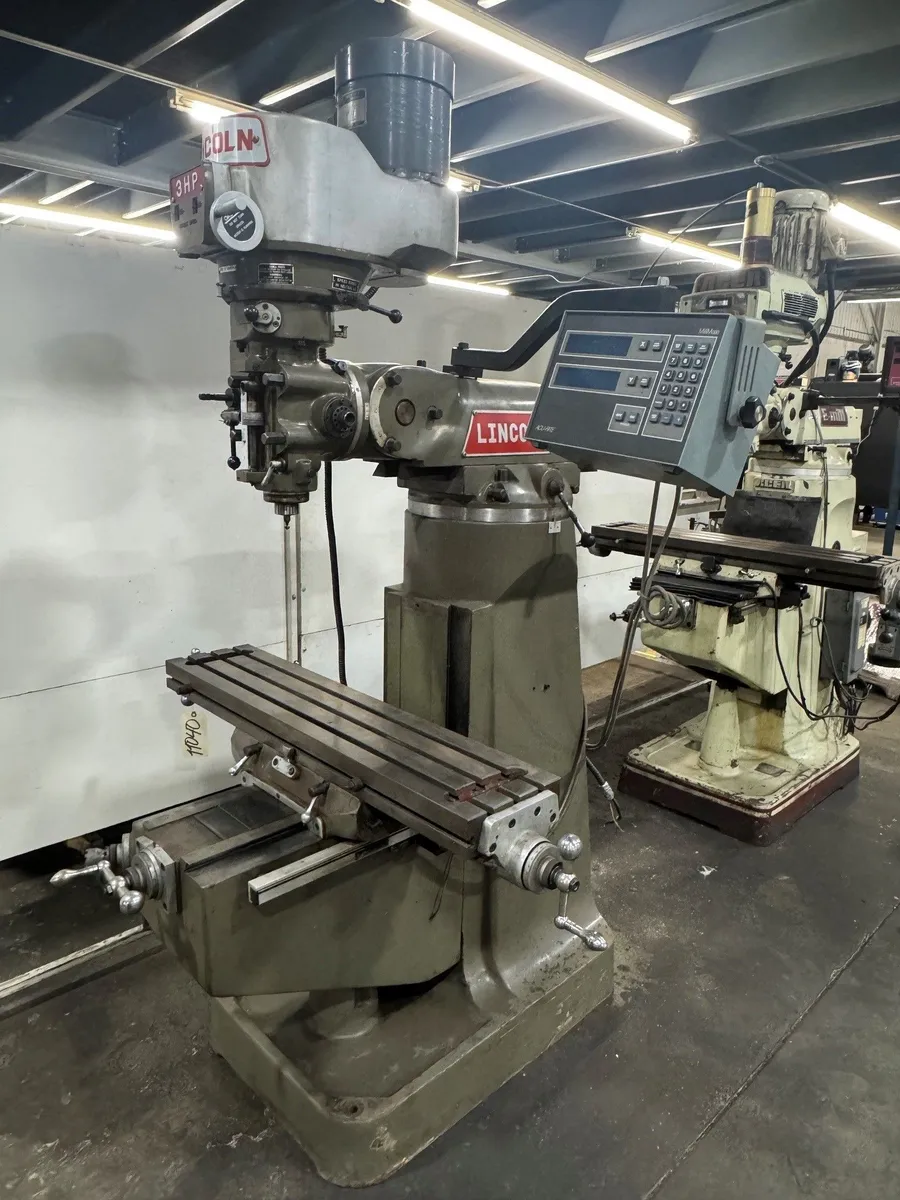

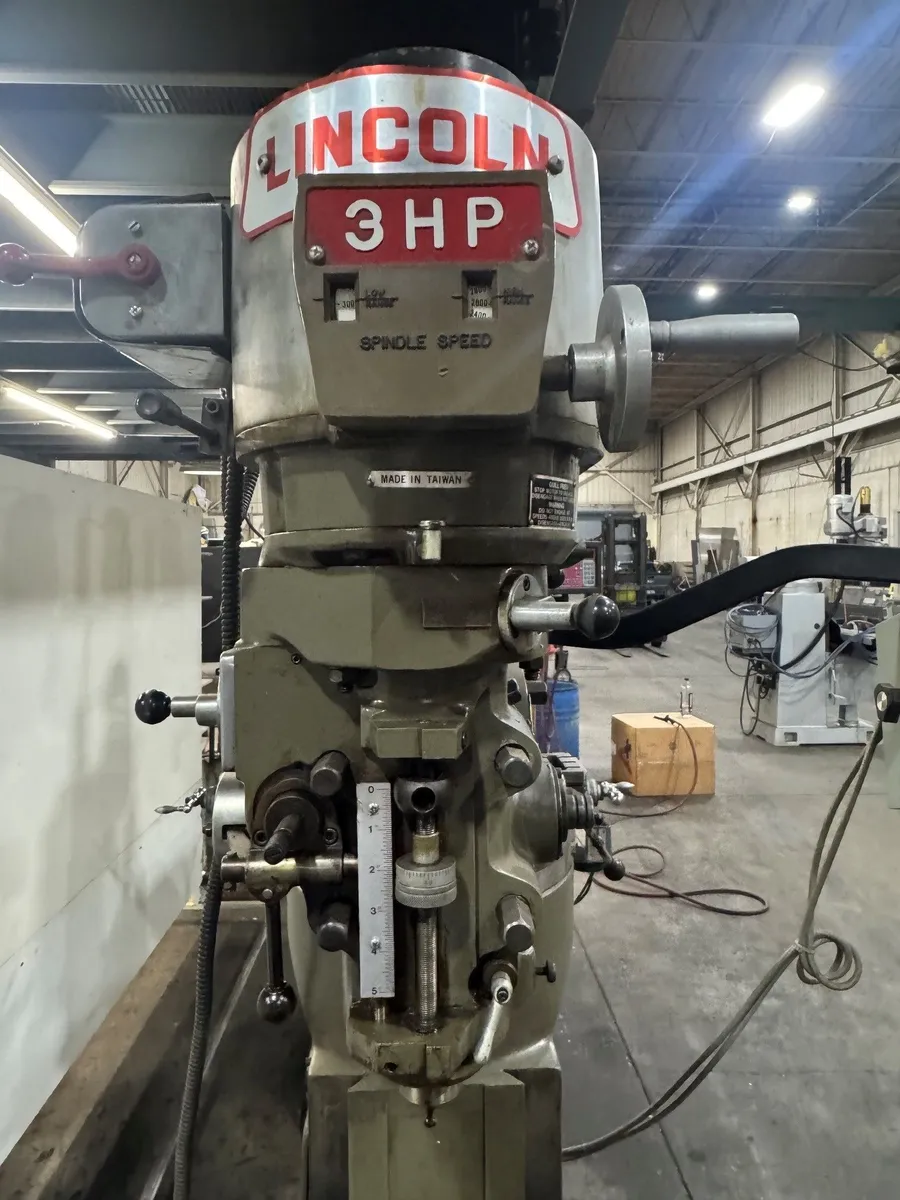

LINCOLN 2SHG Knee Mill, 1994 model, with 9"x42" table, 30" longitudinal travel, 16" cross travel, 3 HP motor, and R8 spindle taper. Features include MillMate 2-axis readout and one-shot lube system. Ideal for precise milling tasks.

Specifications

Brand: Lincoln

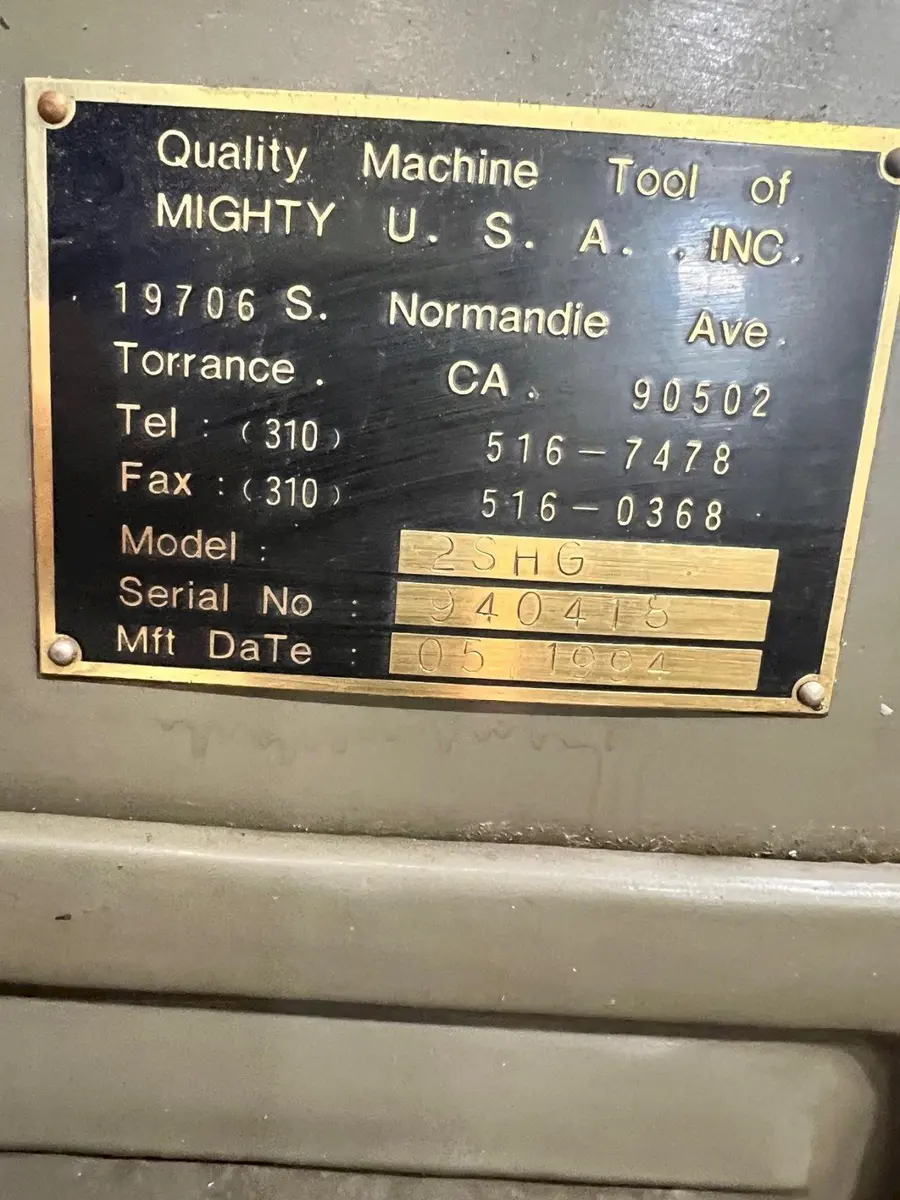

Model: 2SHG

Specifications:

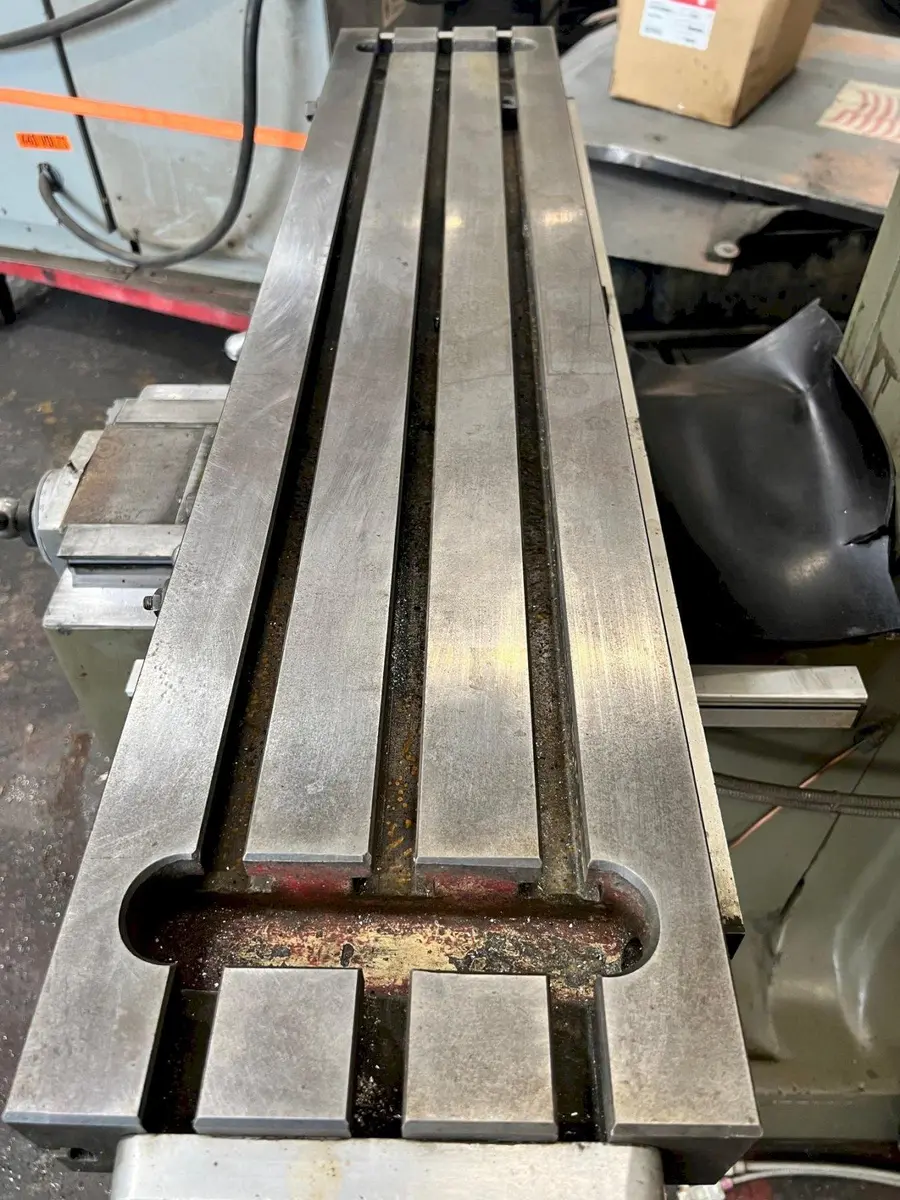

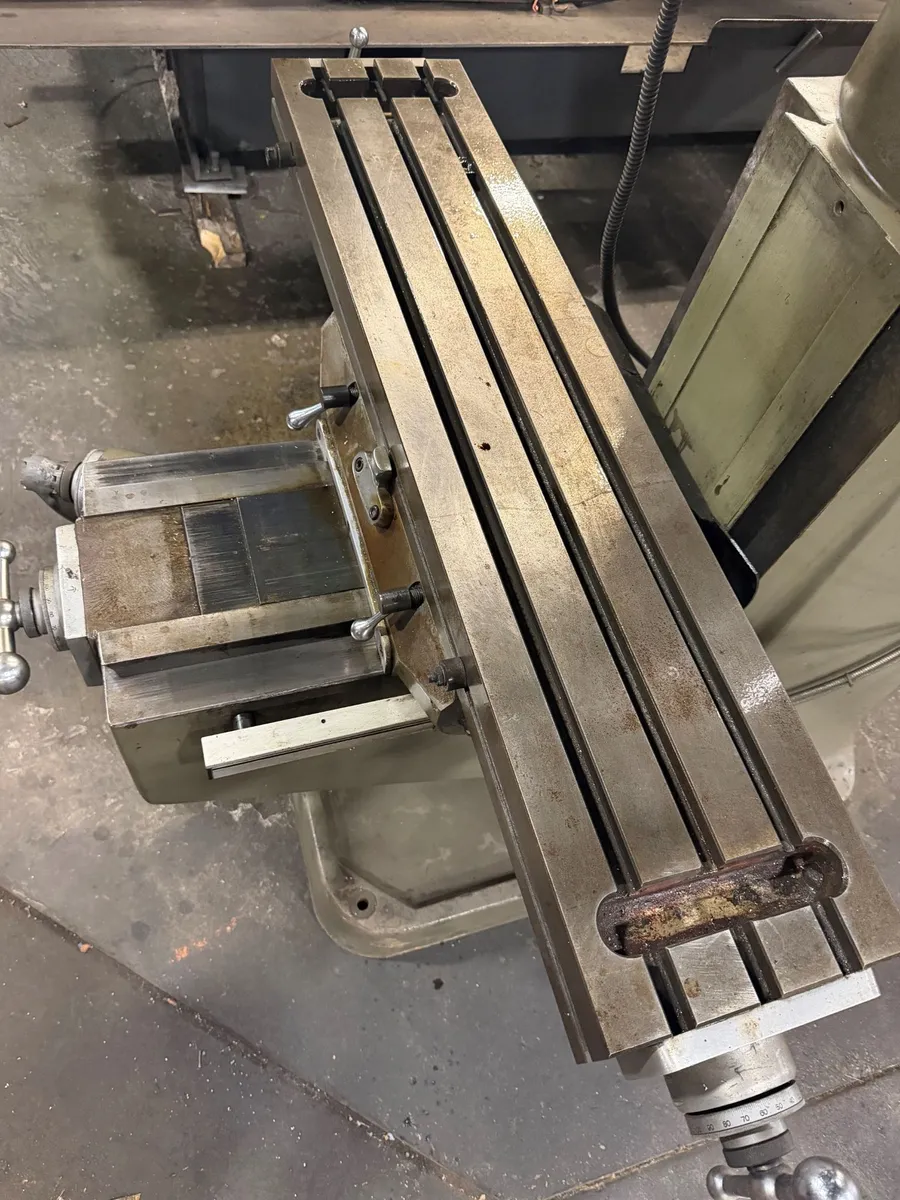

Table: 9: x 42"
Longitudinal table travel: 30"
Cross table travel: 16"
Vertical knee travel: 16"
Quill travel: 5"
Ram travel in/out: 24"
Spindle speeds: 60 - 4,200 RPM
Spindle taper: R8
Power quill feeds: .0015, .003, .006 IPR
Distance spindle nose to table: 2" min / 18" max
Distance spindle to centerline of column: 4" min / 28" max
Head tilts: 45 degrees forward / backward
Head rotates: 90 degrees right / left
Main motor: 3 H.P.
Voltage: 220 / 440 volt 3 phase
Weight: 1,800 Lbs. est.

Equipped With

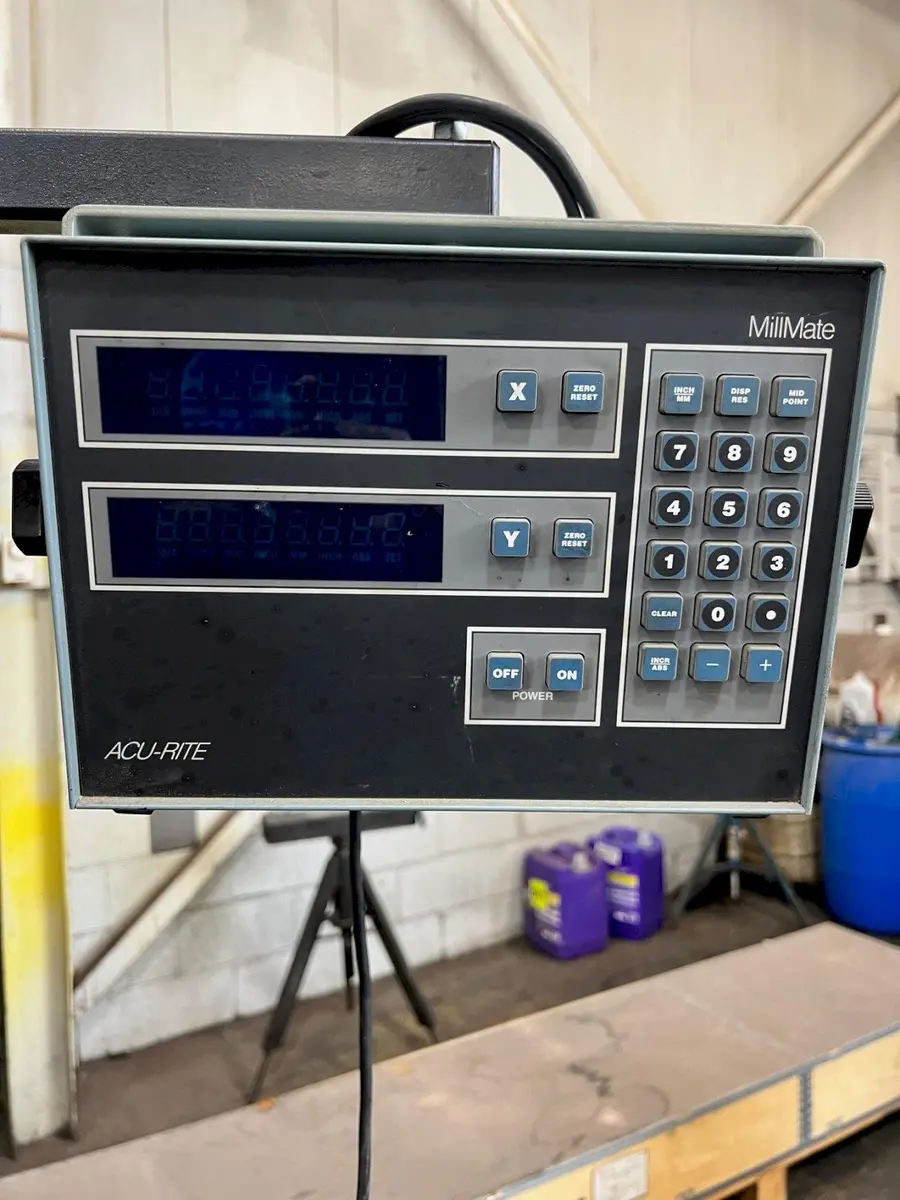

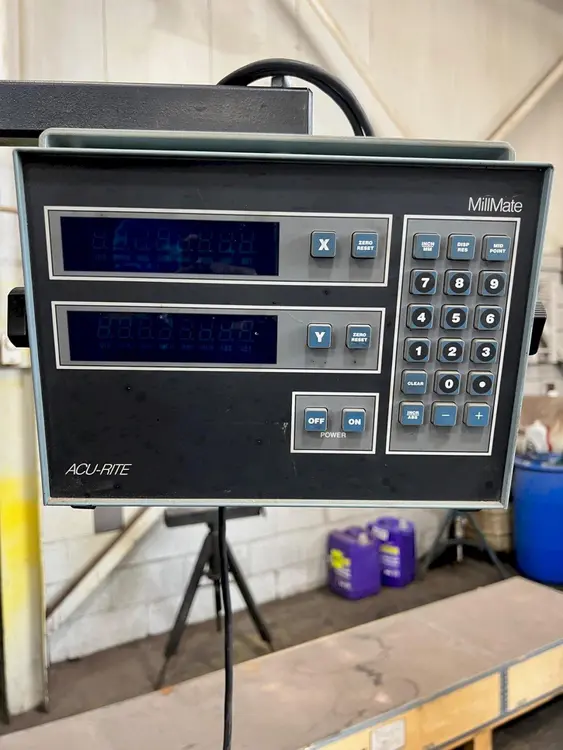

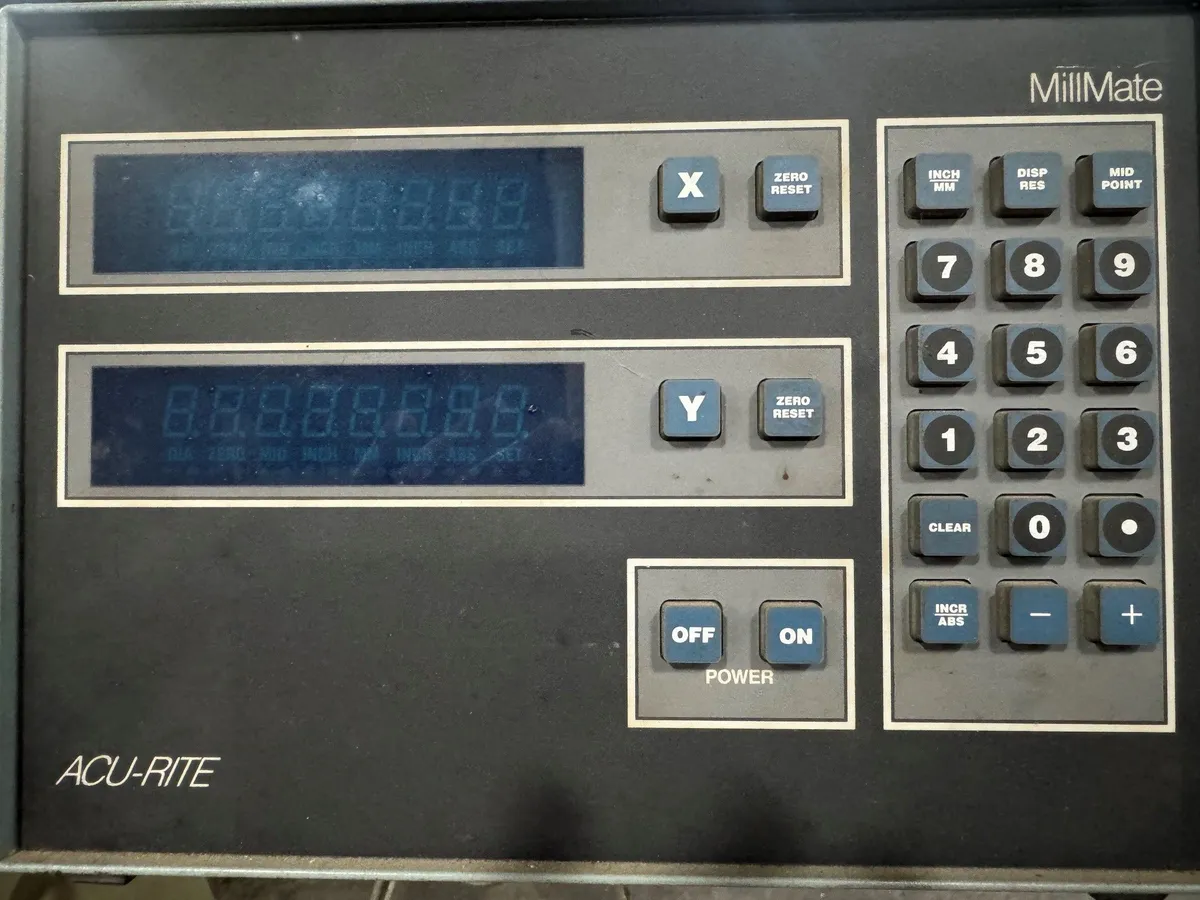

MillMate 2-axis readout

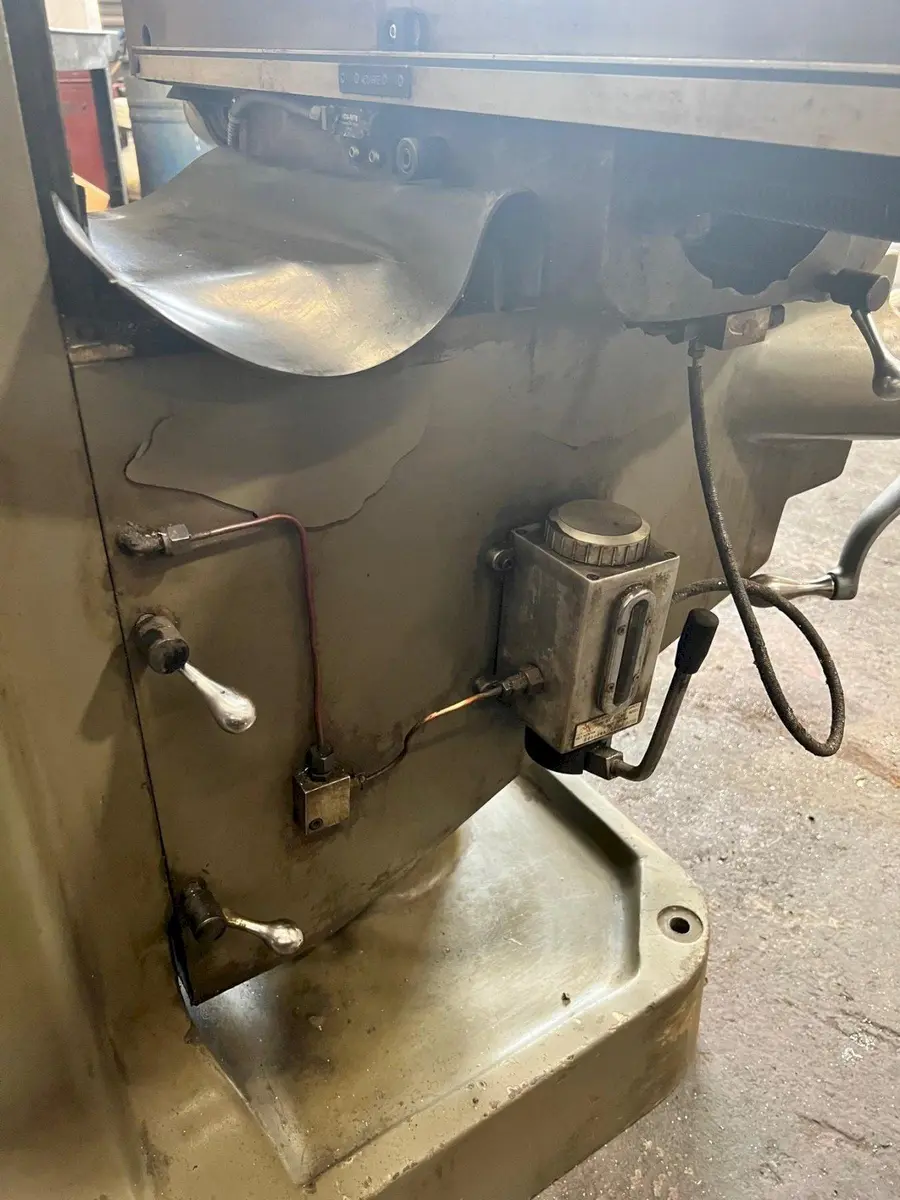

One shot lube system
