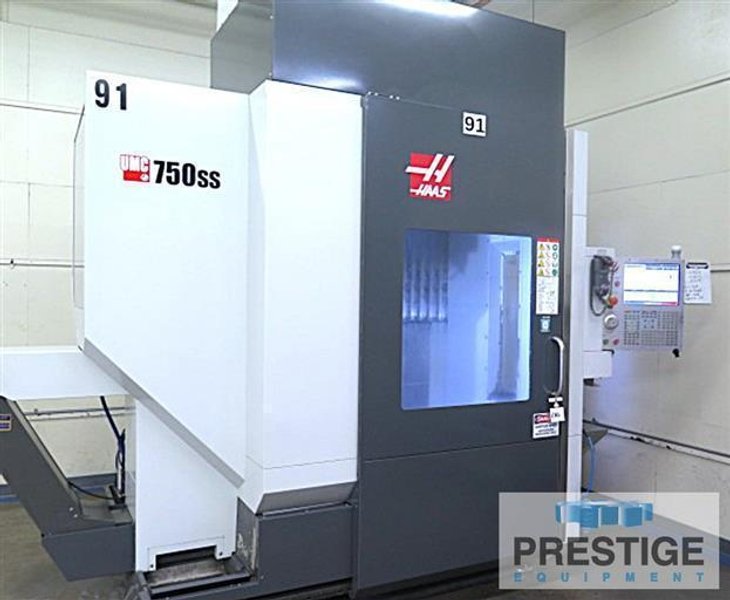

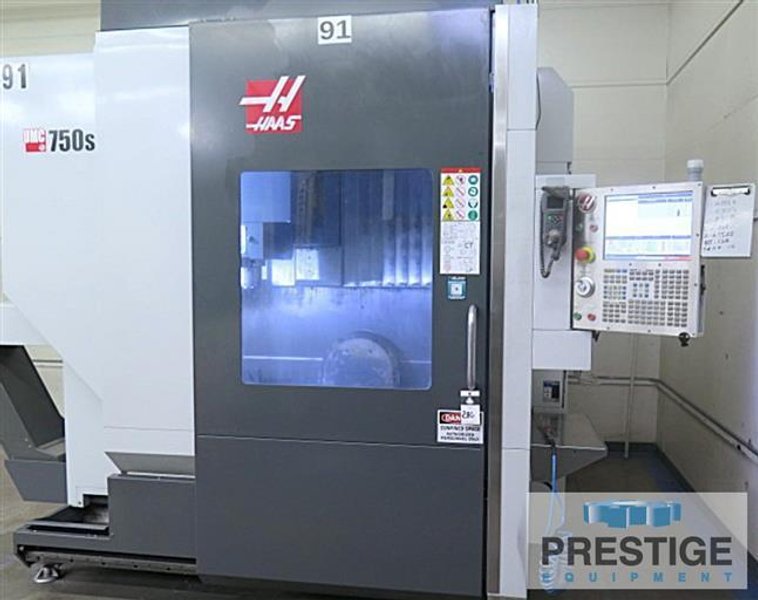

Haas UMC-750SS 5-Axis Vertical Machining Center

SPECIFICATIONS:
X-Axis Travel 30"
Y-Axis Travel 20"
Z-Axis Travel 20"
Max. Part Swing 27"
Spindle Taper CT 40
Spindle Nose to Table 4"-24"
Spindle Motor 30 HP
Spindle Speeds To 15,000 RPM
TABLE:
B-Axis Tilt/Travel +120/-35 Degrees
C-Axis Rotation 360 Degrees
Table Diameter 19.7"
Table Work Weight Capacity 660 Lbs.



Equipped With:

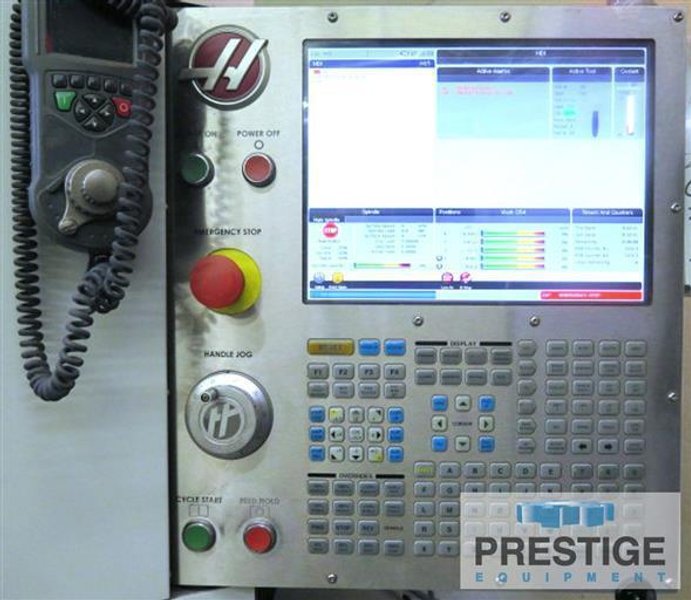

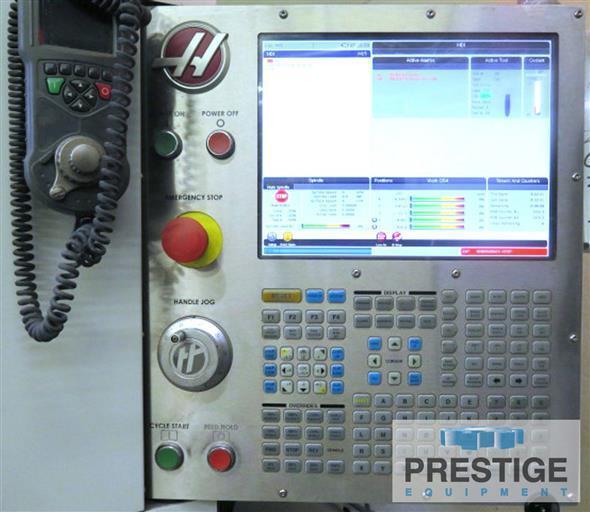

Haas CNC Control With 1 GB Memory Expansion

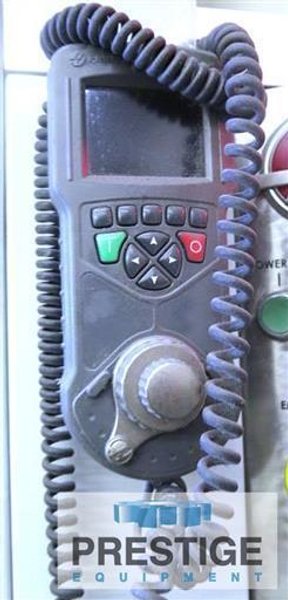

RJH-C - Remote Jog Handle with Color LCD
Ethernet Interface
Haas Connect Option

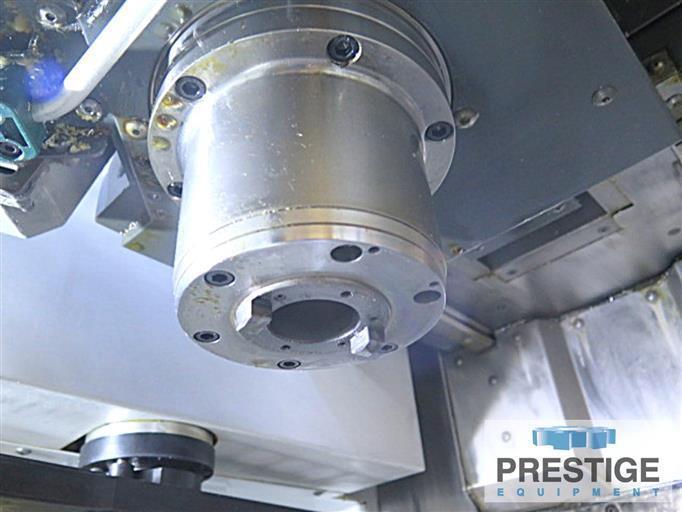

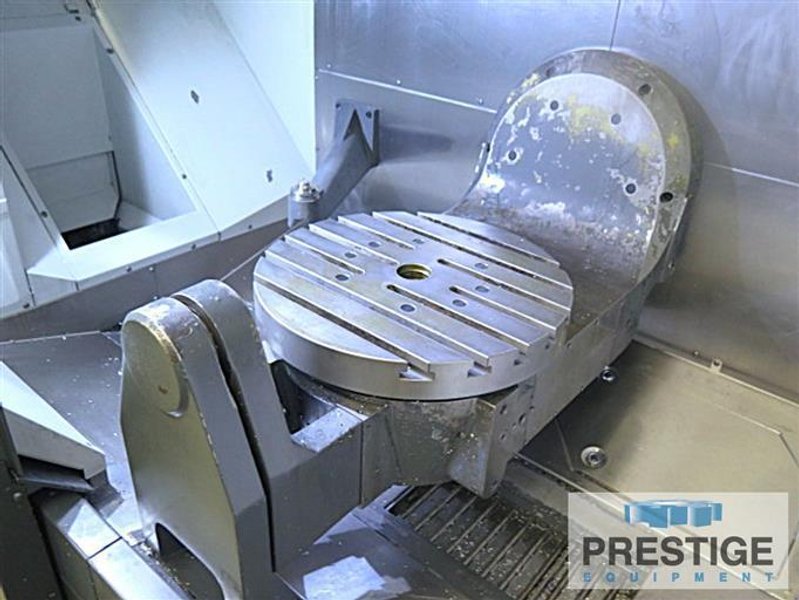

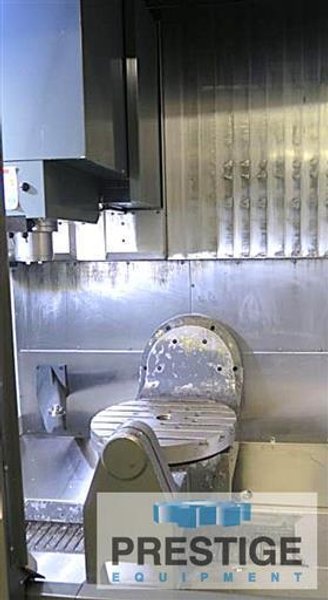

2-Axis Programmable Trunnion Table

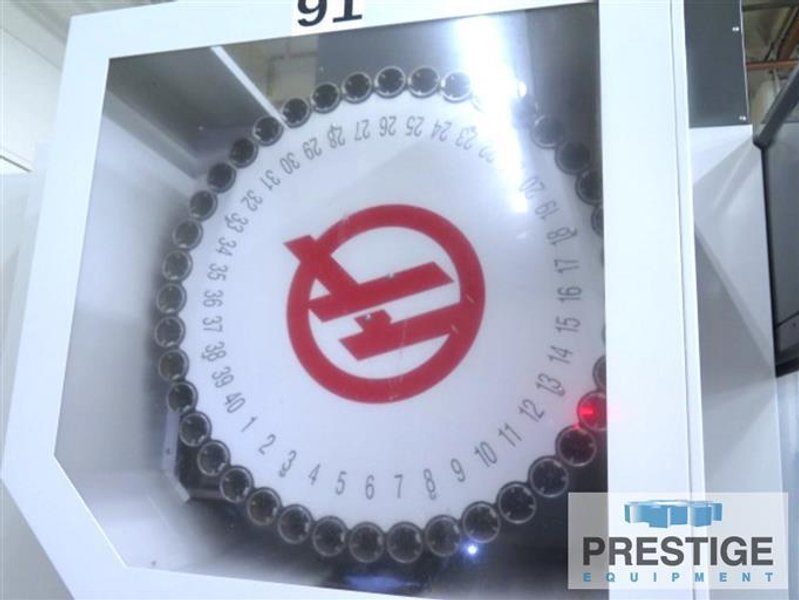

40-Position Automatic Tool Changer
15,000 RPM Spindle
High Speed Machining VPS Editing
HOME - Second Home Position
Media Display - Media Display M-Code

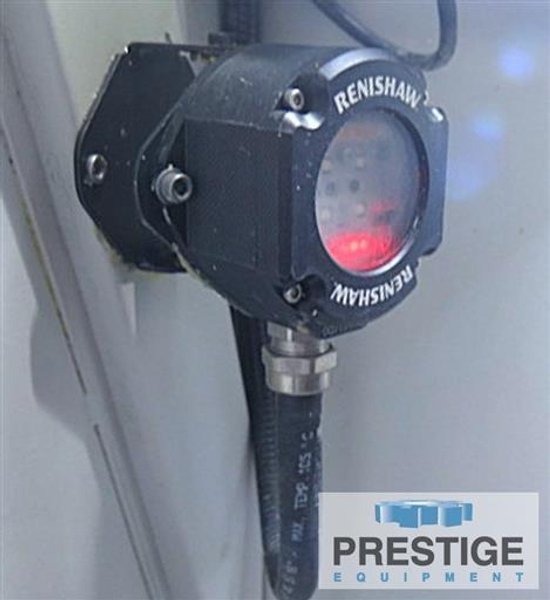

WIPS-R-EC Renishaw Intuitive Probing

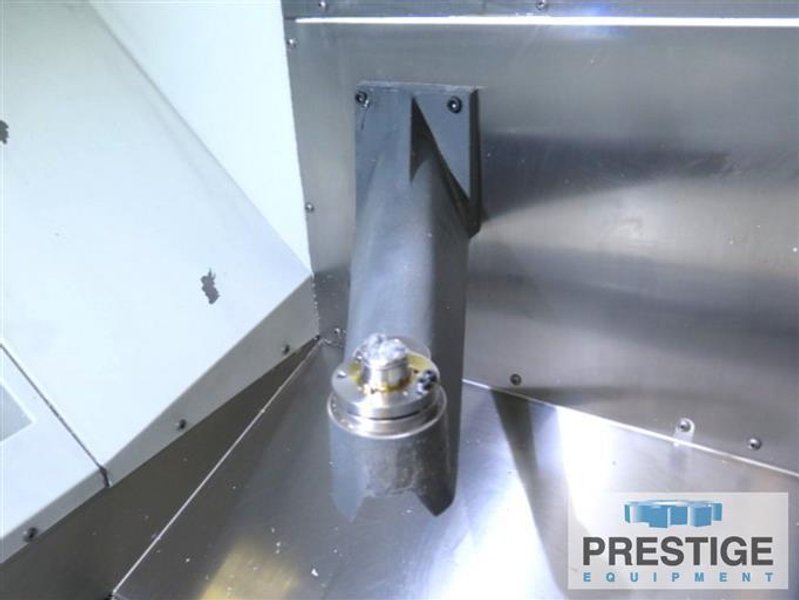

Renishaw OTS Touch-Off Probe
Macros
Rotation and Scaling
RTAP-3 Rigid Tapping
DWO-Dynamic Work Offsets & TCPC-Tool Center Point Control
M19 Spindle Orientation
Compensation Tables
Programmable Coolant Nozzle

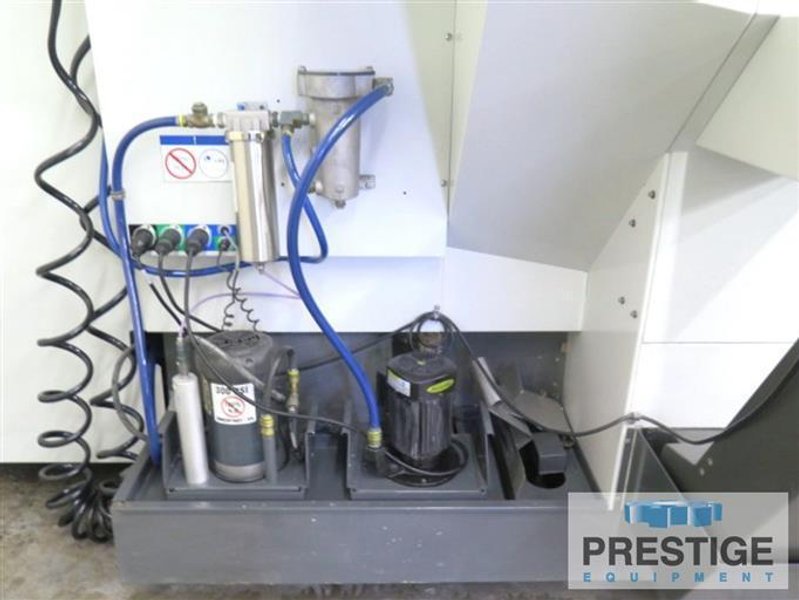

300 PSI Thru Spindle Coolant

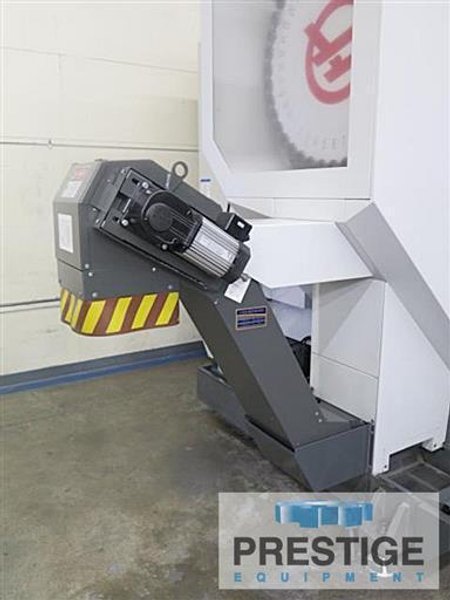

EC-E4 Belt-Type Chip Conveyor


LOCATION: Under Power in West Coast Semiconductor Facility
