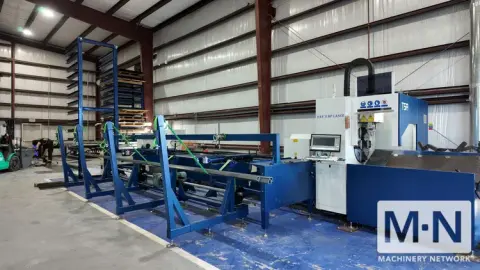

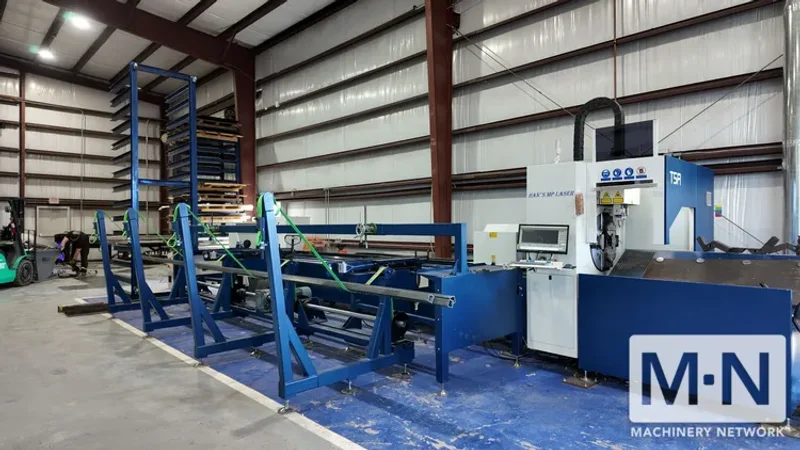

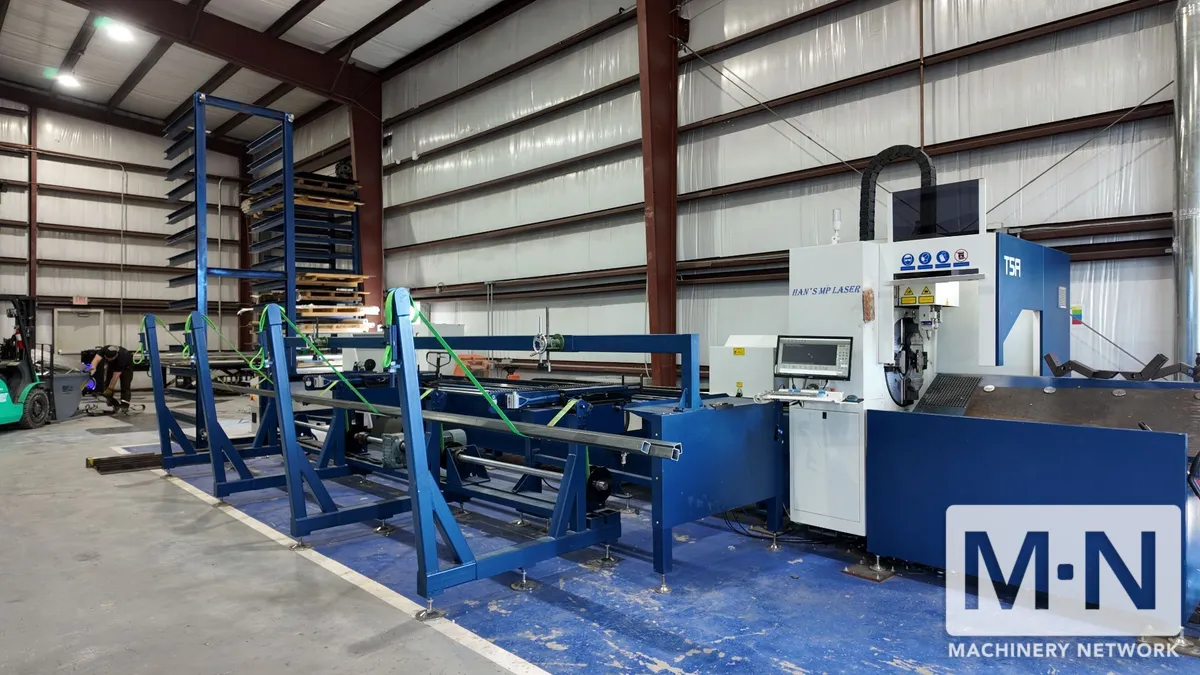

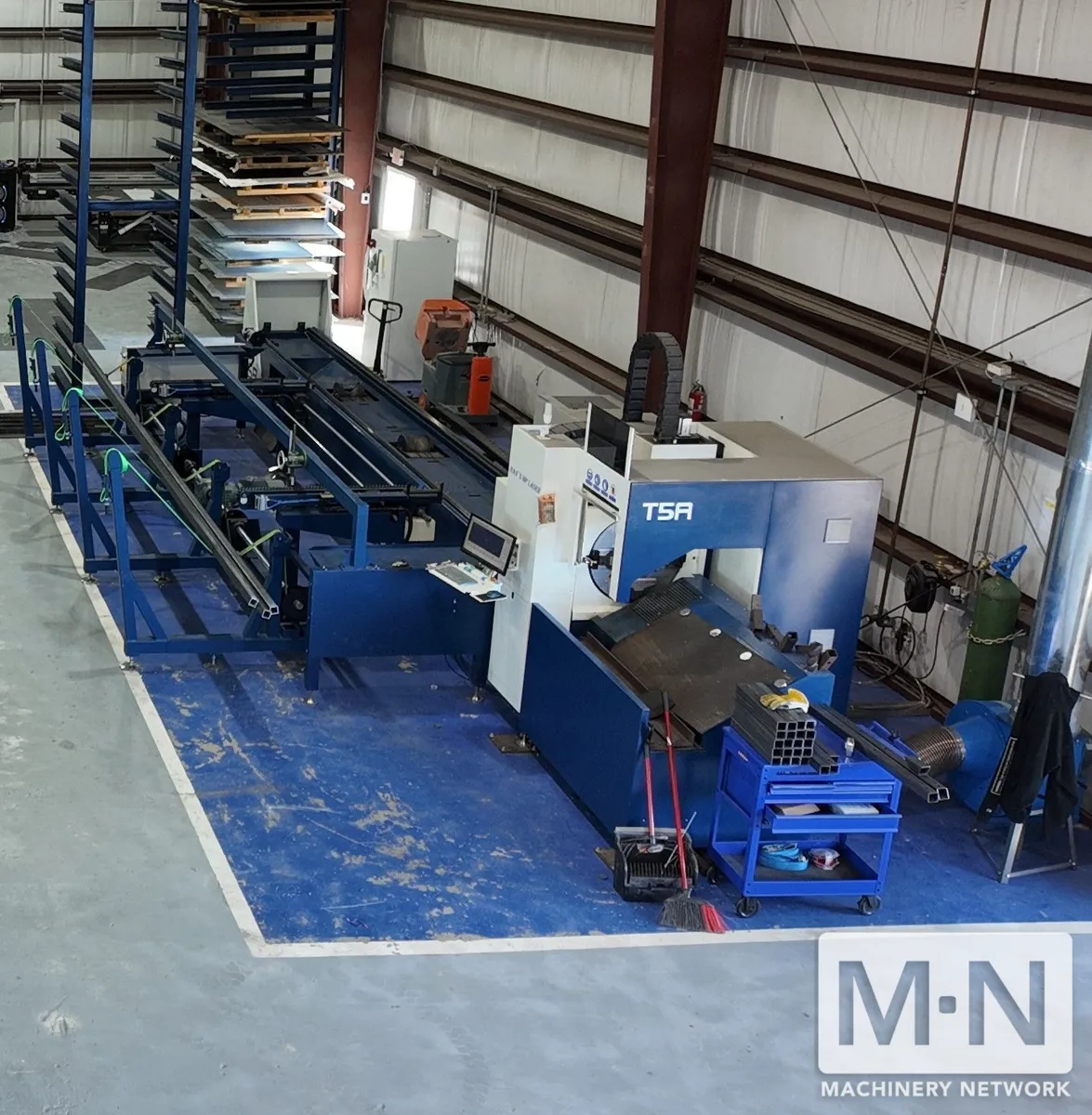

3000 WATT HANS MPS-T5A FIBER TUBE LASER

Maximum process pipe length 6500 mm
Maximum turning speed 150R/min
X/Y axis location accuracy ±0.05mm/m
X/Y axis repeat location accuracy ±0.03mm
Laser power 1500w - 6000w
Max running speed 100 m/min
Max running acceleration speed 1.0g
Maximum load (single tube) 260kg (43kg/m)
Processing material thickness range Thickness: ≥0.8mm
Clamping range Round tube: φ10-φ230mm; Square tube: □10-□230mm
Tail length ≥80mm（when the front chuck is out of the way and the rear chuck is clamped separately.）
Dimension(L*W*H) 9700mm × 2300mm × 2500mm
Power supply 380V/50HZ/3 Phase, (60HZ can be customized)
Graphic Format Supported TubesT：IGS，SAT；TubePro：zx，zzx；
Overall power protection level IP54
