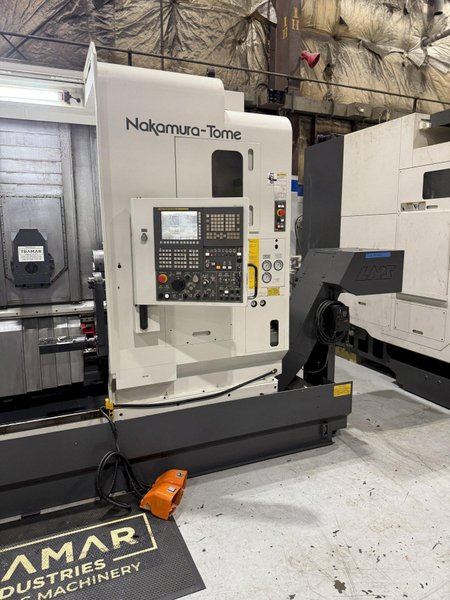

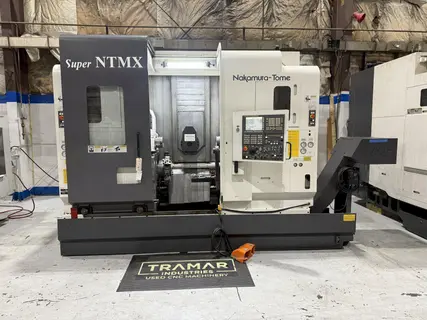

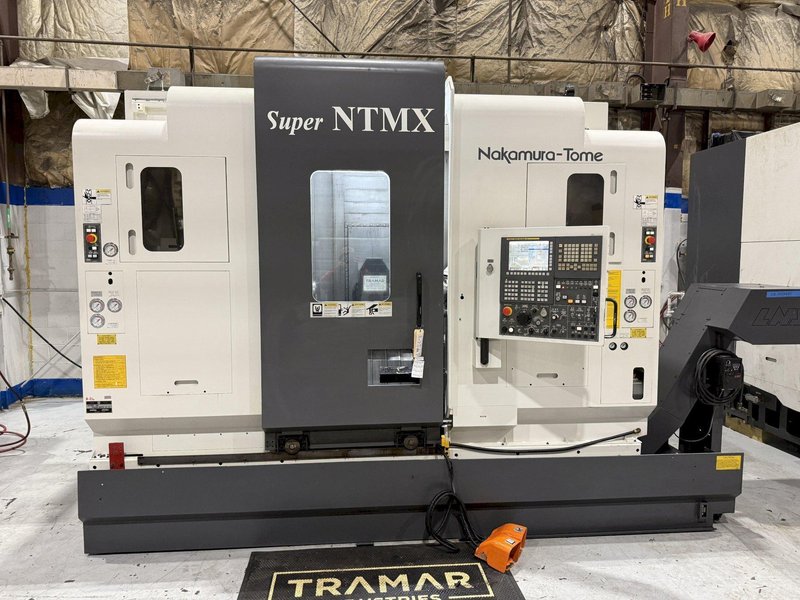

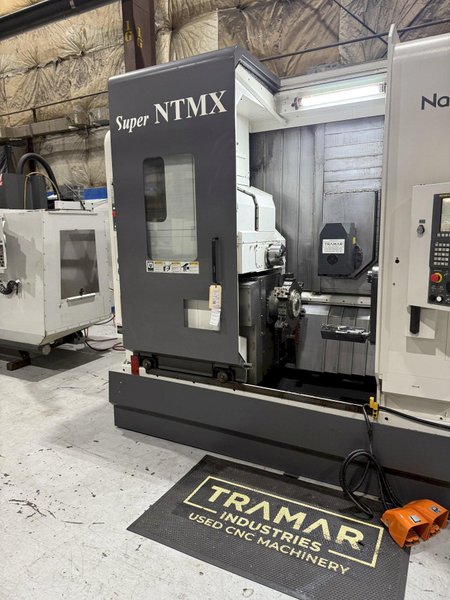

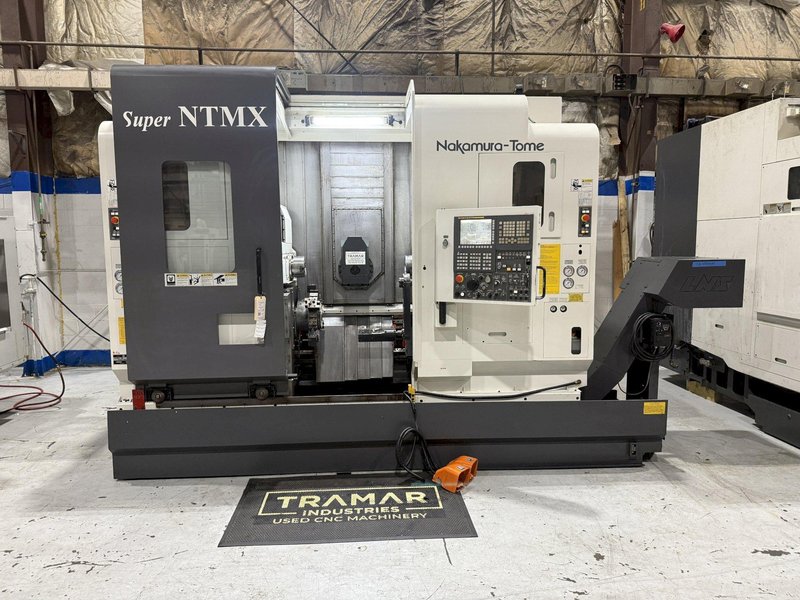

2013 Nakamura Tome Super NTMX Multi-Tasking CNC Lathe For Sale

Name: 2013 Nakamura Tome Super NTMX Multi-Tasking CNC Lathe For Sale
Brand: NAKAMURA-TOME
SKU: 15288
Availability: PreOrder

Brand

NAKAMURA-TOME

Michigan

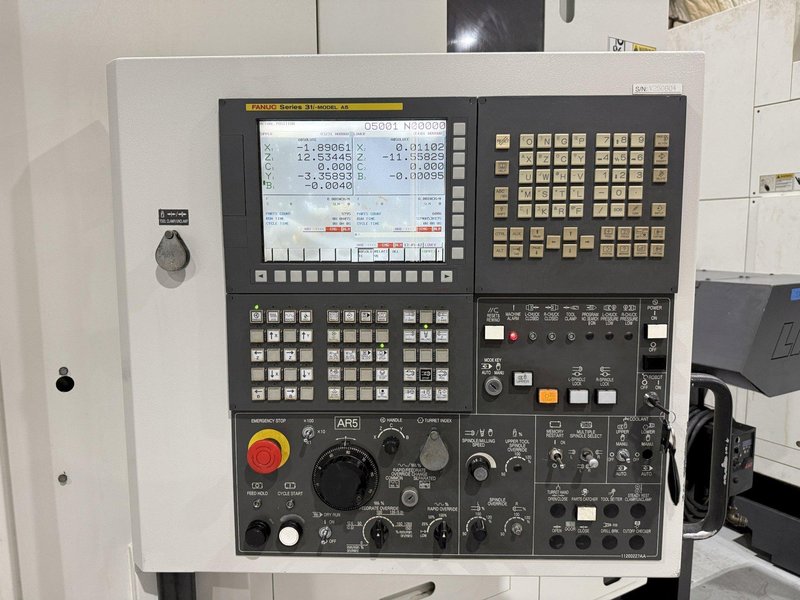

Type Of CNC Control	Fanuc Series 31-Model A5
CNC Control	yes
# Axis	9
Turning Diameter	8.66 inches
Center Distance	38.58 inches

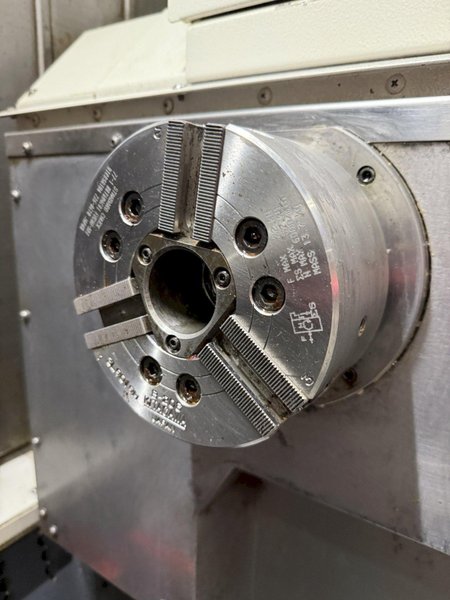

Chuck Size	6 inches
Bar Capacity	2 inches
X Axis Travel	22.44 inches
X2 Axis Travel	5.14 inches
Z Axis Travel	51.06 inches
Z2 Axis Travel	25.9 inches
Y Axis Travel	7.86 (+/- 3.94")
B Axis Travel (Sub Spindle)	30.3 inches
B Axis Indexing	190° (+/- 95°)
C1/C2 Axis Index	0.001°
Rapid Traverse (X/Y/Z)	1181/630/1574 ipm
Spindle Nose	A2-5
Spindle Speed	5,000 rpm
Main Motor	15 hp

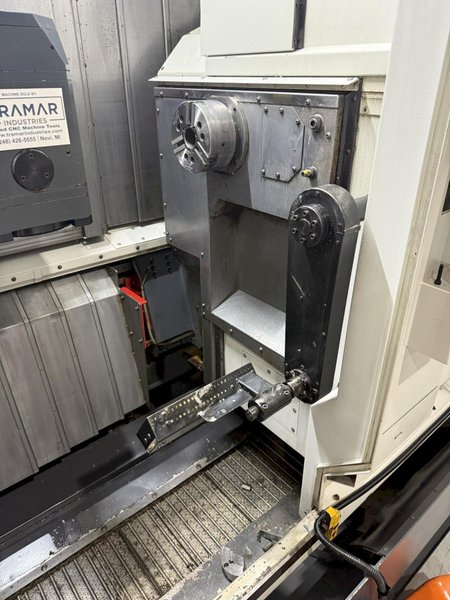

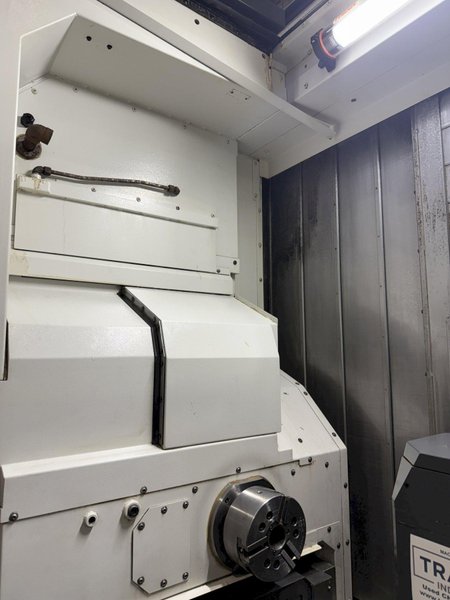

Sub Spindle	yes
Sub Spindle Nose	A2-5

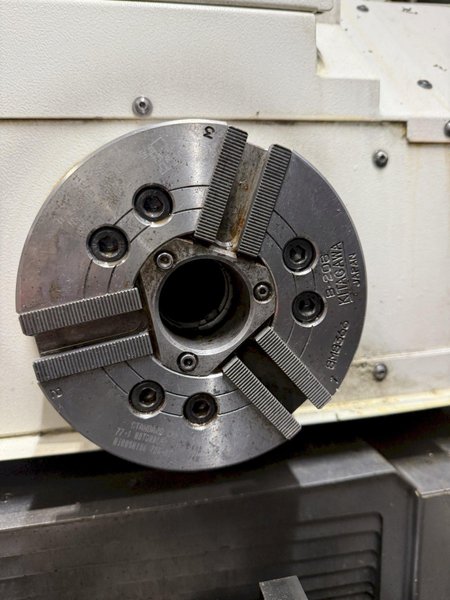

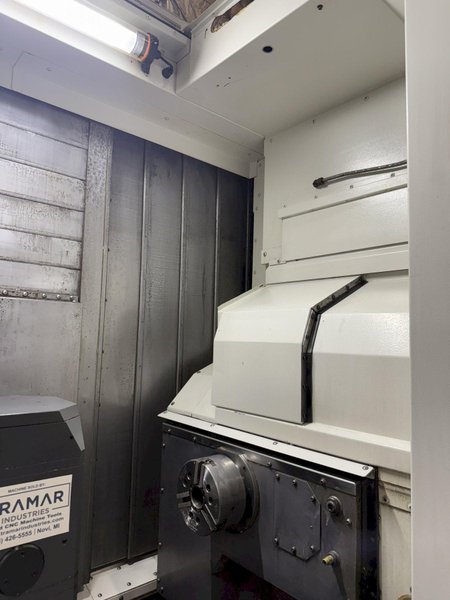

Sub Spindle Chuck	6 inches
Sub Spindle Bar Capacity	2 inches
Sub Spindle Speed	5,000 rpm
Sub Spindle Motor (HP)	15 hp
Live Tooling	yes

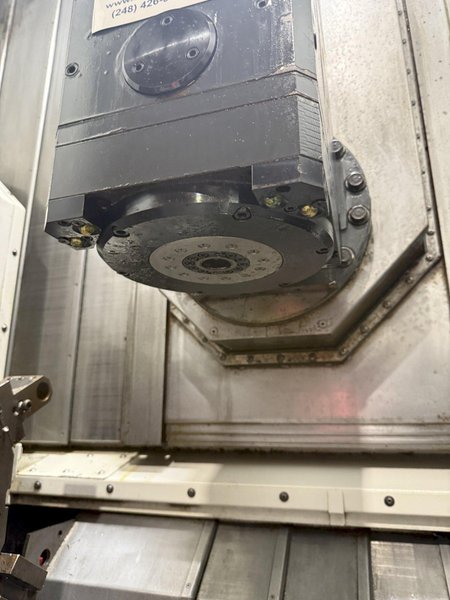

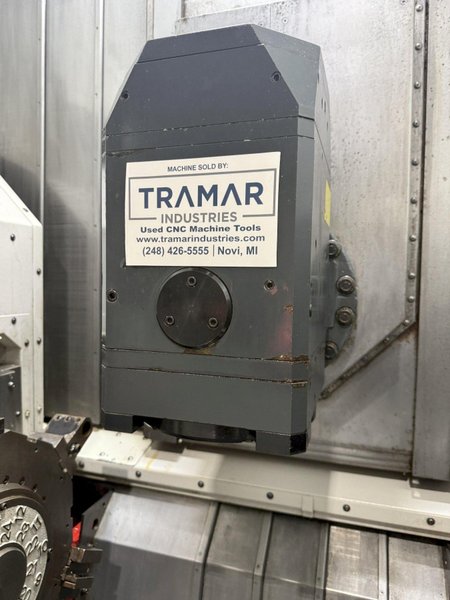

Milling Spindle Taper	CAPTO C4
Live Tooling Speed	12,000 rpm - Milling Spindle
Live Tooling Motor	10 hp
Y Axis	yes
Tailstock	no

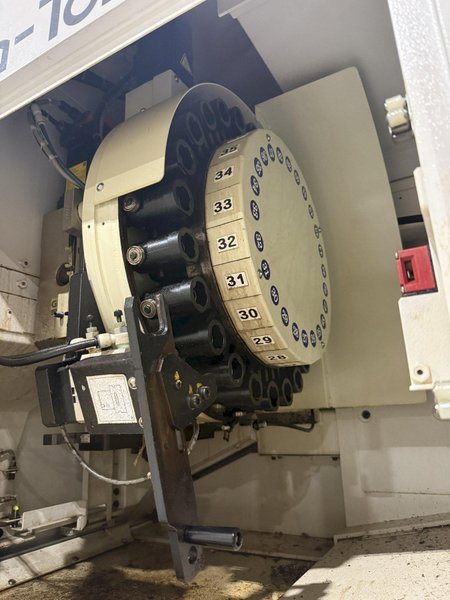

ATC Capacity	2 x 24 Stations

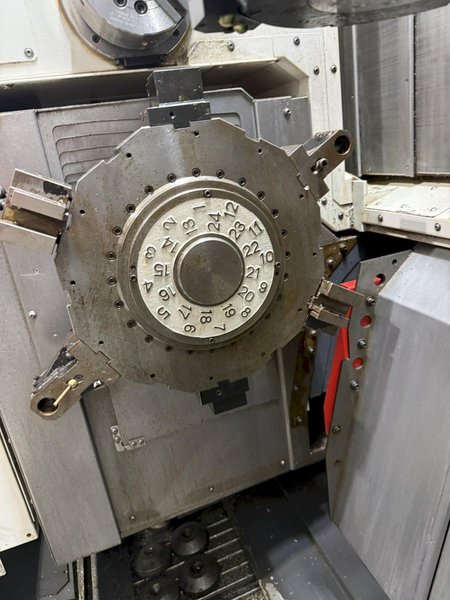

Turret Capacity	24
Machine Dimensions	190" x 165" x 104" - Floor Space w/Chip Conveyor
Machine Weight	32000 pounds
- Fanuc Series 31-Model A5 CNC Control - Milling Spindle (CAPTO C4) - Dual 24 Station Tool Changers - Chip Conveyor - Coolant Tank & Pump - Lower Turret (24 Stations) - Live Tooling (Milling Spindle - 12,000 rpm) - Y Axis Capabilities - Sub Spindle
