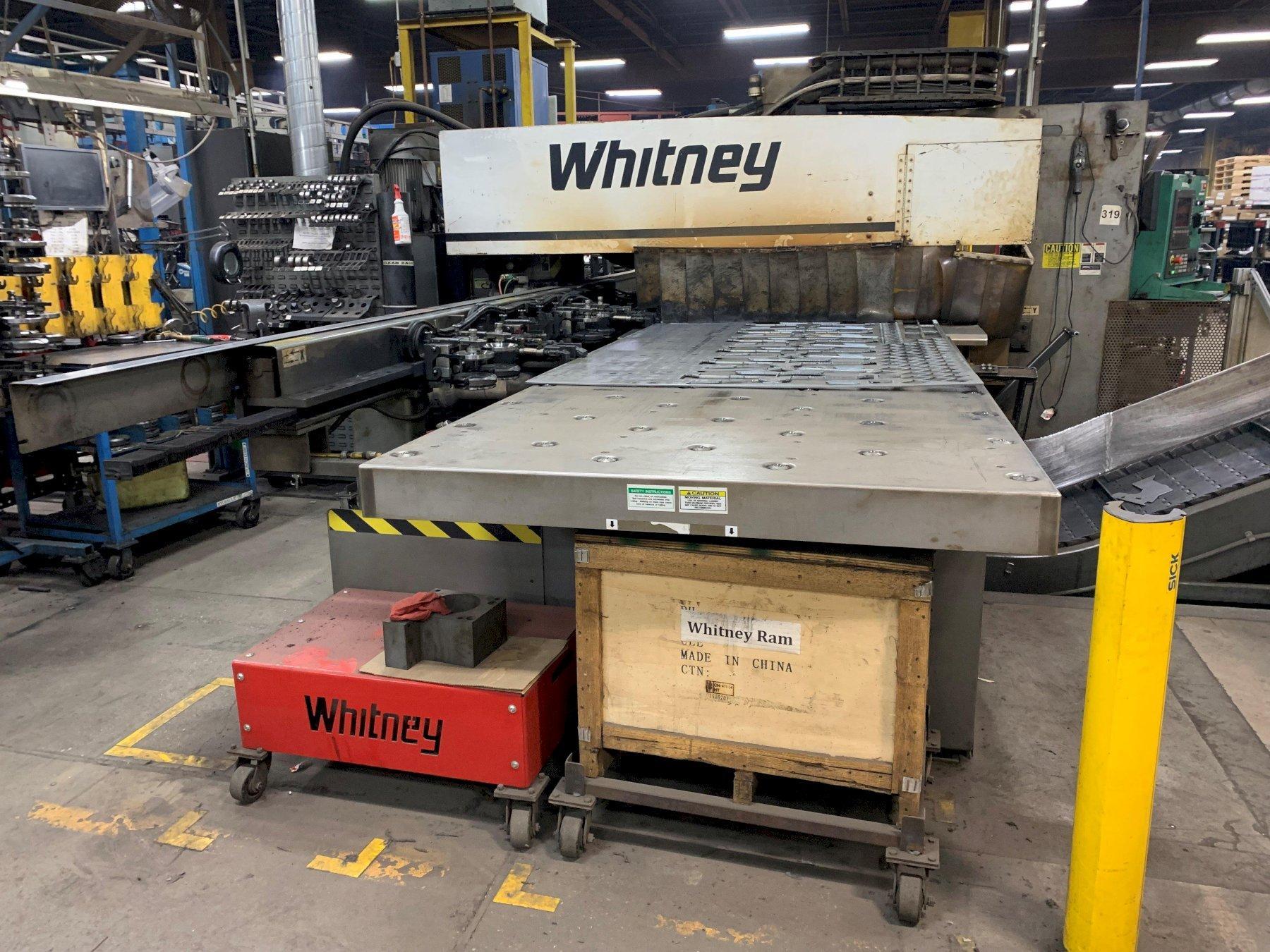

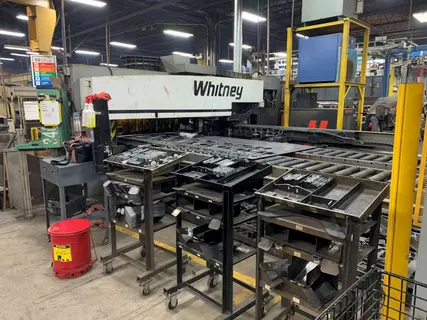

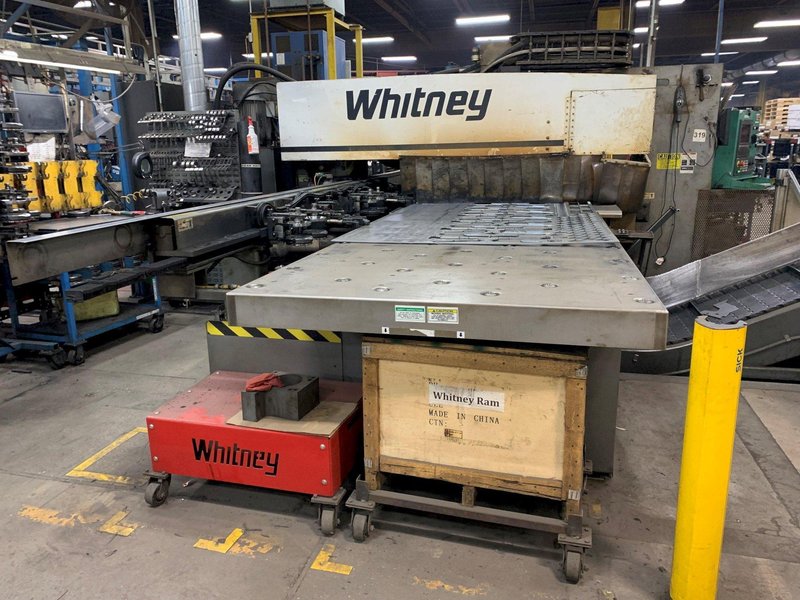

40” X 60” 40 Ton Punch Combo with HPR 260 XD Plasma Cutting System, Siemens 840Di CNC Control, 9 - Station Rail Tool Changer and Skeleton Drop Table.

GENERAL SPECIFICATIONS
Punching Capacity:                    40 Tons
Maximum Hole Punch Diameter:            5”
Max Material Thickness (Punch):            ½” (Mild Steel)
Max Material Thickness (Plasma):            ½” (Mild Steel)
X - Axis Travel:                    141.44”
Y - Axis Travel:                    61.85”
Hit Rate @ 1” Centers:                125
Maximum Axis Travel Speed:            1,000 IPM
Maximum Work - Piece Weight:            1,250 IPM
Hydraulic Pump Motor:                30 HP

INCLUDES: HPR 260 XD Plasma Cutting System, Siemens 840Di CNC Control, 9 - Station Rail Tool Changer and Skeleton Drop Table.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
