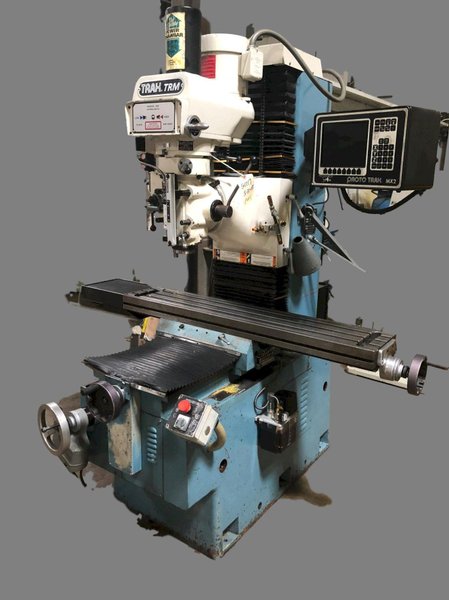

31” X 17” X 25” Vertical Mill with Trak A.G.E. 3 CNC Controls, Power Draw Bar, Power Feed for Elevation and RS232 Port.

GENERAL SPECIFICATIONS
X - Axis Travels:                        31”
Y - Axis Travels:                        17”
Z - Axis Travels:                        25”
Quill Diameter:                        3-5/16”
Spindle Taper:                        40 NST/NMTBA
Spindle Speeds (Variable):                    70 - 4200 RPM
Spindle Center to Column Face:                17.3”
Max. Quill Travel:                        5”
Max. Weight on Work Table:                1,320 Lbs
Drilling Mild Steel:                        1.5”
Tapping Capacity:                        1.25”
Milling Capacity:                        3” Cubed/Min
Boring Capacity:                        4.75”
Approximate Dimensions:                    70” X 72” X 89”
Approximate Weight:                    4,500 Lbs

INCLUDES: Trak A.G.E. 3 CNC Controls, Power Draw Bar, Power Feed for Elevation and RS232 Port.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
