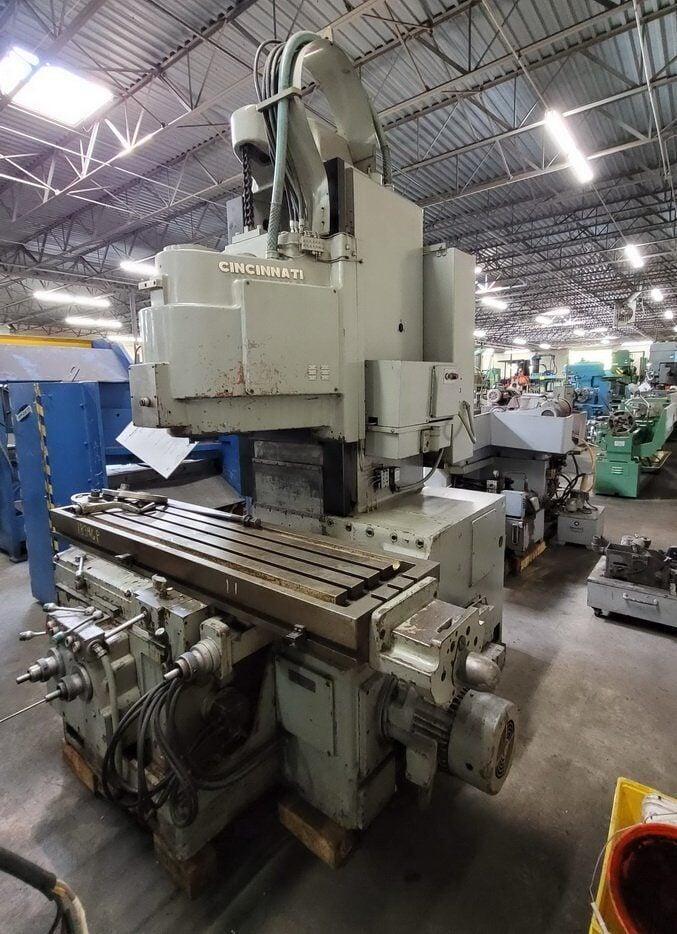

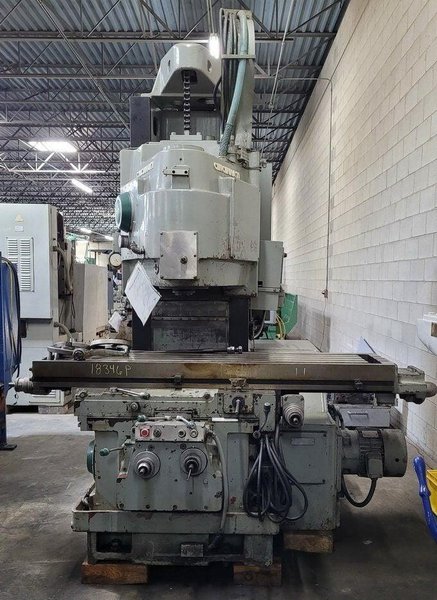

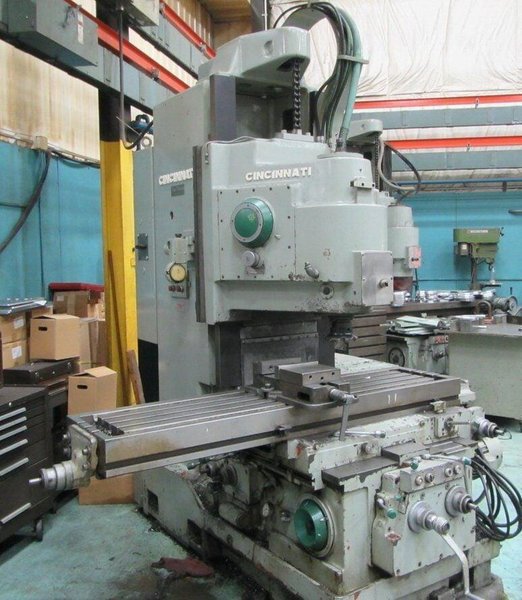

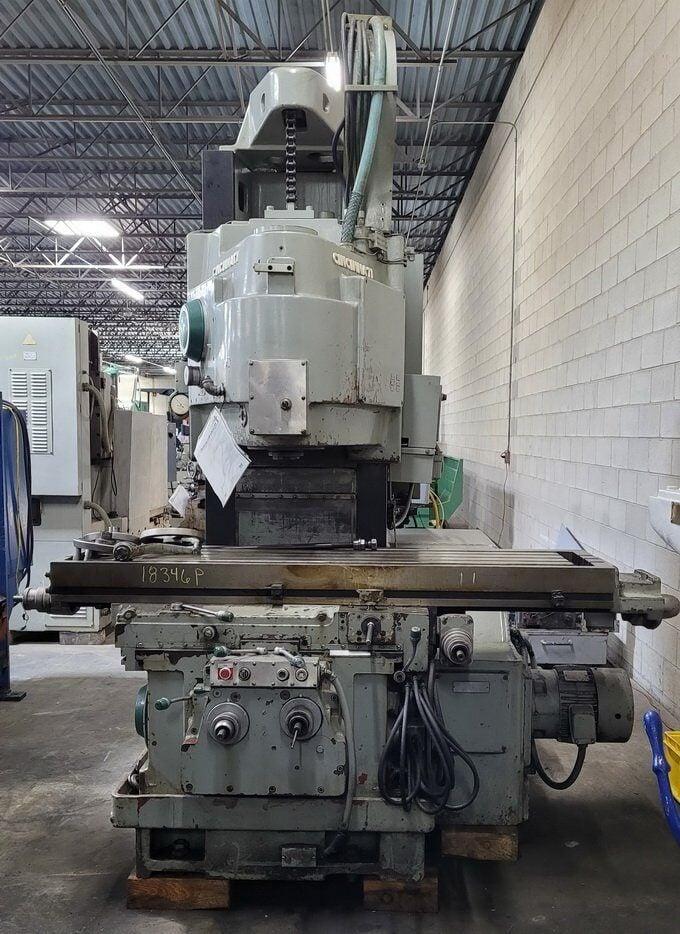

72” X 18” Vertical Mill with Front & Side Operations Controls, Rapid Traverse to all Axis, Table Climb Mill Feature, Automatic Table Cycle, Automatic & Continuous Cycles for Spindle Control, Power Feeds and Speed Selector.

GENERAL SPECIFICATIONS

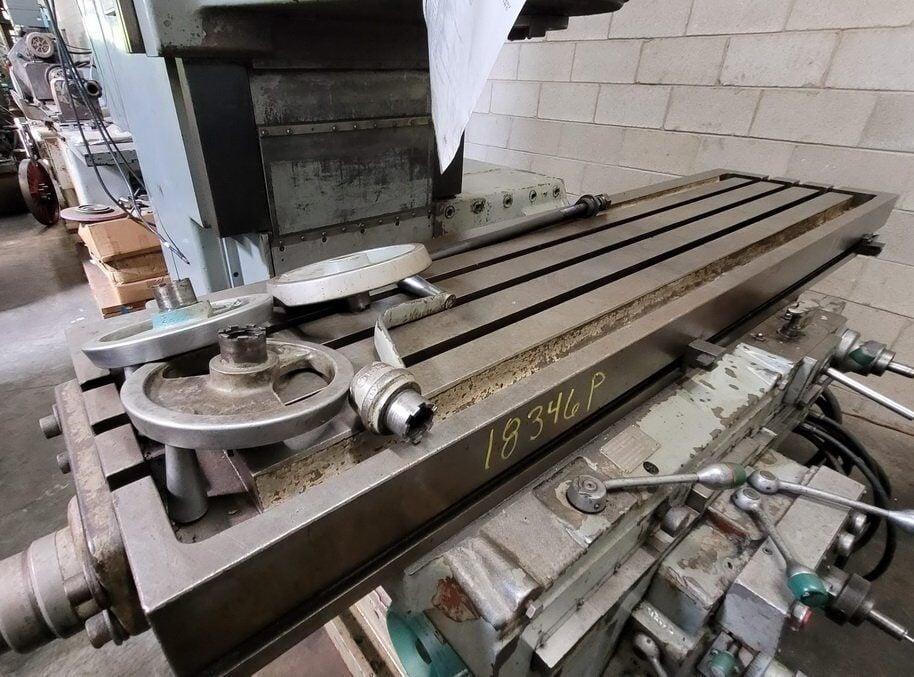

Table Working Surface:                72” X 18”
Table Longitudinal:                    34”
Table Cross:                        12”
Vertical Travel:                    22”
Spindle Taper:                    #50
Spindle Speeds:                    16 - 1600 RPM
Feeds Longitudinal & Cross:            ⅜ - 90 IPM
Vertical Feeds:                    3/32 - 22-½”
Power Rapid Longitudinal & Cross:        50 IPM
Power Rapid Traverse Vertical:            37-½ IPM
Spindle Drive:                    30 HP
Floor Space:                        94” X 101” X 121”
Weight:                        21,400 Lbs

INCLUDES: Front & Side Operations Controls, Rapid Traverse to all Axis, Table Climb Mill Feature, Automatic Table Cycle, Automatic & Continuous Cycles for Spindle Control, Power Feeds and Speed Selector.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
