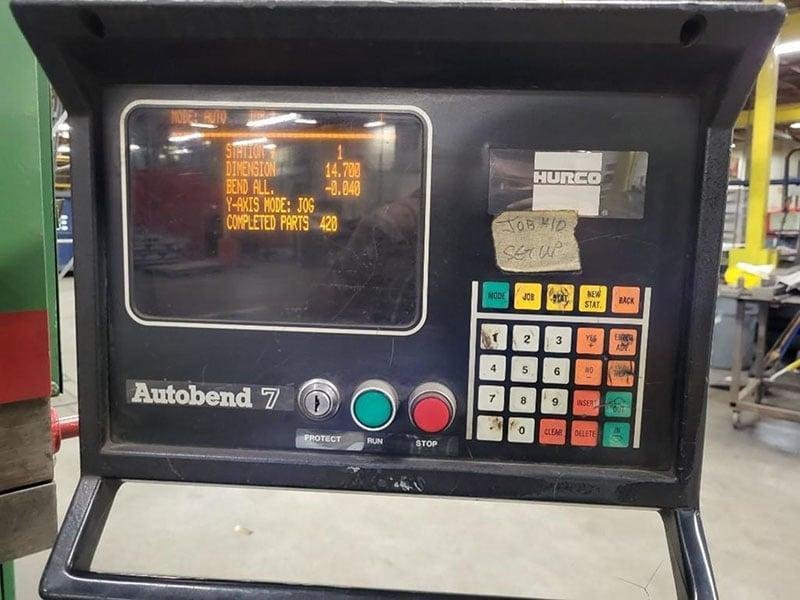

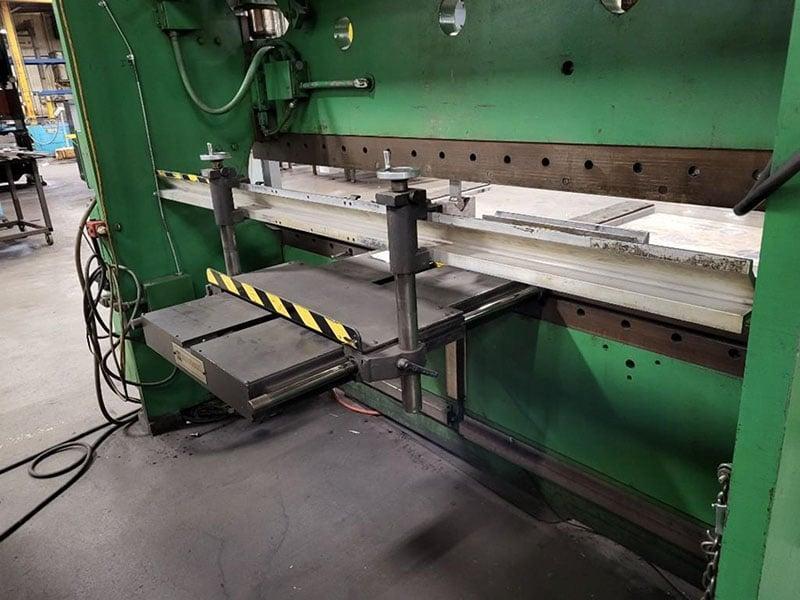

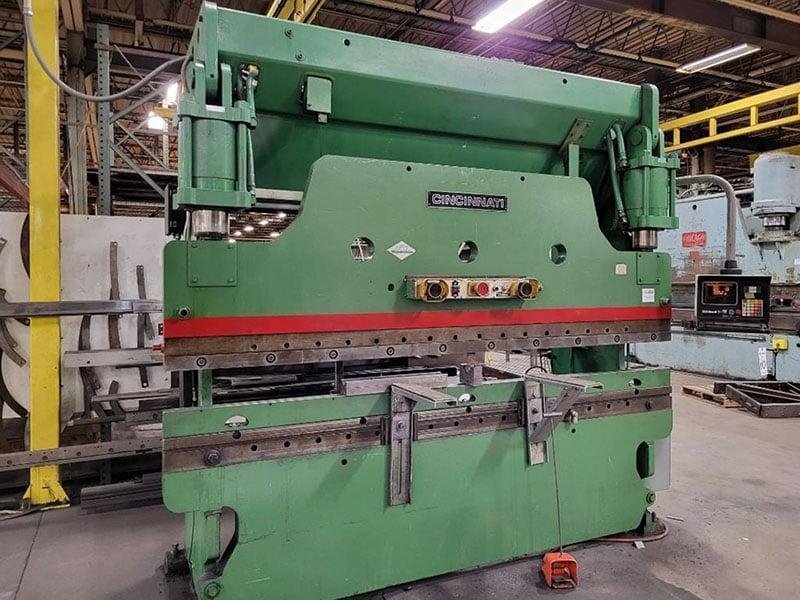

135 Ton X 10’ Hydraulic Press Brake with Hurco Autobend 7 Controller & Backgauge, Narrow Filler Block, Electric Foot Switch, Palm Button Station and Manuals.

GENERAL SPECIFICATIONS
Tonnage:                            135 Tons
Overall Length:                        10’
Distance Between Housings:                8’6”
Mild Steel Cap. at 10’:                    3/16”
Mild Steel Cap. at 7’6”:                    ¼”
Mild Steel Cap. at 4’8”:                    ½”
Stroke:                            8”
Throat Depth:                        7”
Open Height:                            15”
Closed Height:                        7”
High Ram Speed:                        136 IPM
Medium Ram Speed:                    65 IPM
Low Ram Speed:                        16 IPm
Return Speed:                        122 IPM
Motor:                                25 HP
Dimensions:                            126” X 48” X 122” H
Weight:                            16,000 Lbs

INCLUDES: Hurco Autobend 7 Controller & Backgauge, Narrow Filler Block, Electric Foot Switch, Palm Button Station and Manuals.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
