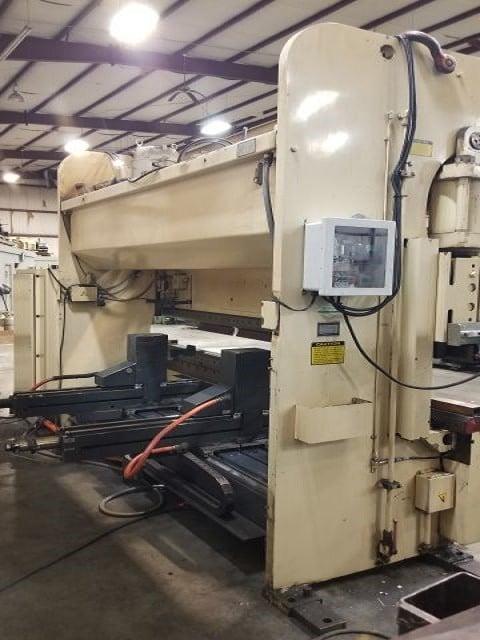

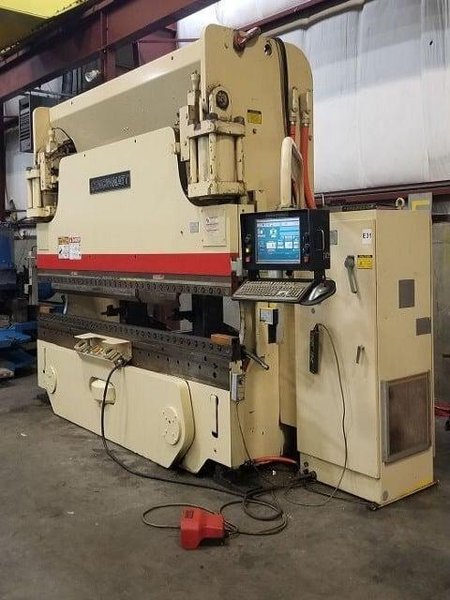

175 Tons X 12’ Hydraulic Press Brake with Cincinnati Windows Based Control, 6 - Axis Backgauge, Crowning, Upper & Lower Hydraulic Tool Clamps, Dual Palm Button / Foot Switch Controls and Flush Floor Design

GENERAL SPECIFICATIONS
Capacity:                        175 Tons
Overall Bending Length:                144”
Distance Between Housings:            126.75”
Stroke:                        10”
Throat:                        8”
Open Height:                        17”
Closed Height:                    7”
Motor:                            25 HP 240/480V 3PH (Currently Wired 480V)
Approximate Dimensions:                192” X 84” X 124” H
Weight:                        32,500 Lbs

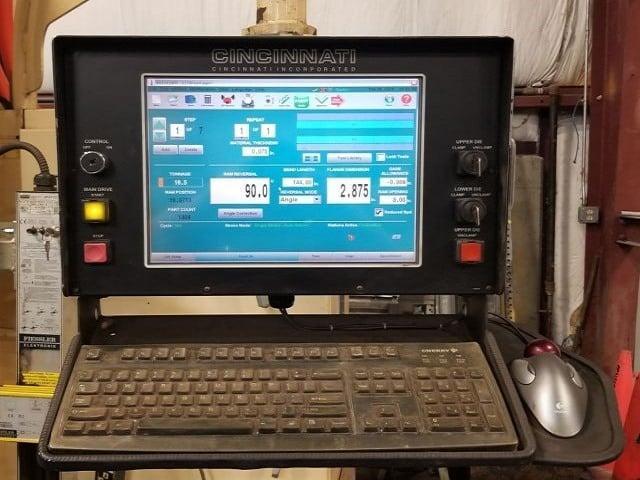

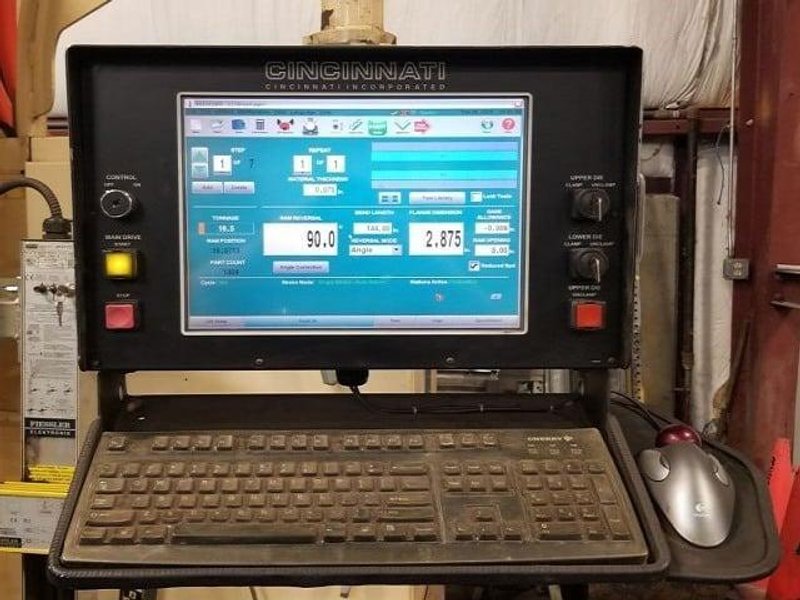

INCLUDES: Cincinnati Windows Based Control, 6 - Axis Backgauge, Crowning, Upper & Lower Hydraulic Tool Clamps, Dual Palm Button / Foot Switch Controls and Flush Floor Design

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
