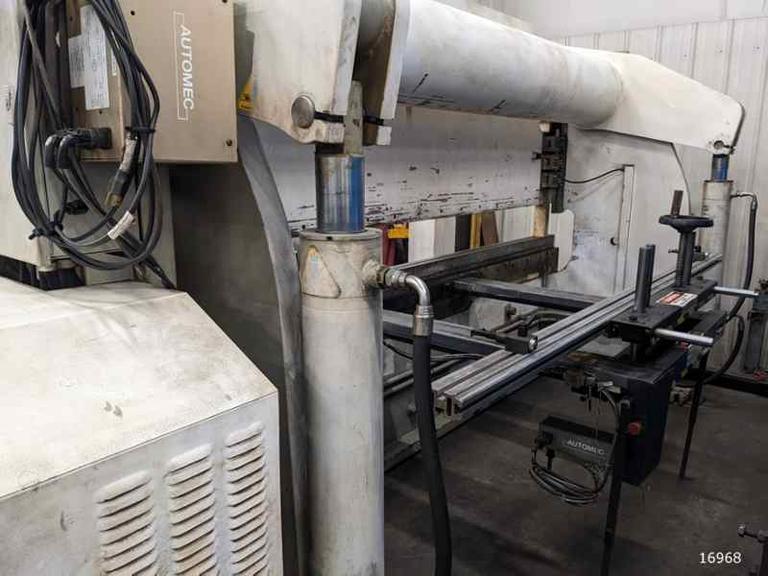

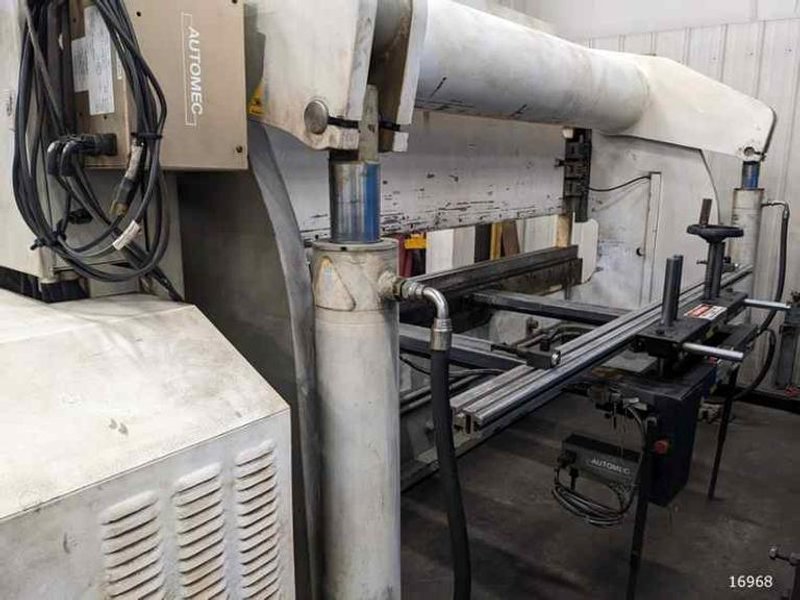

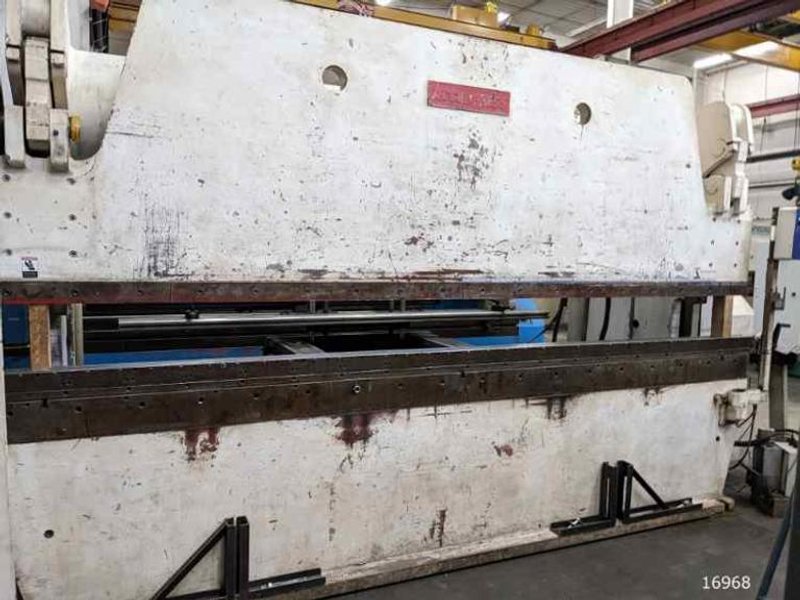

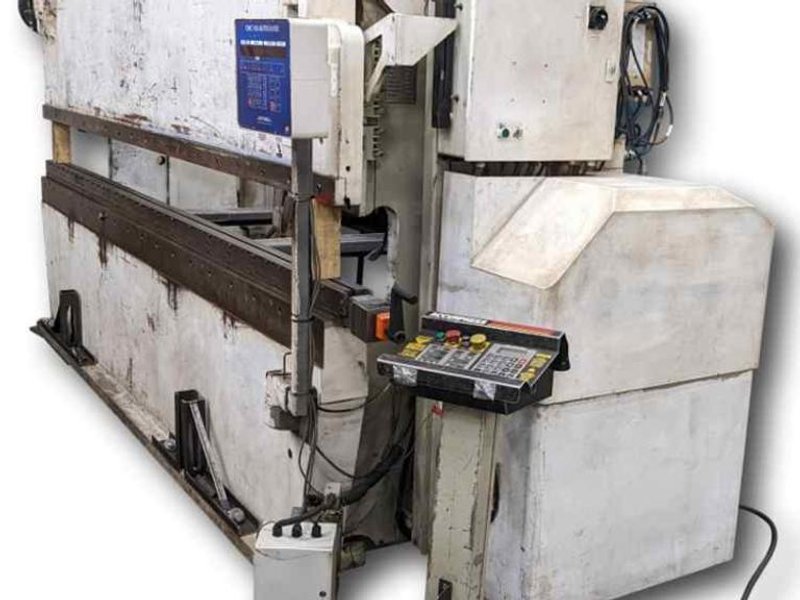

175 Tons X 12’ Hydraulic Press Brake with Automec CNC 150 Autogage and ETS Ram Control.

GENERAL SPECIFICATIONS
Bed and Ram Length:                144”
Distance Between Housings:            124”
Max Tonnage Capacity:                175 Tons
Approach / Bend Speeds:                90 IPM / 24 IPM
Return Speed:                    180 IPM
Stroke Length:                    8”
Throat:                        10”
Shut Height - Ram Up Stroke Down:        6”

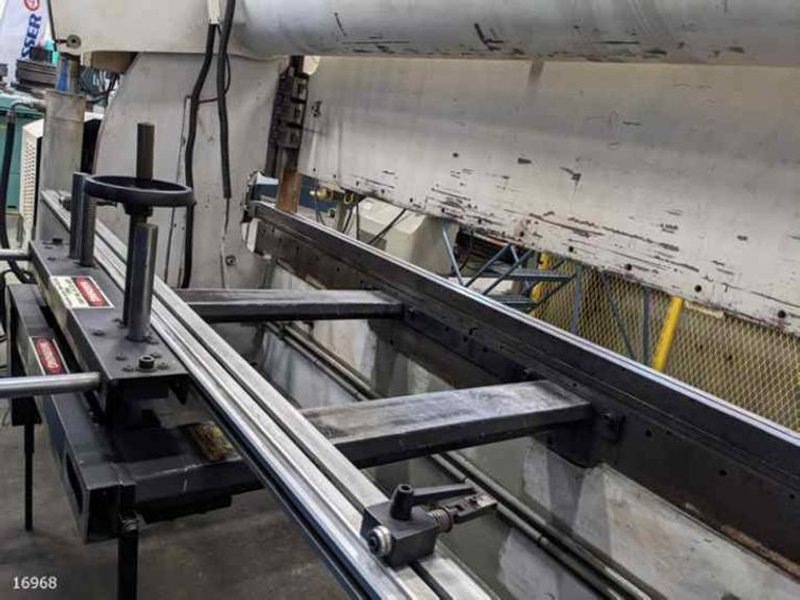

Backgauge X - Axis Travel:                30”
Drive Motor:                        20 HP
Electrics:                        208 V / 3 PH
Approximate Dimensions:                175” X 65” X 92”
Approximate Weight:                24,000 Lbs

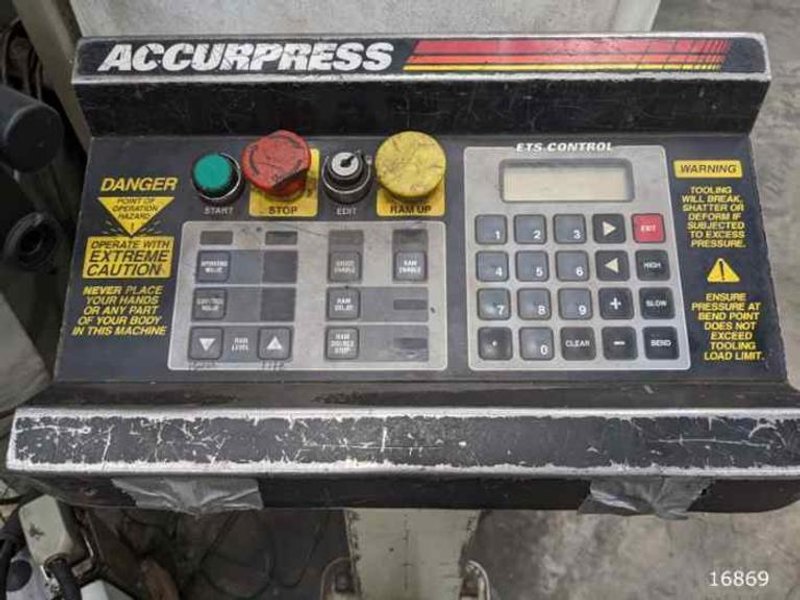

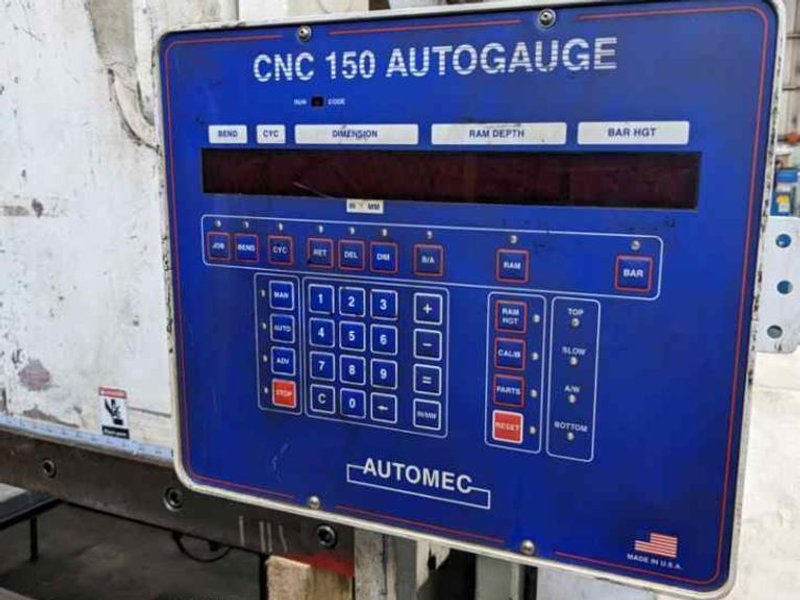

INCLUDES: Automec CNC 150 Autogage and ETS Ram Control.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
