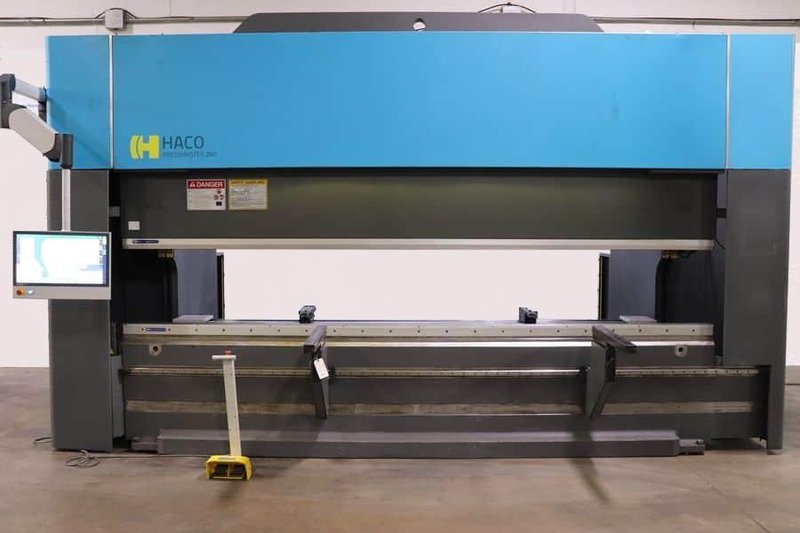

224 Ton X 14’ CNC Press Brake with FastBEND-3D MT Premium CNC Control, High Speed X-R-Z1-Z2 Backgauge, Wilson Tool Express Rail 2000 Top Tool Clamping, CNC Controlled Anti Deflection Table Wilson Tool Express Crowning, 2 Manual Sheet Supports, LED Illumination of Bending Area, Iris Plus Integrated Angle Measuring System and SICK Rear Mounted Light Curtains

GENERAL SPECIFICATIONS
Bending Length:                        167.3”
Bending Capacity:                        224 US Tons
Distance Between Housings:                147.6”
Gap:                                15.75”
Daylight:                            21.26”
Stroke:                            14.56”
Fast Approach Speed:                    6.3” / Sec
Max Bending Speed:                    .31” / Sec
Fast Return Speed:                        6.3” / Sec
Motor Power:                            25 HP
Electrical:                            480V / 3 Ph

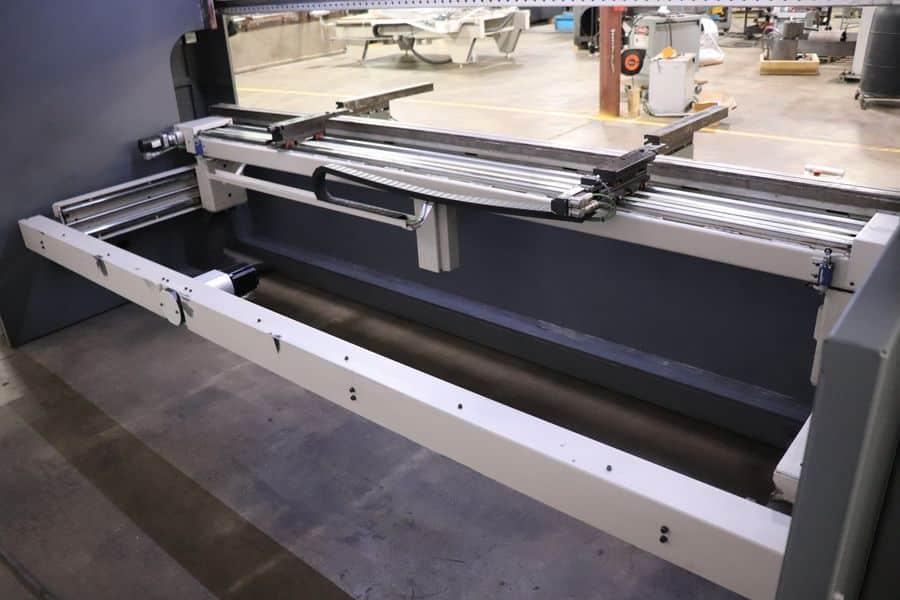

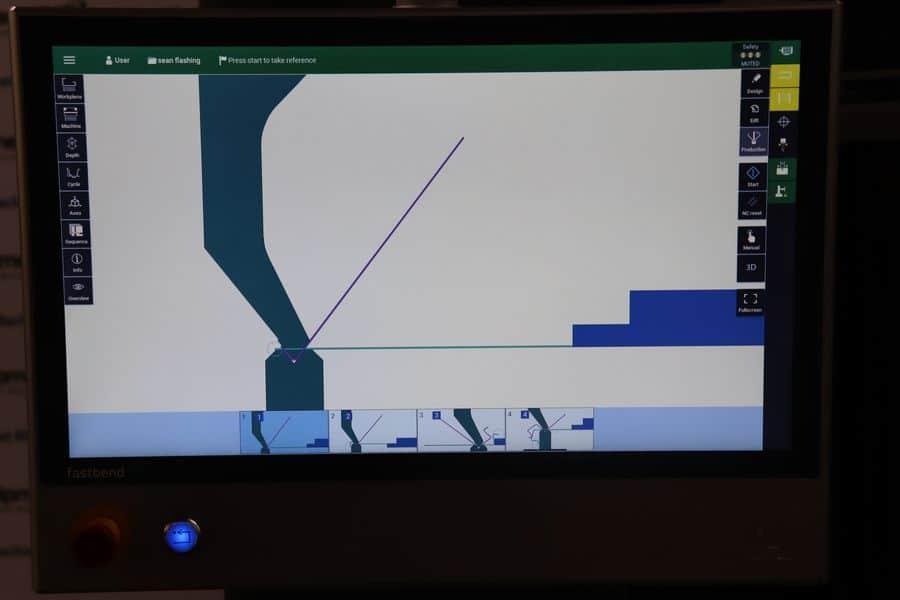

INCLUDES: FastBEND-3D MT Premium CNC Control, High Speed X-R-Z1-Z2 Backgauge, Wilson Tool Express Rail 2000 Top Tool Clamping, CNC Controlled Anti Deflection Table Wilson Tool Express Crowning, 2 Manual Sheet Supports, LED Illumination of Bending Area, Iris Plus Integrated Angle Measuring System and SICK Rear Mounted Light Curtains.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
