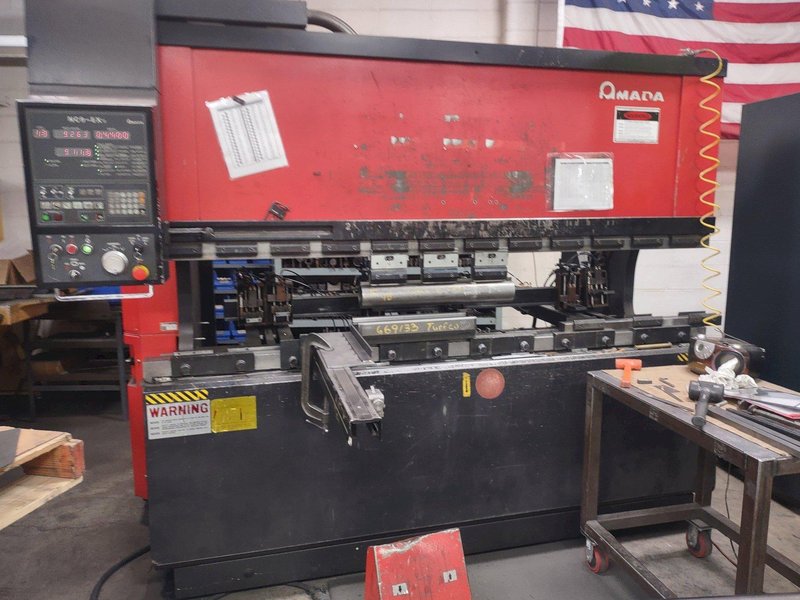

110 Ton X 98” Hydraulic Press Brake with Amada NC9EXII Control, Sectionalized Ram Clamps, (4) Gauging Fingers & Pneumatic R - Axis.

GENERAL SPECIFICATIONS
Tonnage:                        110 Tons
Overall Bend Length:                98”
Stroke:                        7.8”
Throat Depth:                    16.5”
Closed Height:                    18.5”
Ram Adjustment:                    7.8”
Approach Speed:                    472 IPM
Bending Speed:                    47 IPM
Return Speed:                    472 IPM
Electrical:                        24 kva, 220/440V, 3 Phase, 60 Cycle
Approx. Weight:                    15,234 Lbs
Dimensions:                        130” X 61” X 106”


INCLUDES: Amada NC9EXII Control, Sectionalized Ram Clamps, (4) Gauging Fingers & Pneumatic R - Axis.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
