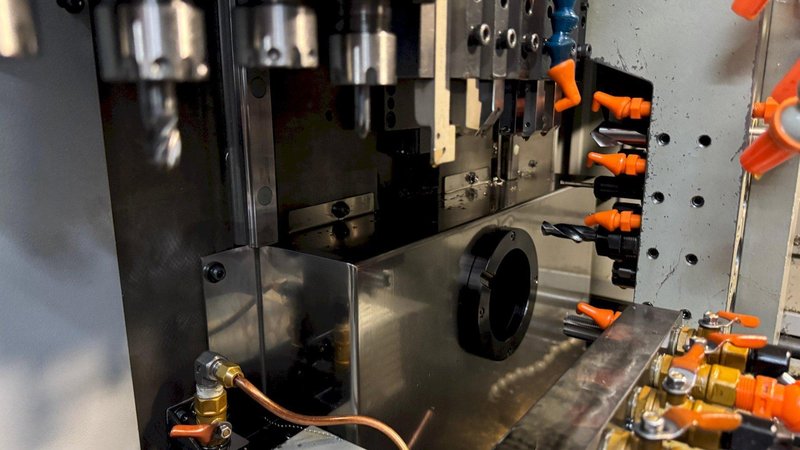

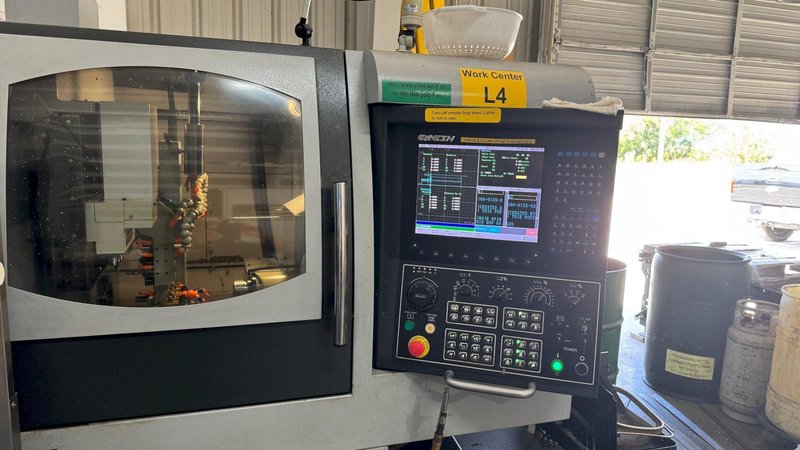

1.25” X 11.6” CNC Turning Center Ganesh CNC Control, ASCI Smoke Hog and a Chip Conveyor.

GENERAL SPECIFICATIONS
Main Spindle
Main Spindle RPM:                    6,000 RPM
Spindle Motor:                    10 HP
Spindle Bore:                        1.456”
Max. Barstock Diameter:                1.25”
X - Axis Travel:                     7.28”
Y - Axis Travel:                    19.29”
Z - Axis Travel:                    6.50”
Rapid Travel Speed:                    1,181 IPM
OD Turning Tool Positions:                6 OD Tools
ID Turning Tool Positions:                5 ID Tools
Spindle Center Height:                40”

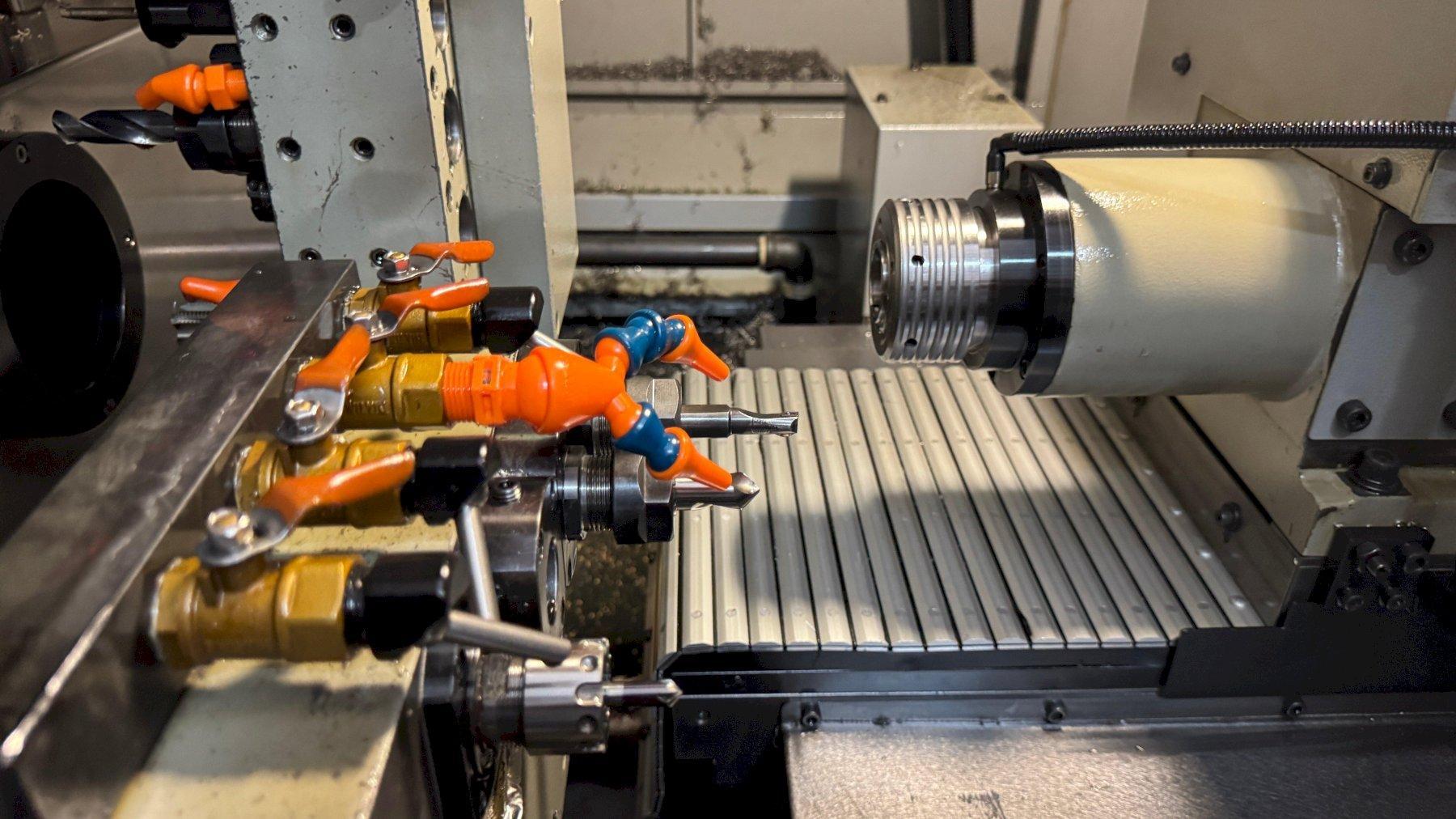

Sub Spindle
Sub Spindle RPM:                    6,000 RPM
Sub Spindle Motor:                    5 HP
Max Barstock Diameter:                1.25”
X - Axis Travel:                    11.53”
Z - Axis Travel:                    11.61”

Machine Dimensions:                101” X 68” X 80” H
Machine Weight:                    8,000 Lbs

INCLUDES: Ganesh CNC Control, ASCI Smoke Hog and a Chip Conveyor.
