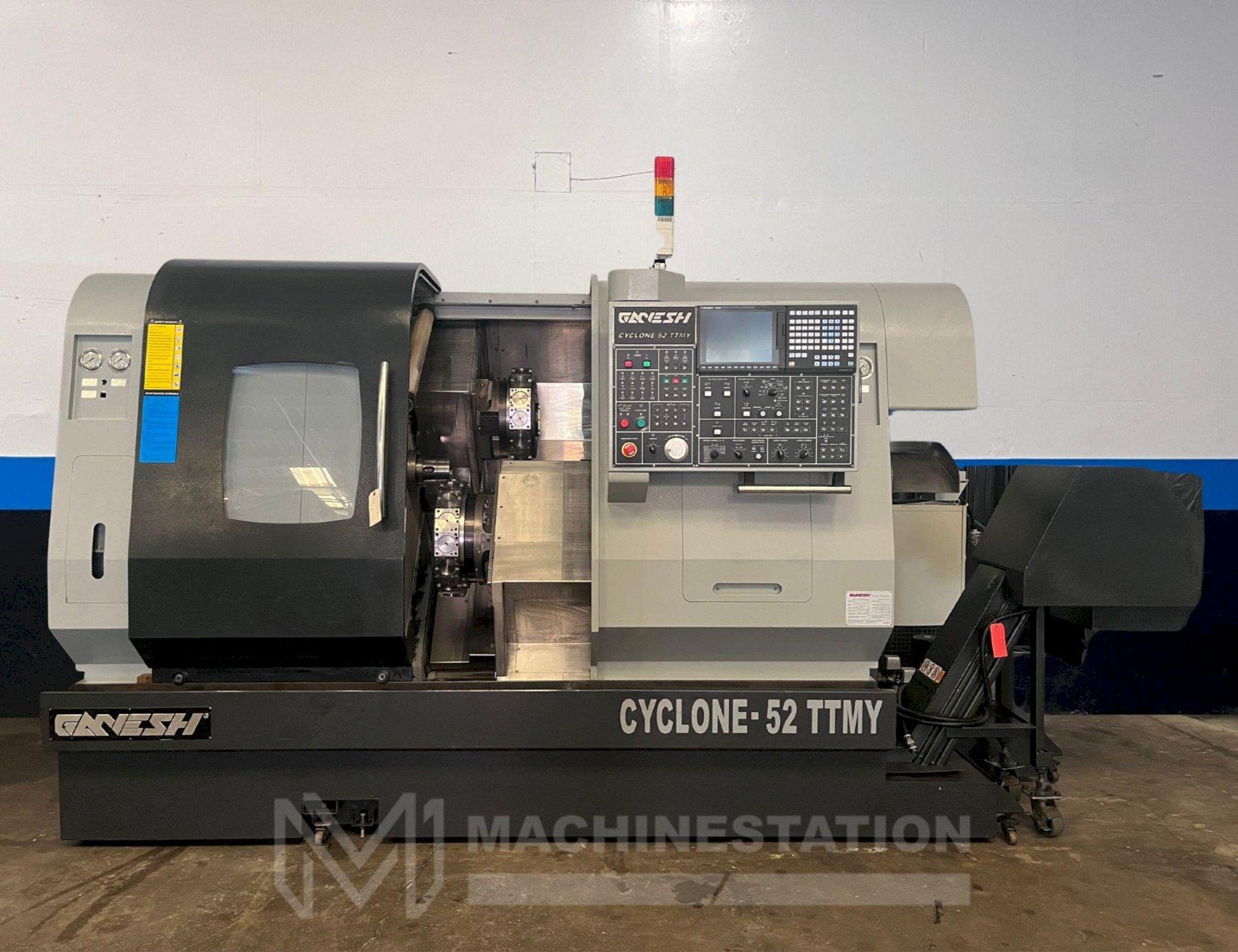

Ganesh Cyclone-52 TTMY Multi Axis CNC Turning Center – Lathe

Ganesh Cyclone-52 TTMY Multi Axis CNC Turning Center – Lathe

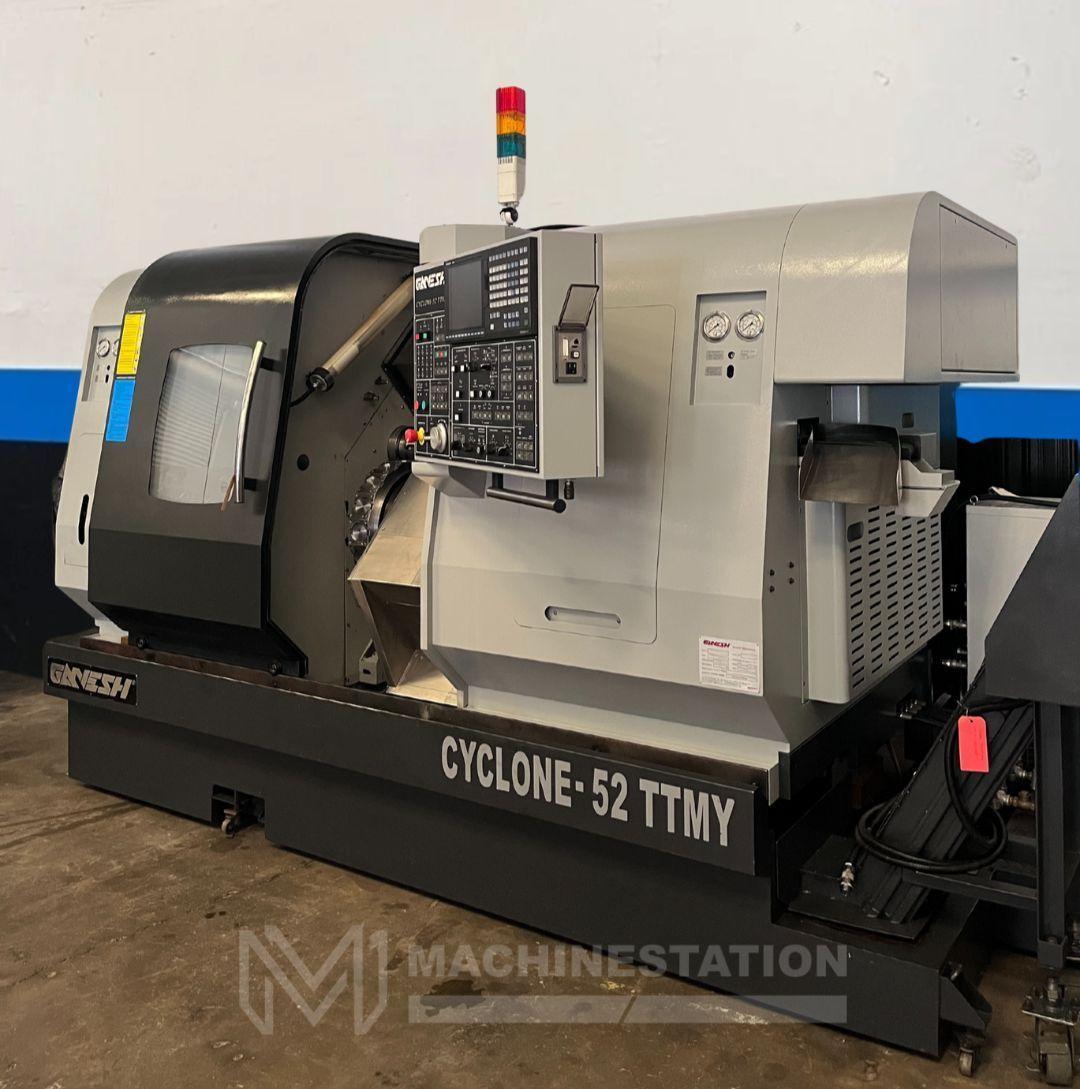

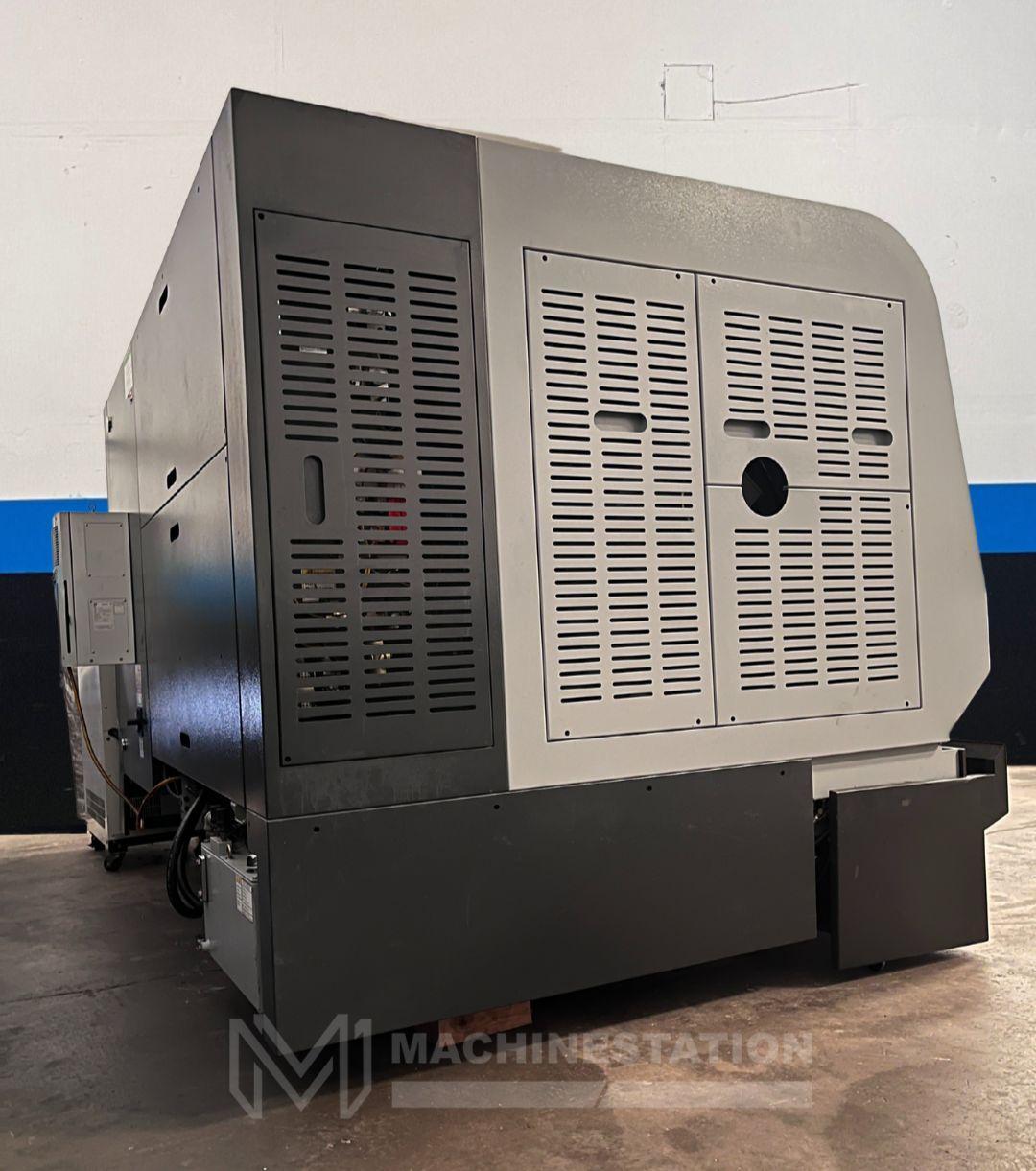

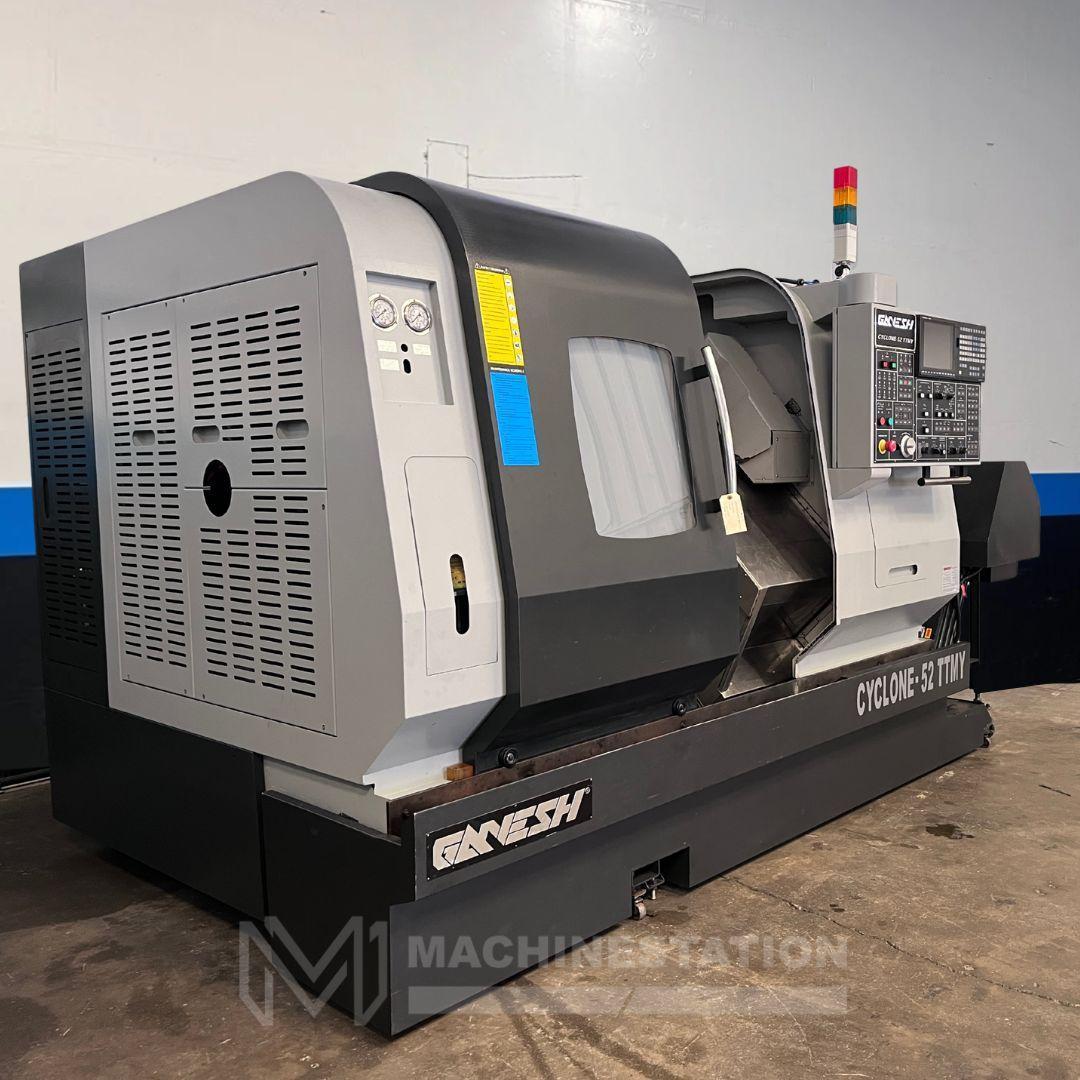

Name: Ganesh Cyclone-52 TTMY Multi Axis CNC Turning Center – Lathe
Brand: GANESH
SKU: 113013
Availability: PreOrder

Brand

GANESH

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

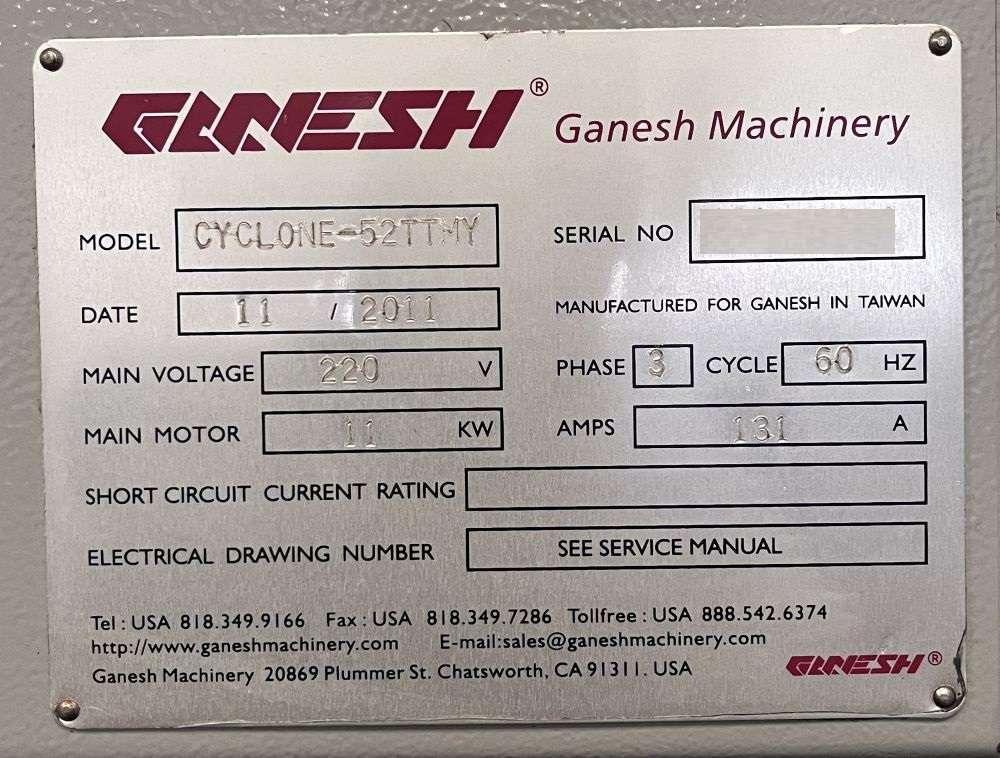

Make:	Ganesh
Model:	Cyclone-52 TTMY
Year:	2011
Condition:	Used – Good

Equipped With:
Mitsubishi M700 Series CNC Control

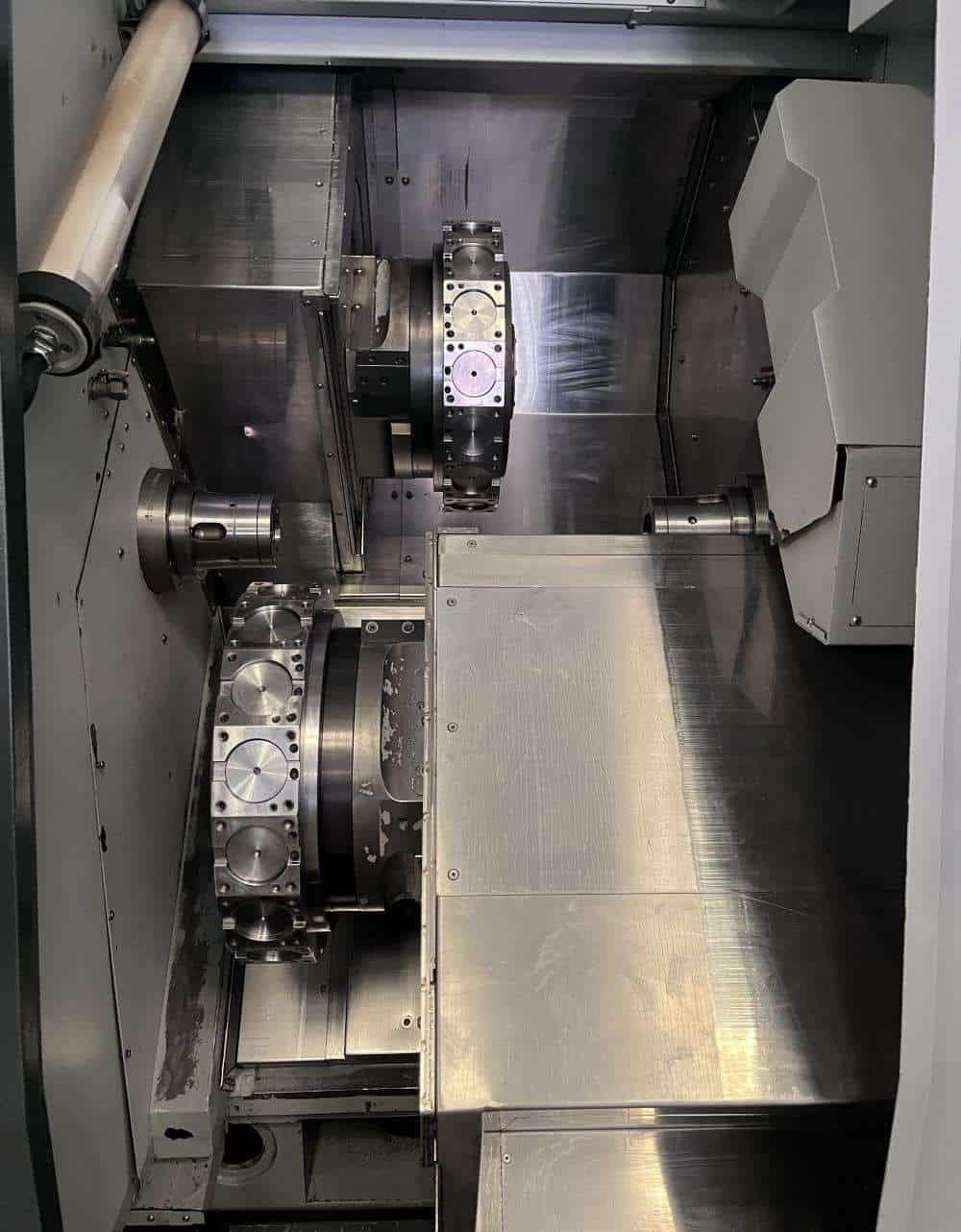

Twin 16 Stations Live Tool Turrets

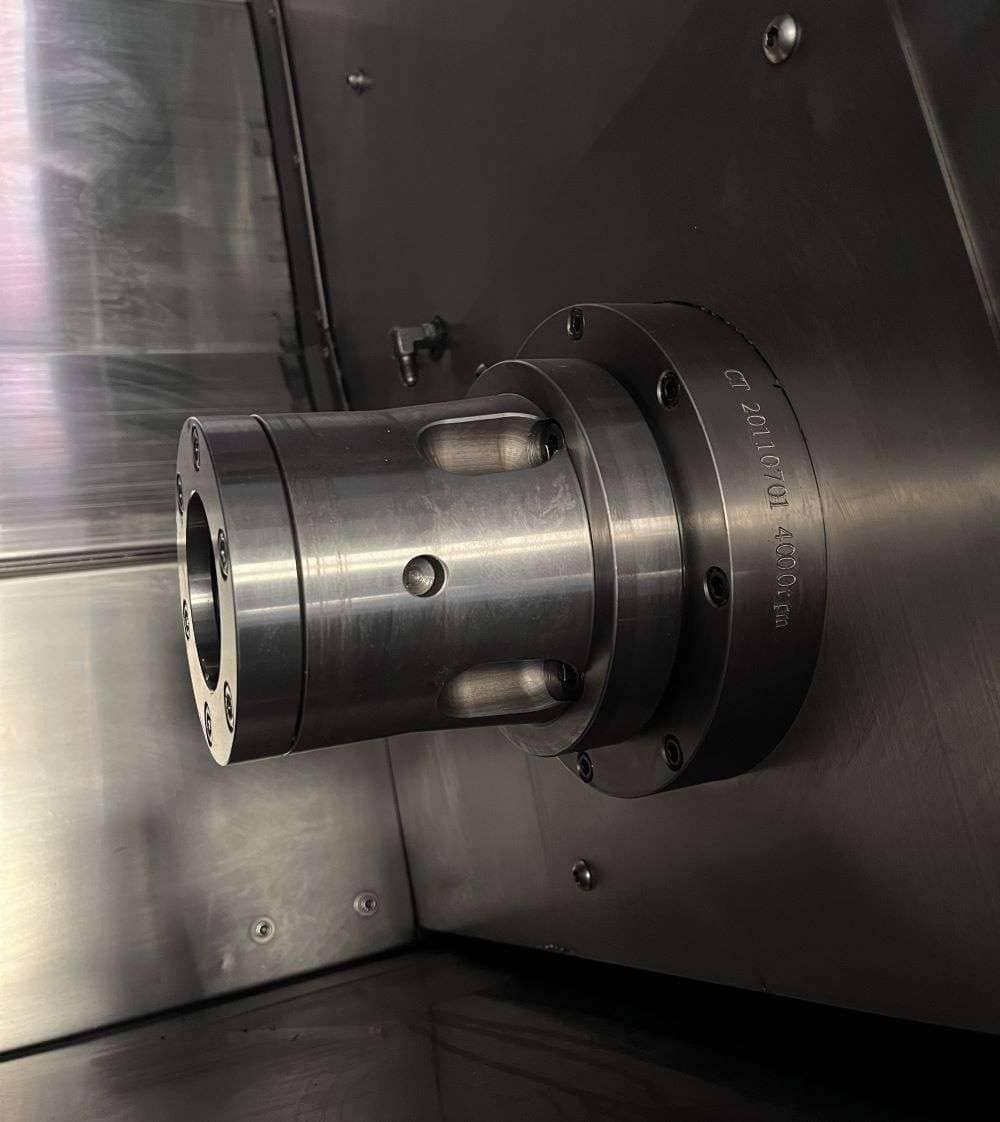

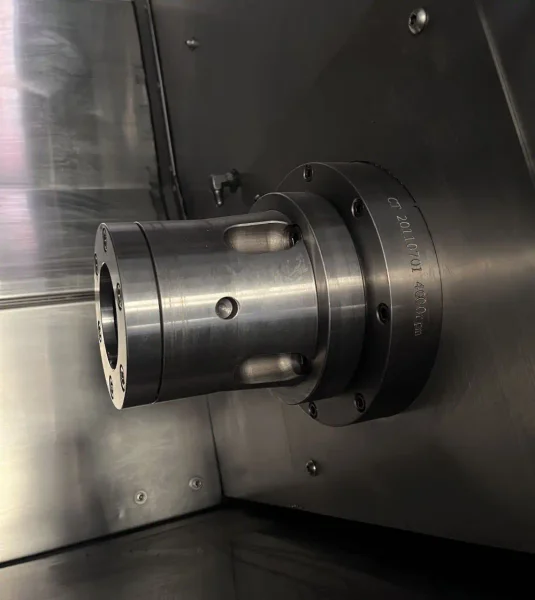

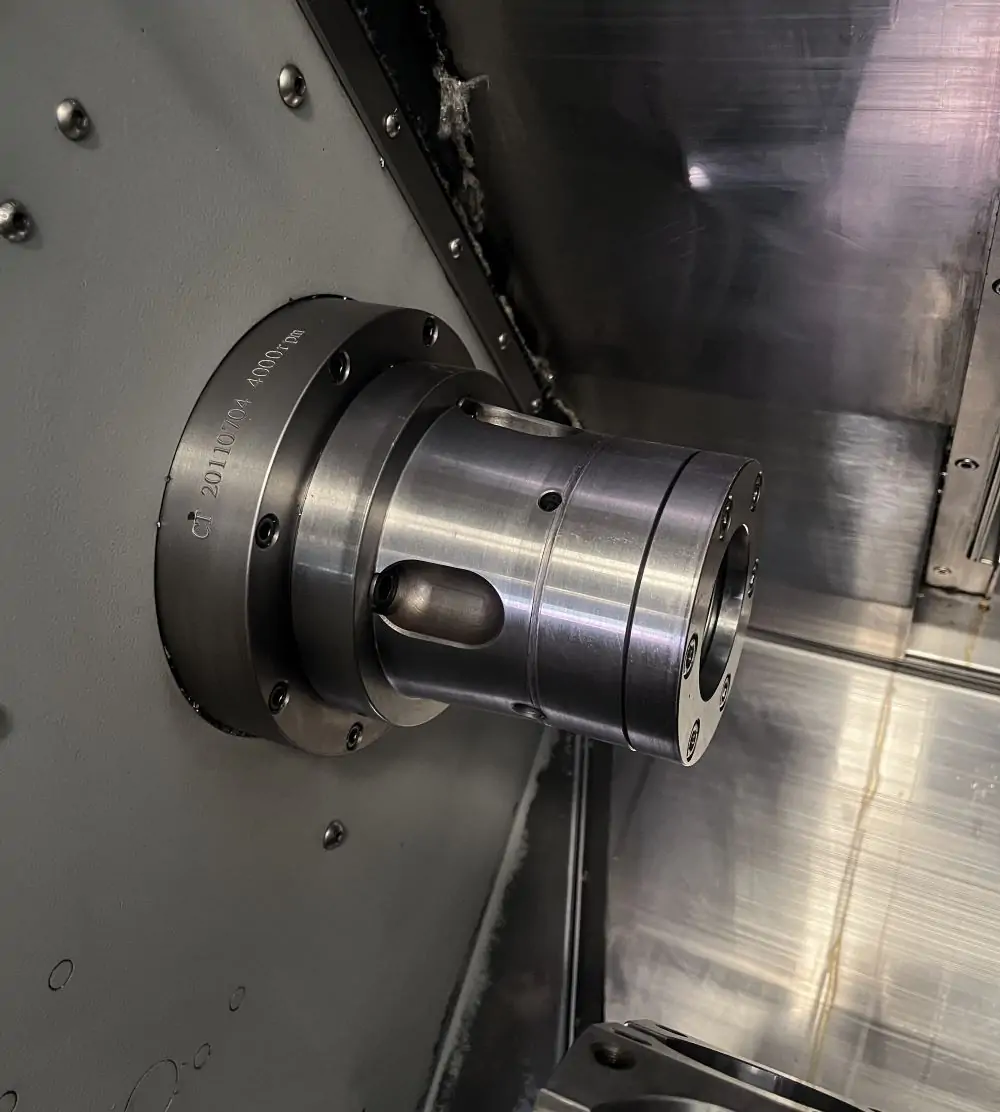

Collet Chucks on both Spindles
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
Y Axis Capability on Upper Turret
Both Spindle Synchronization

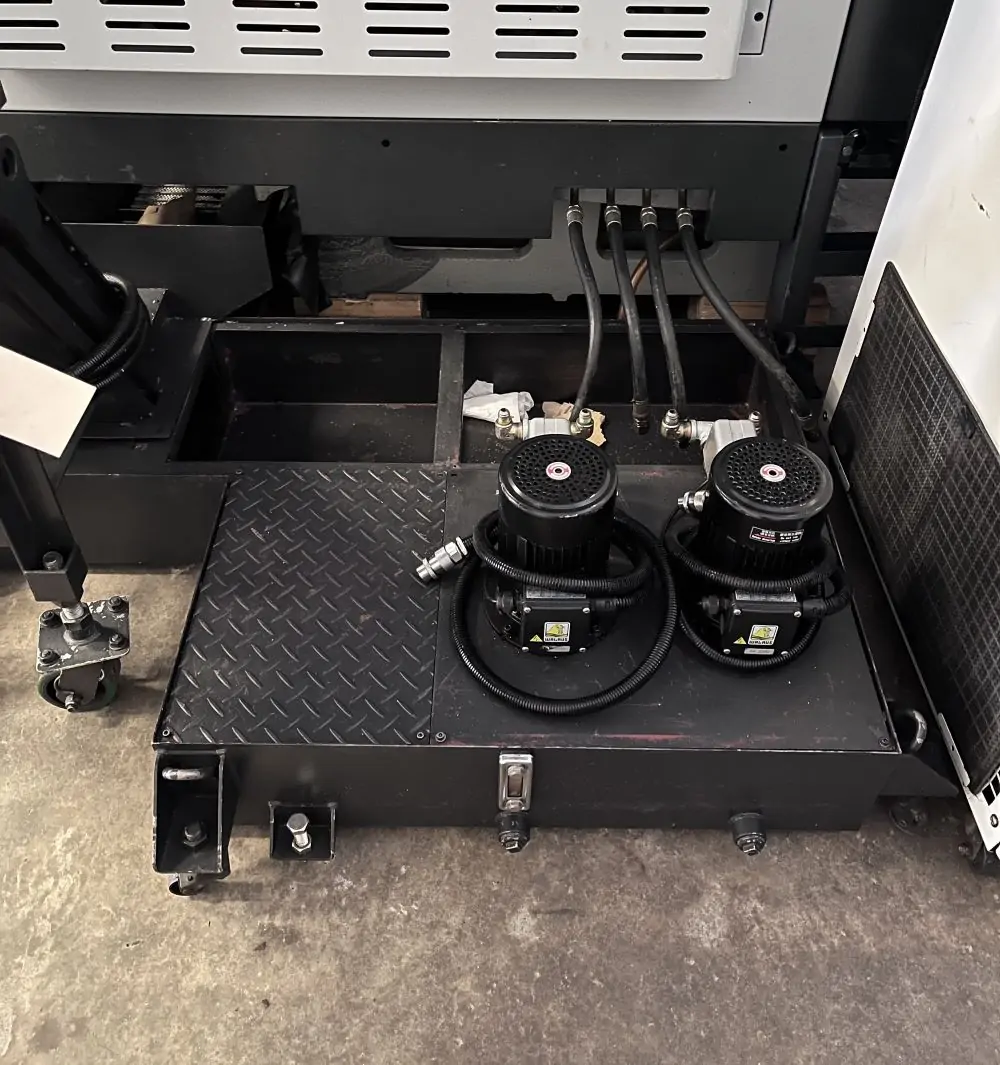

Coolant System

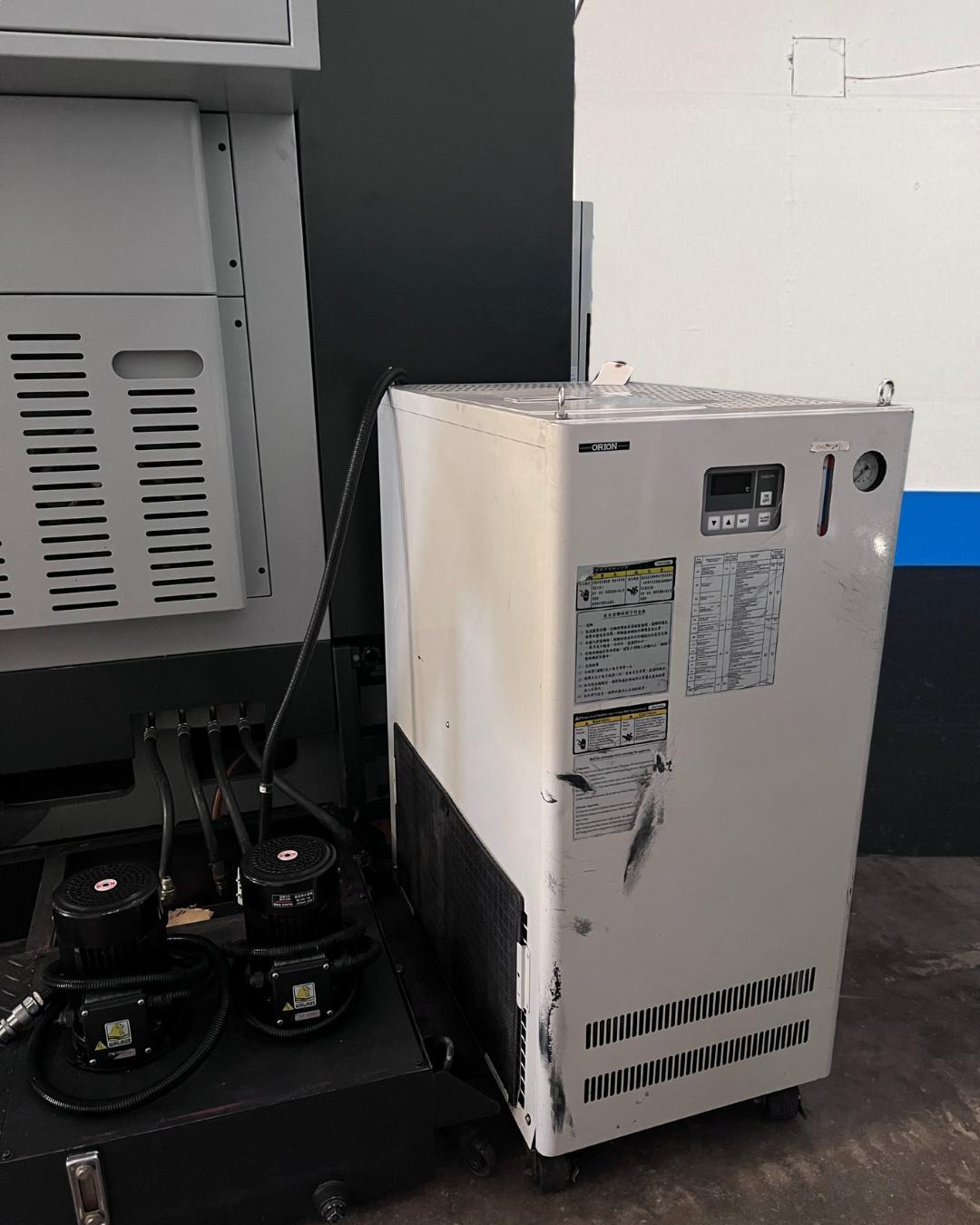

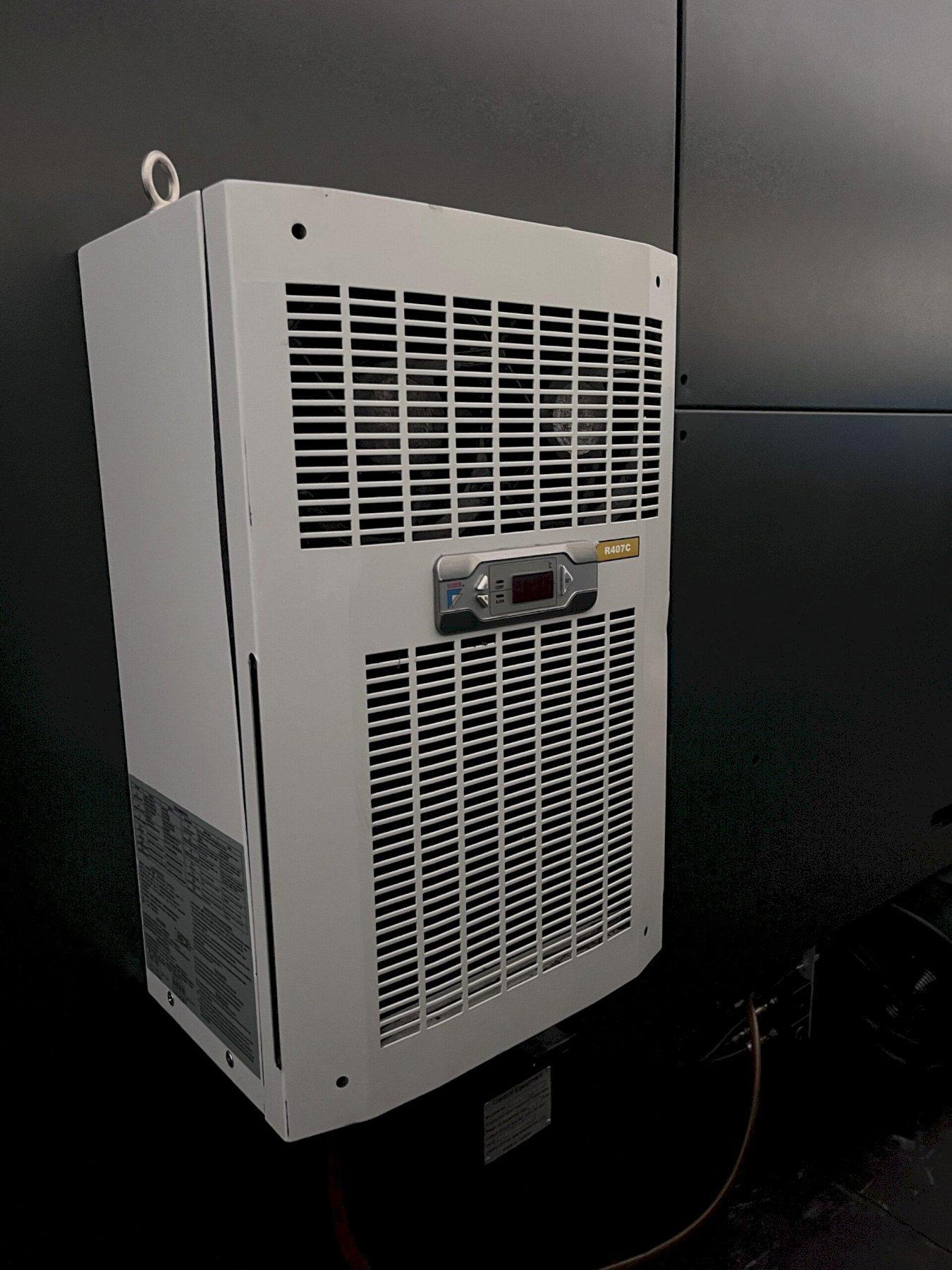

Spindle Chiller
Chip Conveyor
(2) Live Tool Holders ( (1) Axial (1) Radial)

Capacity:
Max Turning Diameter : 7.48″
Max Turning Length: 15.75″
Max Bar Capacity : 2.0″

Travels:
X1 Axis Travel Upper Turret: 5.94″
X2 Axis Travel Lower Turret : 9.05″
Y1 Axis Travel Upper Turret: -/+1.38″
Z1 Axis Travel Upper : 17.32″
Z2 Axis Travel Lower : 17.32″
B Axis Travel: 25.59″ ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle

Feedrate:
X1, X2 Axis: 630 IPM Rapid Traverse
Y1 Axis: 236 IPM Rapid Traverse
Z1, Z2 Axis: 1573 IPM Rapid Traverse
B Axis: 1573 IPM Rapid Traverse

Spindle:
Main Spindle Bore: 2.40″
Sub Spindle Bore: 2.40″
Main Spindle Nose: A2-5
Sub Spindle Nose: A2-5
Main Spindle Speed: 6000 RPM
Sub Spindle Speed: 6000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 20 HP

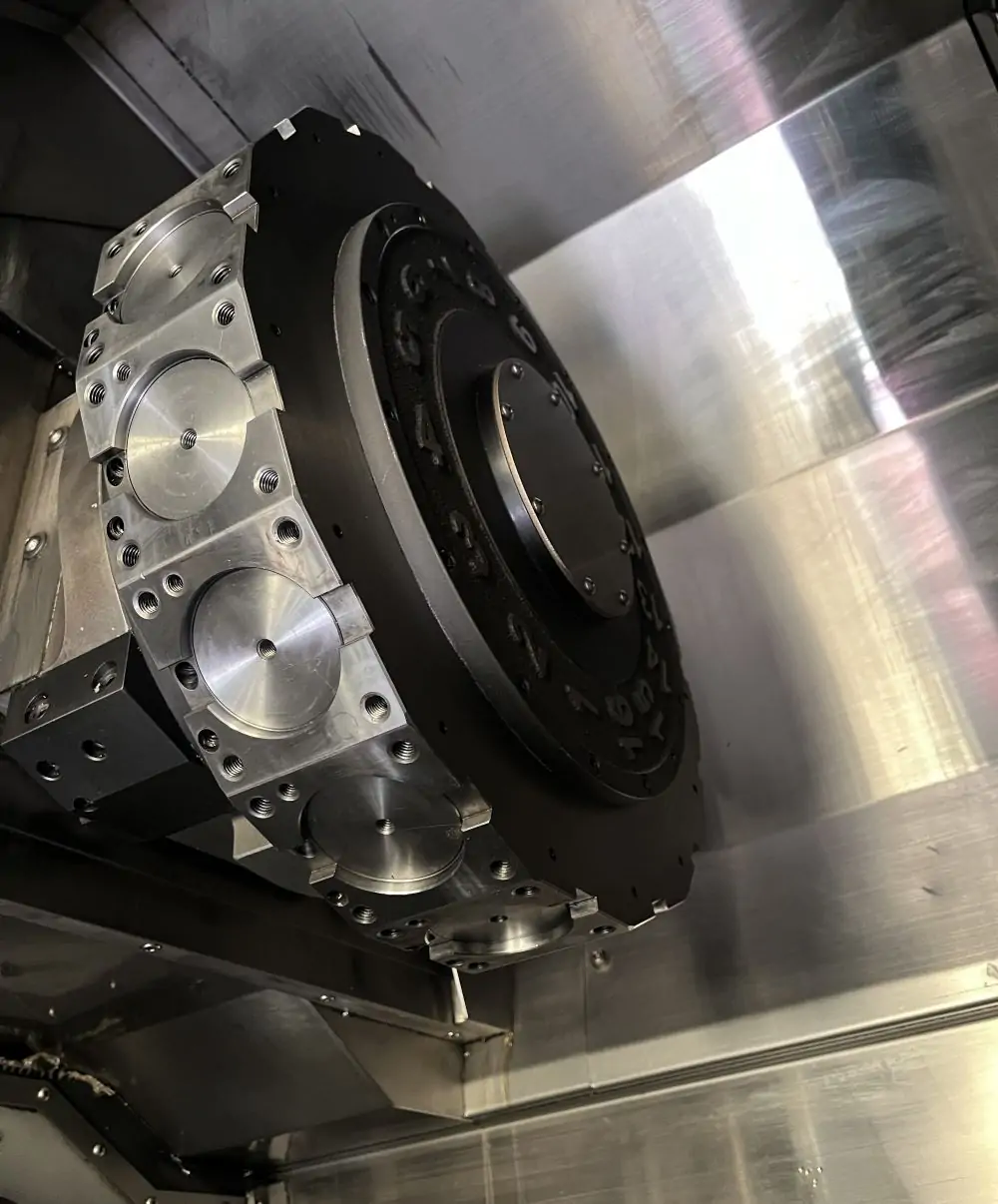

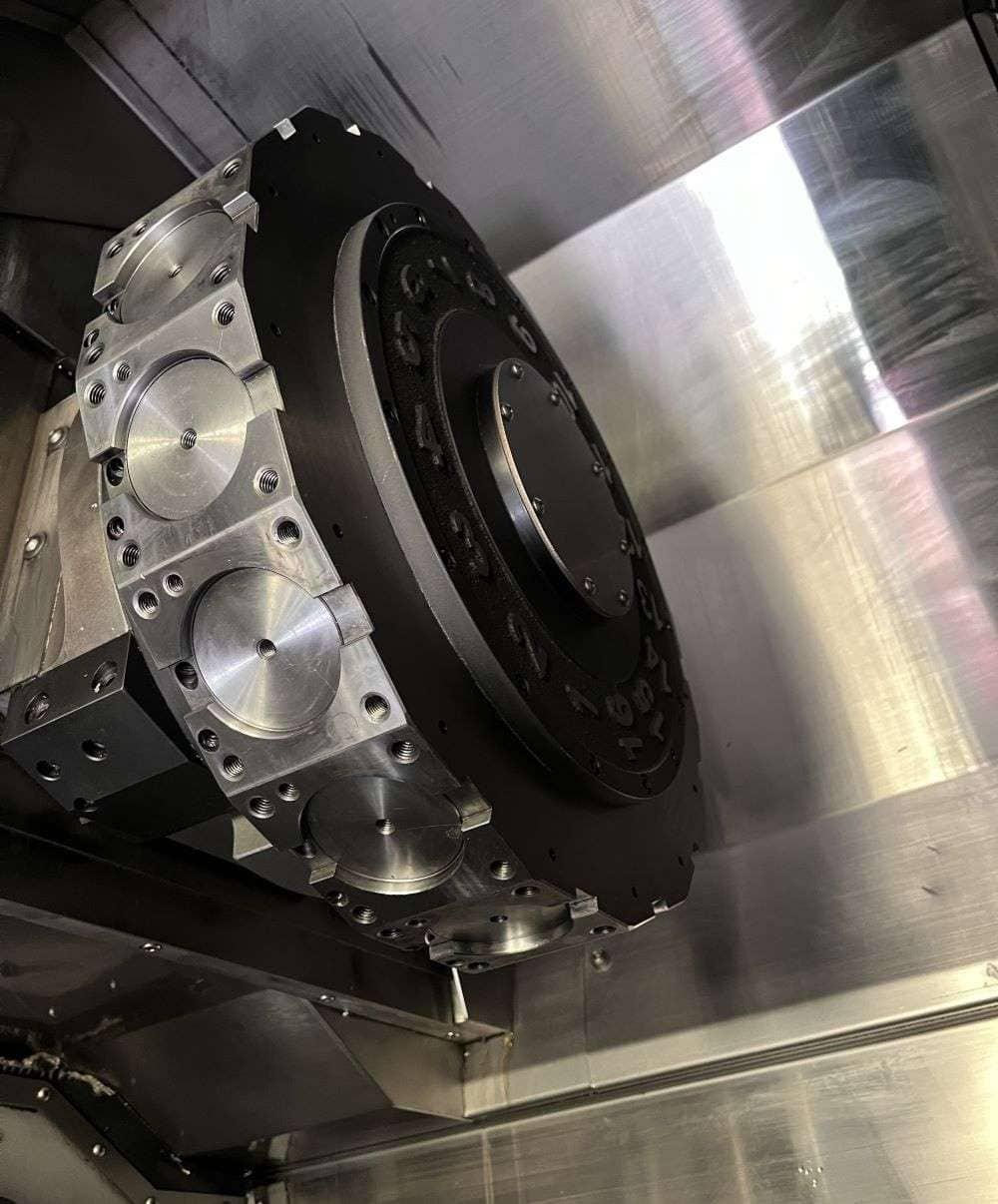

Turret:
Upper Turret Capacity: 16 Stations
Lower Turret Capacity: 16 Stations
Live Milling Speed: 4000 RPM
Live Milling Motor: 7 HP
Tool Size: 1″ (For square tool and round tool)
Tool Holder Type : BMT 65
Turret Index Time (Tool to Tool): 0.2 sec
