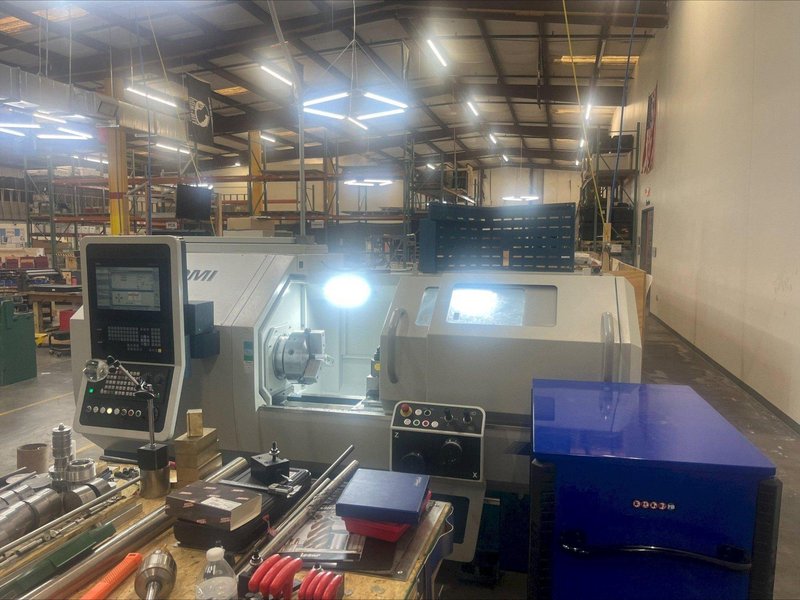

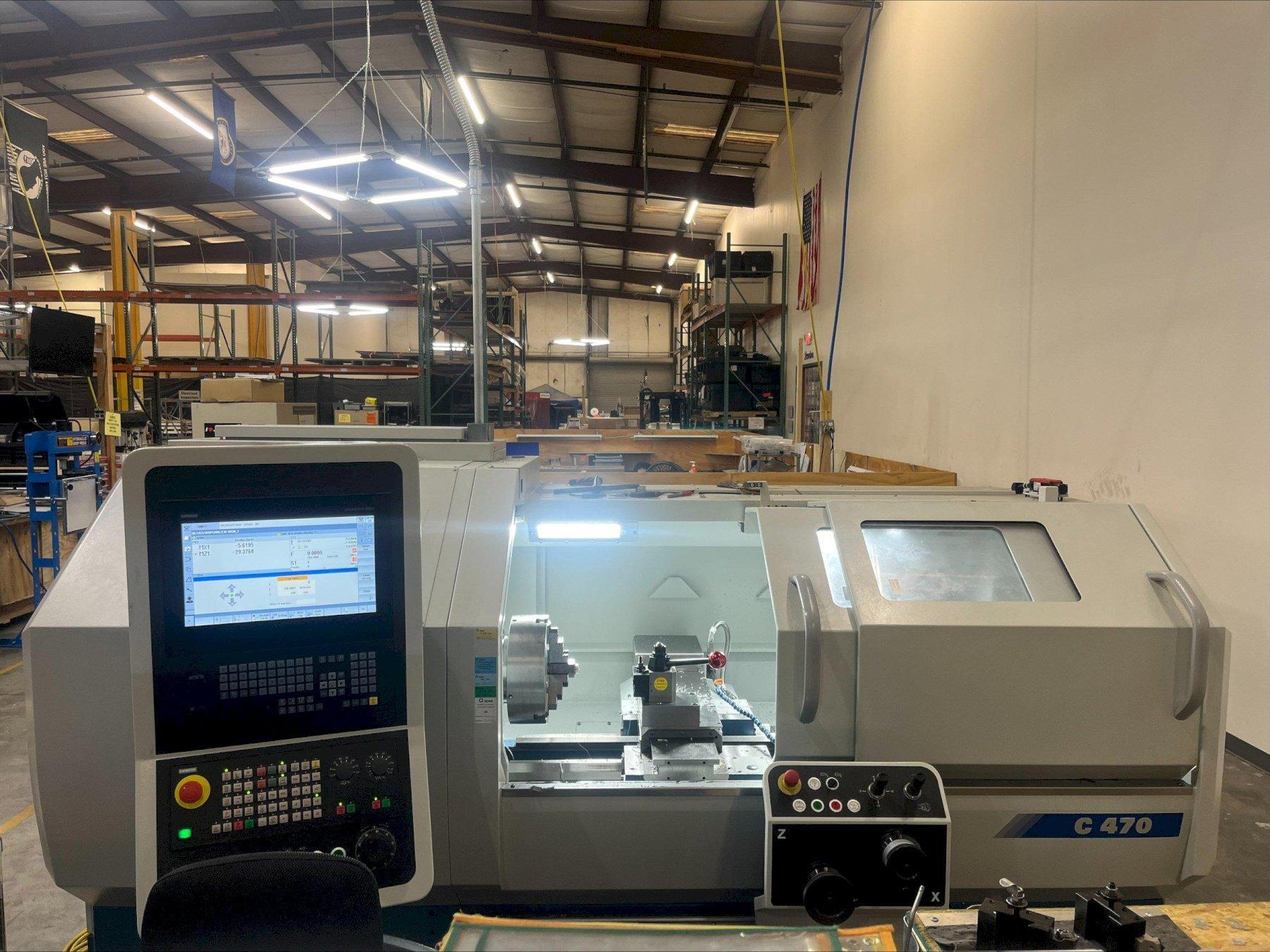

18.5” X 39.37” CNC Lathe with Siemens Sinumerik 828D 15” Touchscreen Interface, 10 OD Holders and 7 ID with 1” Bore.

GENERAL SPECIFICATIONS
Swing Over Bed:                    18.5”
Swing Over Cross Slide:                7.87”
Distance Between Centers:                39.37”
Cross Slide (X - Axis) Travel:            8.66”
Longitudinal (Z - Axis) Travel:            41.93”
Center Height:                    9.45”
Spindle Nose:                    A2-6
Spindle Bore (Through Hole):            2.56”
Max Spindle Speed:                    3,000 RPM
Main Motor Power:                    12.5 HP
Rapid Travers (X & Z):                394” / Min

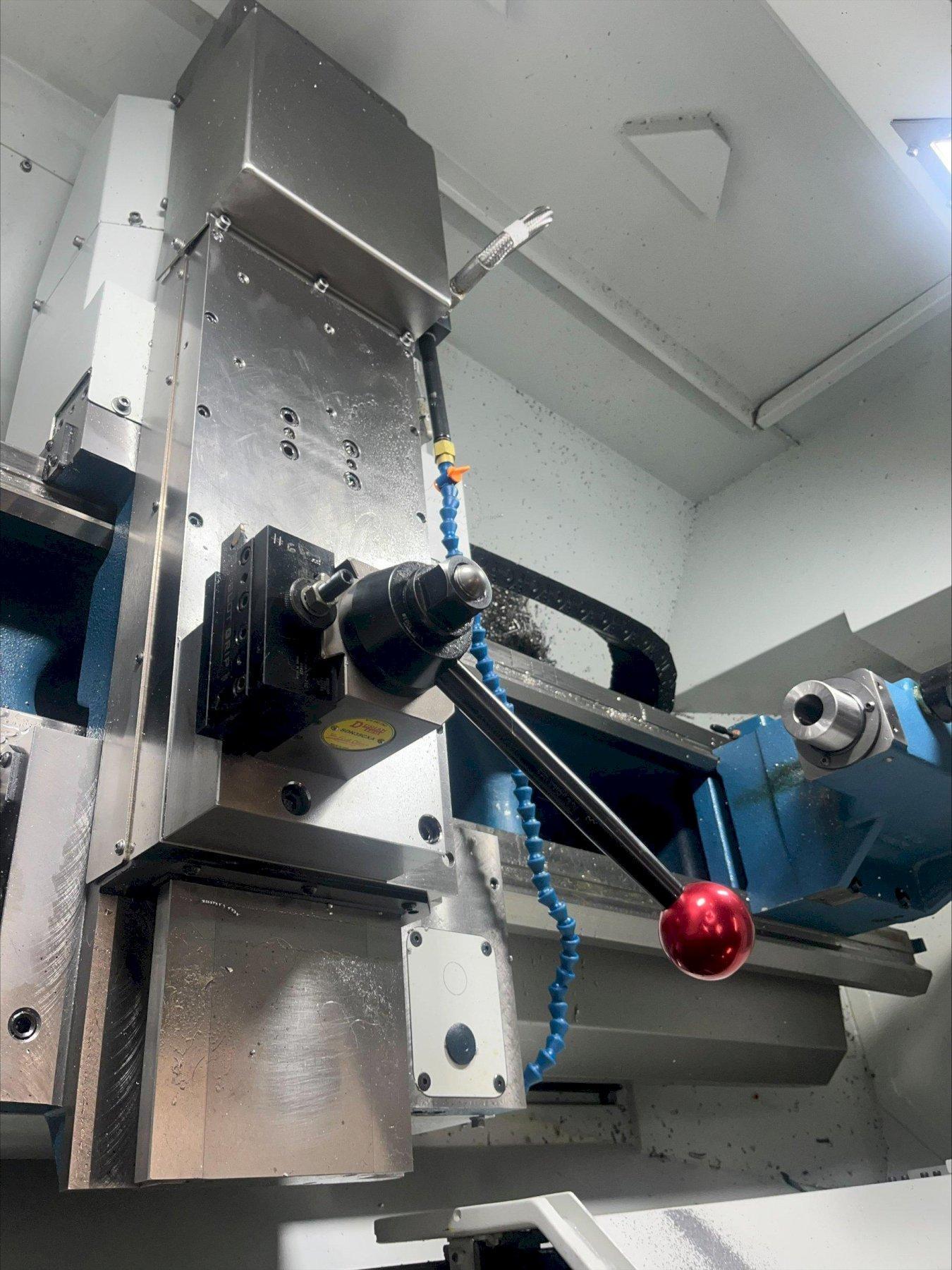

Turret:                            8 - Station Electric 1” X 1”
Tailstock Quill Stroke:                4.72”
Tailstock Qill Diameter:                2.36”
Tailstock Taper:                    #4
Machine Footprint:                    114.6” X 48.8”
Machine Weight:                    5,732 Lbs
Total Installed Power:                ~20 Kva

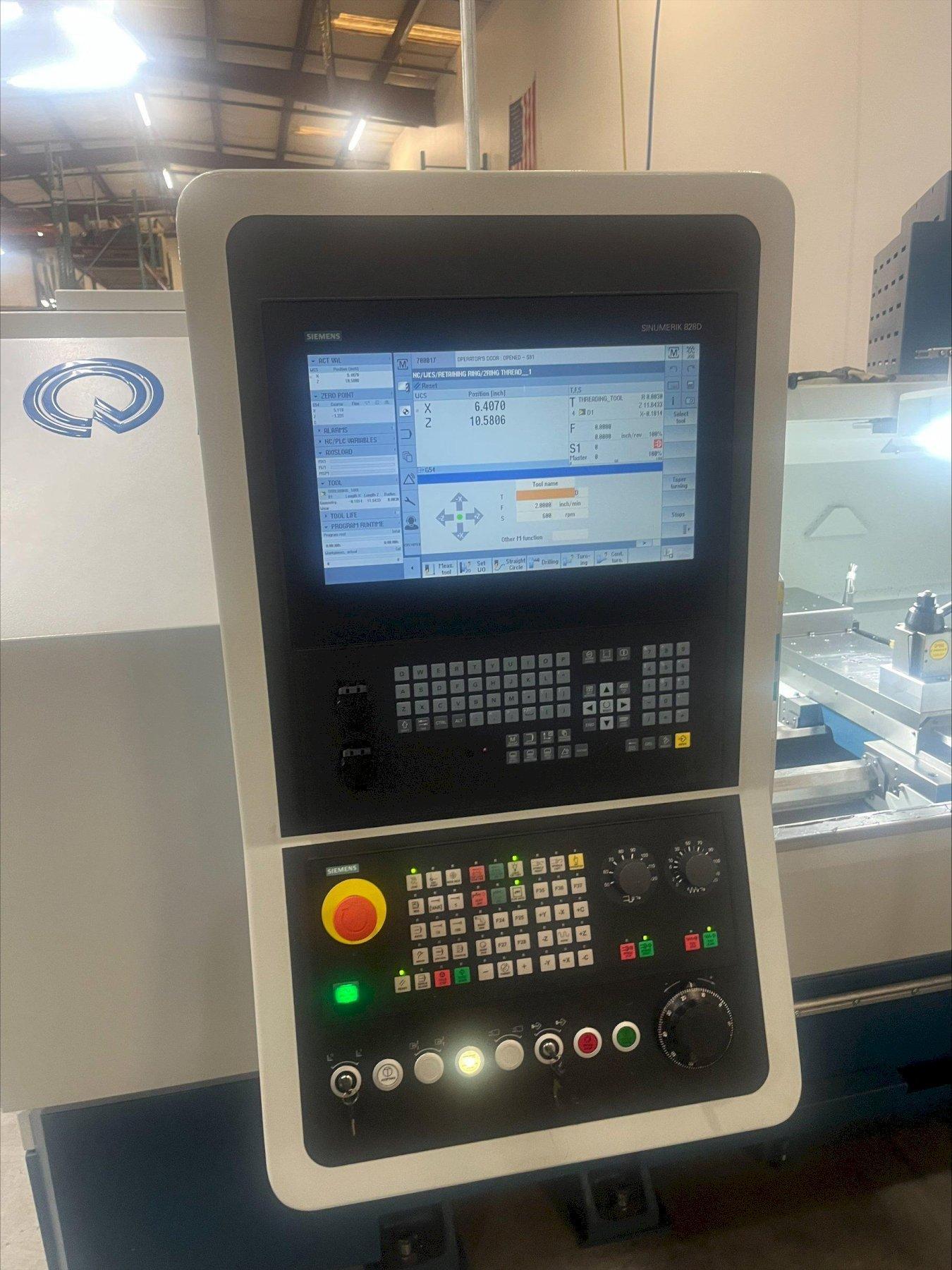

INCLUDES: Siemens Sinumerik 828D 15” Touchscreen Interface, 10 OD Holders and 7 ID with 1” Bore.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
