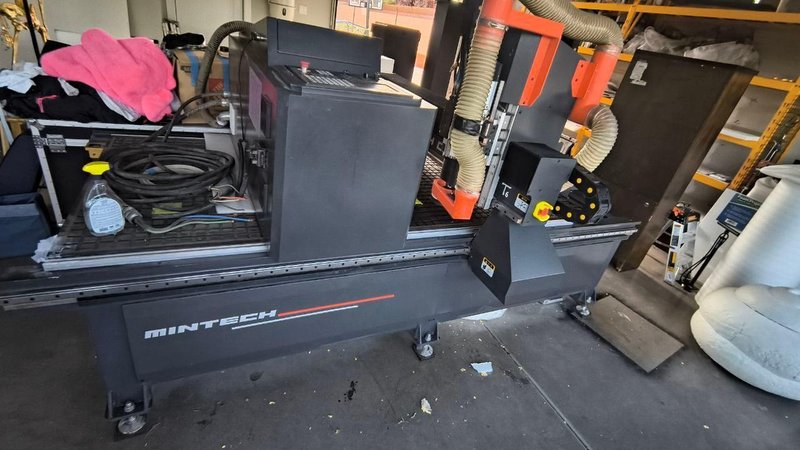

4’ X 8’ Router with Weihong CNC Control, 5.3 HP Spindle, Water Cooled Spindle with Speeds up to 30,000 RPM and ER20 Collet System

GENERAL SPECIFICATIONS
Working Range:                4’ X 8’
Z - Axis Travel:                7”
Max Material Thickness:            5”
Cutting Thickness:                Up to 4”
Worktable Surface:                Phenolic Composite Grid Vacuum Table w/ T-Slots
CAM Software Compatibility:        Vcarve, Aspire, Alphacam Etc.
Control System Supports:            DXF, AI, CDR, NC and G-Code
Movement Type:                Gantry
Drive System:                Servo Driven Motors
Max Travel Speed:                82’ / Min
Spindle Power:                5.3HP
Spindle Speed:                Up to 30,000 RPM

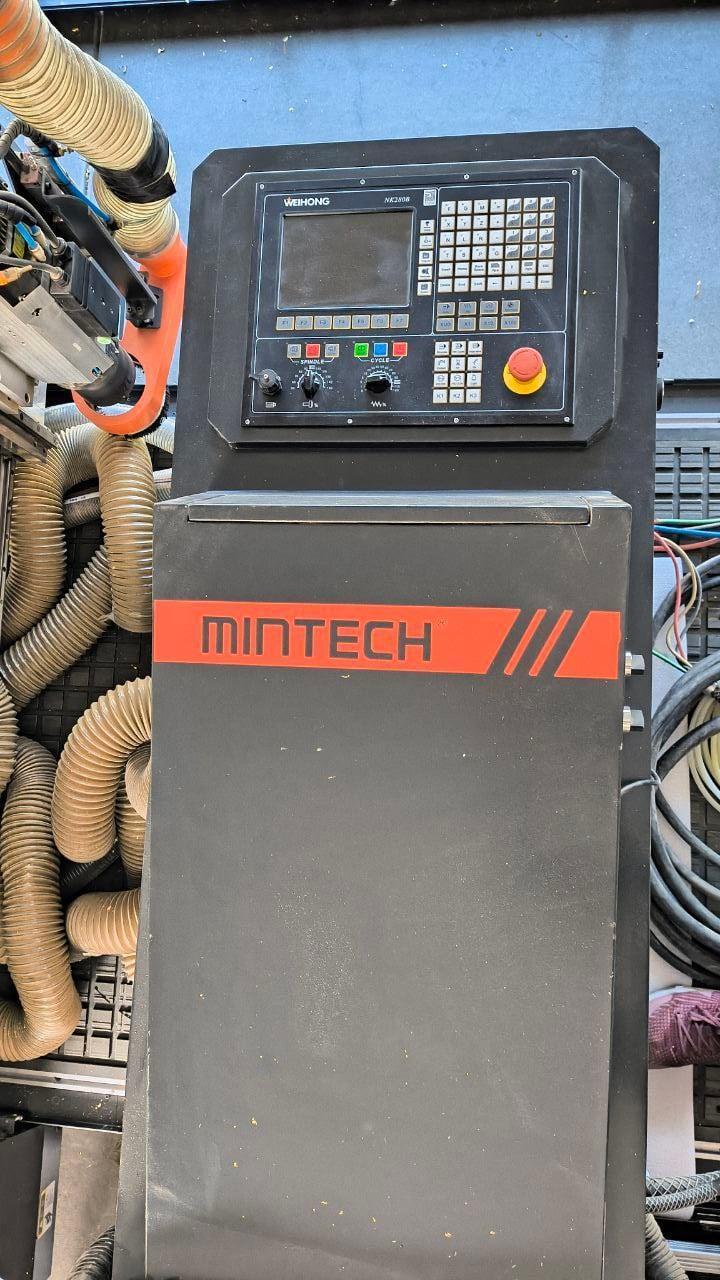

INCLUDES: Weihong CNC Control, 5.3 HP Spindle, Water Cooled Spindle with Speeds up to 30,000 RPM and ER20 Collet System

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
