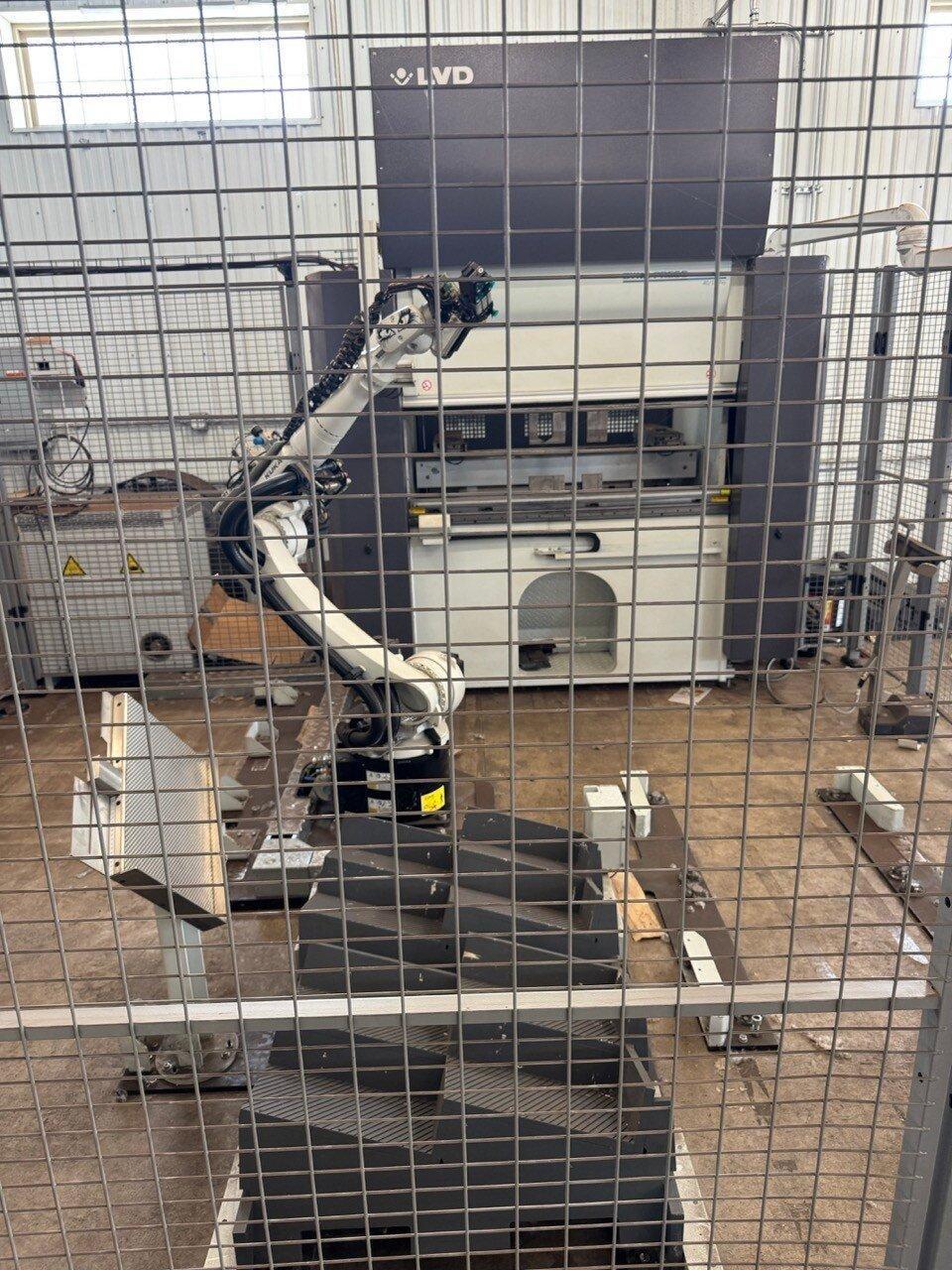

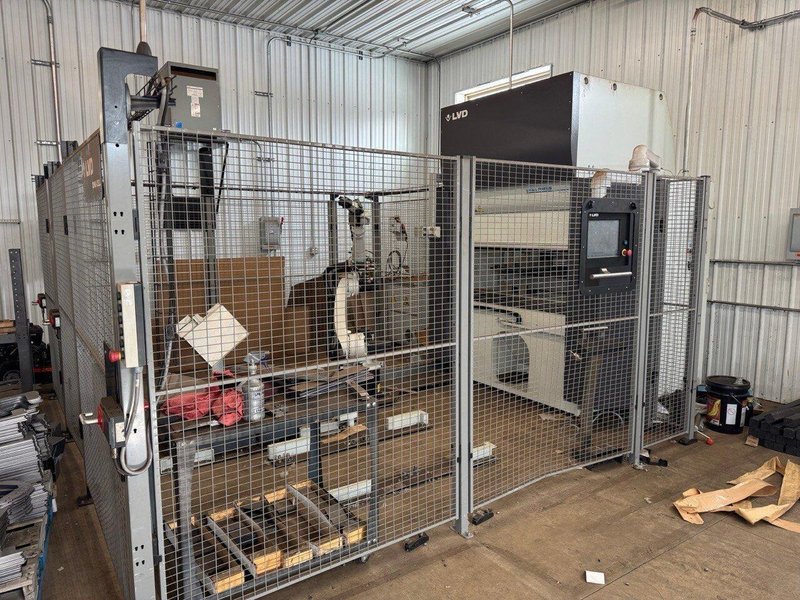

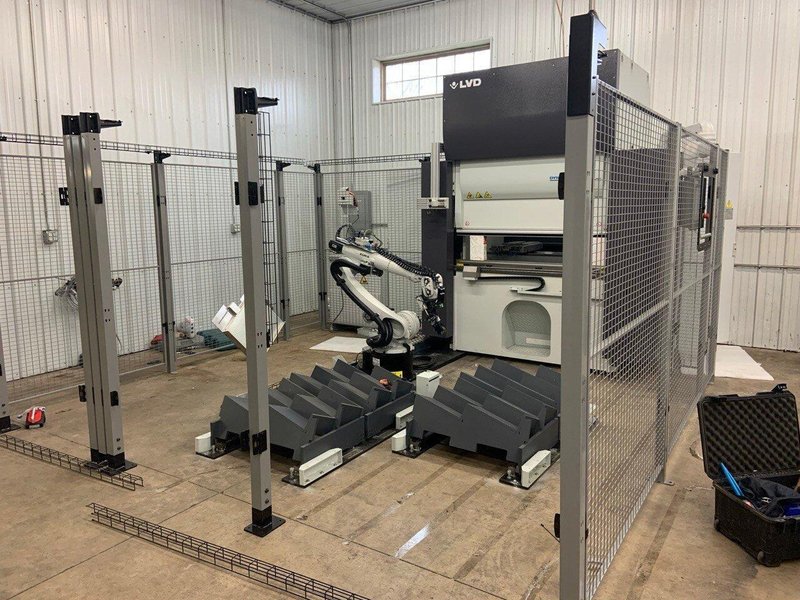

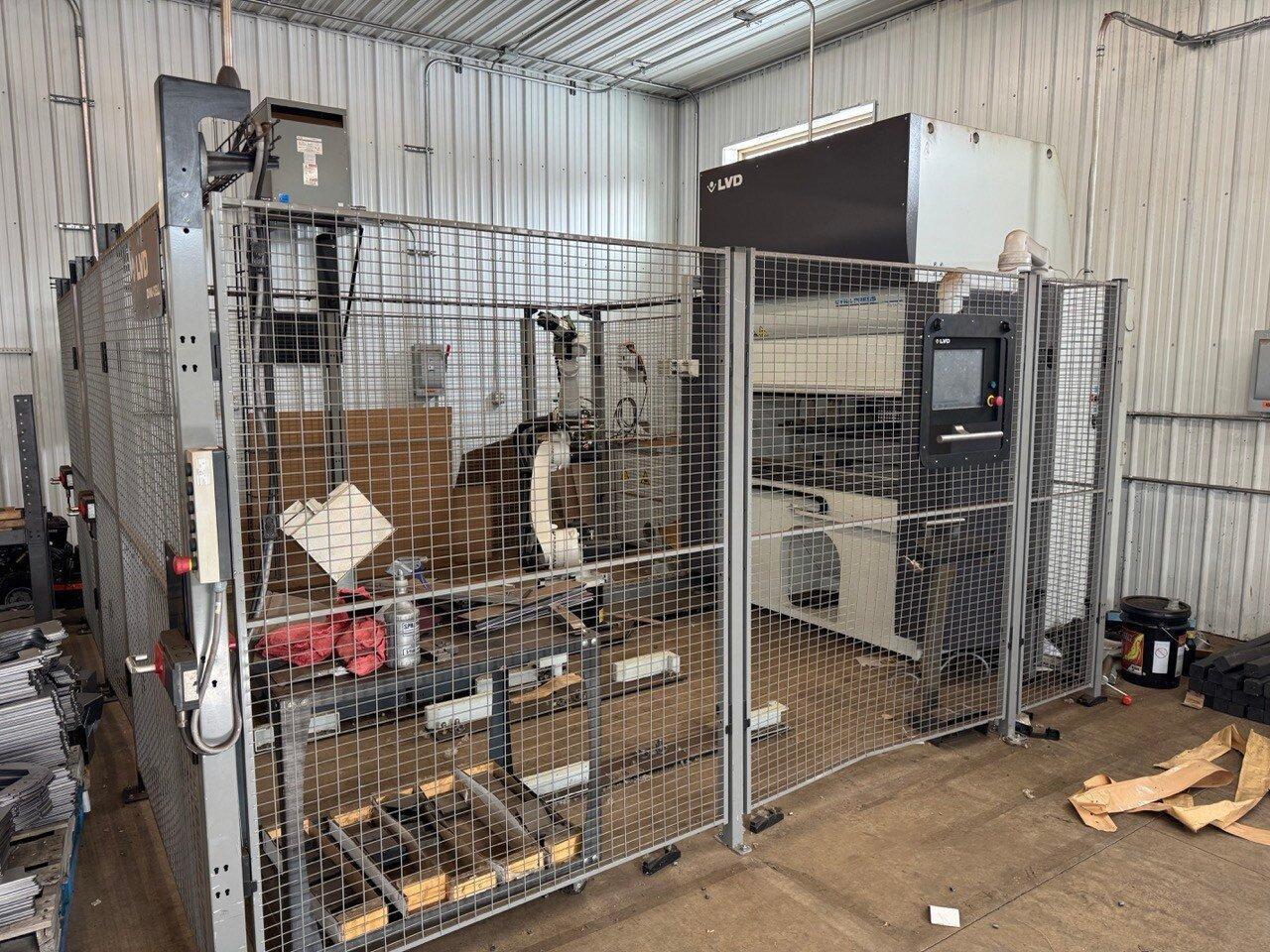

44 Ton X 5’ CNC Robotic Press Brake with 15” Touch-B Control, Versatile Gripper Designed by LVD, Pneumatic Clamping, IRIS Lazer Safe Safety System, and Easy Form Laser.

GENERAL SPECIFICATIONS
Pressing Force:                    44 Tons
Stroke:                        7.9”
Distance Table / Ram:                15.8”
Working Length:                    60”
Working Height:                    38”
Distance Between Uprights:            60”
Gap (Left Side):                    6.8”
Approach Speed:                    Up to 236” / Min
Working Speed:                    Up to 59” / Min
Return Speed:                    Up to 236” / Min
Top Tooling:                        W Style
Bottom Tooling Style:                LVD Style
Total Height:                        109”
Total Depth:                        58”
Weight:                        10,472 Lbs
Back Gauge:                        X1, X2, R, Z1, Z2

INCLUDES: 15” Touch-B Control, Versatile Gripper Designed by LVD, Pneumatic Clamping, IRIS Lazer Safe Safety System, and Easy Form Laser.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
