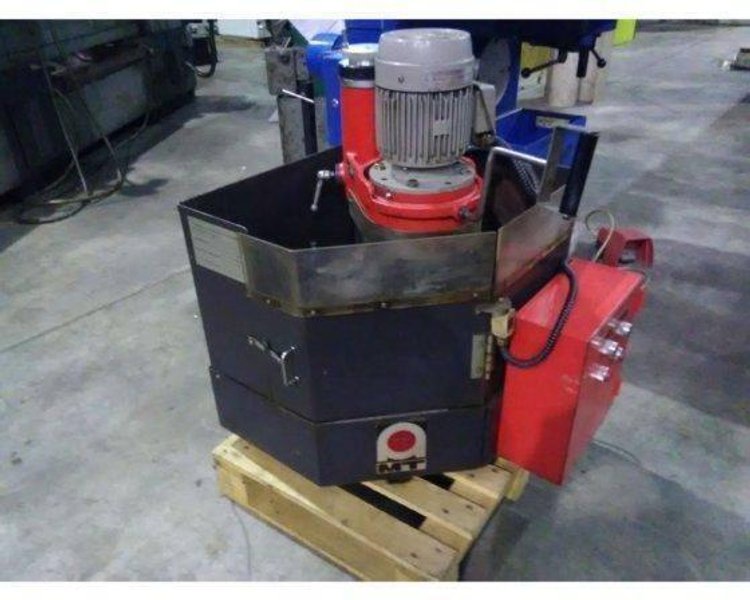

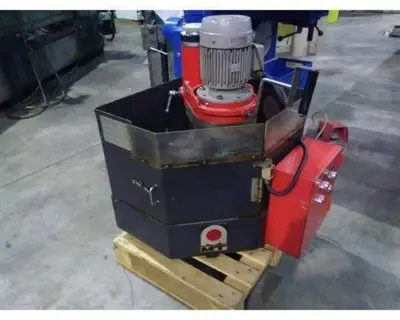

24 Ton, 393” X 61” Turret Punch with Programmable Rotation of Tooling, Amada 160ES Punch and Die Sharpener, 4 - Station Multi Tool and Multi Head Tool Changing Post.

GENERAL SPECIFICATIONS
Tonnage:                        24 Tons
Y - Axis (Throat) w/ Multitool:            61”
Y - Axis (Throat) w/ Single Tool:            59”
X - Axis (Sheet Width):                98”
X - Axis w/ Repositioning:                Up to 393”
Max Hit Rate 20mm Pitch:                375 SPM
Max Hit Rate 1mm Pitch:                1000 SPM
Max Hit Rate Scribing:                2000 SPM
Max Sheet Weight:                    440 Lbs
Main Motor:                        11 HP
Floor Space:                        165” X 19”
Weight:                        19,900 Lbs

INCLUDES: Programmable Rotation of Tooling, Amada 160ES Punch and Die Sharpener, 4 - Station Multi Tool and Multi Head Tool Changing Post.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
