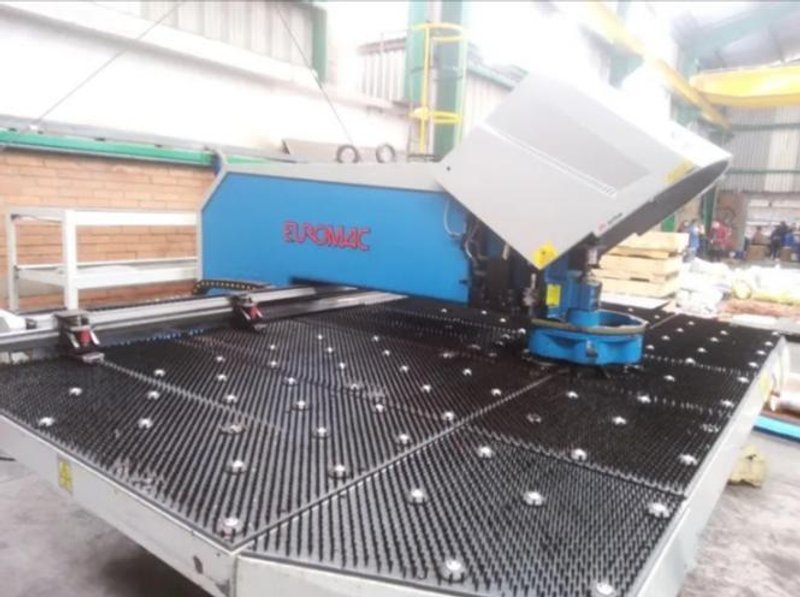

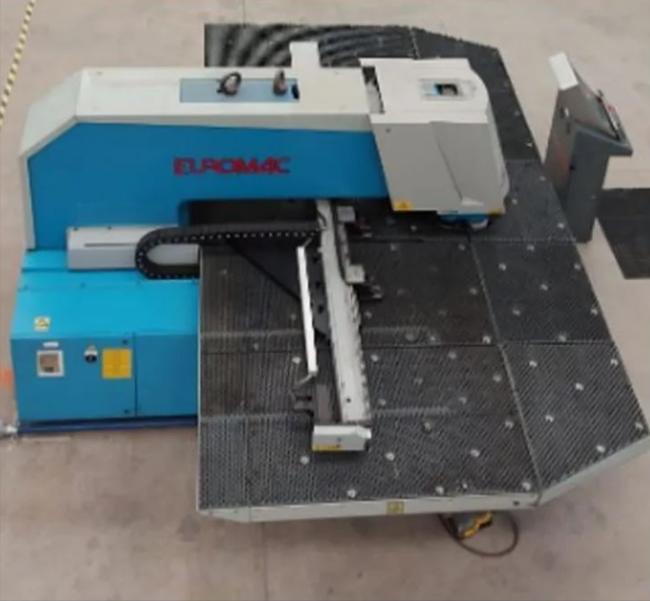

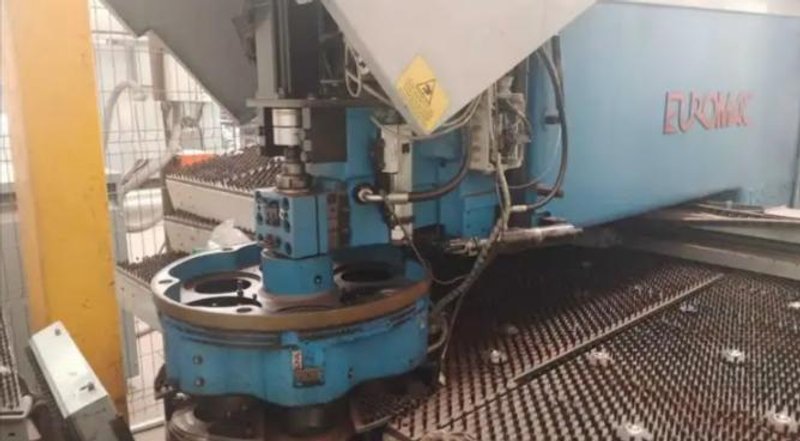

30 Ton Turret Punch with CPS System - Programmed # of D Stations 6 (Including 3 Self Indexing Stations), USB Ports and Floppy Disk Port.

GENERAL SPECIFICATIONS
Pressing Force:                    30 Tons
Feed in the X / Y Axis:                2250 / 1250 mm
Automatic Repositioning on the X - Axis:        Up to 10000 mm
Piercing Speed (Nibbling Mode):            780 / Min
Punching Speed (Marking Mode):            2000 / Min
Drilling Speed (20 mm Pitch):            300 / Min
Sheet Thickness:                    0.5 - 10 mm
Max Sheet Weight:                    150 Kg
Power Supply:                    220V / 50 Hz
Total Weight:                        8400 Kg
Machine Dimensions:                3970 X 3430 MM

INCLUDES: CPS System - Programmed # of D Stations 6 (Including 3 Self Indexing Stations), USB Ports and Floppy Disk Port.
