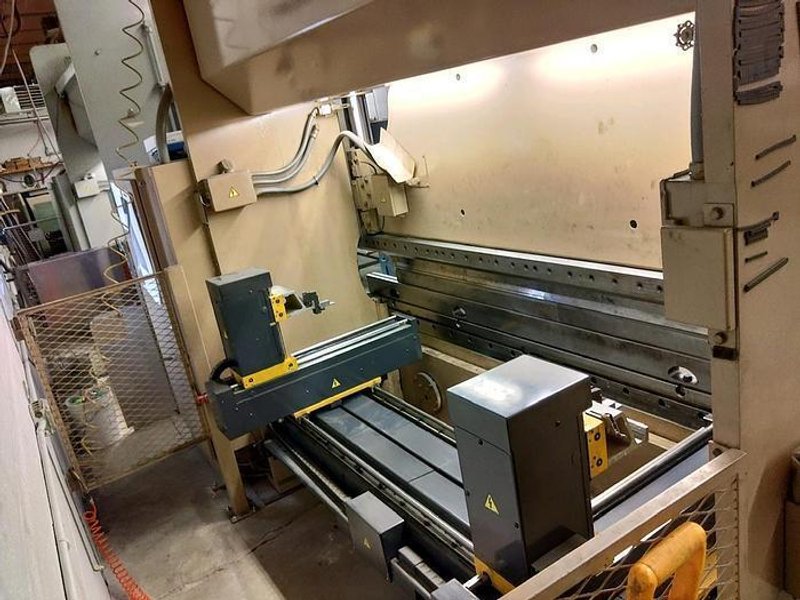

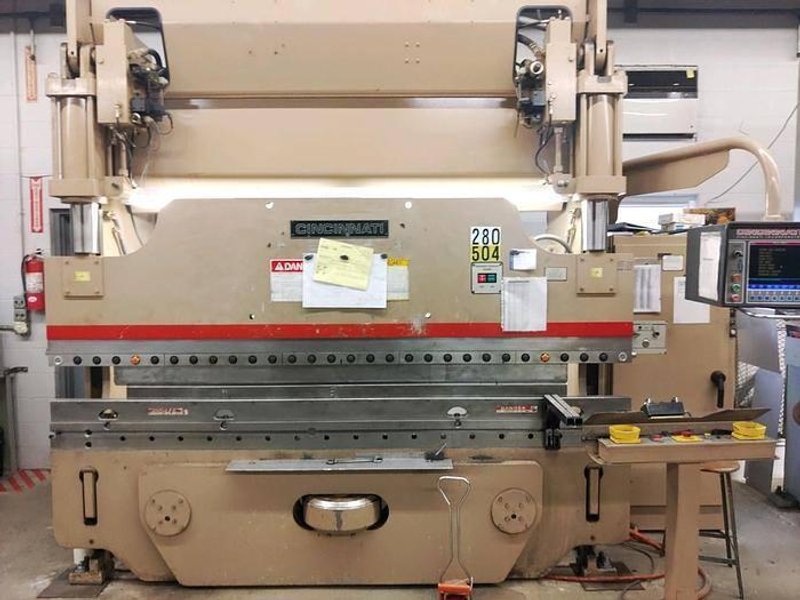

90 Ton X 10’ CNC Press Brake with Cincinnati Adaptive Autoform CNC Controls with 6 - Axis Backgauge, Upper Ram Hydraulic Clamping, Auto Crowning Capabilities, 14” Extra Long Stroke, Floppy Disc and USB Expanded Memory.

GENERAL SPECIFICATIONS
Tonnage Max. Capacity:                    90 Ton
Tonnage Capacity Full Forming Speed:            70 Ton
Overall Length of Bed and Ram:                10’
Distance Between Housings:                102.5”
Bending Capacity @ 9’:                    10 Ga
Bending Capacity @ 5’:                    ¼”
Stroke Length:                        14”
Open Height:                            21”
Closed Height:                        7”
Throat Depth:                        7”
Ram Speed Full Tonnage:                    94 IPM
Ram Speed High Approach:                380 IPM
Ram Speed Variable Forming:                1 - 120 IPM
Ram Speed Variable Return:                1 - 405 IPM
Hydraulic Motor:                        25 HP
Approx. Weight:                        17,500 Lbs

INCLUDES: Cincinnati Adaptive Autoform CNC Controls with 6 - Axis Backgauge, Upper Ram Hydraulic Clamping, Auto Crowning Capabilities, 14” Extra Long Stroke, Floppy Disc and USB Expanded Memory.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
