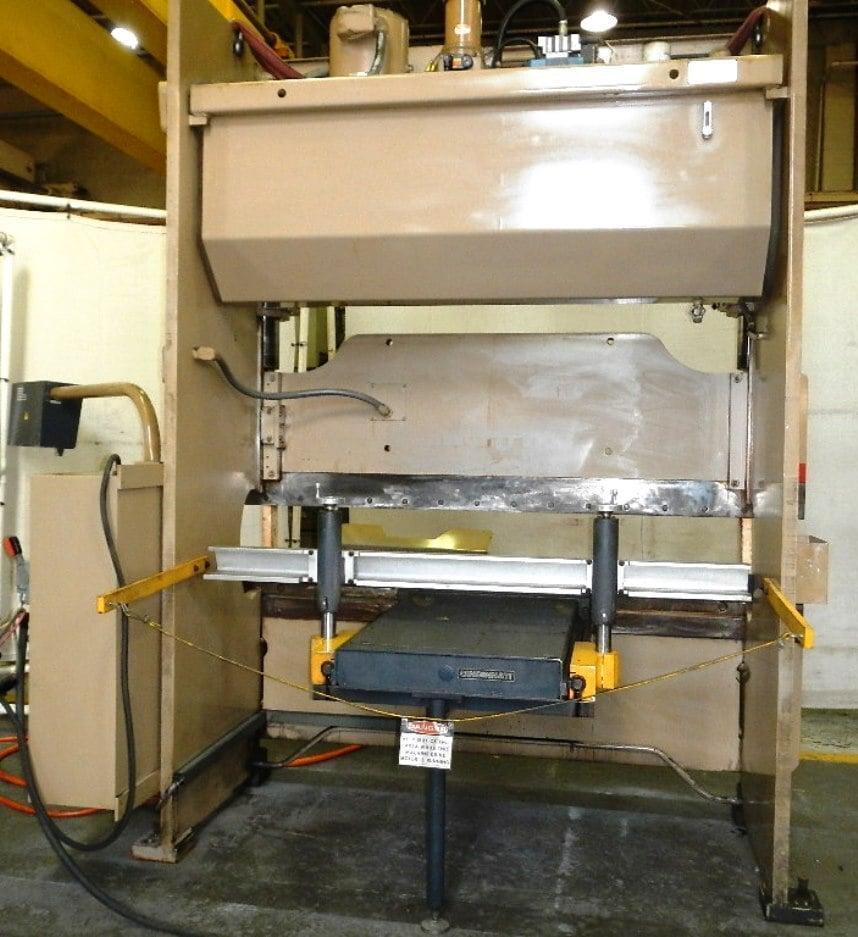

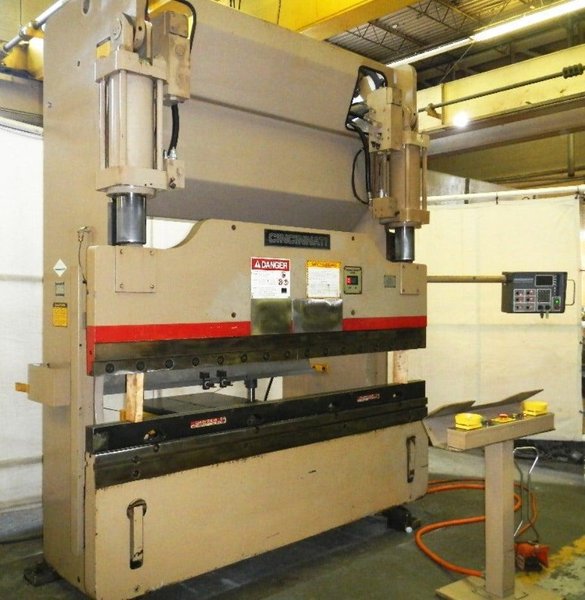

90 Ton X 8’ Hydraulic Press Brake with Cincinnati CNC 2 -Axis Control (Ram & Backgauge), Adjustable Tonnage Control with Selector Switch, Remote Pedestal w/ Palm Buttons & E-Stop, Adjustable Lower Die Rail and 14” Extended Stroke.

GENERAL SPECIFICATIONS
Capacity:                        90 Tons
Overall Length of Bed & Ram:            96”
Distance Between Housings:            72”
Stroke of Ram (Extended):                14”
Open Daylight:                    15”
Closed Daylight:                    7”
Throat Depth:                    7”
Bending Capacity:                    5’ X ¼” | 6’8” X 3/16”
Ram Approach Speed:                200 IPM
High Speed:                        55 IPM
Medium Speed:                    20 IPM
Low Speed:                        5 IPM
Return Speed:                    185 IPM
Back Gauge Range:                    24”
Motor:                            15 HP
Dimensions:                        102” X 60” X 112”
Weight:                        12,000 Lbs


INCLUDES: Cincinnati CNC 2 -Axis Control (Ram & Backgauge), Adjustable Tonnage Control with Selector Switch, Remote Pedestal w/ Palm Buttons & E-Stop, Adjustable Lower Die Rail and 14” Extended Stroke.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
