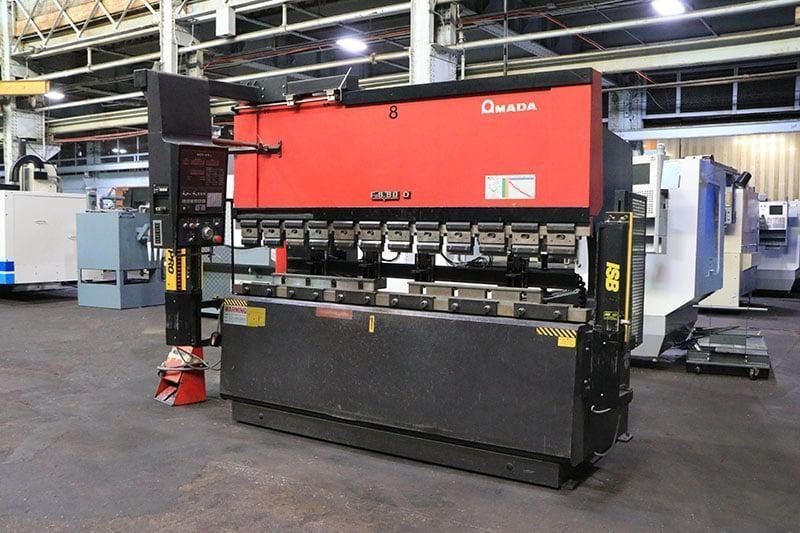

88 Ton X 8’ Hydraulic Press Brake with Amada NC9EX II Control, Sectionalized Ram Clamps, (4) Gauging Fingers and Pneumatic R - Axis

GENERAL SPECIFICATIONS
Max Tonnage:                        88 Tons
Max Bending Length:                    98.6”
Max Stroke Length:                        3.94”
Open Height:                            14.57”
Throat Depth:                        15.7”
Distance Between Side Frames:                86.6”
Ram Approach Speed:                    3.62” /Sec
Bending Speed:                        .33” /Sec
Return Speed:                        3.58” /Sec
Machine Weight:                        10,360 Lbs
No. of Cylinders:                        3
Motor:                                7.5 HP
Dimensions:                            115.4” X 57.3” X 89.4”H
Weight:                            12,236 Lbs

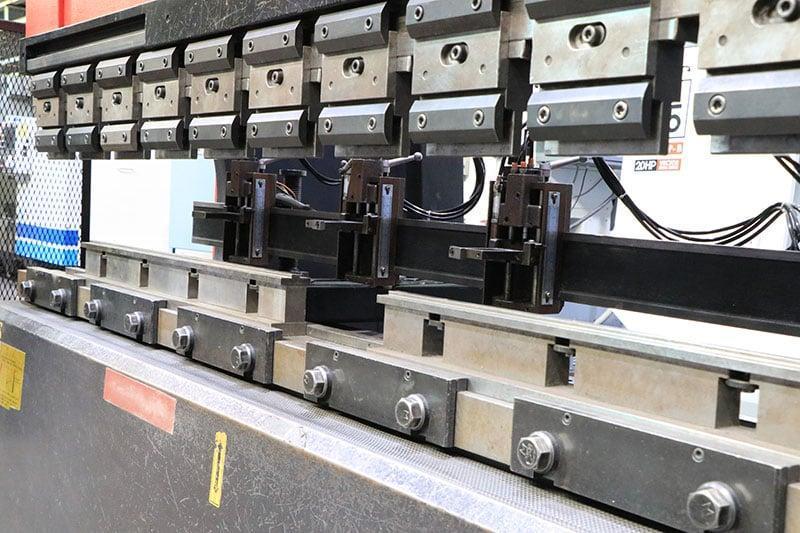

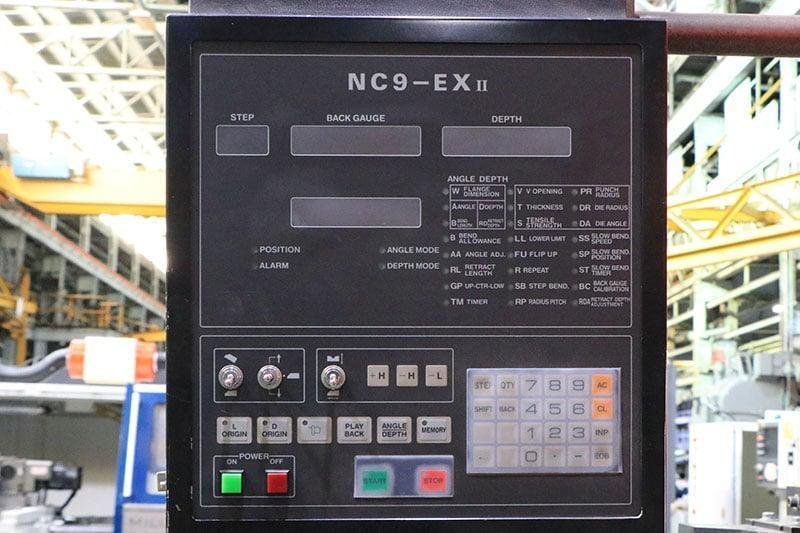

INCLUDES: Amada NC9EX II Control, Sectionalized Ram Clamps, (4) Gauging Fingers and Pneumatic R - Axis

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
