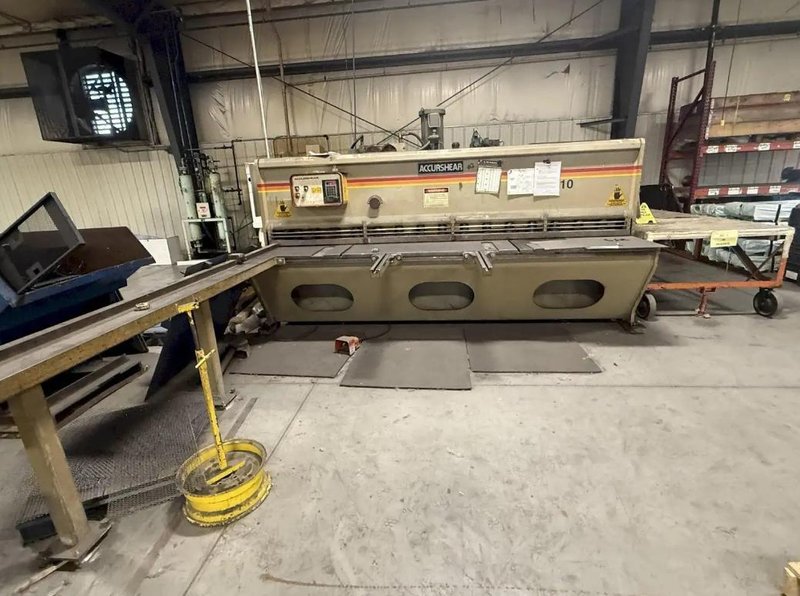

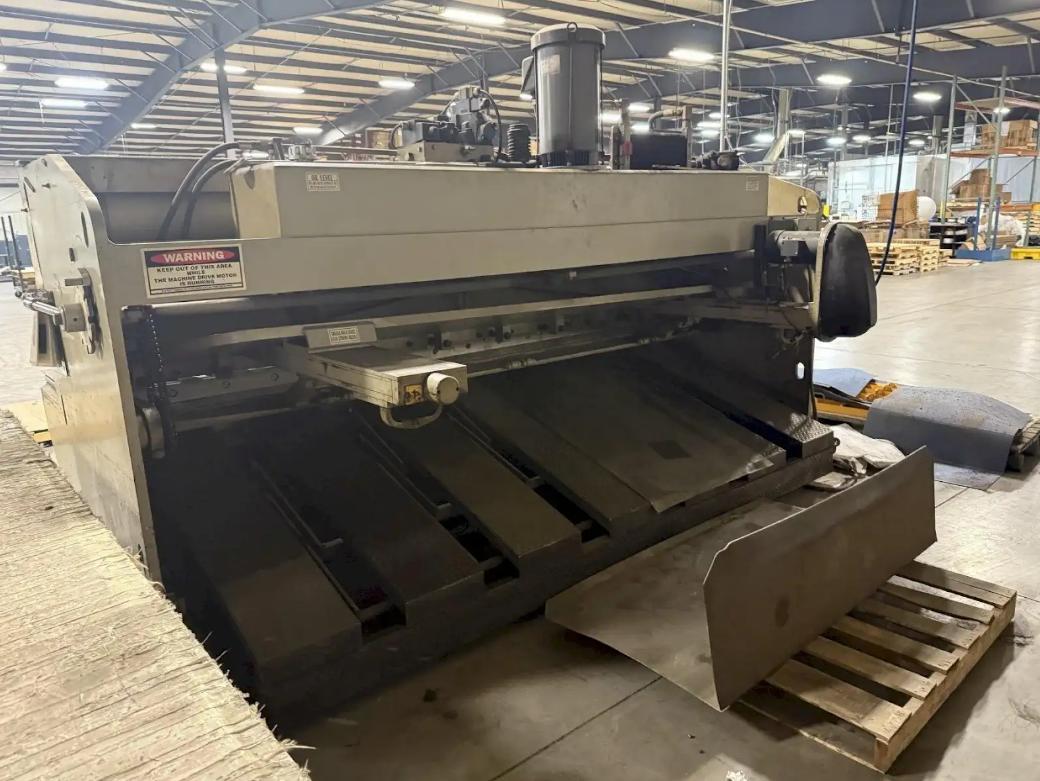

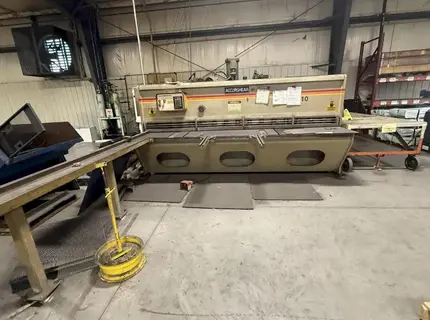

¼” X 10’ Hydraulic Shear with Front Operated Backgauge with Control, Foot Pedal Control, Squaring Arm and Adjustable Blade Gap.

GENERAL SPECIFICATIONS
Mild Steel Capacity:                    10’ X ¼”
Knife Size:                        1” X 3” X 124”
Rake:                            ¼” Per Foot (1°)
Full Strokes Per Minute:                22
Short Strokes Per Minute:                42
Number of Hold Downs:                16
Hold Down Tonnage:                16
Motor:                            20 HP
Voltage:                        220v / 440v / 3Ph
Approx Weight:                    17,000 Lbs
Approx Shipping Dimensions:            147” X 85” X 85” H

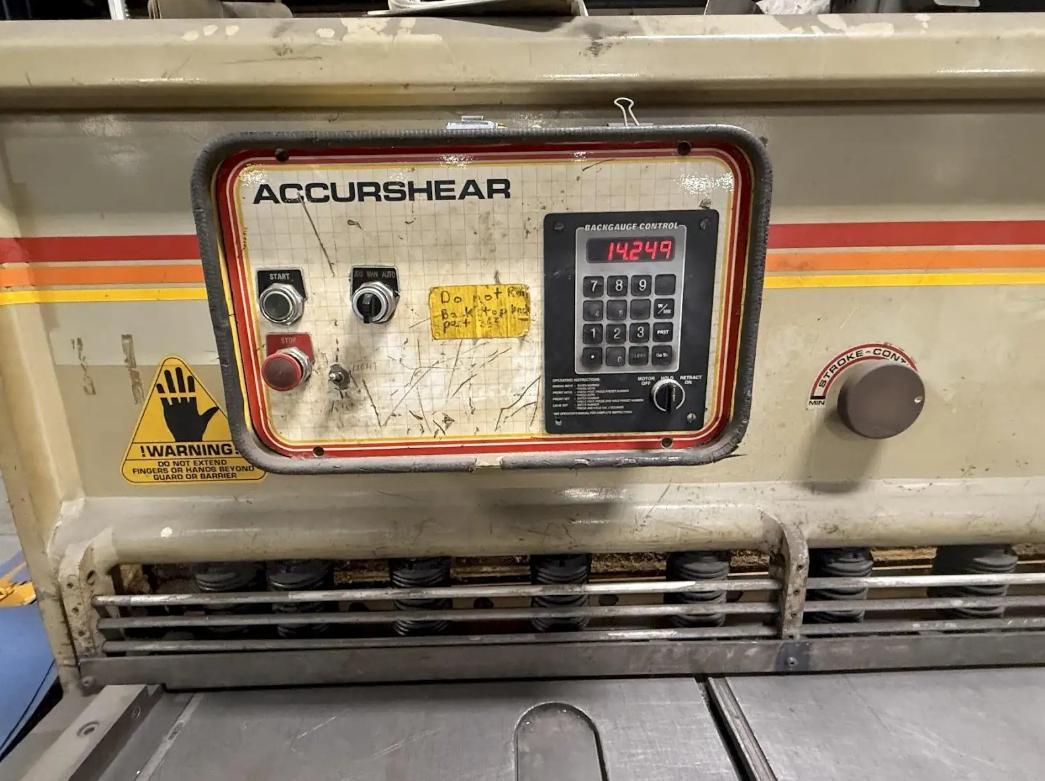

INCLUDES: Front Operated Backgauge with Control, Foot Pedal Control, Squaring Arm and Adjustable Blade Gap.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
