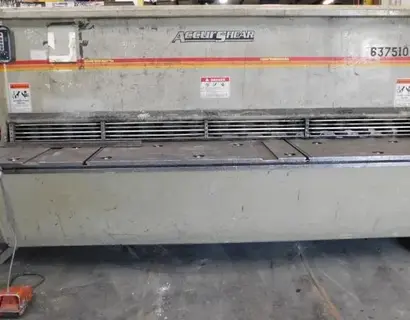

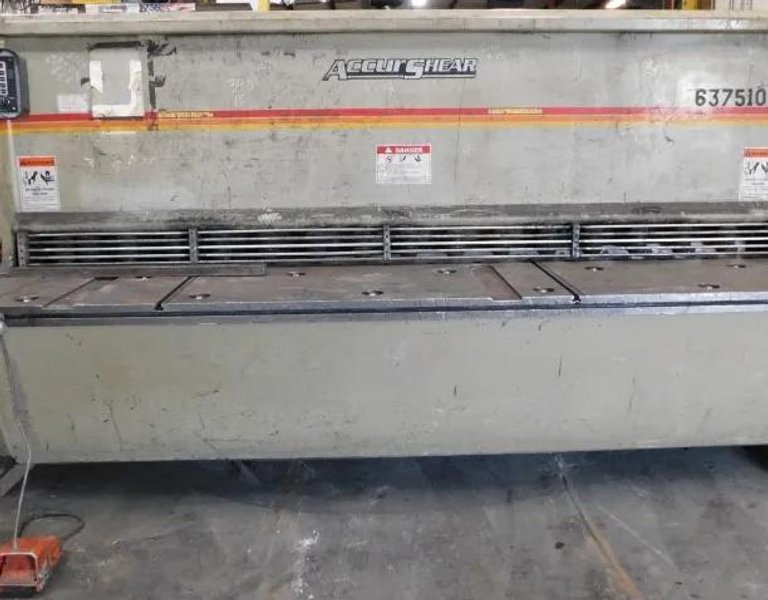

⅜” X 10’ Hydraulic Power Squaring Shear with Accurshear MF Controller and Manual Quick Blade Gap Adjustment.

GENERAL SPECIFICATIONS
Capacity Thickness:                        ⅜”
Length:                            10’
Knife Size:                            1” X 3” X 124”
Number of Hold-Downs:                    16
Hold-Down Tonnage:                    16 Tons
Rake Angle:                            5/16” P/Foot
Backgauge Travel:                        0-36”
Full Stroke Speed:                        21 SPM
Short Stroke Speed:                        44 SPM
Table Height:                            32”
Table Width:                            23”
Motor:                                30 HP
Dimensions:                            144” X 88” X 87”
Machine Weight:                        21,000 Lbs

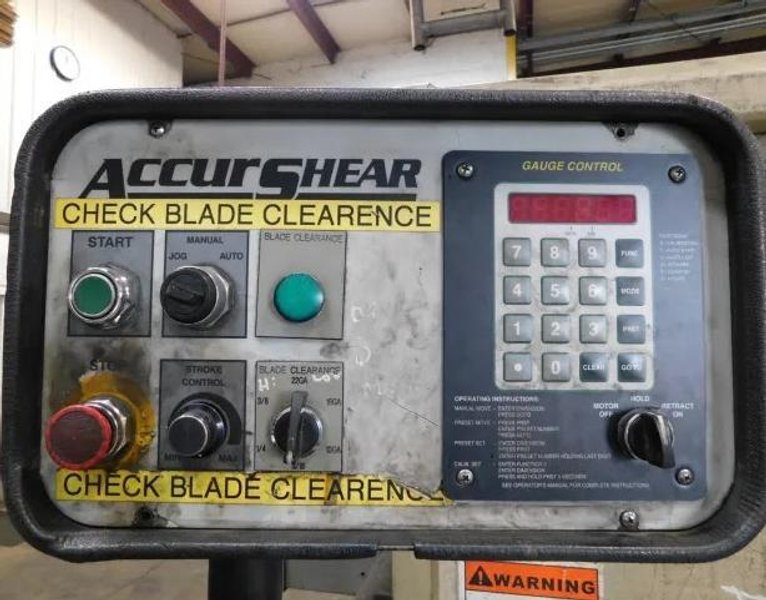

INCLUDES: Accurshear MF Controller and Manual Quick Blade Gap Adjustment.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
