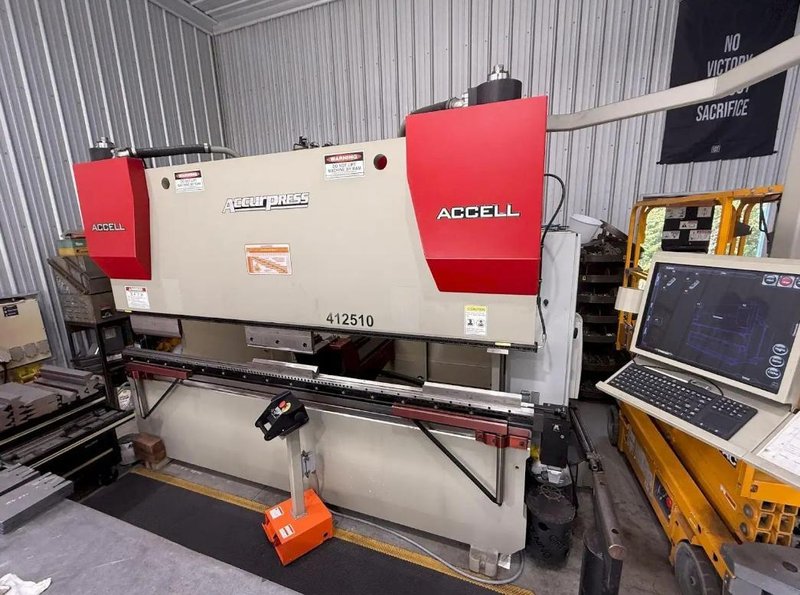

125 Ton X 10’ CNC Hydraulic Press Brake with Accurpress Vision Controller, 5 - Axis Backgauge (X, R, Y, Z1, Z2), WILA CNC Die Crowning and WILA “New Standard” Hydraulic Ram Clamping

GENERAL SPECIFICATIONS
Tonnage:                        125 Tons
Overall Length of Bed:                10’
Bed Height:                        34” (Flush Floor Machine)
Bed / Die Width:                    3”
Open Height:                        18”
Closed Height:                    8”
Stroke:                        10”
Throat Depth:                    12”
Travels:                        0 - 39”
Axis:                            Y1, Y2, X, R, Z1, Z2
R - Axis Travels:                    10”
Z1 / Z2 Travels:                    116”
Approach Speed:                    520 IPM
Bend Speed:                        24 IPM
Return Speed:                    320 IPM


INCLUDES: Accurpress Vision Controller, 5 - Axis Backgauge (X, R, Y, Z1, Z2), WILA CNC Die Crowning and WILA “New Standard” Hydraulic Ram Clamping
