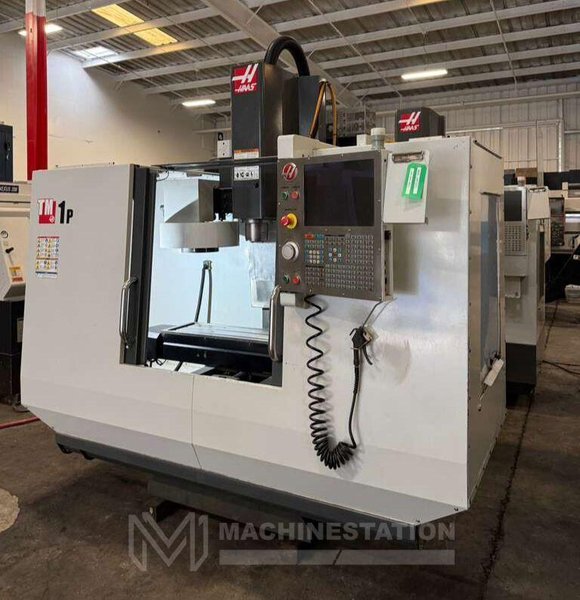

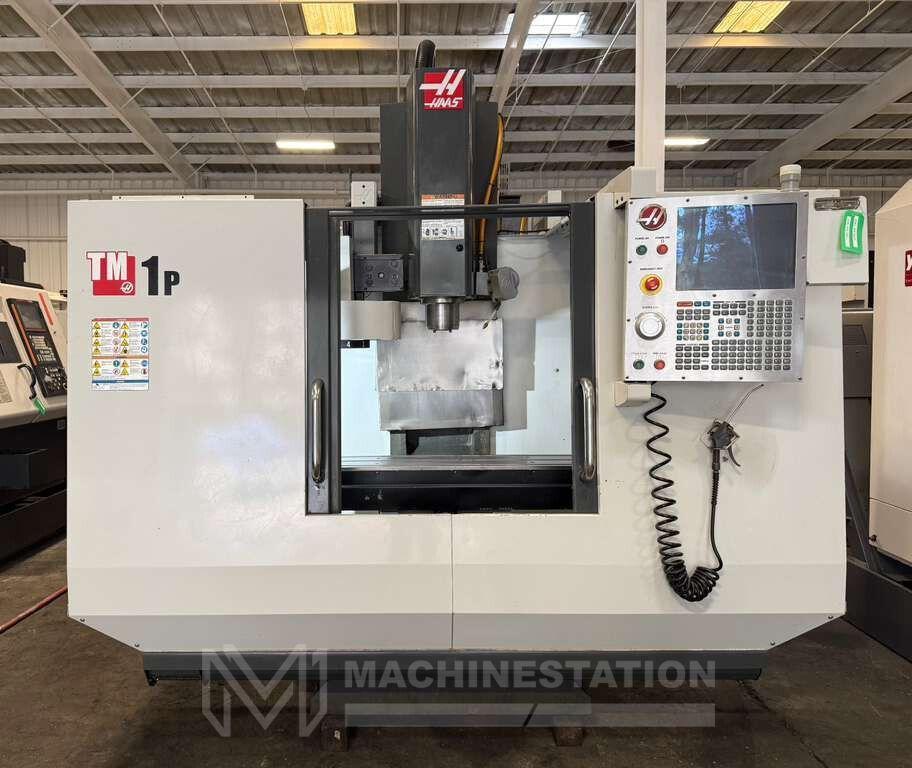

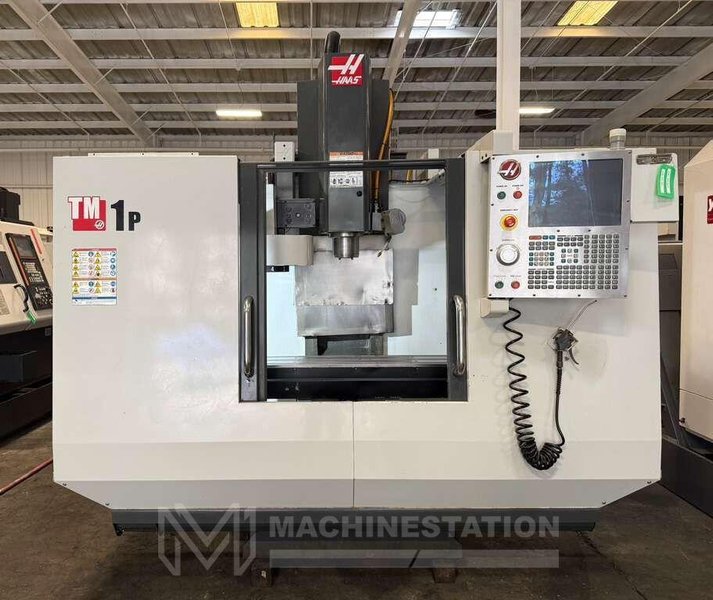

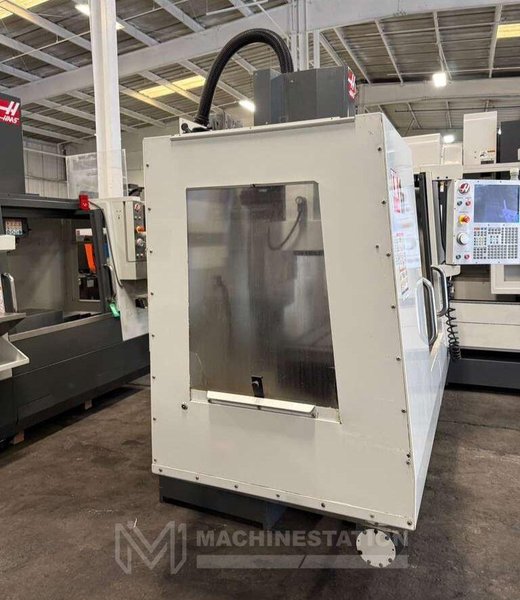

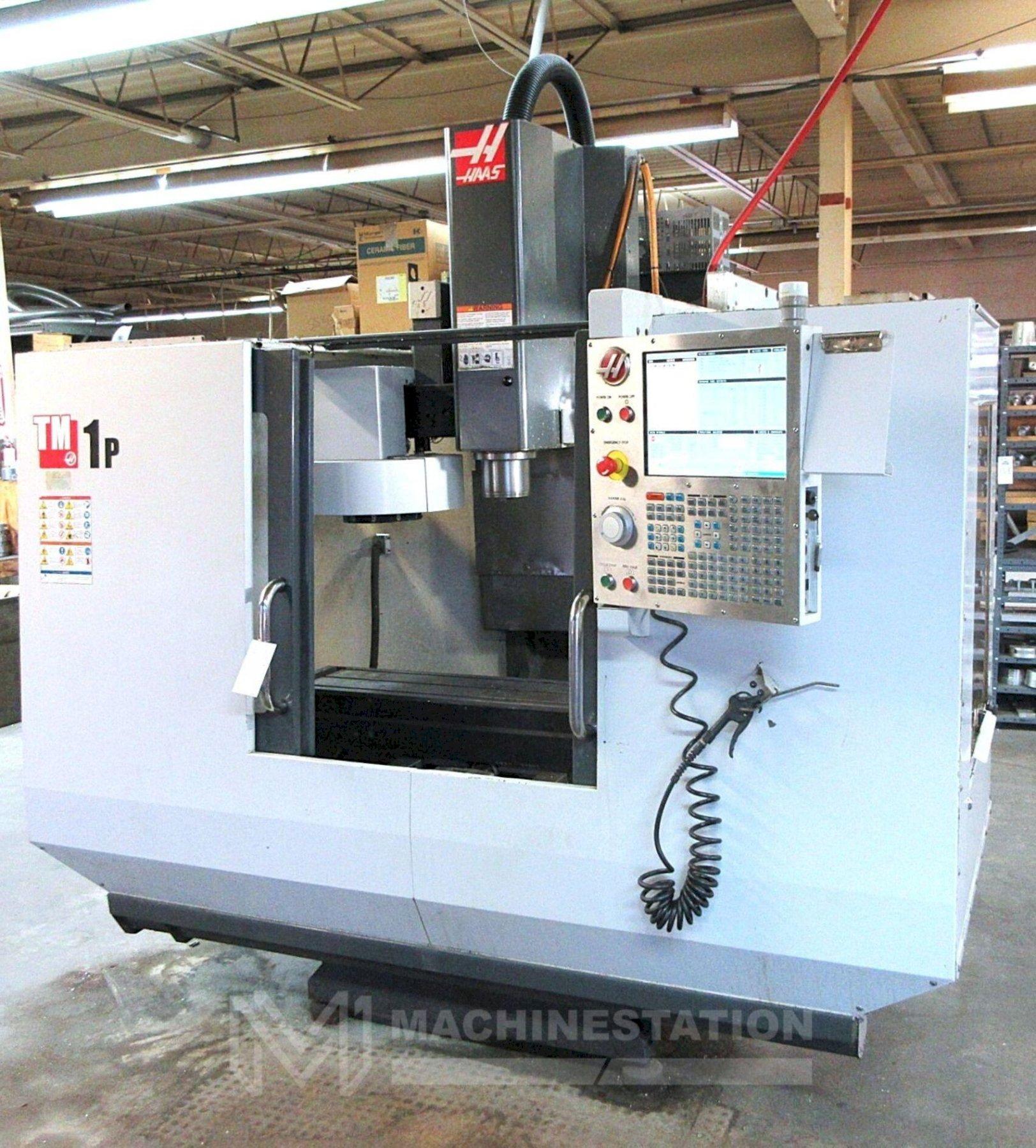

Haas TM-1P Tool Room CNC Mill – 2012

Name: Haas TM-1P Tool Room CNC Mill – 2012
Brand: HAAS
SKU: 112963
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112963
Make:	Haas
Model No.:	TM-1P
Year of Manufacture:	2012

Equipped With:

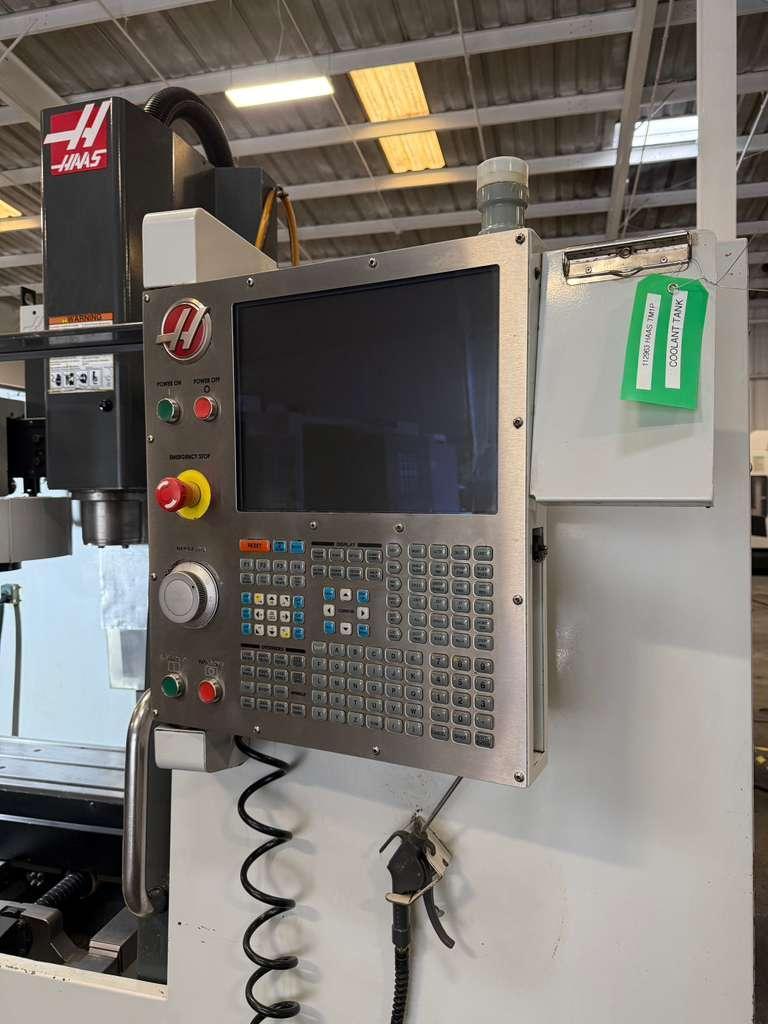

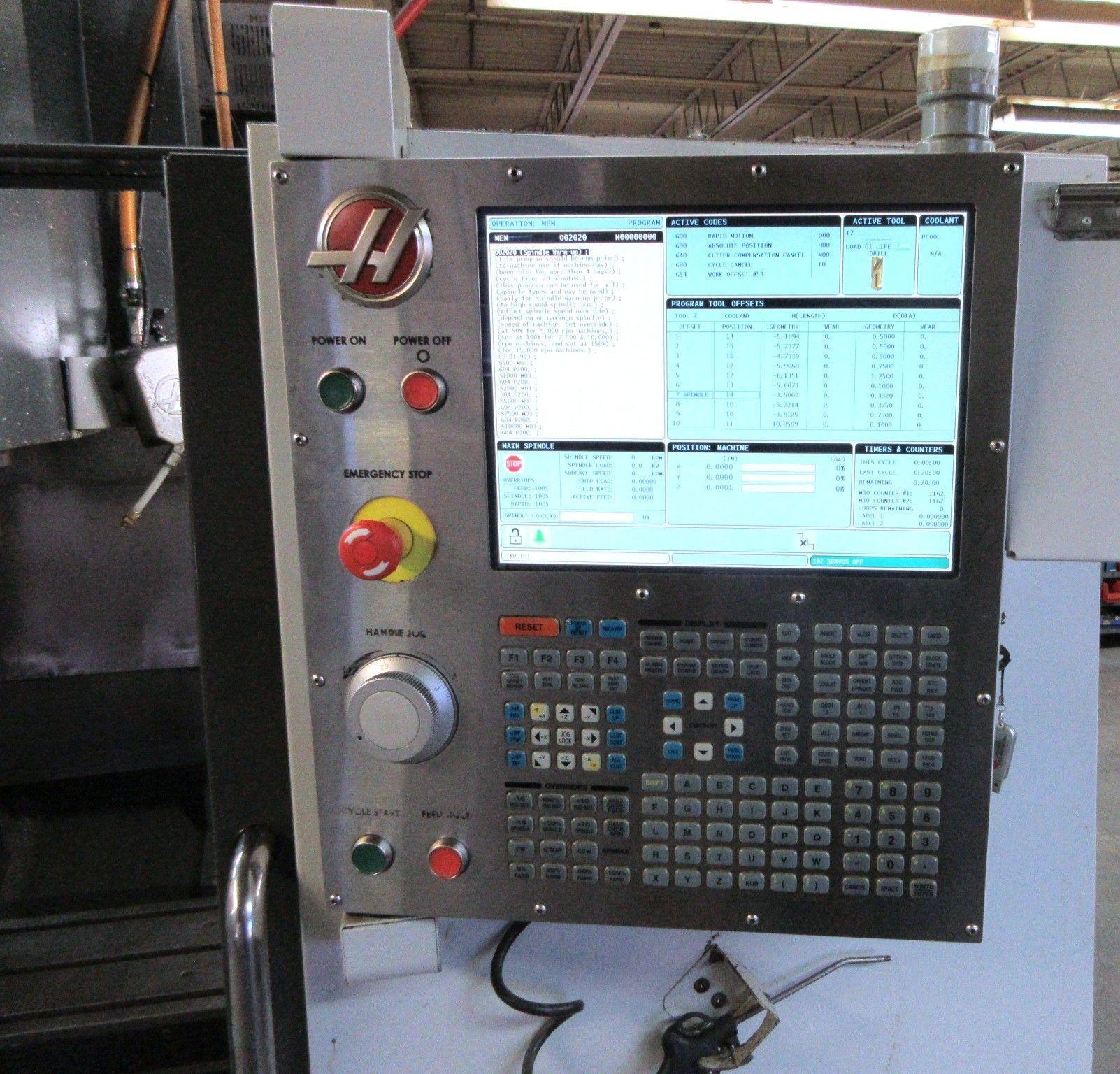

Haas CNC Control
6000 RPM Spindle
10 Station Automatic Tool Changer
CAT-40 Taper Spindle
7.5 HP High Torque Spindle

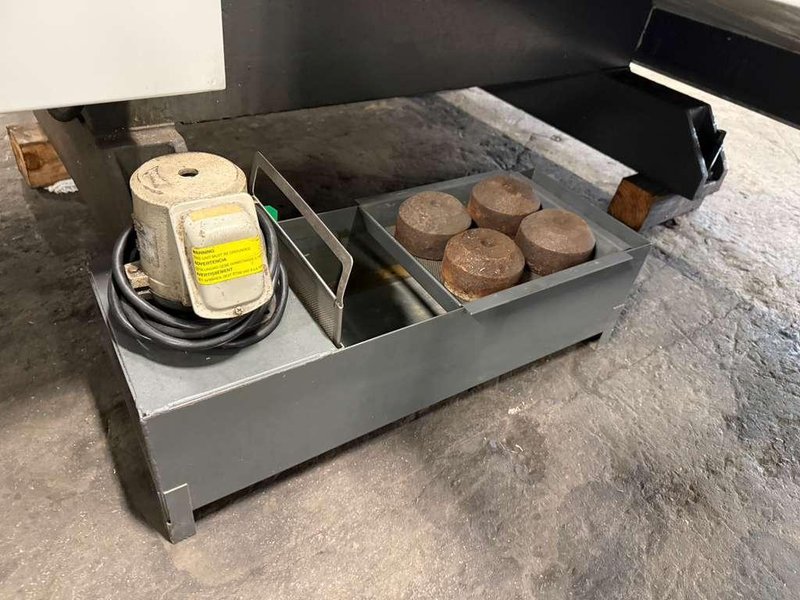

Coolant System
Levelling Pads

Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 16″
Rapid Traverse Rates: 400 Inch Per Minute
Cutting Feed Rates: 400 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″

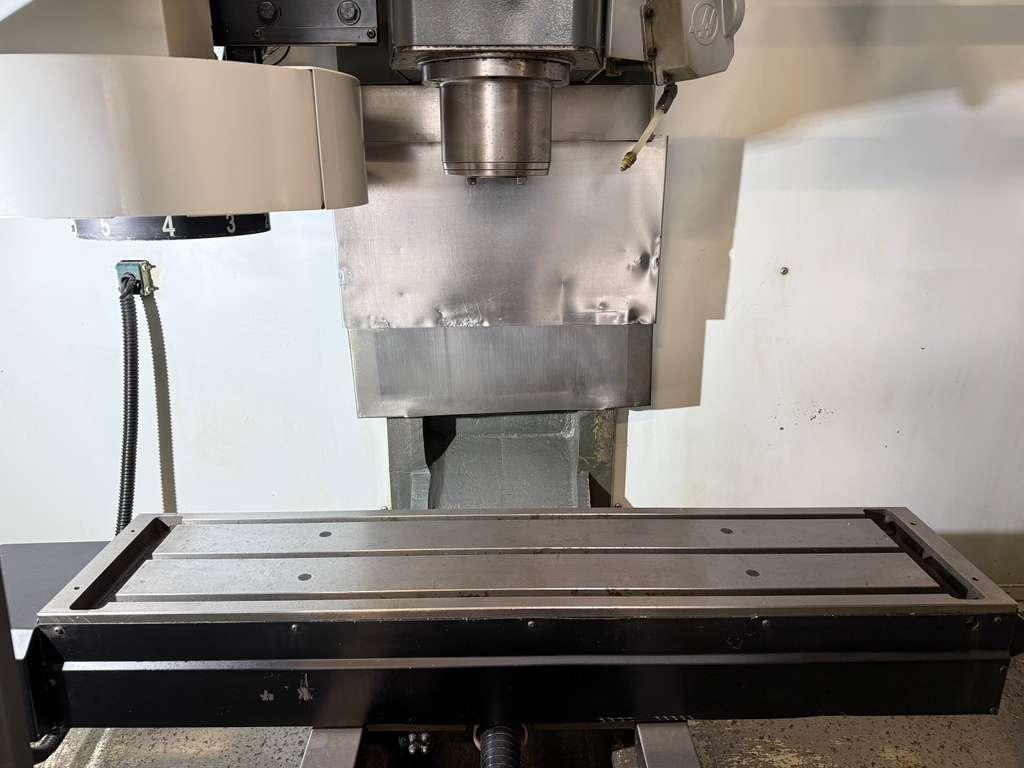

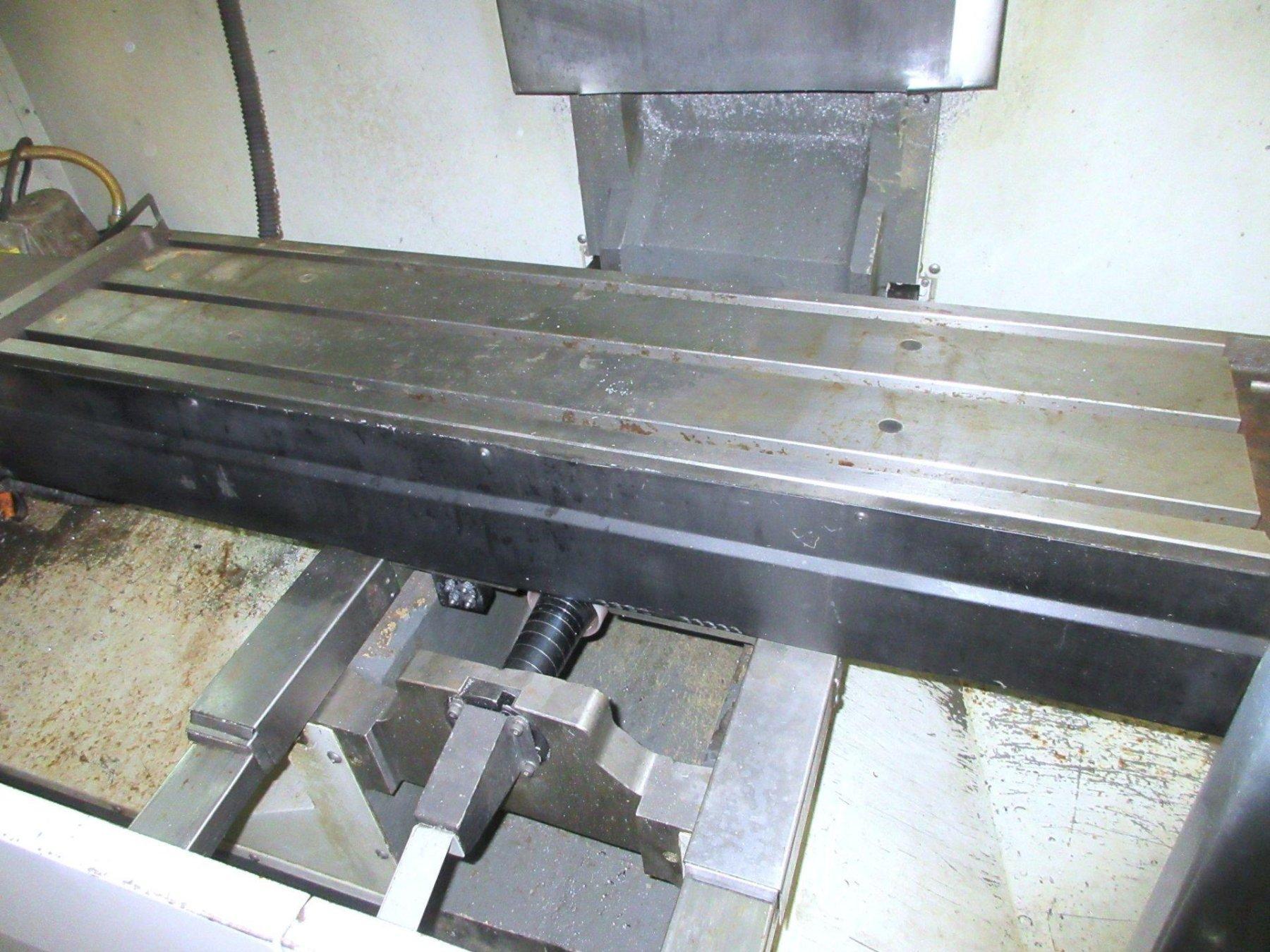

Table:
Length: 47.8″
Width: 10.5″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 350 lbs

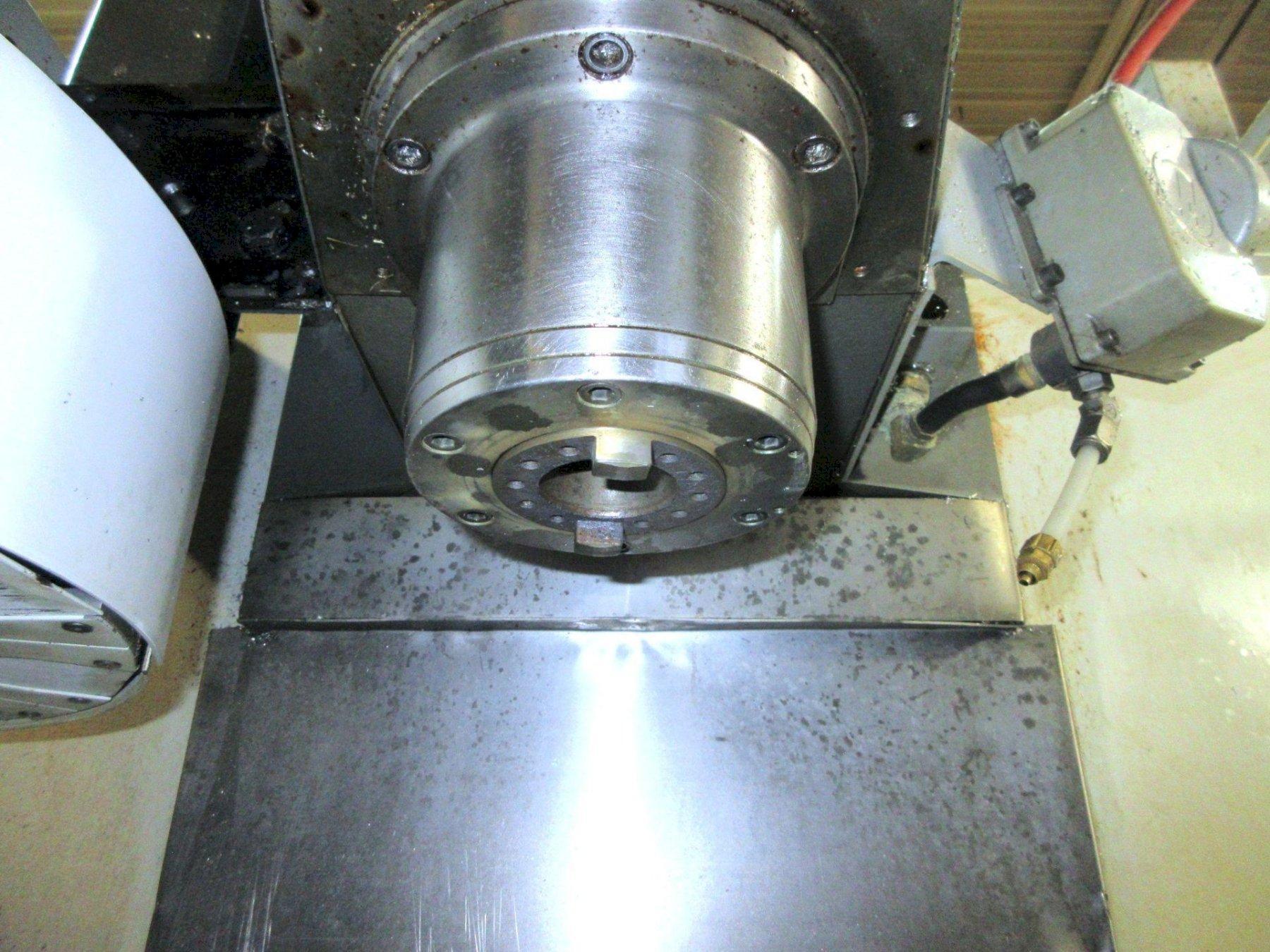

Spindle:
Taper Size: CAT-40
Speed Range: 6000 RPM
Spindle Power: 7.5 HP

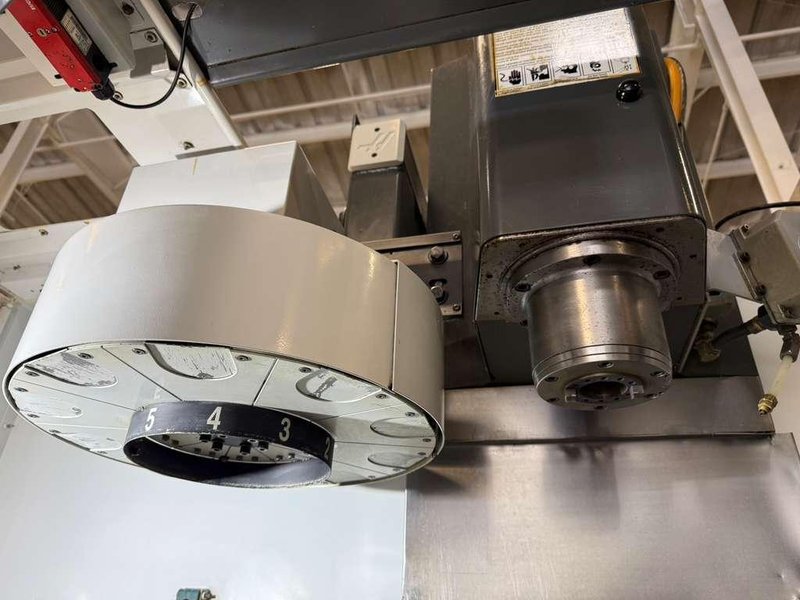

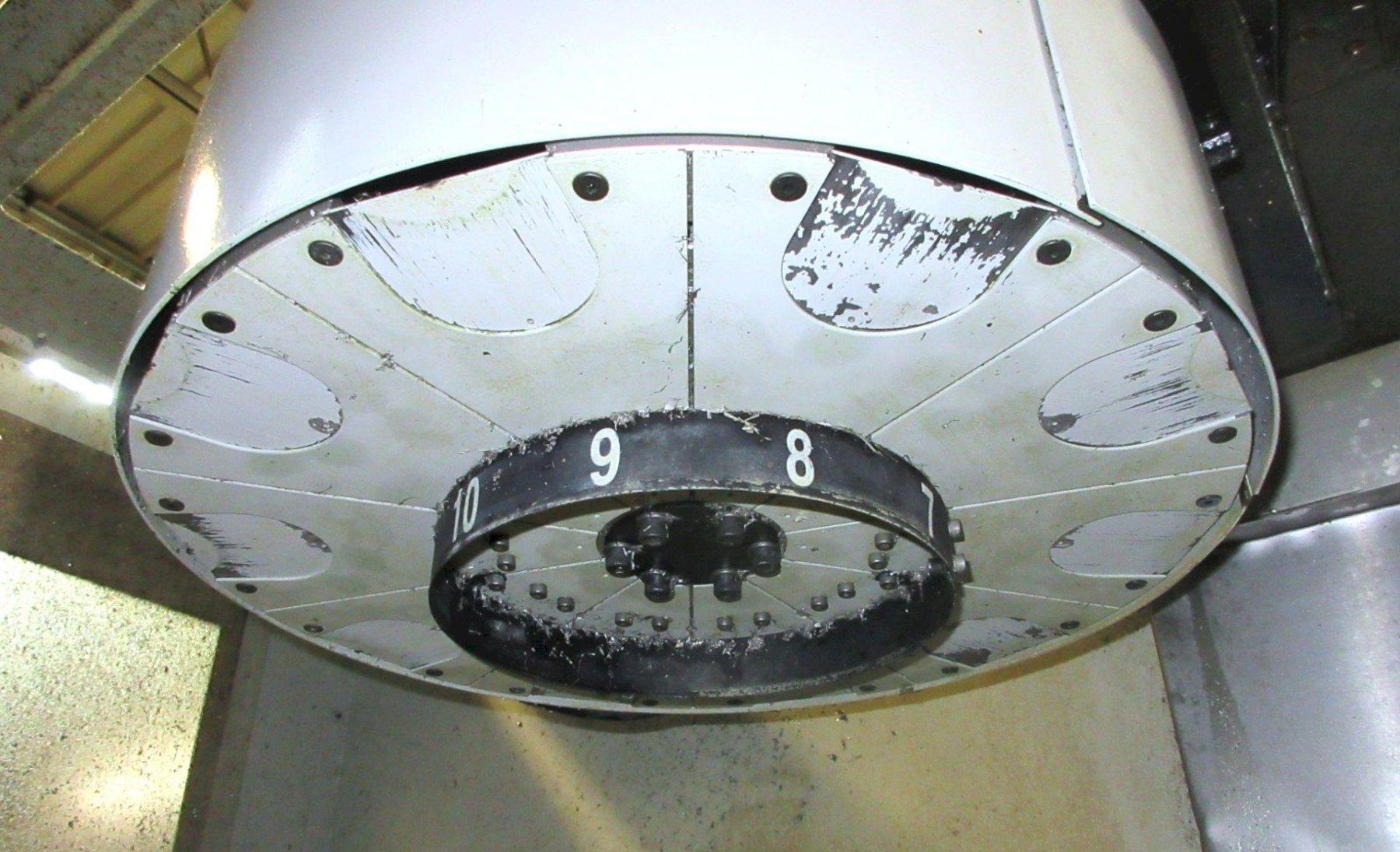

Automatic Tool Changer:
Capacity: 10 Station
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lbs
Tool Change Time: 5.7 Sec.

General:
Air Required: 100 psi, 4 scfm

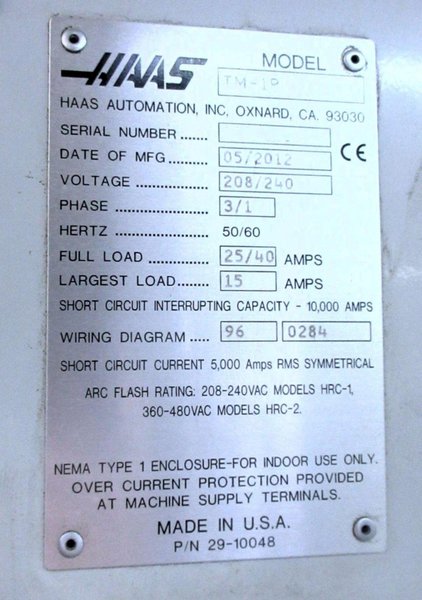

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 96″ x 72″ x 103″ High Approx.
Weight: 3850 lbs Approx.
