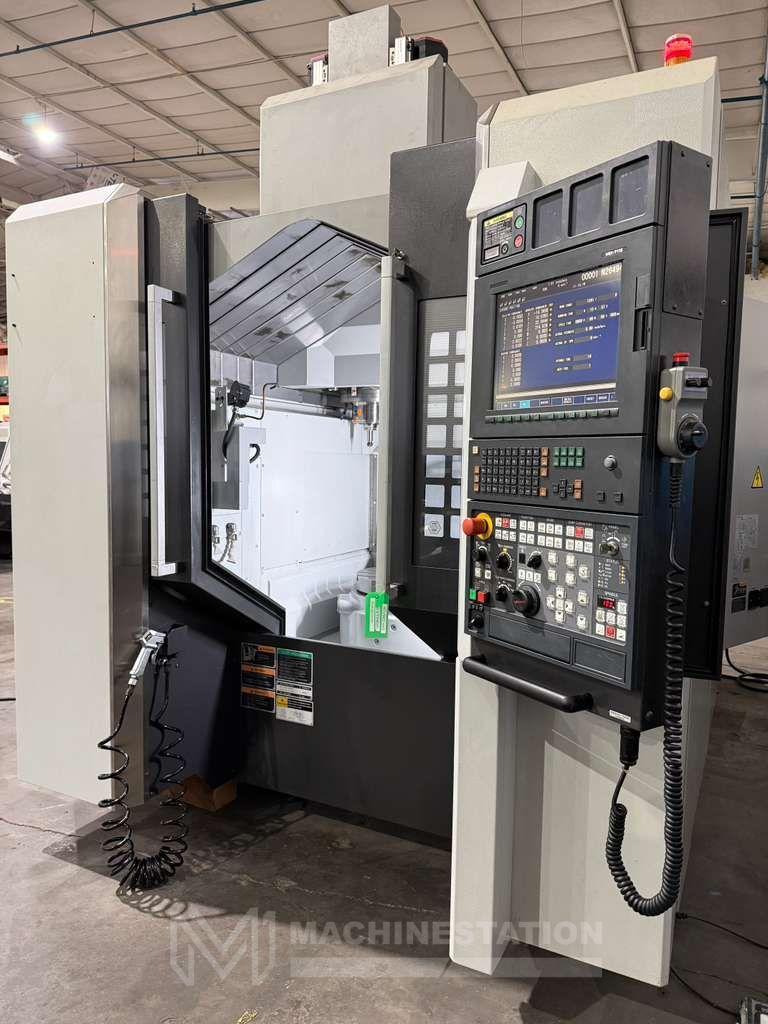

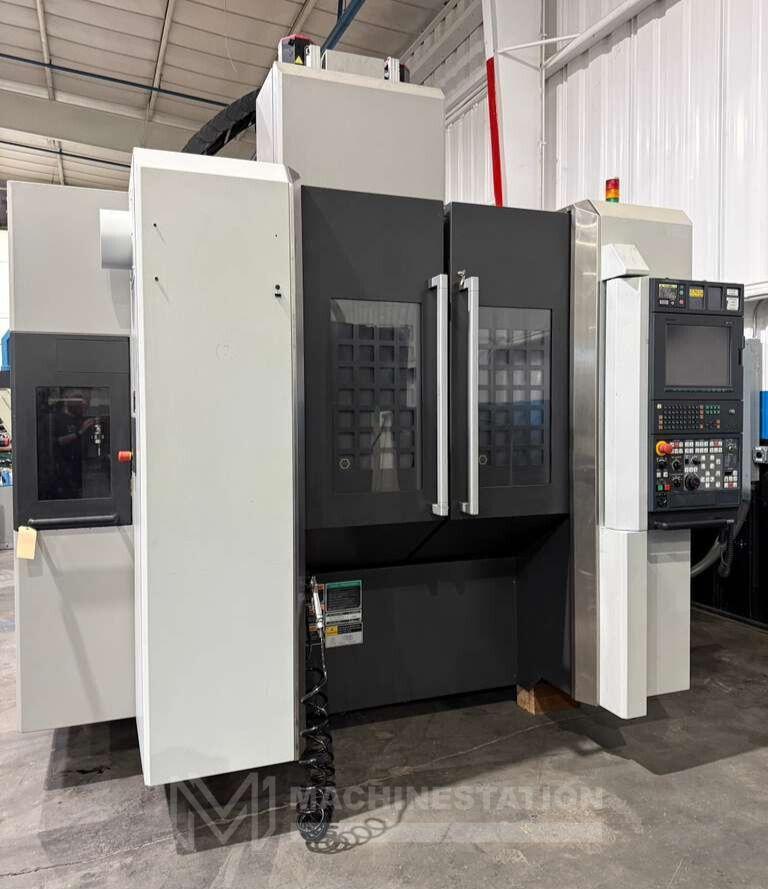

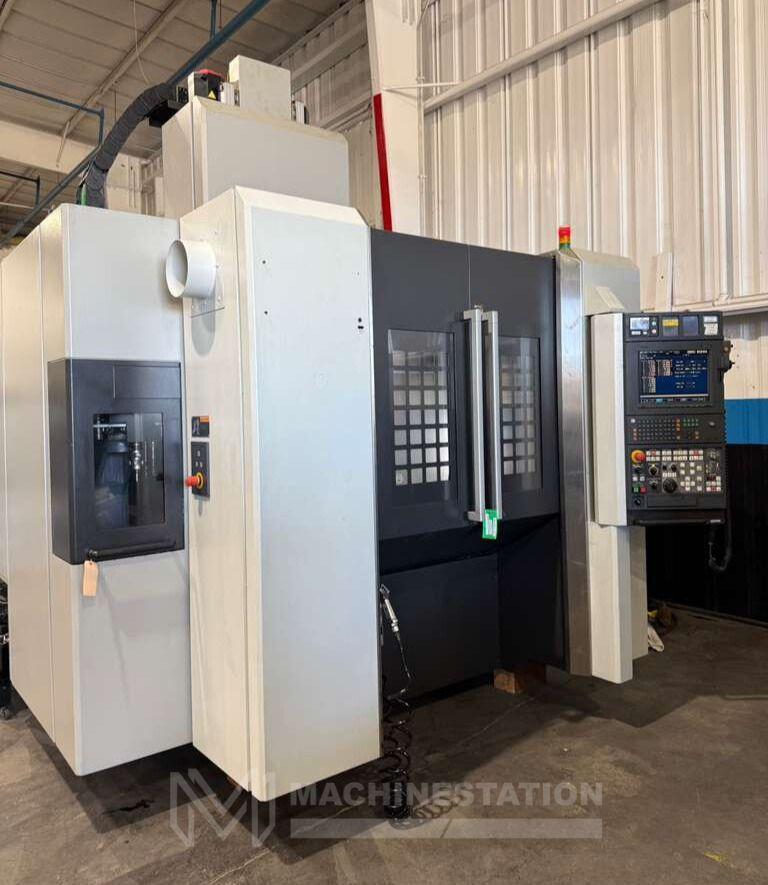

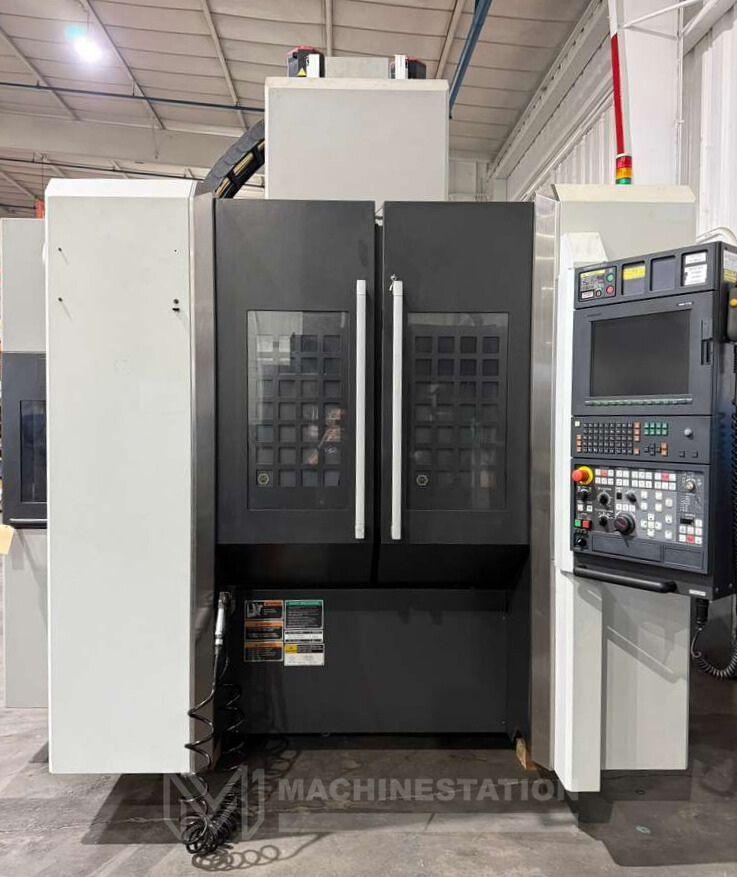

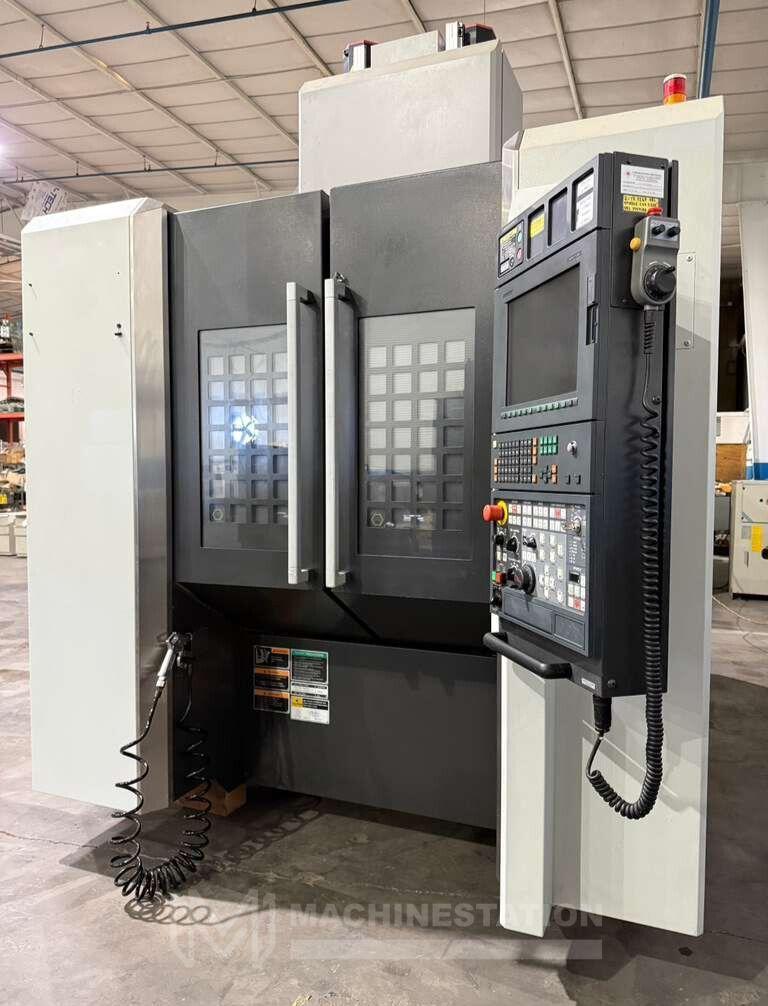

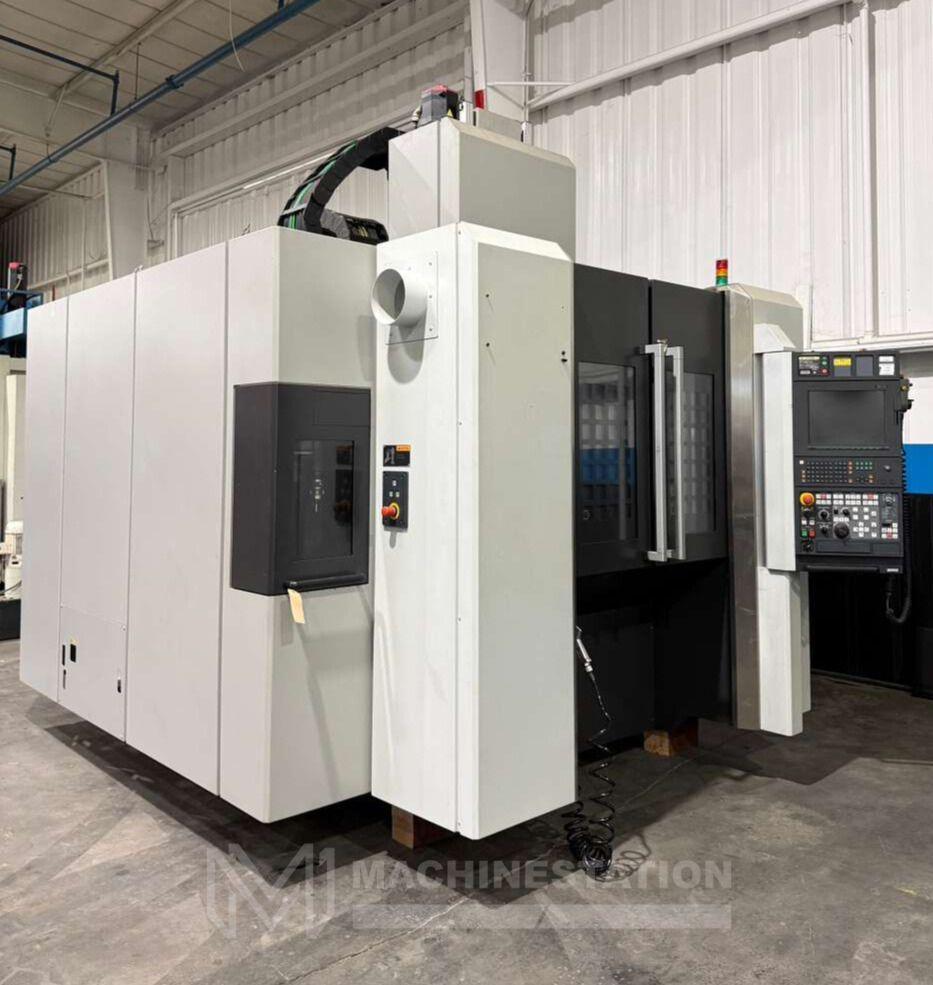

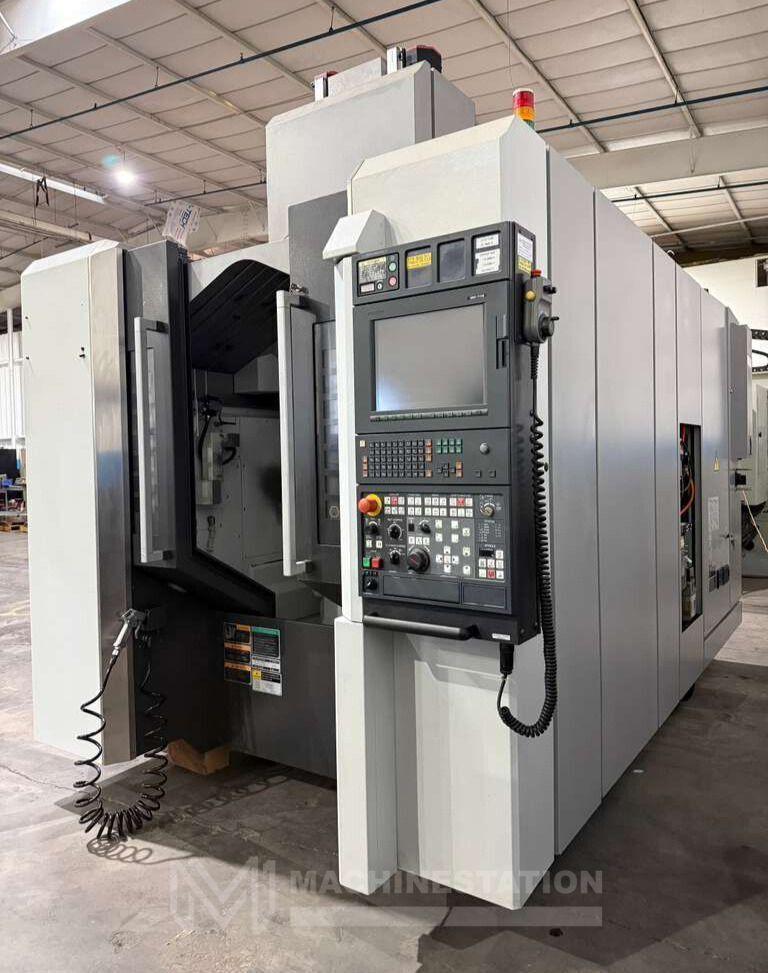

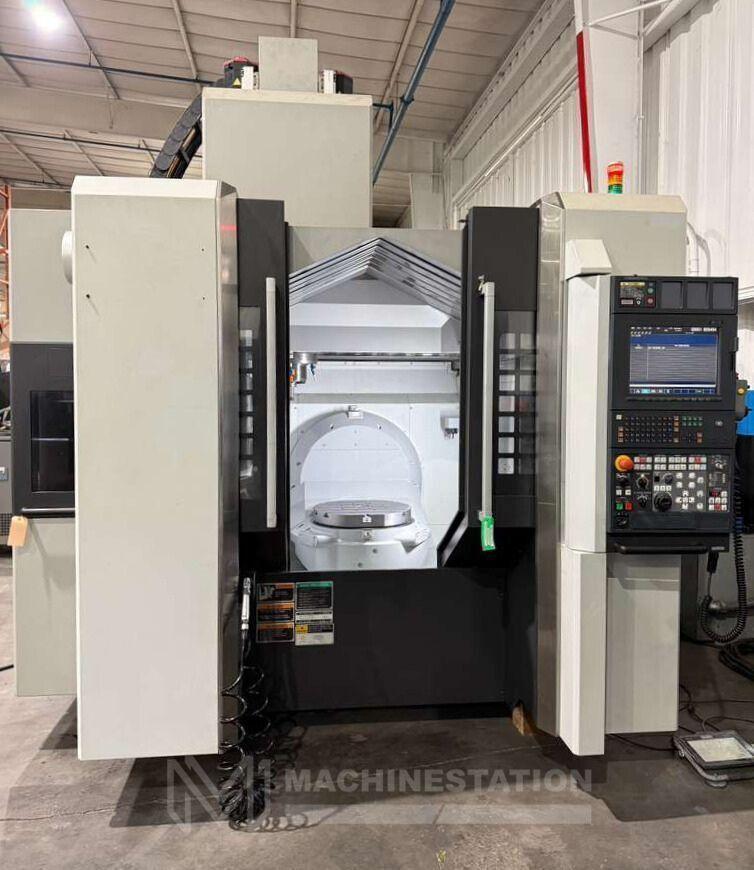

Mori Seiki NMV5000DCG 5 Axis CNC Vertical Machining Center – 12,000 RPM Mill

Brand
Not specified
Category
Machining Centers
Type
Machining Centers, Horizontal, (5-Axis or More)
Model
Mori Seiki NMV5000DCG
Stock #
112950
Year
2008
Condition
Not specified

Location

California
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: NMV5000DCG
Condition: Used – Good
Features:

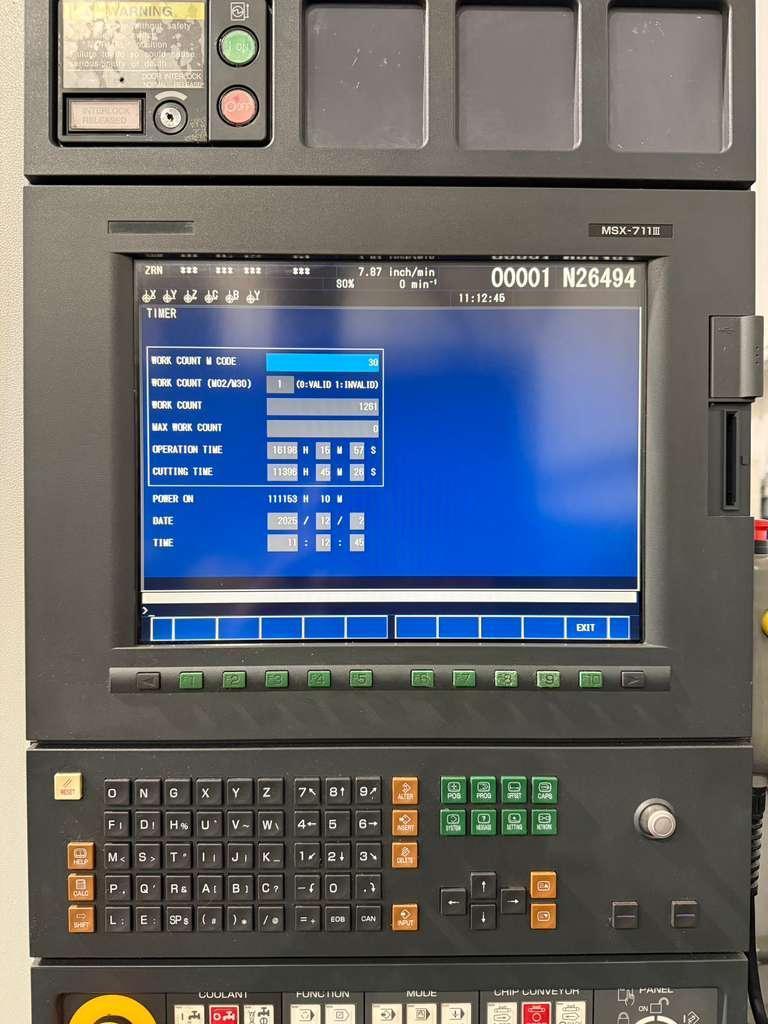

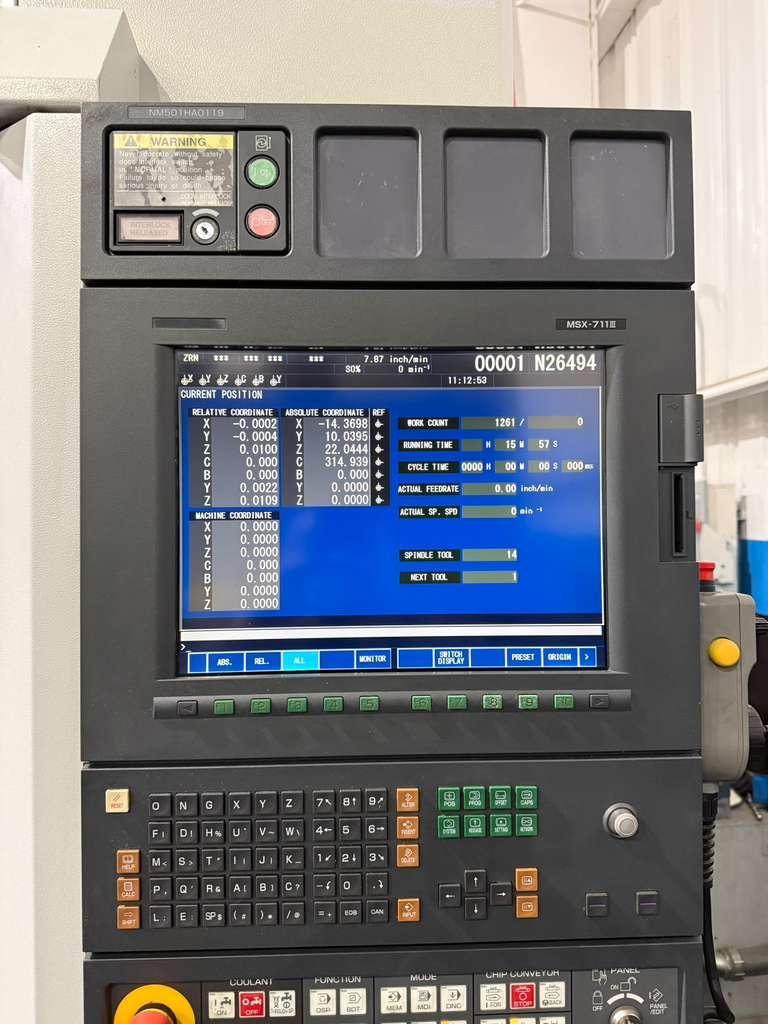

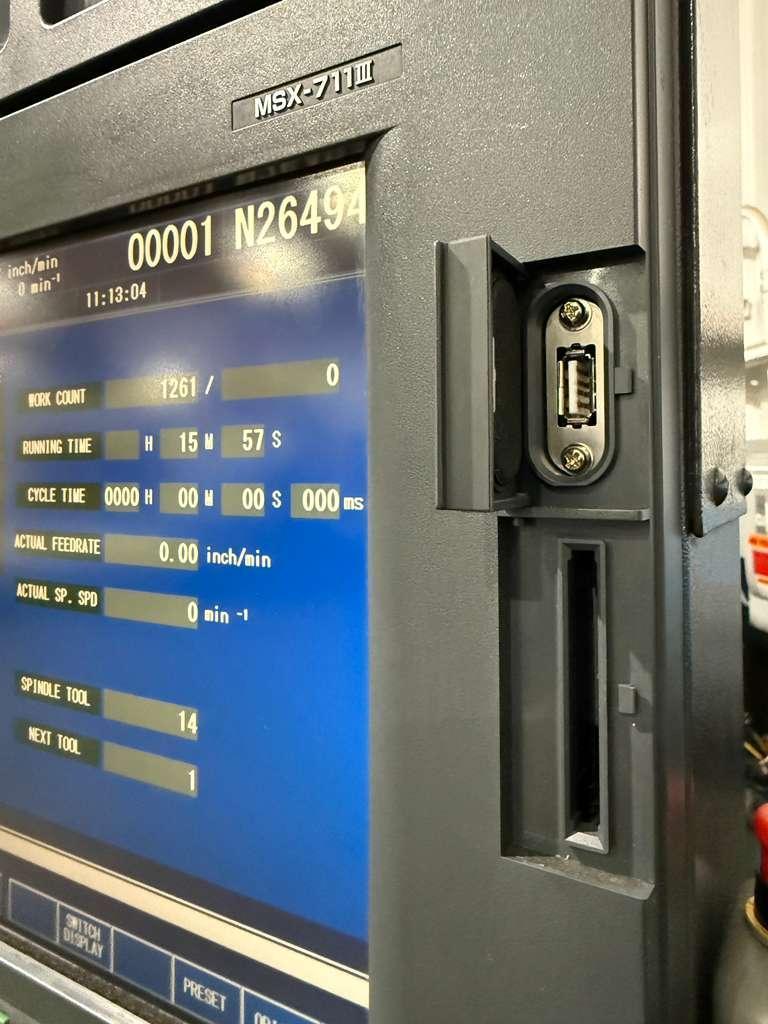

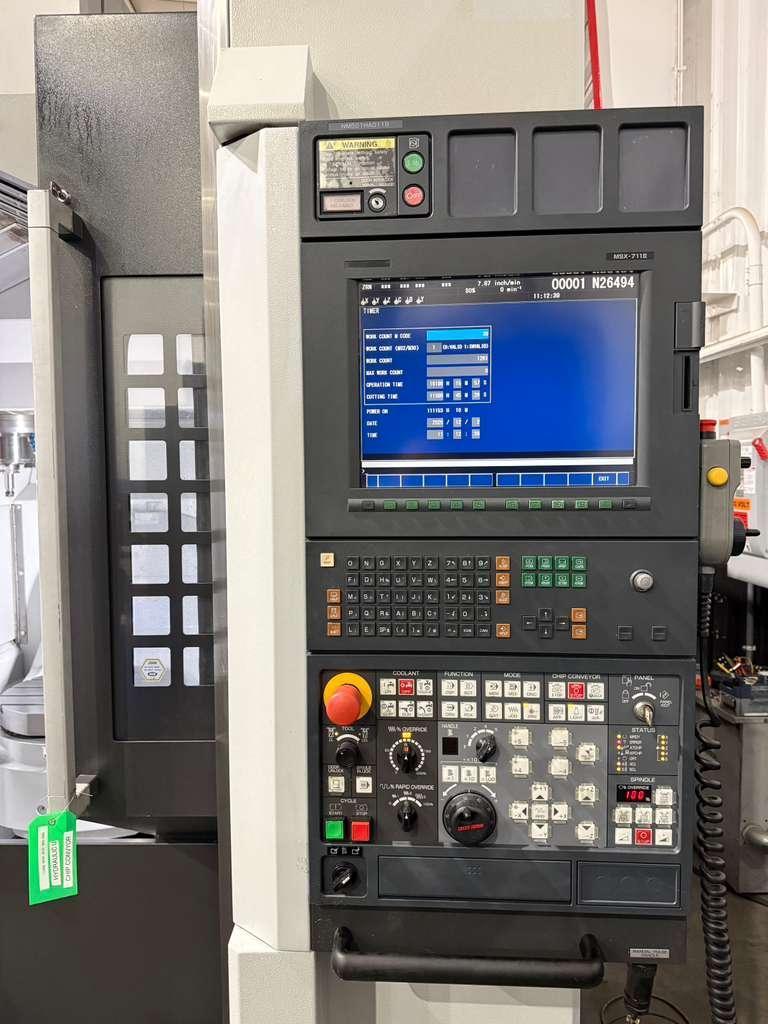

Mori Seiki MSX-711 III CNC Control
5-Axis Simultaneous Machining
Driven at the Center of Gravity (DCG) Structure

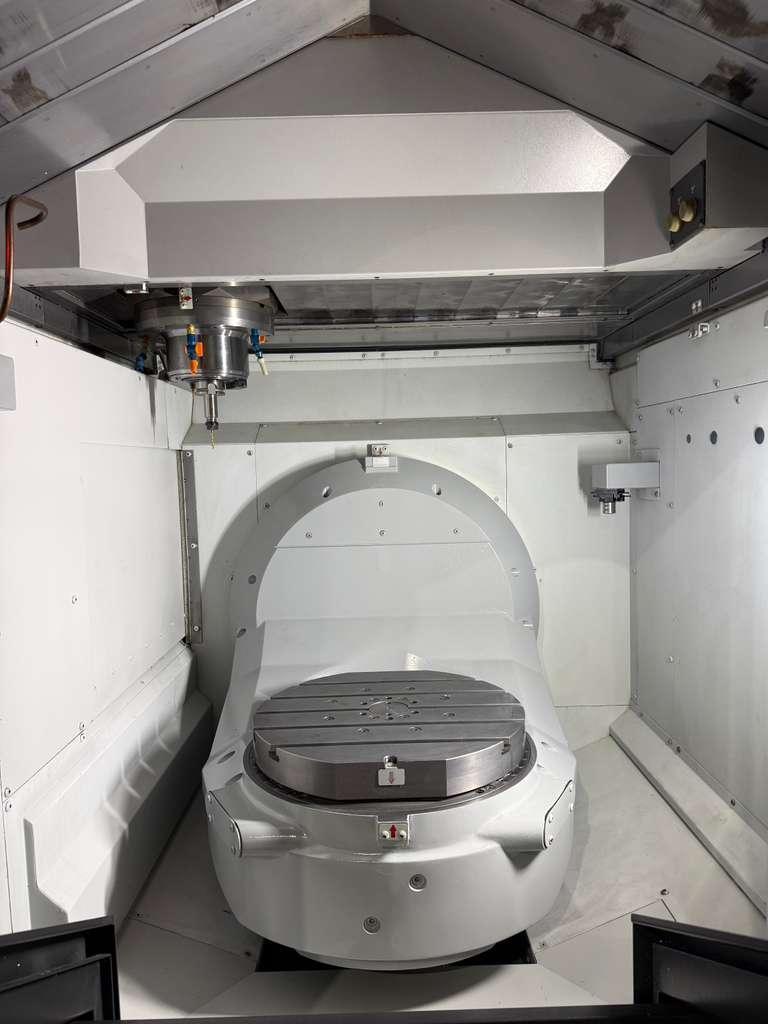

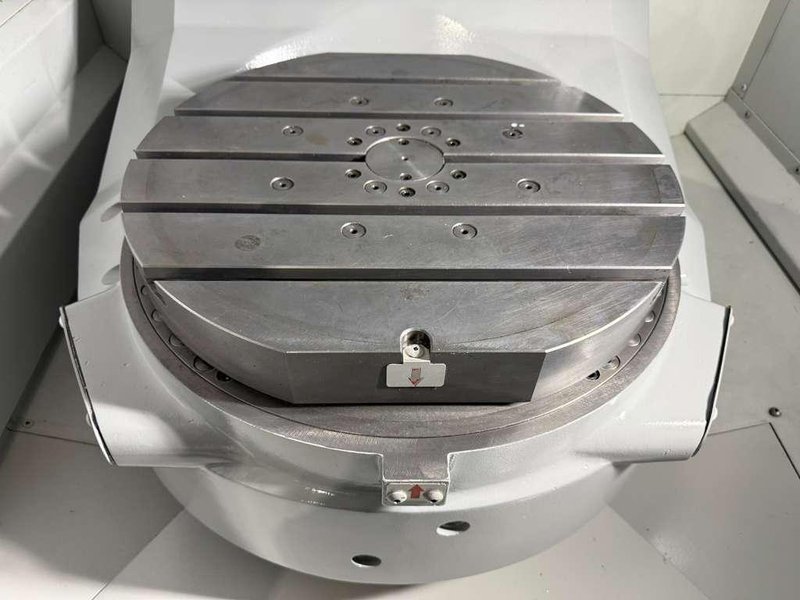

19.7″ Diameter Trunnion Table

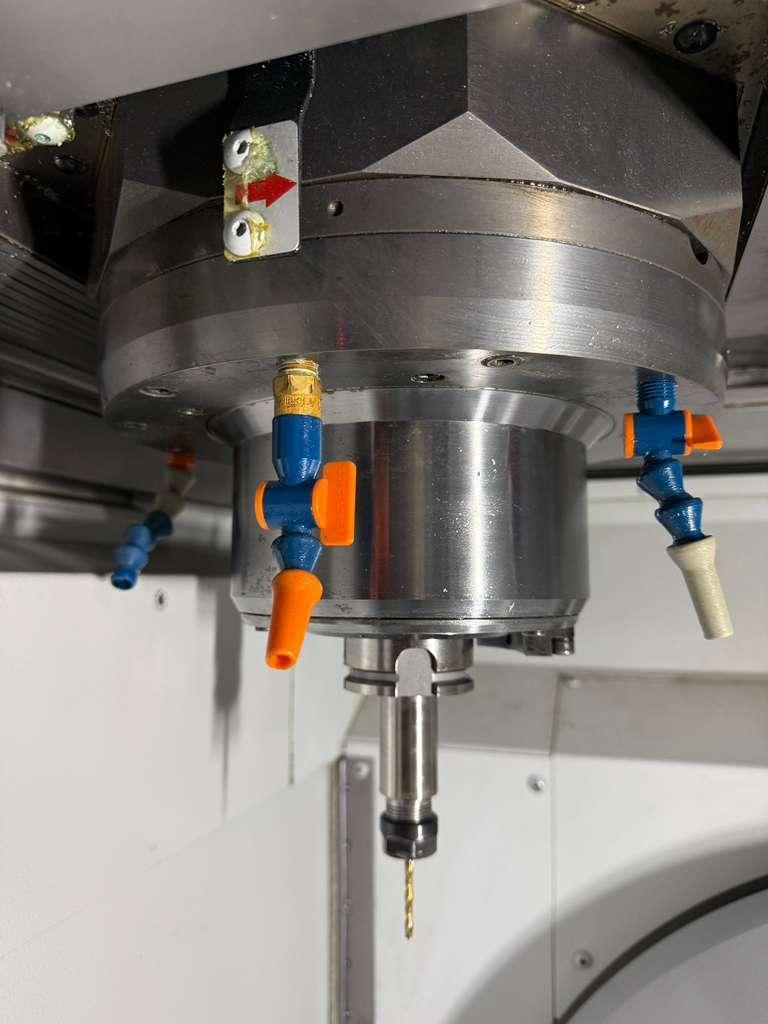

12,000 RPM High Precision Spindle
HSK-A63 Spindle Taper
31 Station Automatic Tool Changer
Renishaw Probing System (Probe Included)
Tool Presetter
Through-Spindle Coolant
MPG Handwheel Control
Spindle Chiller
Coolant System
Chip Conveyor
Travels:
X-Axis Travel: 28.7″
Y-Axis Travel: 20.1″
Z-Axis Travel: 20.1″
Distance From Table to Spindle Gauge Plane: 5.1″ – 25.2″
Rapid Traverse (X/Y): 1,968 Inches Per Minute
Rapid Traverse (Z): 1,575 Inches Per Minute
Cutting Feedrate (X/Y): 1,968 Inches Per Minute
Cutting Feedrate (Z): 1,575 Inches Per Minute
B-Axis Speed: 13.88 RPM
C-Axis Speed: 120 RPM
Table:

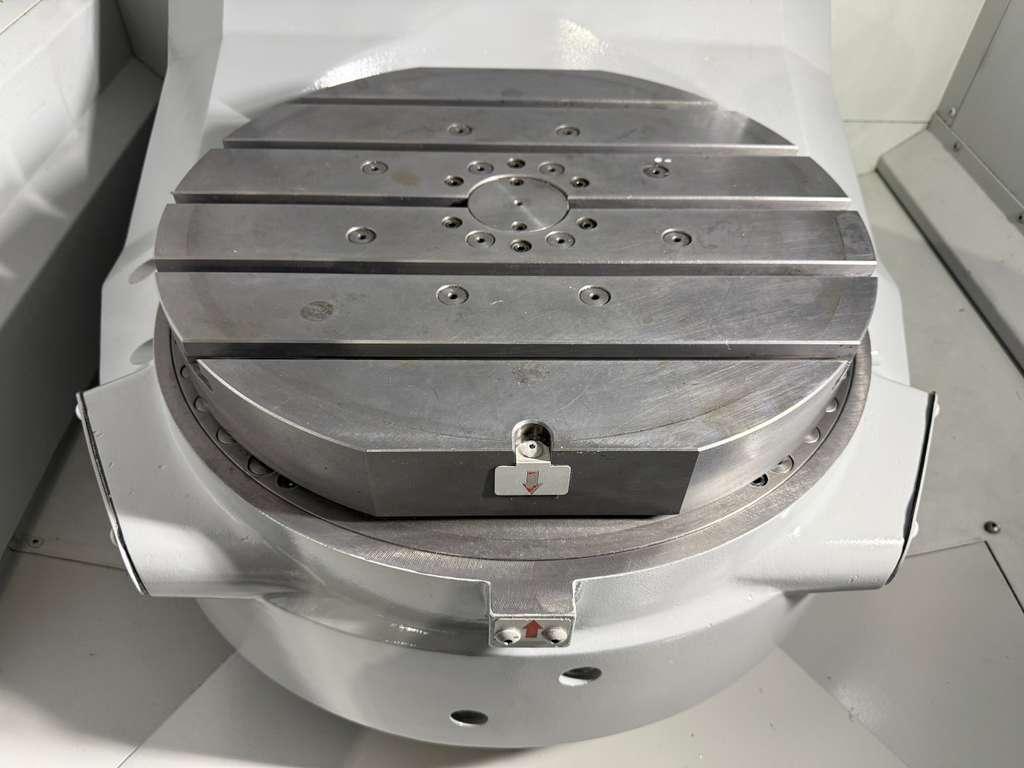

Table Size: 19.7″ Diameter
Maximum Table Load: 660 lbs
Maximum Workpiece Swing Diameter: 27.5″
Maximum Workpiece Height: 17.7″
C-Axis Rotation: 360°
B-Axis Travel: +160° to −180°
Spindle:
Spindle Speed: 12,000 RPM
Spindle Taper: HSK-A63
Spindle Power: 25 HP
Automatic Tool Changer:
Tool Capacity: 31 Tools
Max Tool Diameter (With Adjacent Tools): 3.5″
Max Tool Diameter (Without Adjacent Tools): 4.9″
Max Tool Length: 11.8″
Max Tool Weight: 17.6 lbs
Tool-to-Tool Time: 1.8 Seconds
General:
Air Requirement: 100 psi 4 scfm
Power: 50 kVA / 220V / 3-Phase / 60 Hz
Machine Dimensions: 109.1″ × 155.4″ × 128.5″ High Approx.
Machine Weight: 27,340 lbs Approx.
