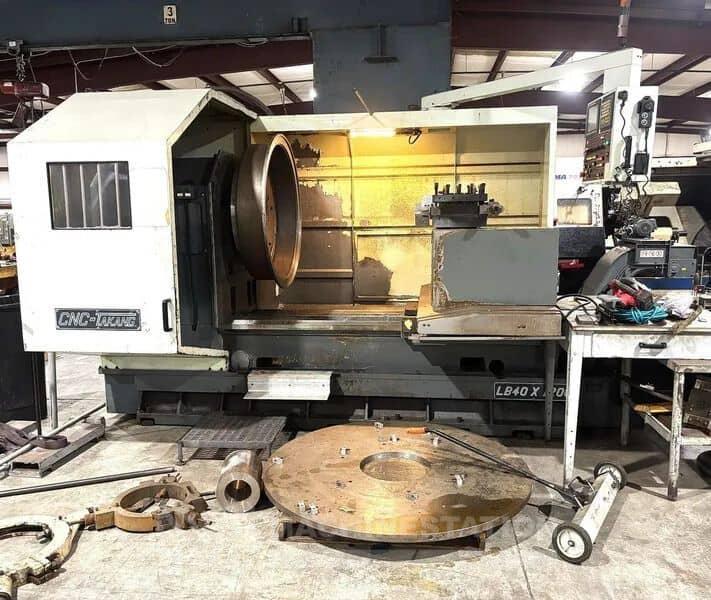

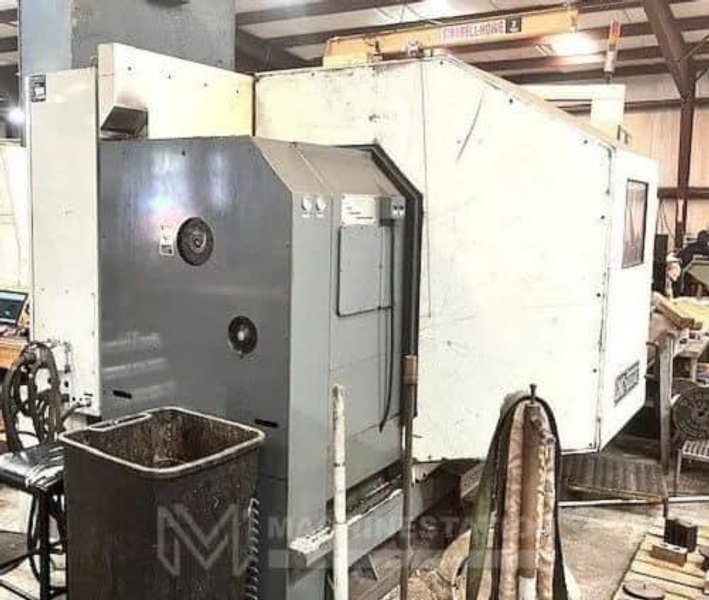

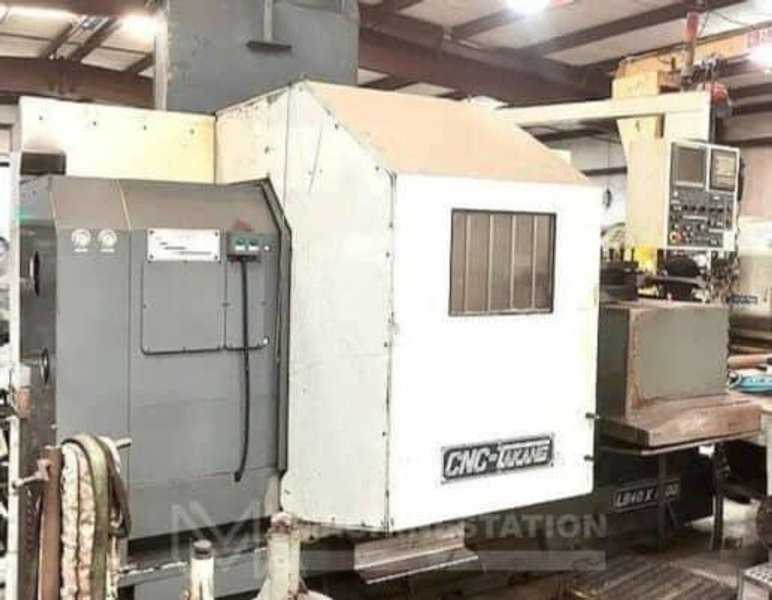

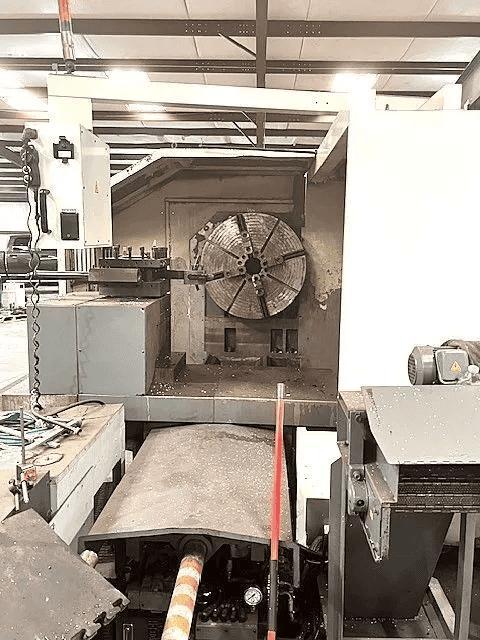

Name: Takang LB40x1200 CNC Turning Center – Lathe
Brand: TAKANG
SKU: 115111
Availability: InStock

Brand

TAKANG

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	115111
Make:	Takang
Model:	LB40X1200
Year:	2013

Equipped With:

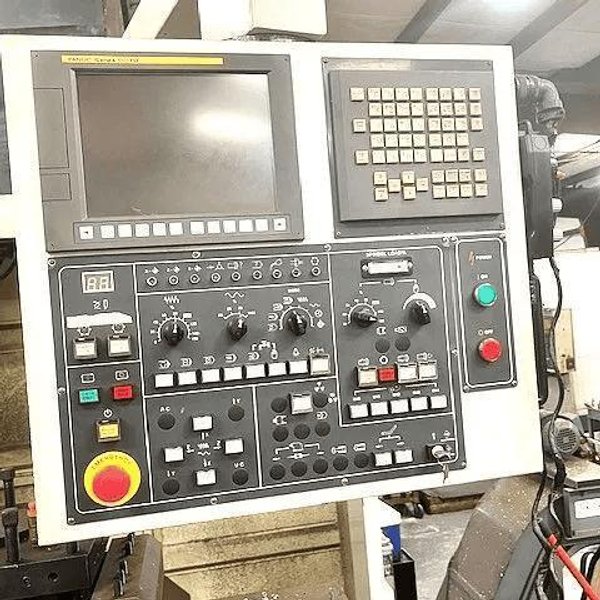

Fanuc Oi-TD CNC Control

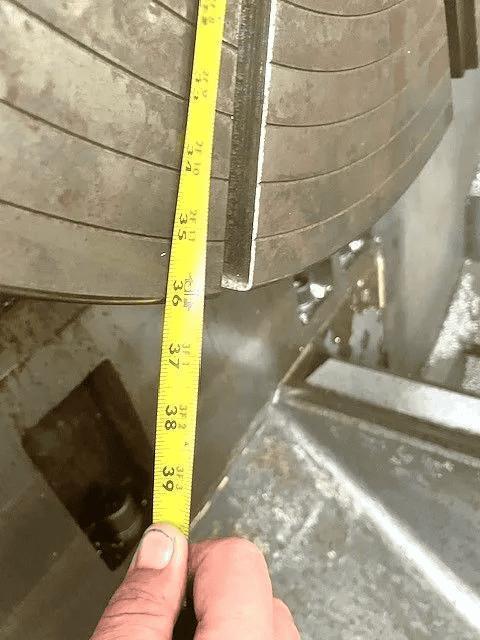

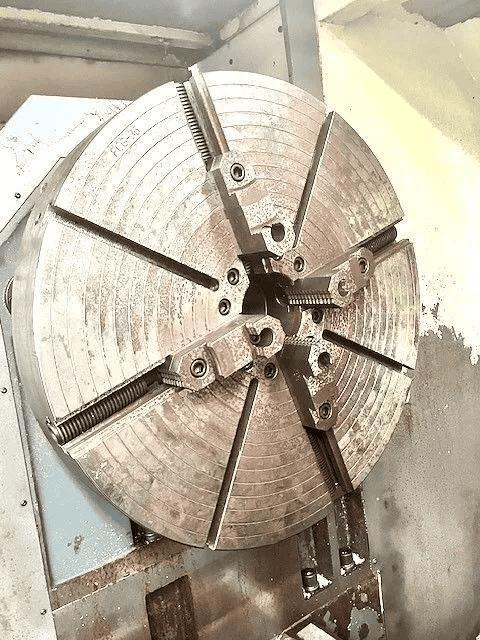

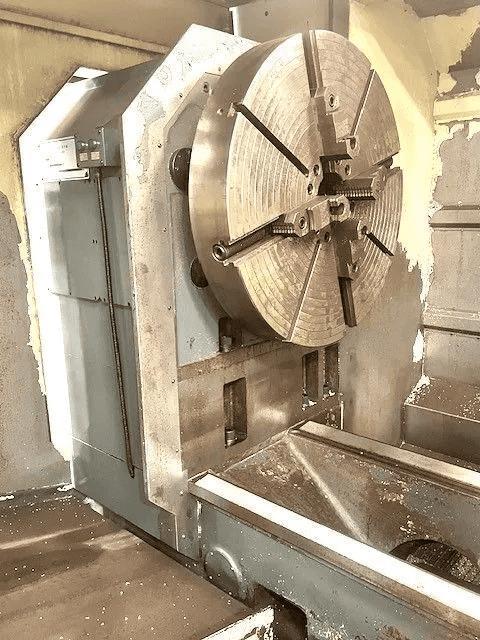

36″ 4 Jaw Manual Chuck
6.0″ Bore A2-11 Spindle

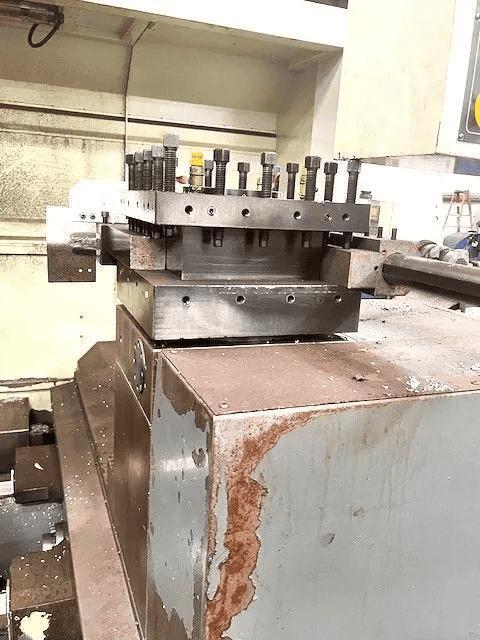

H4 Turret – 4 Stations
MPG Handwheel Control
Coolant System

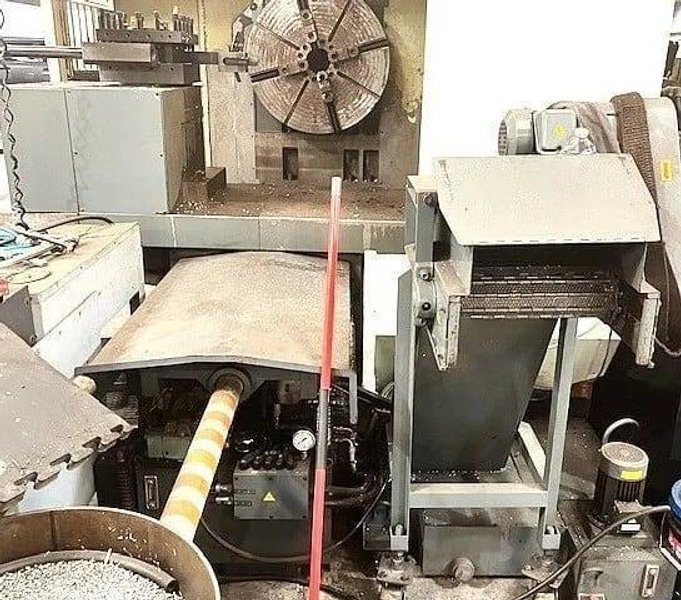

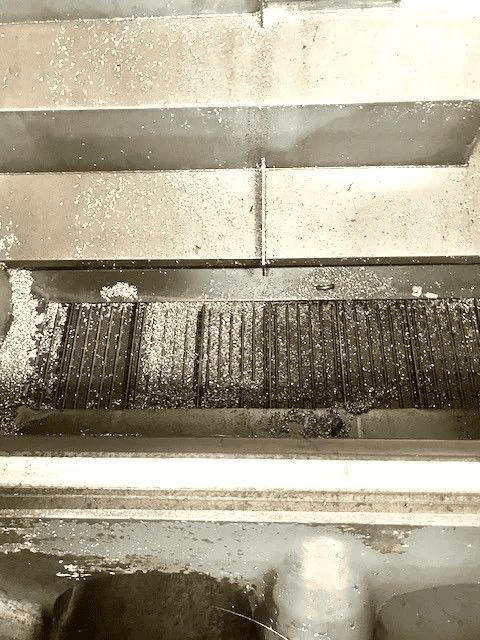

Chip Conveyor

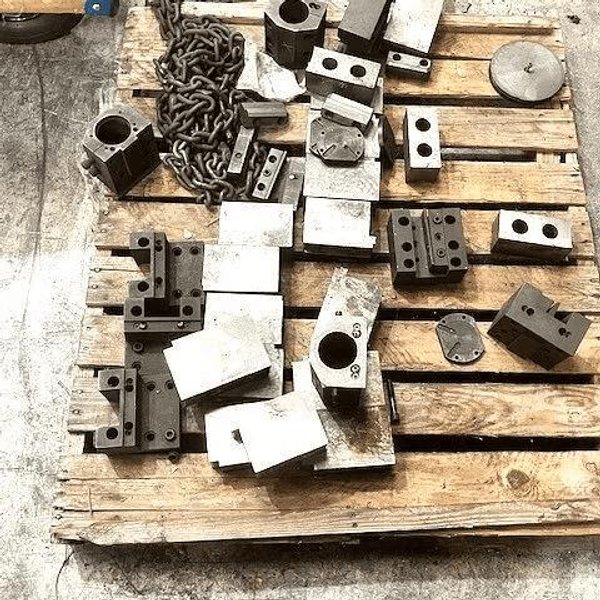

Optional Face Plate Fixture and Tooling available

Capacity:
Swing Over Bed: 39.3″
Swing Gap: 60″
Center Height: 20.4″
Width of Bed: 23.6″
Width of Cross Slide: 20.7″
Width of Carriage: 34.8″
Max Turning Length: 47.24″

Travels:
X-Axis: 25.0″
Z-Axis: 53.5″
Rapid Traverse X Axis: 236 IPM
Rapid Traverse Z Axis: 236 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 6.0″
Spindle Speed: 11 – 600 RPM
Spindle Motor: 60 HP

Turret:
Turret Type: H4-350 Hydraulic
Tool Size: 1.25″ x 1.25″

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Overall Dimensions: 226″ x 96″ x 116″ High Approx.
Weight : 25,500 lbs Approx.
