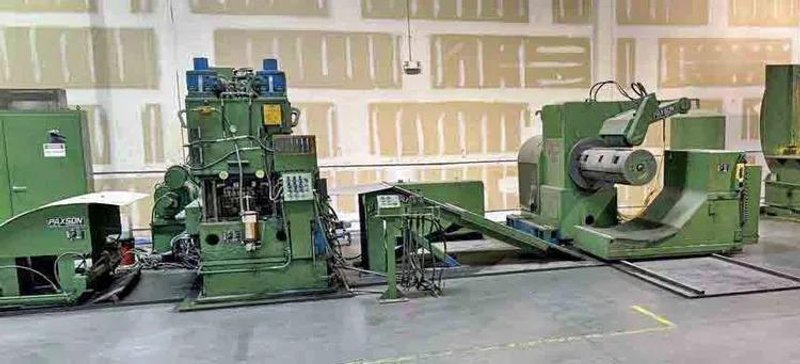

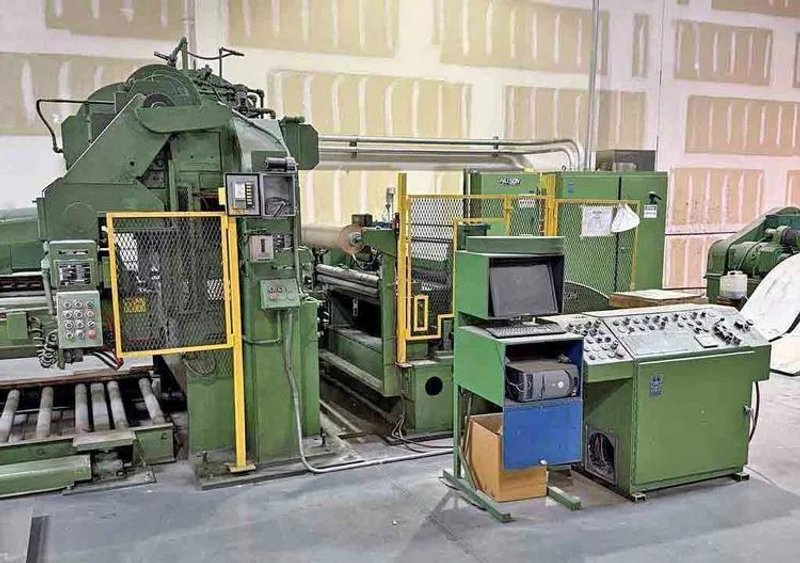

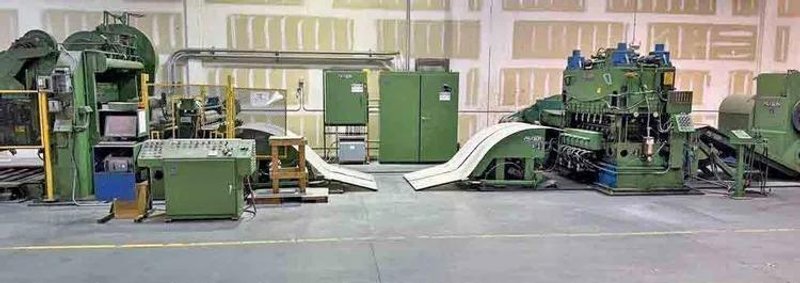

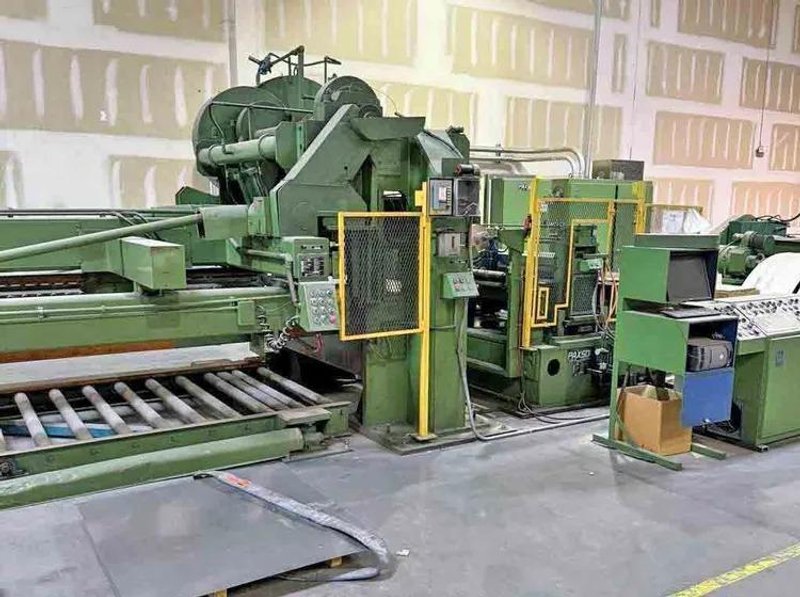

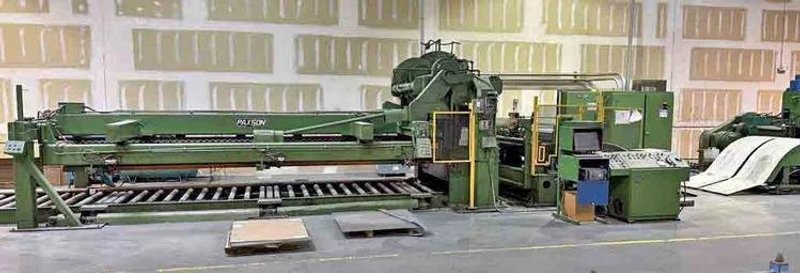

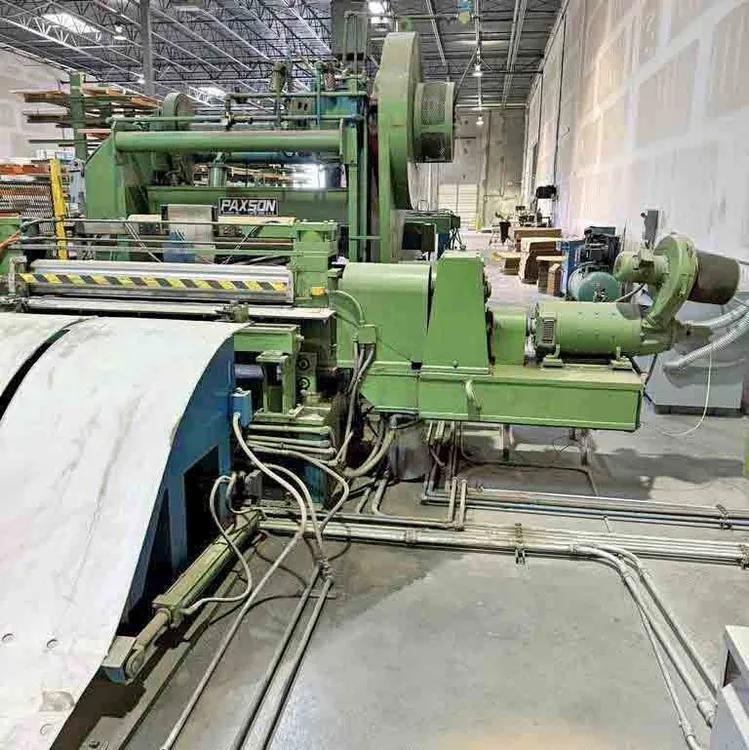

PAXSON 60" X 0.135" X 40,000LB CTL (14588)

Brand
PAXSON
Category
Coil Handling Equipment
Type
Cut To Length Lines
Model
60" X 0.135" X 40,000 LBS
Stock #
14588
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Max Weight 40000 pounds
Max Coil Width Capacity 60 inches
Max Stock Thickness Capacity At Full Width 0.135 inches

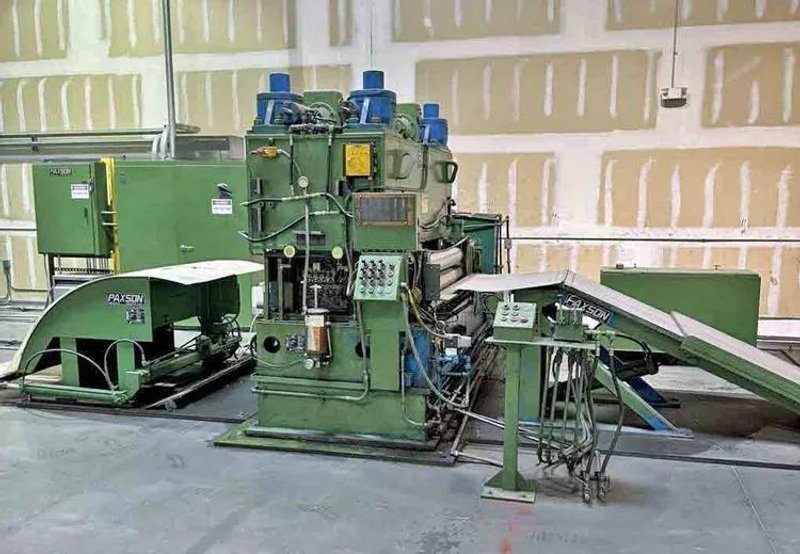

60" X 0.135" PAXSON CUT TO LENGTH
Stock # 14588

Description:

Manufacture:
- Paxson (USA)
- New in 1976
- Continually update and maintained

Material:
- Aluminum

Strip Width:
- 60" (1524mm)

Strip Thickness:
- .020" to .135" (0.5mm to 3.4mm)

Coil Size
- ID = 20" - 24" (508 - 609mm)
- Weight = 40,000 lbs. max (12,195 kg)

Line Direction:
- Right to Left

Equipment:
Entry Coil Car:
- Above Floor Type
- Hand Pendant Control
- Self-Contained Hydraulic Power Unit

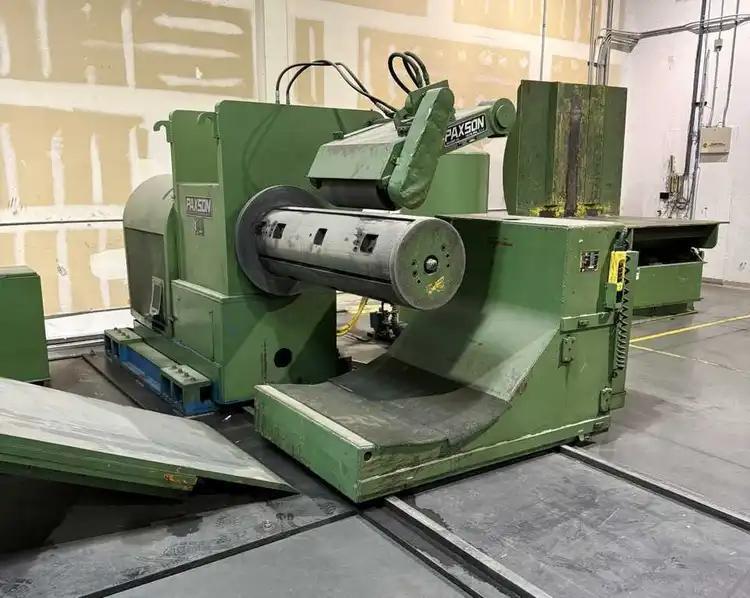

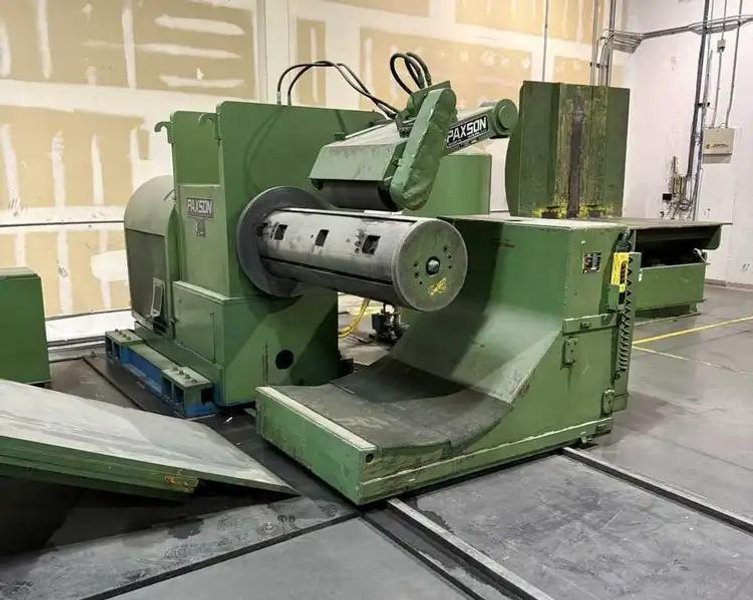

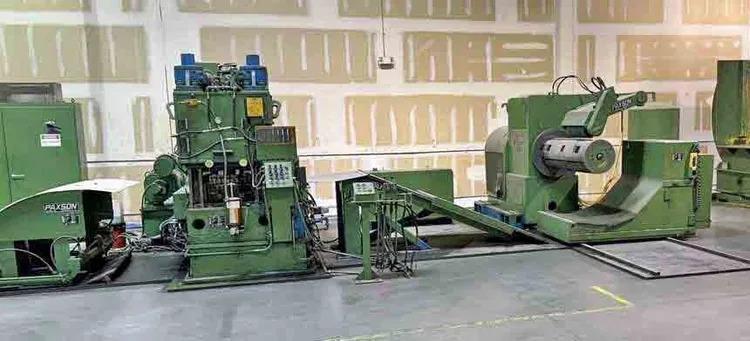

Uncoiler:
- Mandrel Type
- Overarm Holddown
- Slide Base
- Water Cooled Brake
- Hydraulic Motor Feed-up

Peeler Table:
- Hydraulic Lift & Extend

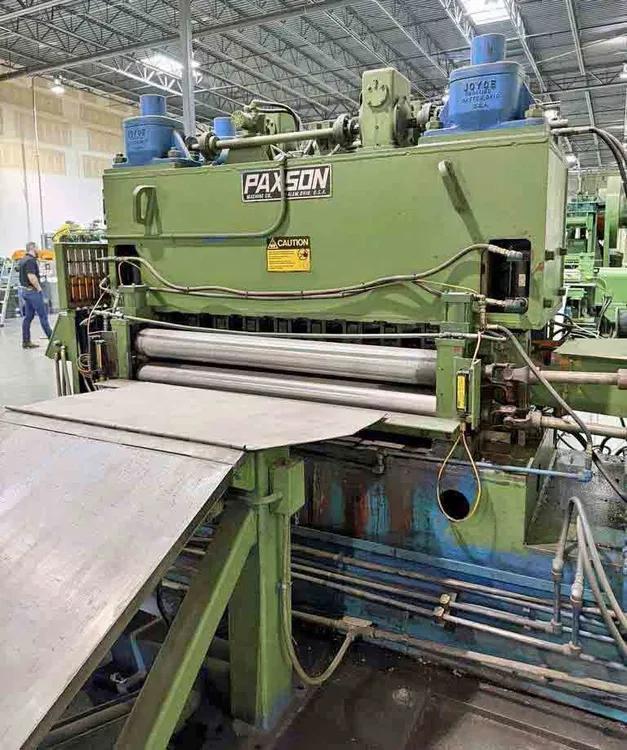

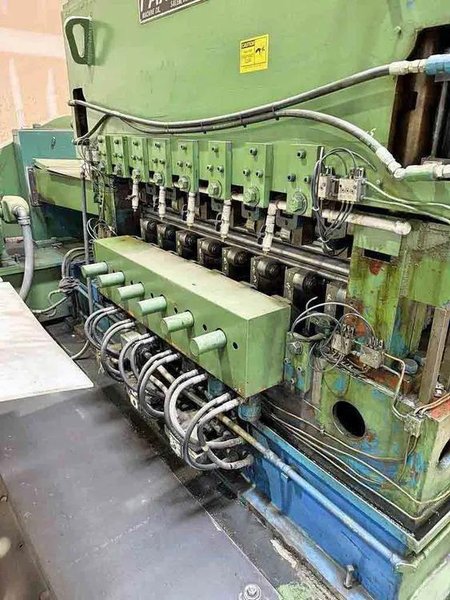

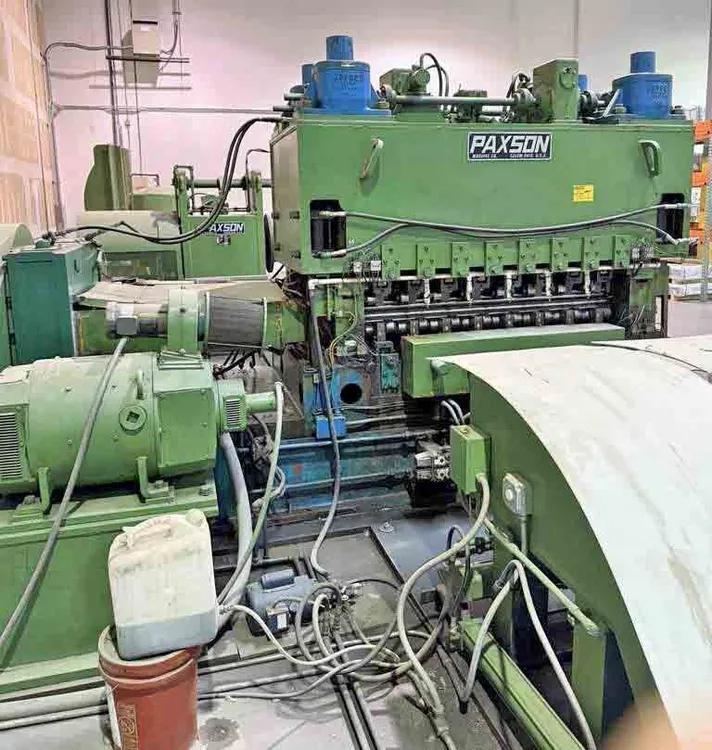

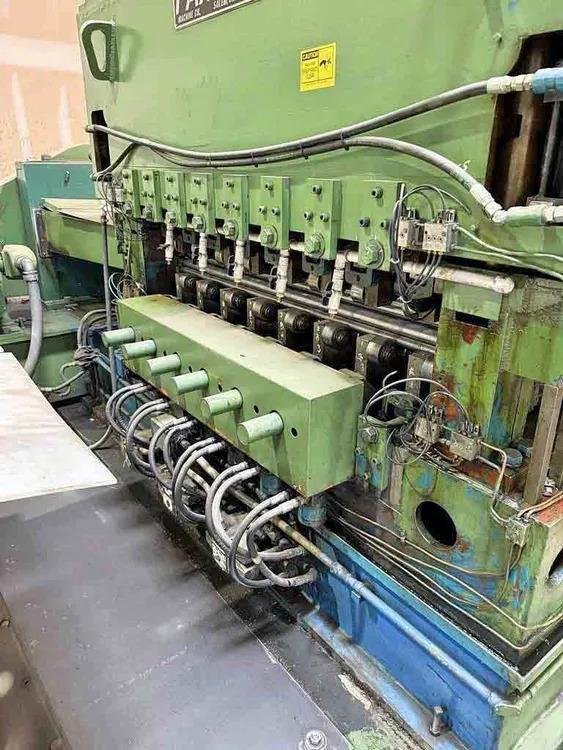

Paxson Precision Leveler: 6 Hi
- 1.750" Roll Diameter x 74" Roll Face
- Entry Pinch Rolls, Powered

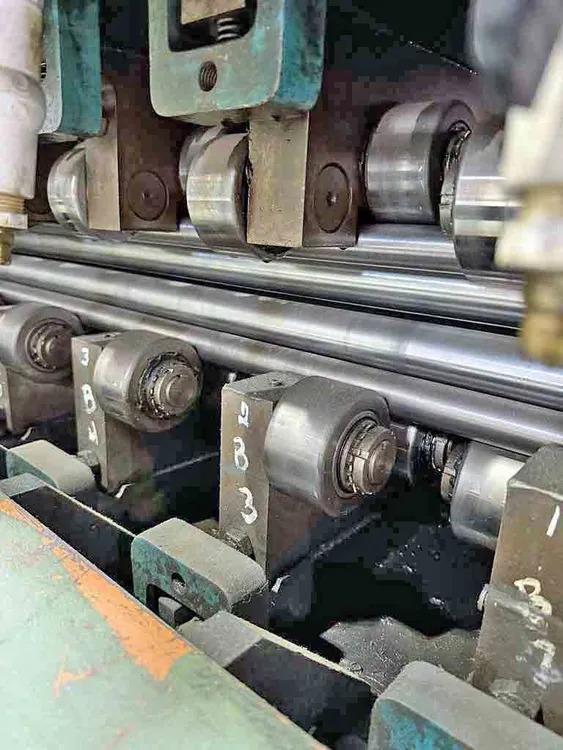

- 8 Flights of Backups, (6 Flights Motorized)
- 125 hp WER DC Motor, 1750/2000rpm, 500 volts

Looping Pit Table

Roll Feed:
- Entry Side Guides
- Full Width Rolls
- Exit Paper Applicator
- 30 hp Emerson DC Motor

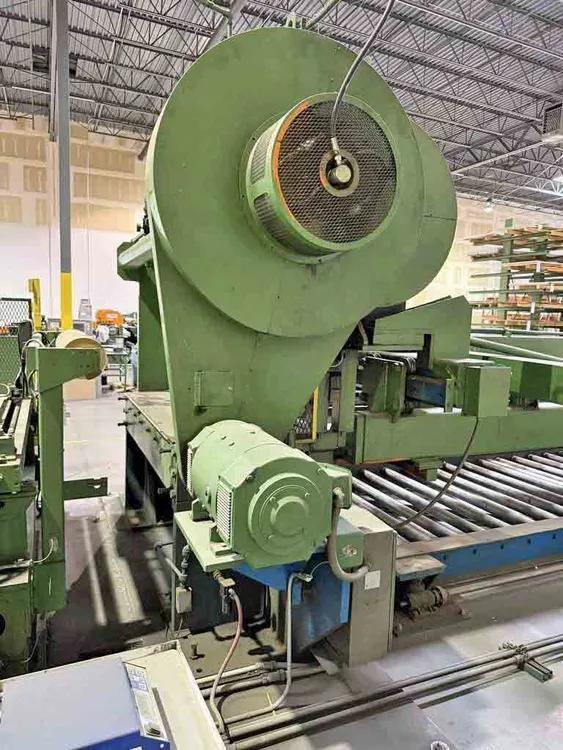

High Speed Shear:
- Over Driven, Mechanical
- Manual Blade Gap Adjust
- 30 hp WER DC Drive Motor, 1750rpm, 500 volts
- Air Clutch/Brake

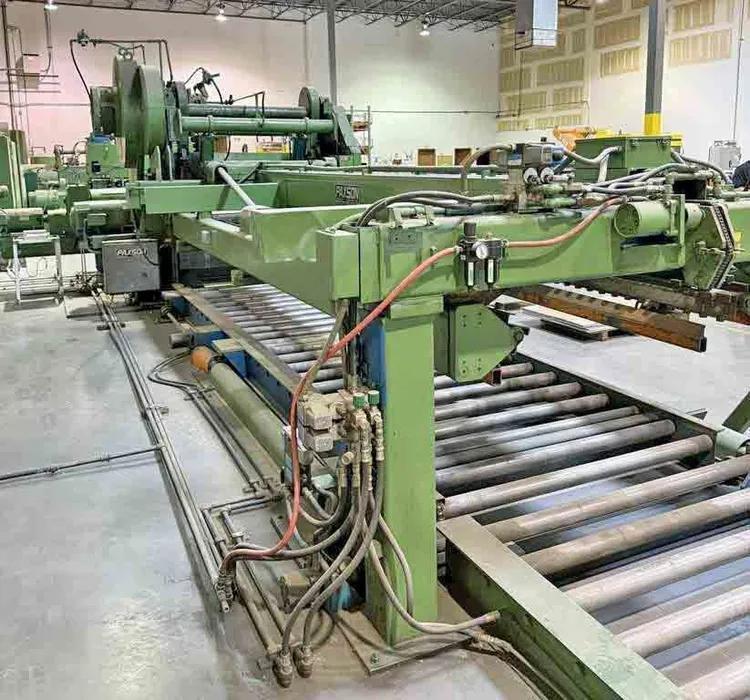

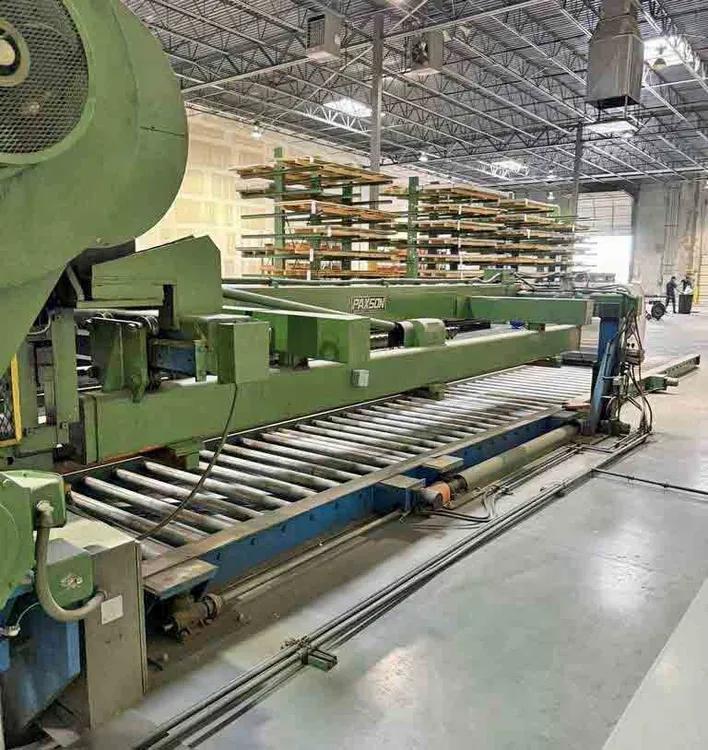

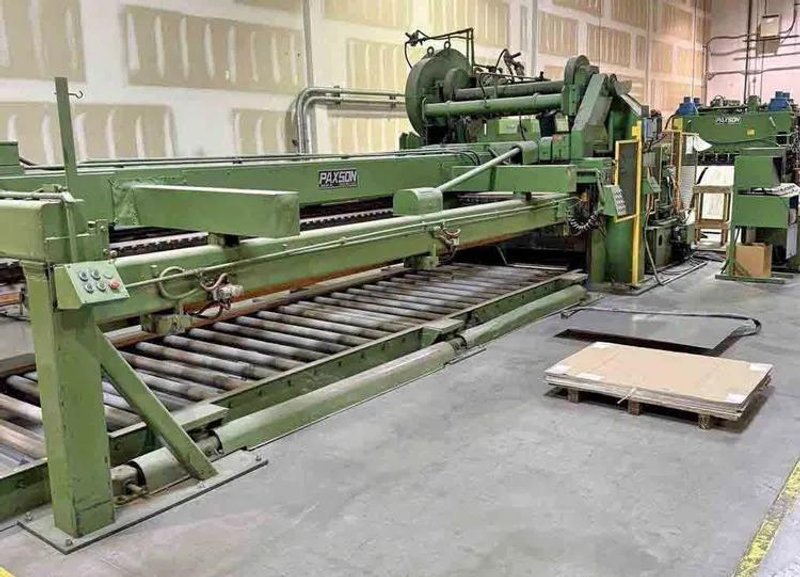

Automatic Stacker:
- Flipper Arm Type
- Powered Width Adjustment
- Powered Length Adjustment
- Non Scratching Roller Supports
- 20' Maximum Length
- Mechanical Screw Jack Lift Table
- Powered In-Line Ejector Conveyor

Exit Runout Conveyor:
- Powered Rolls

Included

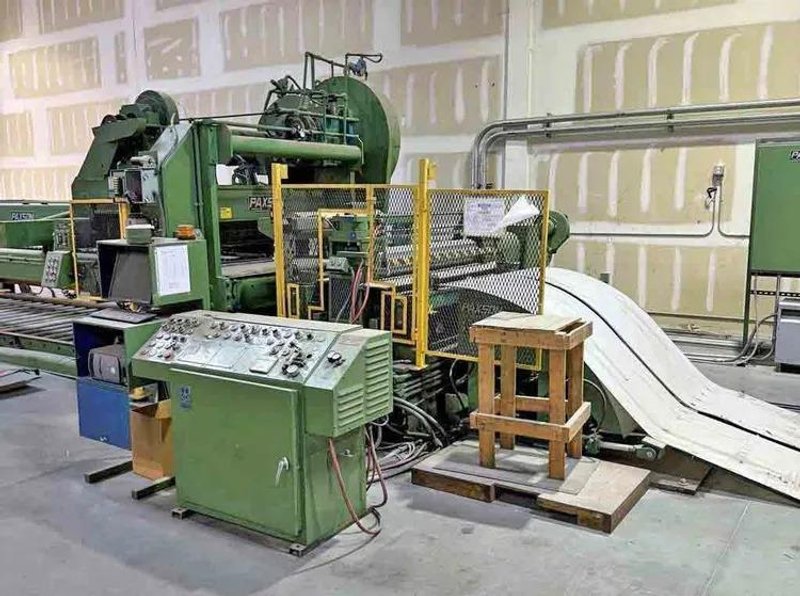

- Main Operators Control Panel
- Water Cooler

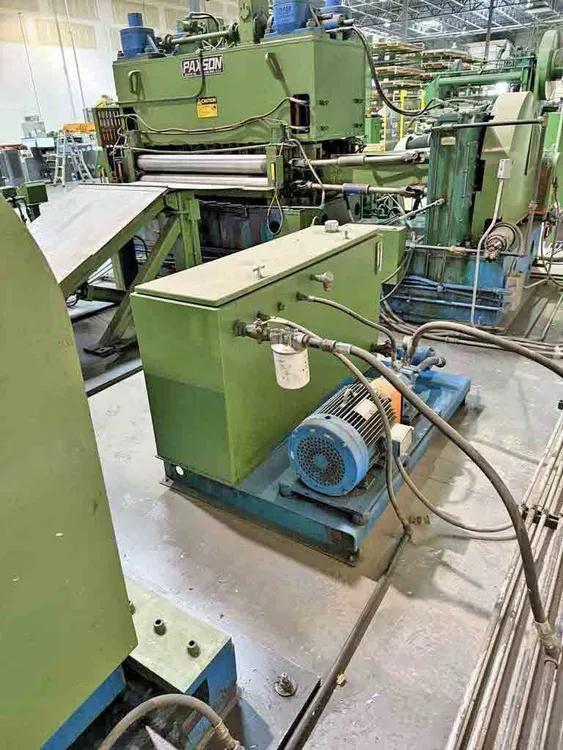

- Hydraulic Power Unit
- Electrical Controls and Drives
- Air Compressor = 220 KVA, 480 V

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
