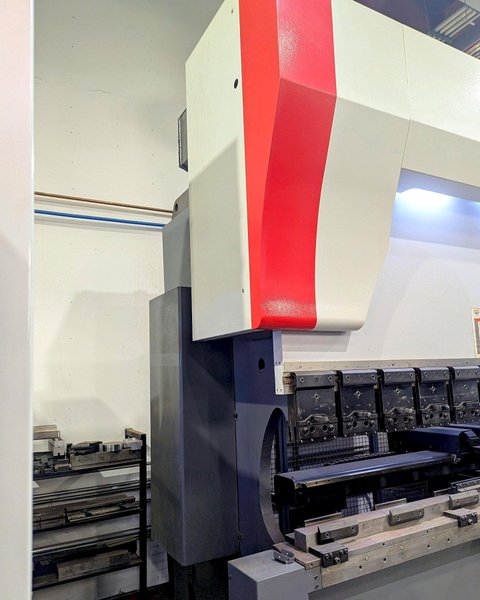

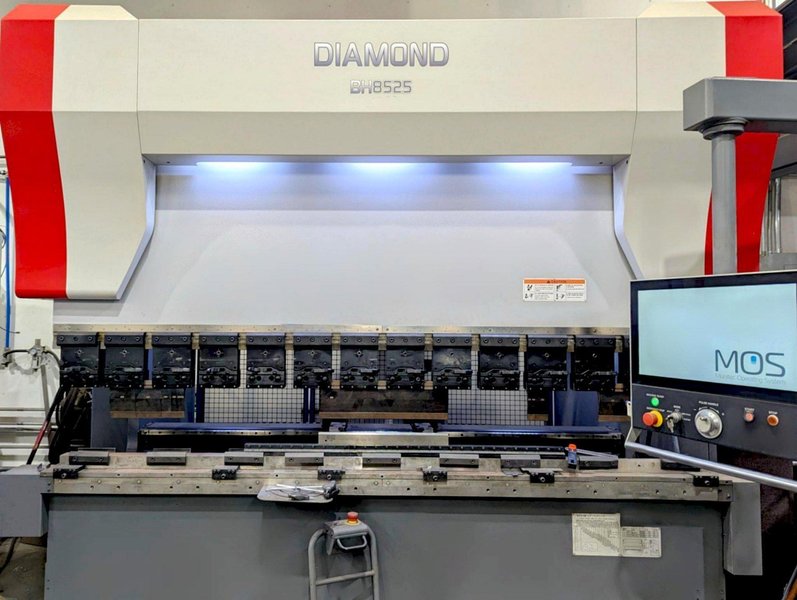

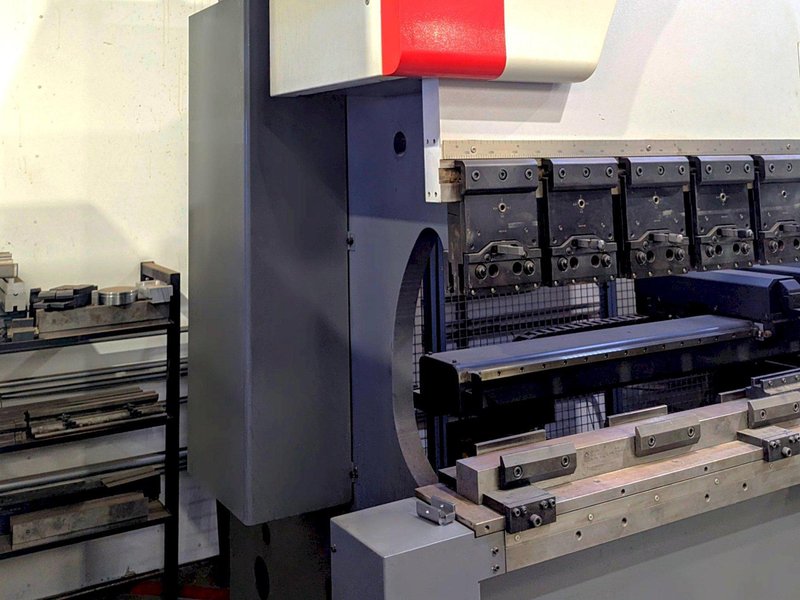

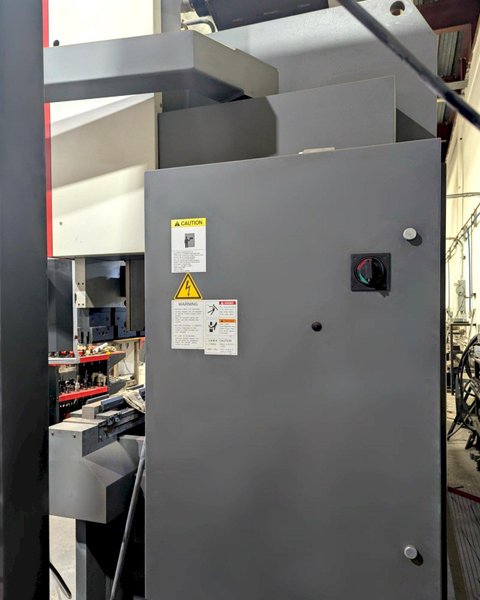

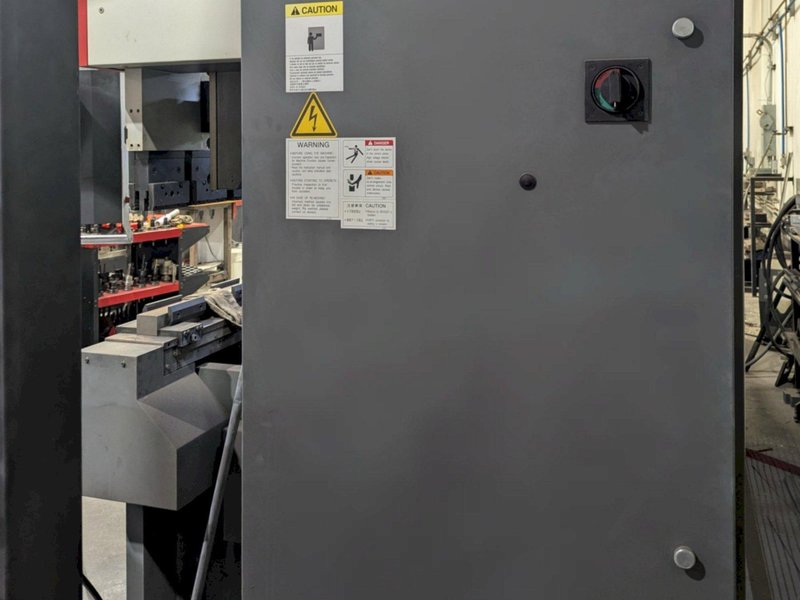

Mitsubishi Diamond BH8525 CNC Press Brake

Name: Used MITSUBISHI Diamond BH8525 For Sale 100615
Brand: MITSUBISHI
SKU: 100615
Availability: PreOrder

Brand

MITSUBISHI

Not specified

Press Force	94 U.S. Tons
Bending Length	102”
Daylight W/o Punch Holders	20.8”
Daylight W/ Standard Holders	14.9”
Punch Holder Height	5.9”
Distance Between Frames	86.6”
Ram Stroke	9.84”
Gap Depth	15.7”
Table Height	35.4”
Table Width	6.7”
Ram Speed Approach	472 IPM
Ram Speed Bending	23.6 IPM
Ram Speed Return	472 IPM
Ram Speed Ram Cycles	1,560
Ram Repeatability	0.00004”
Back Gauge X Distance	33.5”
Backgauge Speed Y-Axis	2,000 IPM
Backgauge Speed X-Axis	2,000 IPM
Backgauge Speed Z-Axis	475 IPM
Back Gauge Repeat Accuracy	0.0002”
R Axis Travel	7.8”
Power (Voltage)	208
Total Power	9 KVA
Weight	15,400 lbs.

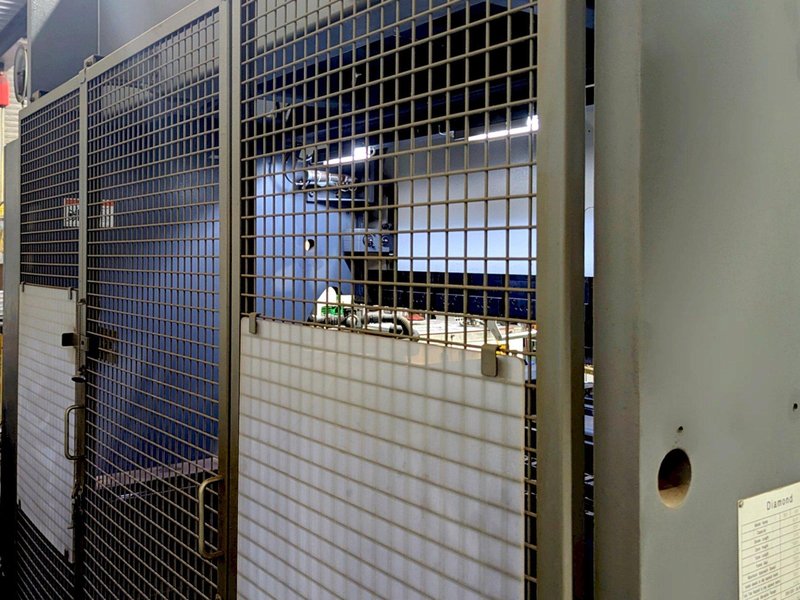

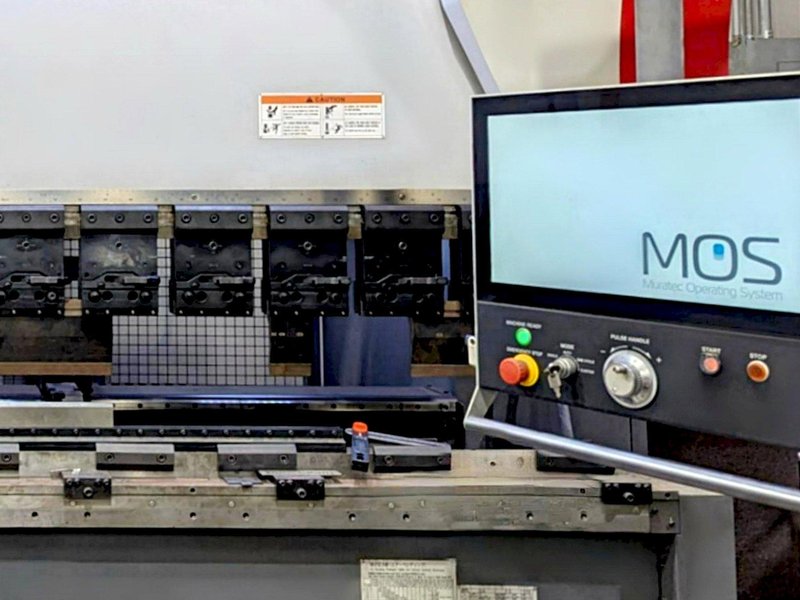

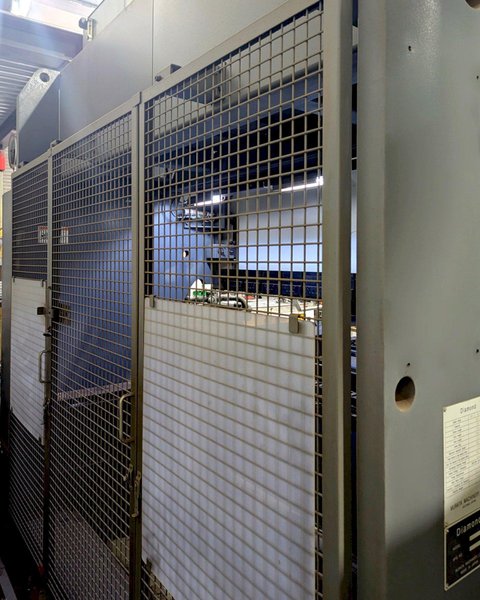

Equipped With: Mitsubishi CNC Control 22” Multi-Touchscreen LCD Display Microsoft Windows Operating System High-Speed Backgauge Dual Telescoping Back Gauge Fingers Crowning System Automatic Thickness Detection Mitsubishi Servo Amplifiers & Motors Dual Drive Hybrid Mechanism Mitsubishi Components Safety Electronics Safety Interlocked Rear Gate Movable Foot Pedal Punch Holders
