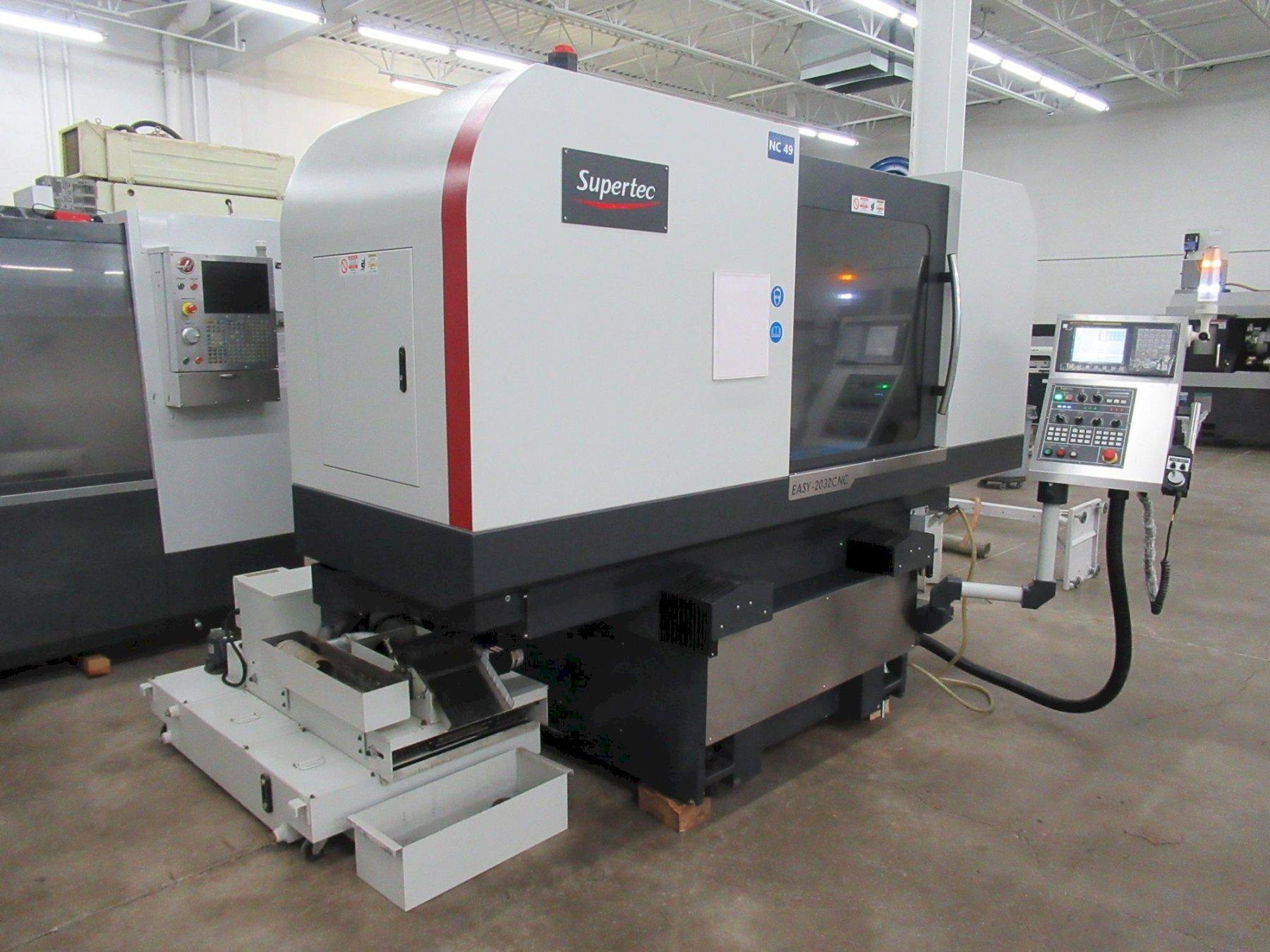

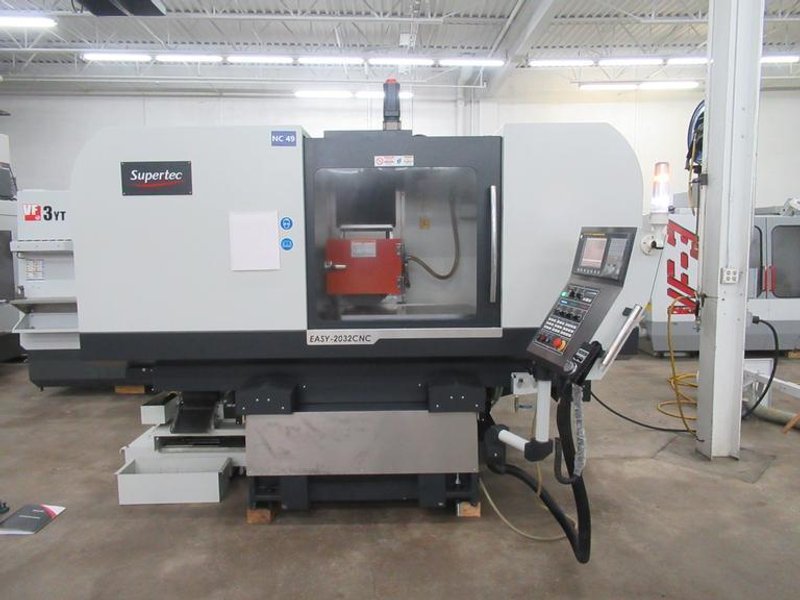

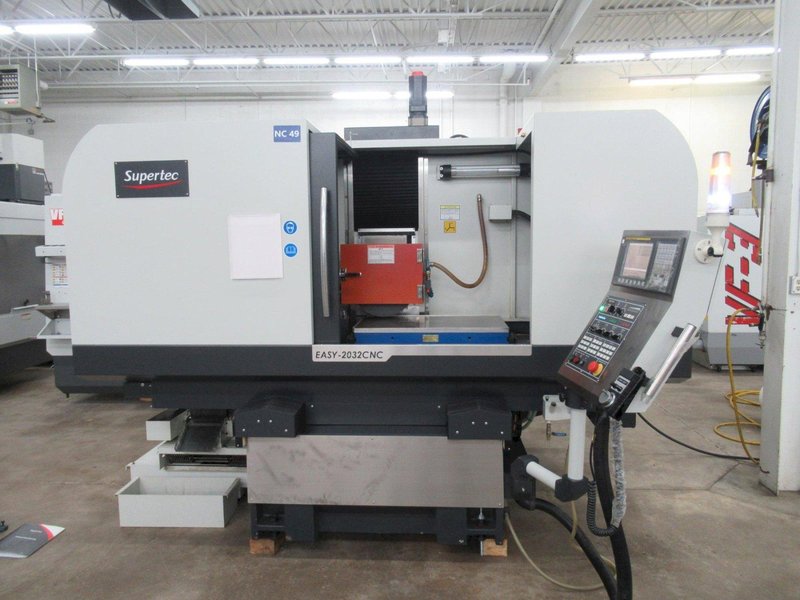

Supertec EASY-2032CNC CNC Surface Grinder w/Fanuc 0i-MF, 20"x32" Fine Pole Chuck, Full Enclosure, Coolant System w/Magnetic Separator & Paper Filtration, Approx. 500 HOURS!

Supertec EASY-2032CNC CNC Surface Grinder w/Fanuc 0i-MF, 20"x32" Fine Pole Chuck, Full Enclosure, Coolant System w/Magnetic Separator & Paper Filtration, Approx. 500 HOURS!

Name: Supertec EASY-2032CNC CNC Surface Grinder w/Fanuc 0i-MF, 20"x32" Fine Pole Chuck, Full Enclosure, Coolant System w/Magnetic Separator & Paper Filtration, Approx. 500 HOURS!
Brand: SUPERTEC
SKU: C1001
Availability: PreOrder

Brand

SUPERTEC

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

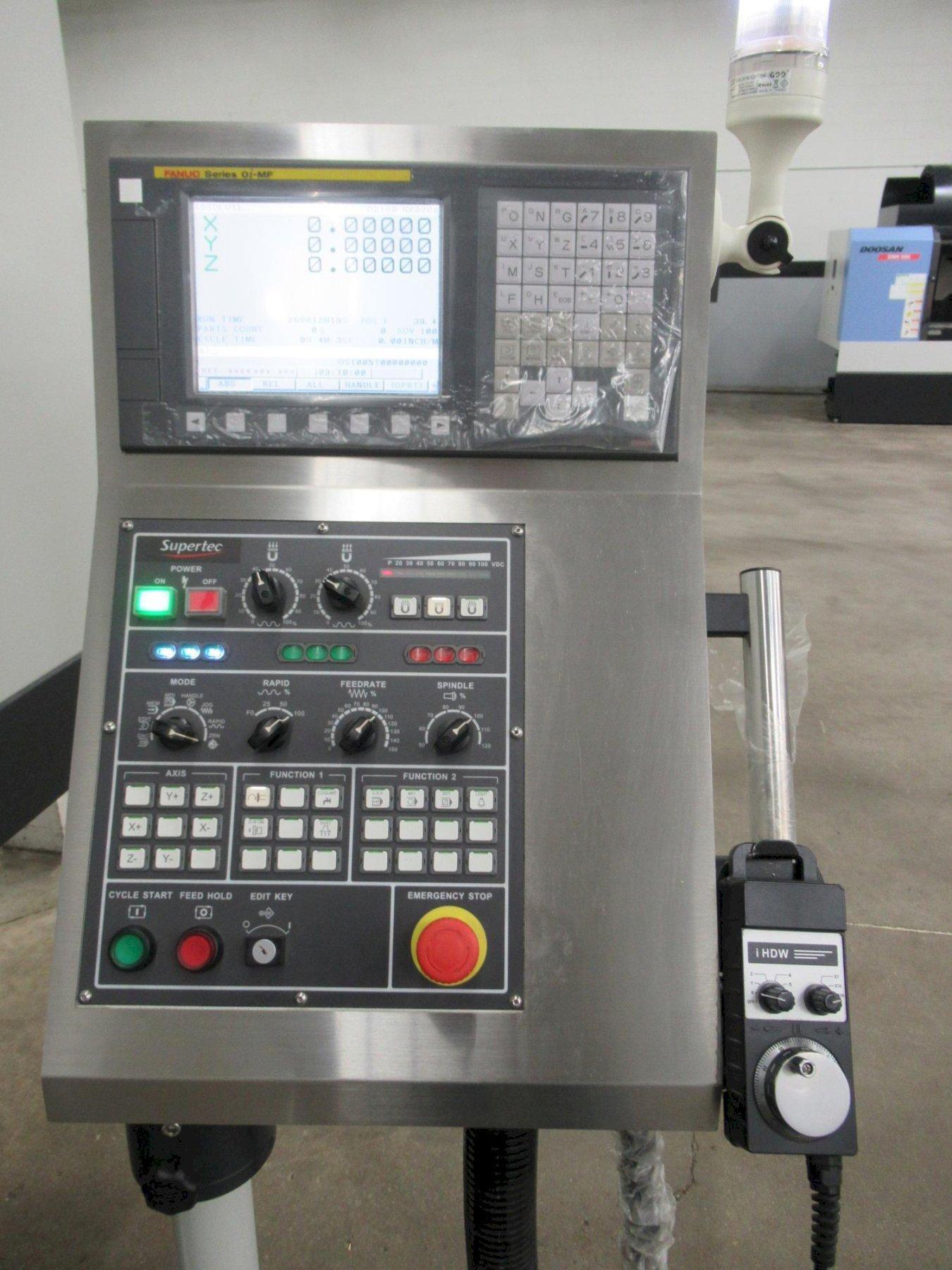

Control: Fanuc Oi-MF Control

Table Work Area: 35-3/8" x 19-3/4"

Chuck Size: 31.49" x 19.68"

Max Distance Spindle Center to Table Surface: 26.77"

Longitudinal Movemnt (Table Speed/Servo Speed/Belt Speed): 196 - 984 IPM / 39 - 590 IPM / 39 - 905 IPM

Cross Movement (Incremental / MPG): 40 IPM /x1:0.001mm, x5:0.005mm, x10:0.01mm

Vertical Movement (Incremental / MPG): 40 IPM / (x1)0.1mm, (x5)0.5mm (x10)1mm

Grinding Wheel Size (OX x W x ID): 16" x 2" x 5"

Wheel Speed: 1450 / 1750 RPM

Spindle Drive Motor: 15 HP

Equipped With:

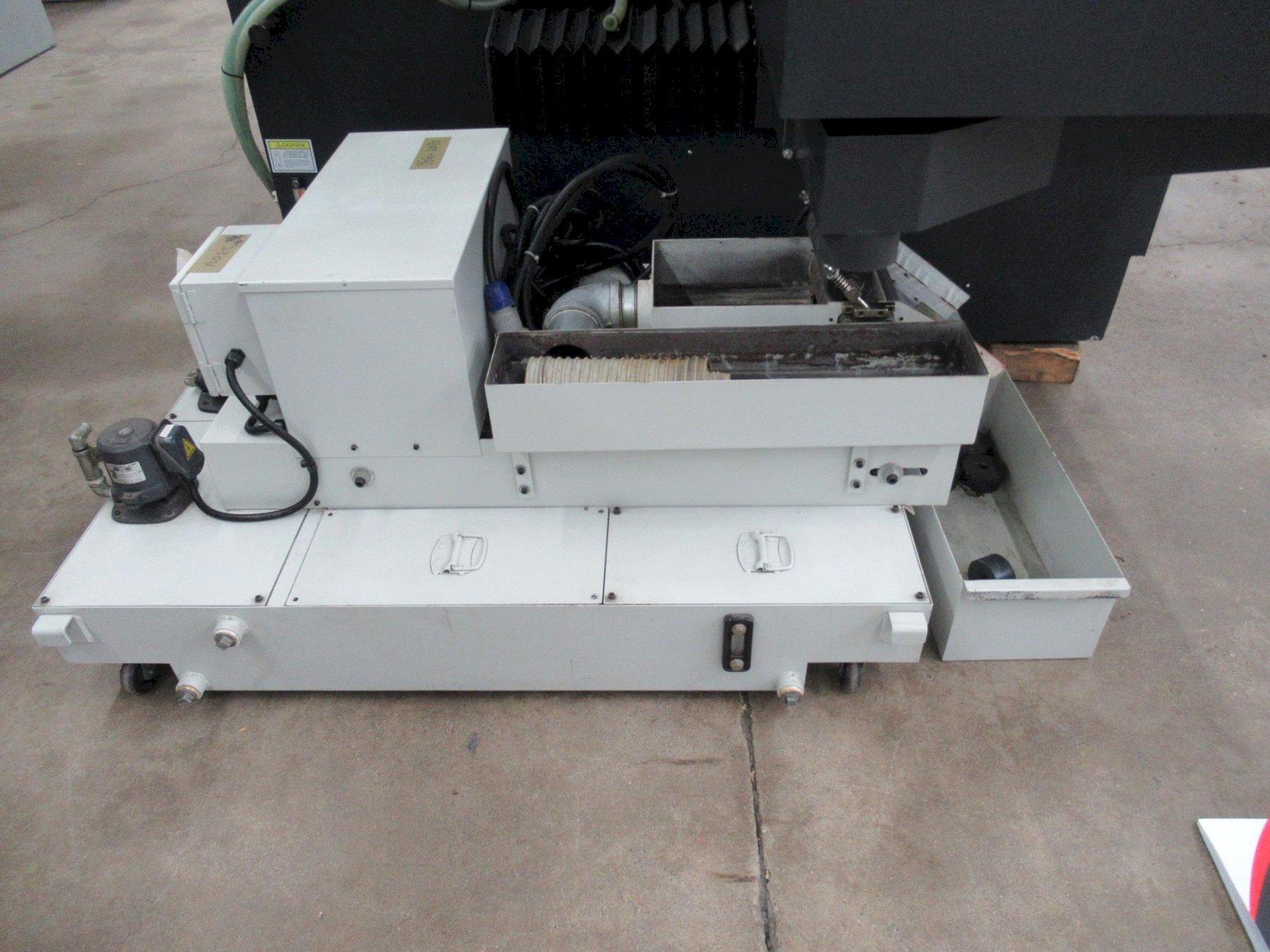

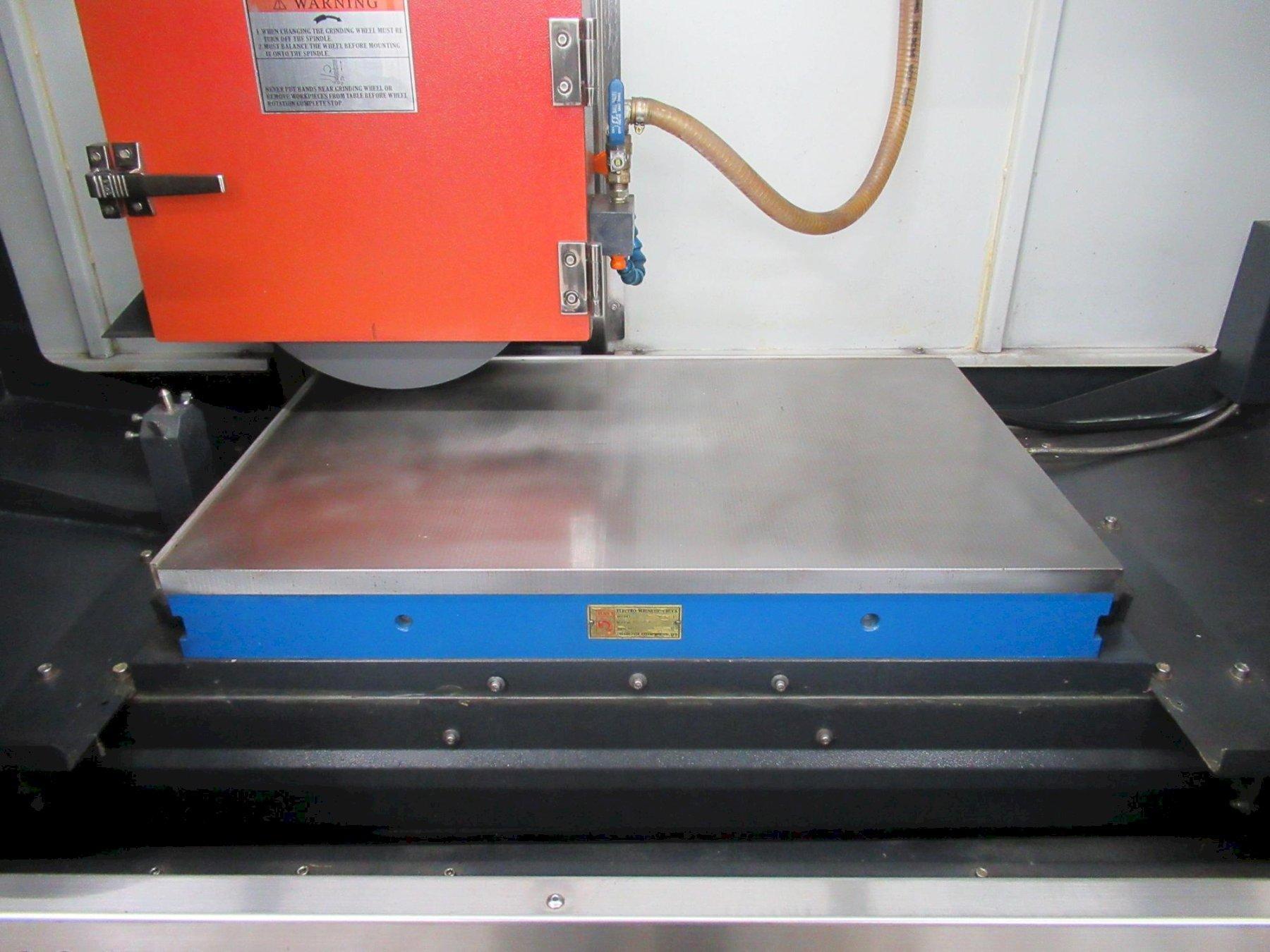

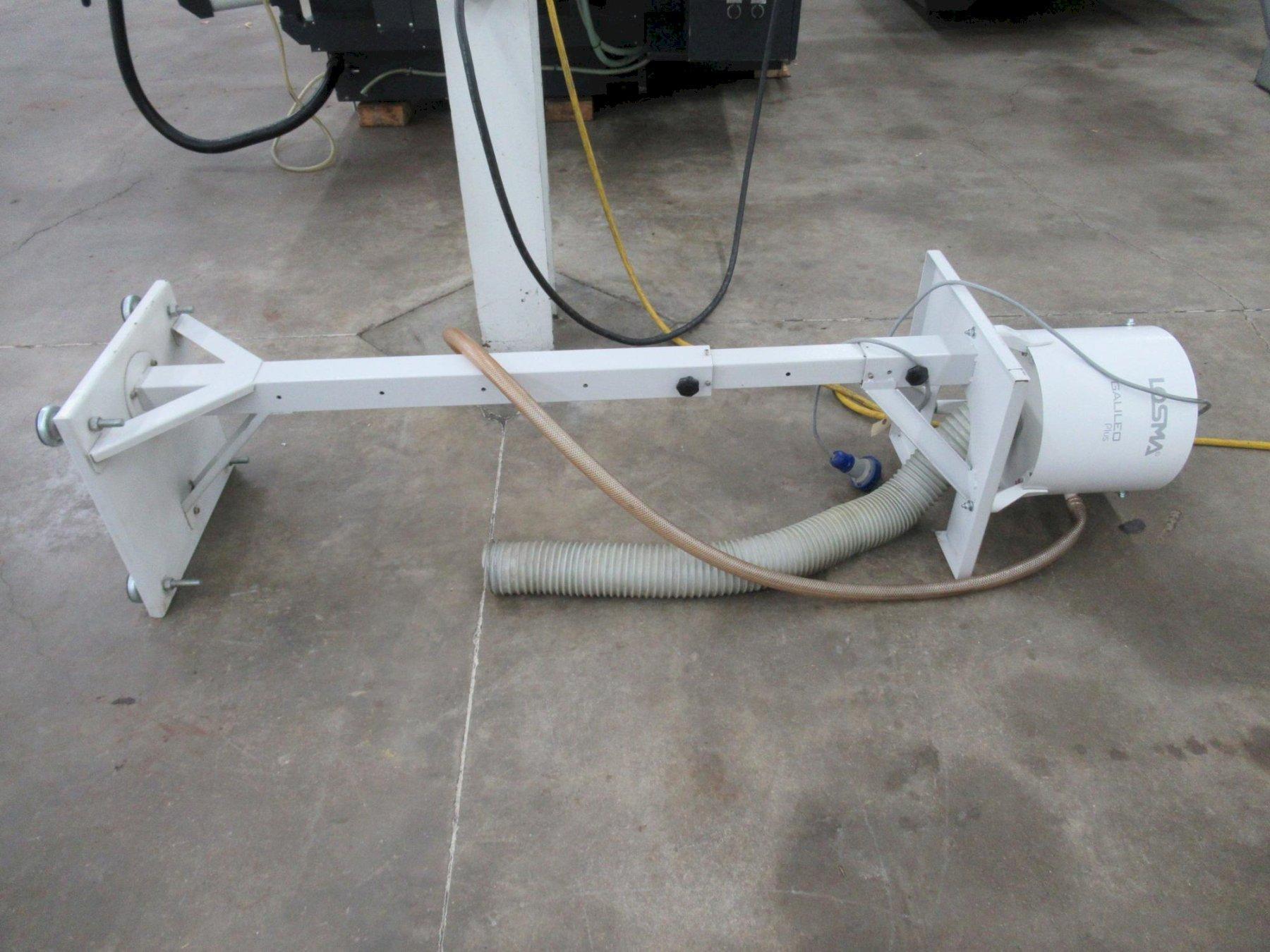

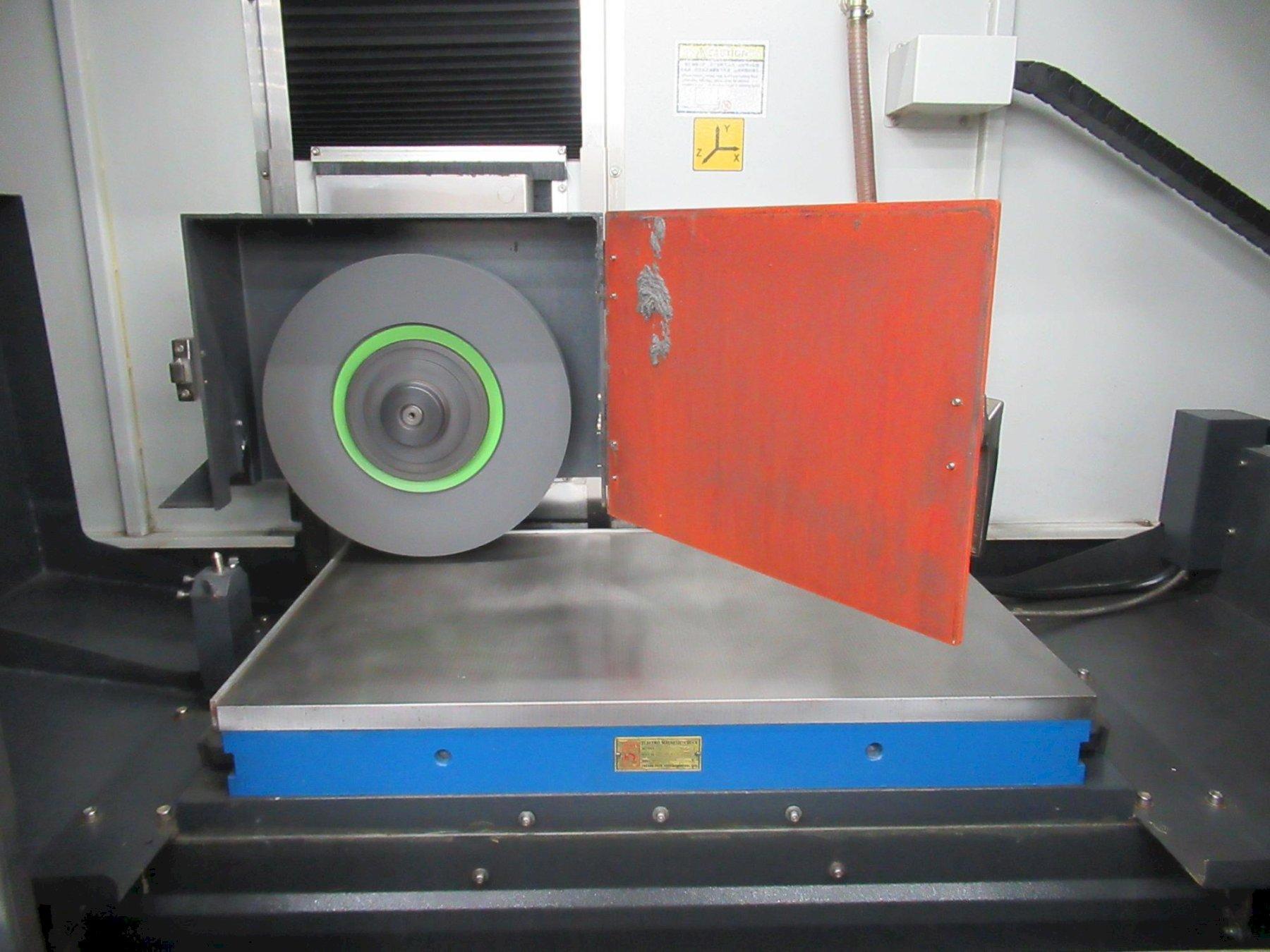

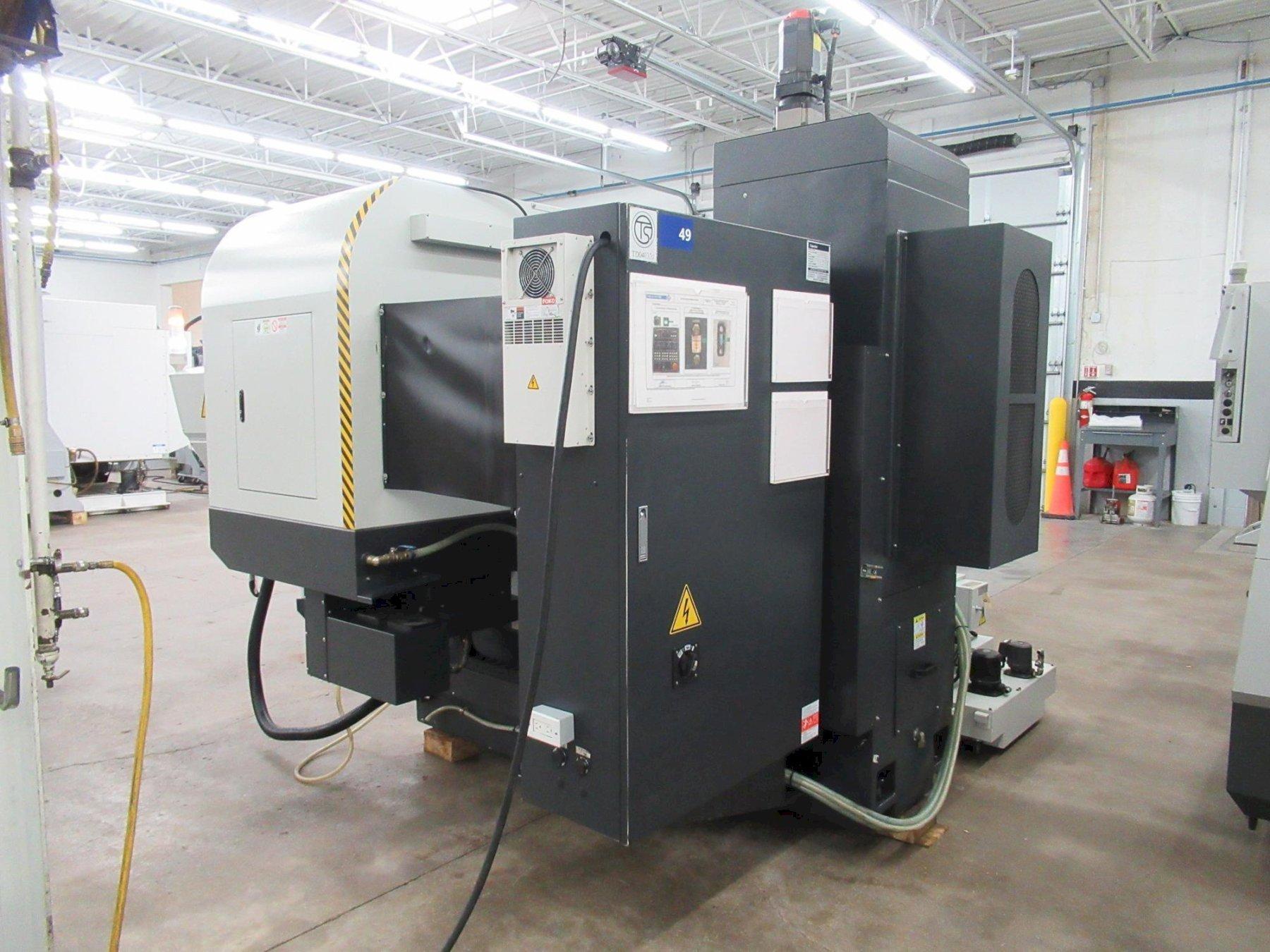

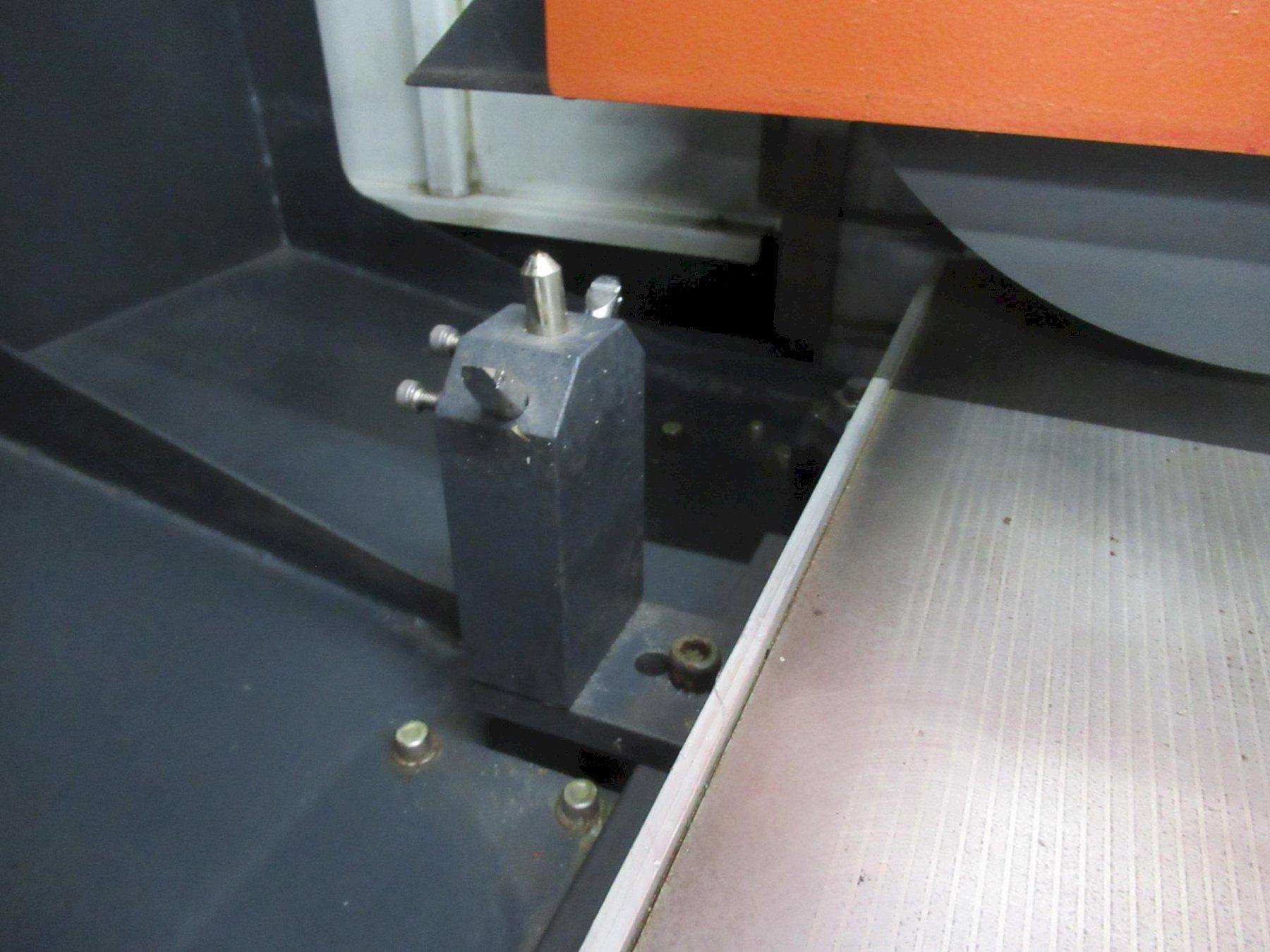

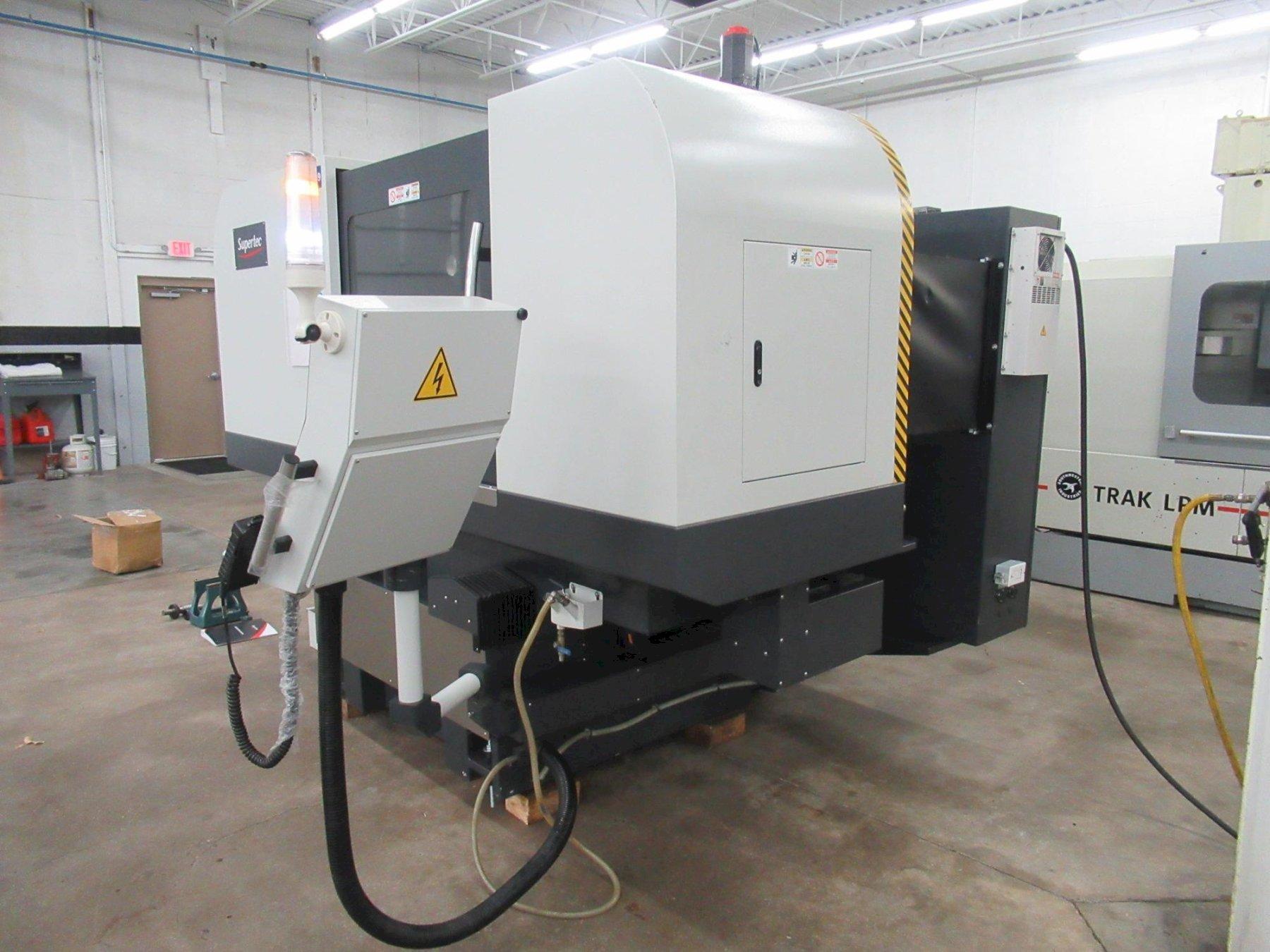

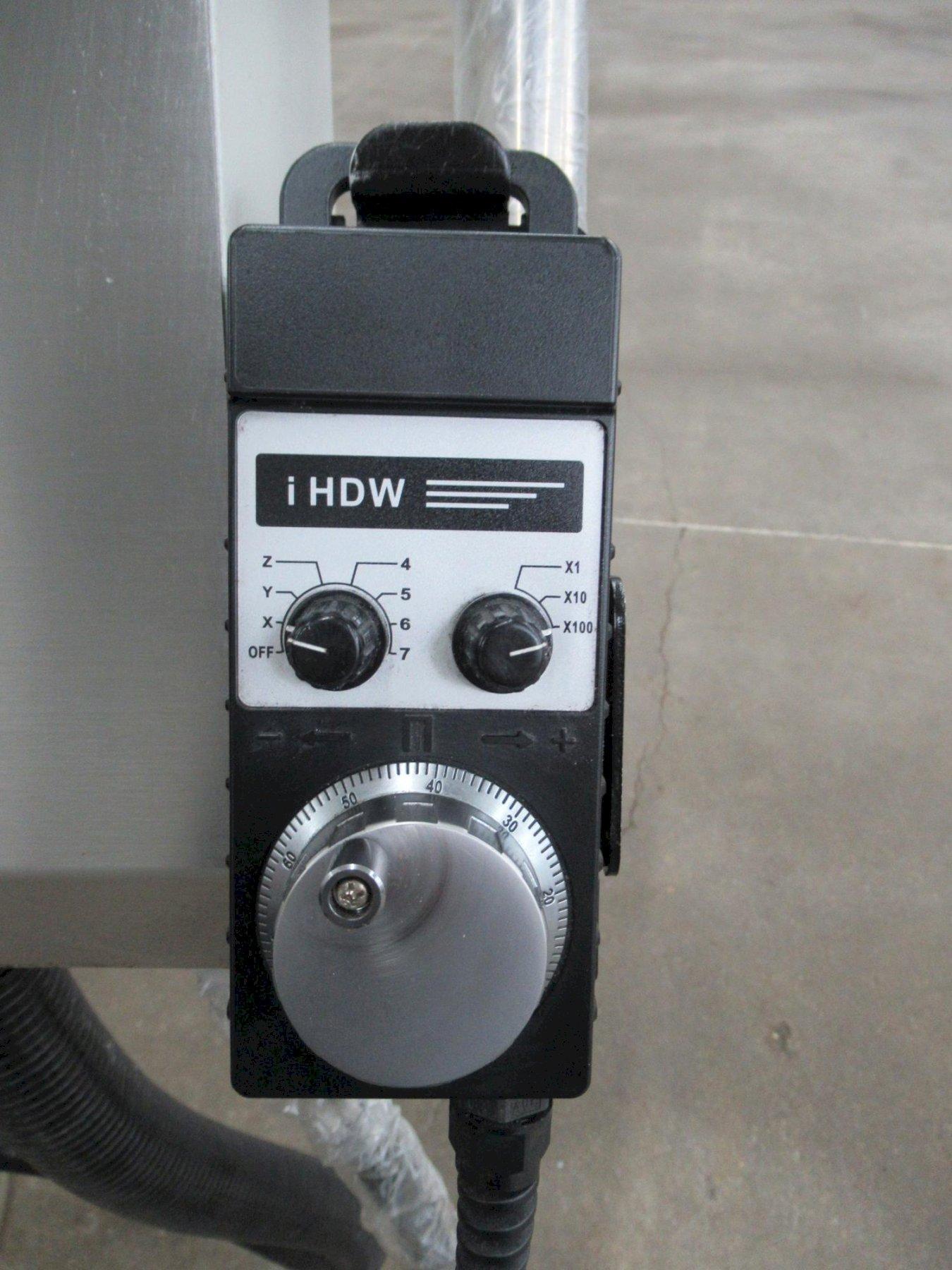

Fanuc 0i-MF CNC Control, Tiani TELC-5080 Fine Pole Electromagnetic Chuck, Supertec EZ3-9001 Full Enclosure with Mist Separator, Coolant Systems with Magnetic Separator & Paper Filter, Programmable Spindle Speed 15 HP Spindle Motor, Losma Mist Collector, Air Conditioner, Remote Jog Handle, Wheel Dresser, Work Lights. APROXIMATELY 500 HOURS OF USE

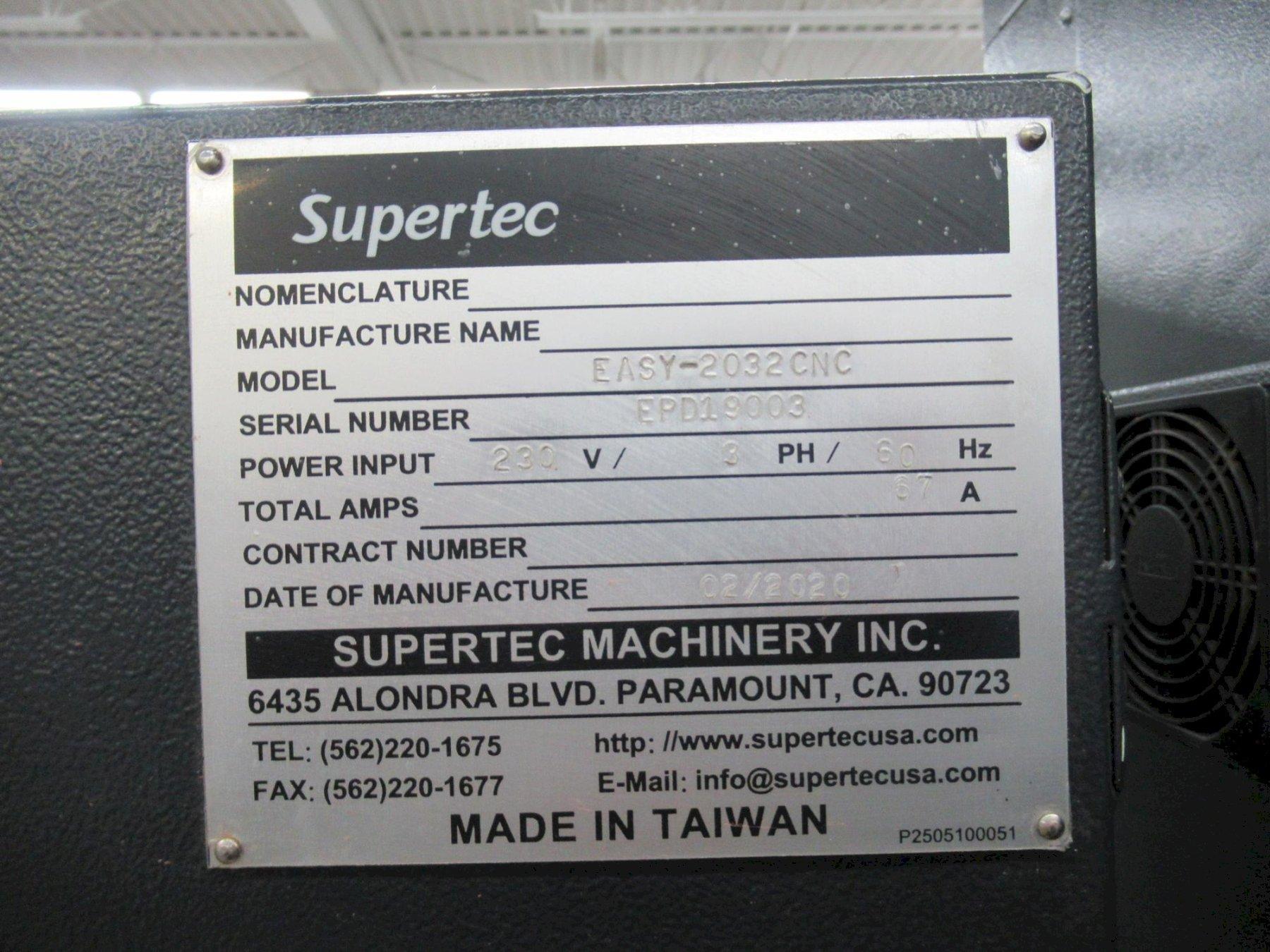

Electrics:

230 Volt, 3 Phase
