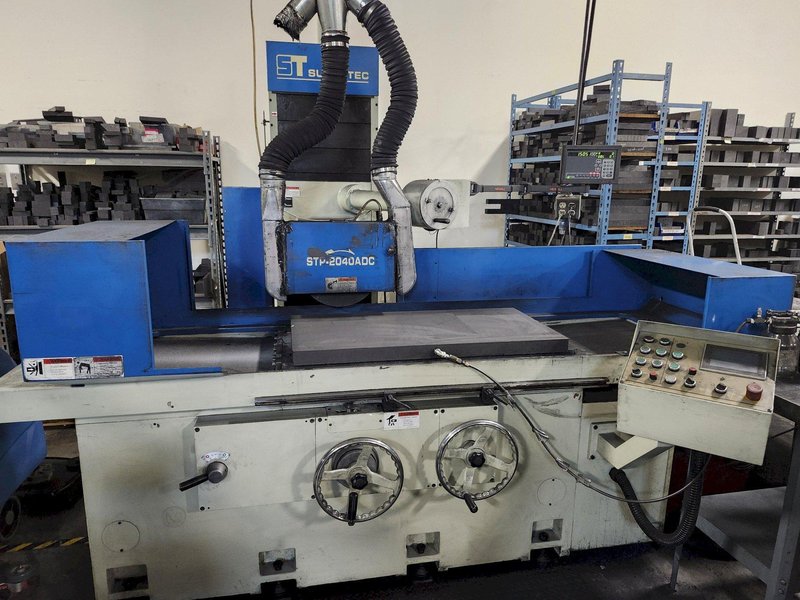

Supertec STP-2040ADC II NC Surface Grinder, 20 x 40 Travels, Chuck: 20" x 40" vacuum, Wheel Size: 14 x 2, HP:7.5, New 2000
Brand
Category
Model
STP-2040ADC II
Stock #
56218
Year
2000
Condition
Good
Location
Minnesota
| Incremental Downfeed | yes |
| Table Size | 20" x 40" |
| Standard Magnetic Chuck Size | 20" x 40" |
| Max. Grinding Length | 42' |
| Max. Grinding Width | 20" |
| Max. Distance From Table Surface To Spindle Centerline | 22" |
| Max. Travel Longitudinal (Hydraulic) | 42" |
| Table Speed Infinately Variable | 10-82 Ft./min |
| Crossfeed Tranverse Travel - Auto Increment | 0.08" - 0.39" |
| Max. Auto Traverse Travel | 45" |
| Handwheel Per Revolution | 0.2" |
| Handwheel Per Graduation | 0.001" |
| Wheelhead Vertical Downfeed Per Graduation | 0.001" |
| Grinding Wheel Speed | 1500 RPM |
| Grinding Spindle Motor HP | 7.5 HP |
| Standard Grinding Wheel Diamentions | 14" x 2" x 5" |
| Dimensions | 131" x 90" x 100" |
| Weight | 10560 pounds |
|
Automatic Grinder

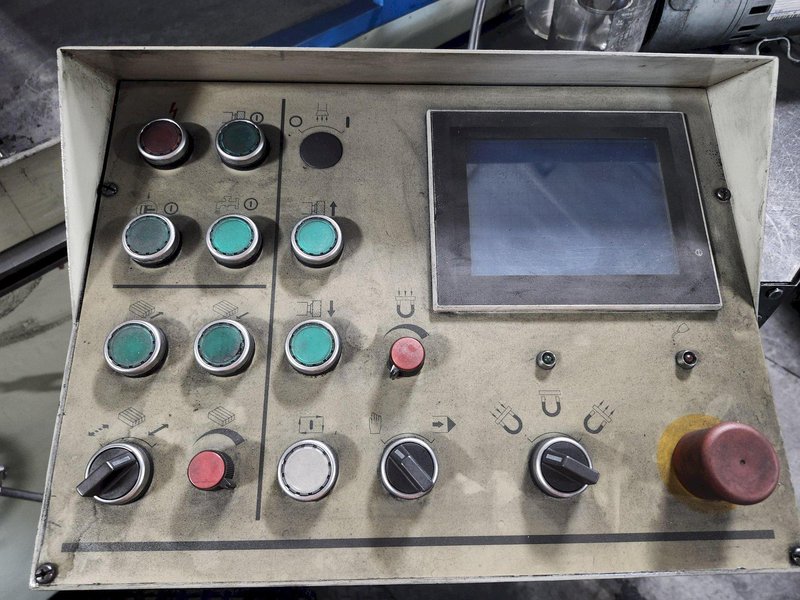

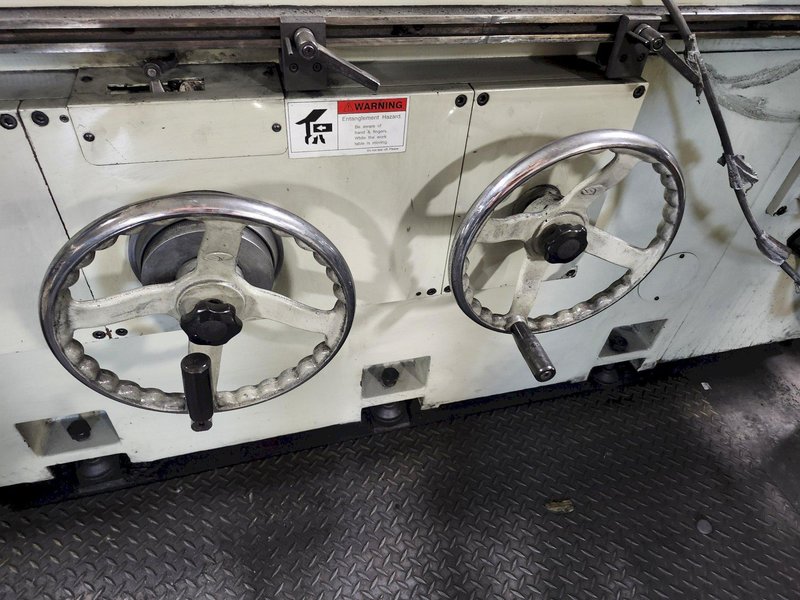

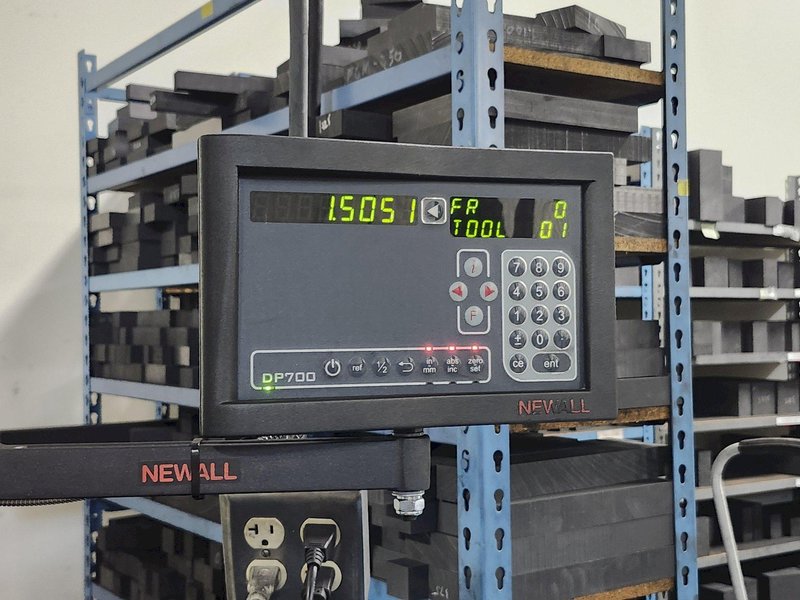

Mitsubishi PLC Control Pedestal Mount 20" x 40" Vacuum Chuck Newall Model DP700 Digital Readout Ballscrews on downfeed and crossfeed *Downfeed Board needs repair Manual Downfeed Handwheel Handwheels on the Table (2) No Coolant Tank or System |
|
