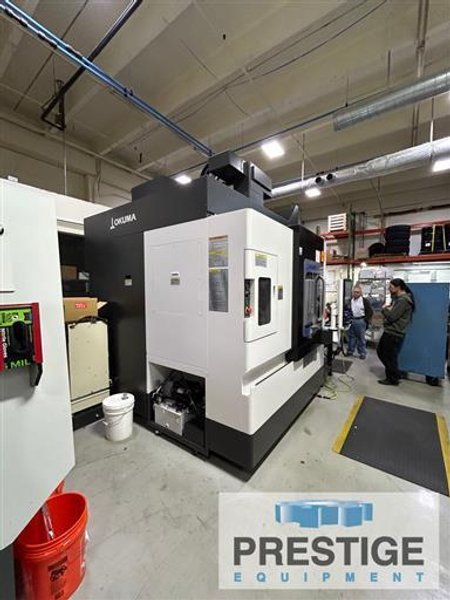

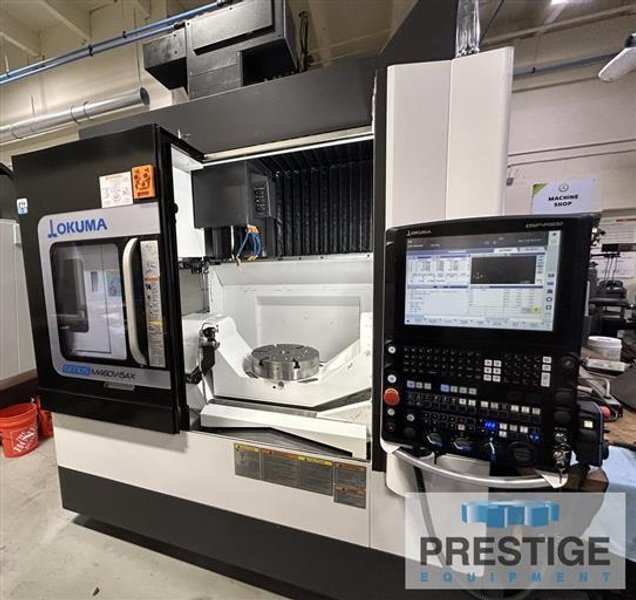

Okuma Genos M460V- 5-Axis CNC Vertical Machining Center

CAPACITIES:
X-Axis Travel 30.00"
Y-Axis Travel 18.11"
Z-Axis Travel 18.11"
A-Axis Swivel +20/-110 Degrees
C-Axis Rotation 360 Degrees
Table Surface to Spindle Nose 3.94"-22.05"
TABLE:
Rotary Table Diameter 15.75"
Max Work Size 23.62" x 15.75"
Floor To Table Top 41.34"
Max. Work Weight 660 Lbs.
SPINDLE:
Spindle Speed 50-15,000 RPM
No. Of Spindle Ranges Infinitely Variable
Spindle Taper CAT 40 Big Plus
Spindle Motor 30 HP/25 HP
FEEDS:
Rapid Traverse, X & Y Axes 1574 IPM
Rapid Traverse, Z-Axis 1259 IPM
Rapid Traverse, A-Axis 14,400 Deg. Per Minute
Rapid Traverse, C-Axis 18,000 Deg. Per Minute
Cutting Feedrate 1260 IPM
TOOL CHANGER:
Tool Capacity 48 ATC
Max. Tool Dia., Adjacent Full/Empty 3.54"/4.92"
Max. Tool Length 9.45"
Max. Tool Weight 18 Lbs.
MACHINE SIZE:
Floor Space 85" x 111"
Machine Height 115.98"
Approx. Weight 16,675 Lbs.



Equipped With:

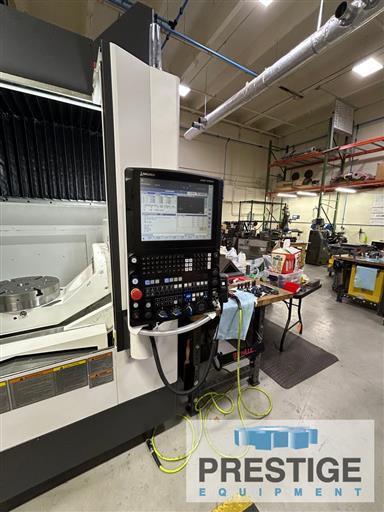

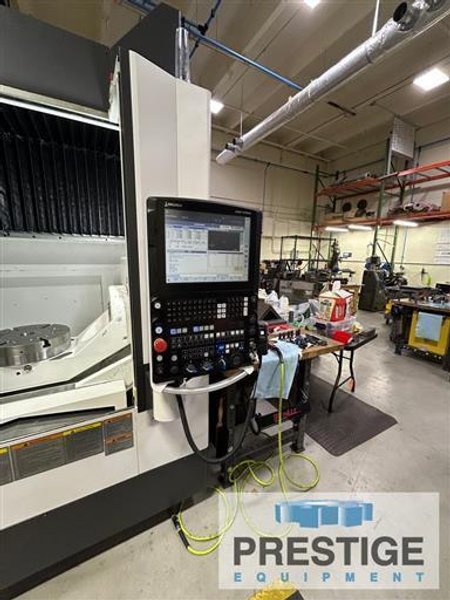

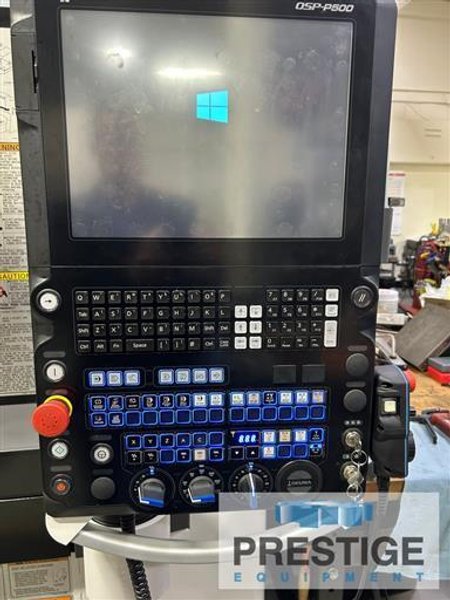

OSP-P500M-H 5-Axis CNC Control with Pulse Handle
10MB Program Select Capacity

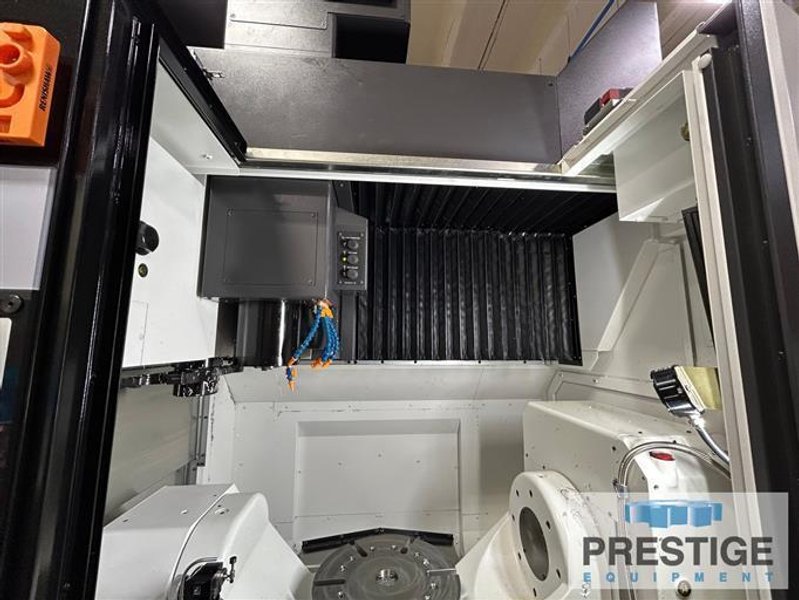

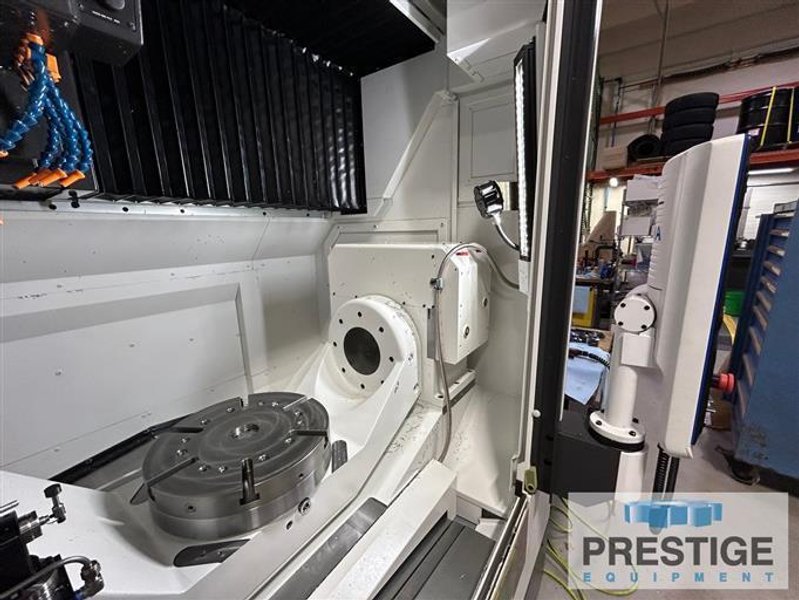

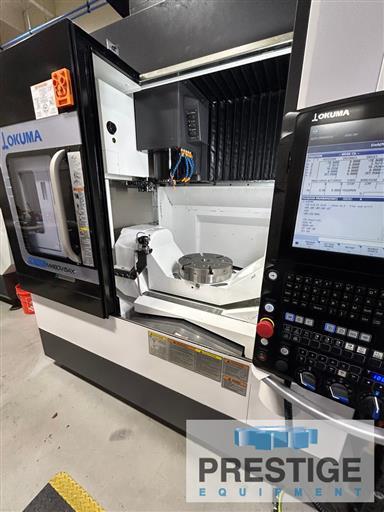

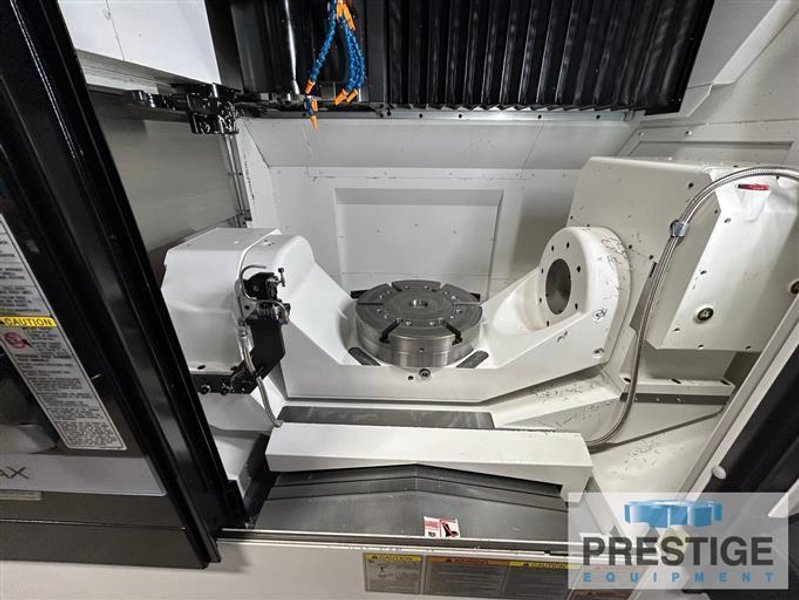

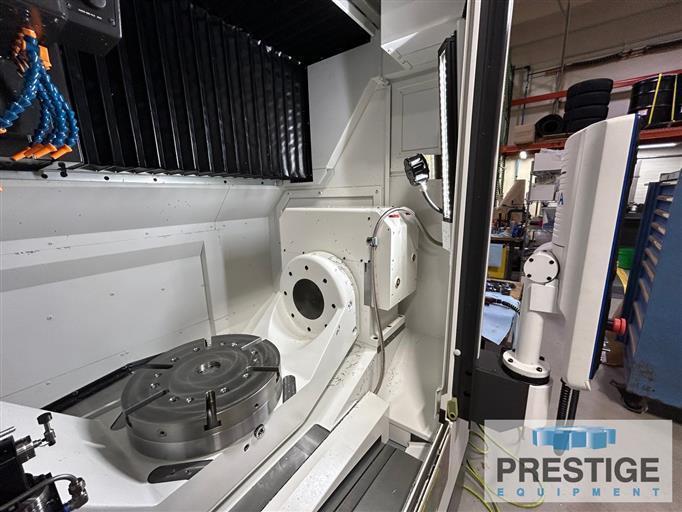

Full NC A-Axis (Trunnion) C-Axis 15.75" Table
48-Position Automatic Tool Changer

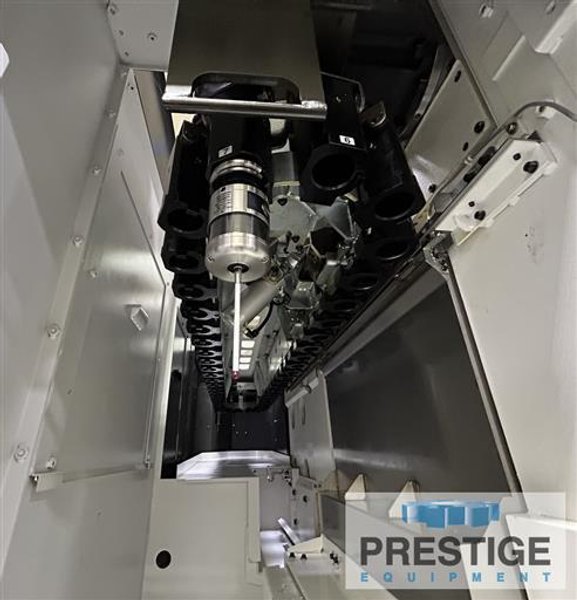

Renishaw Working & Tool Probing

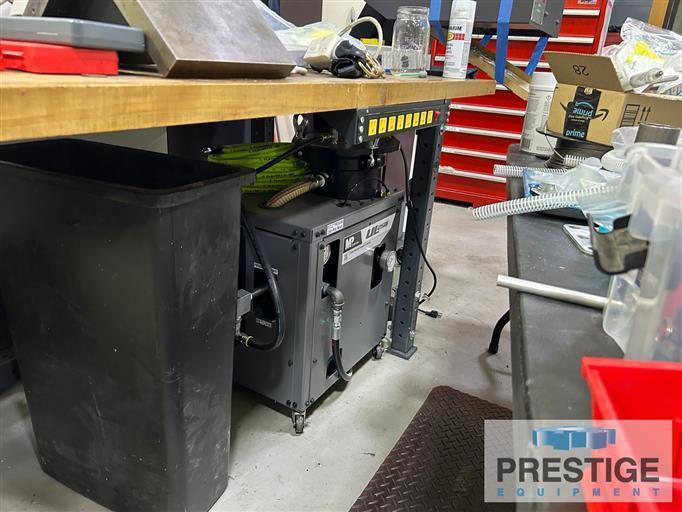

MP Systems UL250 250 PSI High Pressure Coolant System
Active/Passive Thermal Compensation
ABSO Scales for X,Y,Z Axes
Thermo Active Stabilization

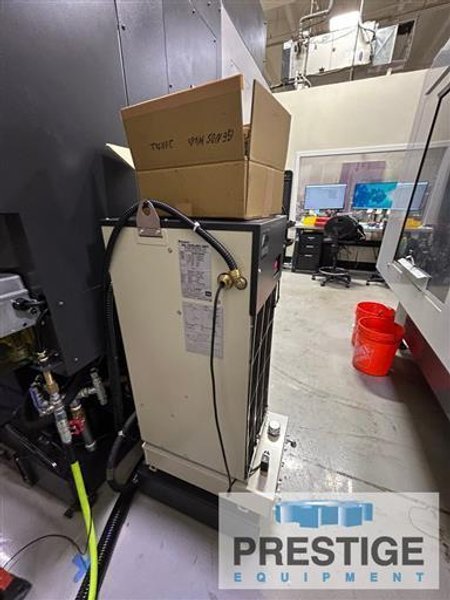

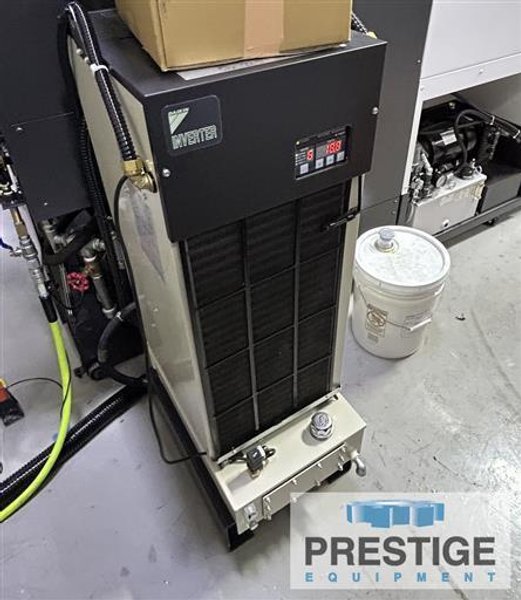

Spindle Temperature Regulator

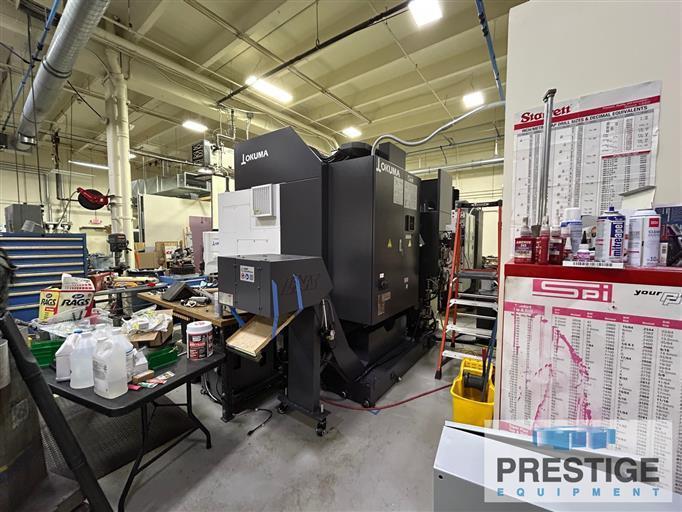

LNS Chip Conveyor


NOTE: Like New,Only Demo Hours on Machine
