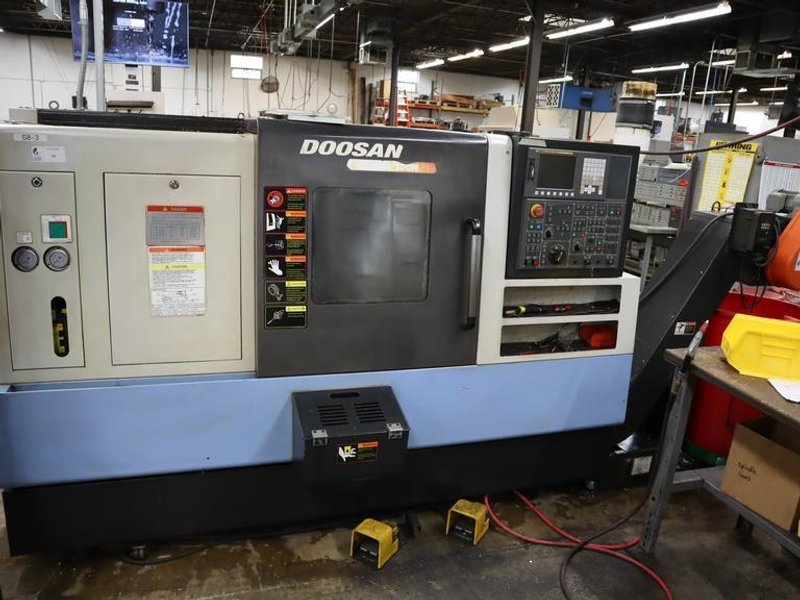

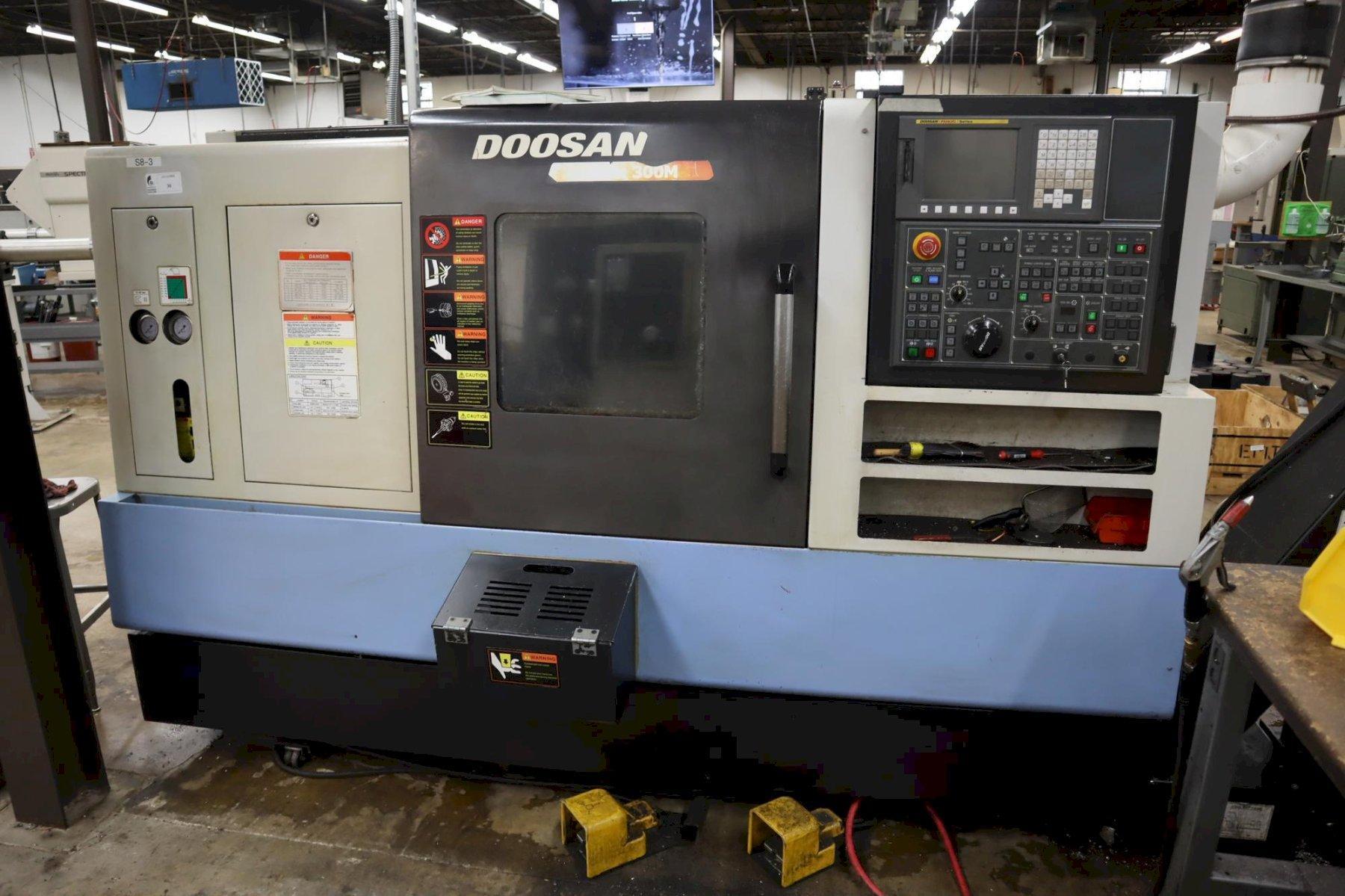

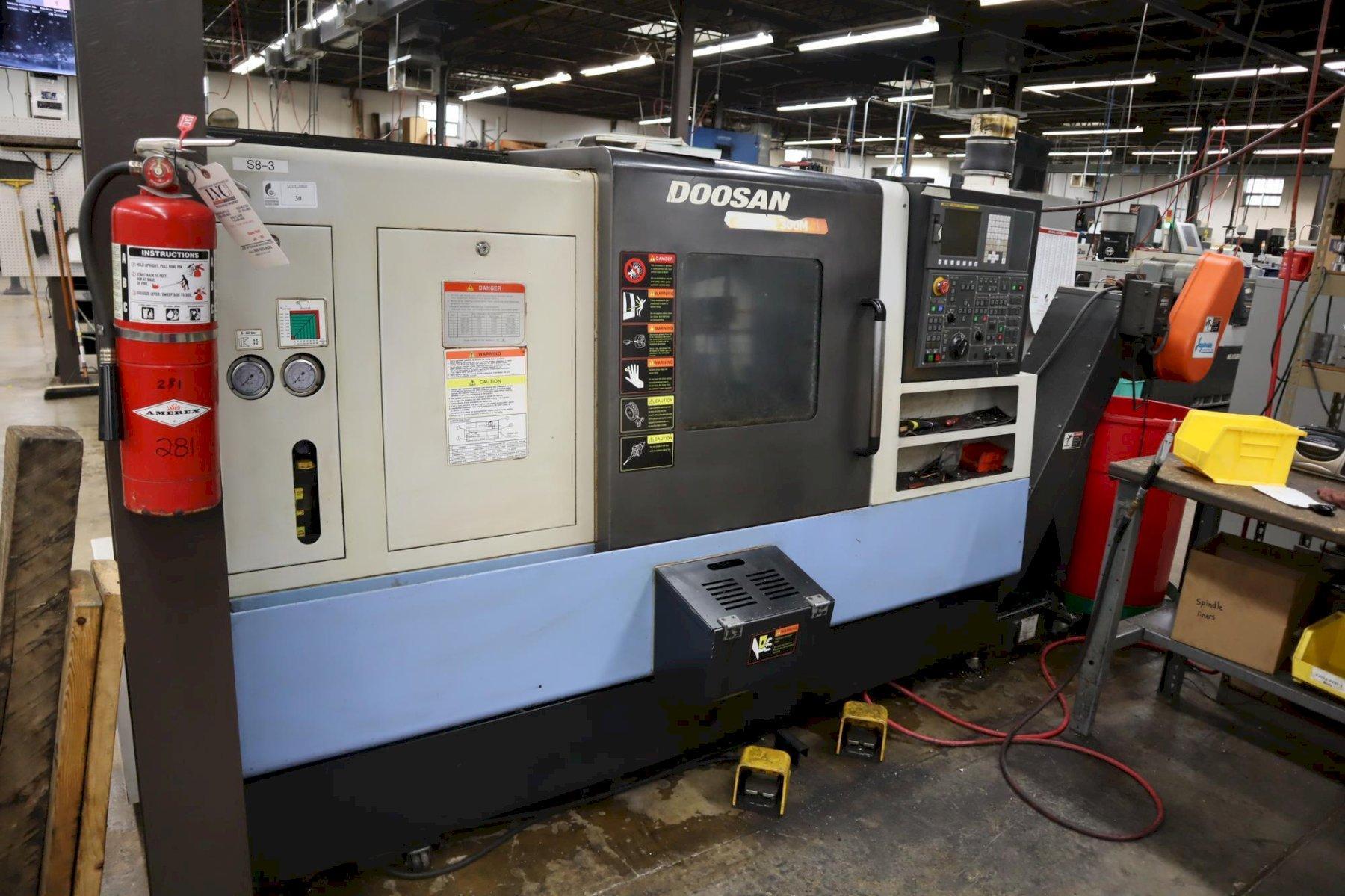

Doosan Lynx 300M CNC Turning Center with Live Milling, 12 Station Turret, 10" 3-Jaw Chuck, Tailstock, Tool Presetter, Parts Catcher, Chip Conveyor- Auction Item

Doosan Lynx 300M CNC Turning Center with Live Milling, 12 Station Turret, 10" 3-Jaw Chuck, Tailstock, Tool Presetter, Parts Catcher, Chip Conveyor- Auction Item

Name: Used DOOSAN Lynx 300M For Sale Lot No.: 30
Brand: DOOSAN
SKU: Lot No.: 30
Availability: PreOrder

Brand

DOOSAN

Location

Minnesota

REQUEST FINANCING

Specifications
Files & Videos

View Auction Item:https://www.machinesused.com/lots/47647

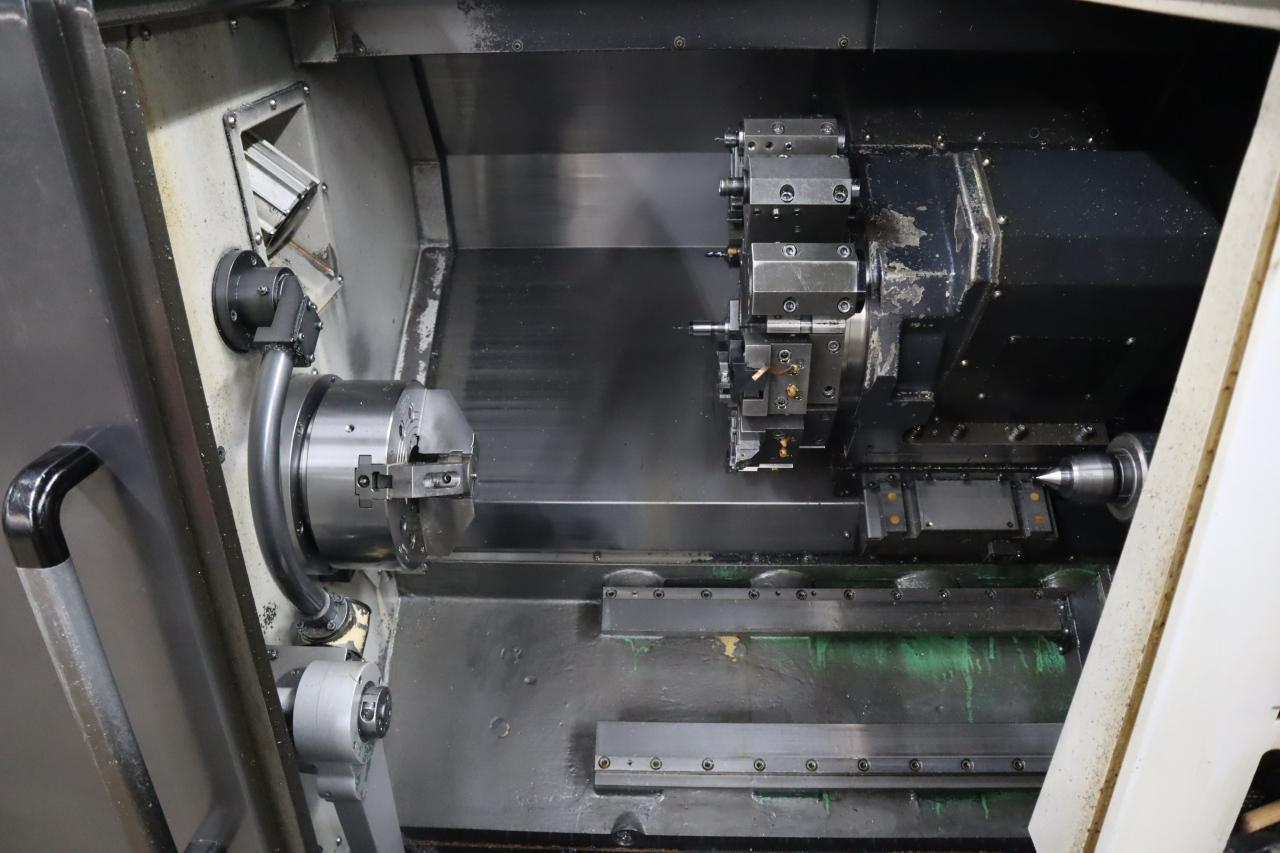

Lot 30: Doosan Lynx 300M CNC Turning Center with Live Milling, 12 Station Turret, 10" 3-Jaw Chuck, Tailstock, Tool Presetter, Parts Catcher, Chip Conveyor

Equipped With:

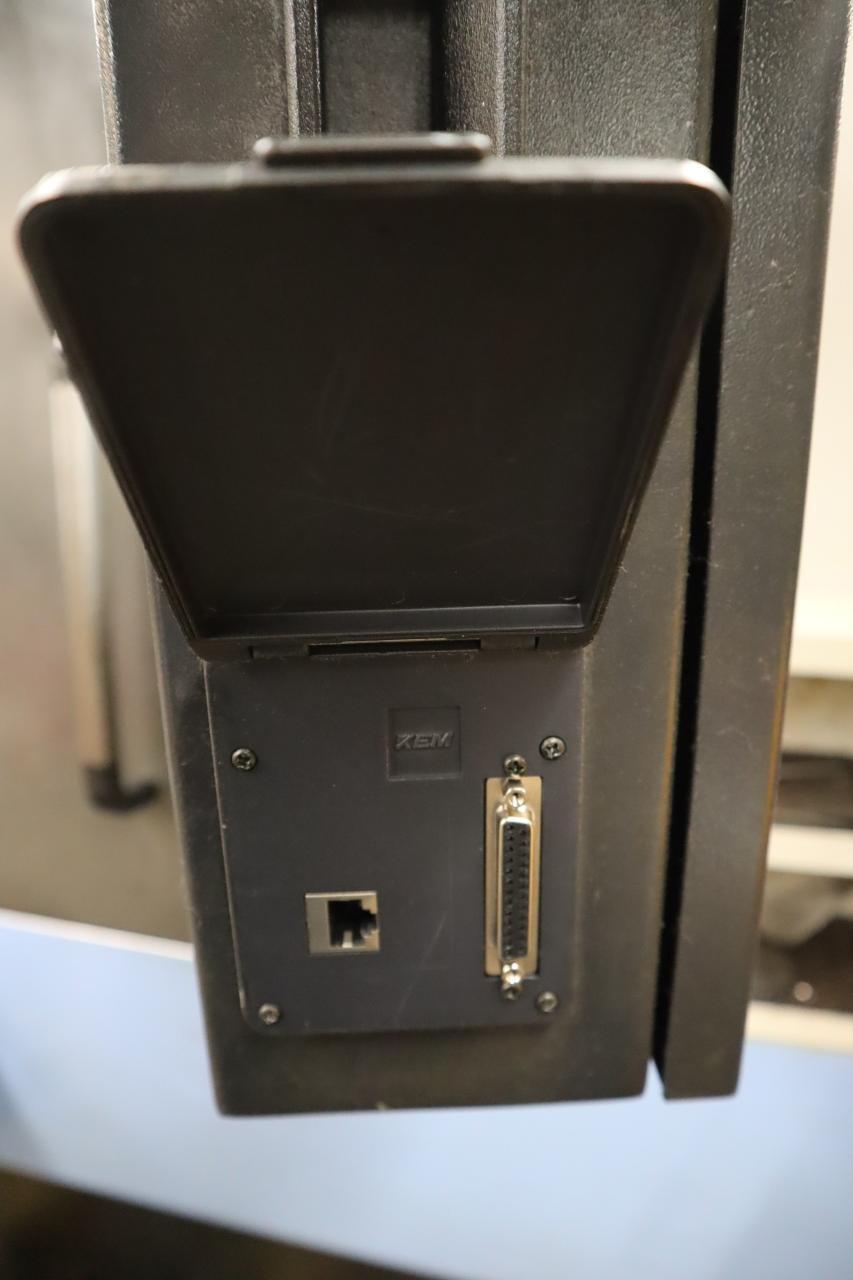

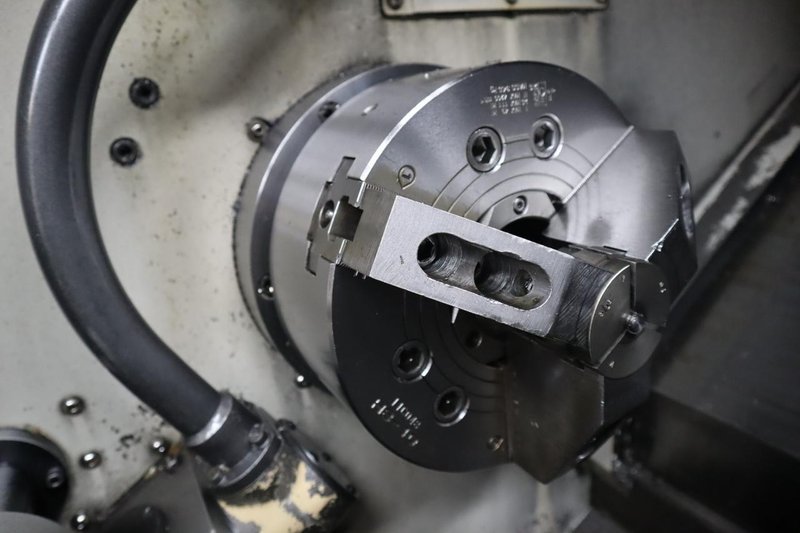

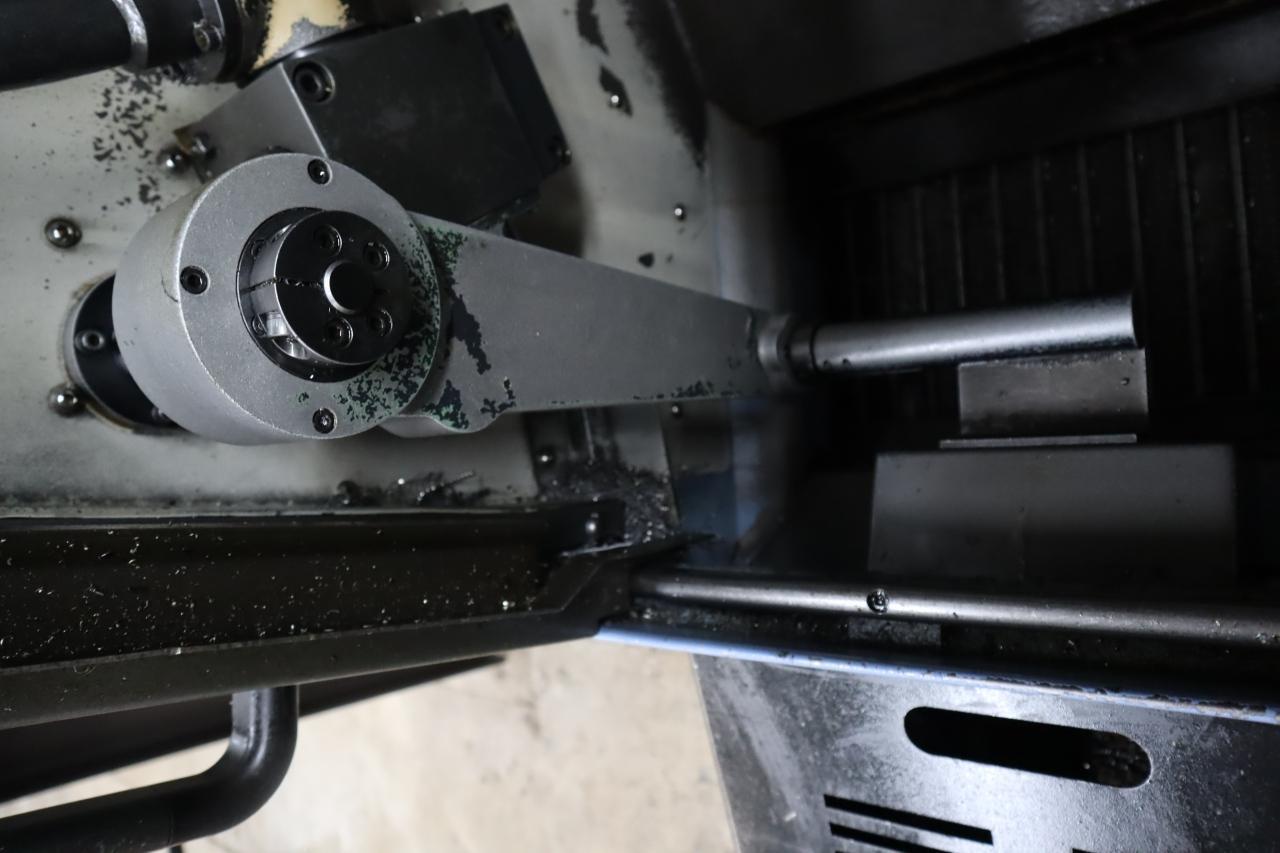

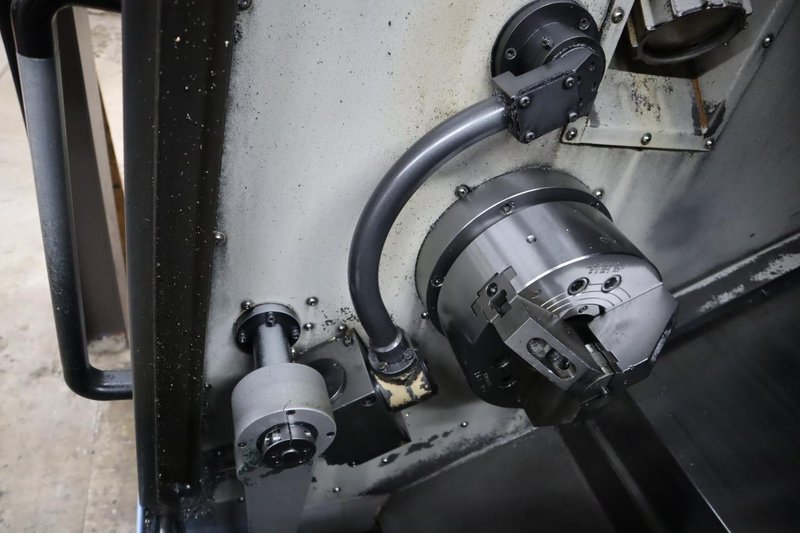

Doosan Fanuc i Series CNC Control, 3500 RPM Spindle, 10" 3-Jaw Samchully Model H3-10 Chuck, 12 Station Turret with Live Milling, Tool Presetter, Programmable Tailstock, Parts Catcher, Jorgenson Chip Conveyor, Coolant Pump and Tank, RS232 Port, Compact Flash, Ethernet, Remote Foot Trips, Assorted Static Boring Bar and Turning Holders, (1) Axial Live Tool Holder, Oil Skimmer Manuals

Electrics:

200/220 Volt, 3 phase

Manufacturer: Doosan Model: Lynx 300M Year: 2011 Serial Number: ML00032-000152

Main Unit Approx Weight: 6800.00 lbs

Main Unit Dimensions (in inches): Length: 118.00" Width: 75.00" Height: 68.00"

Components:

Machine Dimensions on Floor : Length: 156.00" Width: 82.00" Height: 84.00"

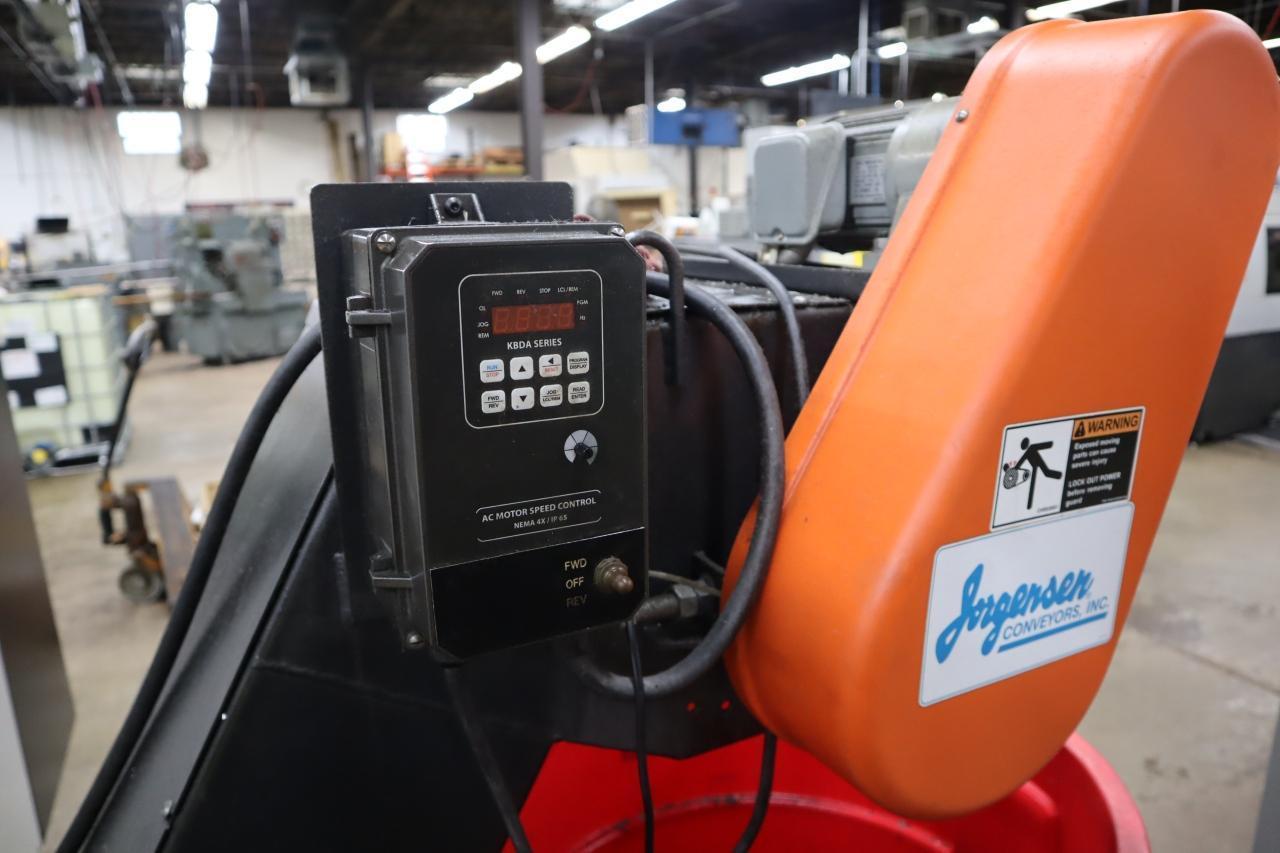

Jorgenson Chip Conveyor: Length: 148.00" Width: 20.00" Height: 64.00"

Coolant Pumpo/Tank: Length: 84.00" Width: 44.00" Height: 22.00"

Specs:

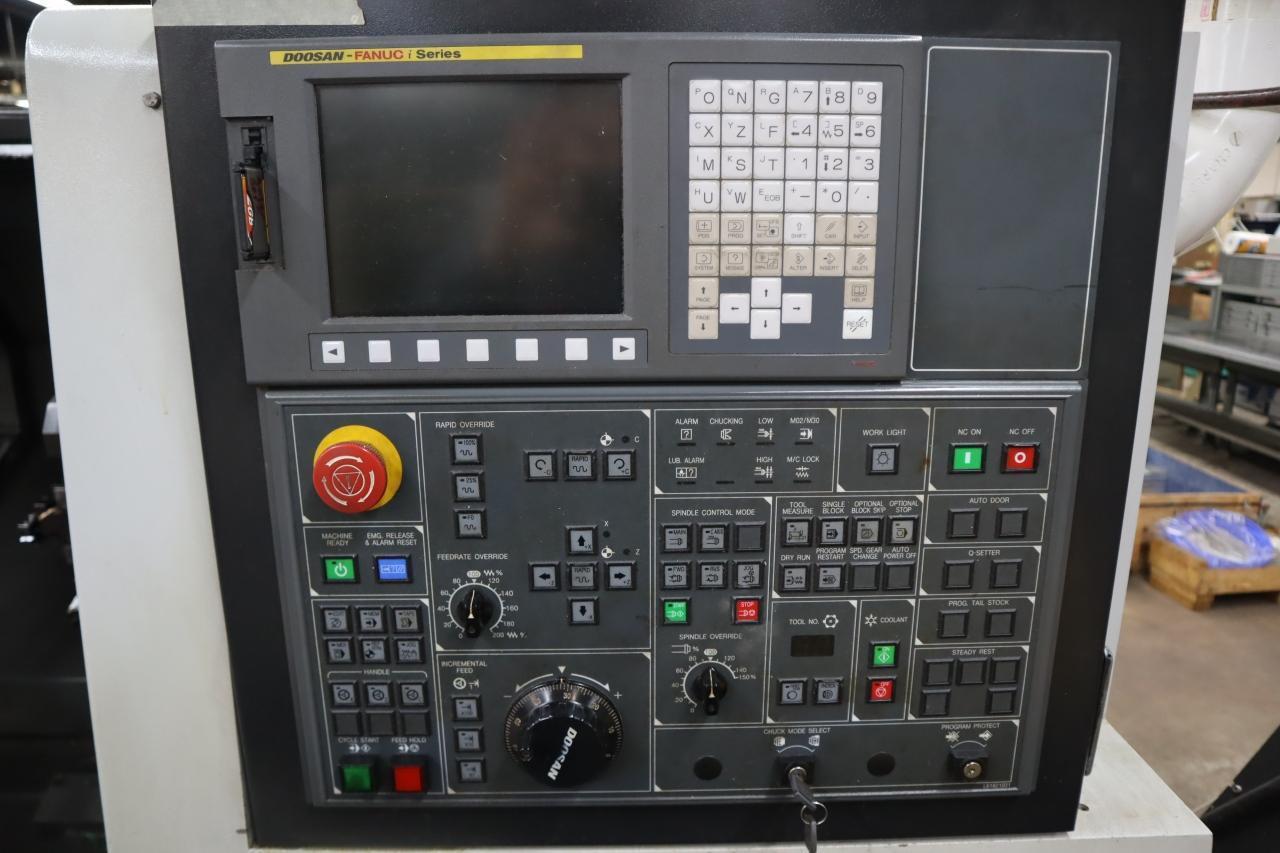

Control: Doosan Fanuc i Series CNC Control

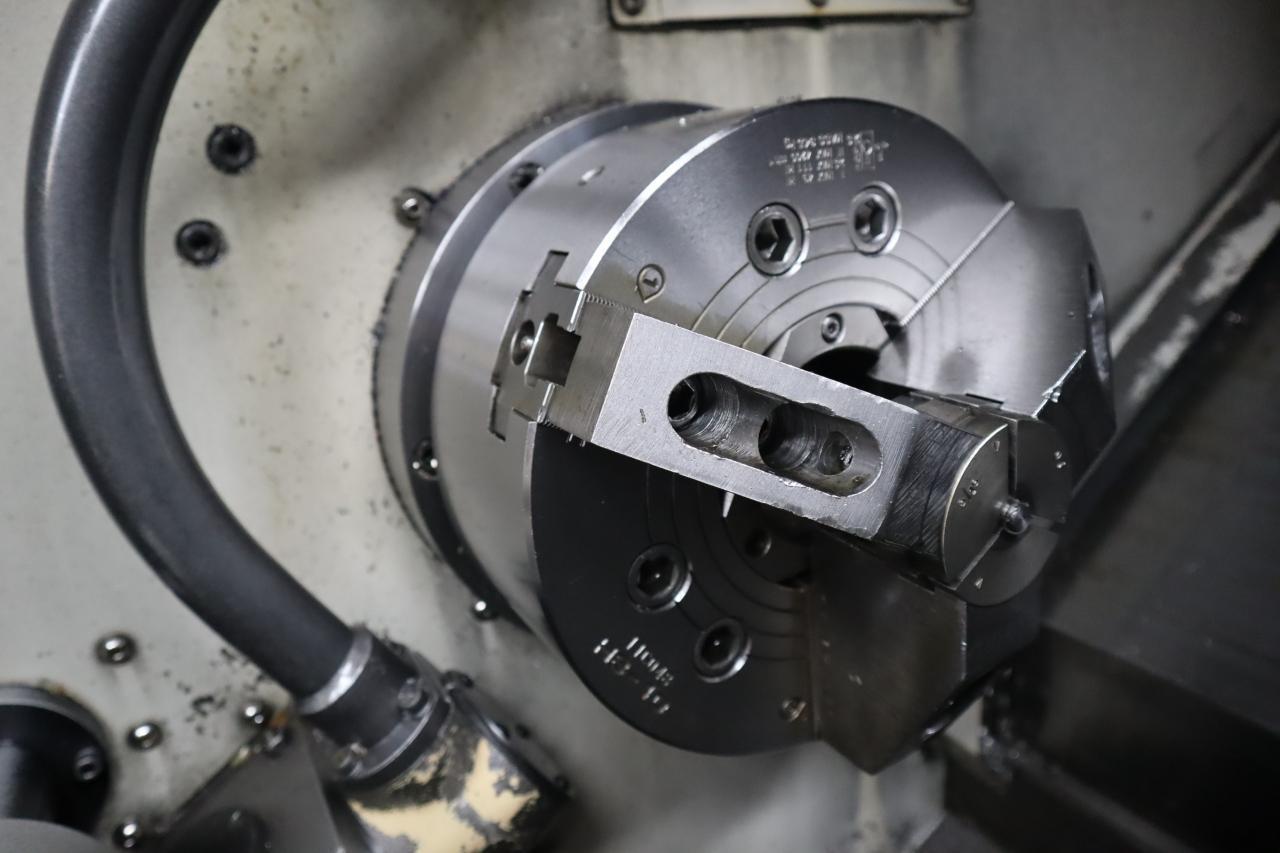

Chuck Size: 10"

Swing Over Bed: 25.63"

Swing Over Saddle: 18.15"

Max Turning Diameter: 14.56"

Max Turning Length: 28.03"

Rapid Traverse Rates: 30 / 24 (m/min)

Max Bar Diameter: 3.0"

Spindle Speeds: 3500 RPM

Spindle Nose: A2-8

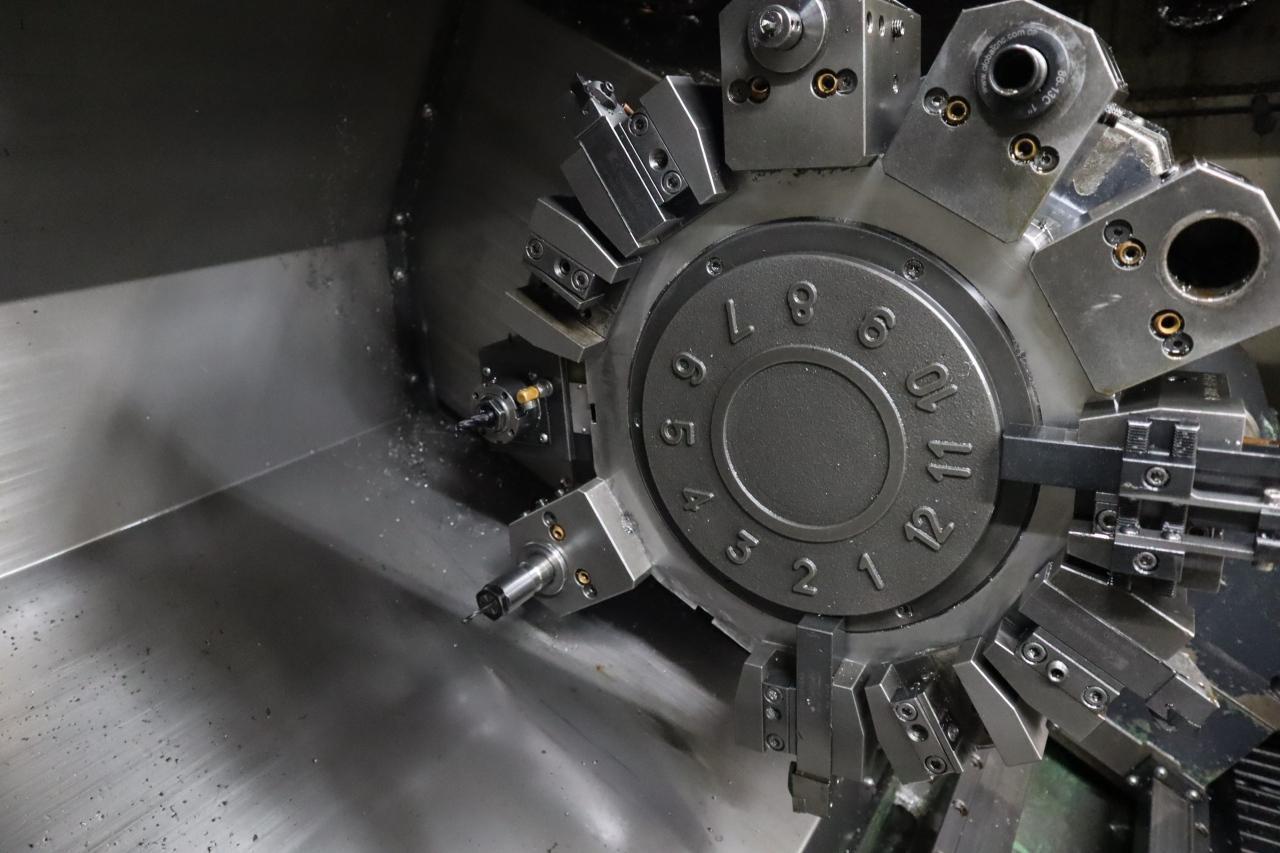

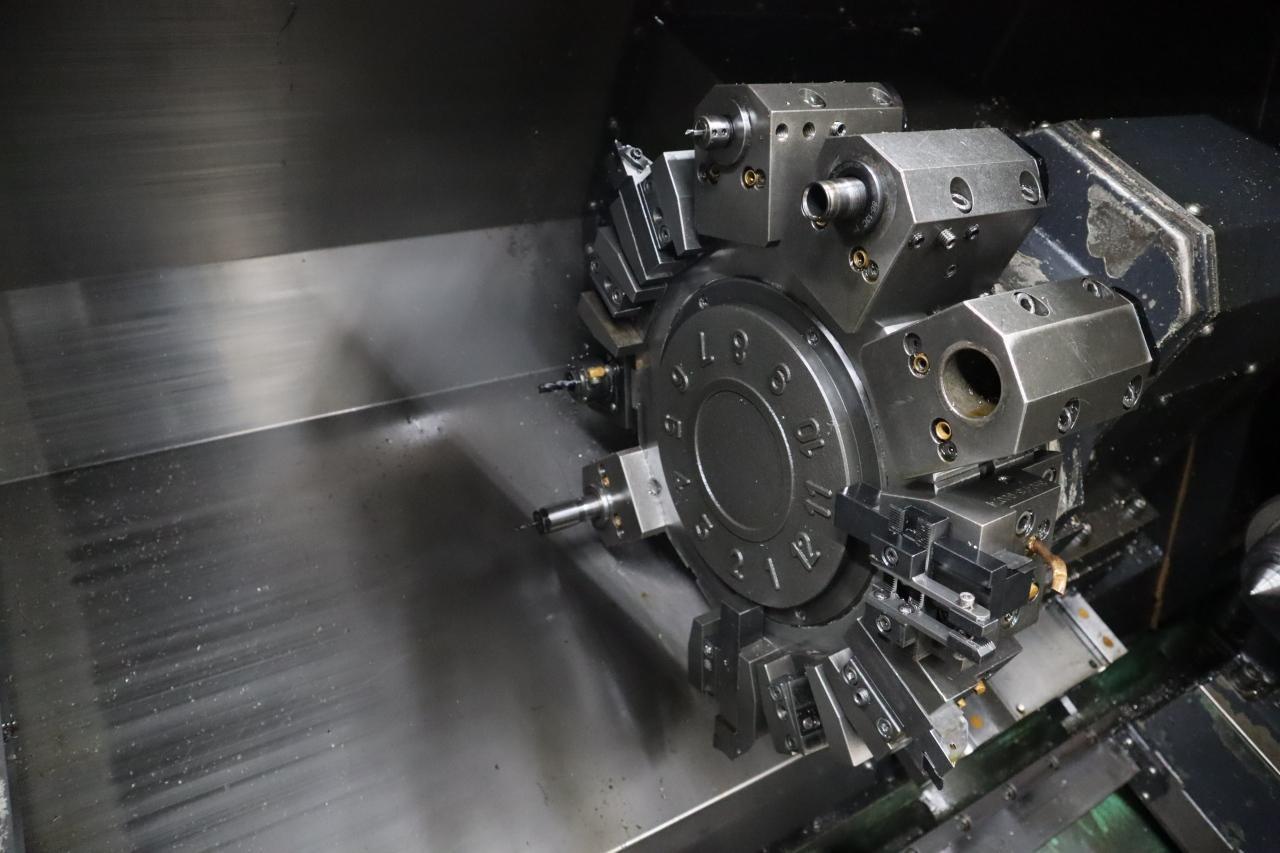

Turret Capacity: 12

Turret Travles, (X/Z): 10.04"/ 31.1"

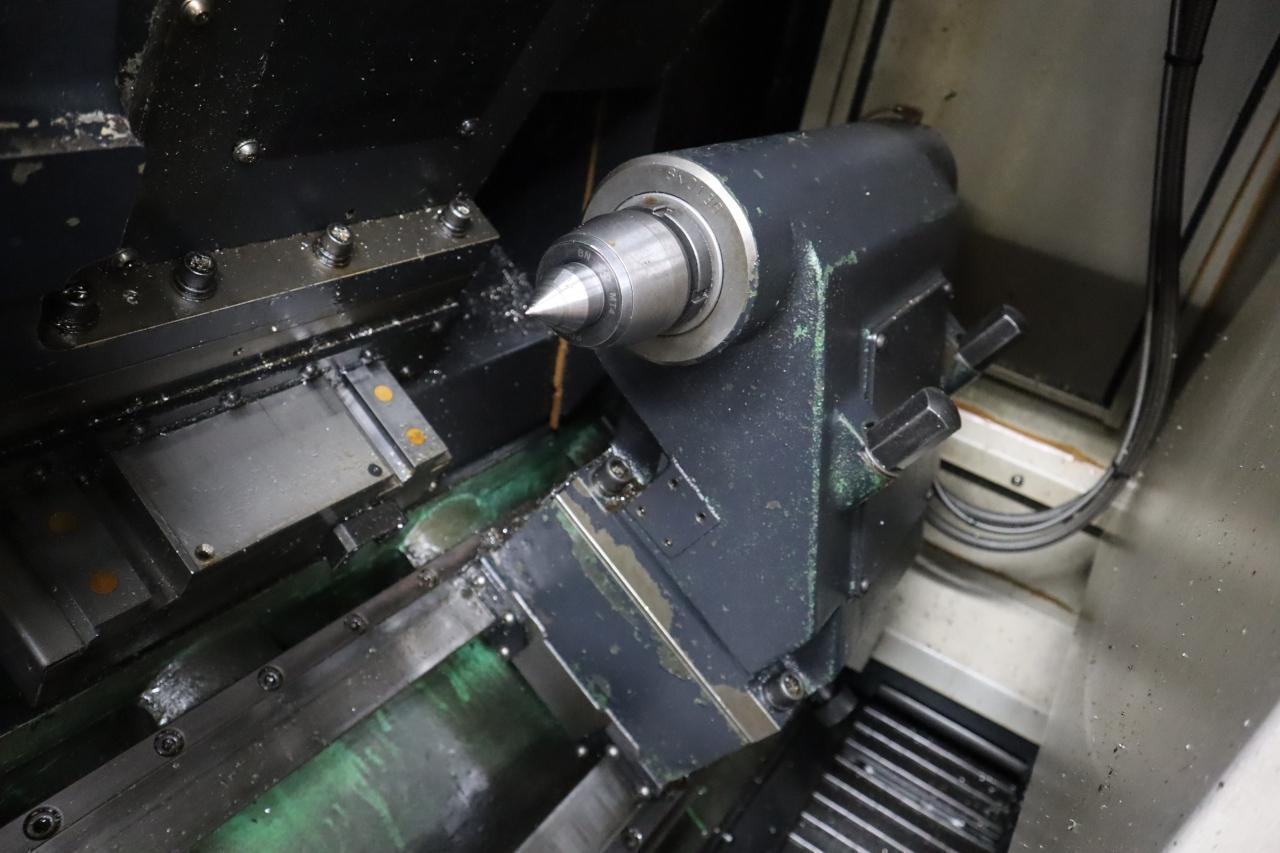

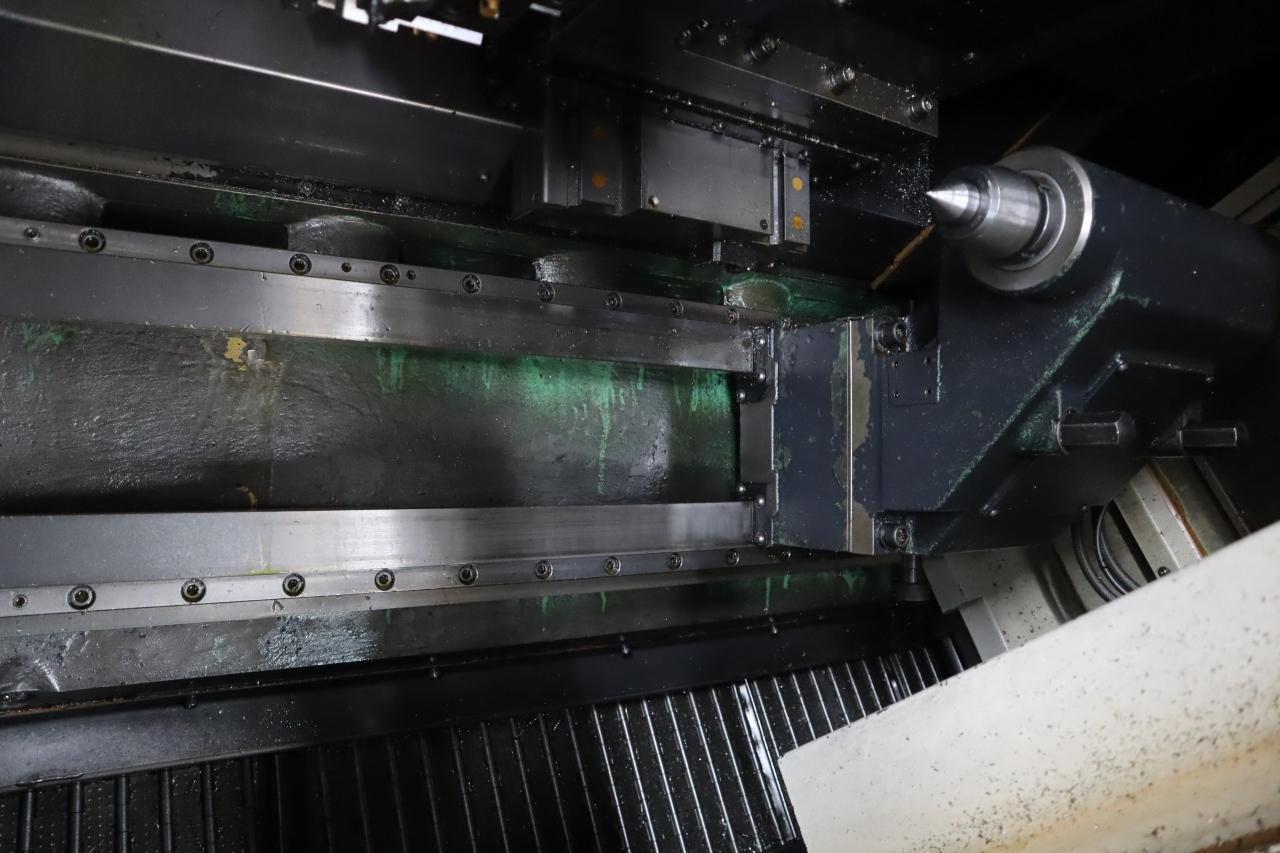

Tailstock Quill Taper: MT#4

Quill Bore Taper: MT #4

Tailstock Quill Travel: 4.72"

Seller Company: Superior Machine, Inc.

Seller Contact: Machinesused.com SuperiorAuction Phone: (763) 745-1166

Item Location: Superior Machine, Inc., 3501 Raleigh Avenue, St Louis Park, MN 55416

Location Contact: Machinesused.com SuperiorAuction Phone: (763) 745-1166

Inspection Date & Time: Thursday-Friday, November 13-14, 2025 8AM to 4PM

Dock Door: 118"' x 142" Ground Level Door

Removal Dates and Times: This item must be removed between Monday, December 1, 2025 and Thursday, December 4, 2025
