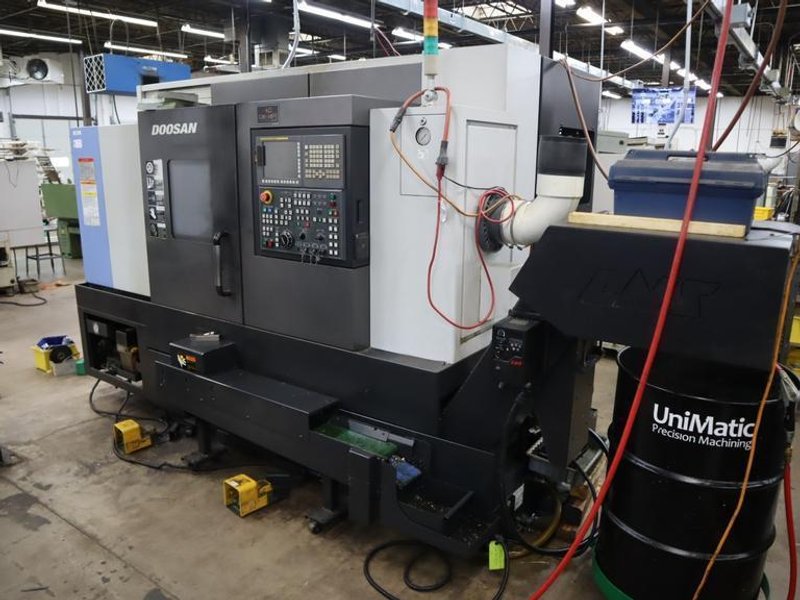

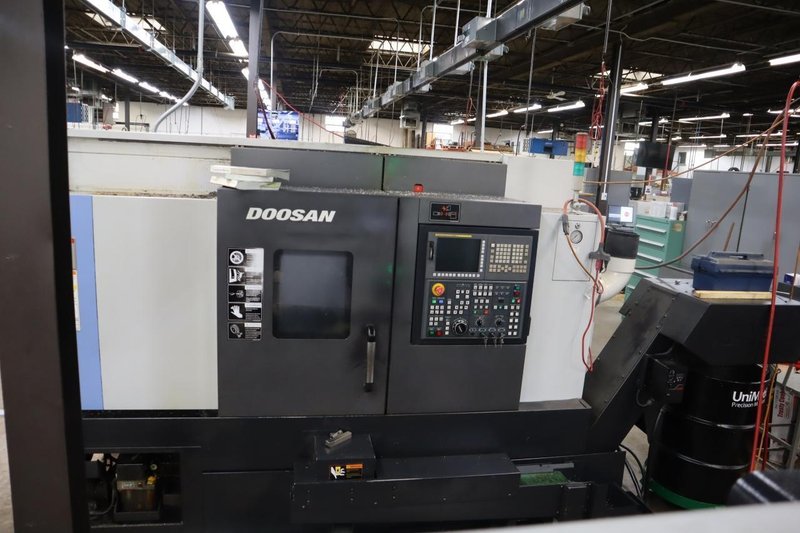

Doosan Puma 2100SY CNC Lathe, Live Milling, Y-Axis, Sub-Spindle, C-Axis Main and Sub, Chip Conveyor, Parts Catcher, Conveyor- Auction Item

Doosan Puma 2100SY CNC Lathe, Live Milling, Y-Axis, Sub-Spindle, C-Axis Main and Sub, Chip Conveyor, Parts Catcher, Conveyor- Auction Item

Name: Used DOOSAN Puma 2100SY For Sale Lot No.: 100
Brand: DOOSAN
SKU: Lot No.: 100
Availability: PreOrder

Brand

DOOSAN

Location

Minnesota

REQUEST FINANCING

Specifications
Files & Videos

View Auction Item:https://www.machinesused.com/lots/47694

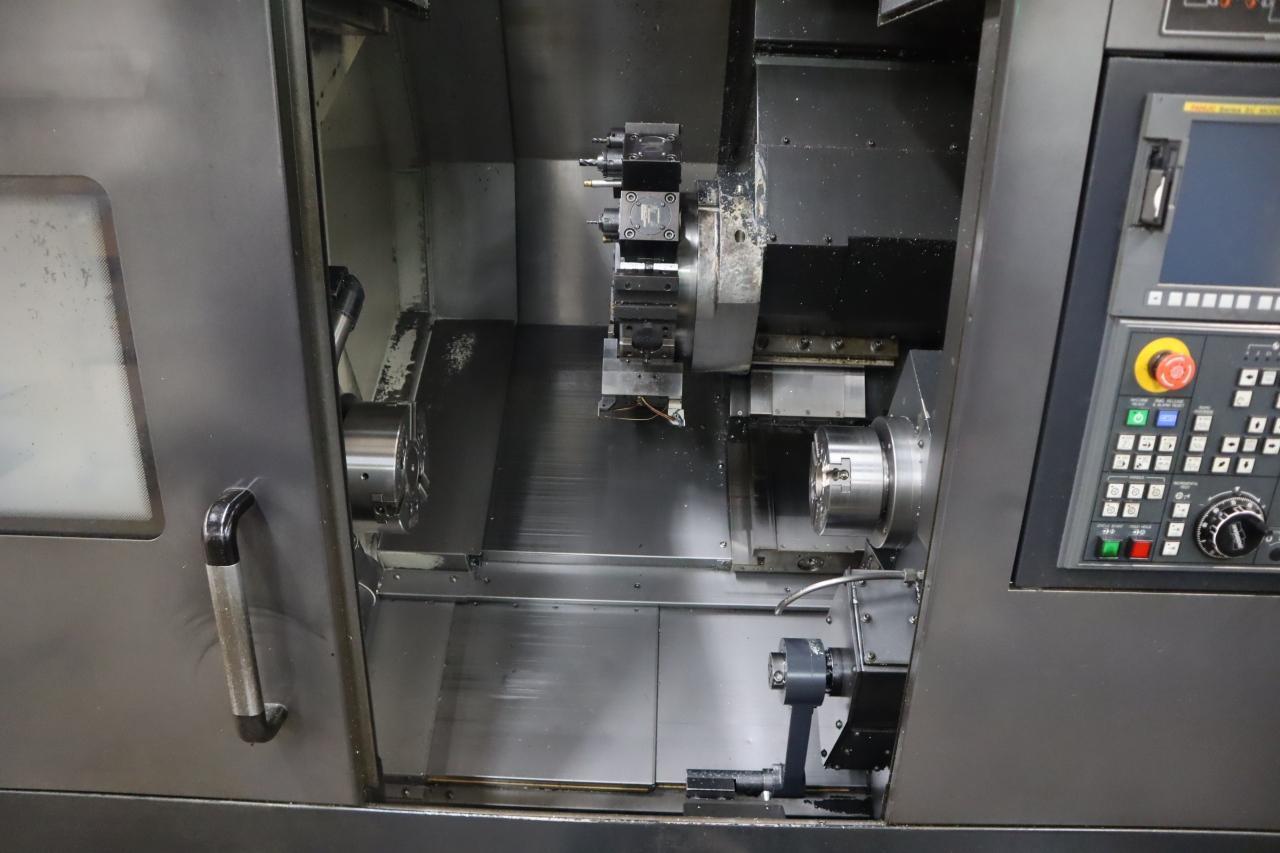

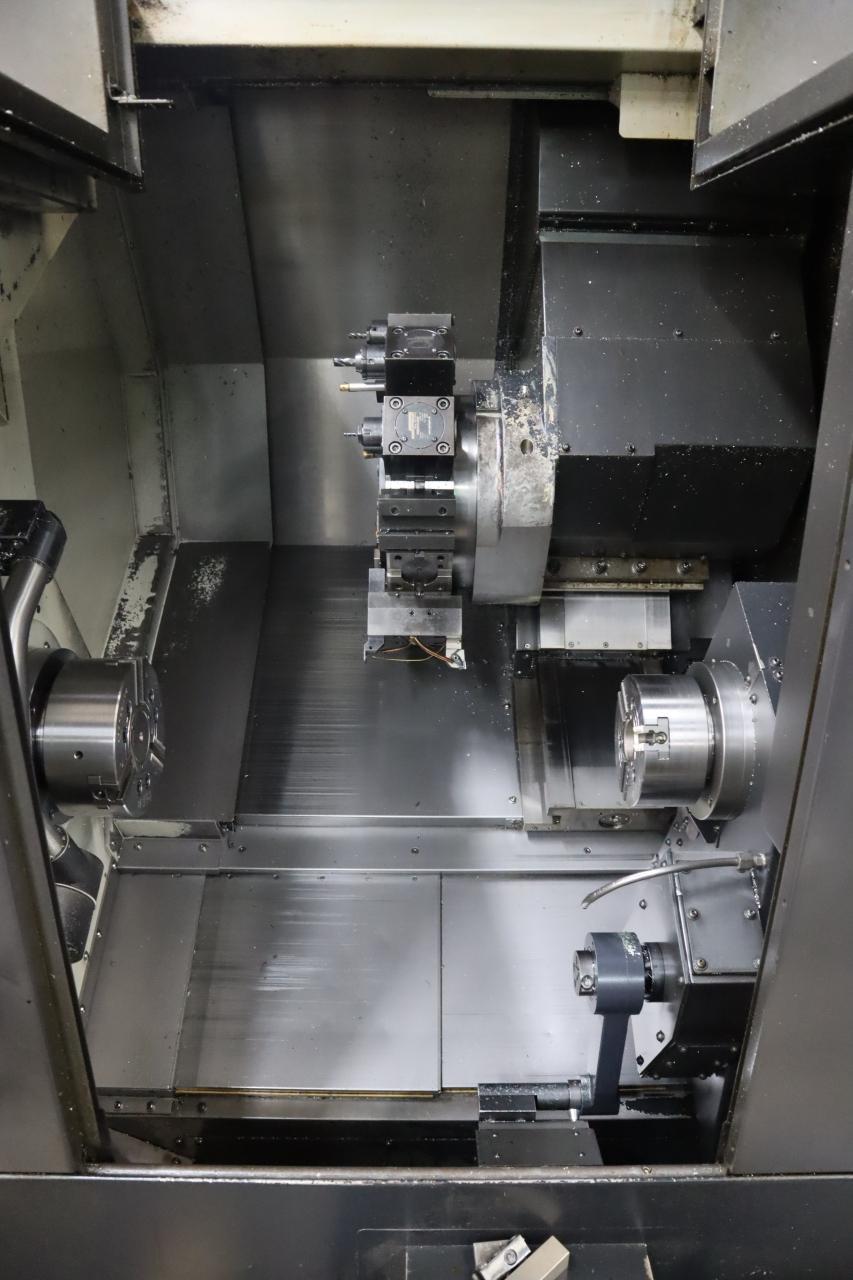

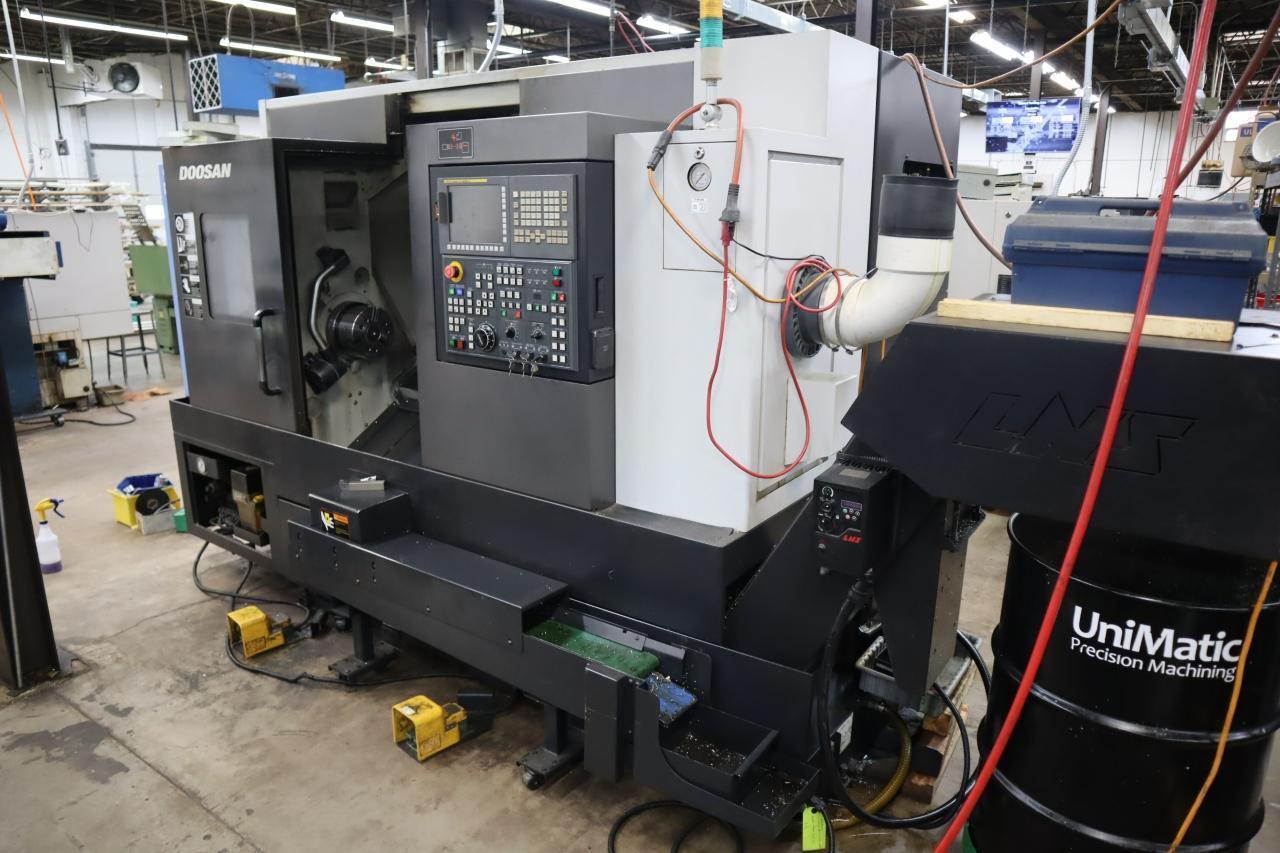

Lot 100: Doosan Puma 2100SY CNC Lathe, Live Milling, Y-Axis, Sub-Spindle, C-Axis Main and Sub, Chip Conveyor, Parts Catcher, Conveyor

Equipped With:

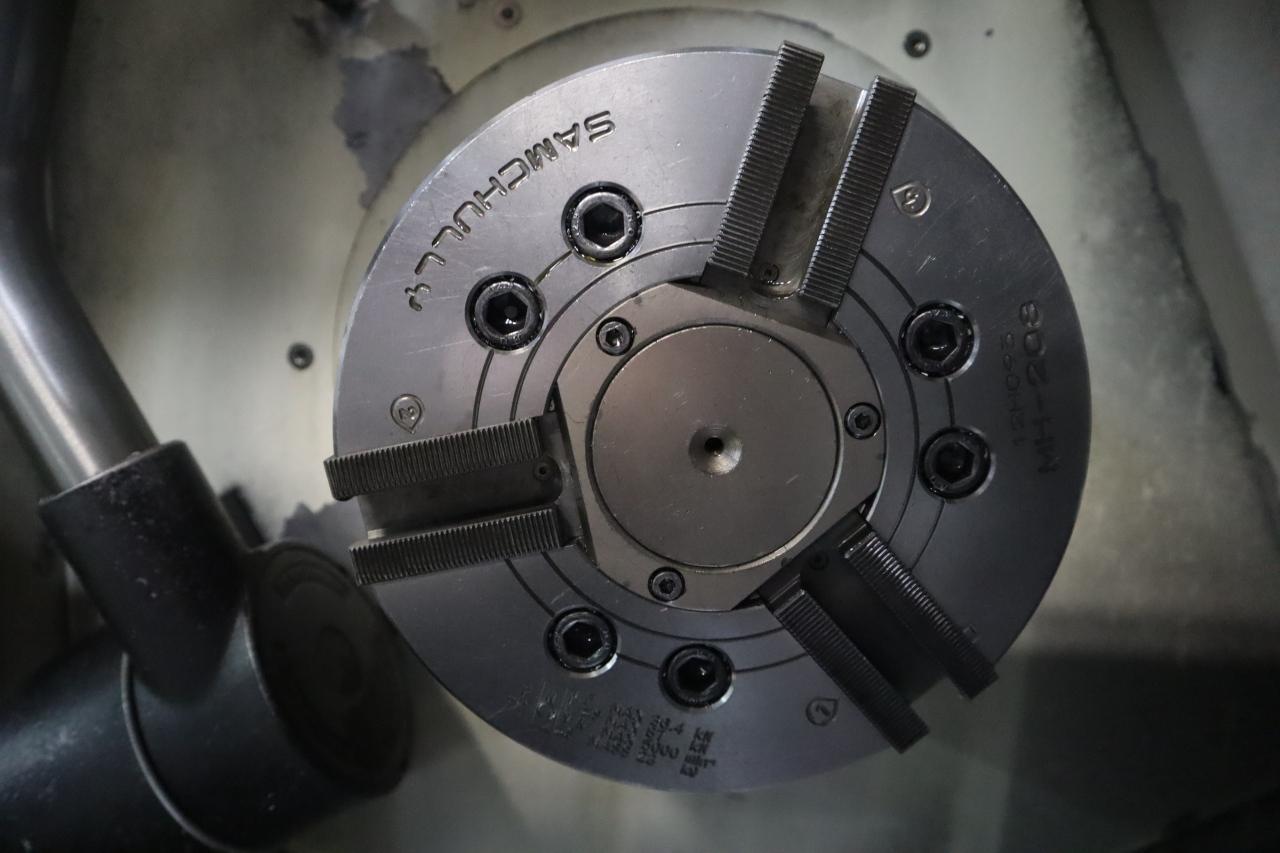

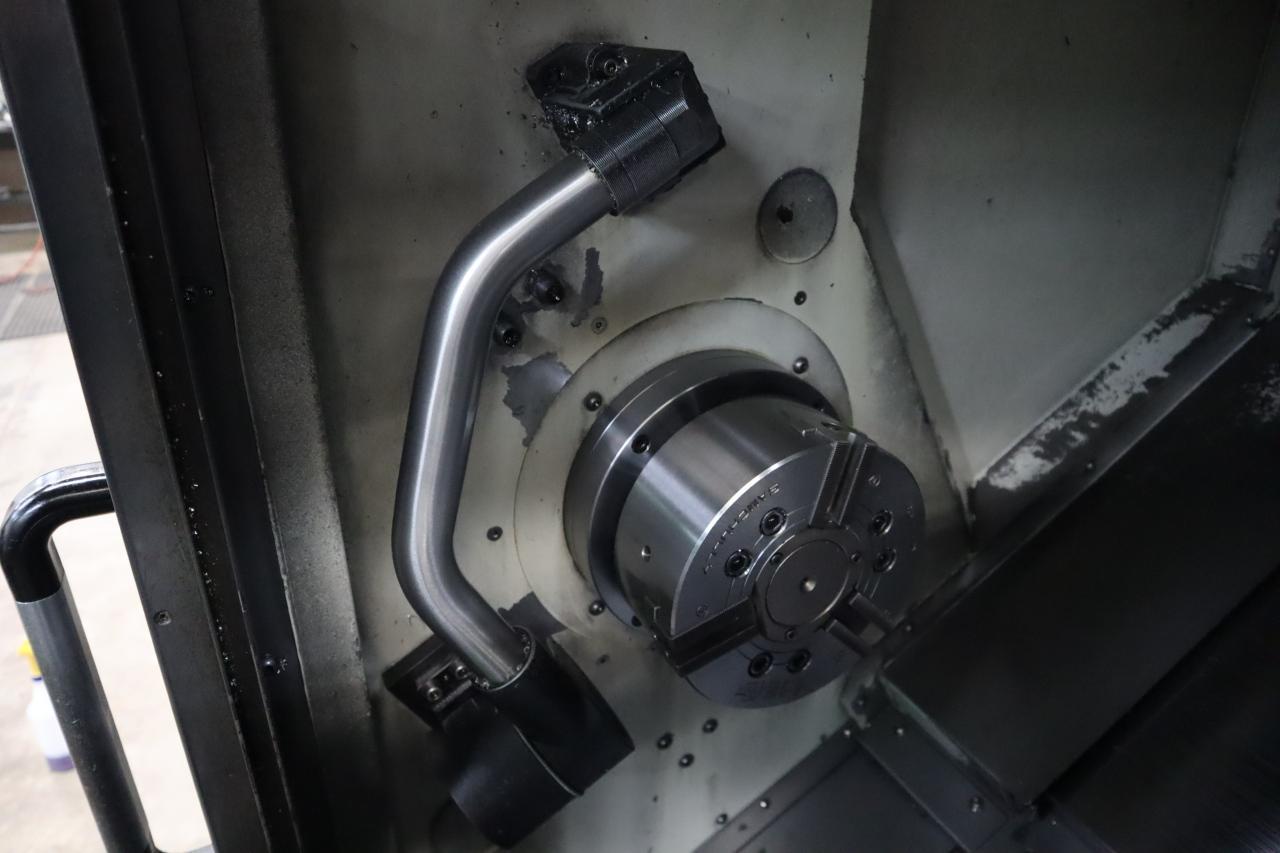

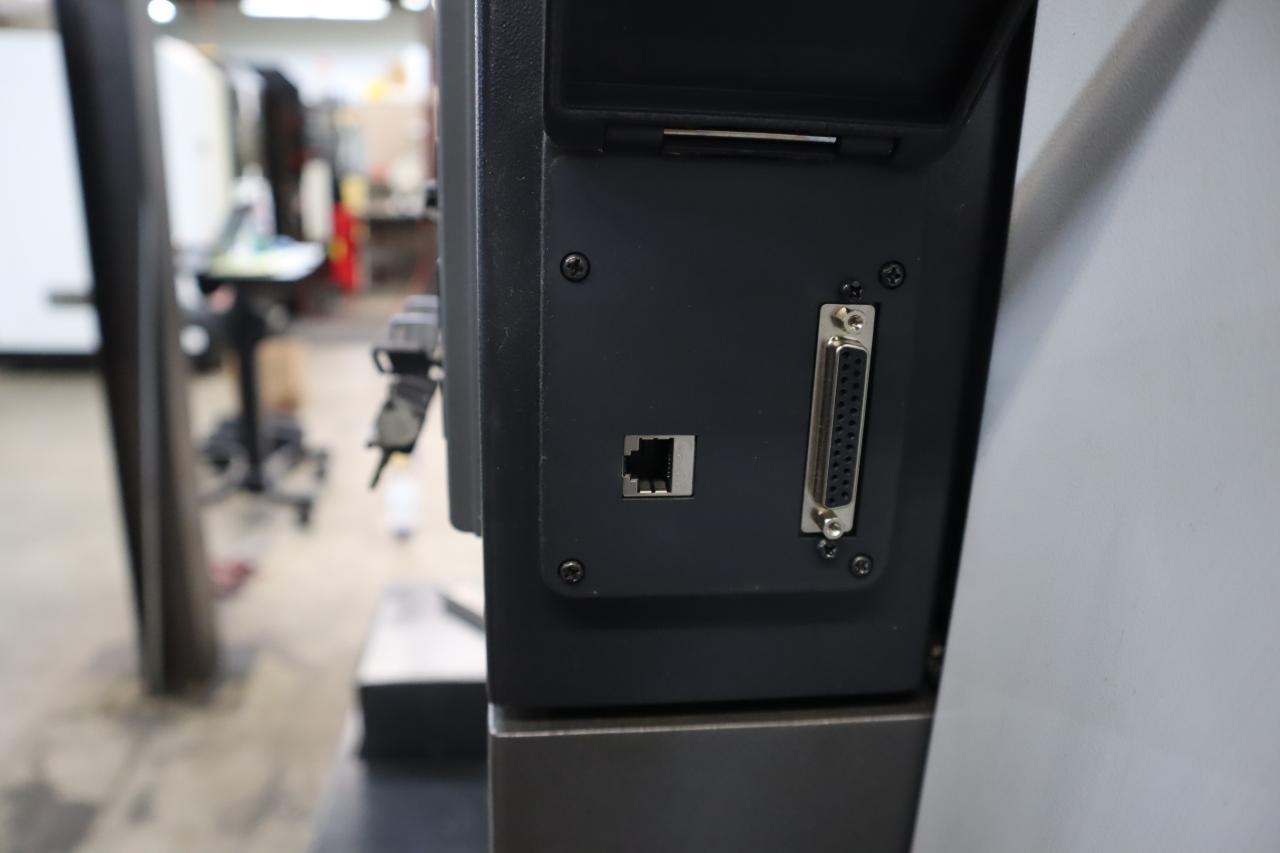

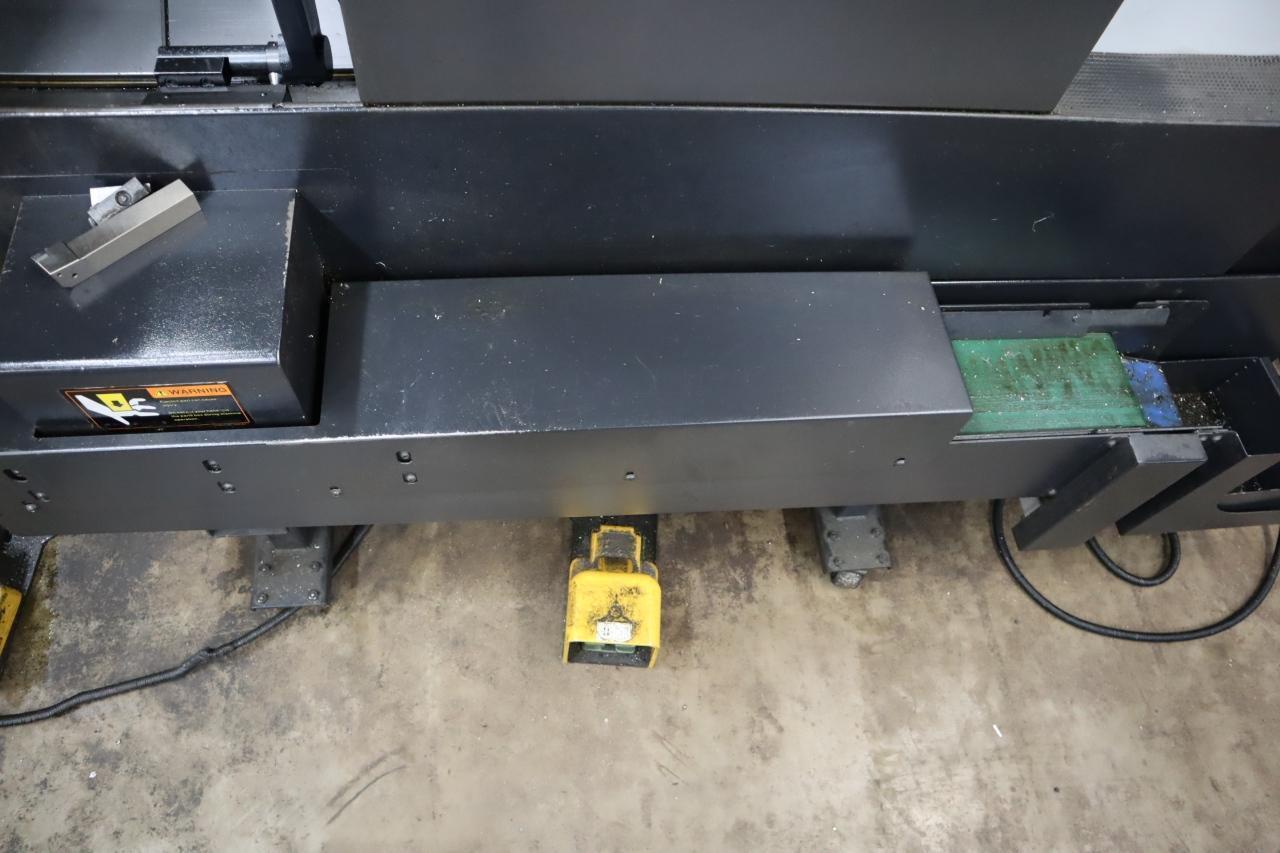

Fanuc Series 31i-Model S CNC Control, Samchully MH-208 8" 3-Jaw Main Chuck, 12 Station Turret with Live Milling, Y-Axis Programmable Turret, Sub-Spindle, C-Axis Main and Sub-Spindles, Samchully MH-206 7" 3-Jaw Chuck on Sub-Spindle, Auto Tool Presetter, Parts Catcher, Parts Conveyor, Chip Conveyor, High Pressure Coolant System, Complement of Static Boring Bars and Turret Tool Holders, (3) Eppinger Radial Live Tools, Manuals, Keys, Parameters, RS232 Port, Compact Flash, Ethernet

Manufacturer: Doosan Model: Puma 2100SY Year: 2013 Serial Number: ML0094-000431

Main Unit Approx Weight: 12015.00 lbs

Main Unit Dimensions (in inches): Length: 130.30" Width: 73.30" Height: 85.20"

Components:

LNS Chip Conveyor: Length: 124.00" Width: 24.00" Height: 56.00"

Coolant Pumps and Tank: Length: 53.00" Width: 21.00" Height: 21.00"

Machine Dimensions on Floor: Length: 160.00" Width: 78.00" Height: 85.00"

Specs:

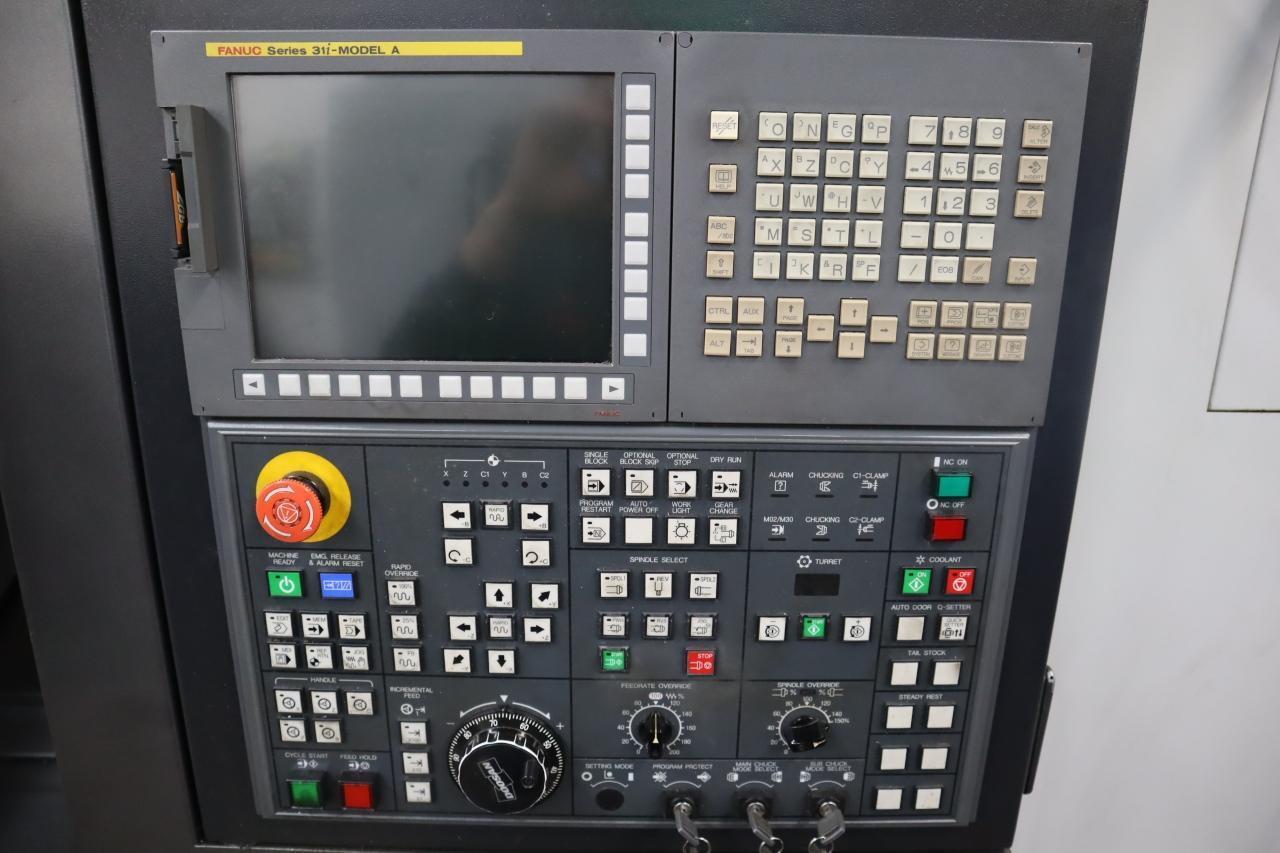

Control: Fanuc 31i - Model A CNC Control

Spindle Nose: A2-6

Main Spindle Chuck Size: 8"

Sub-SpindleChuck Size: 6"

Max Swing Over Bed: 30.7"

Max Swing Over Cross Slide: 24.8"

Max Turning Diameter: 16.0"

Max Turning Length: 20.5"

Sub-Spindle Travel: 23.2"

Main Spindle Speeds : 4500 RPM

Main Spindle Orientation: Full C-Axis (.001 Degree)

Main Spindle Drive: 25 HP

Sub-Spindle Drive : 10 HP

Live Tool Drive Motor: 7 HP

Sub-Spindle Speeds : 4500 RPM

Sub-Spindle Orientation: Full C-Axis (.001 Degree)

Main Bar Capacity: 2.6"

Sub-Spindle Bar Capacity: 2.45"

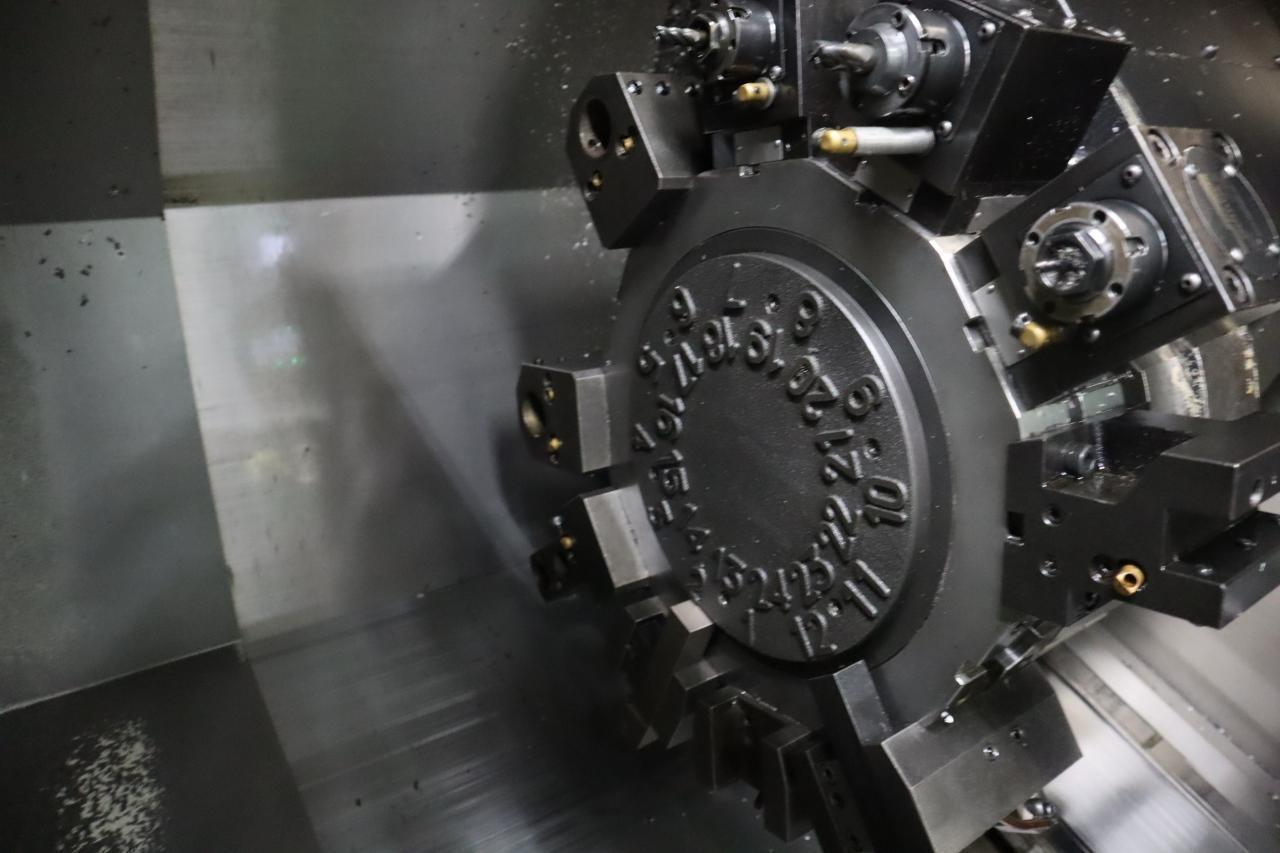

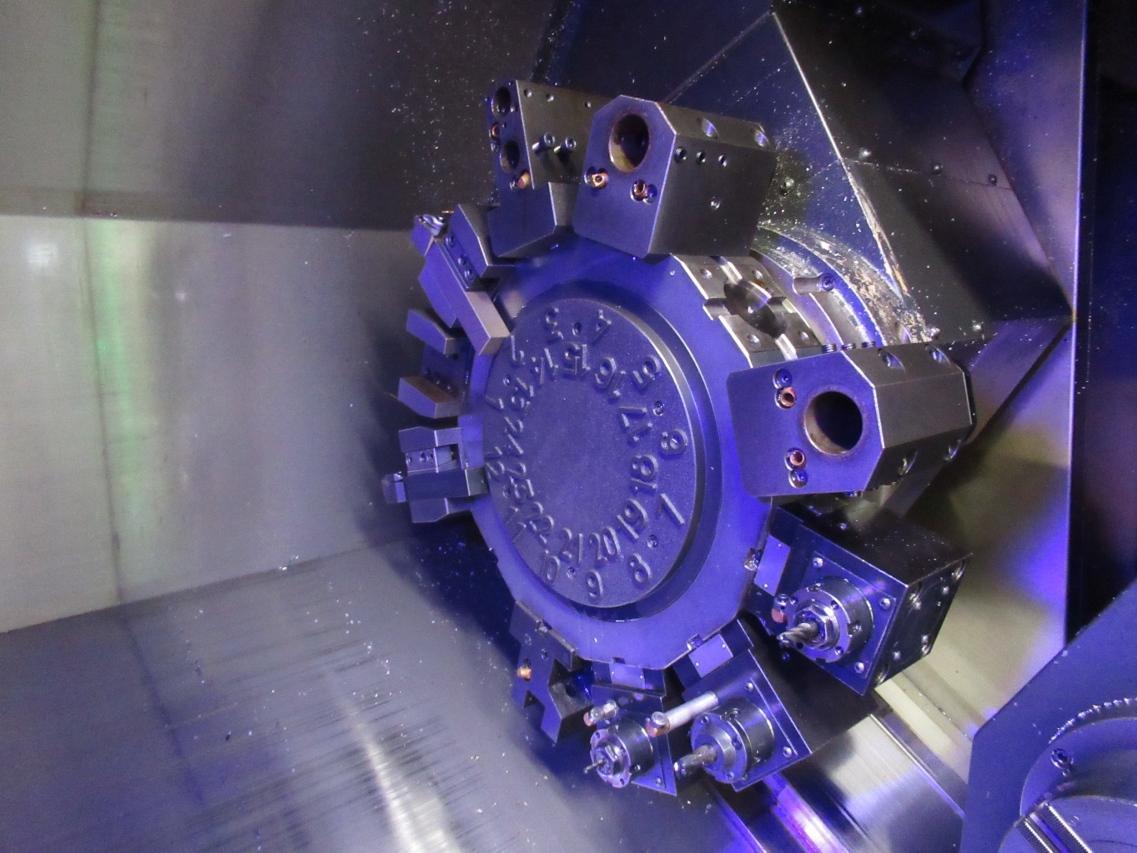

Turret Capacity: 12 Station Live Milling Capable

Turret Travels (X/Z): 10.2" x 23.2"

Live Tool Speeds: 4500 RPM

Rapids: 1,181 IPM X/Z/B Axes; 393.7 IPM Y axis

Hole Thru Spindle: 3.0"

Seller Company: Superior Machine, Inc.

Seller Contact: Machinesused.com SuperiorAuction Phone: (763) 745-1166

Item Location: Superior Machine, Inc., 3501 Raleigh Avenue, St Louis Park, MN 55416

Location Contact: Machinesused.com SuperiorAuction Phone: (763) 745-1166

Inspection Date & Time: Thursday-Friday, November 13-14, 2025 8AM to 4PM

Dock Door: 118"' x 142" Ground Level Door

Removal Dates and Times: This item must be removed between Monday, December 1, 2025 and Thursday, December 4, 2025

Click here for small item Shipping Info

Acceptable Payment: Cash, Wire Transfer, Cashier's Check, Money Order
VISA / MASTERCARD/DISCOVER ACCEPTED FOR U.S. BUYERS AMOUNTS UP TO $2,500 WITH 3% ADDITIONAL FINANCE CHARGE
ACH Auto Payment for US Buyers with Invoices $2,500 Or Under
All Payments made to Machinesused.com prior to item removal.
All Payments Due to Machinesused.com by WEDNESDAY, NOVEMBER, 29, 2025 4PM CT

Auction Held ONLINE ONLY at www.machinesused.com
15% Buyer's Premium
Applicable Sales Tax Charged - SEE SALES TAX
Auction Uses DYNAMIC CLOSE: Click Here for More Info
All Items Sold As Is, Where Is - Buyers Responsible for Inspection & Removal
CLICK HERE FOR TERMS AND CONDITIONS
ALL ITEMS MUST BE REMOVED BY THURSDAY, DECEMBER 4, 2025 4PM CT
ALL PAYMENTS DUE BY WEDNESDAY, NOVEMBER, 29, 2025 4PM CT

NOTE: ALL ITEMS REQUIRING FORKLIFT FOR REMOVAL
EXCLUSIVE RIGGER FOR THIS AUCTION WILL BE ON-SITE TO LOAD
RIGGER DATES: Monday-Wednesday, December 1-3, 2025
SCHEDULE AN APPOINTMENT IN ADVANCE

Buyer is responsible for machinery preparation.
