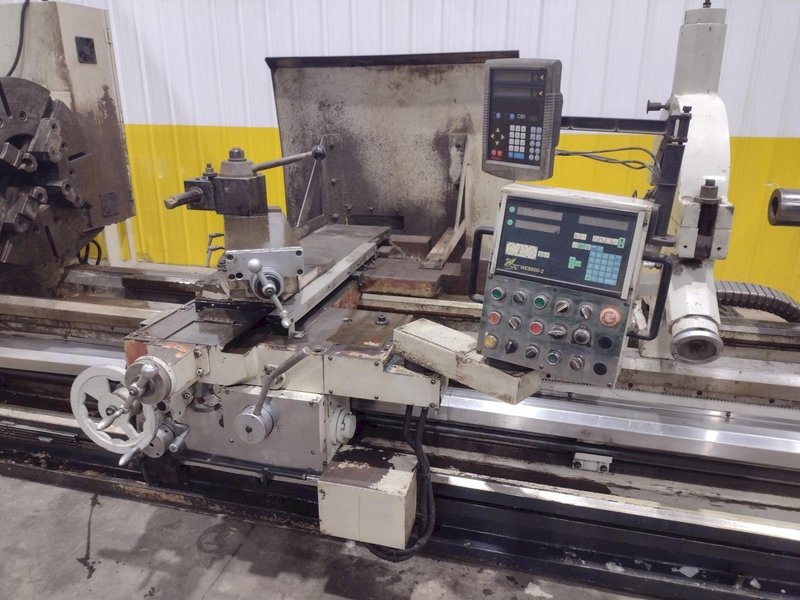

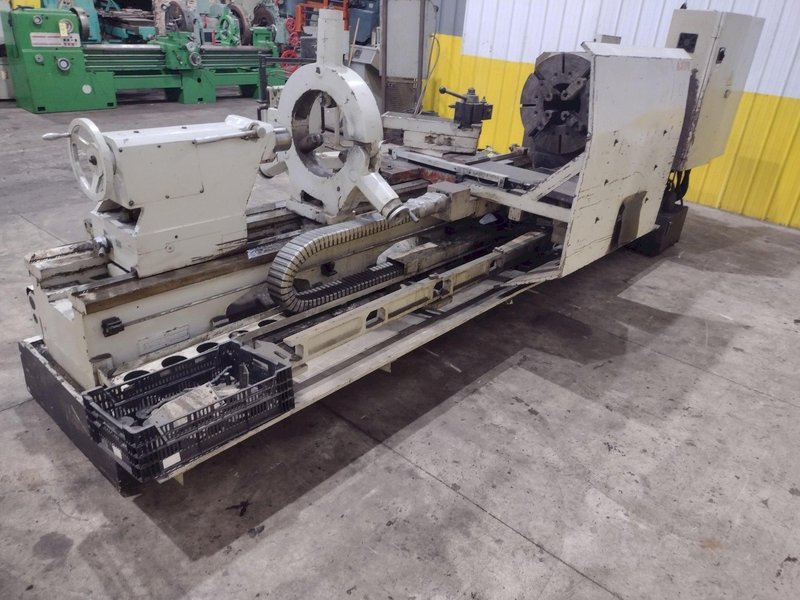

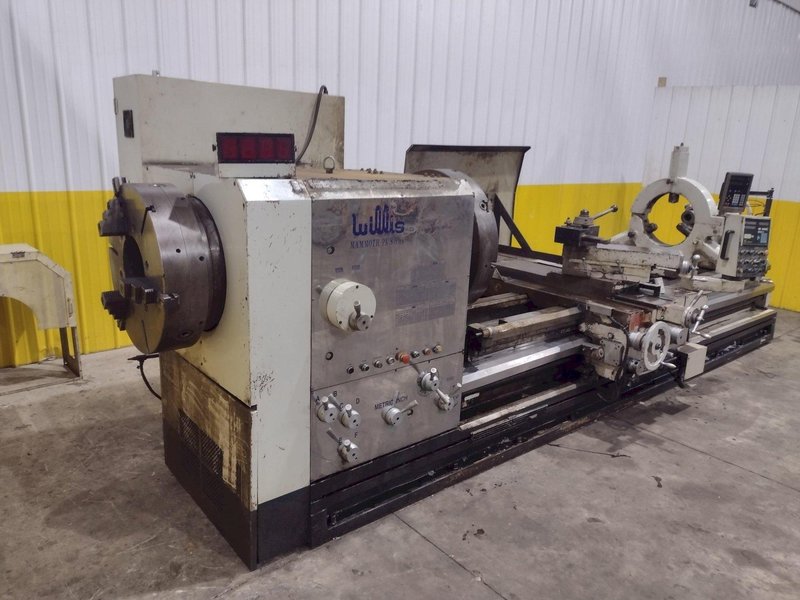

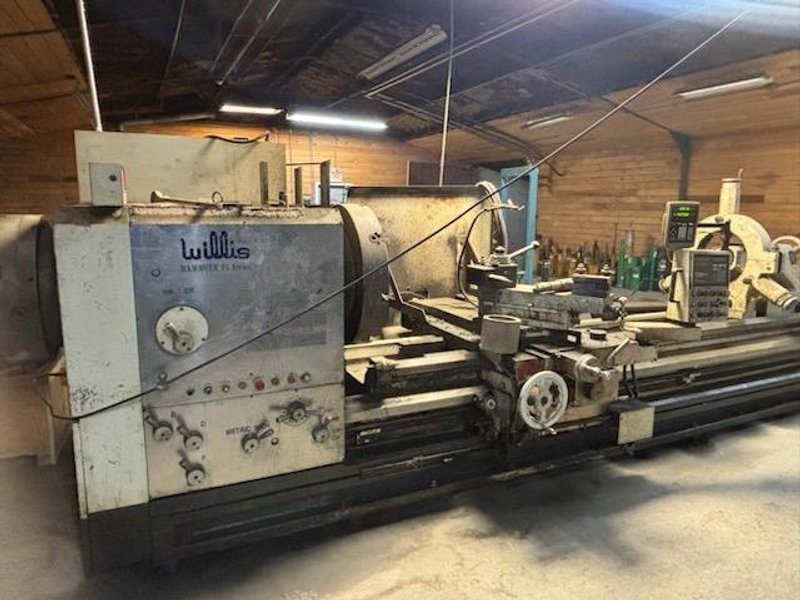

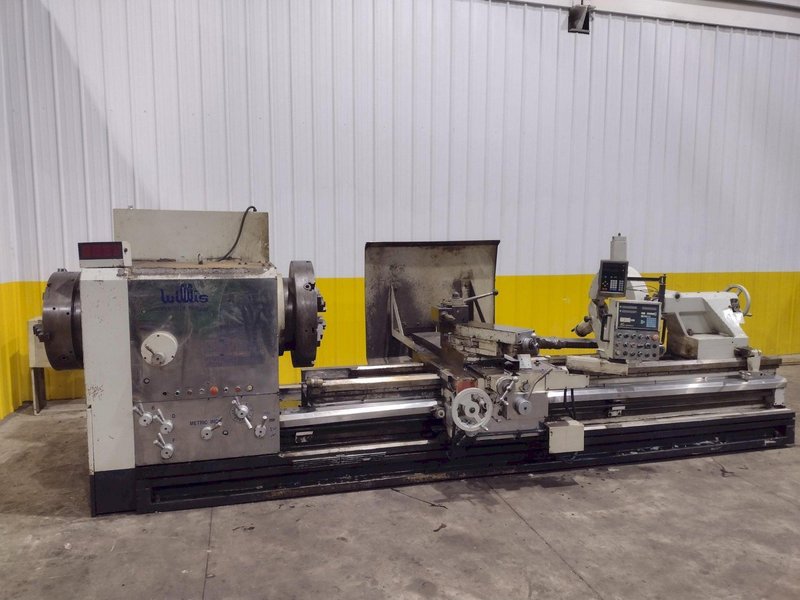

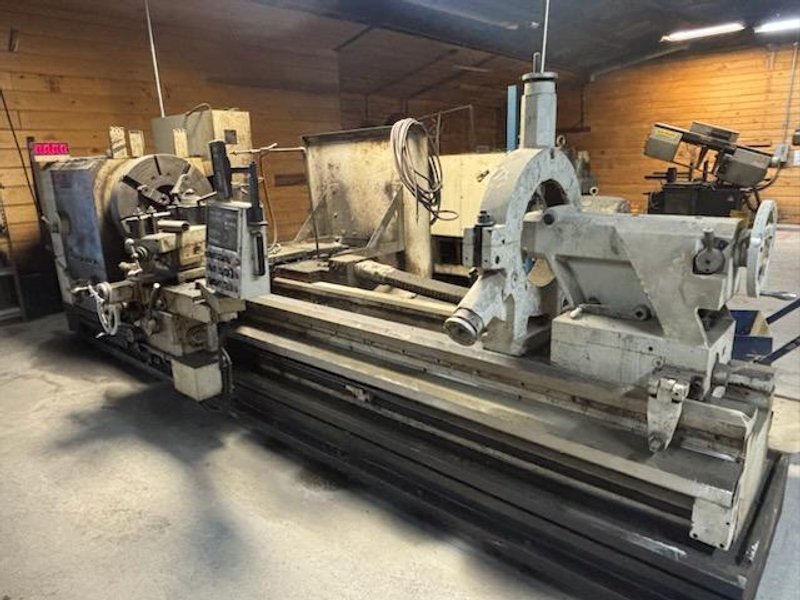

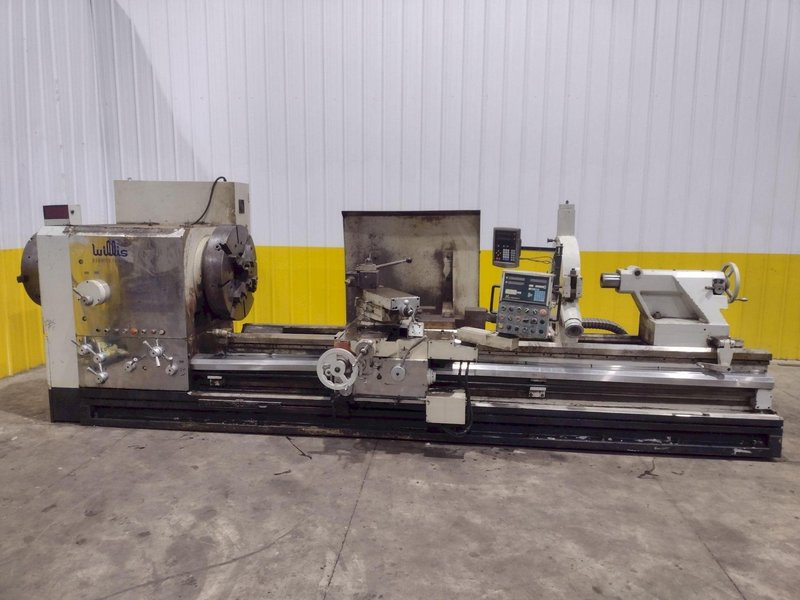

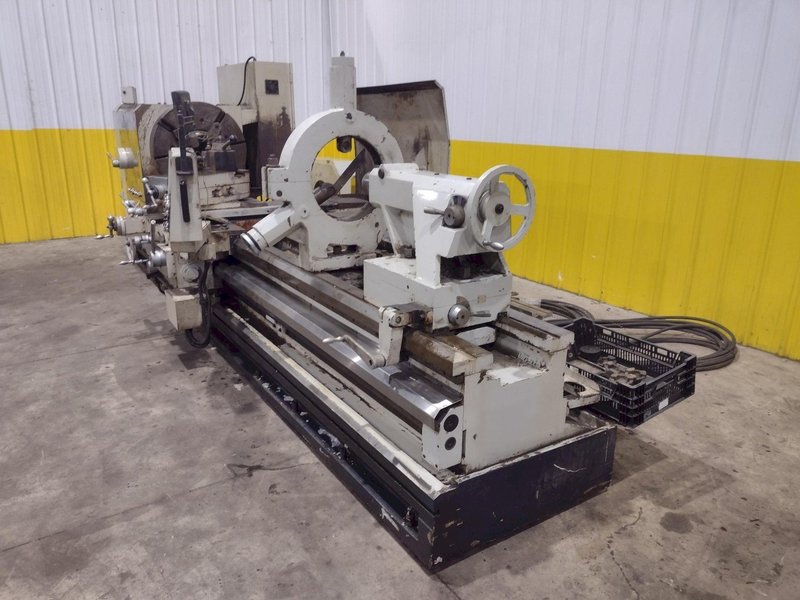

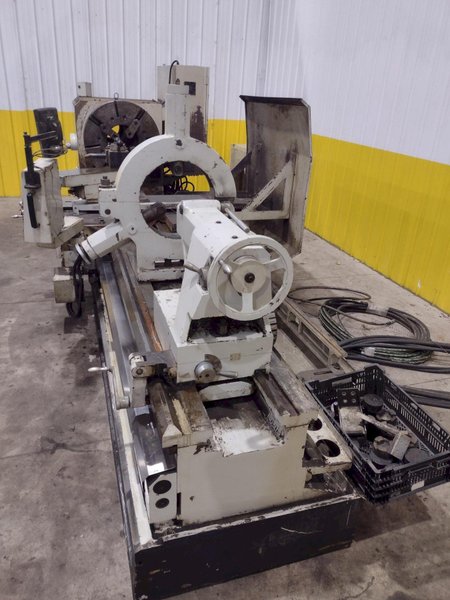

35" x 120" WILLIS MODEL #PK35 HOLLOW SPINDLE ENGINE LATHE 10" HOLE: YOBRO #24547

35" x 120" WILLIS MODEL #PK35 HOLLOW SPINDLE ENGINE LATHE 10" HOLE: YOBRO #24547

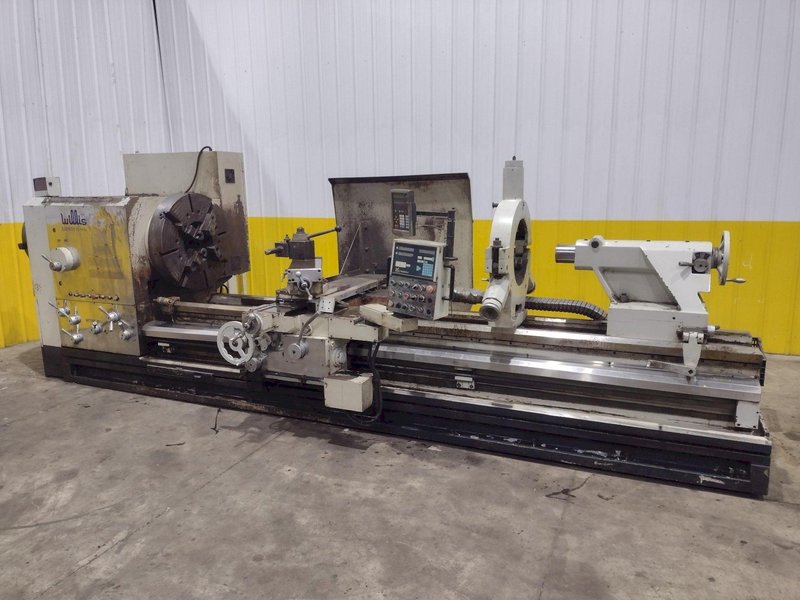

Name: 35" x 120" WILLIS MODEL #PK35 HOLLOW SPINDLE ENGINE LATHE 10" HOLE: YOBRO #24547
Brand: WILLIS
SKU: 24547
Availability: PreOrder

Brand

WILLIS

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

MODEL ................................. PK 35

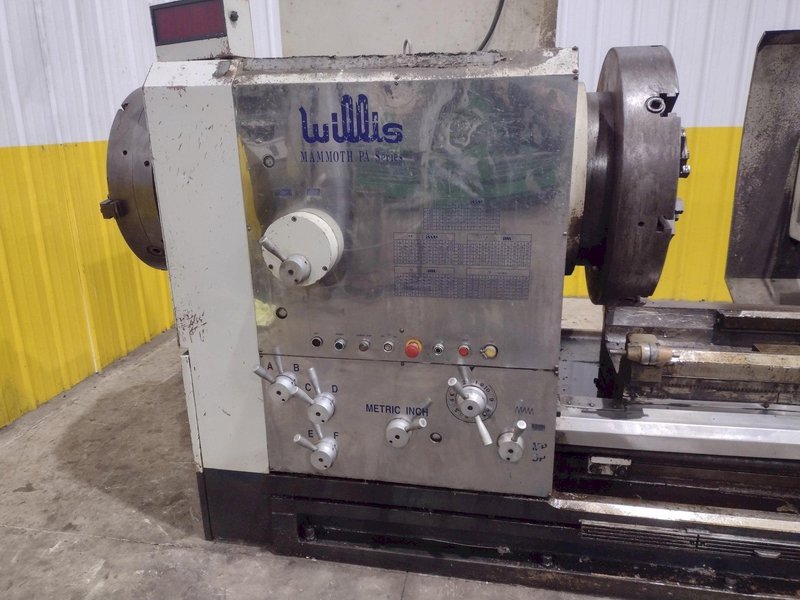

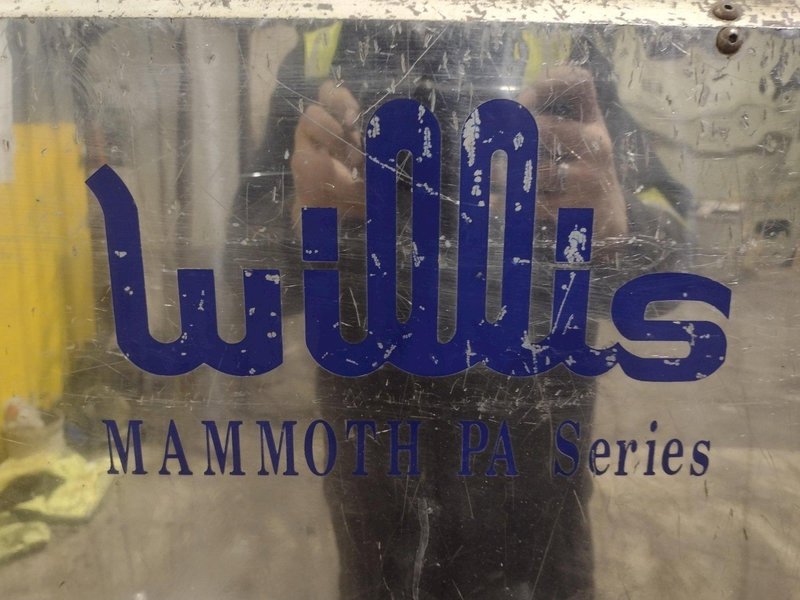

SERIES ................................ MAMMOTH PA
SWING OVER BED ........................ 34.65" (880 MM)
SWING OVER CROSS ...................... 24.21" (615 MM)
SWING IN GAP .......................... 52.76" (1340 MM)
GAP LENGTH ............................ 14"
CENTER DISTANCE ....................... 120" (3000 MM)

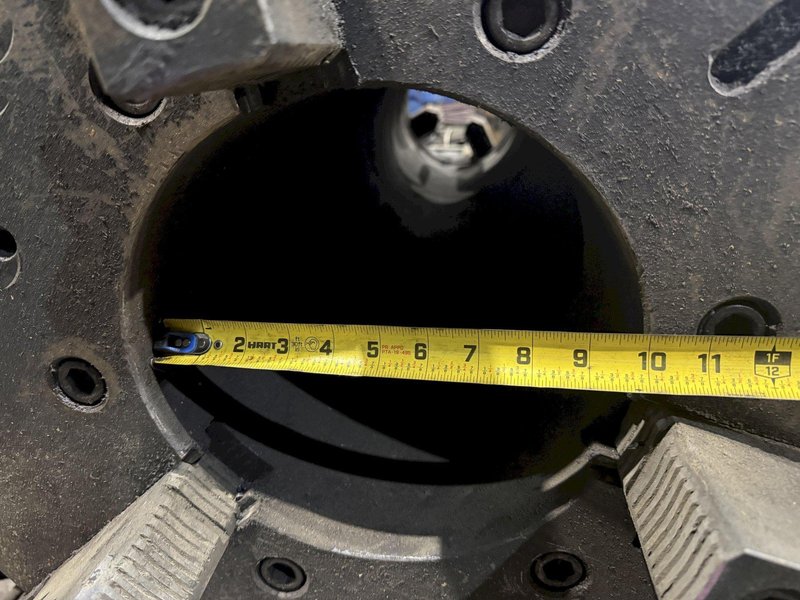

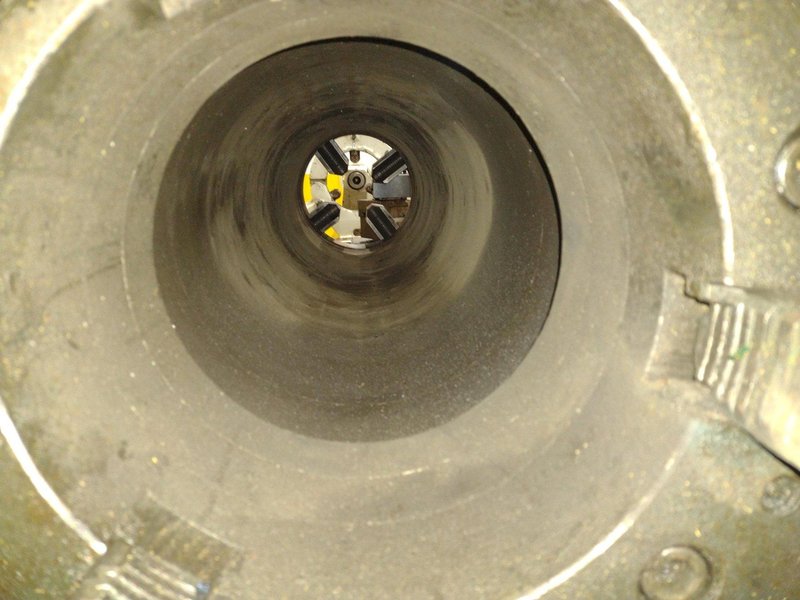

SPINDLE HOLE .......................... 10" (255 MM)
SPINDLE SPEEDS ........................ 6 TO 480 RPM

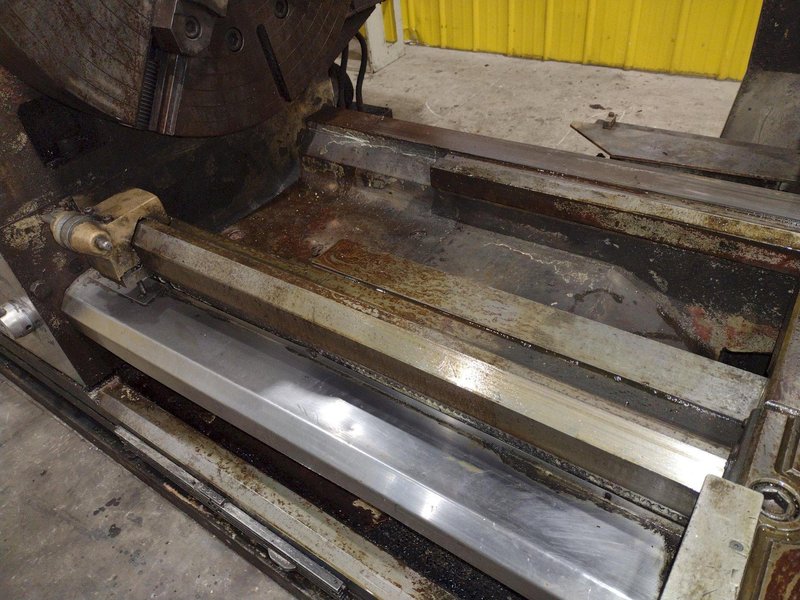

BED WIDTH ............................. 25.98" (660 MM)

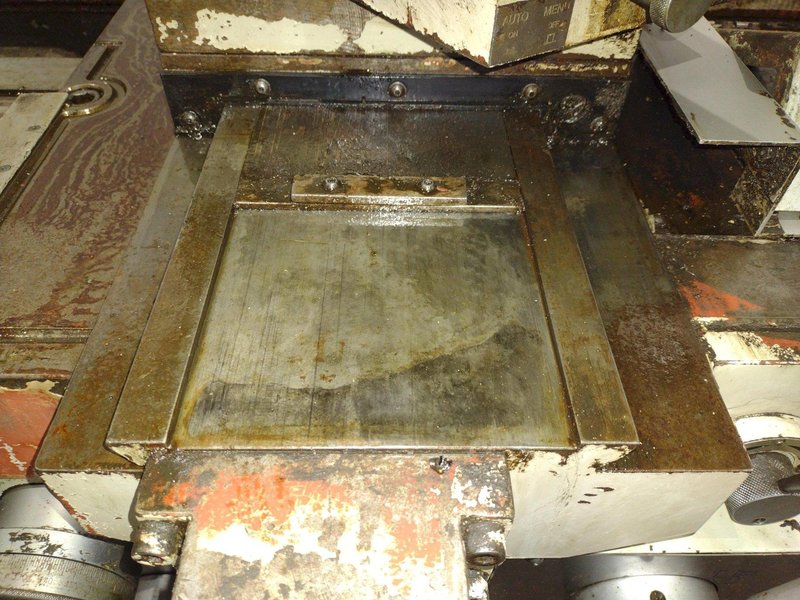

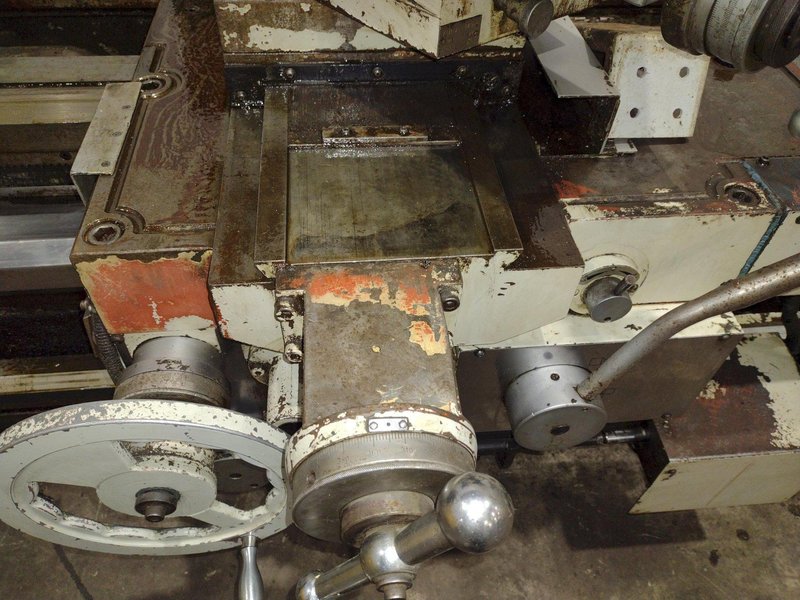

CROSS SLIDE TRAVEL .................... 26.40" (670 MM)
LONGITUDINAL FEEDS .................... 0.0018 TO 0.1 IPR (0.045 TO 2.55 MMPR)
CROSS FEEDS ........................... 0.0009 TO 0.05 IPR (0.023 TO 1.28 MMPR)
RAPID FEED ............................ YES

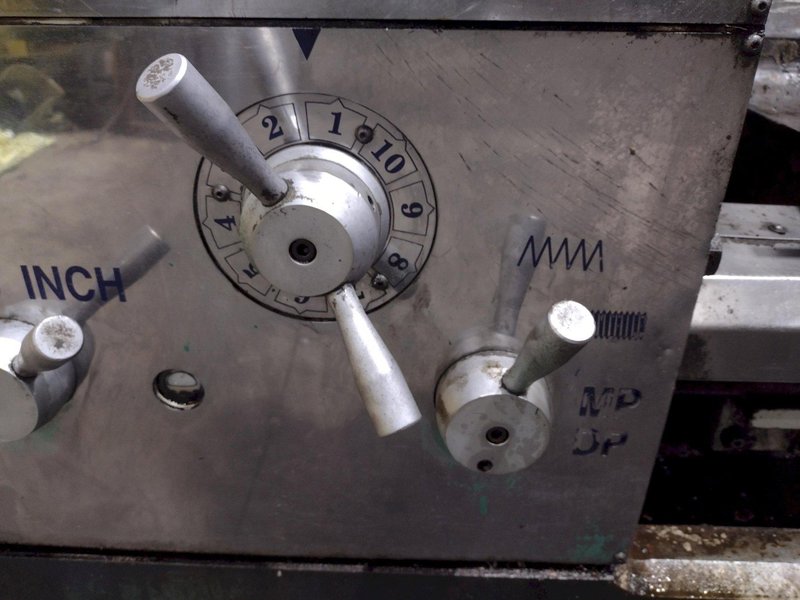

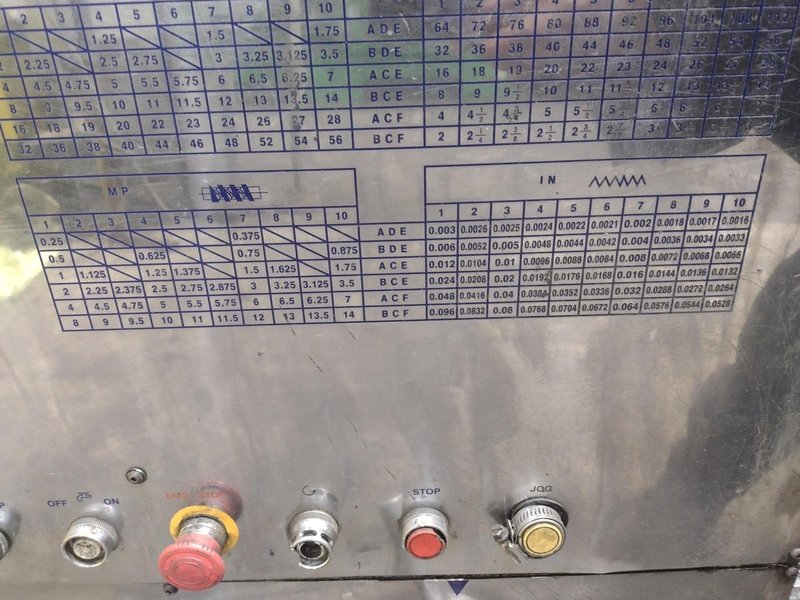

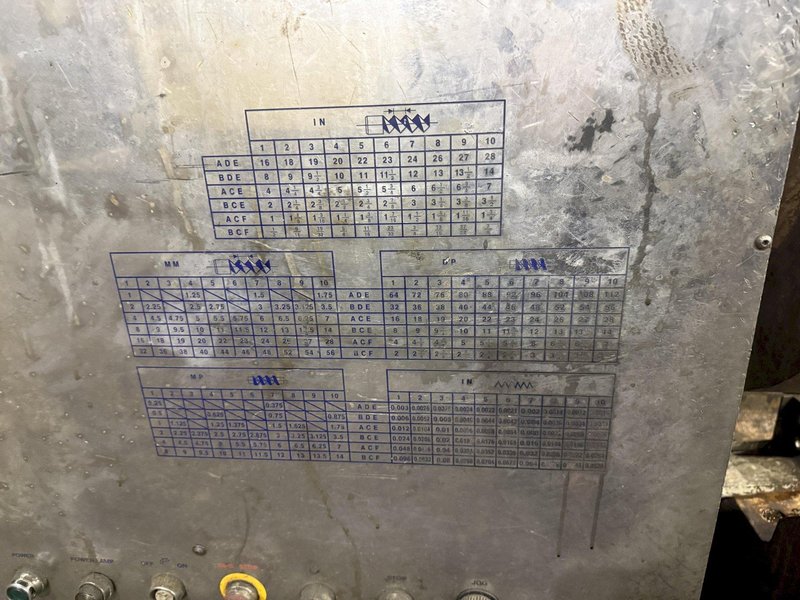

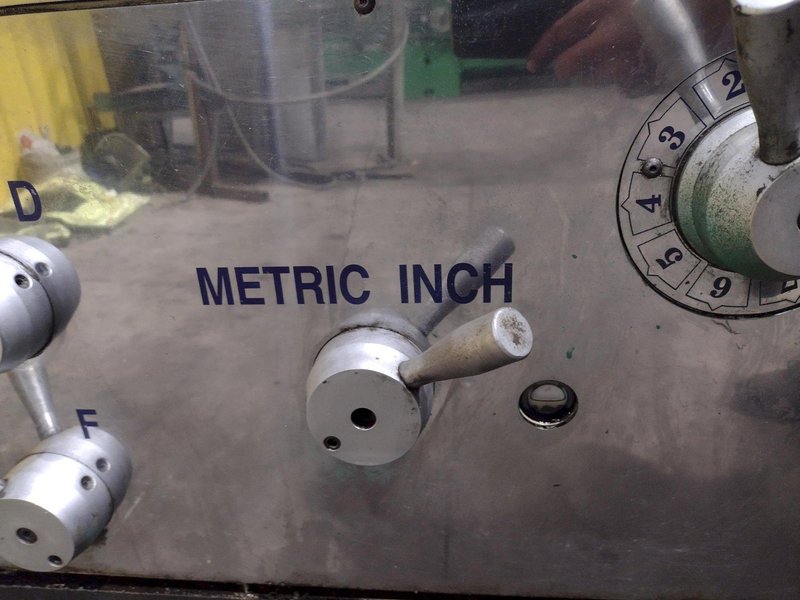

METRIC THREADING ...................... (60) 1 TO 56 MM
INCH THREADING ........................ (60) 1/2 TO 28 TPI

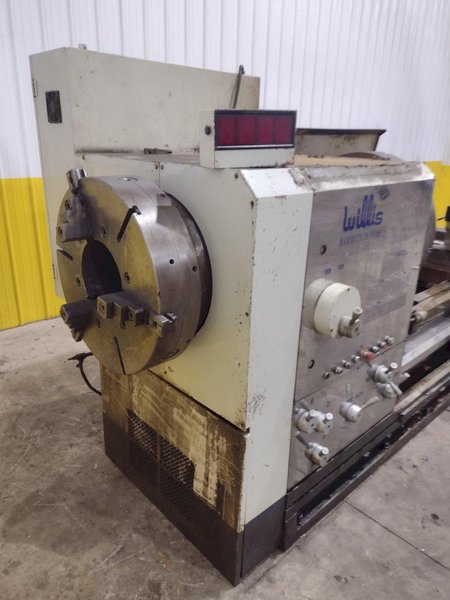

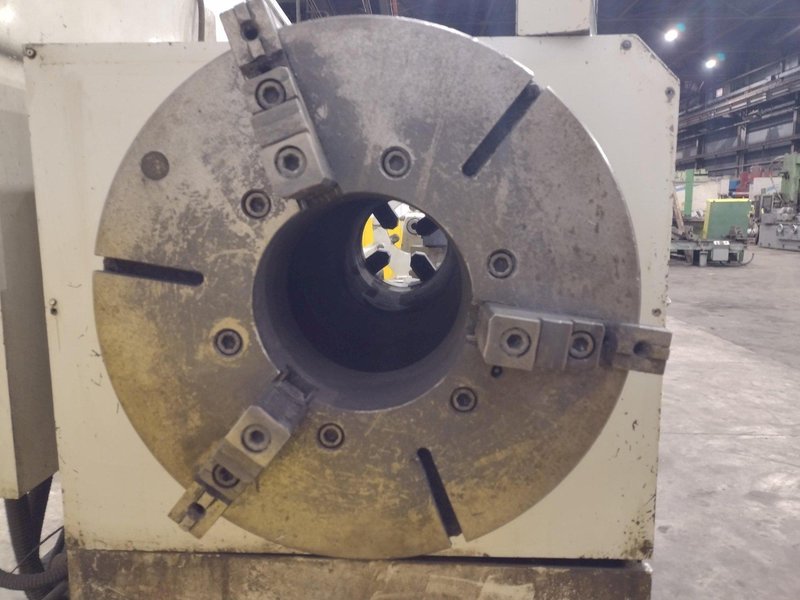

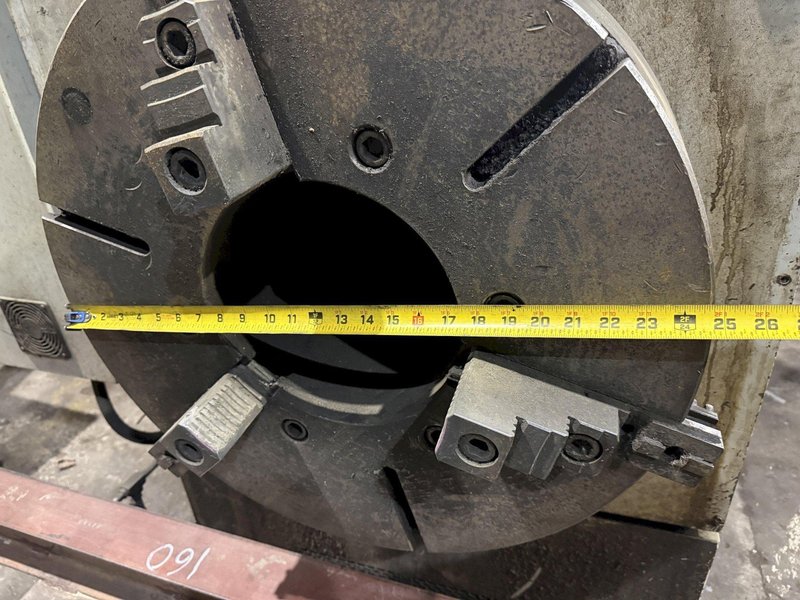

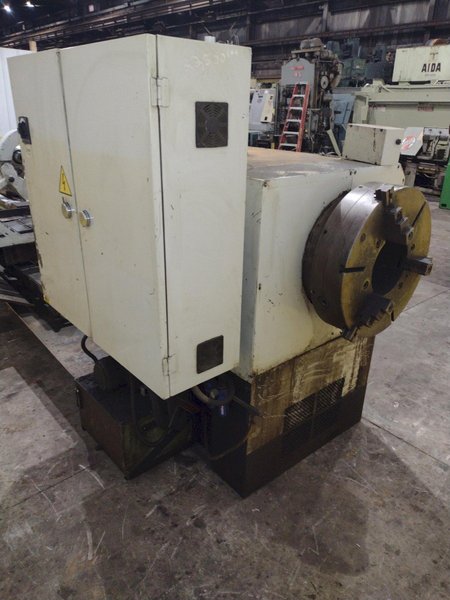

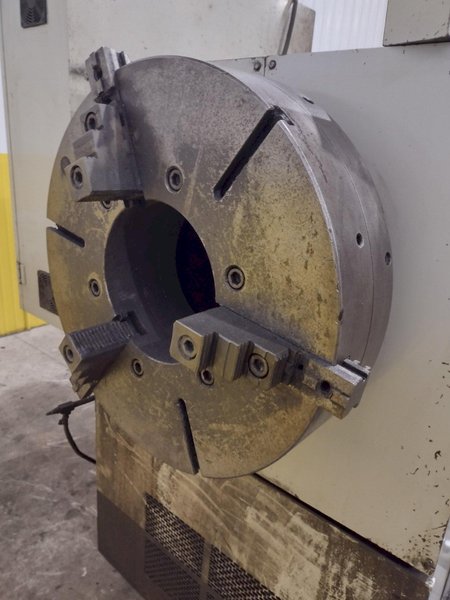

REAR CHUCK ............................ 25" (3 JAW)

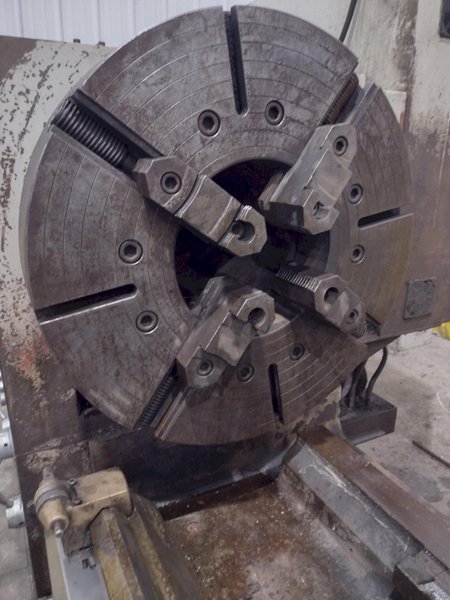

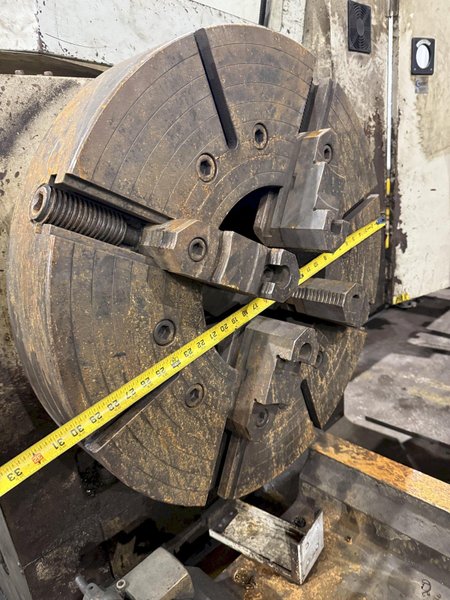

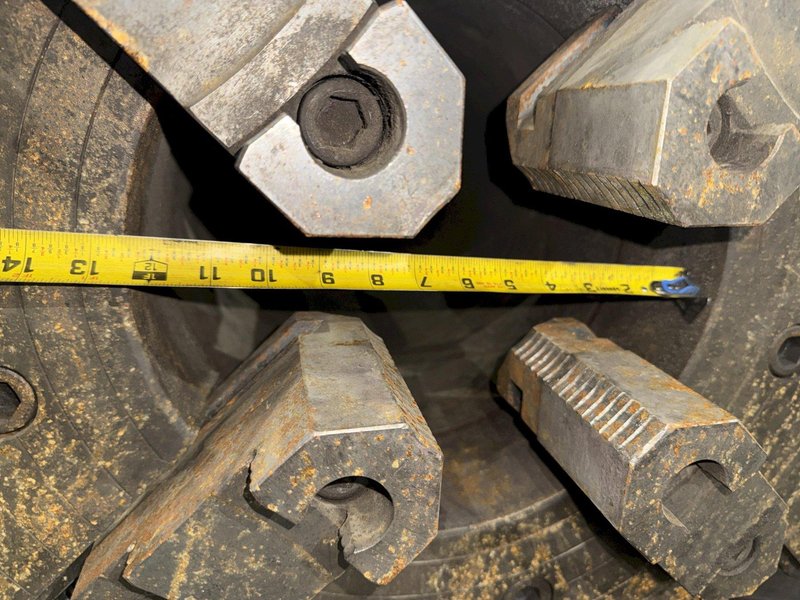

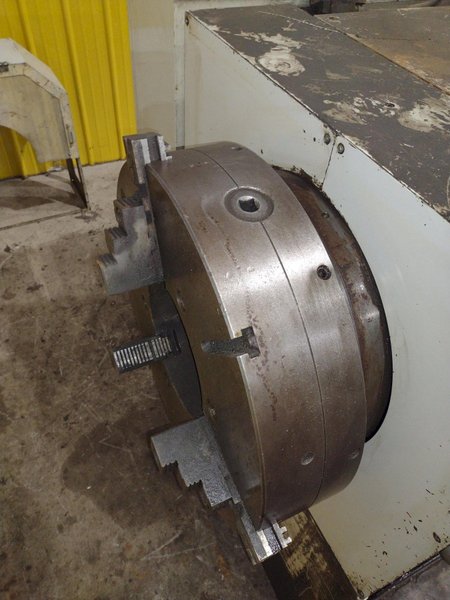

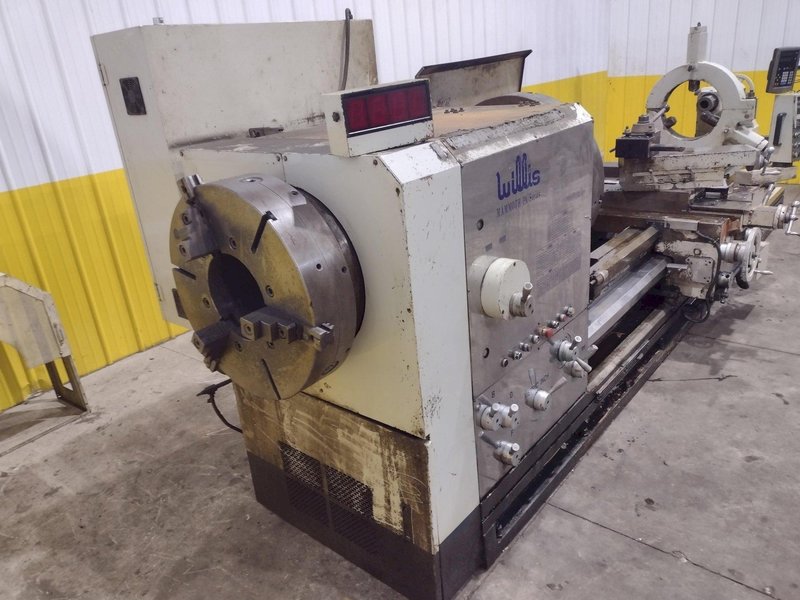

FRONT CHUCK ........................... 30" (4 JAW)

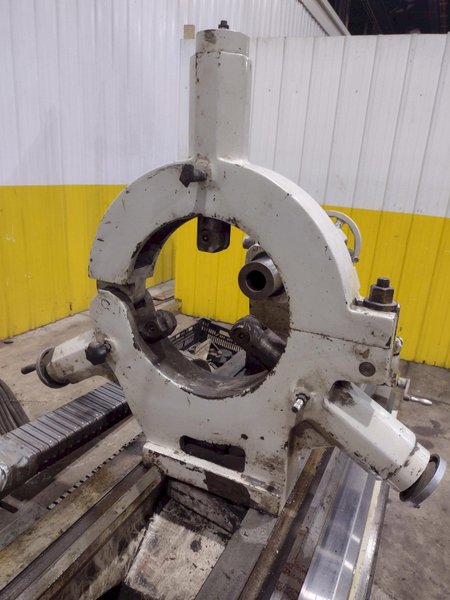

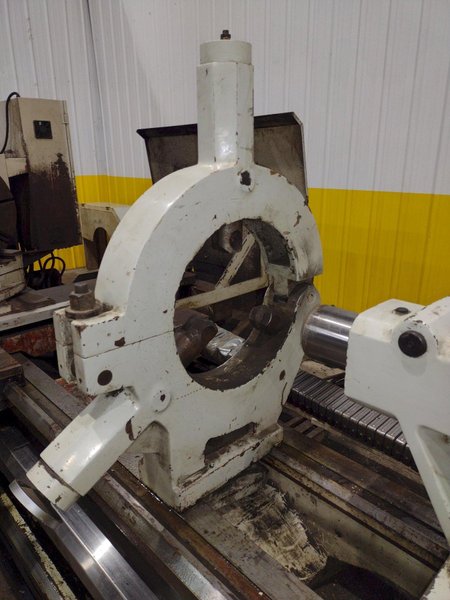

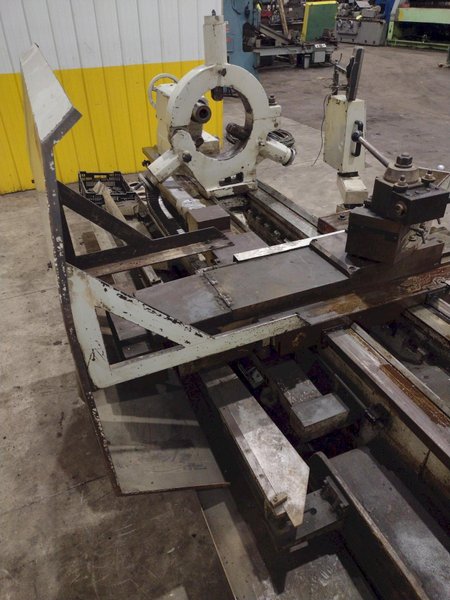

STEADY REST ........................... 16" HOLE
THREAD DIAL ........................... YES

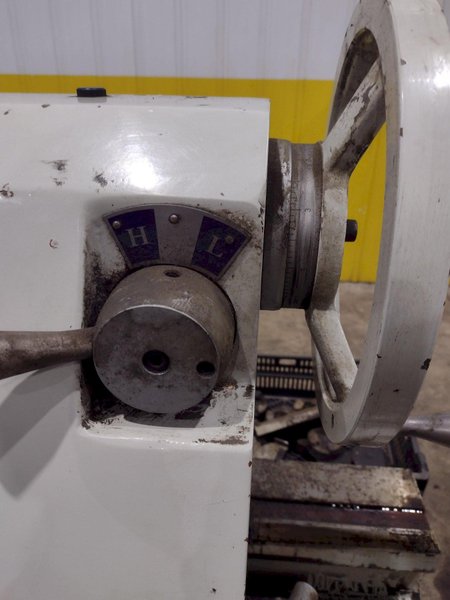

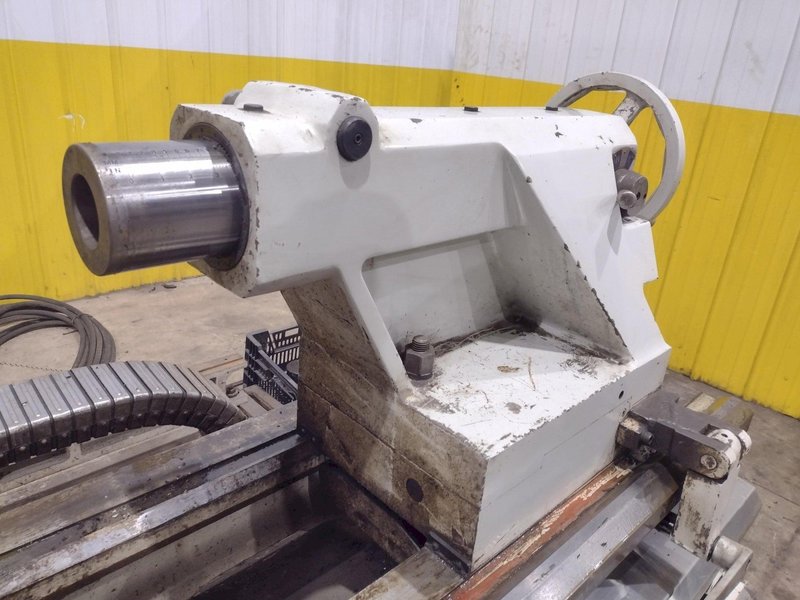

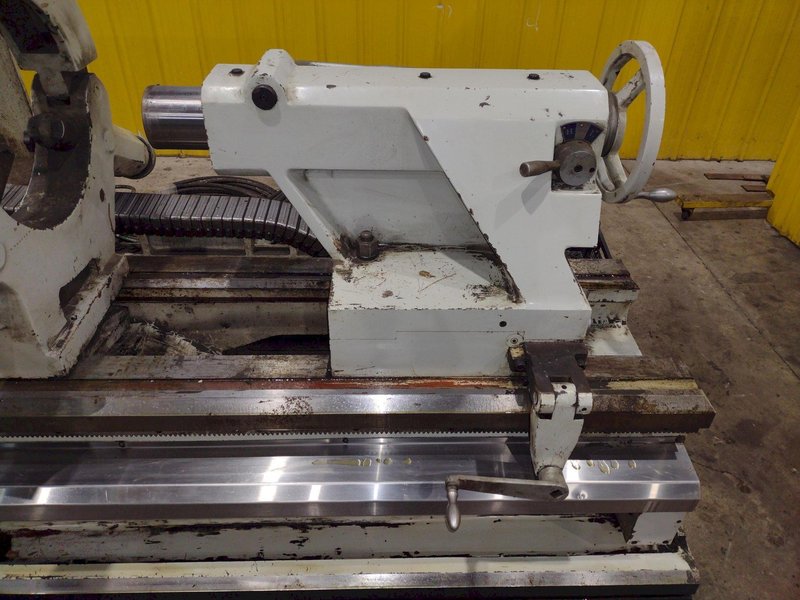

TAILSTOCK ............................. 2 SPEED

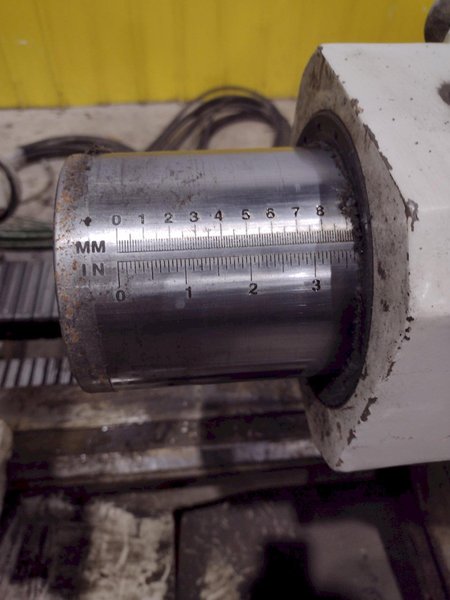

TAILSTOCK QUILL ....................... 4.52" (115 MM)
TAILSTOCK TRAVEL ...................... 7.87" (200 MM)
TAILSTOCK TAPER ....................... #6 MT

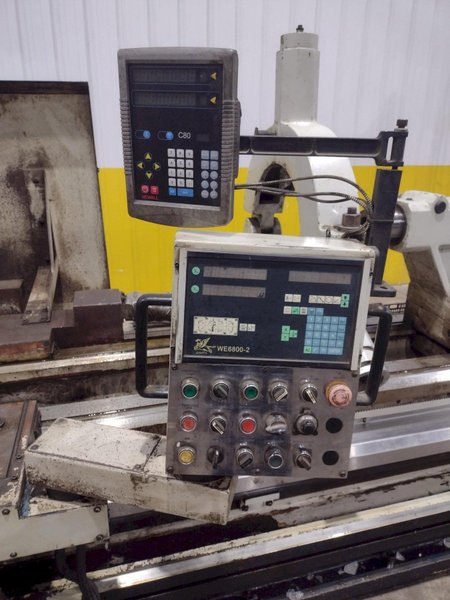

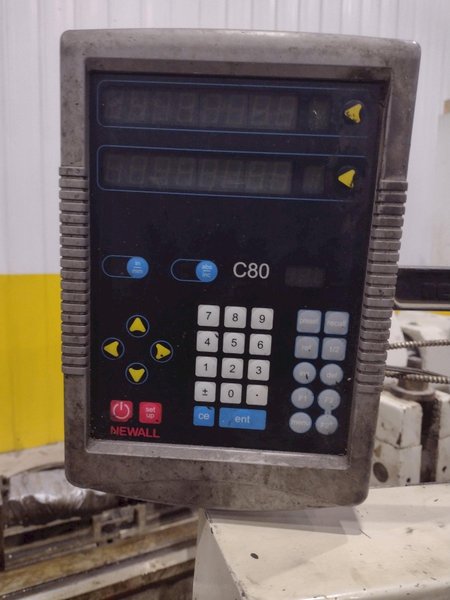

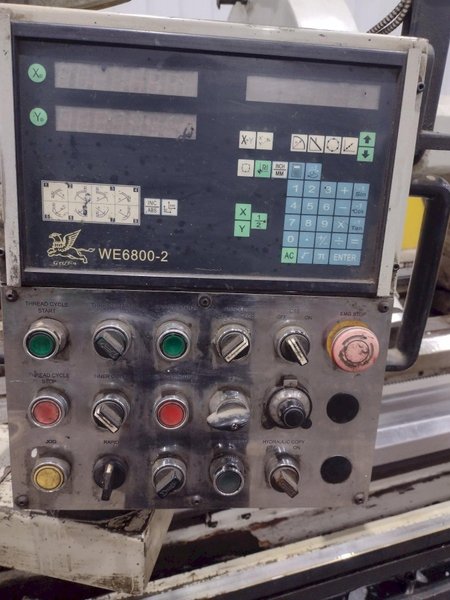

DIGITAL READ OUTS ..................... 2 AXIS
COOLANT PUMP .......................... 1/8 HP

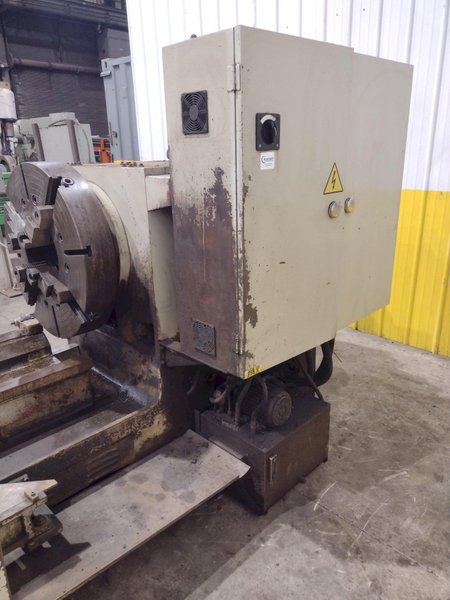

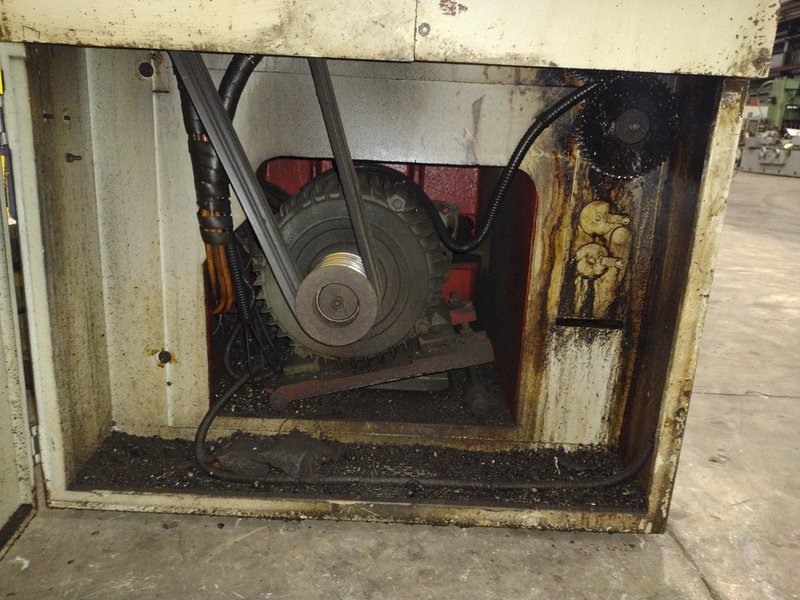

MAIN MOTOR ............................ 30 HP (22KW)
