Automat HOT-STAMPINGOWY KELLER K-Roll ROTO 2 (2017)

For sale: Professional HOT-STAMPING Machine KELLER K-Roll ROTO 2 (2017)

I offer a fully automatic, industrial HOT-STAMPING machine for decorating cylindrical components by KELLER – model K-Roll ROTO 2 from 2017.
The machine is ideal for frequent and intensive hot-stamping of parts used in utility, food, electronic applications, as well as cylindrical packaging.

The machine is complete, in very good technical condition, and ready for immediate operation.

⭐ Key advantages and benefits for the buyer
► Very high productivity
Two fully automatic hot-stamping stations.

Possibility to apply two prints on one part or process two parts simultaneously.

Actual output: 1000–2000 pcs/hour per station, up to 4000 pcs/hour for the entire machine.

► Fully automated process
Loading → transport → positioning → printing → unloading → part collection.

Minimal operator involvement, reduced downtime and limited need for data storage and handling.

► Precision thanks to advanced electronics
MITSUBISHI control system and servo drives

HIWIN linear guides

FESTO / METALWORK pneumatics

WEISS indexing table
Solid, rigid construction ensures accuracy and repeatability.

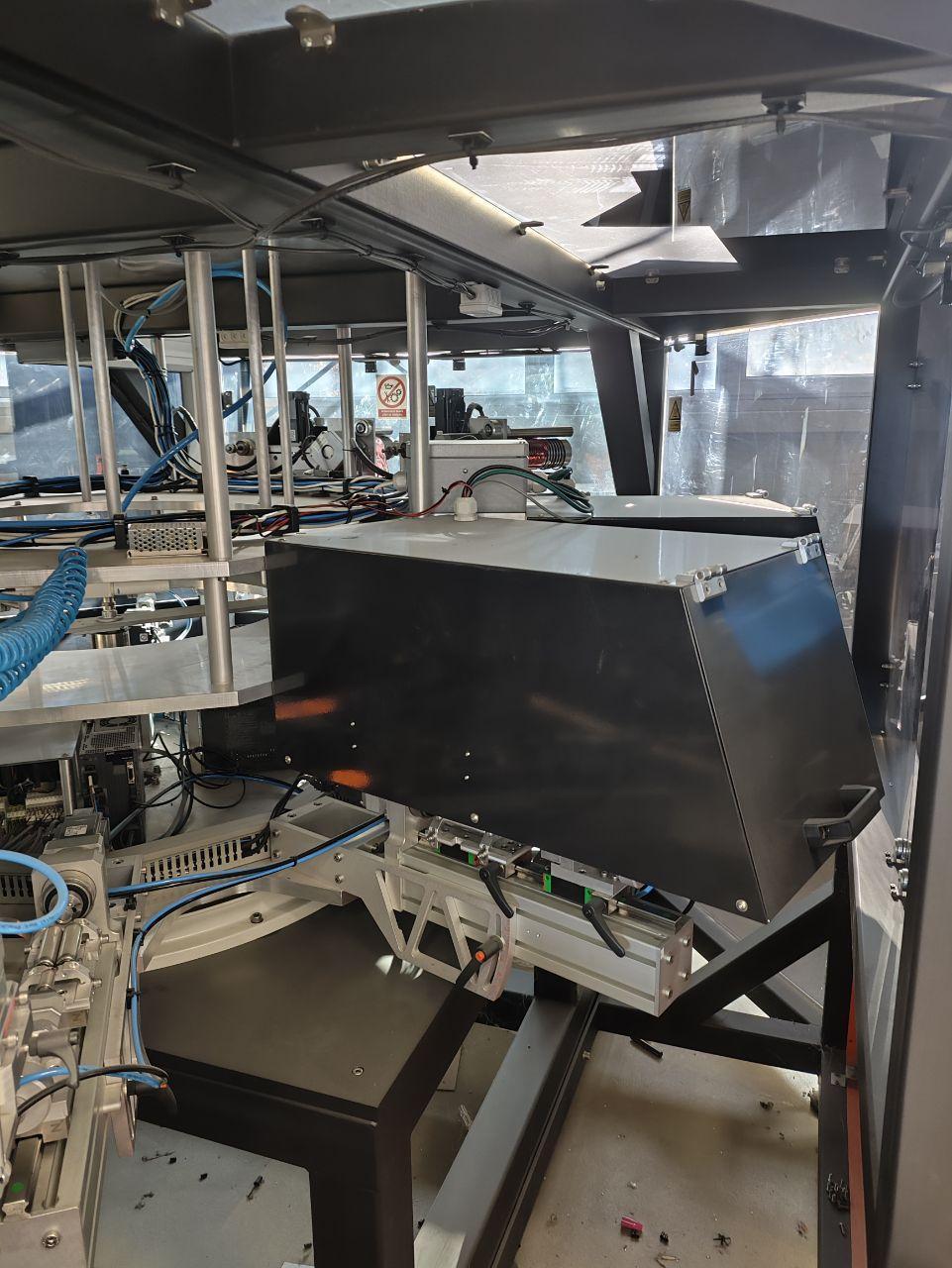

► Reliable COGNEX vision system
Automatic inspection of each part.

Rejection of defective parts with adjustable percentage threshold settings.

► Very fast changeover
Replacement and heating of dies: approx. 20 minutes

Tooling change: approx. 10 minutes
Ideal for both short and medium production runs.

► Comfortable and safe operation

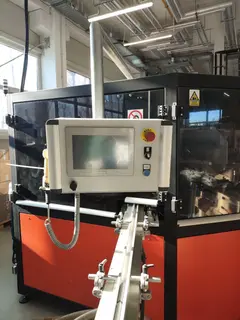

10” touchscreen panel with 3 access levels.

Remote access module and inspection camera.

Safety enclosure with PC panels, WIELAND / OMRON safety modules.

Equipment and functionality

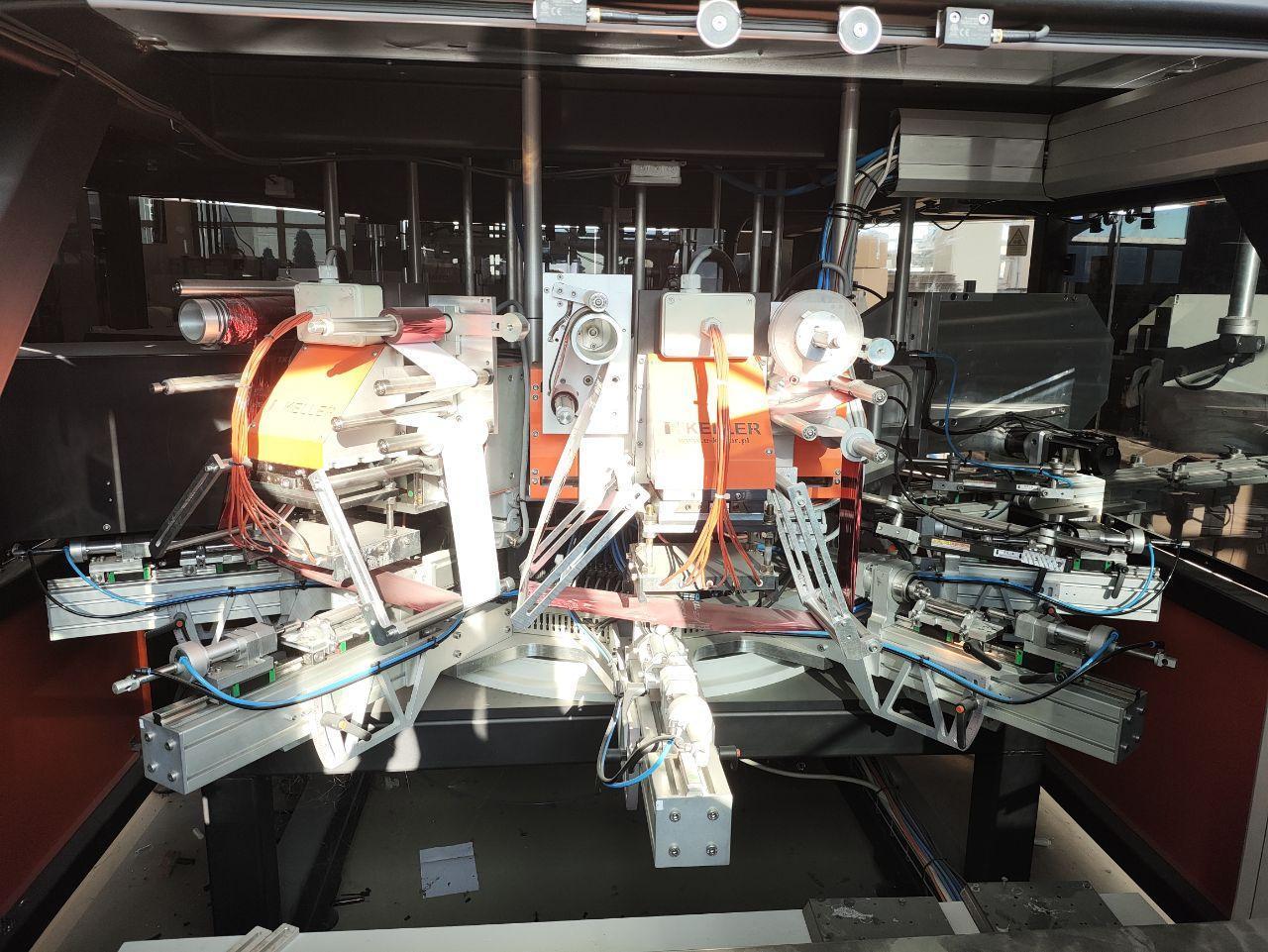

2 independently operating KELLER HOT-STAMPING printing units with automatic foil feeding

Power supply: 400 V

Compressed air: 6 bar

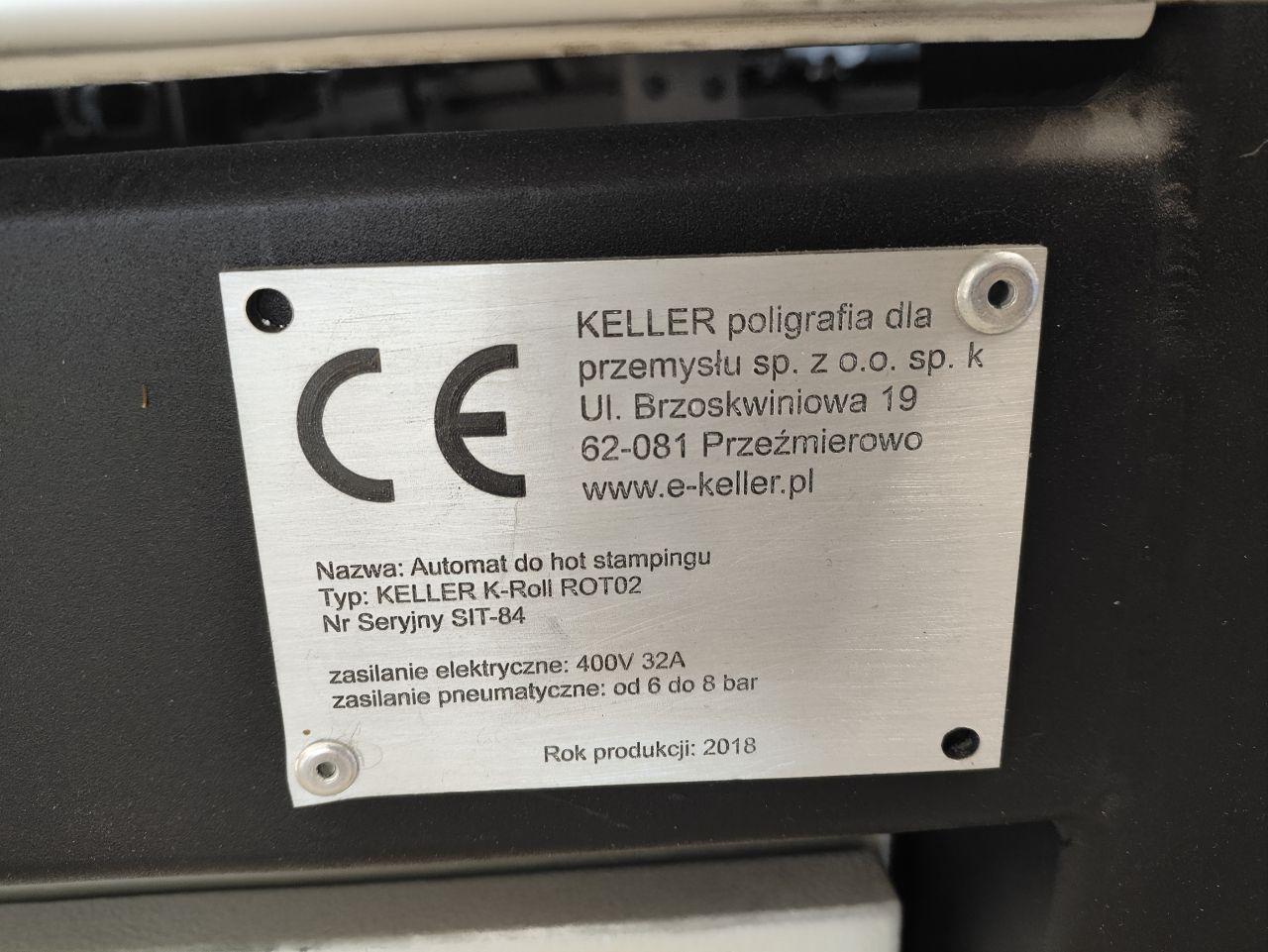

CE certificate, complete technical documentation

Machine dimensions
Height: 2.2 m

Width: 2.5 m

Length: 4 m

Weight: 1500 kg

8 support points, floor load: 150 kg/m²

Operating description

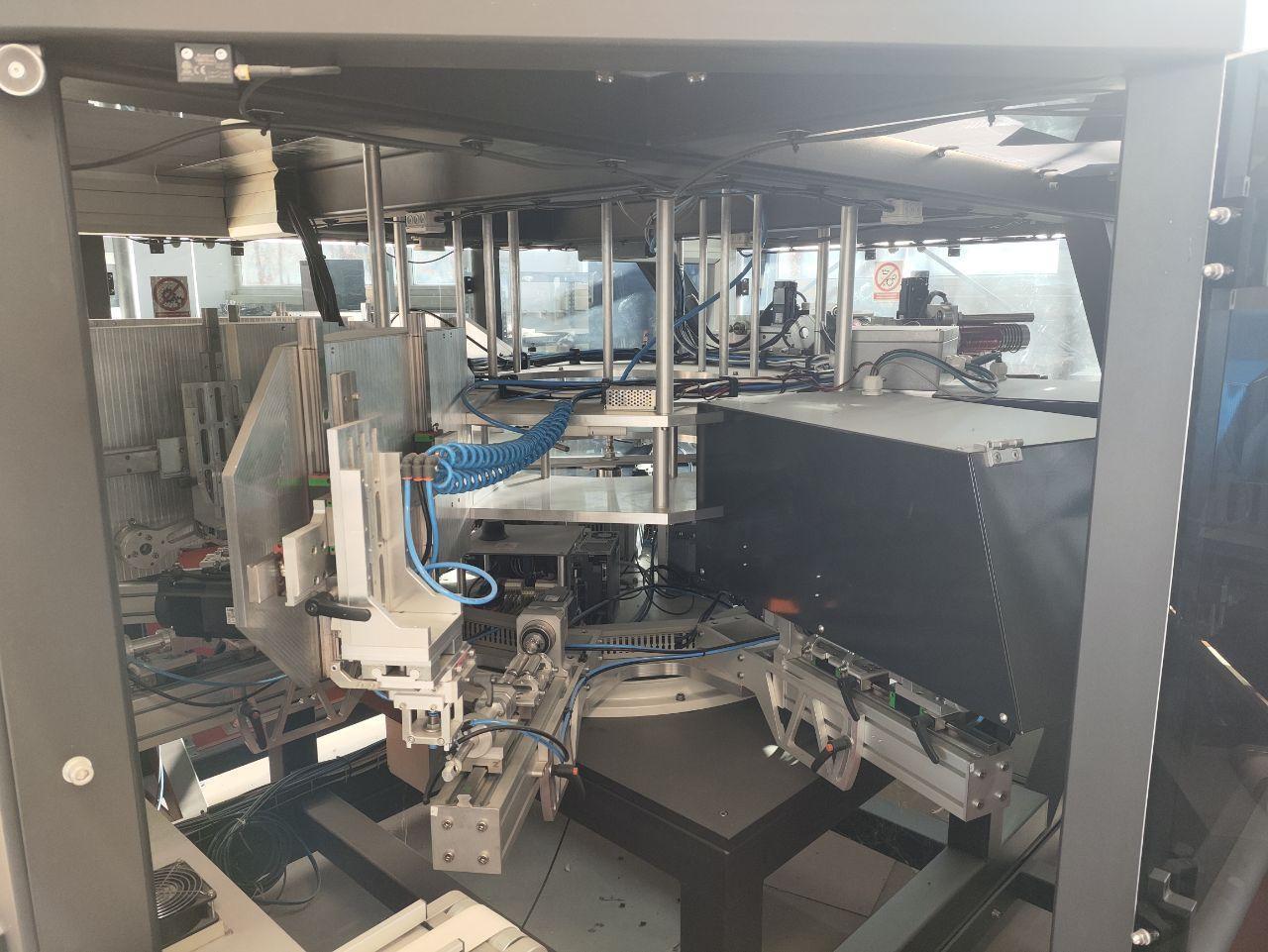

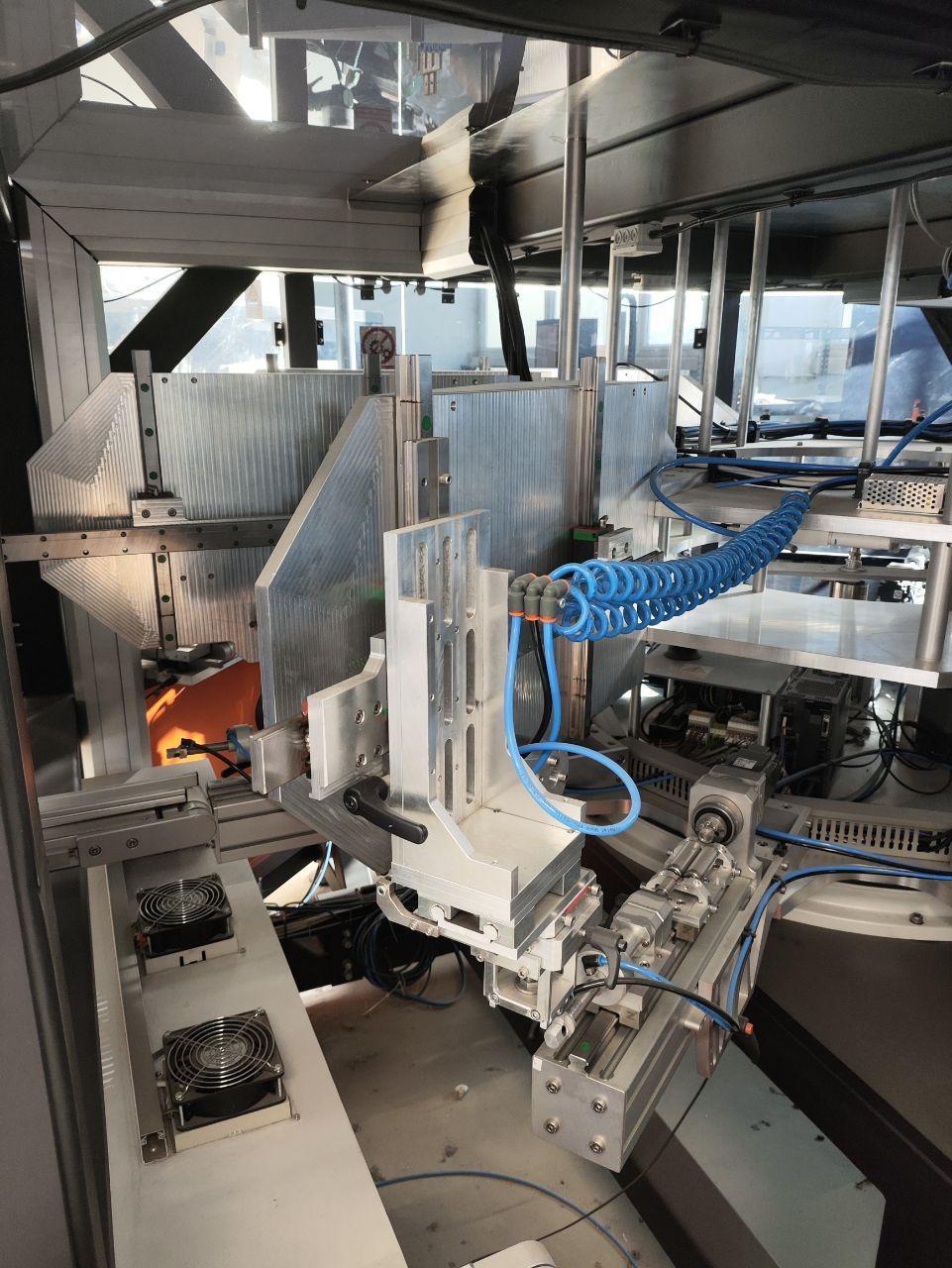

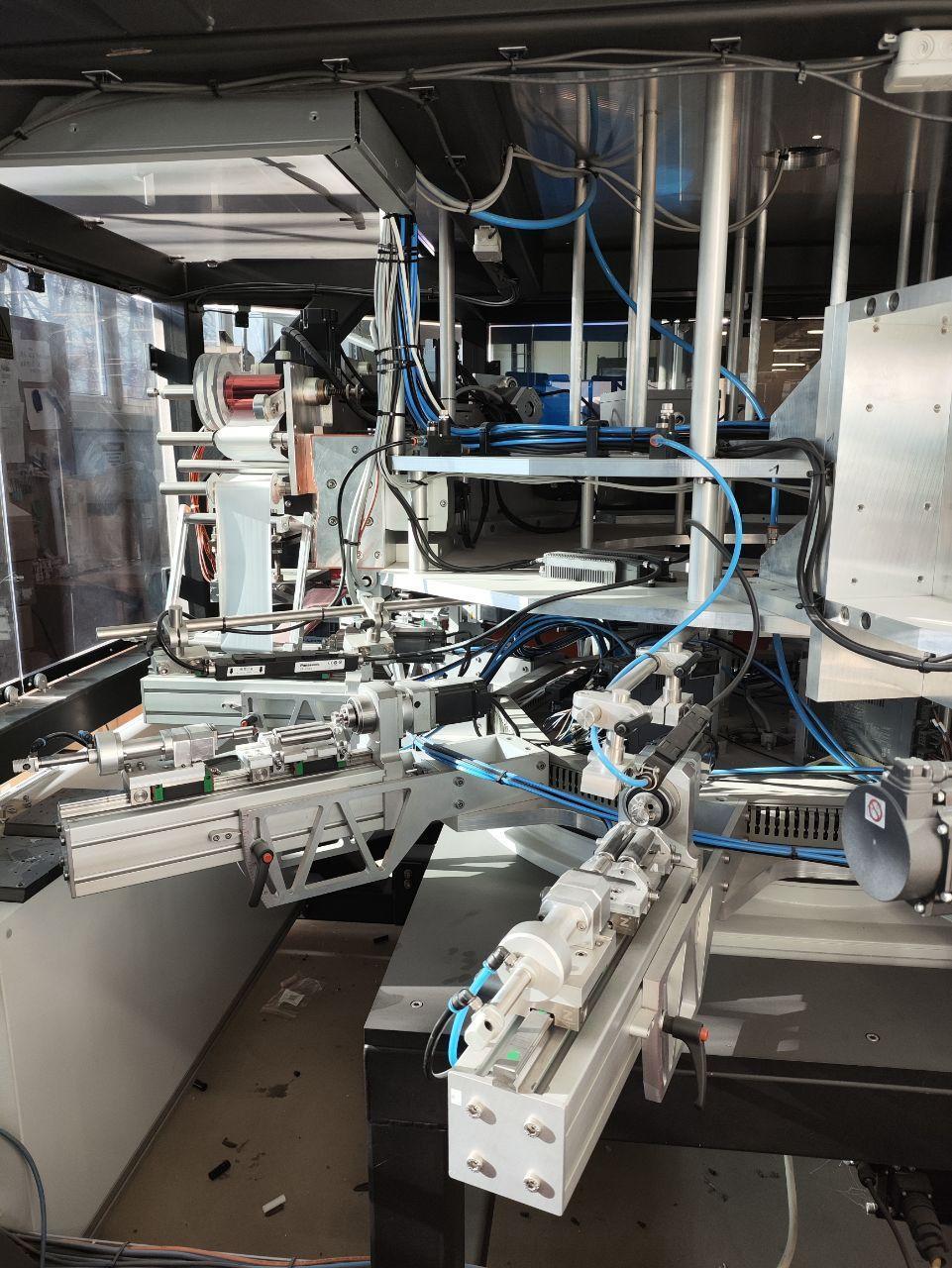

Conveyors feed the parts to manipulators, which position them on rotary tables. The parts are then transferred to the hot-stamping station (1 or 2 prints), after which they are automatically removed and sent to the output conveyor or a collection container.
The process is fully automatic, fast, and repeatable.

Machine available immediately.
Contact:
Piotr Jasicki
📞 604-195-102
📍 Grodzisk Mazowiecki, Poland

On-site inspection possible
