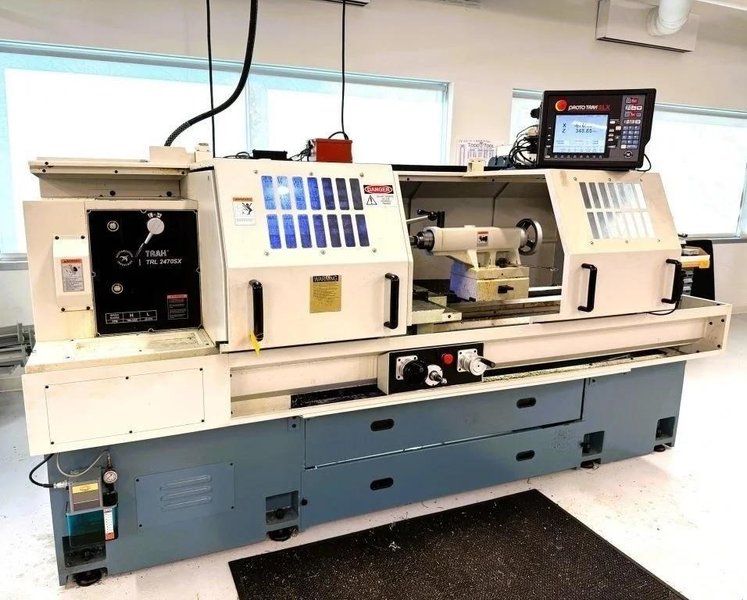

Southwestern Industries Trak TRL 2470SX (2016)
Brand
Category
Type
Model
Trak TRL 2470SX
Stock #
104312
Year
2016
Condition
Not specified
Location
Not specified
|
TRAK TRL 2470SX Machine Specifications • Height of Centers- 12”
• Distance between centers- 70”
• Swing over bed – 24”
• Swing over saddle wings – 24”
• Swing over cross slide – 14.5”
• Cross slide travel – 12.5”
• Tool section max – 1”
• Coolant – 15 gal.
• Bed Width – 14.57”
• Bed Height – 15”
• Spindle Nose – D1-8
• Spindle through hole – 4.09”
• Spindle Taper – MT #8
• Taper in reduction sleeve – MT #5
• Spindle diameter front bearing – 5.51”
• Number of bearings - 2
• Bearing Class (Radial Runout) – Normal
• Number of Spindle Speed Ranges - 2
• Spindle Speed Range (RPM) – 40-670, 100-1800
• Spindle HP – 15
• Voltage - 220
• Amps/full load – 42
• Control – 110V/1P/12A
• Machine – 220V/3P/60Hz
• Dimensions net LxWxH 129 x 60 x 77”
• Dimensions ship LxWxH – 134 x 64 x 77”
• Weight net - 6500 lbs.
• Weight ship – 6900 lbs.
• Tail stock quill travel – 8.5"
• Quill diameter – 3.5"
• Quill taper hole - MT#5
• Coolant pump motor - 1/8 HP
• Dynamic spindle motor brake
• Way surface hardness - 480-560 HB
• Direct drive headstock - no gear shifting
• Quiet operation
• Dual sliding doors to control chips and coolant with one door removable
• Meehanite cast monolithic base
• Heavy ribbed base construction
• Bedways hardened and ground
• Sliding surfaces Turcite coated
• Dovetails on cross slide, V-ways on saddle
• Adjustable saddle gibs
• Maximum rapid 250 ipm

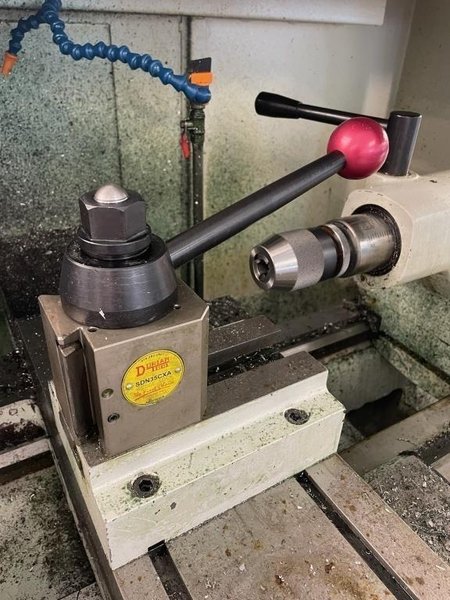

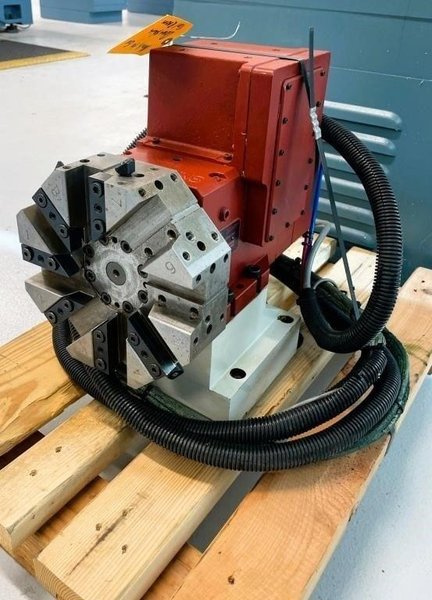

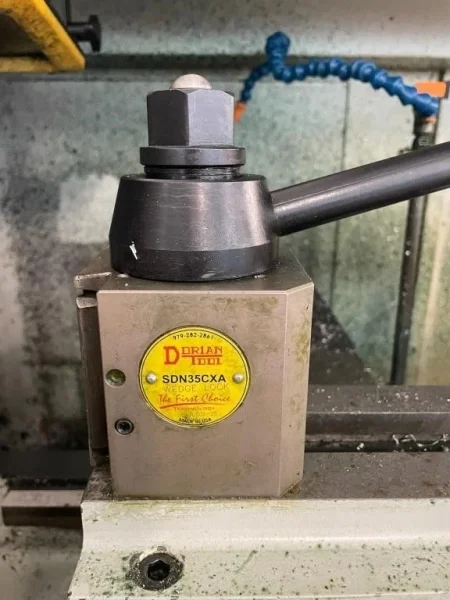

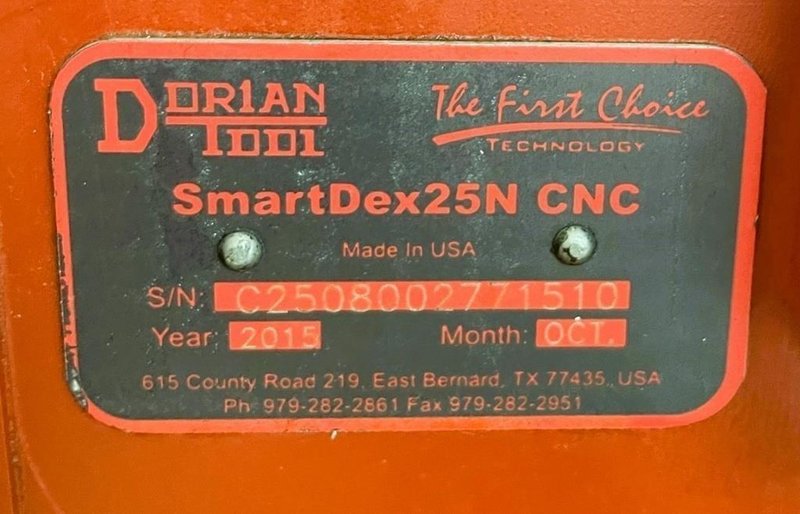

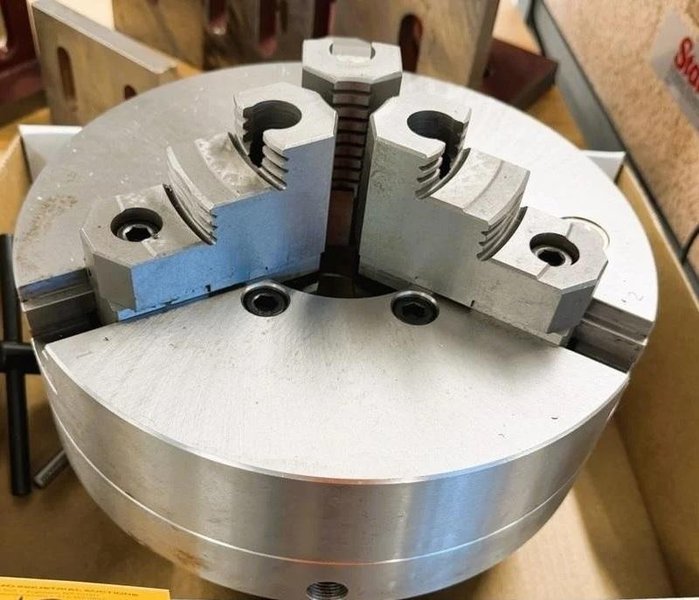

Equipped With: Prototrak SLX CNC Control Tool Post Dorian Smart Dex 25N Power Turret 12" BTC 3 Jaw Chuck (#D1-8) Collet Closure |
